VIFLY StoreSafe Smart Lipo Battery Discharger XT30 XT60 2-6S with Heatsink
296 orders (reference)
Description
VIFLY StoreSafe Smart Lipo Battery Discharger XT30 XT60 2-6S with Heatsink ============================================================ GET TO KNOW VIFLY StoreSafe VIFLY StoreSafe is a smart lipo battery discharger that can intelligently discharge your battery to storage voltage.With built-in advanced algorithm and the temperature sensor, it can keep the highest discharge rate in an appropriate temperature range.The heatsink would effectively dissipate the heat to prevent the discharger from overheating 1. XT60/XT30 Input 2. Red LED 3. Blue LED 4. G reen LED StoreSafe would recognize the battery type automatically and indicate it with different LED lights. LED Indication G reen LED Blue LED Red LED Battery Type × × 7.4V(2S) × 11.1V(3S) × × 14.8V(4S) × 18.5V(5S) × 22.2V(6S) Note: When the LED status does not match the above table, please stop using StoreSafe immediately and contact us. Operation Before using StoreSafe, please make sure that the voltage of each battery cell is higher than 3.95V . After plugging in the battery, the LED that indicates the status will flash for about 5 seconds and then enter the discharging state. If the LED status not indicates correctly, please disconnect the battery immediately. The StoreSafe will stop discharging when your battery reaches storage voltage (3.85V±0.08V / cell) and then goes into an ultra-low leakage current (<10uA) Working Voltage 7.9 - 26V(2S-6S) Discharging Power 1W Turn-off Current < 10uA Storage Voltage 3.85V±0.08V / cell Connector XT60 / XT30 Weight 8g(XT60) / 5g(XT30) Size (L x W x H) 37 x 16 x 10 mm(XT60) / 32 x 15 x 10 mm(XT30) AVAILABLE OPTIONS XT30 XT60 PRODUCT INFORMATION Brand: Vifly Category: Battery Charger Wholesale Price: US $6.06 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | StoreSafe |
| For Vehicle Type | Helicopters |
| Tool Supplies | other |
| Four-wheel Drive Attributes | other |
| Remote Control Peripherals/Devices | other |
| Upgrade Parts/Accessories | other |
| RC Parts & Accs | other |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
GET TO KNOW VIFLY StoreSafe
VIFLY StoreSafe is a smart lipo battery discharger that can intelligently discharge your battery to storage voltage.With built-in advanced algorithm and the temperature sensor, it can keep the highest discharge rate in an appropriate temperature range.The heatsink would effectively dissipate the heat to prevent the discharger from overheating

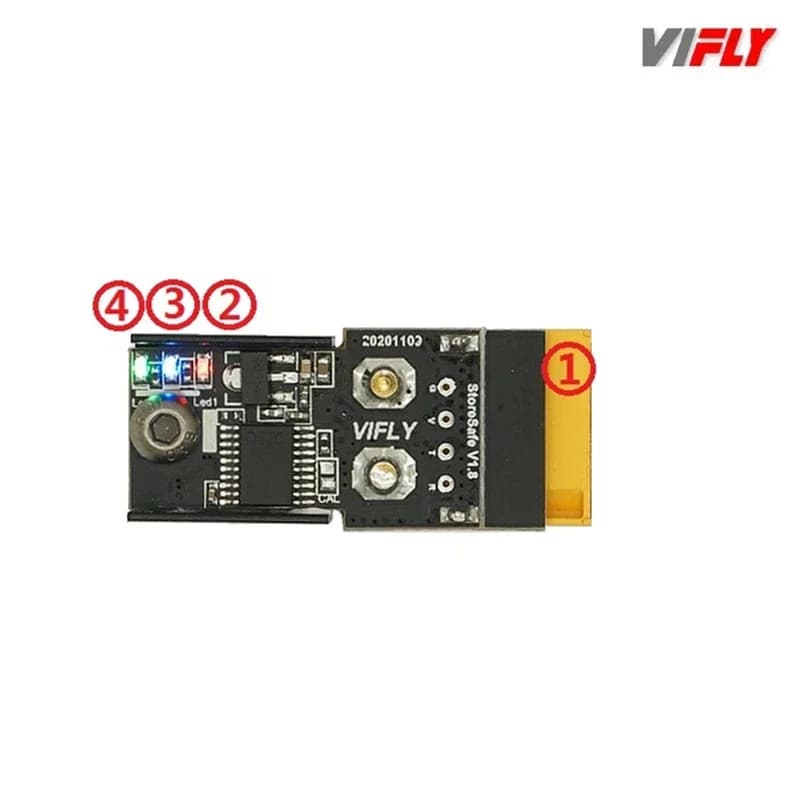

1. XT60/XT30 Input
2. Red LED
3. Blue LED
4. Green LED
StoreSafe would recognize the battery type automatically and indicate it with different LED lights.
LED Indication
| Green LED |
Blue LED |
Red LED |
Battery Type |
| × |
● |
× |
7.4V(2S) |
| × |
● |
● |
11.1V(3S) |
| ● |
× |
× |
14.8V(4S) |
| ● |
× |
● |
18.5V(5S) |
| ● |
● |
× |
22.2V(6S) |
Note: When the LED status does not match the above table, please stop using StoreSafe immediately and contact us.
Operation
After plugging in the battery, the LED that indicates the status will flash for about 5 seconds and then enter the discharging state. If the LED status not indicates correctly, please disconnect the battery immediately.
The StoreSafe will stop discharging when your battery reaches storage voltage (3.85V±0.08V / cell) and then goes into an ultra-low leakage current (<10uA)
Specs
Working Voltage 7.9 - 26V(2S-6S)
Discharging Power 1W
Turn-off Current < 10uA
Storage Voltage 3.85V±0.08V / cell
Connector XT60 / XT30
Weight 8g(XT60) / 5g(XT30)
Size (L x W x H) 37 x 16 x 10 mm(XT60) / 32 x 15 x 10 mm(XT30)
