VIFLY WhoopStor 3 V3 6 Ports 1S LIPO LiHV Battery Charger Discharger Storage LCD TYPE-C DC TX60 For FPV Drone BT2.0 PH2.0
19 orders (reference)
Description
VIFLY WhoopStor 3 V3 6 Ports 1S LIPO LiHV Battery Charger Discharger Storage LCD TYPE-C DC TX60 For FPV Drone BT2.0 PH2.0 ============================================================ What's new of WhoopStor 3? 1. Increase the maximum charge current from 0.9A to 1.3A, charges much faster especially for large capacity batteries like 850mah. 2. Open the tooling for the case around, no exposed parts any more. 3. Change to a colorful LED screen, each cell current also can be displayed. 4. Add the fan and big heatsink for heat dissipating, the discharging efficiency improves a lot. 5. Add the buzzer to beep when the charging circle finishes. 6. Add the feature of remembering the last current setting, no need to set the current each time. 7. Support 6S battery input. 8. Remove all switches, all operations are through the two buttons, that is much easier Main Features: Storage Charger and Discharger VIFLY WhoopStor 3 is a combination of charger and discharger. It has 4 target voltages (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V. Colorful LCD Screen, Intuitive Interface VIFLY WhoopStor 3 installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple. Fast Charge Speed The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to charge the battery with 2C rate. Multiple power input Supports Type-C, XT60 and DC Input, Type-C used PD protocol that supports fast charge, but not supports 5V input. Strong Heat Dissipation Capability The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging. Memory Function VIFLY WhoopStor 3 added the memory feature of remembering last time settings, no need to set the charge current every time you turn it on. Specification: Dimensions: 108*55*30mm Weight: Input connector: XT60, DC(5.5*2.1mm), USB-C(PD3.0) Input voltage range: 6V-26V (XT60 2S-6S Battery, DC), 9V-20V (USB-C) Minimum input power: Max charging current: 1.3A/port Support battery connector: PH2.0 & BT2.0 Battery type: LiPO 4.20V(±0.05V) / LiHV 4.35V (±0.05V) Storage voltage: 3.80V (±0.05V) / 3.85V (±0.05V) Max discharge power: 1.1W/port TECHNICAL SPECIFICATIONS • Weight: AVAILABLE OPTIONS Red Black White PRODUCT INFORMATION Brand: Vifly Category: Battery Charger Wholesale Price: US $42.76 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
What's new of WhoopStor 3?
1. Increase the maximum charge current from 0.9A to 1.3A, charges much faster especially for large capacity batteries like 850mah.
2. Open the tooling for the case around, no exposed parts any more.
3. Change to a colorful LED screen, each cell current also can be displayed.
4. Add the fan and big heatsink for heat dissipating, the discharging efficiency improves a lot.
5. Add the buzzer to beep when the charging circle finishes.
6. Add the feature of remembering the last current setting, no need to set the current each time.
7. Support 6S battery input.
8. Remove all switches, all operations are through the two buttons, that is much easier
Main Features:
Storage Charger and Discharger
VIFLY WhoopStor 3 is a combination of charger and discharger. It has 4 target voltages (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V.

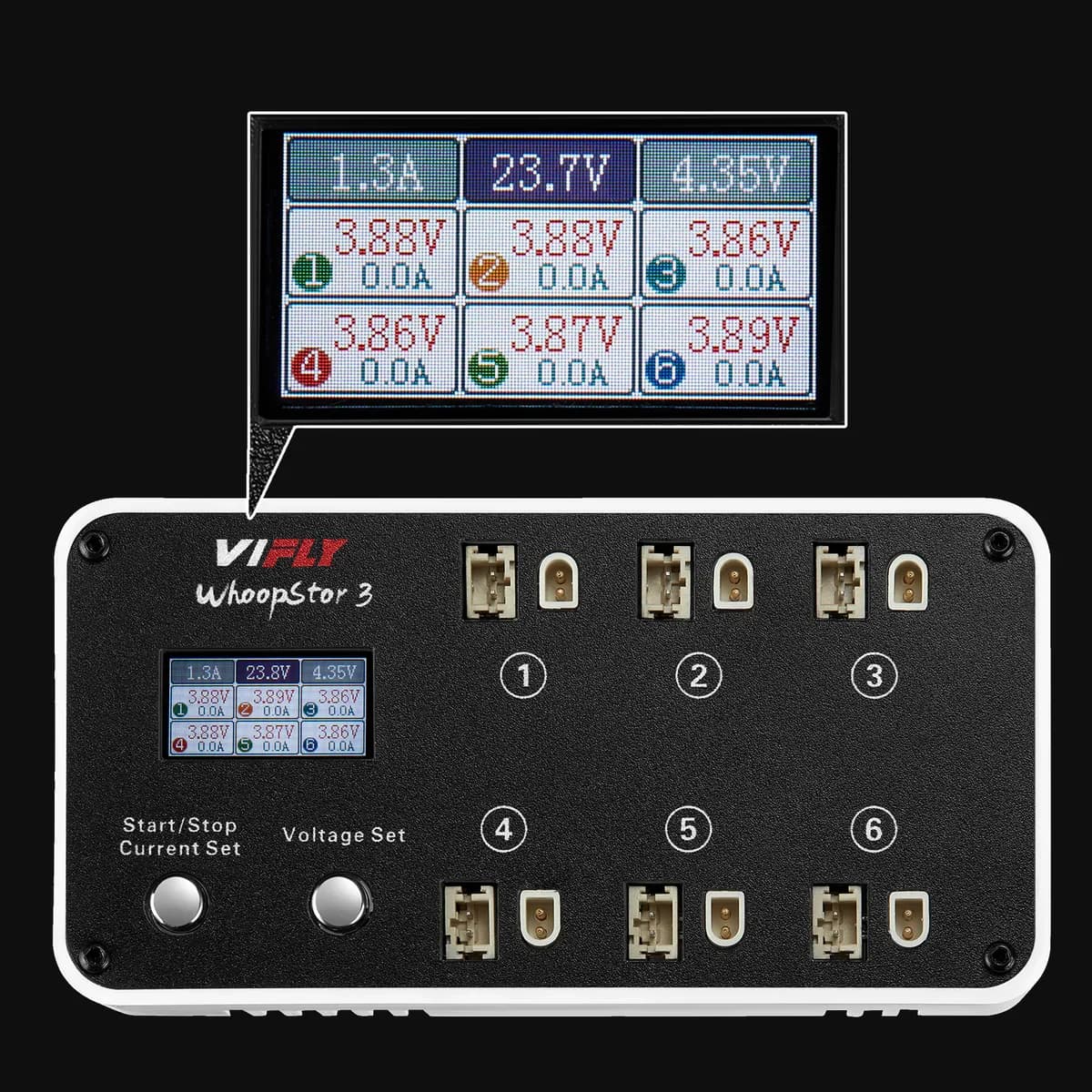

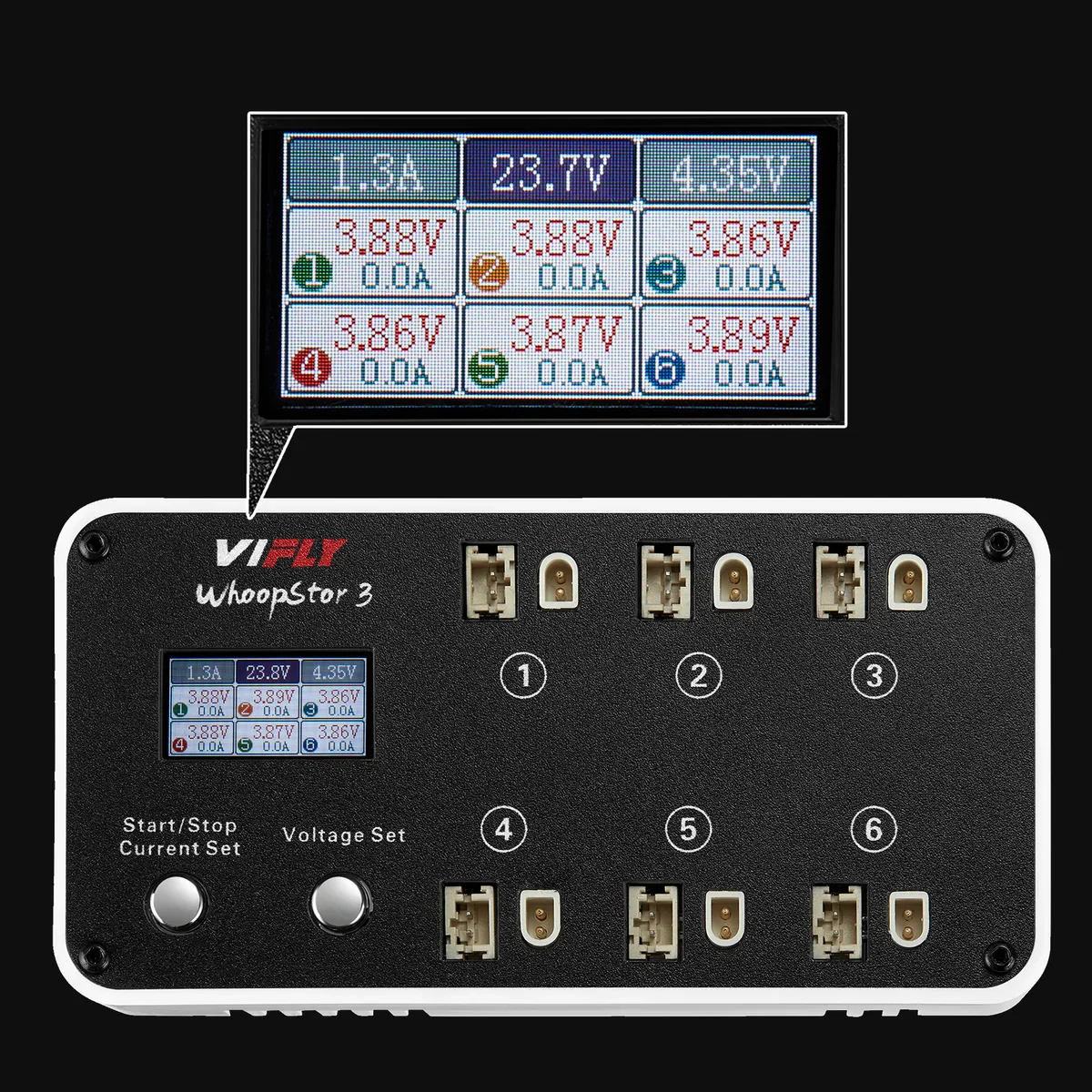

Colorful LCD Screen, Intuitive Interface
VIFLY WhoopStor 3 installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the
operation very simple.

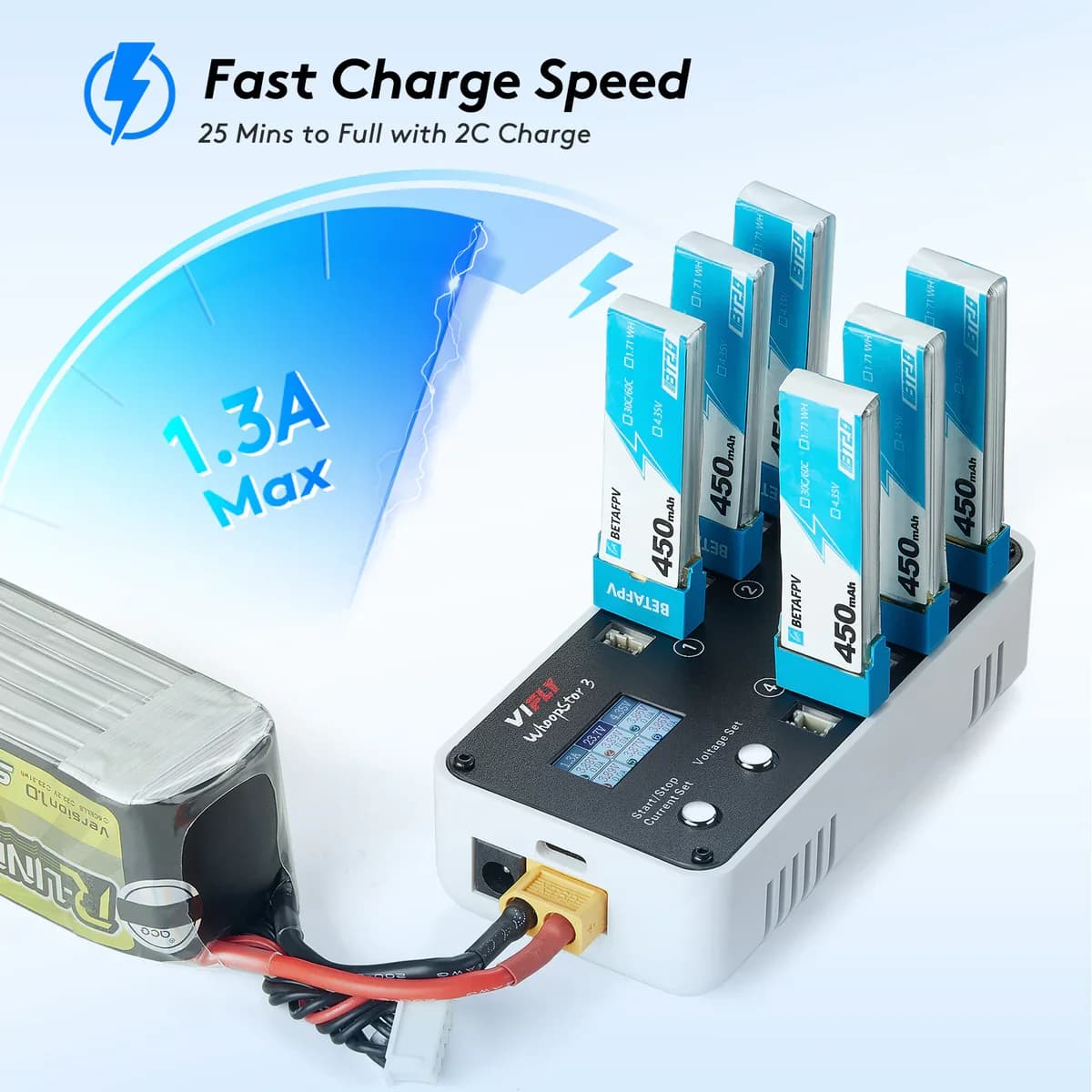

Fast Charge Speed
The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to
charge the battery with 2C rate.

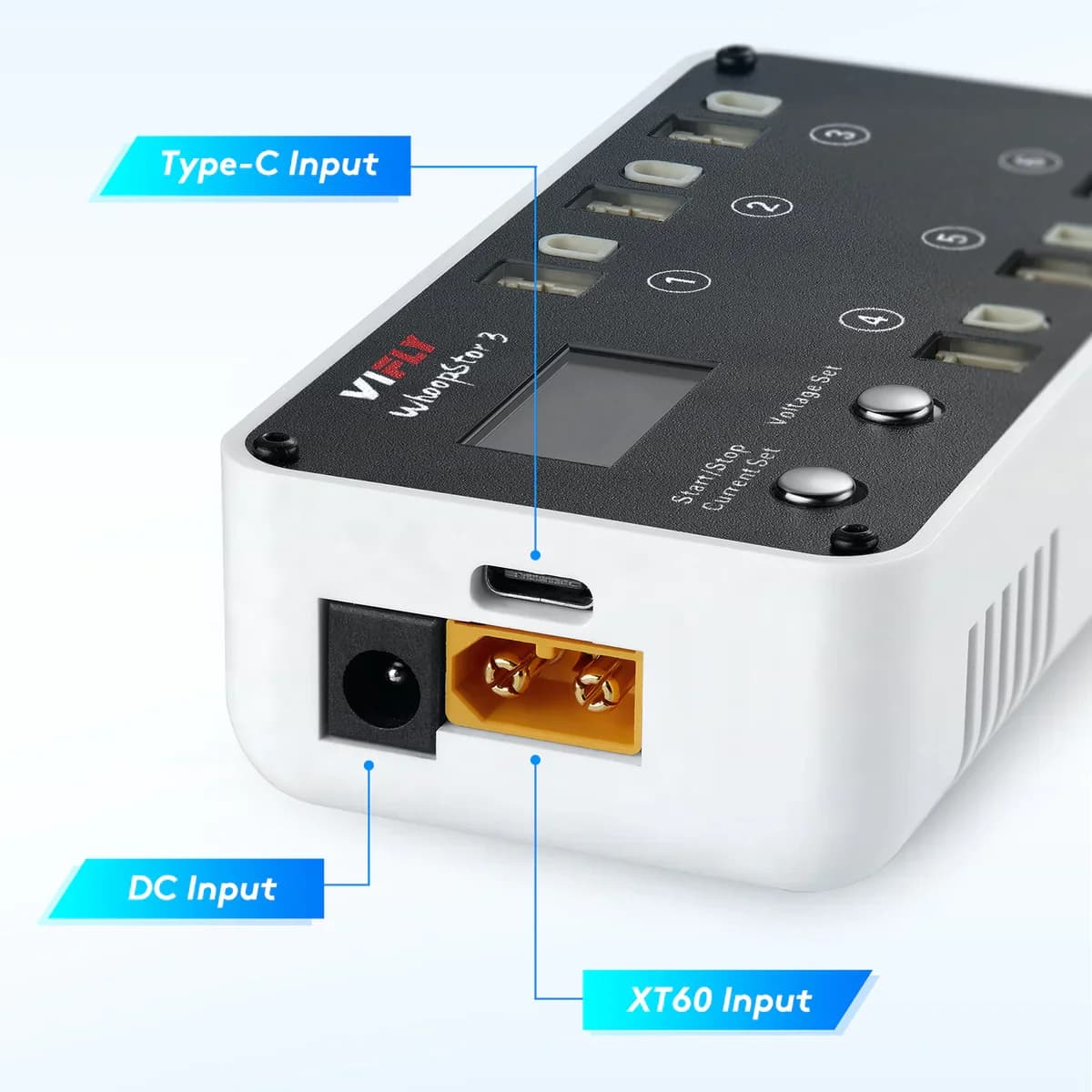

Multiple power input
Supports Type-C, XT60 and DC Input, Type-C used PD protocol that supports fast charge, but not supports 5V input.

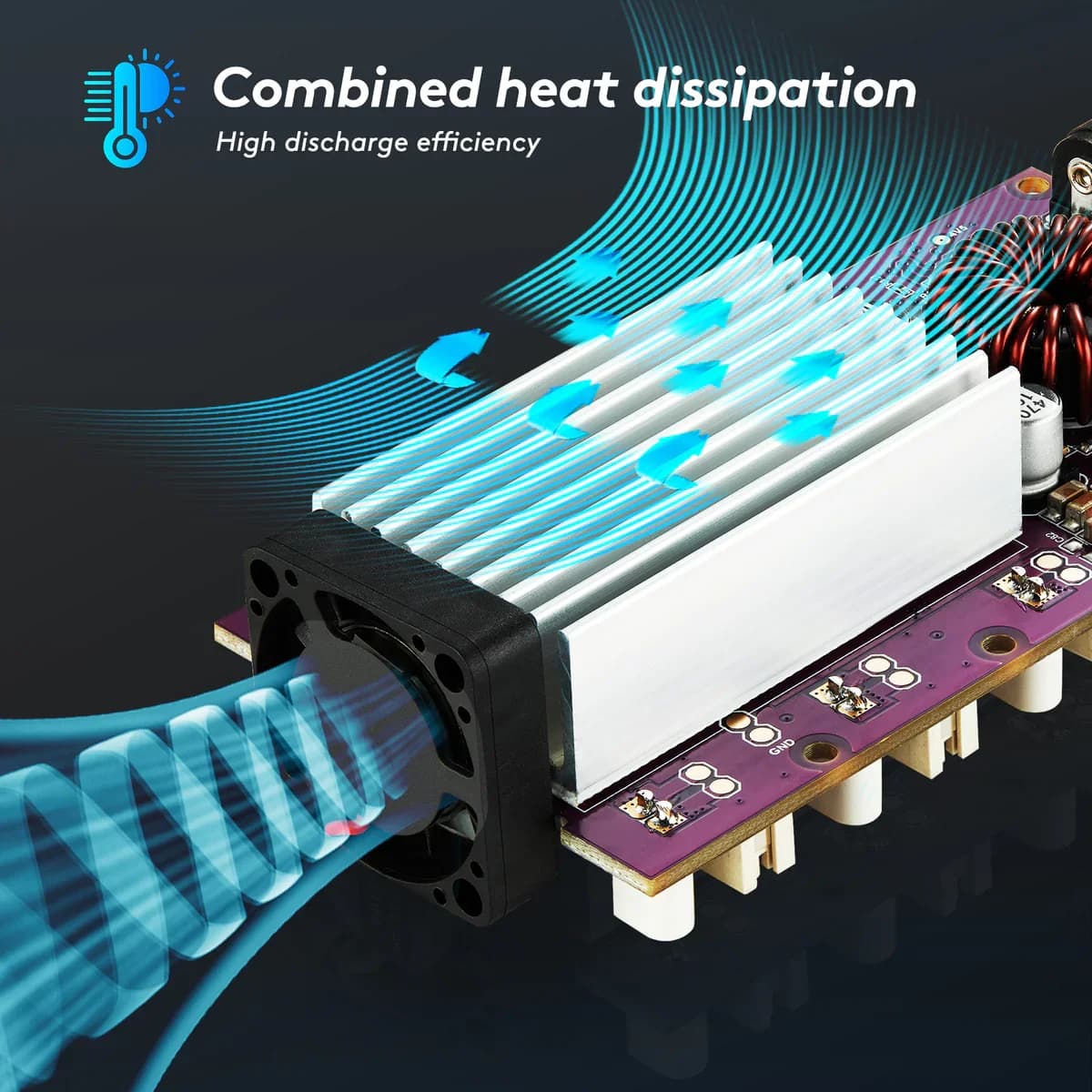

Strong Heat Dissipation Capability
The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.
Memory Function
VIFLY WhoopStor 3 added the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
Specification:
Dimensions: | 108*55*30mm |
Weight: | 140g |
Input connector: | XT60, DC(5.5*2.1mm), USB-C(PD3.0) |
Input voltage range: | 6V-26V (XT60 2S-6S Battery, DC), 9V-20V (USB-C) |
Minimum input power: | 40W |
Max charging current: | 1.3A/port |
Support battery connector: | PH2.0 & BT2.0 |
Battery type: | LiPO 4.20V(±0.05V) / LiHV 4.35V (±0.05V) |
Storage voltage: | 3.80V (±0.05V) / 3.85V (±0.05V) |
Max discharge power: | 1.1W/port |
