ToolkitRC MC8 Mini Size Cell checker 32 Bit 2-8S Battery Multi-Checker PWM Output PPM SBUS Readout With USB-C Fast Charging
1000 orders (reference)
Description
ToolkitRC MC8 Mini Size Cell checker 32 Bit 2-8S Battery Multi-Checker PWM Output PPM SBUS Readout With USB-C Fast Charging ============================================================ Product overview The MC8 is a compact multi-checker designed for every hobbyist. Featuring a bright, color IPS display, it is accurate to Measures and balances LiPo, LiHV LiFe and Lion batteries. Wide voltage input DC 7.0-35.0V Supports Main/Balance/Signal port power inputs. Measures and outputs PWM, PPM, SBUS signals. USB-A, USB-C dual-port output. USB-C 20W PD fast charge output Battery over-discharge protection. Automatically disables USB output when battery reaches criticaevels. Measurement and balance accuracy: <0.005VBalance current: 60mA. 2.0 inch, IPS full viewing angle display. High resolution 320*240 pixels. Specifications General Main input port：XT60 7.0V-35.0V Balance input：0.5V-5.0V Lixx 2-8s Signal port input：<6.0V Balance current：MAX 60mA @2-8S Balanceaccuracy：<0.005V @ 4.2V USB-A output：5.0V@1.0A firmware upgrade USB-C output：5.0V-12.0V @MAX 20W USB-C protocol：PD3.0 QC3.0 AFC SCP FCP Measurement PWM：500-2500us @20-400Hz PPM：880-2200us*8CH @20-50Hz SBUS：880-2200us *16CH@20-100Hz Output PWM：1000-2000us @20-1000Hz PPM：880-2200us*8CH @50Hz SBUS：880-2200us *16CH @74HZ Product Size：68mm×50mm×15mm Weight：50g Package New packaging size：74mm×56mm×27mm Weight：100g LCD: IPS 2.0 inch 240*240resolution Warning: 【EN】WARNING: CHOKING HAZARD - Small parts. Not for Children under 3 years. 【FR】AVERTISSEMENT: RISQUES D'ÉTOUFFEMENT - Pièces de petites dimensions. Ne convient pas aux enfants de moins de 3 ans. 【ES】ADVERTENCIA: PELIGRO DE ASFIXIA: Piezas pequeñas. No apto para niños menores de 3 años. 【DE】WARNUNG: ERSTICKUNGSGEFAHR – Kleine Teile. Nicht für Kinder unter 3 Jahren. 【IT】AVVERTENZA: PERICOLO DI SOFFOCAMENTO-Piccole parti. Non adatto ai bambini sotto i 3 anni. 【PL】OSTRZEŻENIE: RYZYKO ZADŁAWIENIA SIĘ – Małe części. Nieprzeznaczone dla dzieci w wieku poniżej 3 lat. TECHNICAL SPECIFICATIONS • Size：68mm×50mm×15mm • Weight：50g • Weight：100g AVAILABLE OPTIONS ToolkitRC MC8 China Mainland PRODUCT INFORMATION Brand: ToolkitRC Category: Battery Charger Wholesale Price: US $33.92 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Plastic Type | PC |
| Model Number | MC8 |
| For Vehicle Type | Cars |
| Material | Plastic |
| Brand Name | ToolKitRc |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details
Product overview

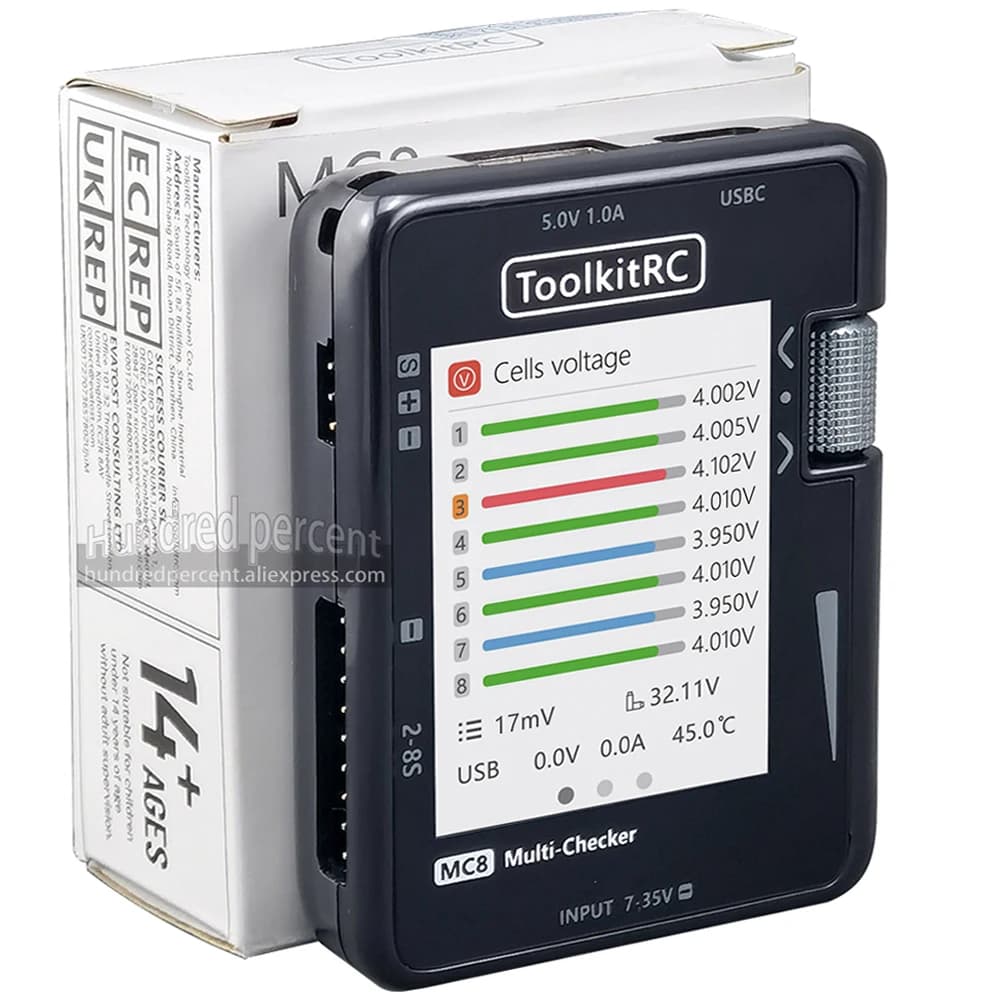

The MC8 is a compact multi-checker designed
for every hobbyist. Featuring a bright, color IPS display, it is accurate to
5mV.
Measures and balances LiPo, LiHV LiFe and
Lion batteries.
Wide voltage input DC 7.0-35.0V

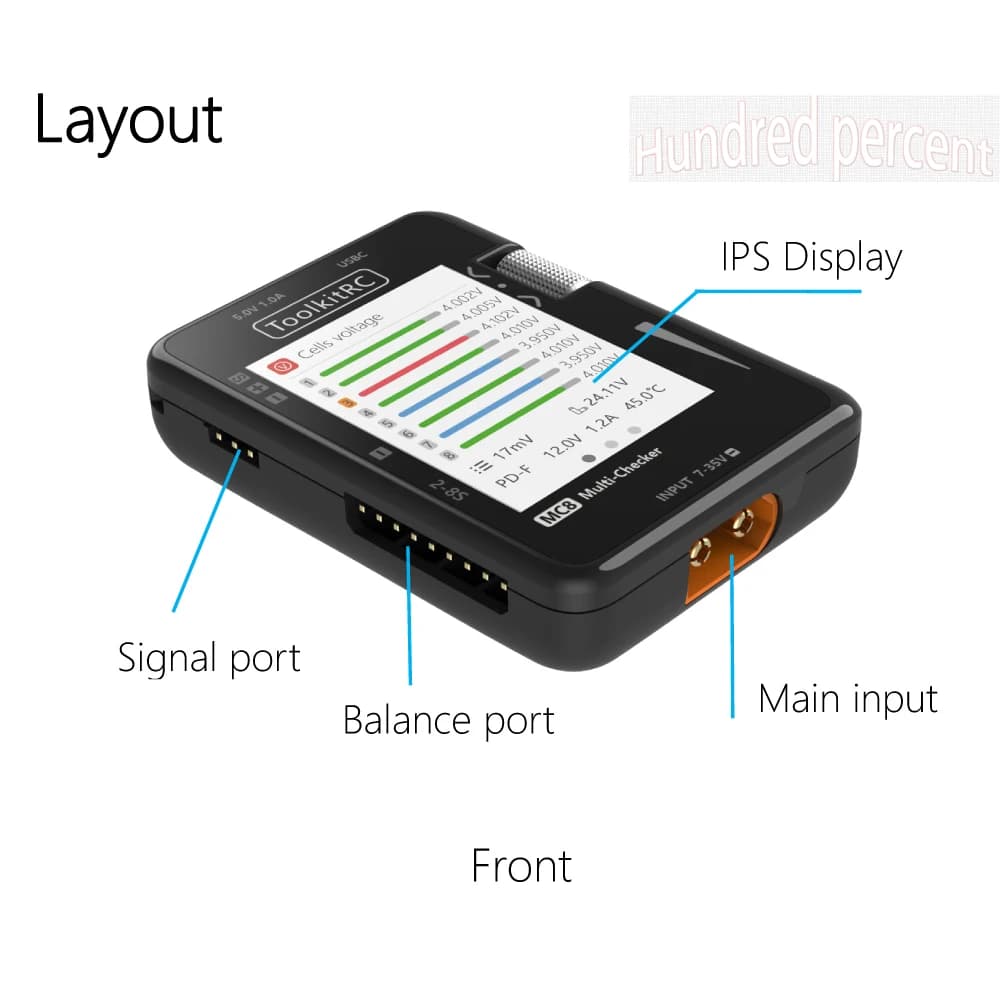

Supports Main/Balance/Signal port power
inputs.
Measures and outputs PWM, PPM, SBUS signals.

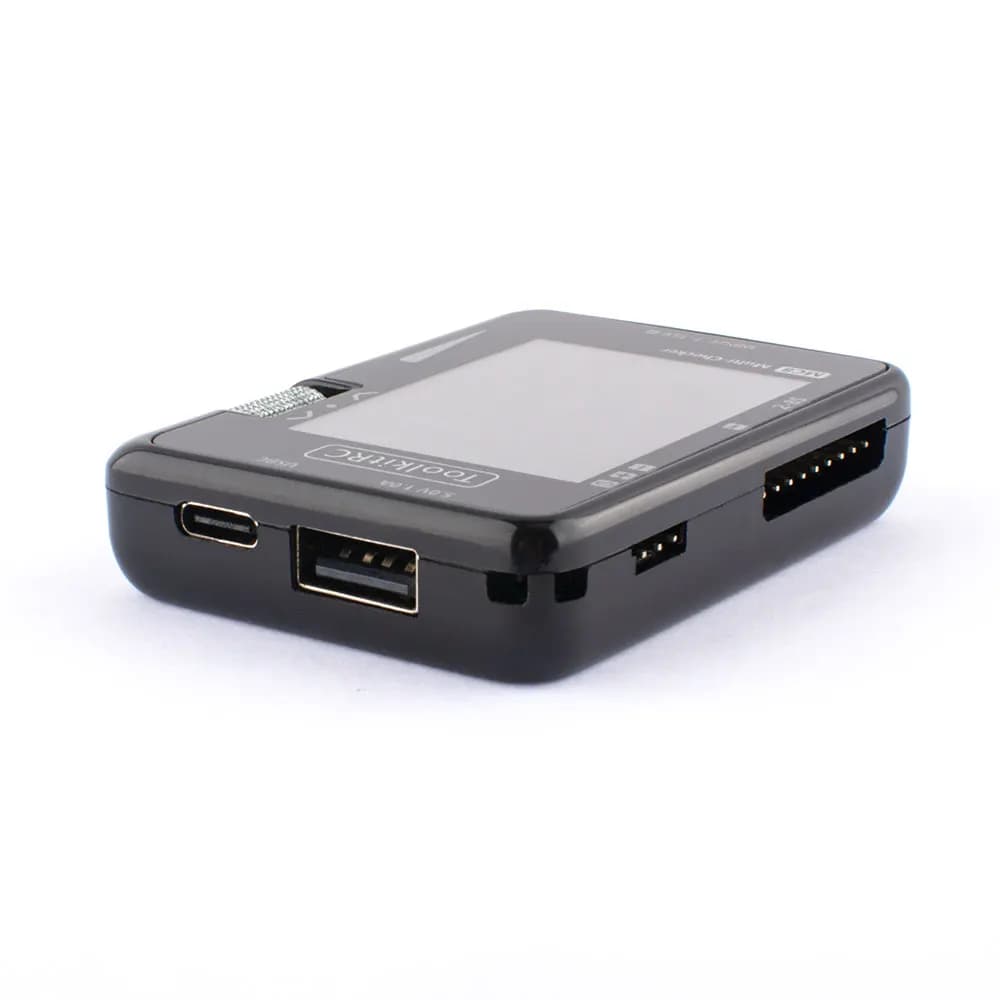

USB-A, USB-C dual-port output.
USB-C 20W PD fast charge output
Battery over-discharge protection. Automatically disables USB output when
battery reaches criticaevels.
Measurement and balance accuracy:
<0.005VBalance current: 60mA.
2.0 inch, IPS full viewing angle display.
High resolution 320*240 pixels.
Specifications
General
Main input port：XT60 7.0V-35.0V
Balance input：0.5V-5.0V Lixx 2-8s
Signal port input：<6.0V
Balance current：MAX 60mA @2-8S
Balanceaccuracy：<0.005V @ 4.2V
USB-A output：5.0V@1.0A firmware upgrade
USB-C output：5.0V-12.0V @MAX 20W
USB-C protocol：PD3.0 QC3.0 AFC SCP FCP
Measurement
PWM：500-2500us @20-400Hz
PPM：880-2200us*8CH @20-50Hz
SBUS：880-2200us *16CH@20-100Hz
Output
PWM：1000-2000us @20-1000Hz
PPM：880-2200us*8CH @50Hz
SBUS：880-2200us *16CH @74HZ
Product
Size：68mm×50mm×15mm
Weight：50g
Package
New packaging size：74mm×56mm×27mm
Weight：100g
LCD: IPS 2.0 inch 240*240resolution
