Holybro H-RTK F9P GNSS Series H-RTK Rover Lite / H-RTK Rover Lite 2nd GPS / Helical / Base for RC FPV Drone

Description

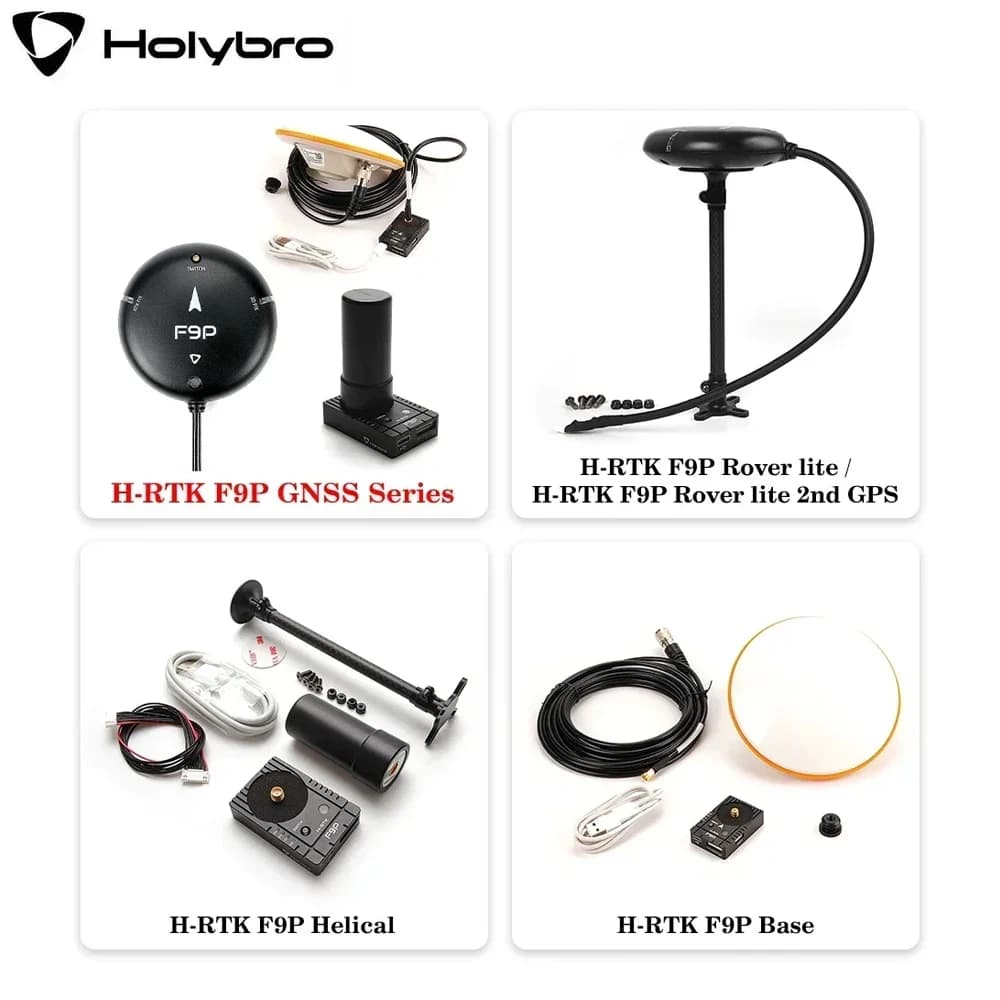

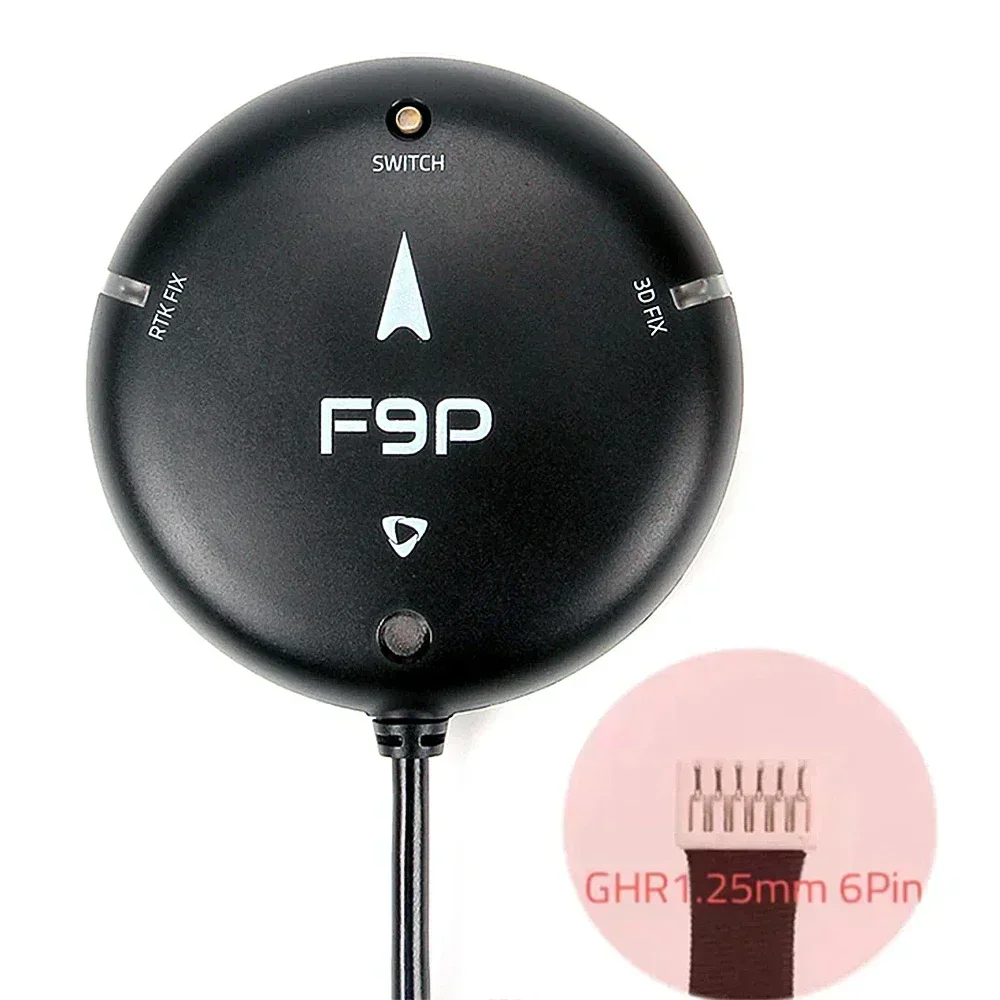

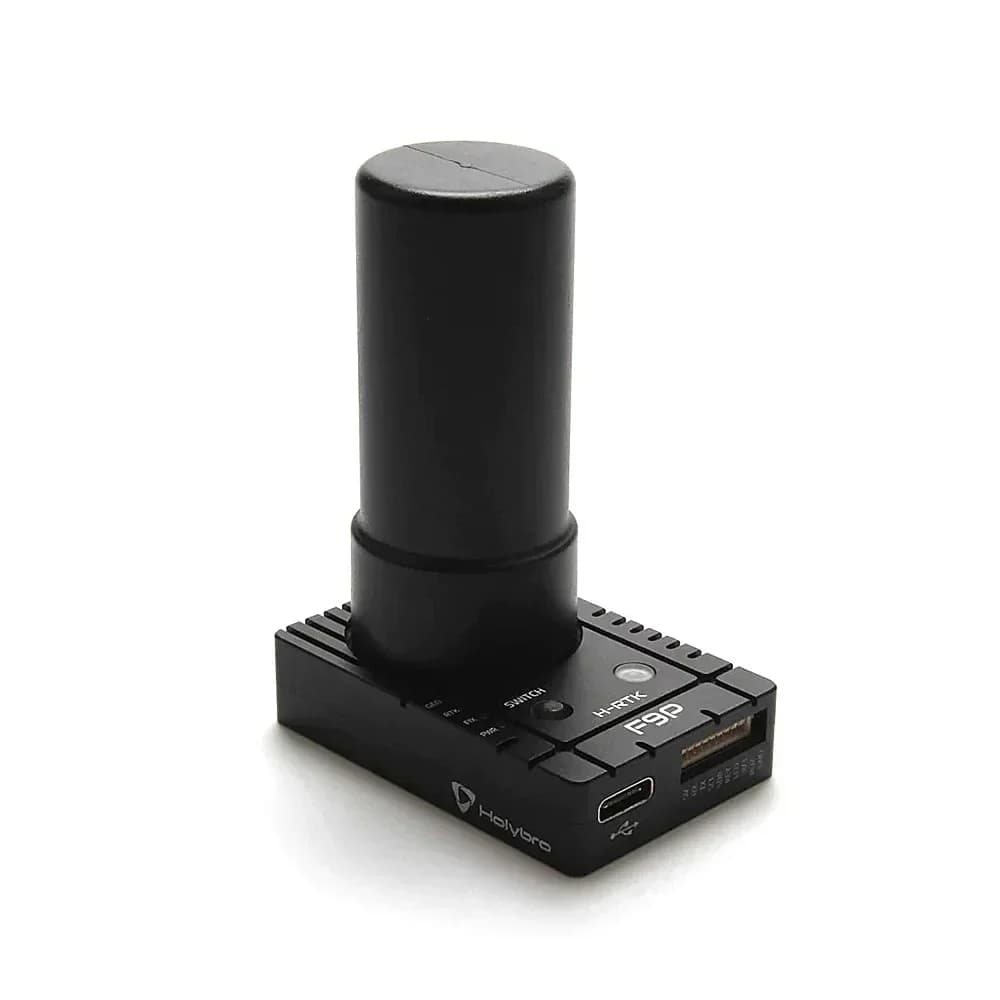

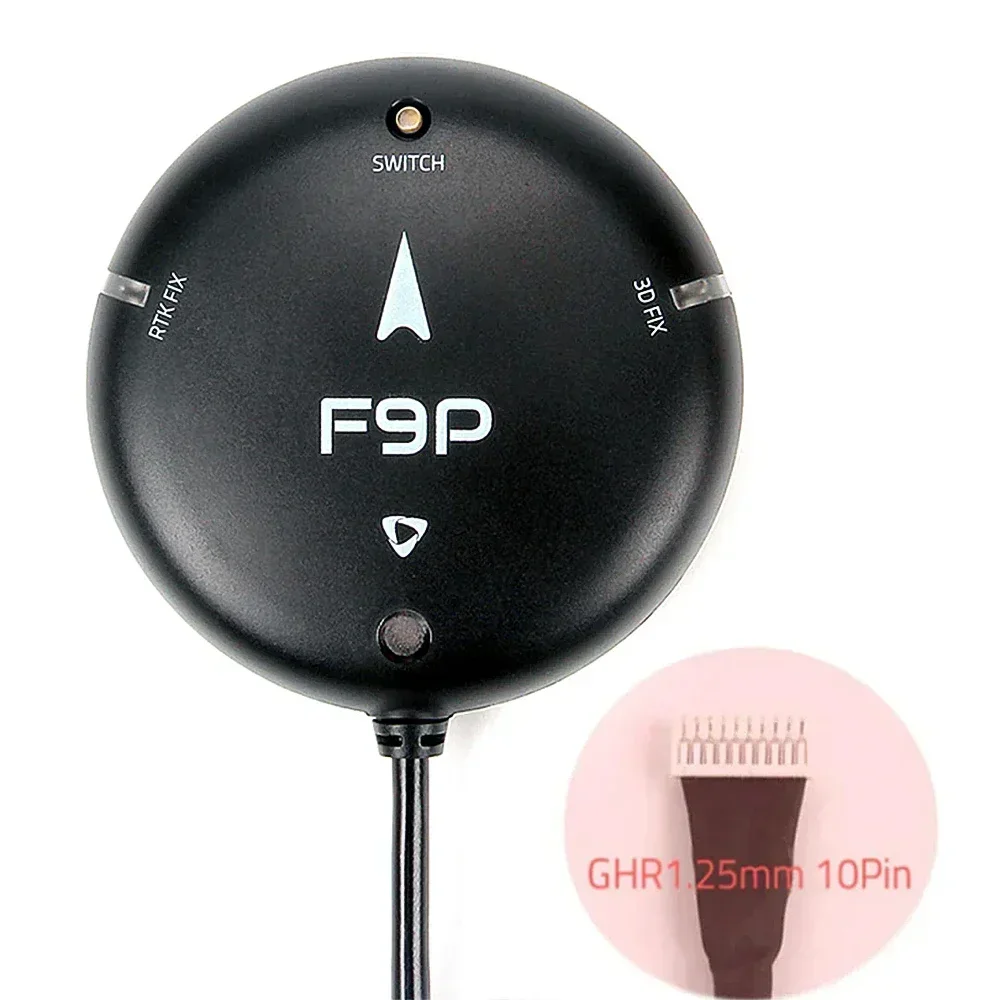

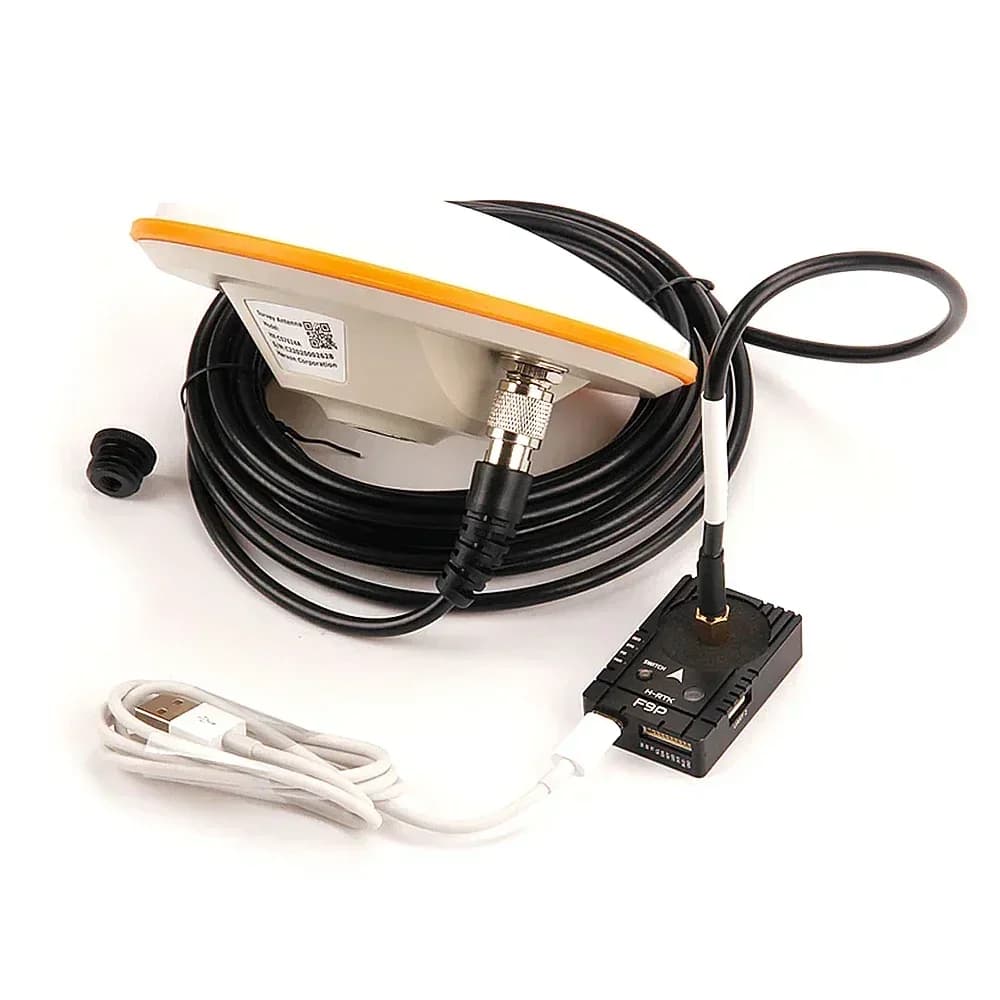

Holybro H-RTK F9P GNSS Series H-RTK Rover Lite / H-RTK Rover Lite 2nd GPS / Helical / Base for RC FPV Drone ============================================================ Holybro H-RTK F9P GNSS Series H-RTK F9P Rover lite / H-RTK F9P Rover lite 2nd GPS / F9P Helical / F9P Base for RC FPV Drone H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX ZED-F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation. We have designed different models of for you to choose, each with different size and antenna design to meet different customer needs. RTK Testing & Comparison: Big GPS Round Up by Andrew Tridgell (Ardupilot) Note : The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. ( More info ) Specification: Other technical information can be found in our Holybro Documentation Page. Reference Links RTK Testing & Comparison by Andrew Tridgell (Ardupilot) User Guide: Setup & Getting started (Ardupilot) User Guide: Setup & Getting started (PX4) GPS Heading/Yaw (Aka Moving baseline) Guide H-RTK Pinout Dimensions Downloads H-RTK F9P Rover lite & H-RTK F9P Rover lite 2nd GPS This model is lower cost, light weight, and has high performance, It can meet the needs of general DIY users. Due to the lower cost, this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller. Package Included: H-RTK F9P Rover Lite *1 (Optional ) H-RTK F9P Rover Lite 2nd GPS *1(Optional) Fixed Carbon Fiber GPS mount(40mm) *1 GPS UART to USB Converter *1(For SKU12017) USB (type-c)cable *1 H-RTK F9P Helical This model uses a helical antenna, which has better performance than the lite version. This model can be used both on rover (aircraft) or as base station. The aluminum alloy shell design also has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk-Standard Flight Controller flight controller. Package Included: H-RTK F9P *1 High Precision GNSS Antenna(CHX603A) *1 Fixed Carbon Fiber GPS mount(29mm) *1 GH 10P cable 150mm * GH 6P cable 300mm *1 GH 10P cable 400mm *1 USB type-c cable *1 H-RTK F9P Base The board is the same as number 2 above, but it is equipped with a high-gain antenna. This model is best suited to use as base station. The search speed and positioning accuracy are the highest among the three models. Package Included: H-RTK F9P *1 High Precision GNSS Antenna (CSX627A) *1 ( Note : The CS7624A antenna on the H-RTK F9P Base (SKU12022) & M8P Base (SKU12021) has been be replaced with similar CSX627A until further notice. - Male-male SMA-TNC cable(length: 5m) *1 - 1/4'' Female to 5/8'' -11 Male Adapter *1 - USB type-c cable *1 *Tripod mount not included (sold separately) AVAILABLE OPTIONS H-RTK F9P Rover lite Rover lite 2nd GPS H-RTK F9P Helical H-RTK F9P Base PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $373.73 ————————————————————————————————————————
