Holybro M10 GPS Module With Compass LED Indicator There Are 3 Different Connectors Options for Different Purpose RC FPV Drone

Description

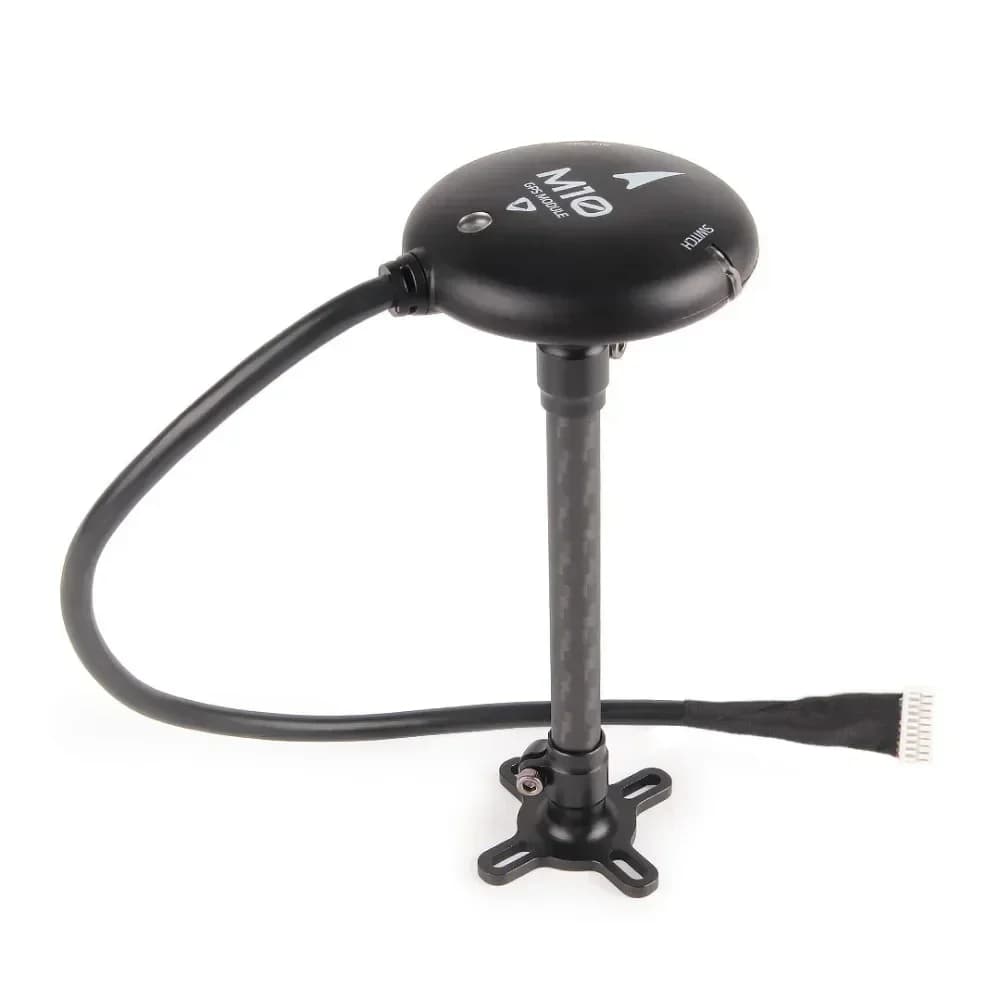

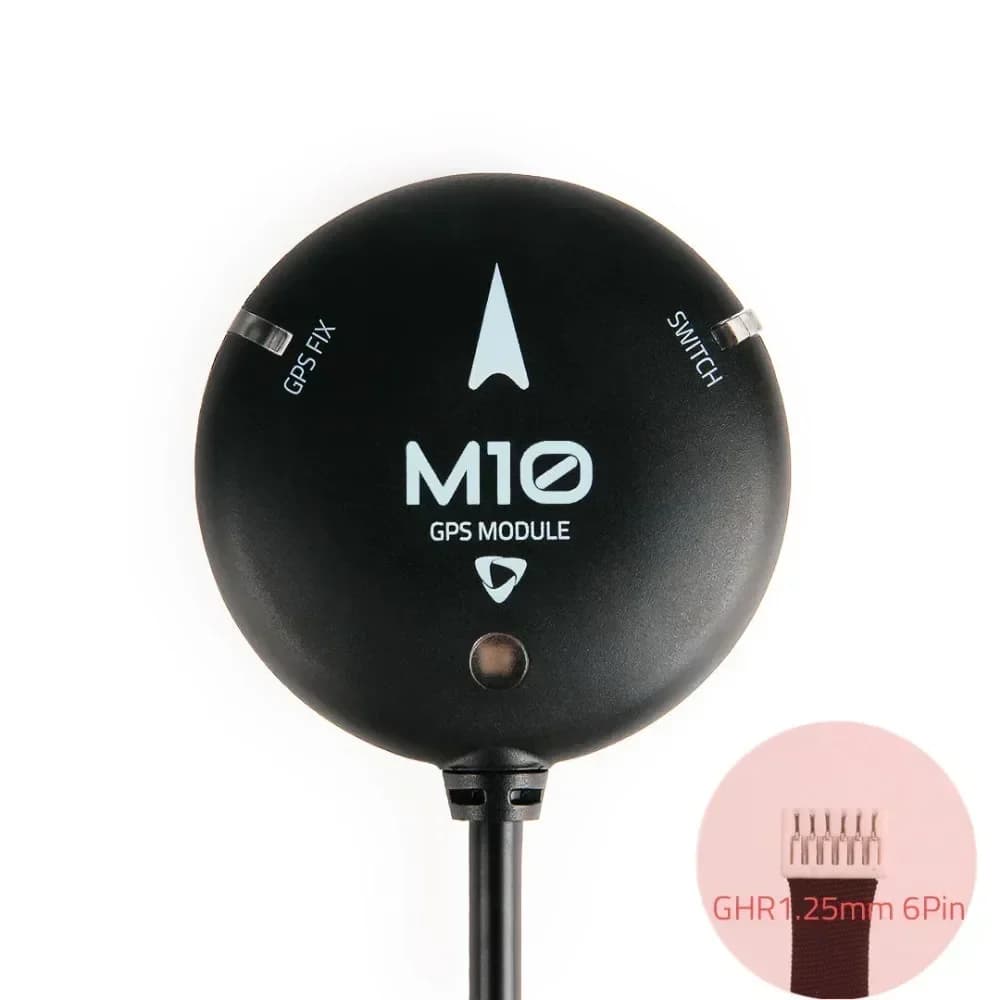

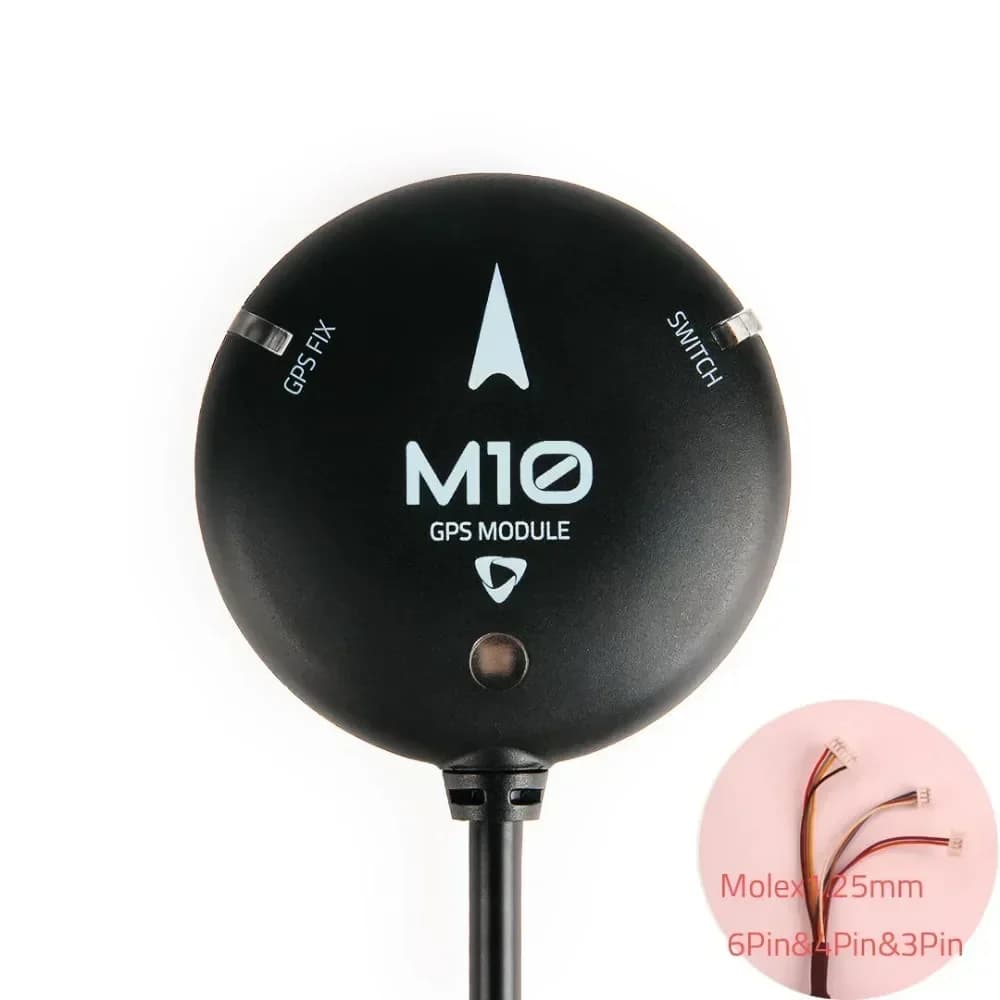

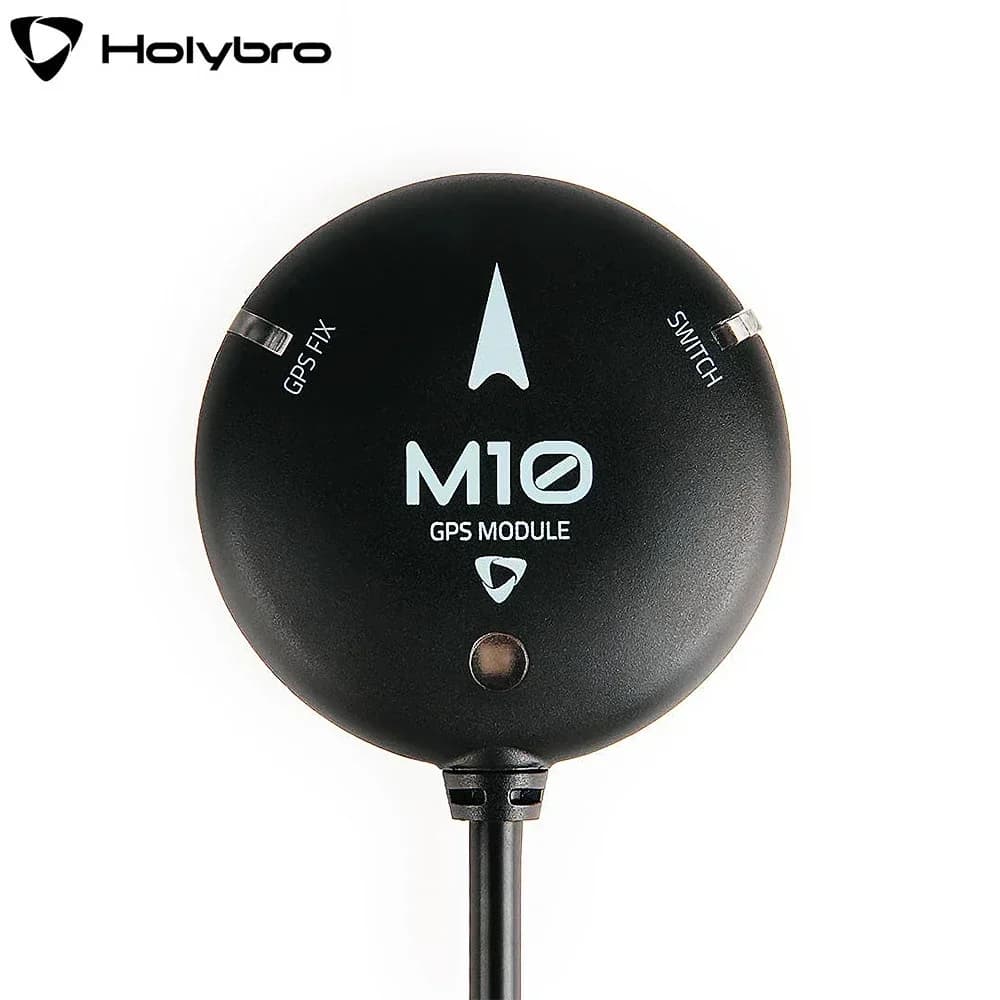

Holybro M10 GPS Module With Compass LED Indicator There Are 3 Different Connectors Options for Different Purpose RC FPV Drone ============================================================ Holybro M10 GPS Module With Compass LED Indicator There Are 3 Different Connectors Options for Different Purpose RC FPV Drone Overview The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz. The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts. PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required. The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. ( More info ) Features Newest Ublox 10th Gen GNSS Fast & Accurate Positioning High-gain 25*25*4mm antenna IST8310 Compass Internal Buzzer, Safety switch Ultra Bright UI RGB LED Specification Holybro M10 GPS Holybro M9N GPS GNSS Receiver Ublox M10 Ublox M9N Number of Concurrent GNSS Up to 4 GNSS Up to 4 GNSS BeiDou BeiDou Galileo Galileo GLONASS GLONASS Frequency Band GPS L1 GPS L1 Galileo E1 Galileo E1 GLONASS L1 GLONASS L1 BeiDou B1 BeiDou B1 SBAS L1 SBAS L1 QZSS L1 QZSS L1 Compass IST8310 IST8310 Output Protocol UBX (U-blox) UBX (U-blox) Accuracy 2.0m CEP 1.5m CEP Nav. Update Rate Up to 25 Hz (single GNSS), Up to 25 Hz (4 concerrent GNSS) Up to 10 Hz (4 concurrent GNSS) GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS EGNOS, GAGAN, MSAS and WAAS QZSS: L1S QZSS: L1S Default Baud Rate 115200 115200 Input Voltage 4.7-5.2V 4.7-5.2V Port Type JST-GH-10P JST-GH-10P Antenna 25 x 25 x 4 mm ceramic patch antenna 25 x 25 x 4 mm ceramic patch antenna Power consumption Less than 200mA @ 5V Less than 200mA @ 5V Operating Temperature -40~80C -40~80C Dimension φ50 x14.4 mm φ50 x14.4 mm Weight Cable Length 26cm (42cm cable purchase separately) 26cm (42cm cable purchase separately) Tri-color LED Tri-color LED Onboard Buzzer Onboard Buzzer Safety Switch Safety Switch LNA MAX2659ELT+ RF Amplifier LNA MAX2659ELT+ RF Amplifier Rechargeable Farah capacitance Rechargeable Farah capacitance Low noise 3.3V regulator Low noise 3.3V regulator PIN MAP Note: For Ardupilot User, if you are unable to perform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation. Difference between the three cable options Holybro M10 GPS (JST GHR1.25mm 10pin cable): This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10pin "GPS Module"or "GPS1" input port. Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable): This connector can be used on Pixhawk Standard Flight Controller 6pin"UART & I2C"or "GPS2" input port as secondary GPS. This GPS is also compatible with the Cube Flight ControllerGPS2 Port. Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable): These connectors are for "Switch", "GPS", and "I2C" input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8 Reference Link: Holybro Documentation Dimension 3D CAD File Downloads Package Includes: 1x M10 GPS Module 1x Fixed Carbon Fiber GPS mount TECHNICAL SPECIFICATIONS • Package Includes: AVAILABLE OPTIONS Standard Secondary GPS For Pix32 Pixhawk PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $58.33 ————————————————————————————————————————
