HGLRC M100 PRO GPS
56 orders (reference)
Description
HGLRC M100 PRO GPS ================== Features: Adopting the new 10th generation chip, the number of satellite searches is 50+ QMC5883L compass, more accurate pointing The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip. Five-mode positioning, strong and stable signal to protect you. Product parameters: Chip: B101 (10th generation chip) Receiving channel: 120 Baud rate: 115200 Protocol: UBX Antenna: ceramic antenna Output frequency: 10Hz Frequency: GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS Power input: 3.6-5.5V Weight: 7.9g Acceleration 4G Speed: 500m/s Size: 21.2×21.2×8.2mm Operating temperature: -40℃~+85℃ Storage temperature: -40℃~+105℃ Product List HGLRC M100 PRO GPS x 1 Heat shrink tube (φ18mm x 25mm) x 1 HGLRC sticker x 1 HGLRC manual x 1 SH1.0-6pin cable x 1 TECHNICAL SPECIFICATIONS • Chip: B101 (10th generation chip) • Weight: 7.9g Acceleration 4G • Size: 21.2×21.2×8.2mm • Frequency: GPS L1, GLONASS G1, BDS B1, • Antenna: ceramic antenna Output frequency: 10Hz AVAILABLE OPTIONS Black Gray PRODUCT INFORMATION Brand: HGLRC Category: GPS / Navigation Module Wholesale Price: US $17.49 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Helicopters |
| Material | Composite Material |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features:
- Adopting the new 10th generation chip, the number of satellite searches is 50+
- QMC5883L compass, more accurate pointing
- The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
- Five-mode positioning, strong and stable signal to protect you.
Product parameters:
- Chip: B101 (10th generation chip)
- Receiving channel: 120
- Baud rate: 115200 Protocol: UBX
- Antenna: ceramic antenna Output frequency: 10Hz
- Frequency: GPS L1, GLONASS G1, BDS B1,
- GALILEO E1, QZSS L1, SBAS L1, IRNSS
- Power input: 3.6-5.5V
- Weight: 7.9g Acceleration 4G
- Speed: 500m/s

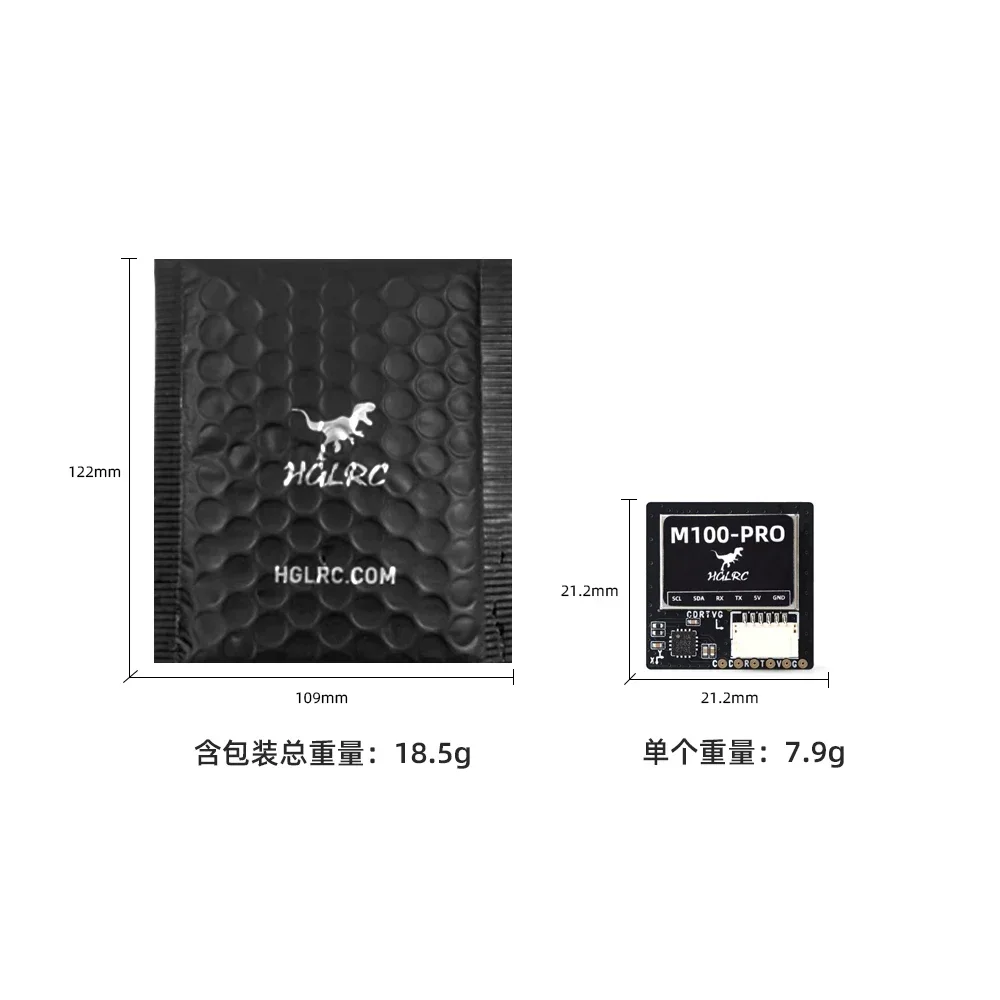

- Size: 21.2×21.2×8.2mm
- Operating temperature: -40℃~+85℃
- Storage temperature: -40℃~+105℃
Product List
- HGLRC M100 PRO GPS x 1
- Heat shrink tube (φ18mm x 25mm) x 1
- HGLRC sticker x 1
- HGLRC manual x 1
- SH1.0-6pin cable x 1
