GEPRC GEP-M10 GPS Module M10Nano M10Q M10I M10-DI M10-DQ Series GPS+BDS+Galileo+QZSS+SBAS for FPV Drone Chip

Description

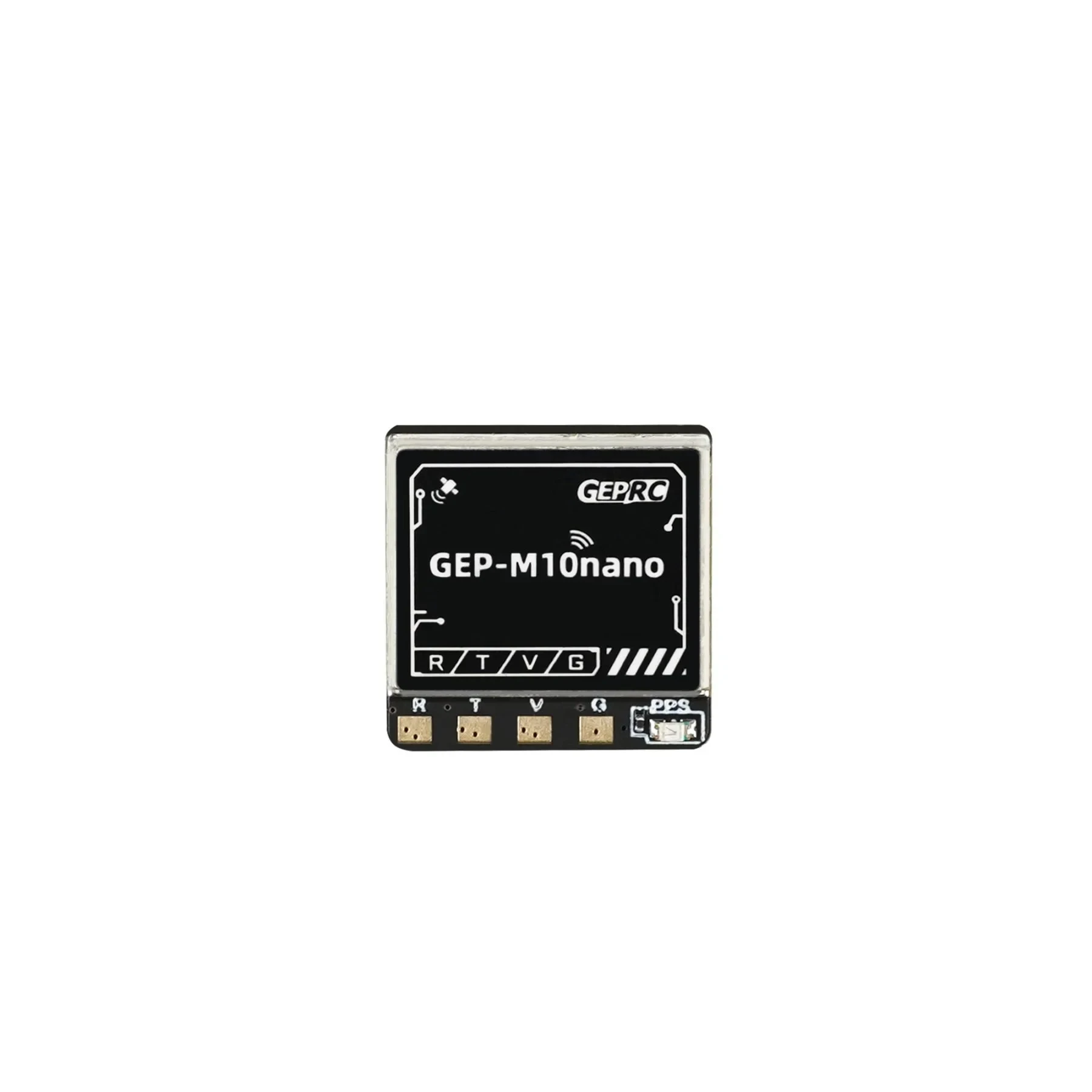

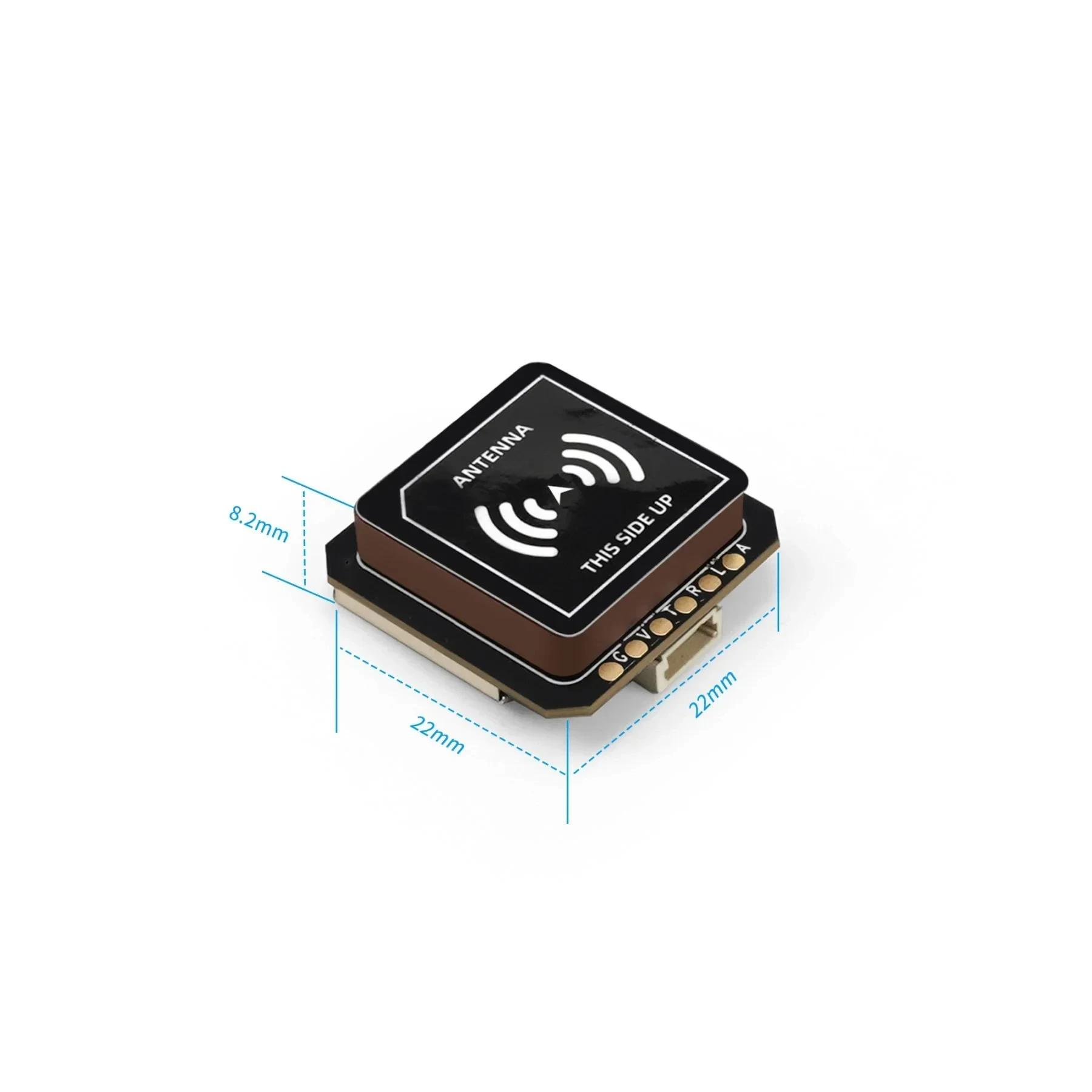

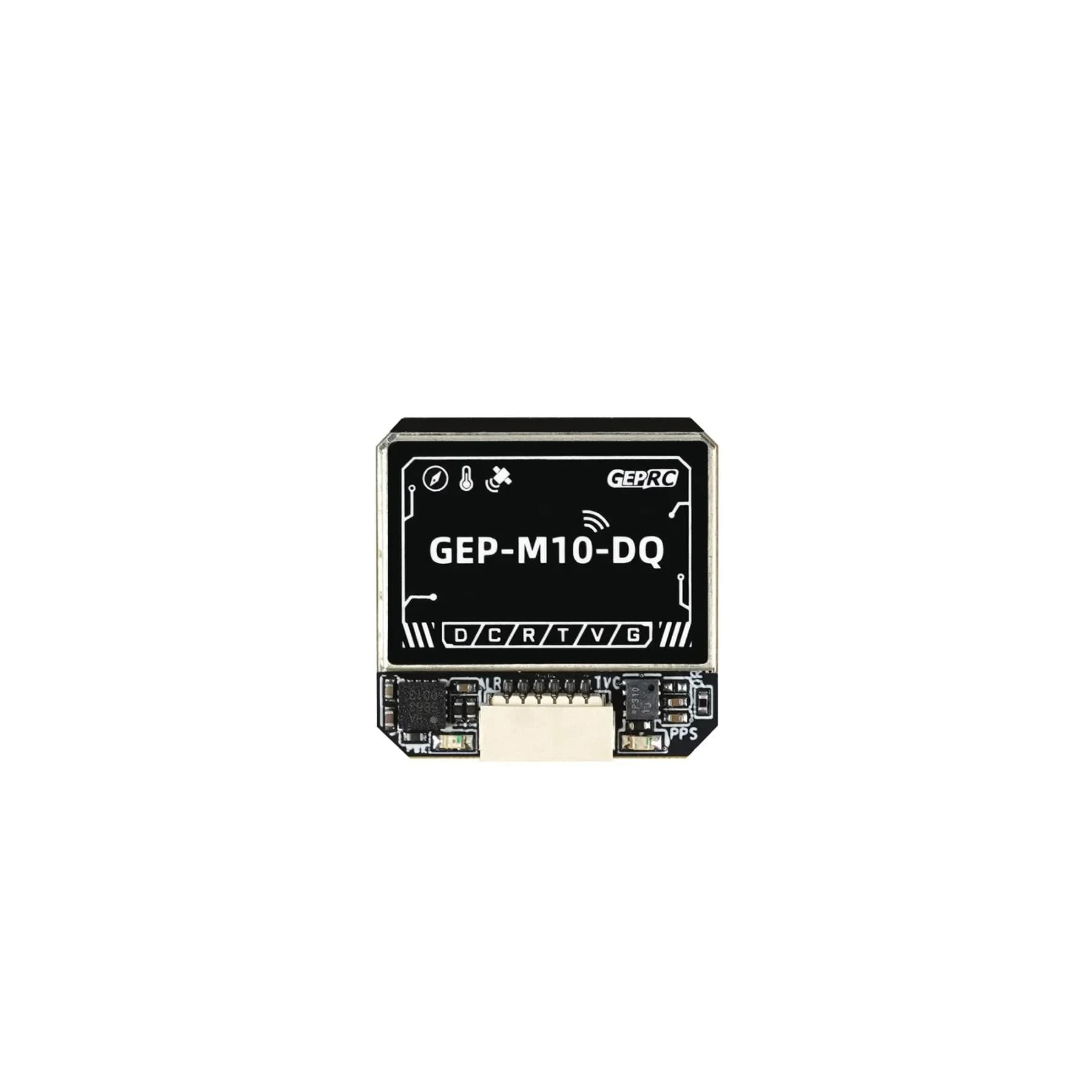

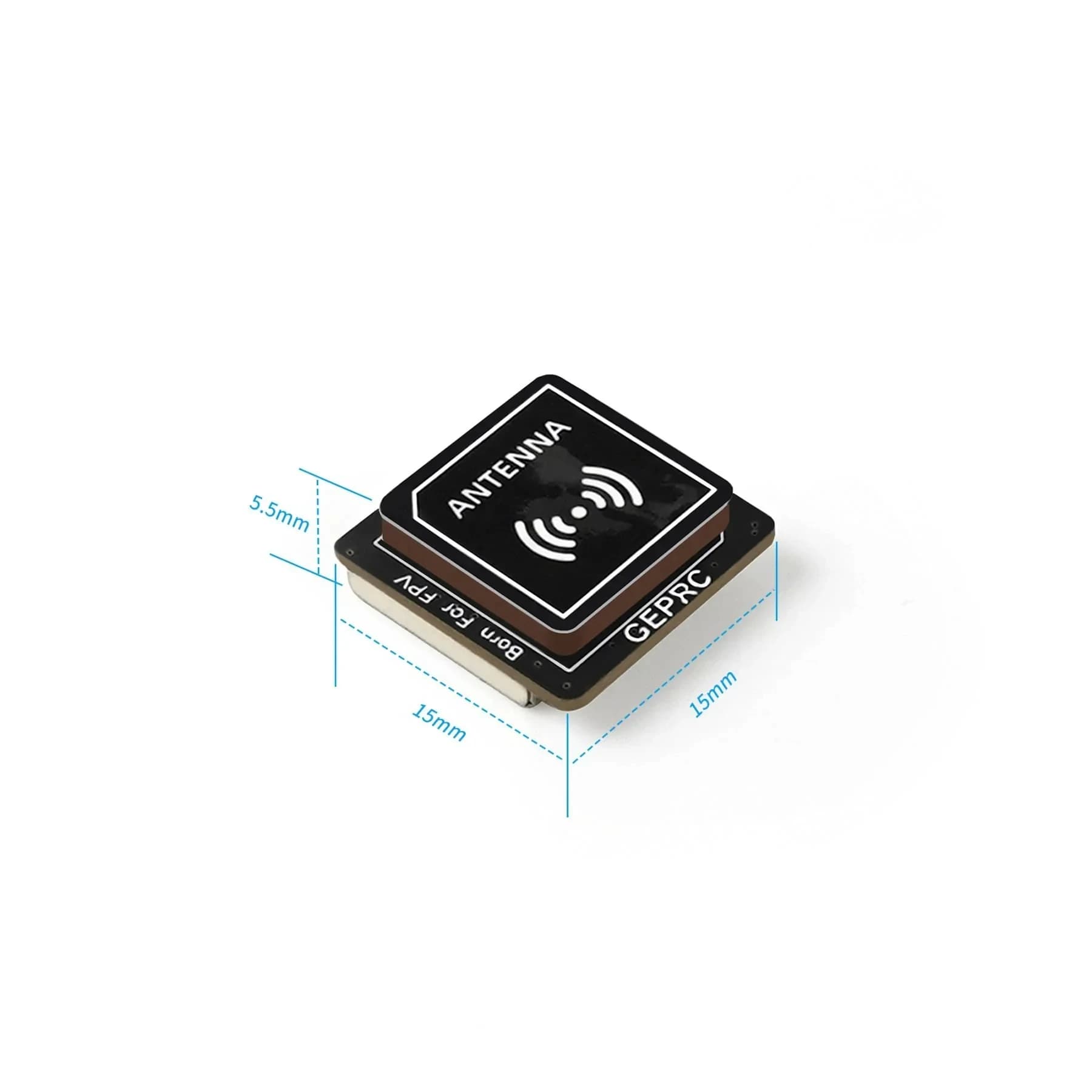

GEPRC GEP-M10 GPS Module M10Nano M10Q M10I M10-DI M10-DQ Series GPS+BDS+Galileo+QZSS+SBAS for FPV Drone Chip ============================================================ GEPRC GPS / Navigation Module — professional-grade component for FPV drone applications. Description report Summary Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based on M10 chip: GEP-M10nano, GEP-M10, GEP-M10-DQ. GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. It supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products. Specifications Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ GPS chip: M10 Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ: QMC5883L Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ:DPS310 Input voltage: 3.3V-5V Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1 Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning Channel: 72ch Navigation satellites: Up to 32 pieces Baud rate: 115200bps Output Frequency: 10Hz Speed Accuracy: 0.05 m/s Horizontal positioning accuracy: 2D ACC1.5m(Weather) Timing accuracy: 30 ns Receiver sensitivity: Trace-162dBm, Capture-160dBm Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s Maximum acceleration: 4G Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10-DQ: 8.0g Feature 1.M10 series chip 2.Fast positioning speed 3.GPS+BDS+Galileo+QZSS+SBAS joint positioning 4.Up to 32 satellites 5.Stable connection quality 6.Unique appearance design 7.Small size and light weight 8.Built-in Flash chip and Farad capacitor 9.Onboard indicator light, easy to use 10.Integrated magnetometer+barometer,integrated module (GEP-M10-DQ) Includes 1 x GPS module 1 x Terminal wire 1 x Instruction manual 1 x GEPRC sticker 1 x Heat shrink tubing TECHNICAL SPECIFICATIONS • Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ • Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ:DPS310 • Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm • Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10-DQ: 8.0g • Channel: 72ch AVAILABLE OPTIONS GEP-M10Nano GPS GEP-M10 GPS GEP-M10-DQ GPS GEP-M10Q GPS GEP-M10I GPS GEP-M10-DI GPS PRODUCT INFORMATION Brand: GEPRC Category: FPV Drone Wholesale Price: US $20.51 ————————————————————————————————————————
