GEPRC Momoda2 4,9G-6G антенна Высокочастотная дальняя дальность FPV DIY RC Quadcopter Freestyle Drone запасные части
Description
Summary:

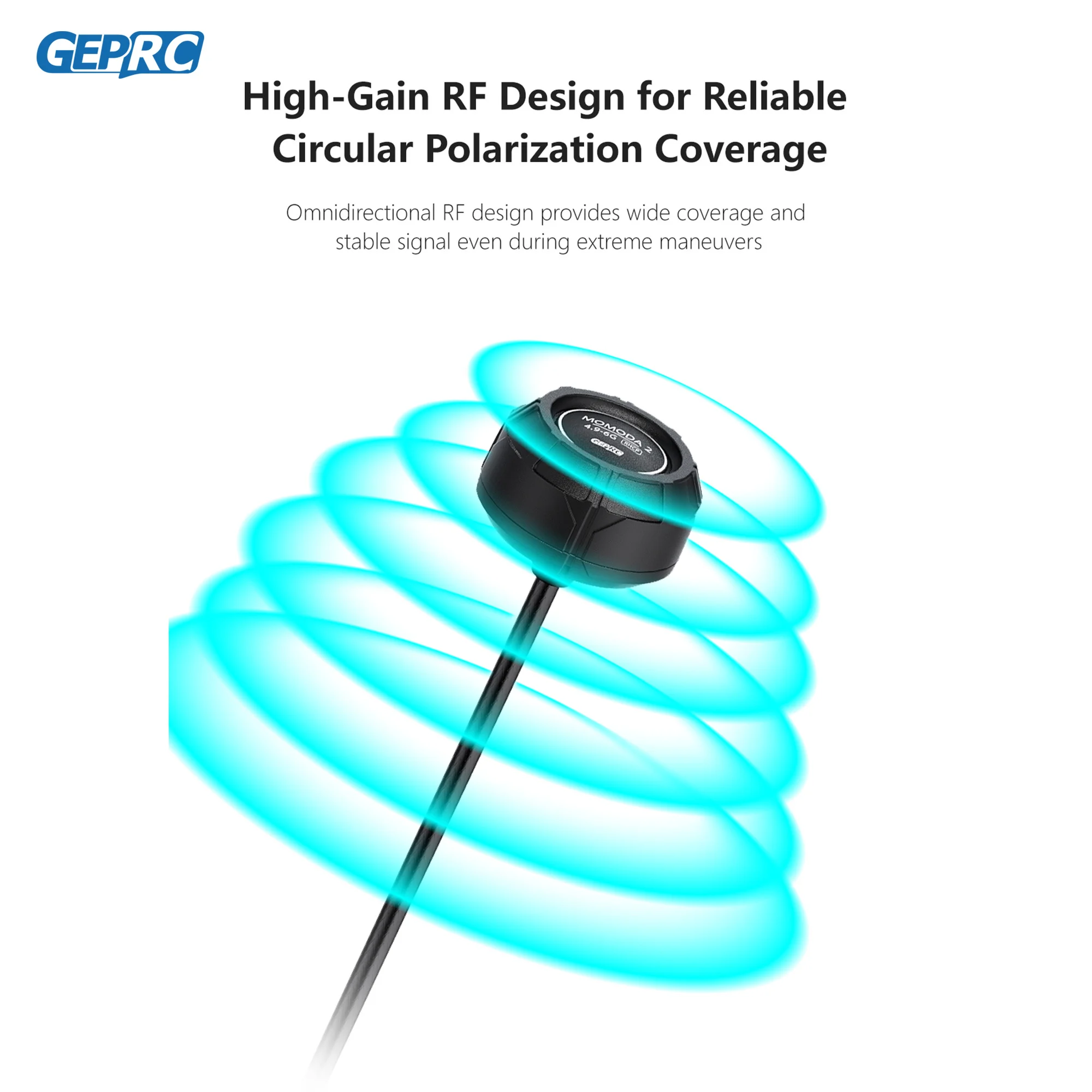

The GEPRC Momoda2 4.9G-6G antenna offers omnidirectional signal coverage. With a high-gain design, it achieves up to 3.55dBi gain at the 5150MHz frequency, enhancing signal reception, transmission range, and stability. The ABS shell provides excellent durability, making it crash-resistant, corrosion-resistant, and highly sealed.
Feature:
- Wider operating frequency range with high parameter consistency across frequency points, compatible with HD and analog signals.
- Uses thick RG141 cable and an ABS shell for reliability and durability.
- High-quality SMA connector minimizes signal transmission loss.
- Each antenna undergoes strict spectrum analyzer testing before shipping to ensure VSWR stays within standard limits.
Product List:
1 x GEPRC Momoda2 4.9G-6G antenna
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Summary:
The GEPRC Momoda2 4.9G-6G antenna offers omnidirectional signal coverage. With a high-gain design, it achieves up to 3.55dBi gain at the 5150MHz frequency, enhancing signal reception, transmission range, and stability. The ABS shell provides excellent durability, making it crash-resistant, corrosion-resistant, and highly sealed.
Feature:
1. Wider operating frequency range with high parameter consistency across frequency points, compatible with HD and analog signals.
2. Uses thick RG141 cable and an ABS shell for reliability and durability.
3. High-quality SMA connector minimizes signal transmission loss.
4. Each antenna undergoes strict spectrum analyzer testing before shipping to ensure VSWR stays within standard limits.
Model: GEPRC Momoda2 4.9G-6G antenna
Center Frequency: 5450MHz
Bandwidth: 4900MHz～6000MHz
Polarization: RHCP/LHCP
Gain: 3.55dbi
Axial Ratio: ≤3
VSWR: ≤1.28
Radiation Efficiency: 88%
Cross Polarization Suppression: -25dB

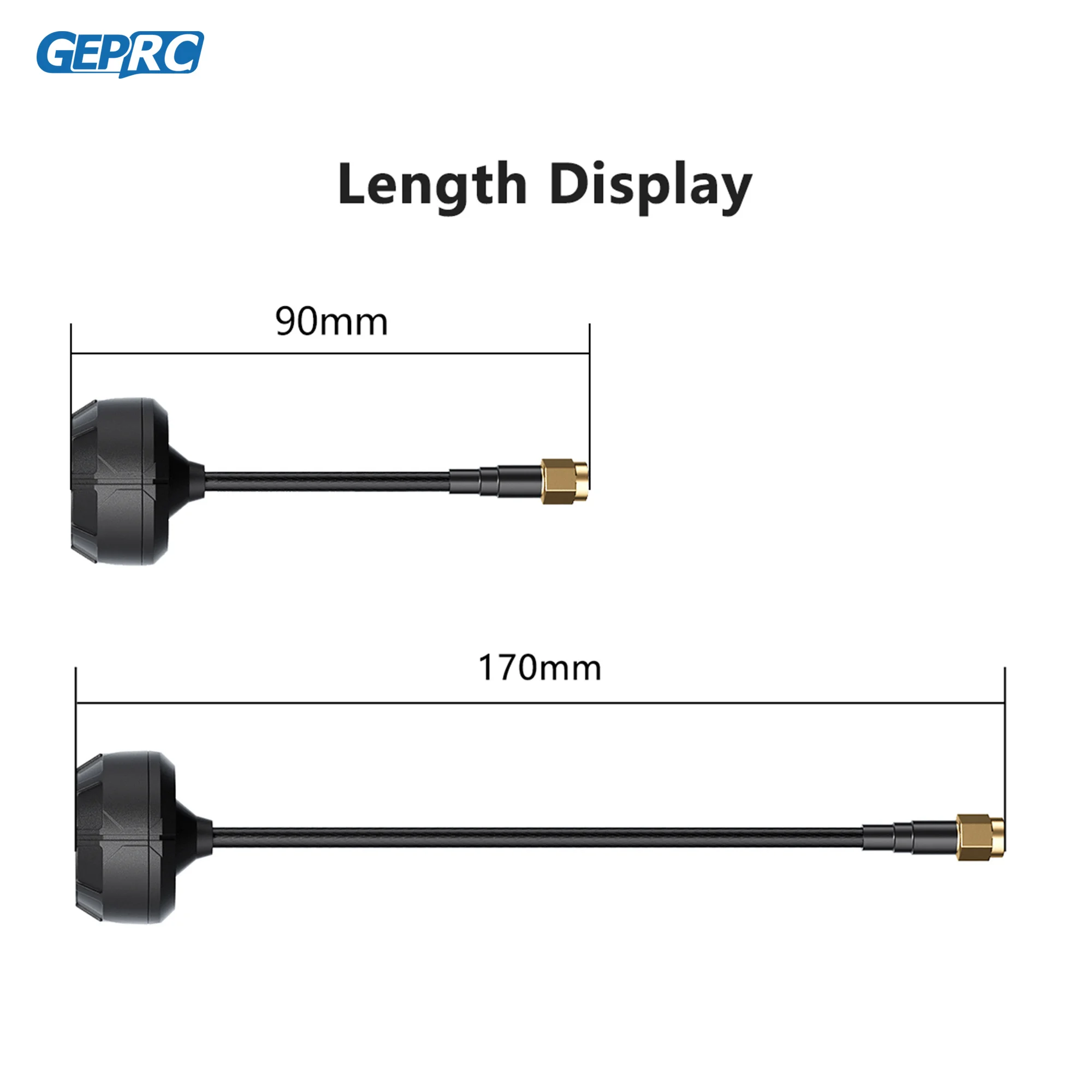

Length: 170mm
Cable：RG141 Line
Antenna Weight: 14.7g （±0.3g）
Enclosure Material: ABS

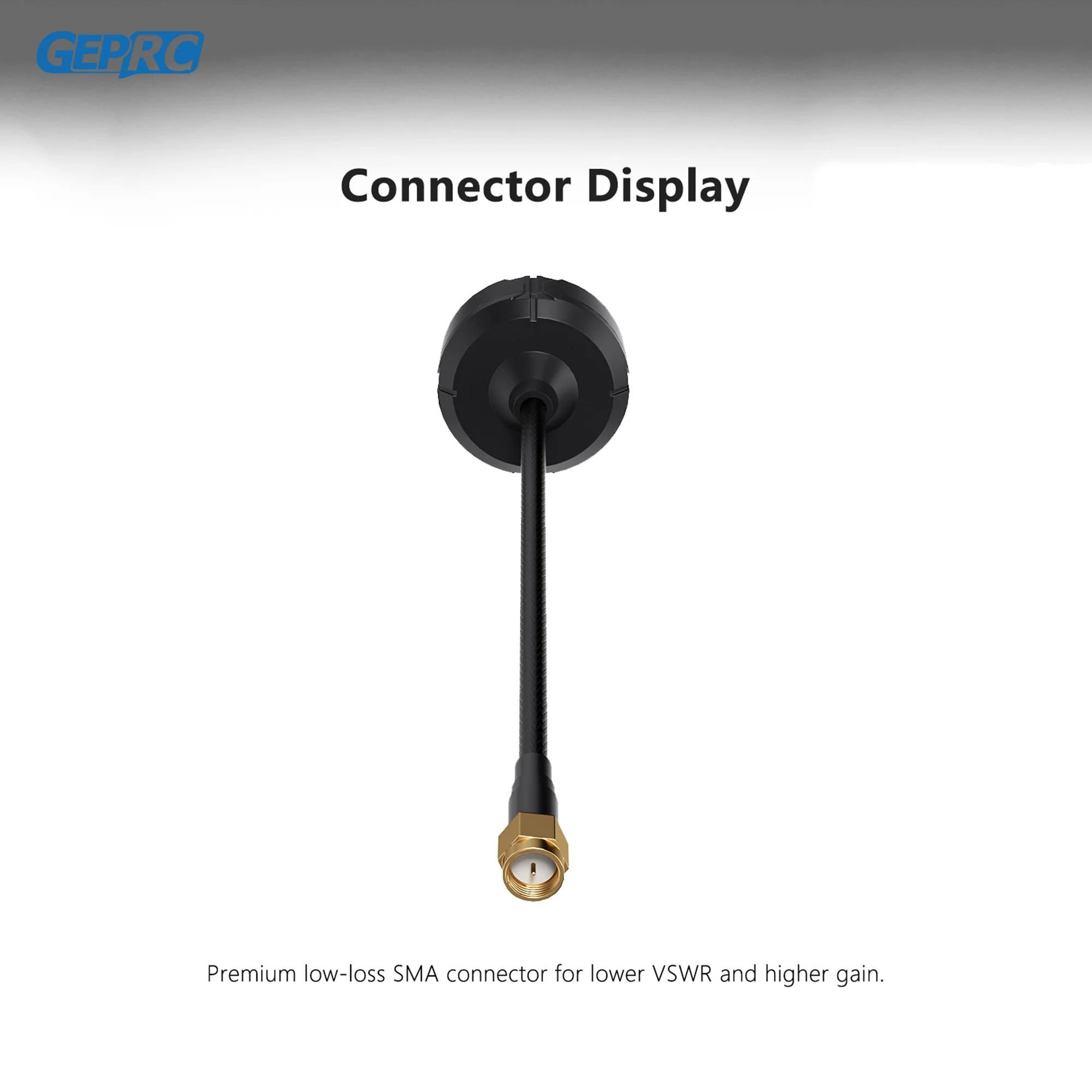

Connector Type: SMA
Product List:
1 x GEPRC Momoda2 4.9G-6G antenna
