GEPRC ELRS 915M 2,4G C3 Gemini Xrossband Приемник TX Модуль Двойной RF Чип 1000 Гц для FPV Дрон для фристайла дальнего действия
Description
[xlmodel]-[custom]-[8888]

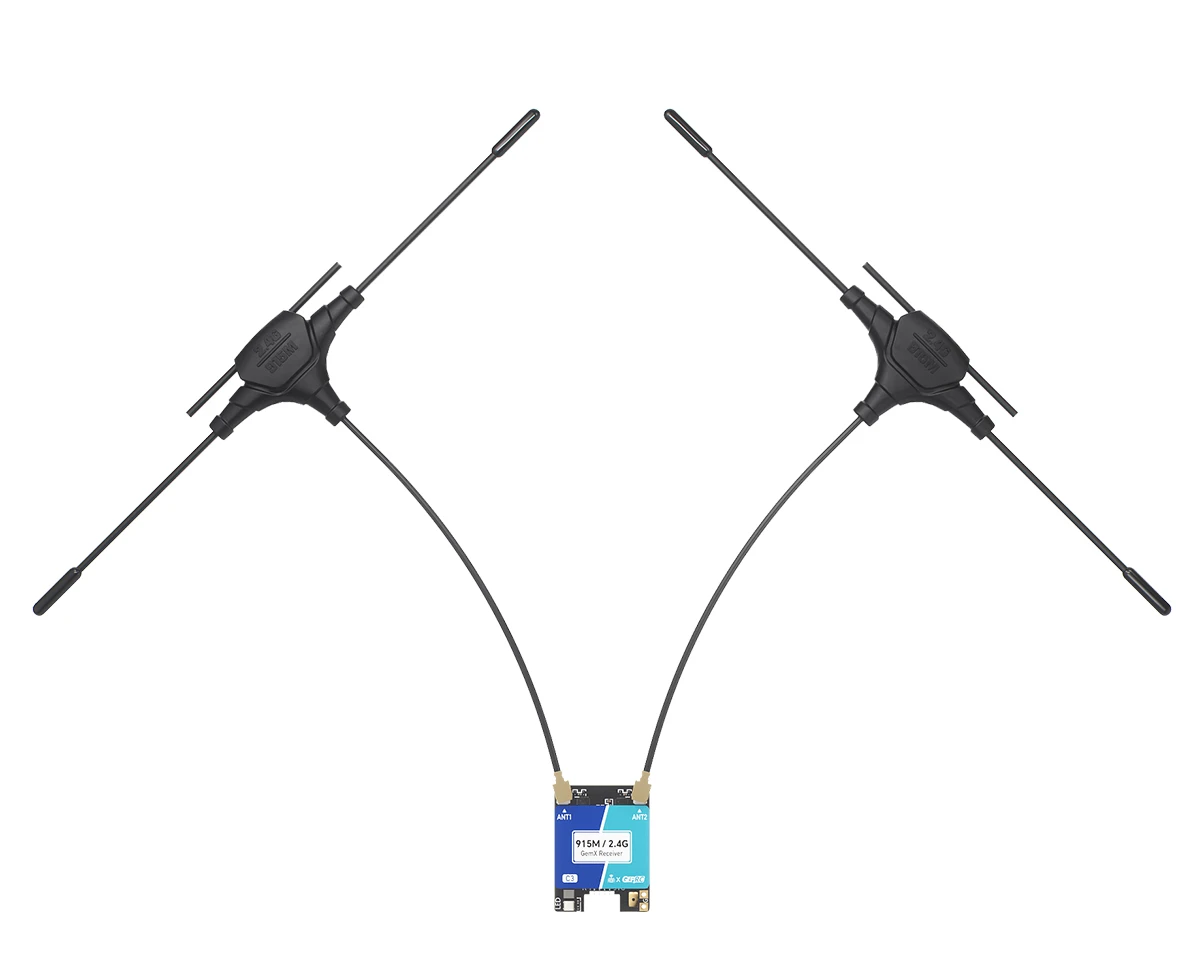

GEPRC ELRS 915M 2.4G C3 Gemini Xrossband Receiver TX Module Dual-RF Chip 1000Hz for FPV Long Range Freestyle Drone
Summary

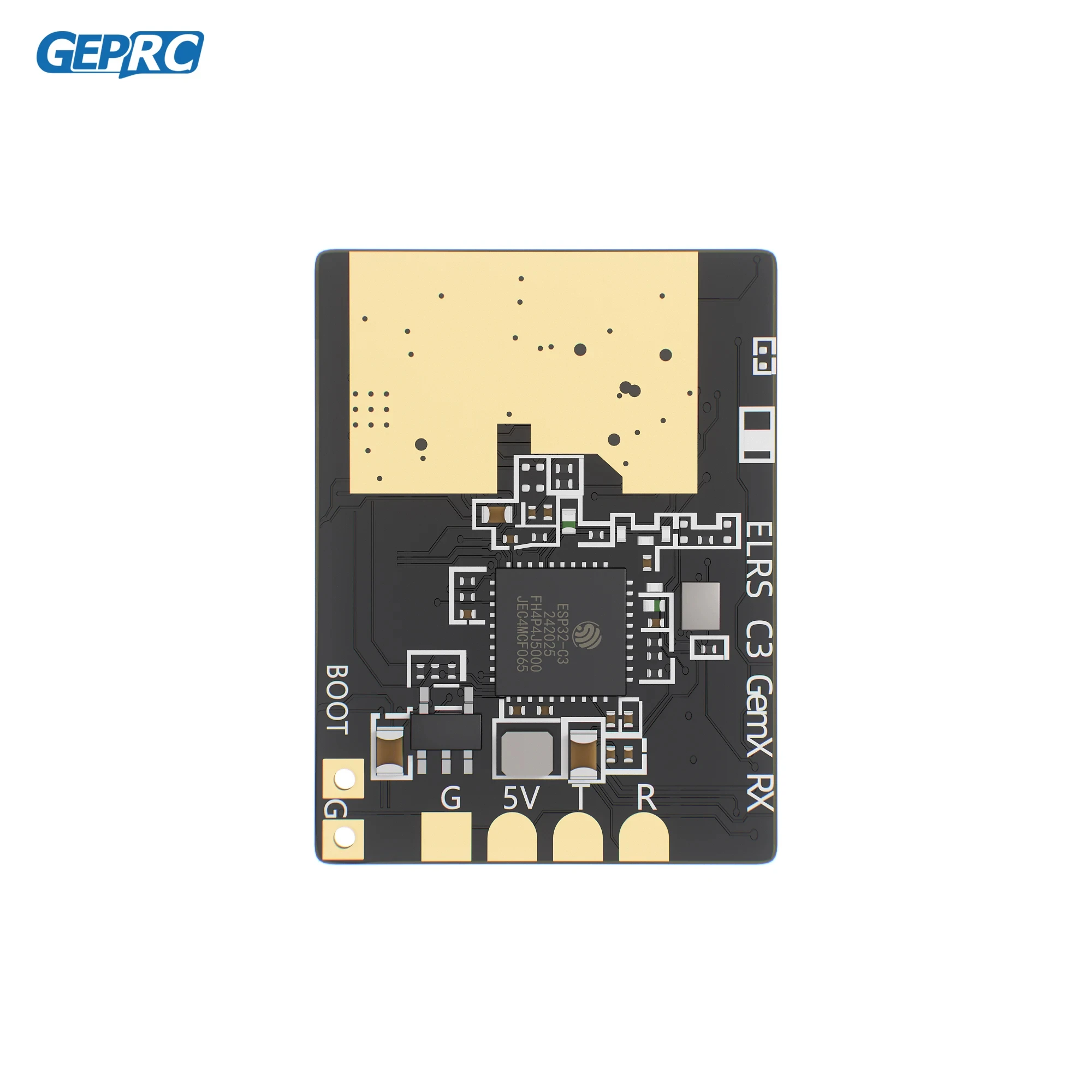

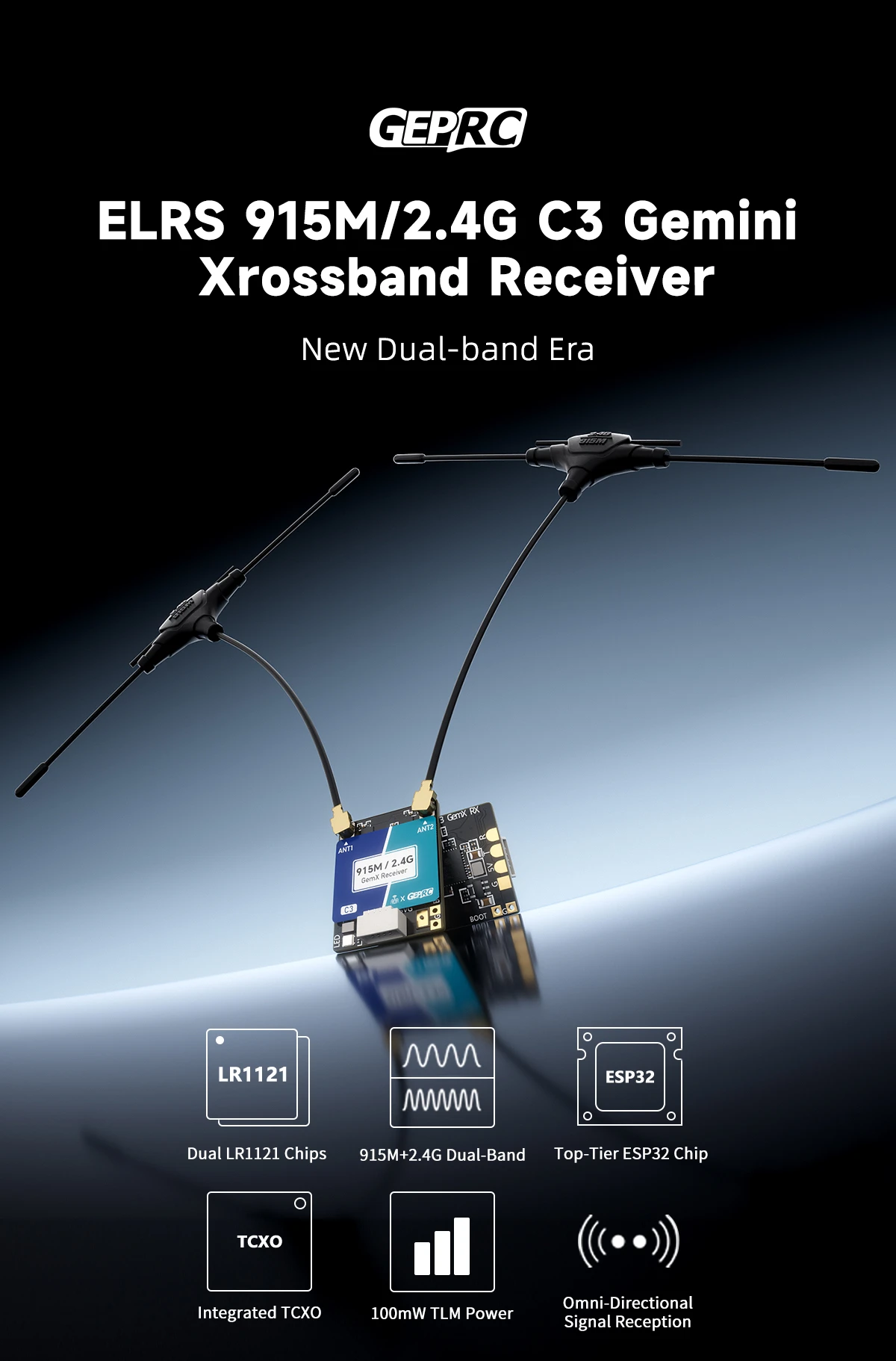

GEPRC ELRS 915M/2.4G C3 GemX Gemini Receiver is a new dual-band receiver system developed based on the ExpressLRS open-source project. It is designed with the Semtech LR1121 (3rd generation RF chip) and ESP32-C3 chip, supporting both 150960 MHz (sub-GHz) and 2.4 GHz bands, delivering advanced simultaneous dual-band transmission.

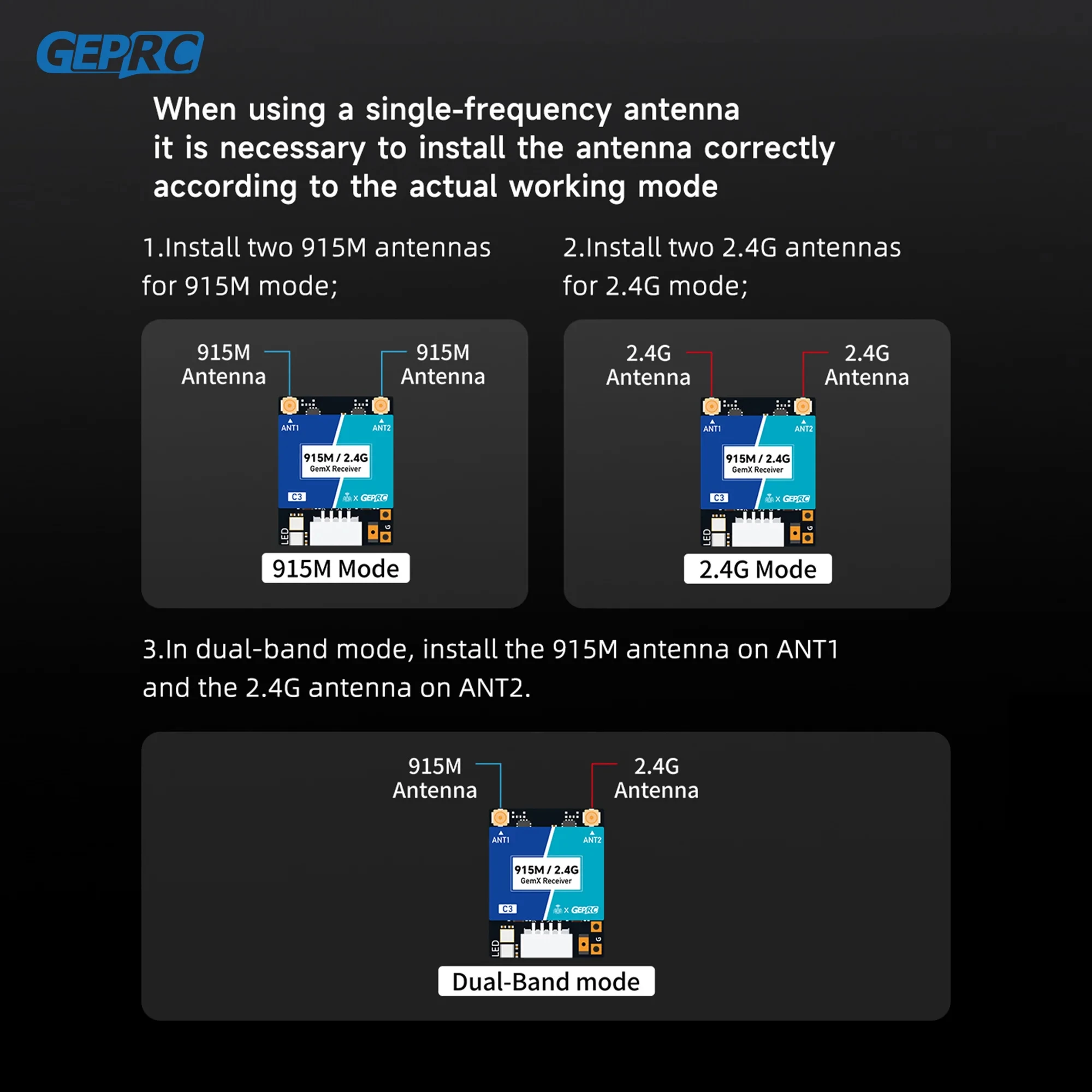

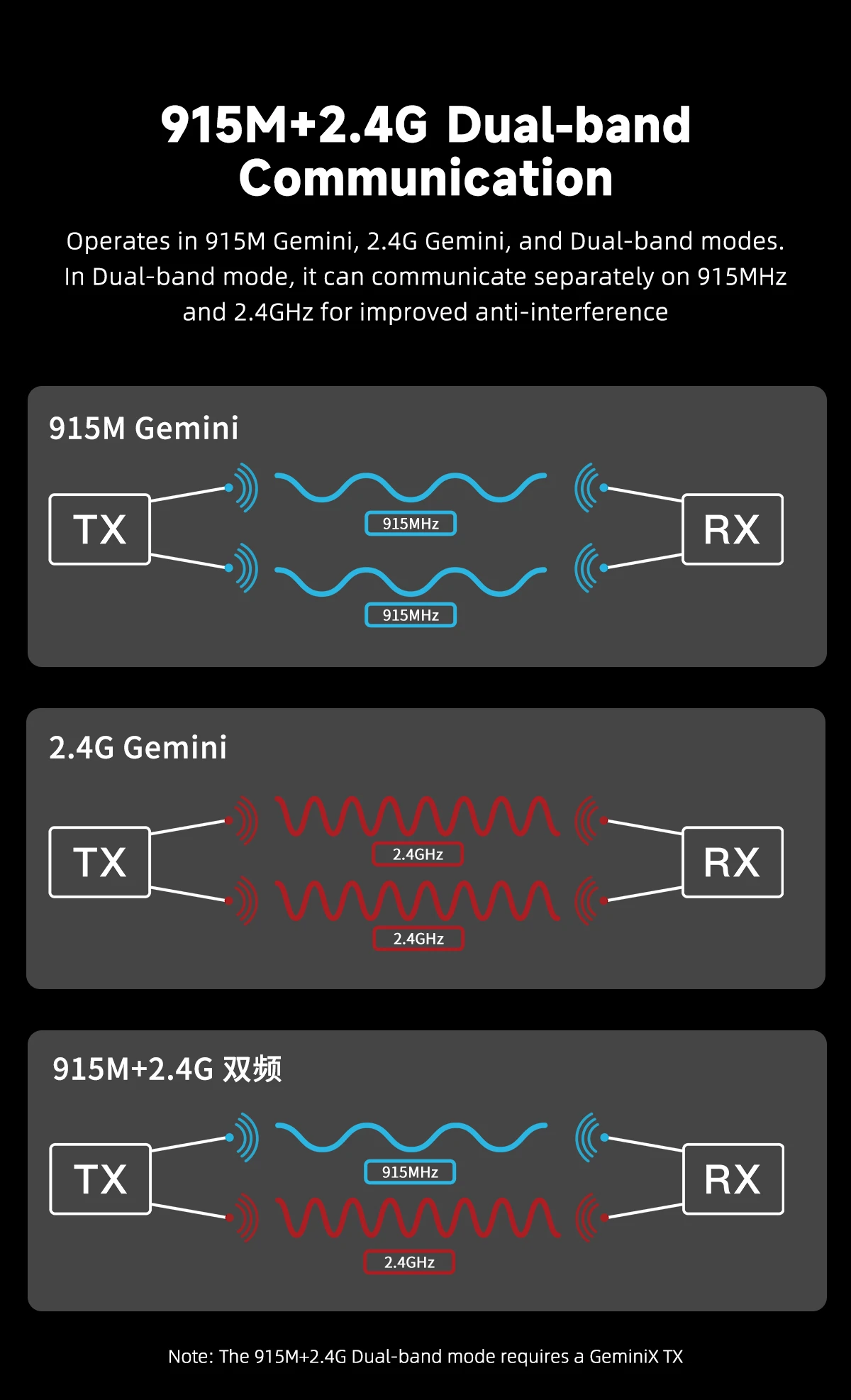

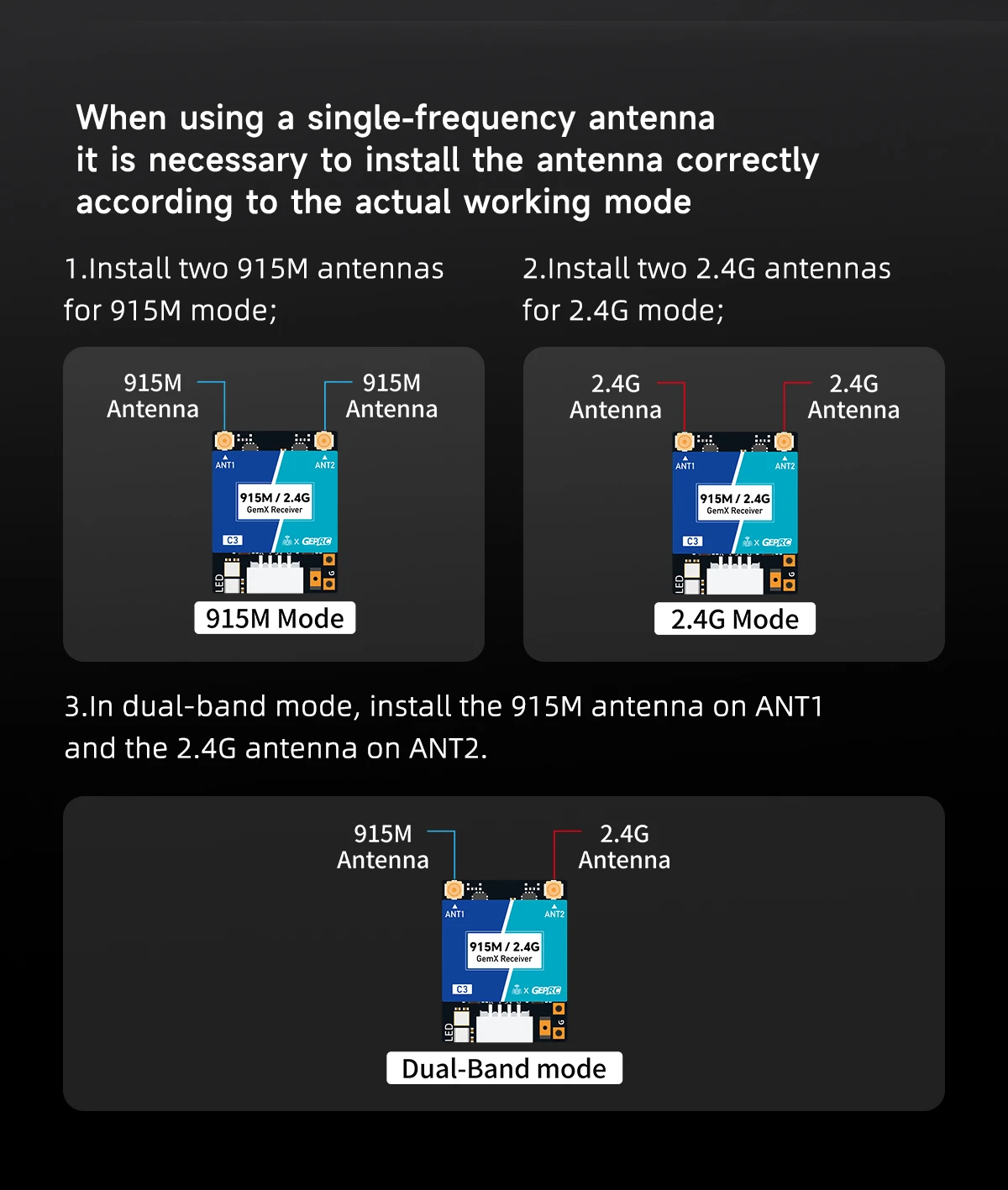

It supports up to 1000 Hz (FSK) refresh rate and comes with 915M/2.4G dual-band antennas, allowing flexible switching between 915M Gemini, 2.4G Gemini, and 915M+2.4G Dual-Band modes (It requires the use of GemX TX). When operating in dual-band mode, the system achieves enhanced anti-interference performance and more stable connectivity, ensuring excellent results for both close-range racing and long-range flights. It is also fully compatible with single-band ELRS TX modules, offering outstanding versatility.

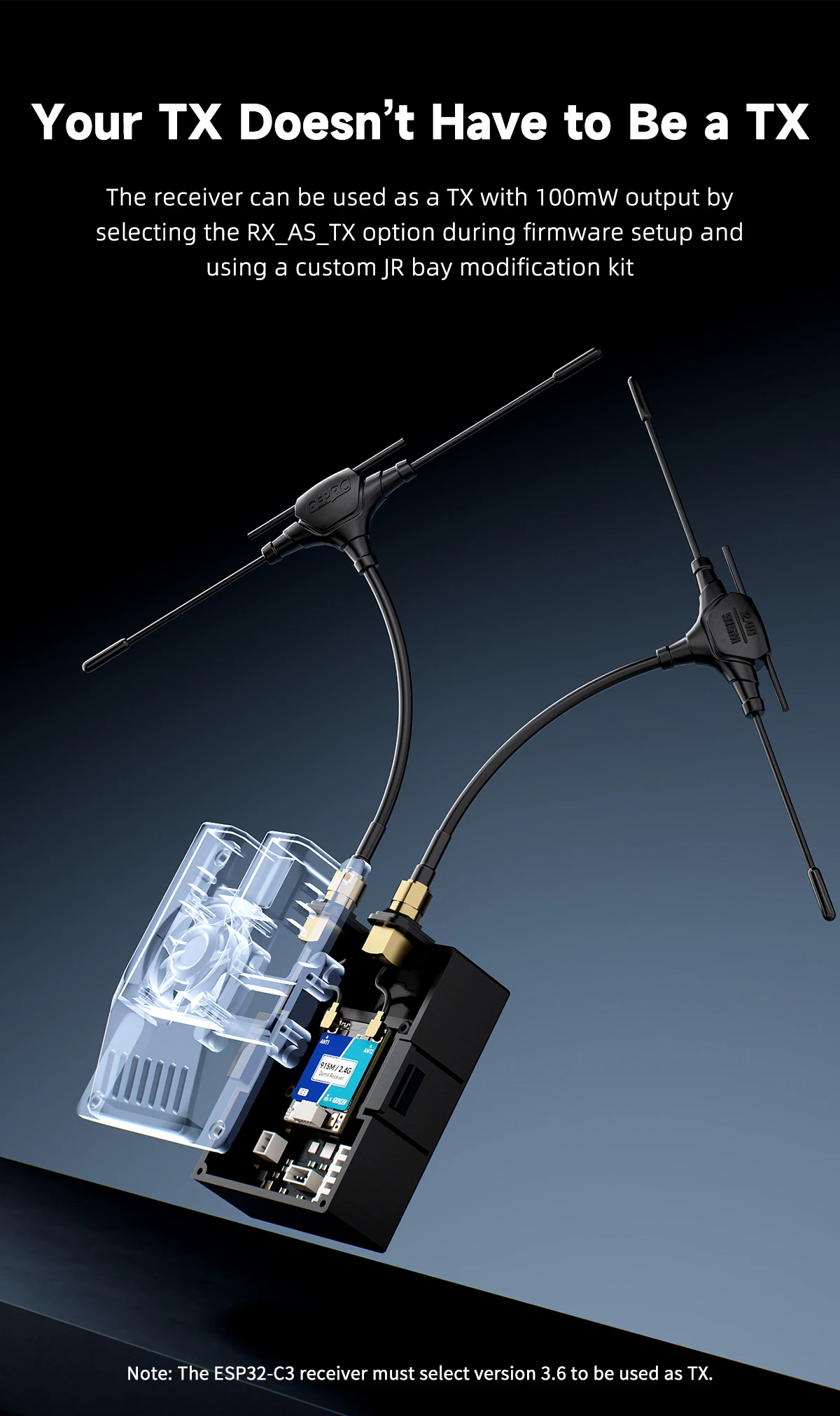

Equipped with a TCXO, it maintains frequency stability under varying temperatures. The TLM power reaches up to 100 mW, and the receiver features a built-in WiFi antenna for easy firmware upgrades via WiFi. With the SH1.0 connector, installation is simple and efficient. Additionally, after flashing TX firmware, it can function as a Gemini Xrossband TX module.

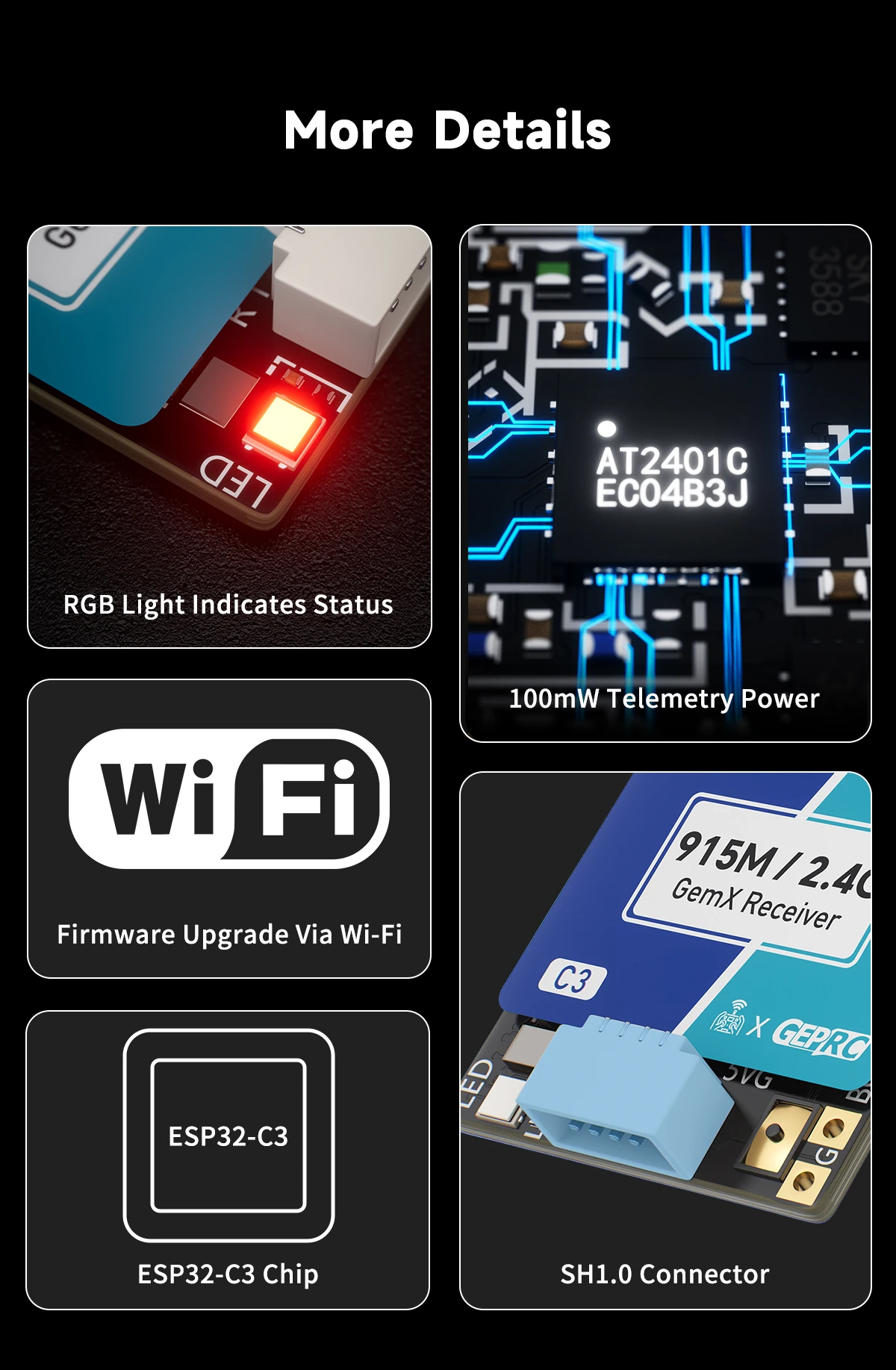

Feature
Advanced ExpressLRS 915M/2.4G dual-frequency system

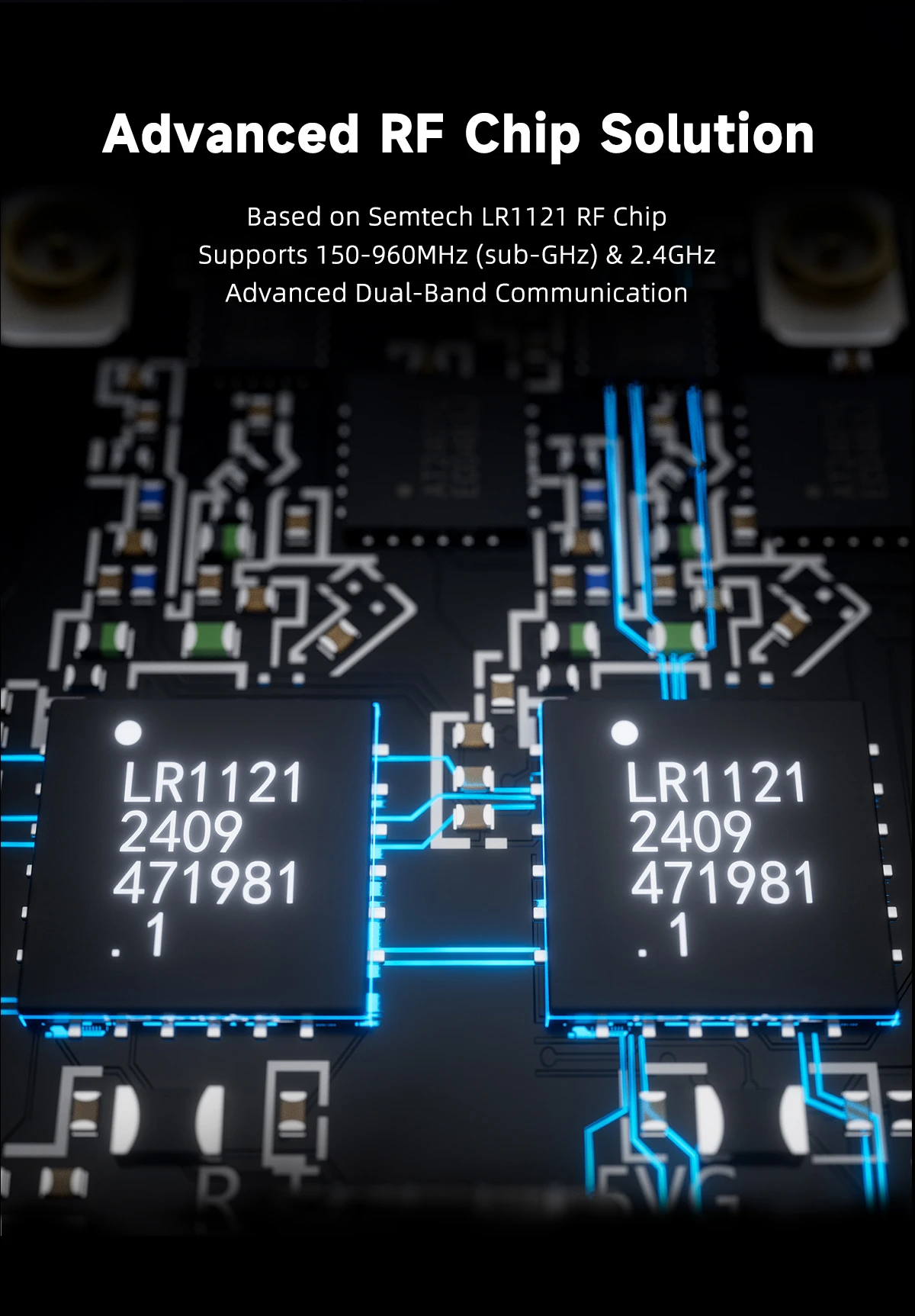

Based on Semtechs third-generation LR1121 RF chip
Compact at 18x23.6x5.7mm and weighing just 1.6g
Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
Telemetry power up to 100mW
Refresh rate up to 1000Hz
Supports WiFi firmware updates
Includes an SH1.0 connector for easy installation
Specifications
| Option | Values |
|---|---|
| Type |
|
| Receiver |
|
Product Details
[xlmodel]-[custom]-[8888]
GEPRC ELRS 915M 2.4G C3 Gemini Xrossband Receiver TX Module Dual-RF Chip 1000Hz for FPV Long Range Freestyle Drone
Summary
GEPRC ELRS 915M/2.4G C3 GemX Gemini Receiver is a new dual-band receiver system developed based on the ExpressLRS open-source project. It is designed with the Semtech LR1121 (3rd generation RF chip) and ESP32-C3 chip, supporting both 150960 MHz (sub-GHz) and 2.4 GHz bands, delivering advanced simultaneous dual-band transmission.
It supports up to 1000 Hz (FSK) refresh rate and comes with 915M/2.4G dual-band antennas, allowing flexible switching between 915M Gemini, 2.4G Gemini, and 915M+2.4G Dual-Band modes (It requires the use of GemX TX). When operating in dual-band mode, the system achieves enhanced anti-interference performance and more stable connectivity, ensuring excellent results for both close-range racing and long-range flights. It is also fully compatible with single-band ELRS TX modules, offering outstanding versatility.
Equipped with a TCXO, it maintains frequency stability under varying temperatures. The TLM power reaches up to 100 mW, and the receiver features a built-in WiFi antenna for easy firmware upgrades via WiFi. With the SH1.0 connector, installation is simple and efficient. Additionally, after flashing TX firmware, it can function as a Gemini Xrossband TX module.
Feature
Advanced ExpressLRS 915M/2.4G dual-frequency system
Based on Semtechs third-generation LR1121 RF chip
Compact at 18x23.6x5.7mm and weighing just 1.6g
Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
Telemetry power up to 100mW
Refresh rate up to 1000Hz
Supports WiFi firmware updates
Includes an SH1.0 connector for easy installation

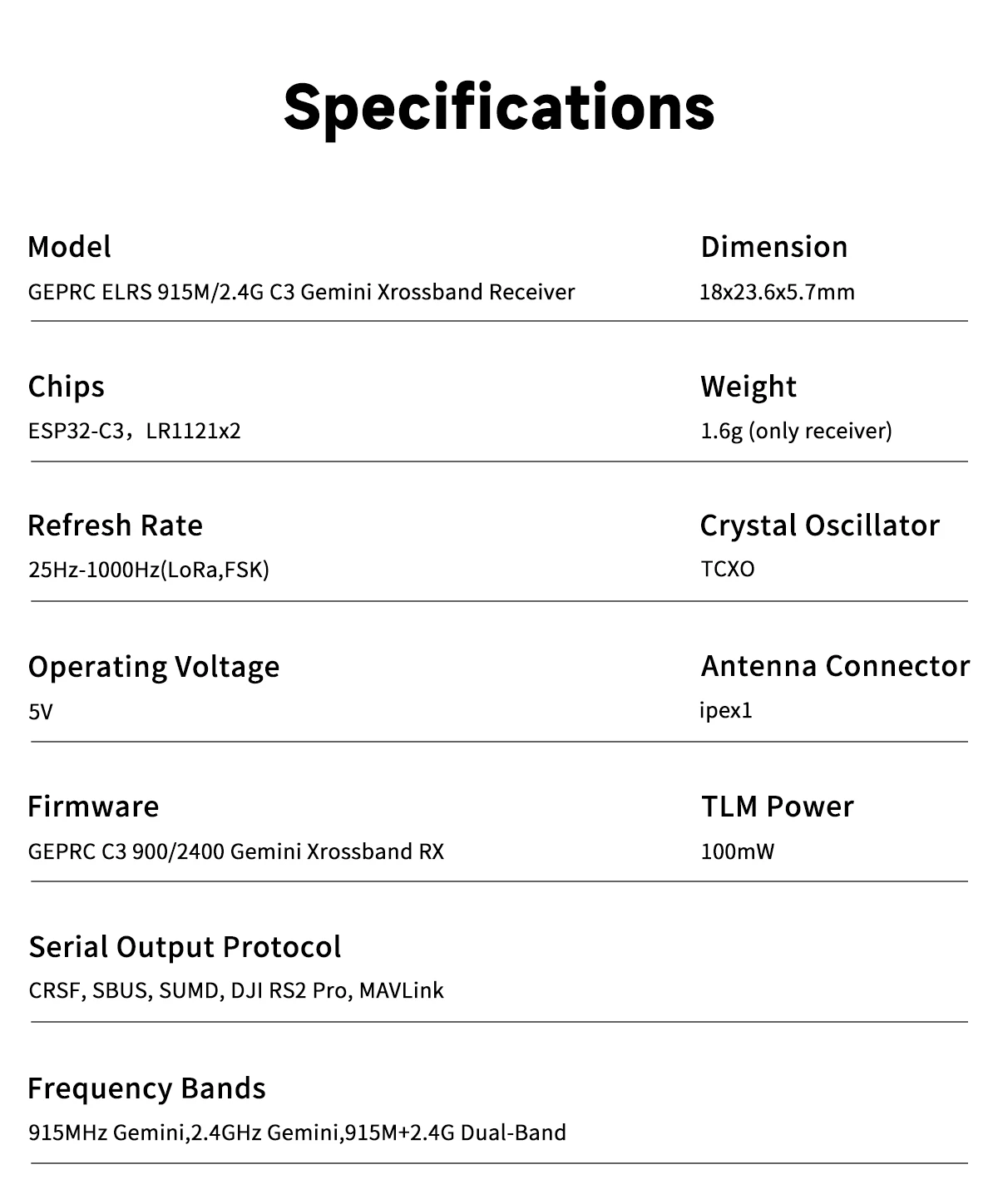

Specifications

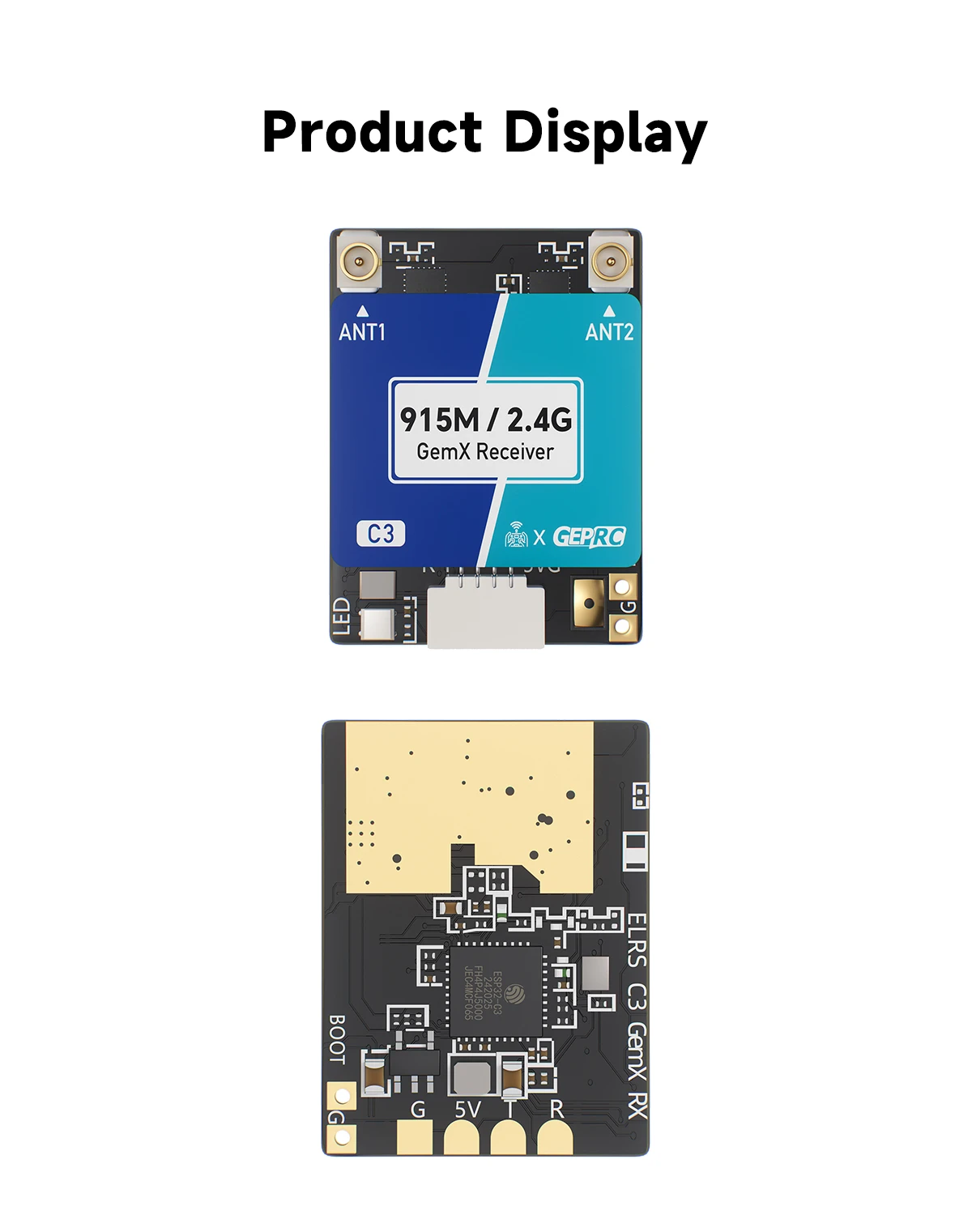

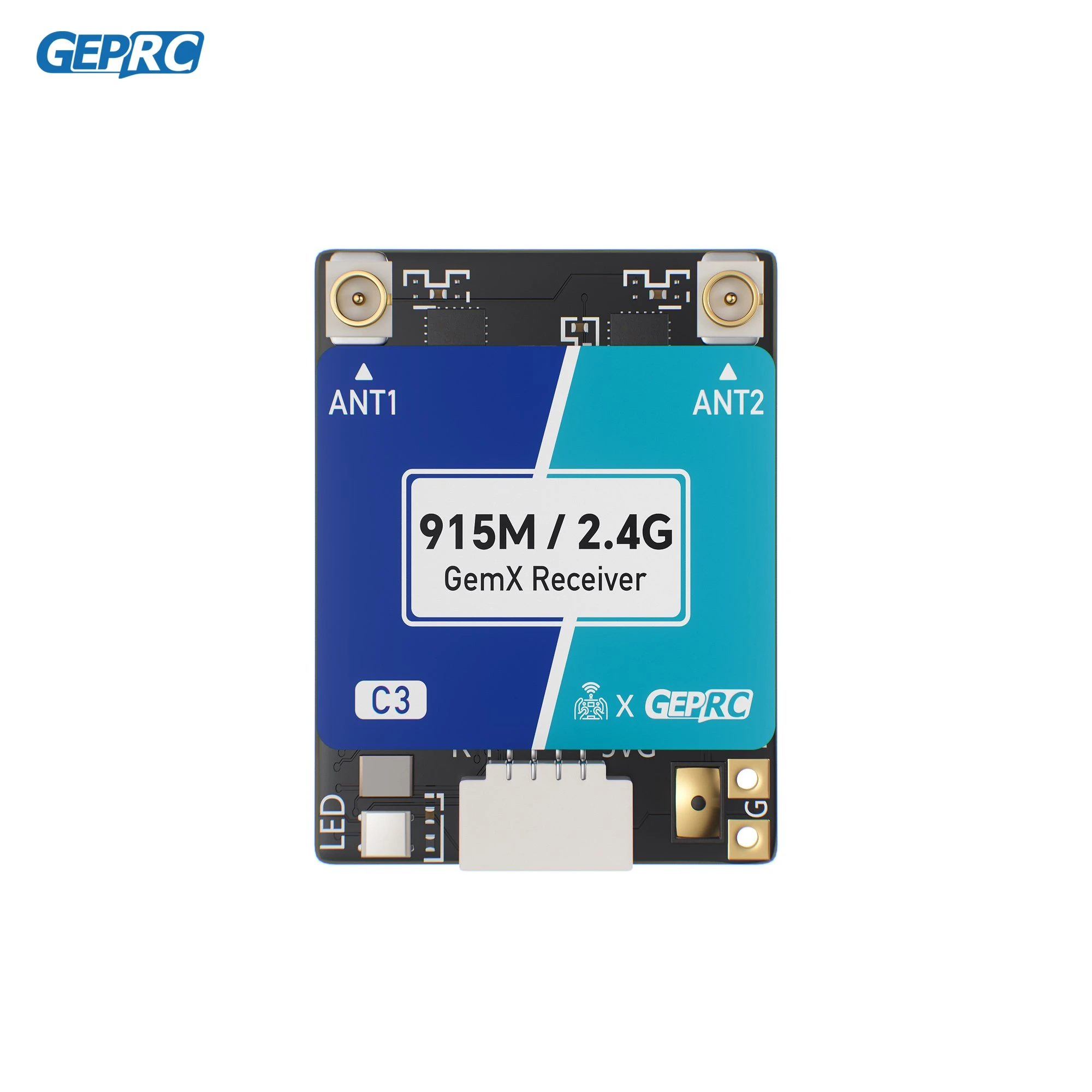

Model: GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver
Dimension: 18x23.6x5.7mm
Weight: 1.6g (only receiver)
Chips: ESP32-C3, LR1121x2
Crystal Oscillator: TCXO

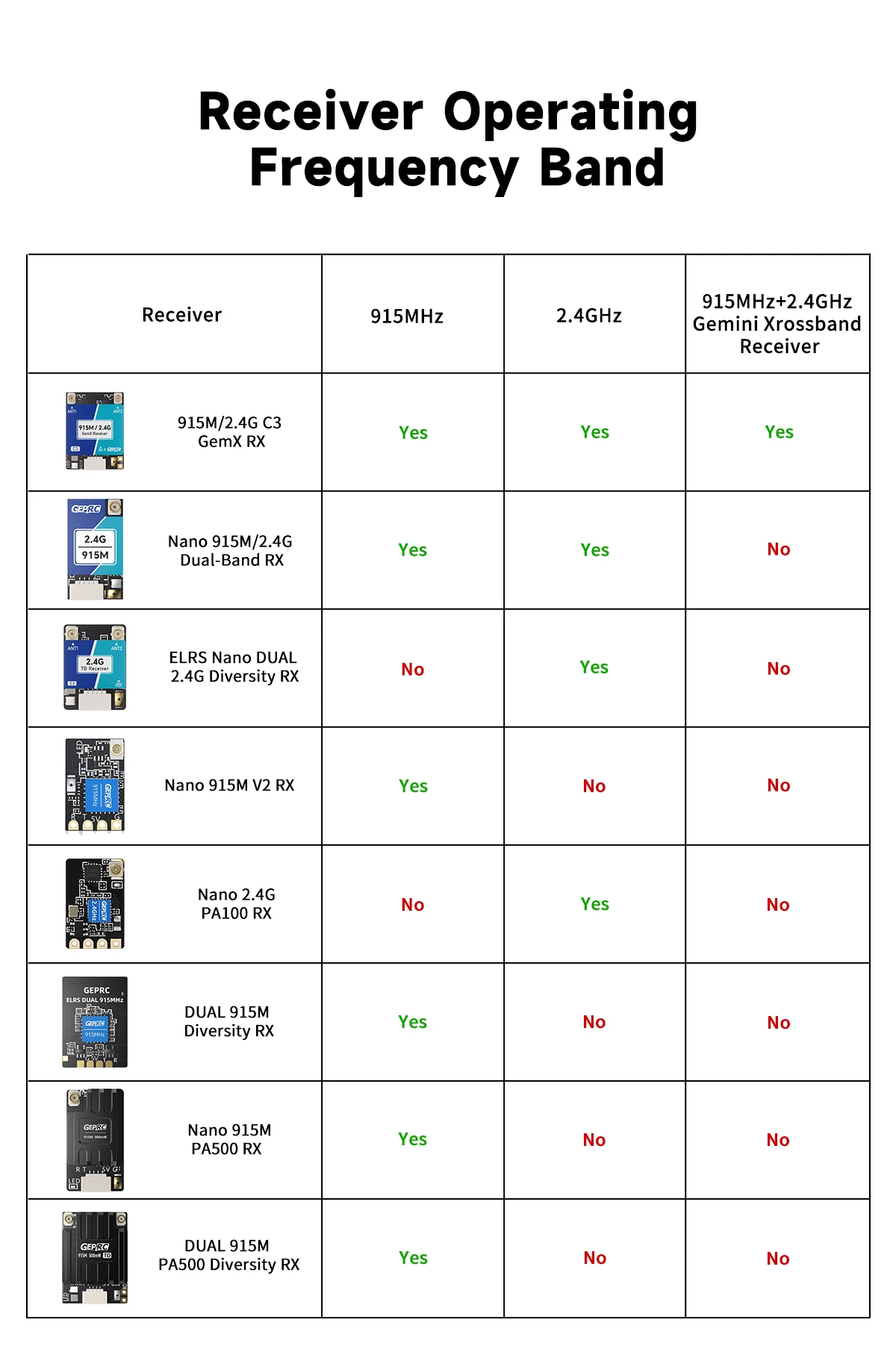

Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band
Refresh Rate: 25Hz-1000Hz(LoRa,FSK)

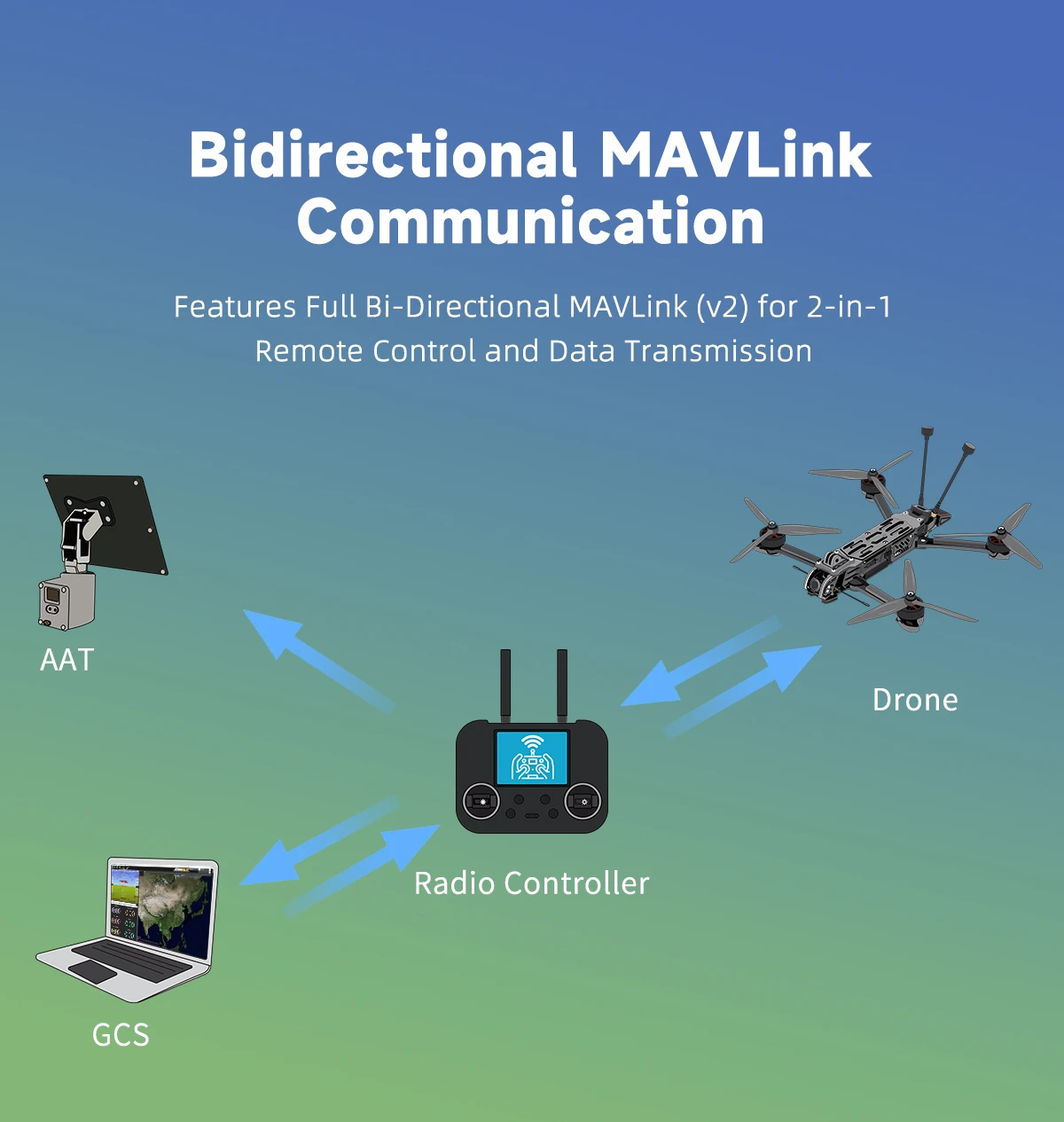

Serial Output Protocol: CRSF, SBUS, SUMD, D JI RS2 Pro, MAVLink
Operating Voltage: 5V
Antenna Connector: ipex1
TLM Power: 100mW
Firmware: GEPRC C3 900/2400 Gemini Xrossband RX

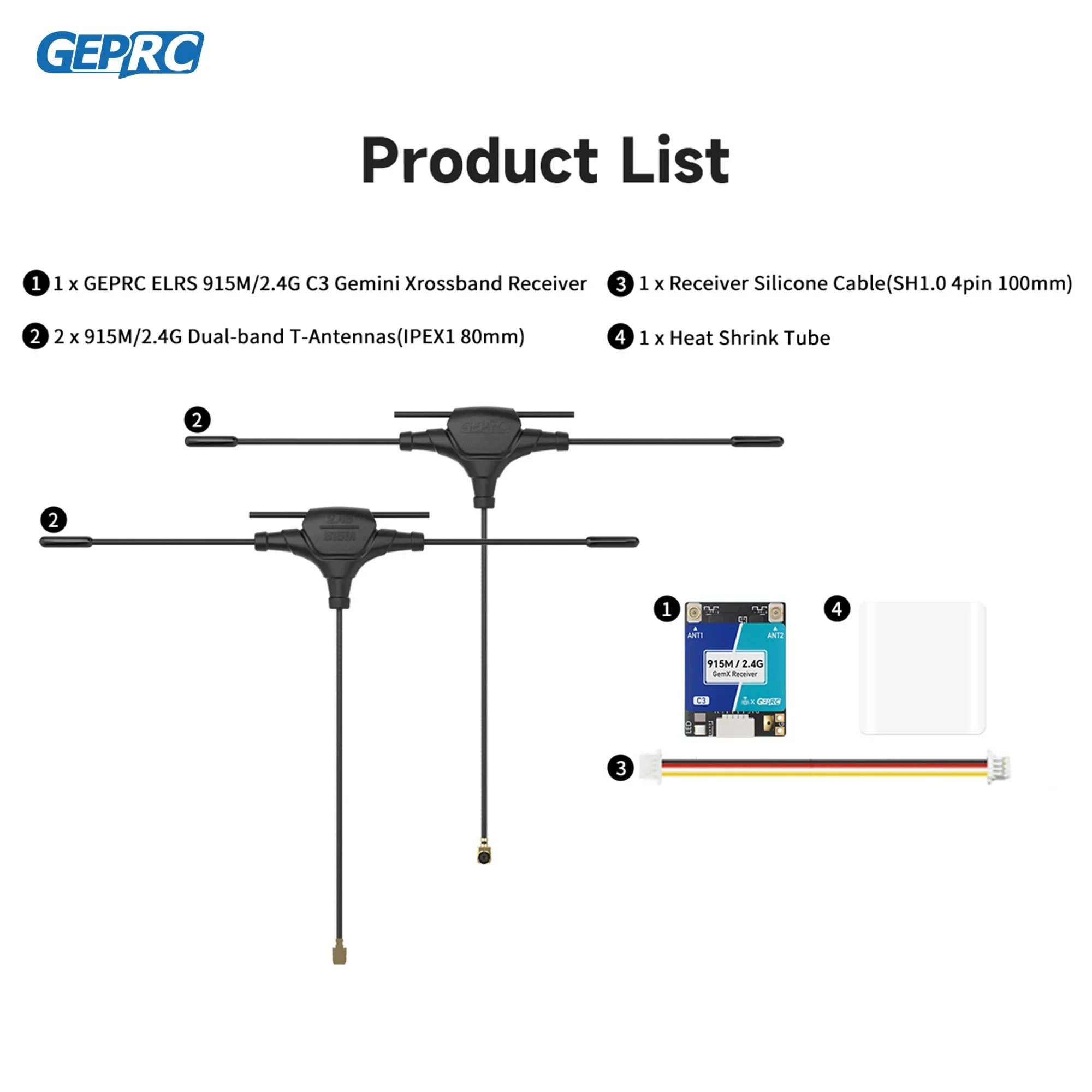

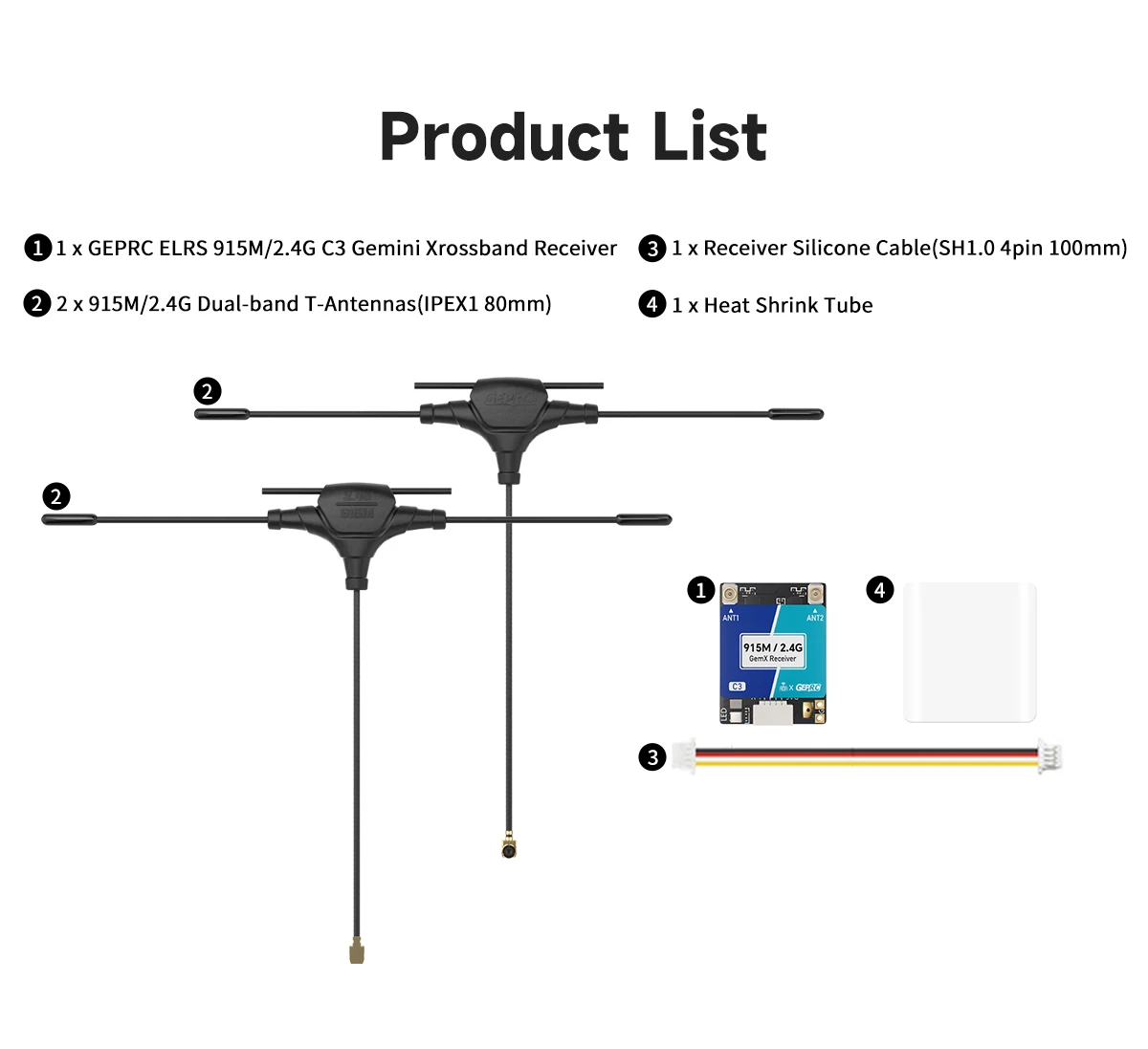

Product list
1 x GEPRC ELRS 915M/2.4G C3 Gemini Xrossband Receiver

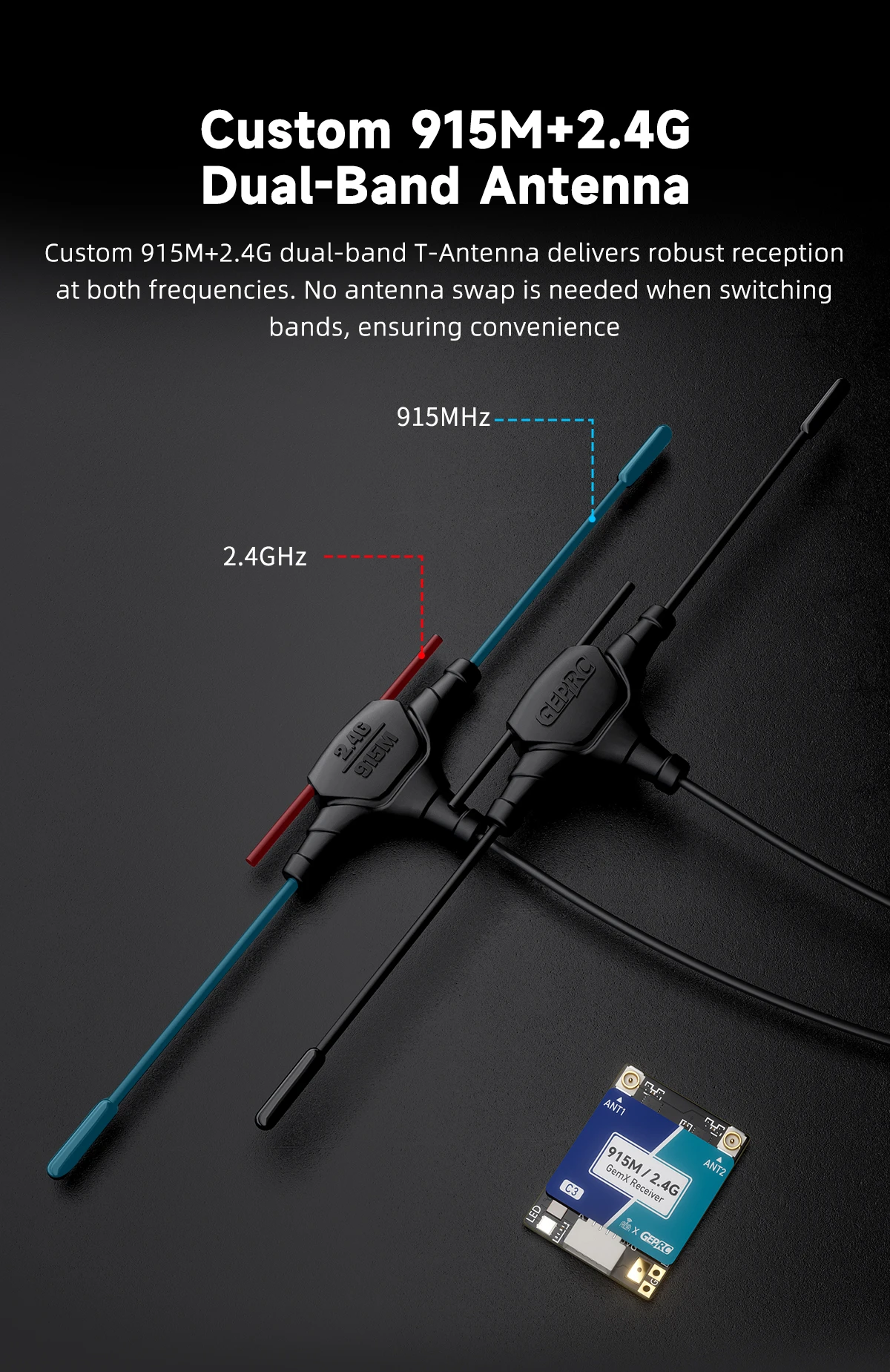

2 x 915M/2.4G Dual-band T-Antennas(ipex1 80mm)

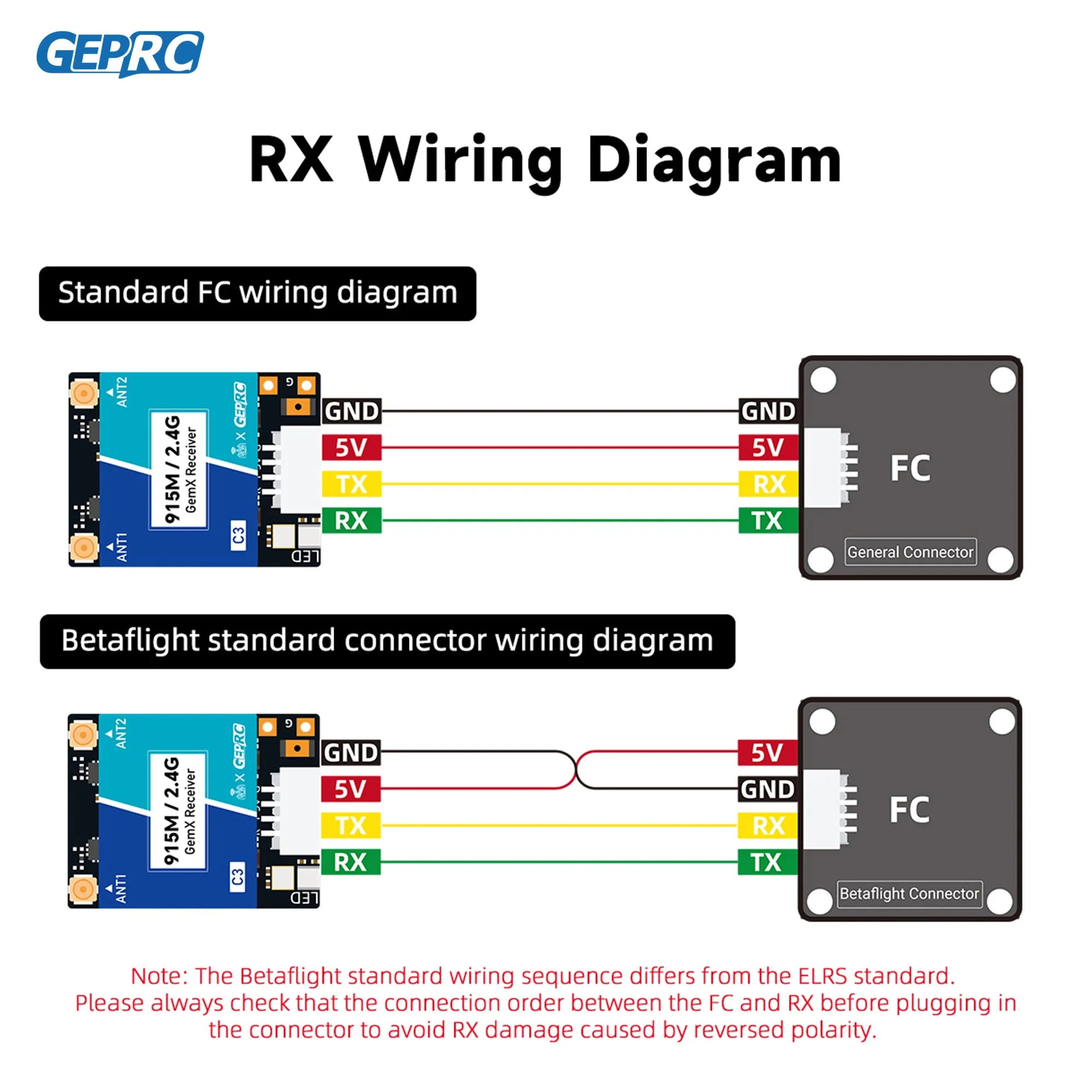

1 x Receiver silicone cable(SH1.0 4pin 100mm)
1 x Heat shrink tube
1 x User manual
