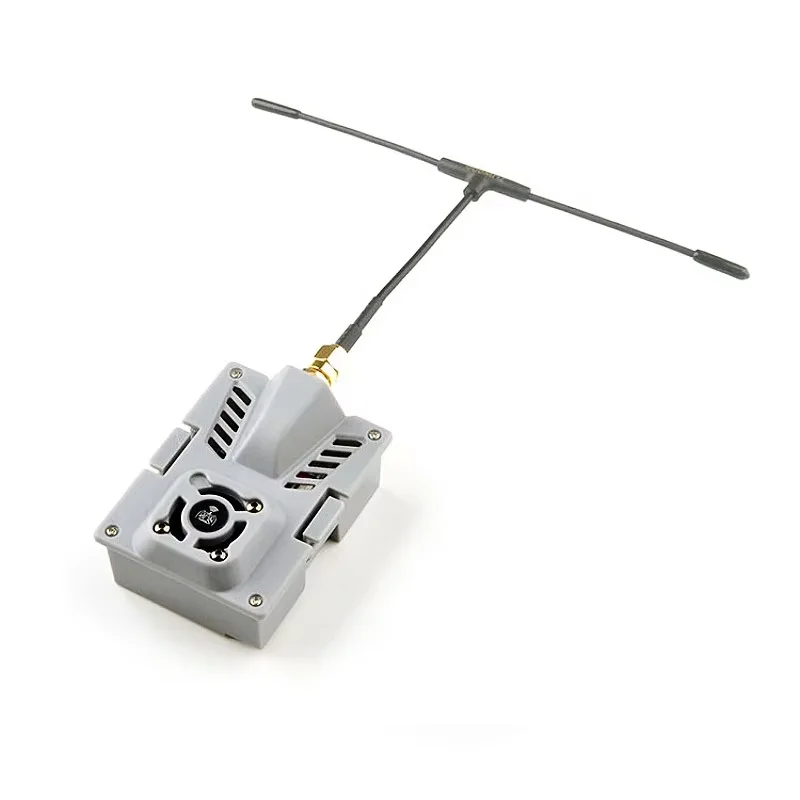

Happymodel ES900TX DUAL TCXO-ontvanger Комбинированный модуль модуля ES900TX 915 МГц ExpressLRS Прошивка для RC FPV гоночных дронов

HappyModel

From US $51.20

Est. US $51.20 / unit (1-9 pcs)

$47 @ 10+ pcs$45 @ 100+ pcs

Description

Item: ExpressLRSES900TX ES900RX 915MHz Long Range Module

Parameters:

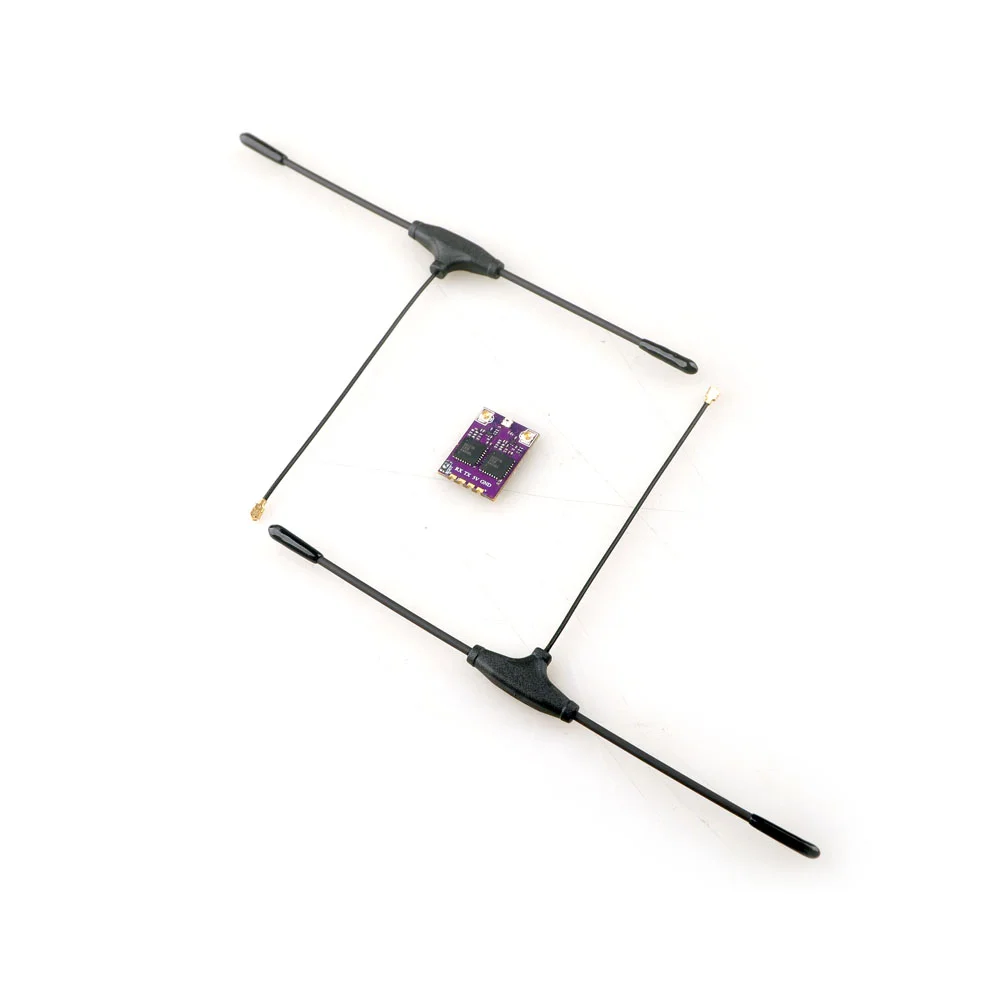

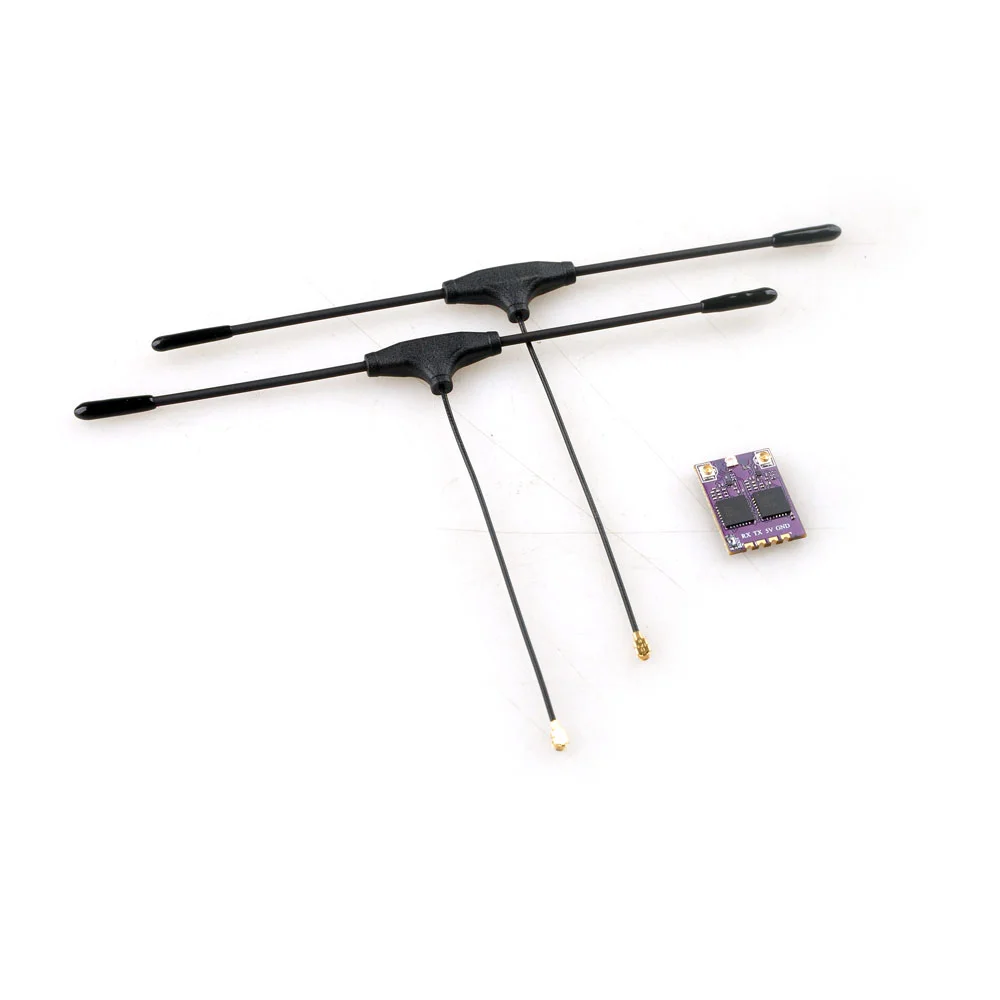

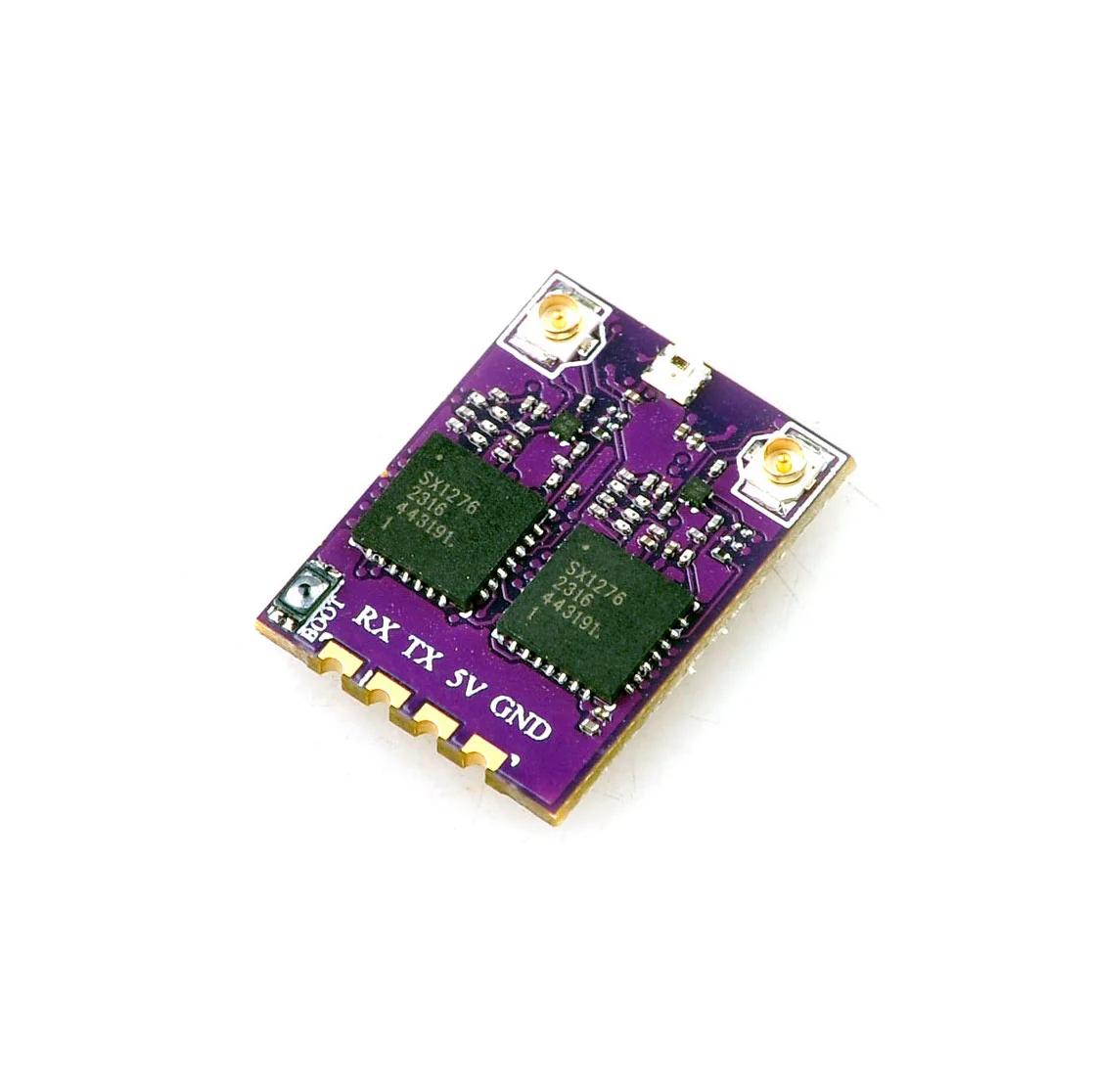

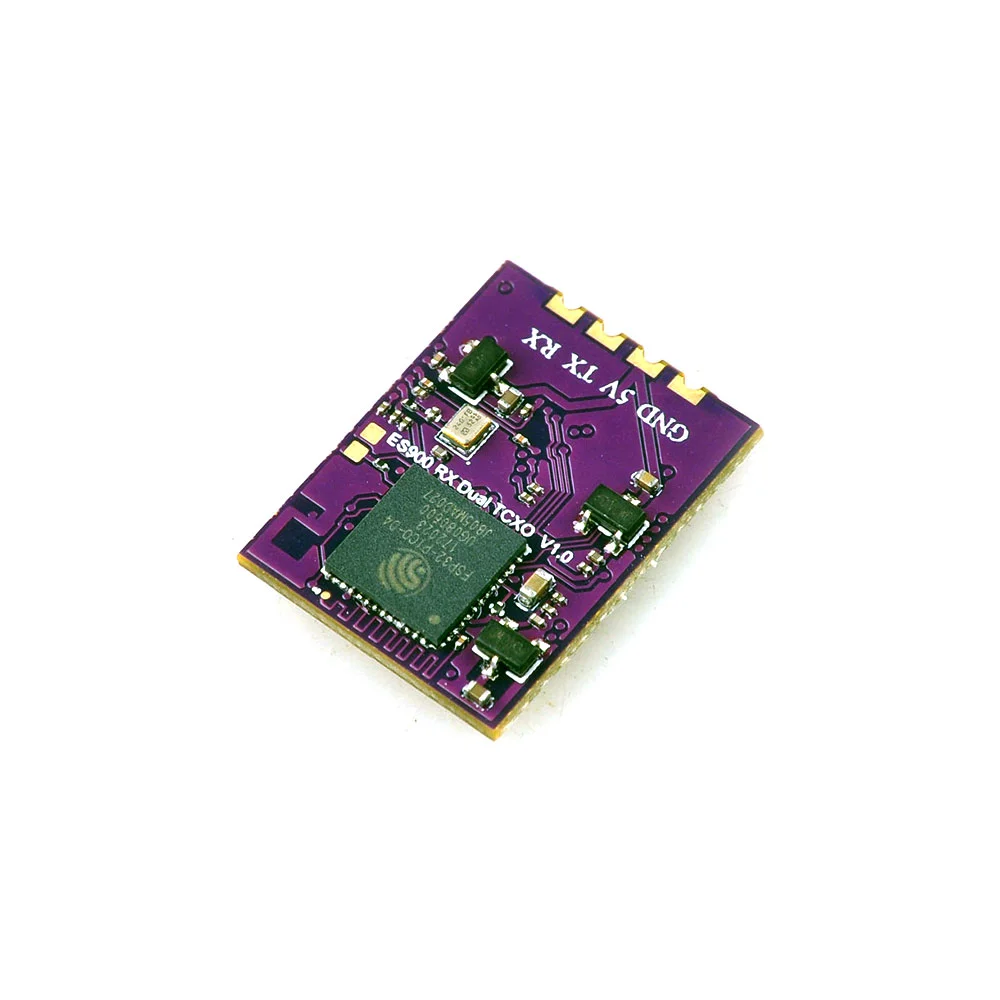

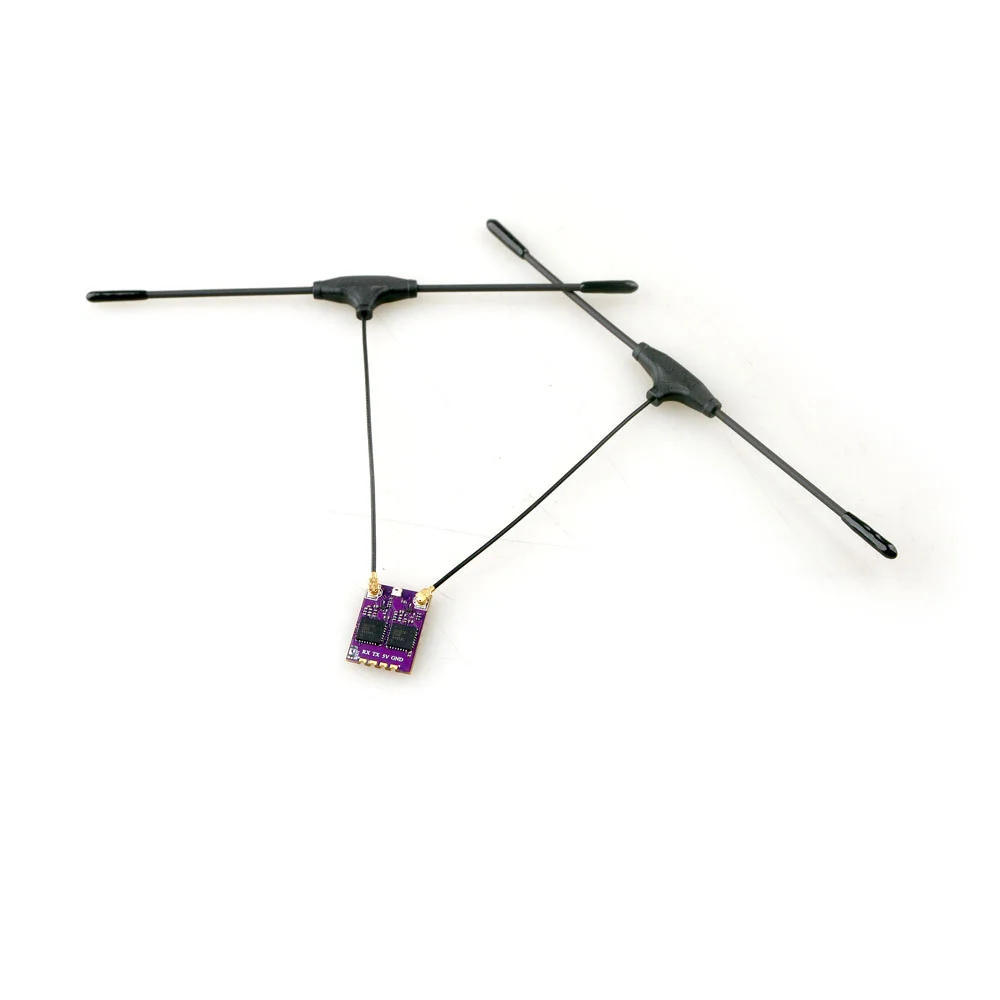

ES900RX:

ESP32 PICO D4, dual SX1276

Antenna connector: MHF 1/U.FL

RF Frequency: 915MHz

Telemetry power: 17dbm

Receiver protocol: CRSF

Input voltage: +5V DC @ "5v" pad

PCB size: 21.5mm x 16mm

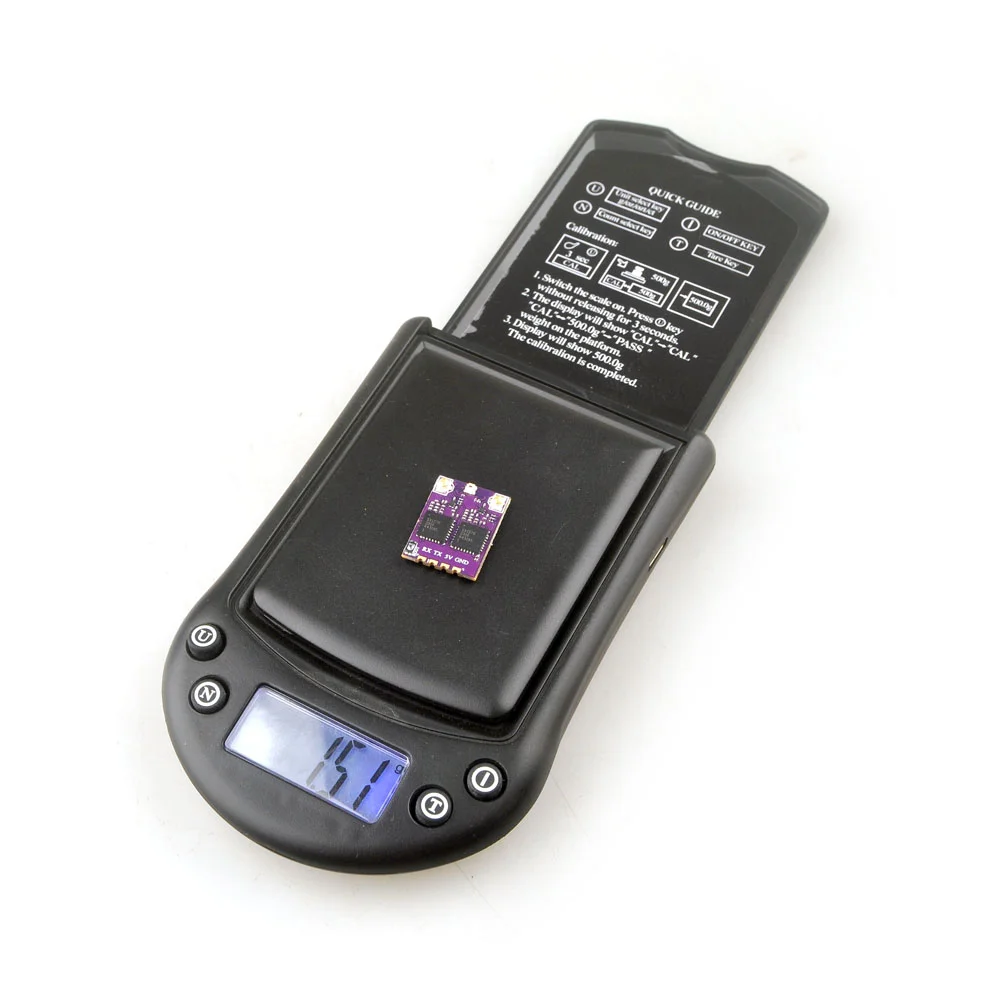

Weight: 1.5gram exclude antenna

Built-in a TCXO (temperature compensated crystal oscillator)

Firmware target: HappyModel ES900 Dual RX (Would be available on the latest version soon)

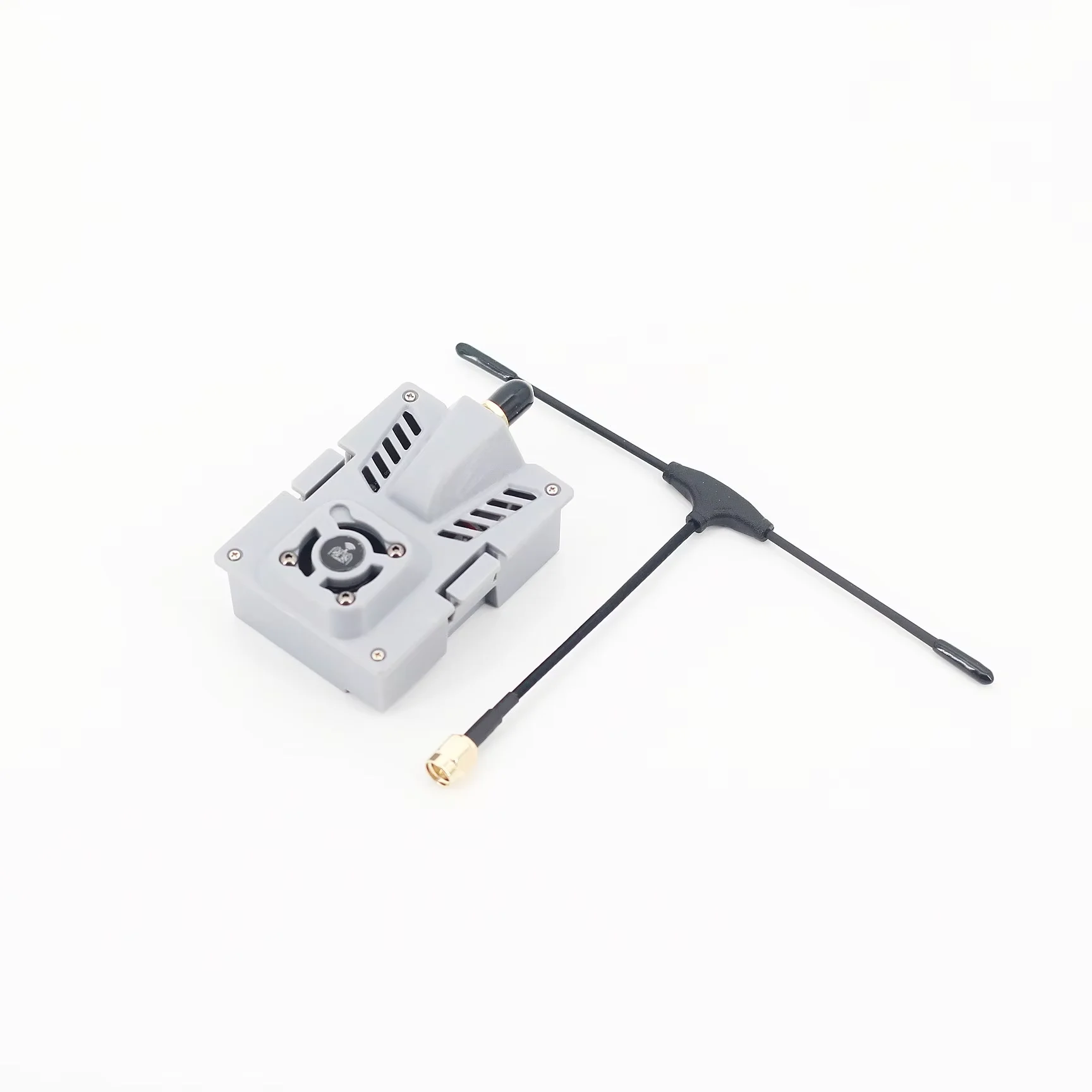

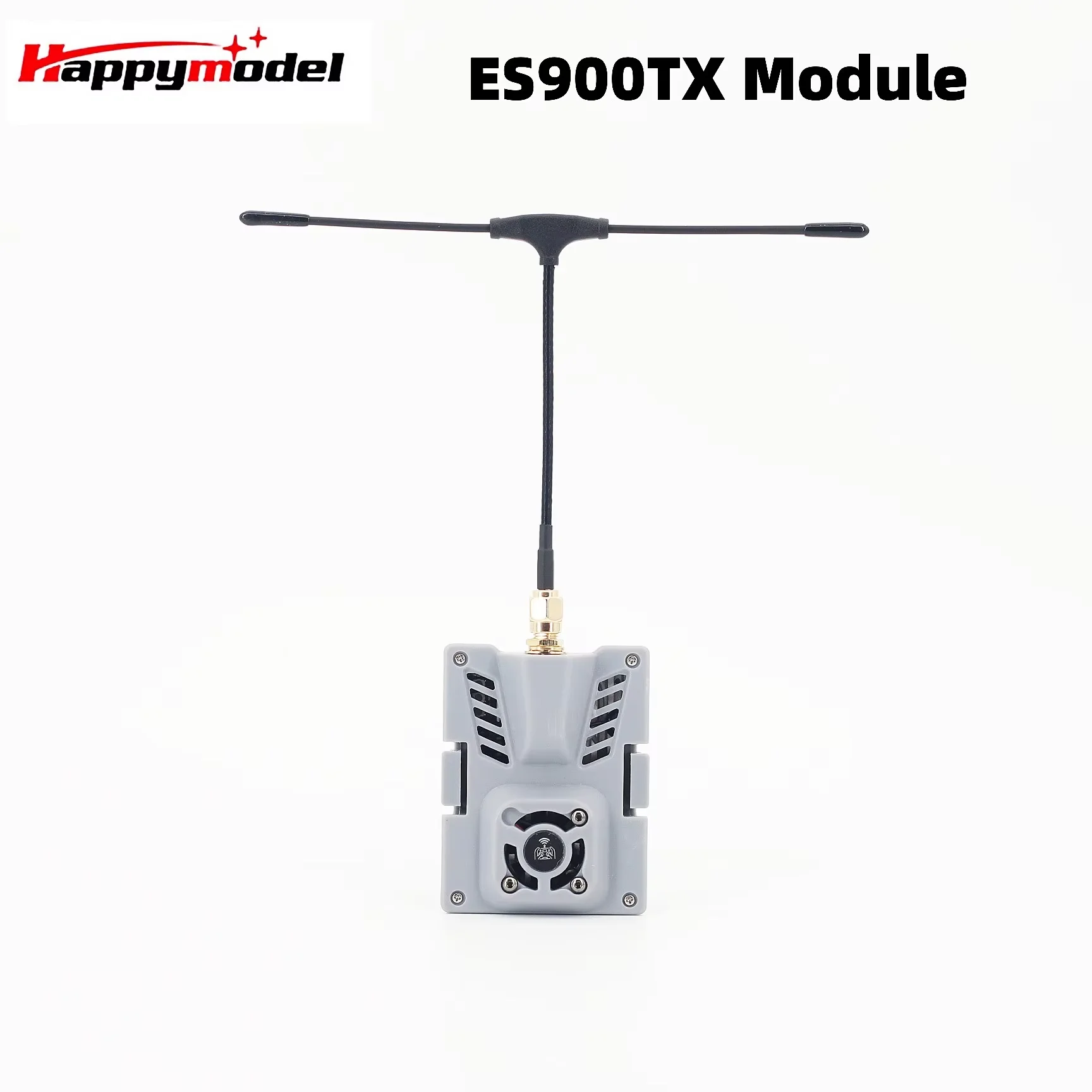

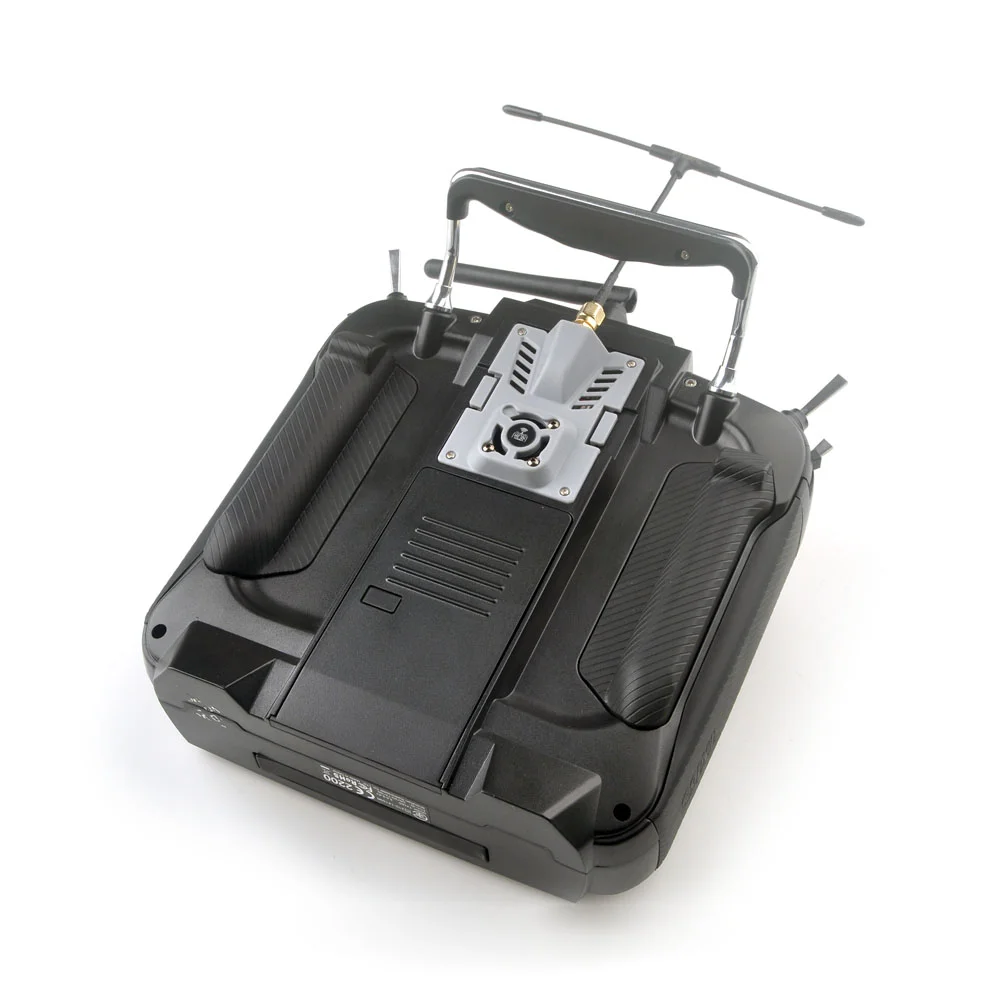

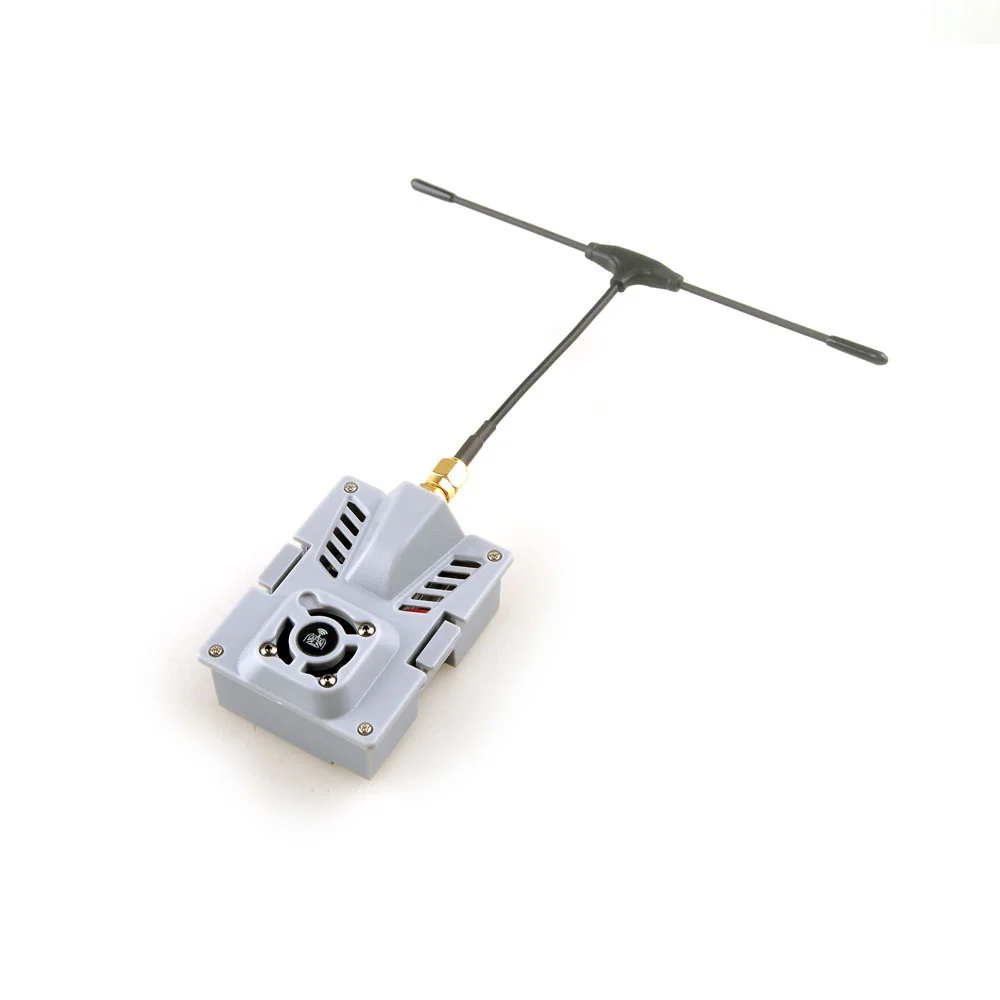

ES900TX:

MCU:ESP32+ESP8285

Dimension: 55mm39mm11mm

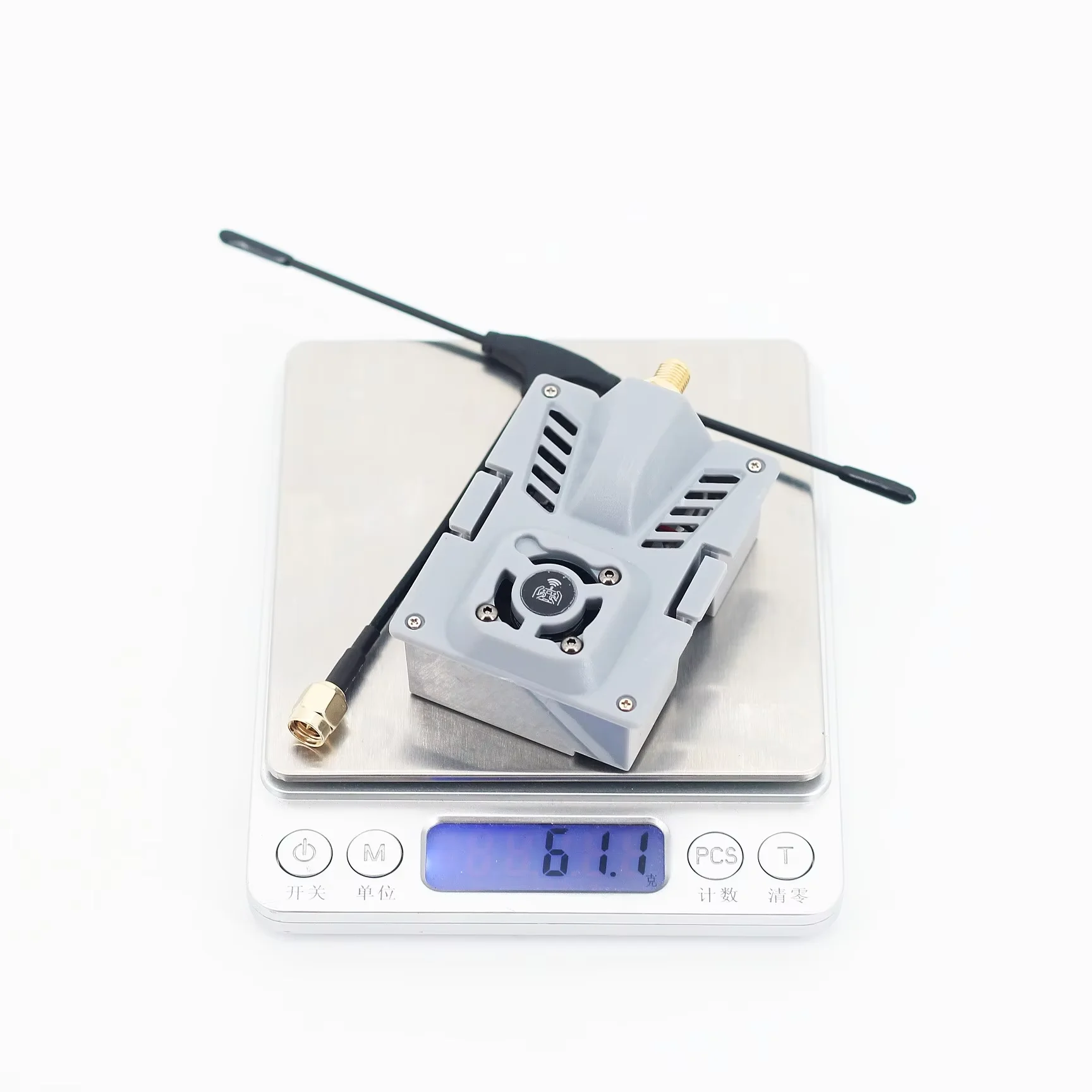

Weight: 9.2gram (only the TX module)

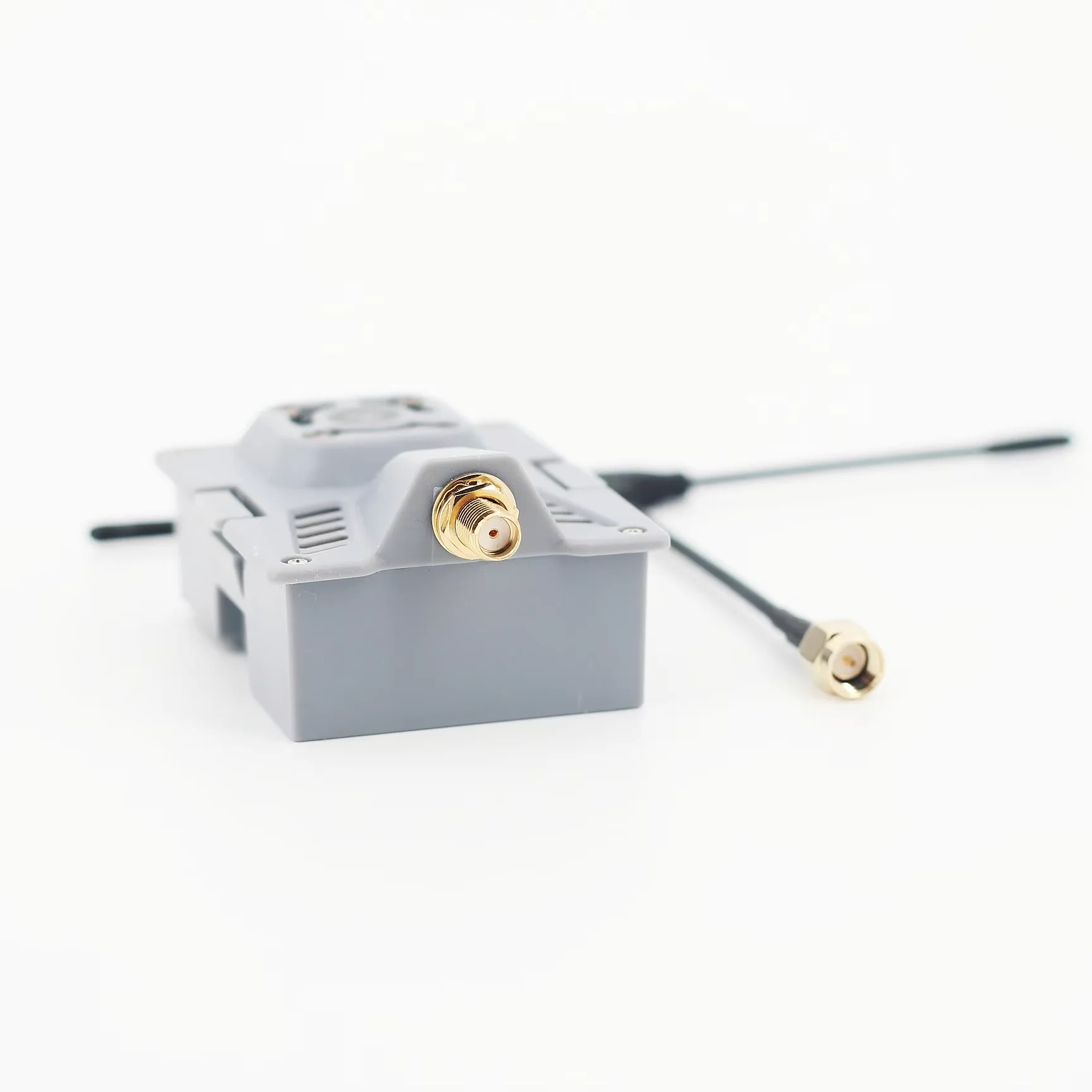

Antenna connector: SMA

VCC input: 5~13V, Recommend 5V~9V

RF Frequency optional: 915mhz or 868mhz(EU)

Maximum Output Power: <33dBm

Features:

ExpressLRS FPV ELRS Long Range ES900TX High Frequency Head ES900RX DUAL TCXO Receiver Module

JR Standard High Frequency Head Shell 3D Print Download Address

http://dwz.win/afah

Debugging software download address

https://github.com/ExpressLRS/ExpressLRS-Configurator/releases

Program Release Page

https://github.com/ExpressLRS/ExpressLRS/releases

Share this product

Вариант

Выбранная ценаUSD 51.34

Количество

Корзина запросов Get a Quote

Specifications

Option	Values
Type	Long Range

Product Details

Item: ExpressLRSES900TX ES900RX 915MHz Long Range Module
Parameters:
ES900RX:

ESP32 PICO D4, dual SX1276
Antenna connector: MHF 1/U.FL
RF Frequency: 915MHz
Telemetry power: 17dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ "5v" pad
PCB size: 21.5mm x 16mm
Weight: 1.5gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Firmware target: HappyModel ES900 Dual RX (Would be available on the latest version soon)

ES900TX:
MCU:ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13V, Recommend 5V~9V
RF Frequency optional: 915mhz or 868mhz(EU)
Maximum Output Power: <33dBm

Features:
ExpressLRS FPV ELRS Long Range ES900TX High Frequency Head ES900RX DUAL TCXO Receiver Module

JR Standard High Frequency Head Shell 3D Print Download Address
http://dwz.win/afah

Debugging software download address
https://github.com/ExpressLRS/ExpressLRS-Configurator/releases

Program Release Page
https://github.com/ExpressLRS/ExpressLRS/releases
