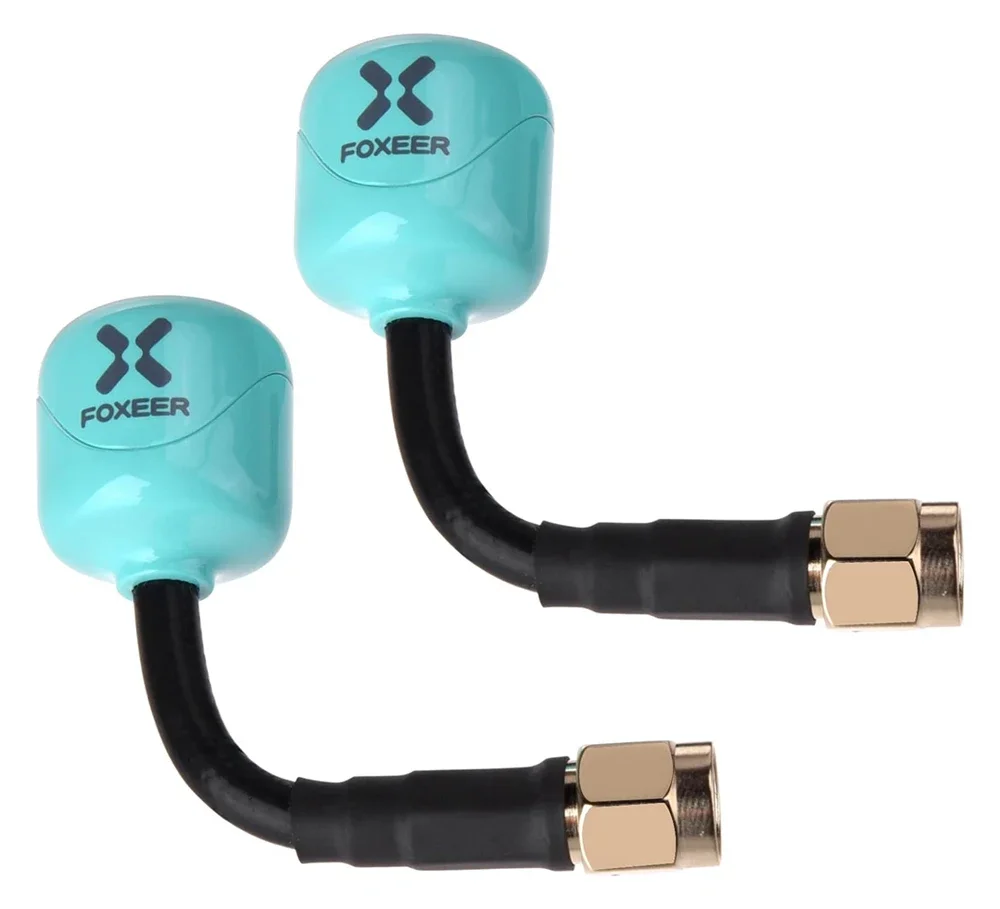

1 шт. Foxeer Lollipop 4 Plus 4+ FPV антенна 5,8G 2,6Dbi Omni Мини-антенна RHCP LHCP SMA MMCX UFL для RC FPV гоночного дрона
Description
Features:
- New Version: New Foxeer Antenna Lollipop 4+ 5.8G 2.6dBi RHCP LHCP FPV Antenna, best in class range and signal quality.
- Low feeder loss,easy to install, can be bent at any angle and maintain.
- Imported PC+ABS Material: FOXEER antenna for 5.8GHz FPV racing,can withstand high strength impact,support you better range and performance in any orientation.

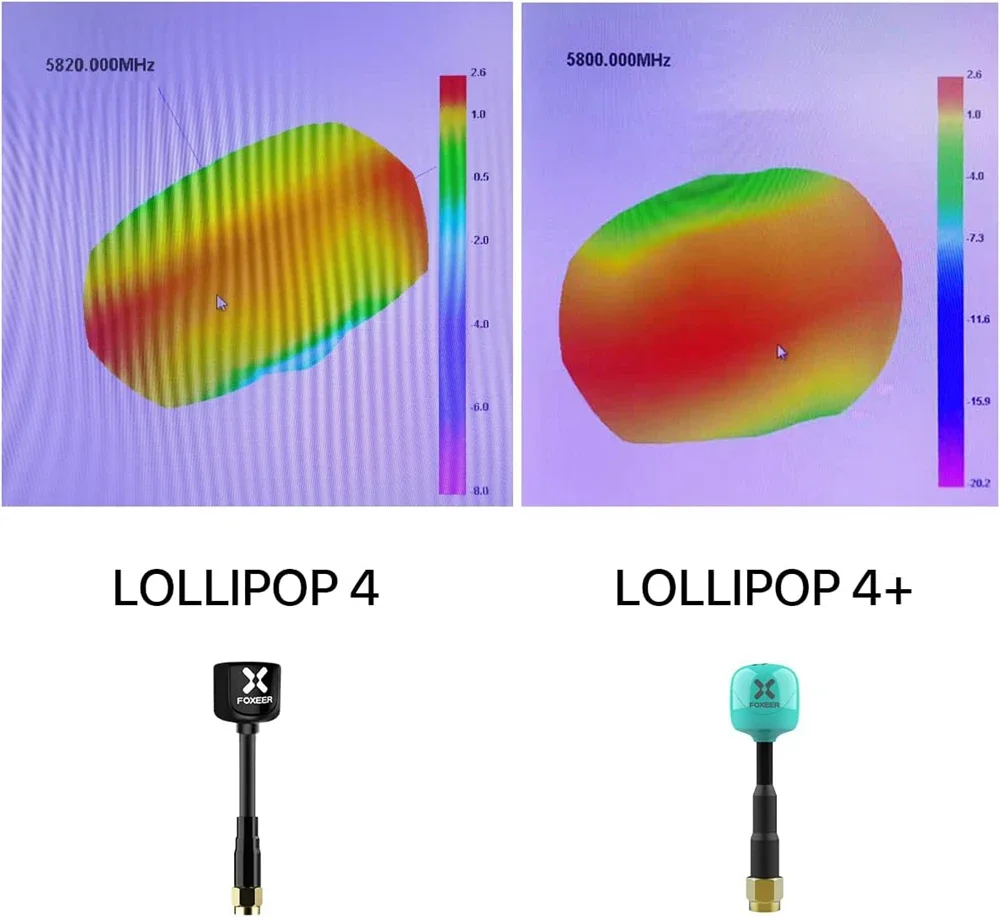

- Omnidirectional radiation, perfect axial ratio - wide signal coverage.
- Reasonably small and impact-resistant, ideal for long range drones.
Descriptions:

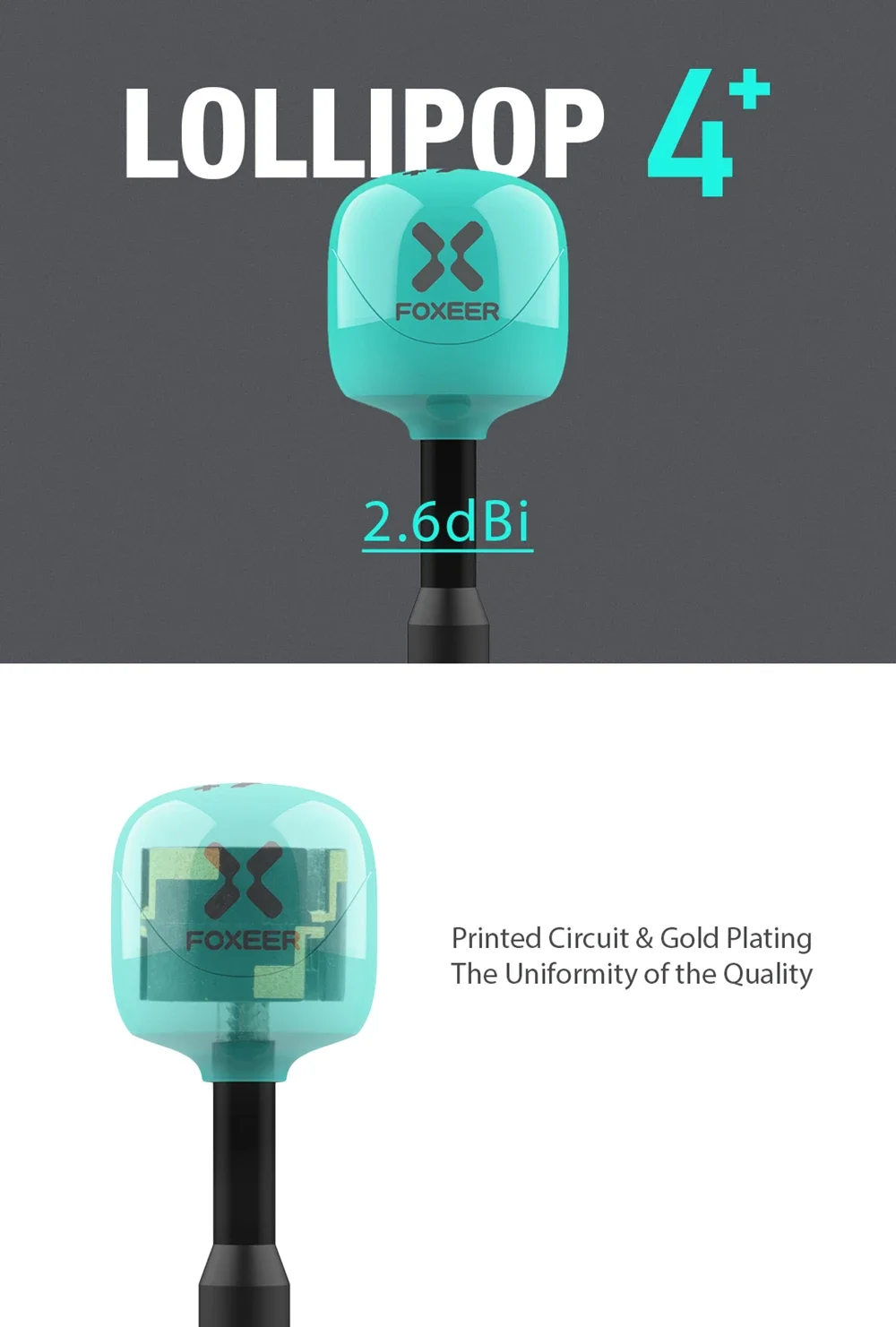

Foxeer Lollipop 4 Plus 5.8G 2.6dBi RHCP LHCP FPV Antenna. Exquisive workmanship, manufactured and tested to highest standards. IRoot reinforcement design 360°protection, low feeder loss, easy to install. Body adopt imported PC+ABS material, can withstand high strength impact.
Specicications:
Center Frequency: 5.75GHz
Gain: 2.6dBi

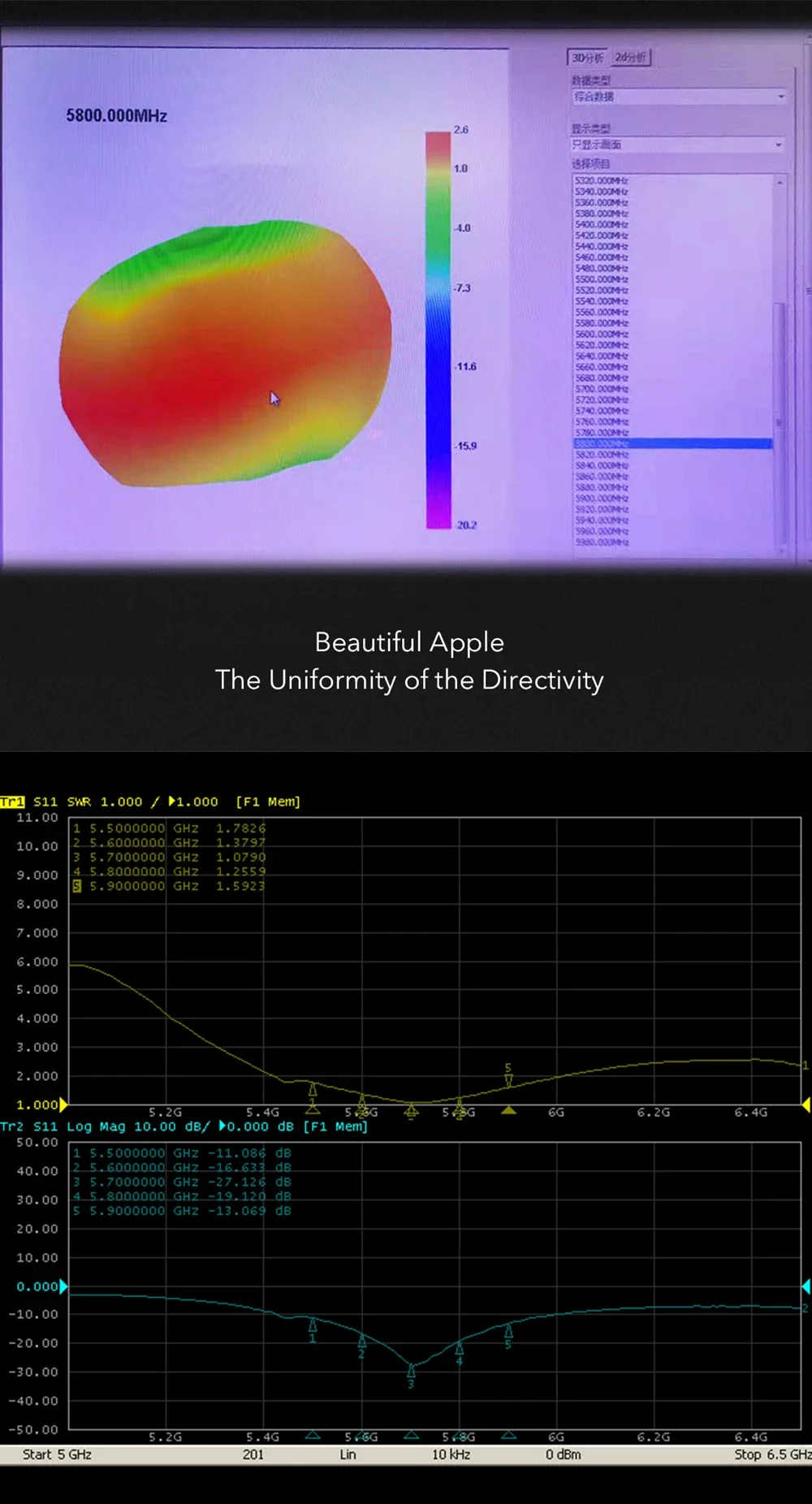

Axial ratio: Close to 1
Bandwidth: 5.5G-6G
Radiation Efficiency: 98%
V.SWR: 1.07 in center frequency

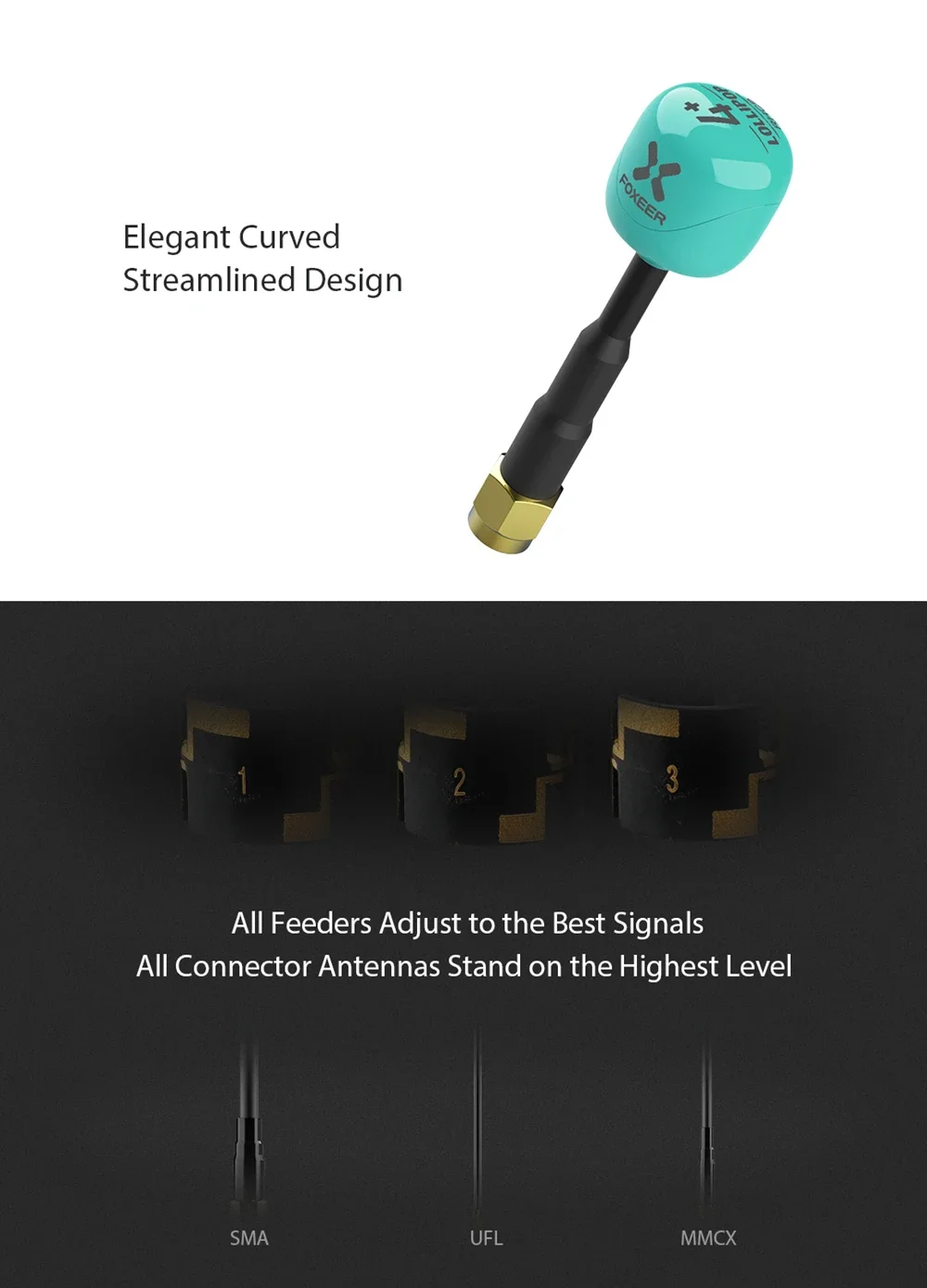

Connectors: SMA/ RP-SMA/ Angle-SMA/ AngleMMCX/ StraightMMCX/ UFL
Weight: SMA&RP-SMA 7.6g/Angle MMCX & Straight MMCX 3.7g/MMCX-Tube 4.6g/UFL 2.6g/UFL-Tube Short 3.5g/SMA-10CM 8.8g/Angle SMA 15CM & Straight SMA 15CM 11.9g/UFL-Tube Long 5.6g/Angle MMCX Tube & Straight MMCX Tube 6.8g

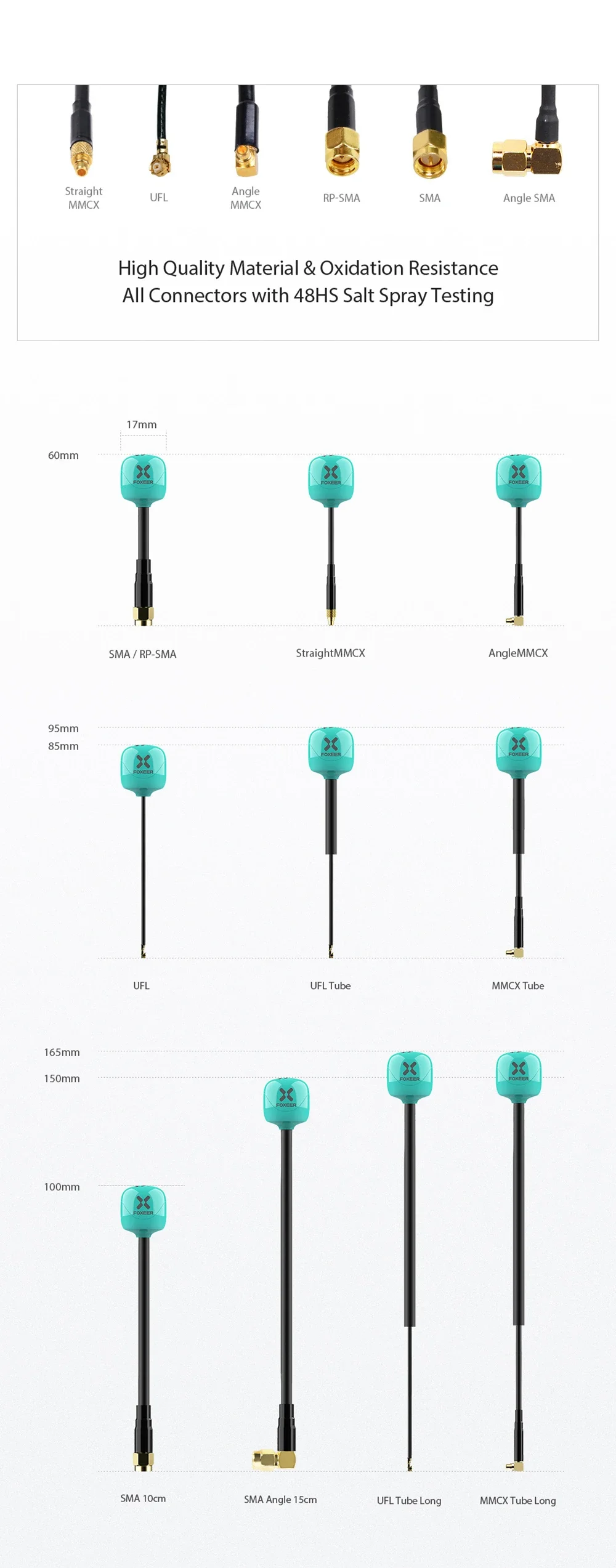

Dimension:
φ17 SMA/ RP-SMA AngleMMCX/ StraightMMCX: 60mm
UFL:85mm UFL-Tube95/MMCX-Tube95:95mm SMA-10CM:100mm
Angle SMA 15CM:150mm UFL-Tube165/MMCX-Tube165:165mm
Cable Lengh:
SMA/RP-SMA/AngleMMCX/StraightMMCX:51mm
UFL:76mm UFL-Tube95/MMCX-Tube95: 86mm SMA 10CM:91mm
Angle SMA 15CM: 141mm UFL-Tube165/MMCX-Tube165:156mm
Polarization: RHCP/LHCP(optional
Shell Material: PC+ABS
Cable: RG178,SFX086,RG141
Specifications
| Option | Values |
|---|---|
| Type |
|
| Brand |
|
| Application |
|
Product Details
FOXEER FPV Antenna Lollipop 4 Plus 4+ 2pcs 5.8G 2.6dBi Omni Mini Antenna RHCP LHCP SMA RPSMA MMCX UFL for RC FPV Racing Drone
Features:
1. New Version: New Foxeer Antenna Lollipop 4+ 5.8G 2.6dBi RHCP LHCP FPV Antenna, best in class range and signal quality.
2. Low feeder loss,easy to install, can be bent at any angle and maintain.
3. Imported PC+ABS Material: FOXEER antenna for 5.8GHz FPV racing,can withstand high strength impact,support you better range and performance in any orientation.
4. Omnidirectional radiation, perfect axial ratio - wide signal coverage.
5. Reasonably small and impact-resistant, ideal for long range drones.
Descriptions:
Foxeer Lollipop 4 Plus 5.8G 2.6dBi RHCP LHCP FPV Antenna. Exquisive workmanship, manufactured and tested to highest standards. IRoot reinforcement design 360°protection, low feeder loss, easy to install. Body adopt imported PC+ABS material, can withstand high strength impact.
Specicications:
Center Frequency: 5.75GHz
Gain: 2.6dBi
Axial ratio: Close to 1
Bandwidth: 5.5G-6G
Radiation Efficiency: 98%
V.SWR: 1.07 in center frequency
Connectors: SMA/ RP-SMA/ Angle-SMA/ AngleMMCX/ StraightMMCX/ UFL
Weight: SMA&RP-SMA 7.6g/Angle MMCX & Straight MMCX 3.7g/MMCX-Tube 4.6g/UFL 2.6g/UFL-Tube Short 3.5g/SMA-10CM 8.8g/Angle SMA 15CM & Straight SMA 15CM 11.9g/UFL-Tube Long 5.6g/Angle MMCX Tube & Straight MMCX Tube 6.8g
Dimension:
φ17 SMA/ RP-SMA AngleMMCX/ StraightMMCX: 60mm
UFL:85mm UFL-Tube95/MMCX-Tube95:95mm SMA-10CM:100mm
Angle SMA 15CM:150mm UFL-Tube165/MMCX-Tube165:165mm
Cable Lengh:
SMA/RP-SMA/AngleMMCX/StraightMMCX:51mm
UFL:76mm UFL-Tube95/MMCX-Tube95: 86mm SMA 10CM:91mm
Angle SMA 15CM: 141mm UFL-Tube165/MMCX-Tube165:156mm
Polarization: RHCP/LHCP(optional
Shell Material: PC+ABS
Cable: RG178,SFX086,RG141
Package Includes:
1pcs/Pack x FPV Antenna
