Профессиональный дрон BETAFPV Air75 II 1S с камерой, аккумулятором, для соревнований/гонок/фристайла, RC FPV - image 1 of 1
1 / 1

Профессиональный дрон BETAFPV Air75 II 1S с камерой, аккумулятором, для соревнований/гонок/фристайла, RC FPV

BetaFPV

From USD 121.29 - USD 128.23
Est. USD 121.29 - USD 128.23 / unit (1-9 pcs)
$113 @ 10+ pcs$106 @ 100+ pcs

47 orders (reference)

Description

[xlmodel]-[photo]-[0000]

[xlmodel]-[custom]-[]

Engineered for the next generation of 1S performance, the Air75 II redefines the balance of power and resilience. At its core, a specialized propulsion system offers three distinct configurations—Champion, Racing, and Freestyle—each tuned with specific motor and propeller combinations for optimized thrust, response, and control. This precision-tuned power is matched by a rugged, purpose-built design, featuring the durable Matrix 5IN1 II Flight Controller with a high-output 12A ESC and a reinforced frame & canopy crafted to withstand repeated impacts. Built to deliver relentless performance in every flying style, the Air75 II is the ultralight whoop that doesn’t hold back.

Bullet Points

Three Performance-Tuned Versions: Choose the setup that fits your style.

Champion: Max-power 0802 28000KV motors & GF 1614 3-B Props for pro racing.

Racing: 0802 25000KV motors & GF 1614 3-B Props for razor-sharp throttle response on technical courses.

Freestyle: 0802 22000KV motors & GF 1614 3-B Props for smooth, efficient, and cinematic flying.

0802 Brushless Motors (2026): Feature a revolutionary 0.1mm stator core, specific magnetic and winding designs for Champion, Racing and Freestyle versions.

Matrix 5IN1 II FC: Features a robust 12A continuous ESC, 3-point mounting, and a 1.0mm thickened PCB for superior power and resilience.

Air II Canopy: Features upgraded materials, strategic reinforcements and a redesigned curve with a 15° to 45° adjustable camera angle.

Air75 II Frame: Its optimized ducts, connecting braces, and PP blend ensure stable, reliable flights.

Lightweight & Flight Time: An ultra-lightweight design achieves up to 7:30 flight time with the LAVA II 1S 480mAh battery.

The Engineering Solution:

The data was conclusive: removing the front rubber grommet dramatically reduced stress transfer to the flight controller, lowering the risk of crash-related FC damage by approximately 80%, with negligible impact on flight performance. We took this further in the Air75 II by fully integrating a 3-point mounting system. When combined with the new Matrix 1S 5IN1 II’s 1.0mm thickened PCB and internal reinforcements, the result is a significantly more resilient whoop.

Precision-Tuned Flying Experience

Every component, from the motor and propeller combination to the flight controller parameters, is meticulously calibrated for each version. This results in three distinct flying characters: the smooth, efficient Freestyle, the razor-sharp Racing, and the max-power Champion—ensuring an optimized experience for every pilot and environment.

Package

1 * Air75 II Brushless Whoop Quadcopter | Champion/Racing/Freestyle

4 * GF 1614 3-B Props

4 * M1.4*3 Screws

1 * Air II Canopy

2 * M1.4*5 Self-tapping Screws

4 * M1.4*4 Self-tapping Screws

2 * H0.8 Shock-absorbing Balls

1 * Type-C to SH1.0 Adapter Board

1 * SH1.0-4Pin Adapter Cable

Share this product
Вариант
Выбранная ценаUSD 128.23

Specifications

OptionValues
Produit chimique à haute préoccupation
  • Aucun
Types d'évitement d'obstacles
  • Aucun support
Type de Moteur
  • Moteur sans balais
Protection d'hélice intégrée
  • Ne pas inclure
Résistance maximale à la vitesse du vent
  • <10 km/h
Poids maximum au décollage
  • <1kg

Product Details

[xlmodel]-[photo]-[0000]

[xlmodel]-[custom]-[]

Engineered for the next generation of 1S performance, the Air75 II redefines the balance of power and resilience. At its core, a specialized propulsion system offers three distinct configurations—Champion, Racing, and Freestyle—each tuned with specific motor and propeller combinations for optimized thrust, response, and control. This precision-tuned power is matched by a rugged, purpose-built design, featuring the durable Matrix 5IN1 II Flight Controller with a high-output 12A ESC and a reinforced frame & canopy crafted to withstand repeated impacts. Built to deliver relentless performance in every flying style, the Air75 II is the ultralight whoop that doesn’t hold back.

Bullet Points

  • Three Performance-Tuned Versions: Choose the setup that fits your style.
    • Champion: Max-power 0802 28000KV motors & GF 1614 3-B Props for pro racing.

    • Racing: 0802 25000KV motors & GF 1614 3-B Props for razor-sharp throttle response on technical courses.

    • Freestyle: 0802 22000KV motors & GF 1614 3-B Props for smooth, efficient, and cinematic flying.

  • 0802 Brushless Motors (2026): Feature a revolutionary 0.1mm stator core, specific magnetic and winding designs for Champion, Racing and Freestyle versions.

  • Matrix 5IN1 II FC: Features a robust 12A continuous ESC, 3-point mounting, and a 1.0mm thickened PCB for superior power and resilience.

  • Air II Canopy: Features upgraded materials, strategic reinforcements and a redesigned curve with a 15° to 45° adjustable camera angle.

  • Air75 II Frame: Its optimized ducts, connecting braces, and PP blend ensure stable, reliable flights.

  • Lightweight & Flight Time: An ultra-lightweight design achieves up to 7:30 flight time with the LAVA II 1S 480mAh battery.

Specifications


Champion

Racing

Freestyle

Weight

20.2g

20.9g

21.3g

Antenna

Whip

Copper pipe

Frame

Air75 II

Wheelbase

75mm

Canopy

Air II Canopy

FC

Matrix 1S 5IN1 II

ESC

1S 12A

VTX

Onboard 5.8G 25mw~400mw

RX

Onboard Serial ELRS 2.4G

Camera

C03

Props

GF 1614 3-B

Motors

Champion 0802 (28000KV) - dual-ball bearings

Racing 0802 (25000KV) - brass bushings

Freestyle 0802 (22000KV) - brass bushings

Motor Connection

Soldering

JST1.25 3Pin connector

JST1.25 3Pin connector

Flight Time (with LAVA II 1S 480mAh Batt)

6:50

7:00

7:30

Battery Connector

BT2.0 U Cable Pigtail

Recommended Battery

LAVA II 1S 480mAh/580mAh

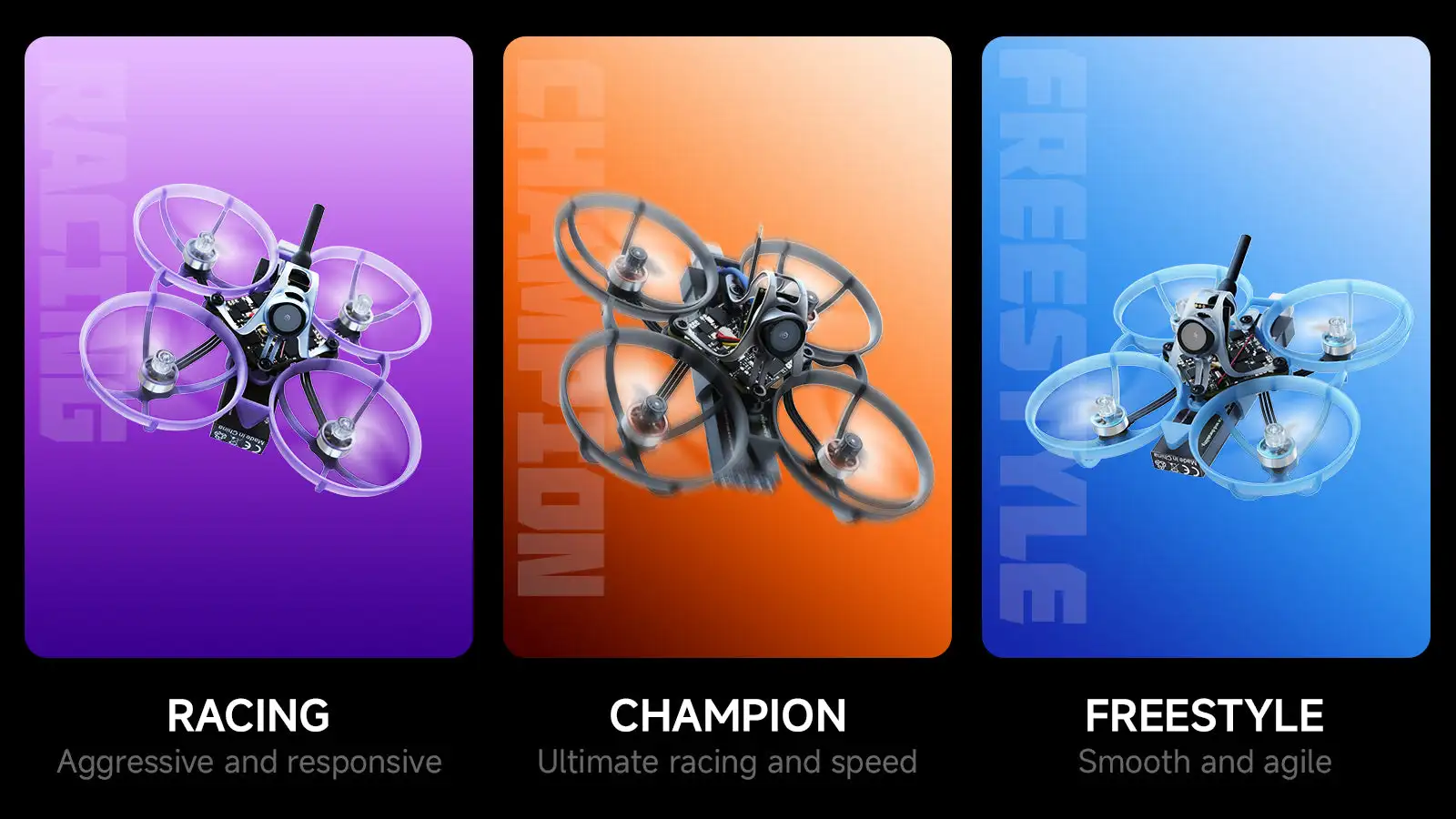

Three Propulsion Systems

The Air75 II expands its lineup with three distinct performance profiles: Champion, Racing, and Freestyle. Each version is powered by new 0802 brushless motors, featuring an industry-first 0.1mm stator core, specific magnetic and winding designs for superior efficiency and power. Combined with the new GF 1614 3-blade props and driven by the high-output Matrix 1S 5IN1 II Flight Controller—with a 12A continuous (18A peak) ESC—this system is built to reliably meet extreme current demands.

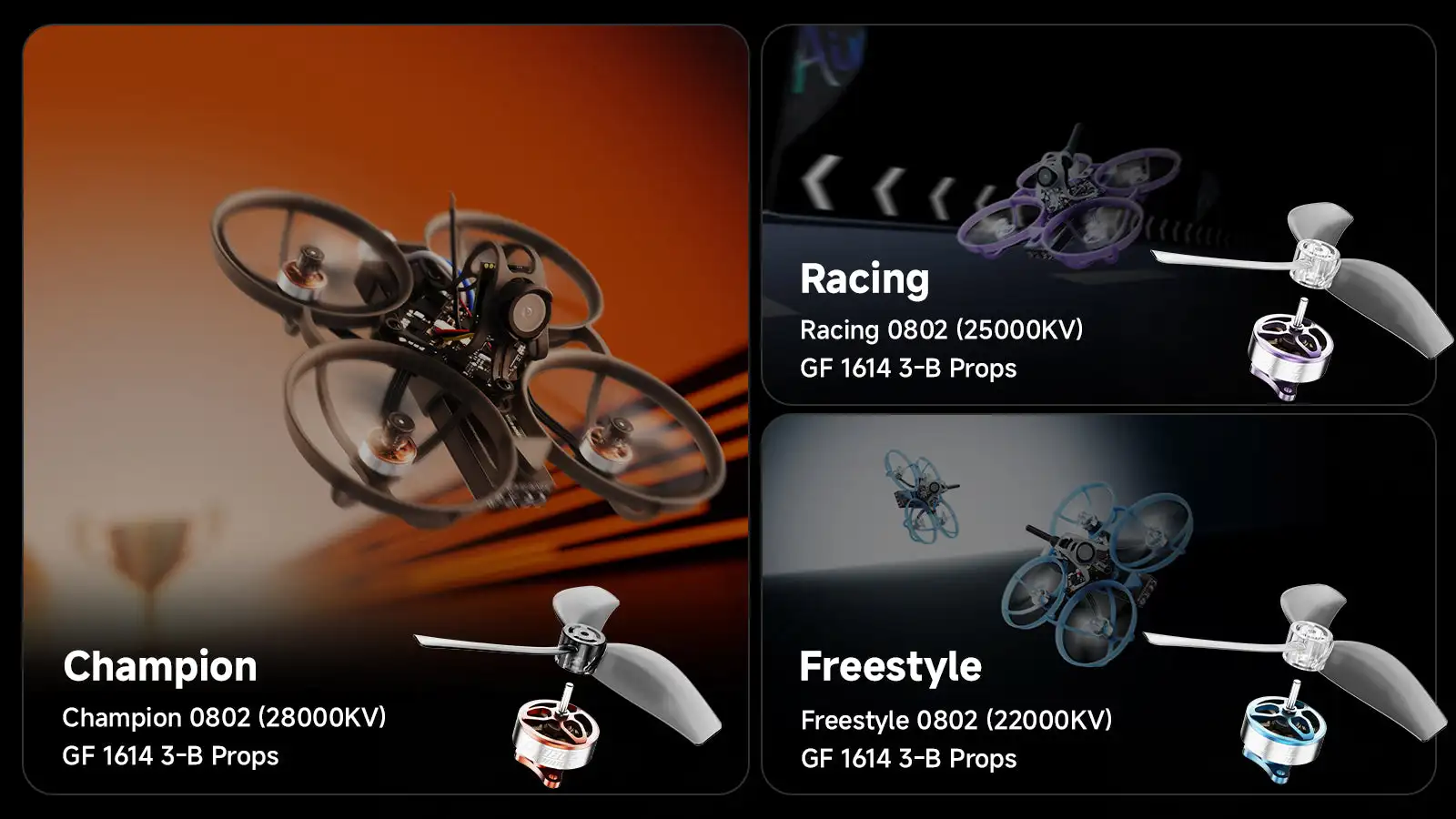

The Champion is equipped with dual‑ball bearing Champion 0802 Motors (28000KV) for maximum power, achieving an exceptional 7.1:1 thrust‑to‑weight ratio for explosive acceleration and track dominance. The Racing features Racing 0802 Motors (25000KV) tuned for razor‑sharp throttle response and agility on technical courses. The Freestyle utilizes Freestyle 0802 Motors (22000KV) optimized for smooth control, superior low‑end torque, and efficient, fluid flying.

Durability

Flight Controller

The Matrix 1S 5IN1 II FC employs a 3-point mounting system that creates cushioning space during impacts, reducing stress on core components and lowering the damage rate by up to 80%. Its 1.0mm thickened PCB and optimized layout further enhance crash resilience.


  • The Engineering Solution:

The data was conclusive: removing the front rubber grommet dramatically reduced stress transfer to the flight controller, lowering the risk of crash-related FC damage by approximately 80%, with negligible impact on flight performance. We took this further in the Air75 II by fully integrating a 3-point mounting system. When combined with the new Matrix 1S 5IN1 II’s 1.0mm thickened PCB and internal reinforcements, the result is a significantly more resilient whoop.

Precision-Tuned Flying Experience

Every component, from the motor and propeller combination to the flight controller parameters, is meticulously calibrated for each version. This results in three distinct flying characters: the smooth, efficient Freestyle, the razor-sharp Racing, and the max-power Champion—ensuring an optimized experience for every pilot and environment.

Package

  • 1 * Air75 II Brushless Whoop Quadcopter | Champion/Racing/Freestyle

  • 4 * GF 1614 3-B Props

  • 4 * M1.4*3 Screws

  • 1 * Air II Canopy

  • 2 * M1.4*5 Self-tapping Screws

  • 4 * M1.4*4 Self-tapping Screws

  • 2 * H0.8 Shock-absorbing Balls

  • 1 * Type-C to SH1.0 Adapter Board

  • 1 * SH1.0-4Pin Adapter Cable
