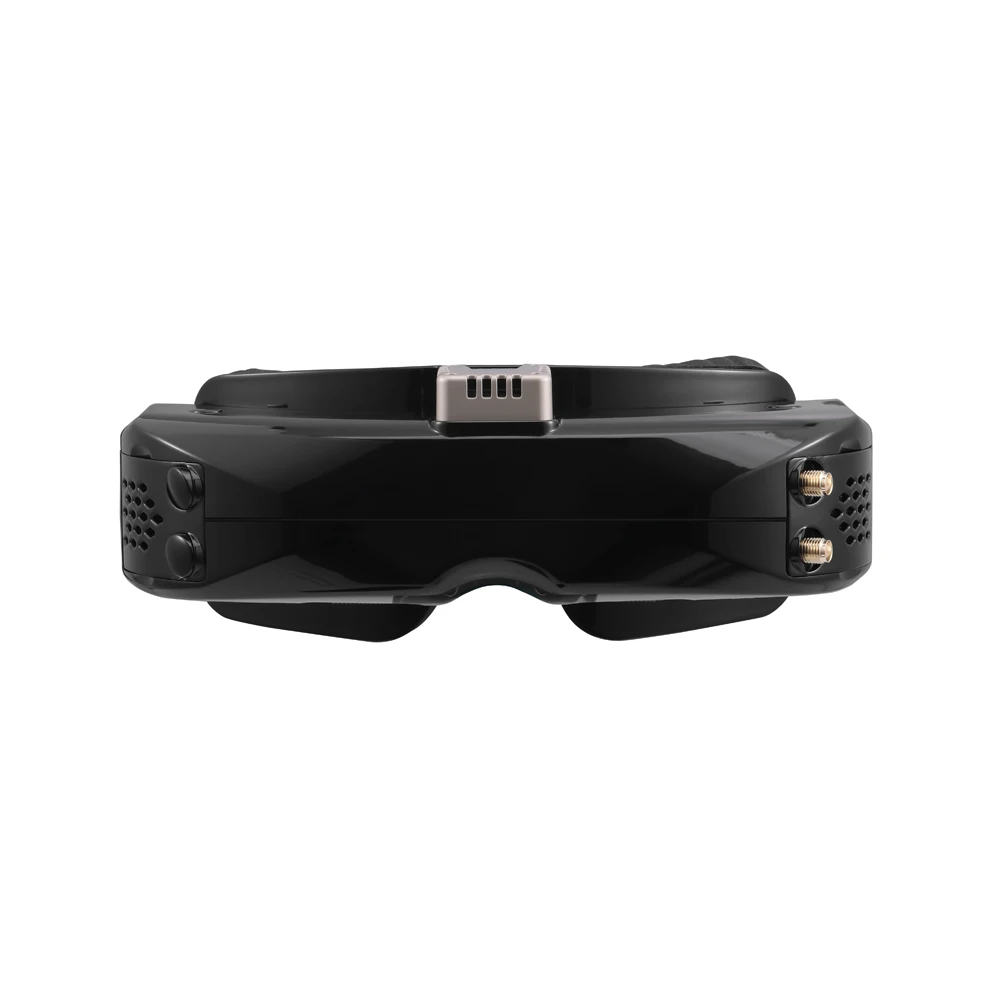

SKYZONE SKY04X PRO OLED 5,8G 48CH 1920X1080 Приемник Steadyview DVR FPV Очки Головной трекер Вентилятор для радиоуправляемого самолета Гоночный дрон
Description
>>>Features
The SKY04X PRO is upgrade version of SKY04X, with new optics and new OLED panel, the SKY04X pro can give pilot 52 degree of field of view, gives huge immersive fpv experience, also with new OLED panel, the 1920*1080 resolution and 100FPS frame rate, use can have way better experience when using the digital VRX system.
The new matte painting also avoid fingerprints and reduces glare .
To be aware, To cooling the high performance OLED panel, the right side bay is installed with cooling fan， so SKY04 X PRO didnt support quadversity mode.
>>>Package Included
1. Goggles*1
2. Receiver Module*1
3. Faceplate*2(wide and narrow)
4. Sponge with velcro*1
5. Zipper case*1
6. Power cable*1
7. Headtracker cable*1
8. 5.8GHz 2dB antennas*2
9. Video/Audio Cable*1
10. USB-C Cable*1
11. User Manual*1
>>>SKY04X PRO Specifications
Screen:OLED
Resolution:1920X1080
FOV（Diagonal）:52°
Aspect Ratio:4:3/16:9
Focus:-6~+2 adjustable
Interpupillary distance (IPD):58-71mm
Receiver:5.8Ghz 48CH SteadyView Receiver
Language:10 Languages
Power Supply:DC 6.5-25.2V/USB 5V
Power Consumption:720mA at 12V
DVR:H264, 100fps,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker:3-axis Accelerometer, 3-axis gyroscope
Dimentions :185*75*67mm
Weight:267g
