Бесщеточный двигатель IFLIGHT GM2804 с энкодером AS5048A
Description
[xlmodel]-[custom]-[8888]

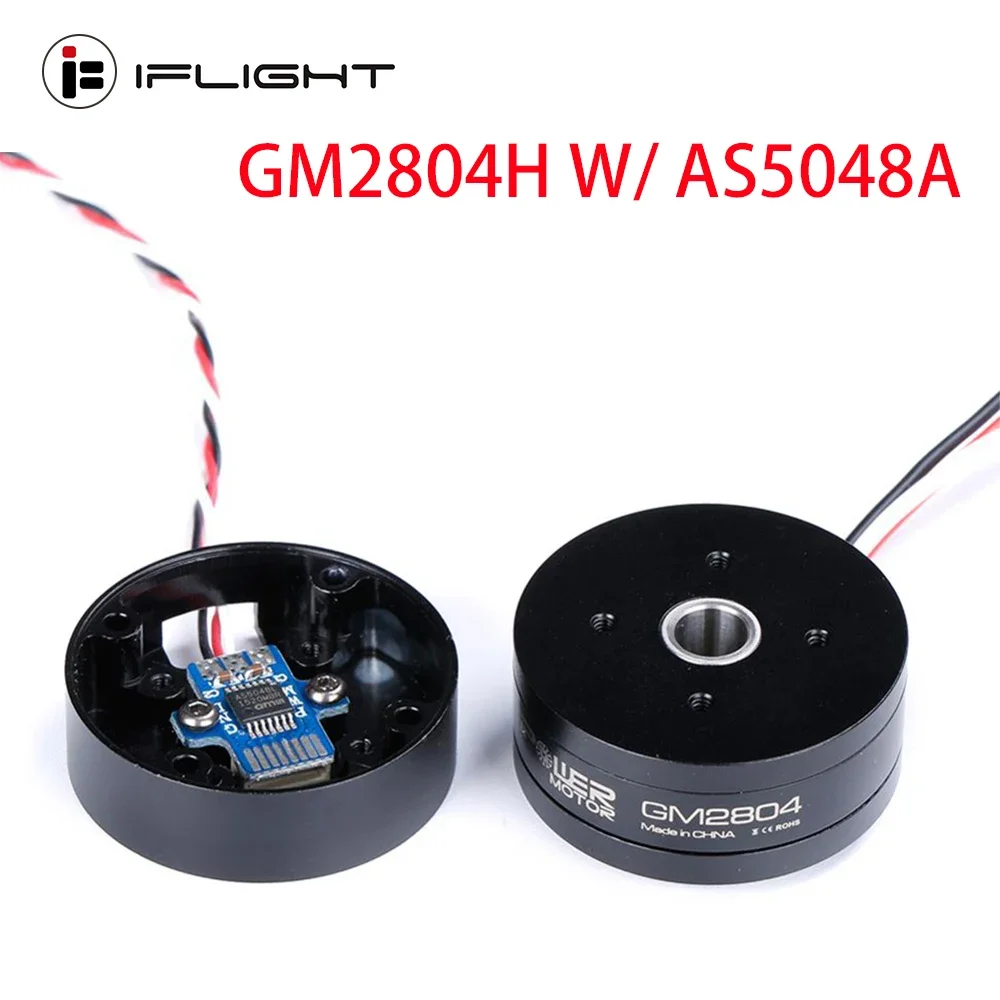

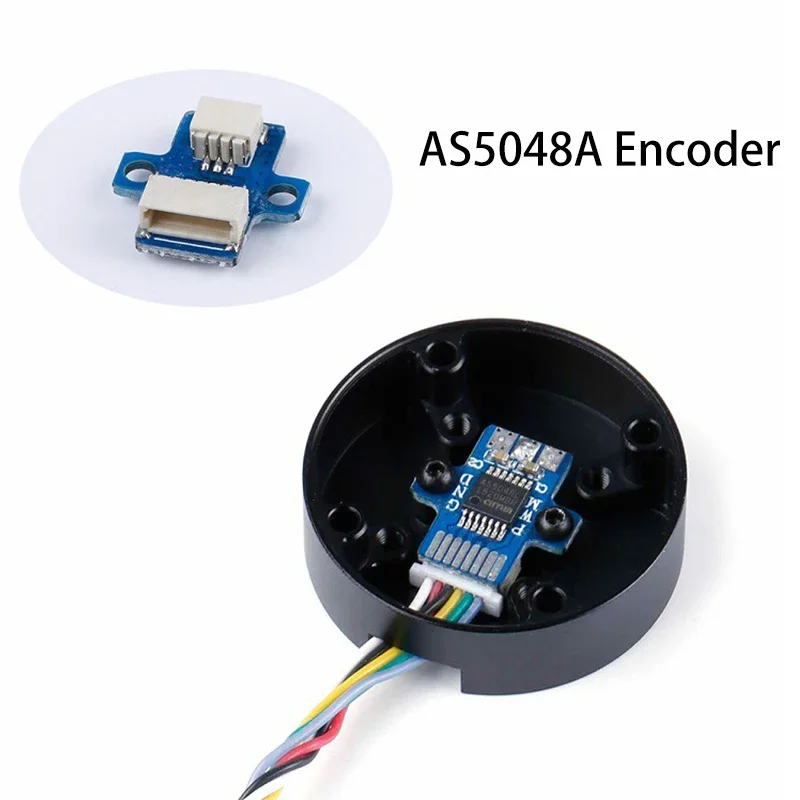

IFlight iPower GBM2804H-100T GM2804 Brushless Gimbal Motor with AS5048A Encoder/Aluminum Case for camera stabilizing systems
The GM2804H-100T motor by iPower Motors is the ultimate brushless gimbal motor for GoPro Cameras. This motor is designed for small multi-rotor platforms looking to lift GoPro sized gear 0.5-1KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Type |
|
| Application |
|
Product Details
[xlmodel]-[custom]-[8888]
IFlight iPower GBM2804H-100T GM2804 Brushless Gimbal Motor with AS5048A Encoder/Aluminum Case for camera stabilizing systems
The GM2804H-100T motor by iPower Motors is the ultimate brushless gimbal motor for GoPro Cameras. This motor is designed for small multi-rotor platforms looking to lift GoPro sized gear 0.5-1KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.
Specifications:
Model No.:GM2804 w/encoder

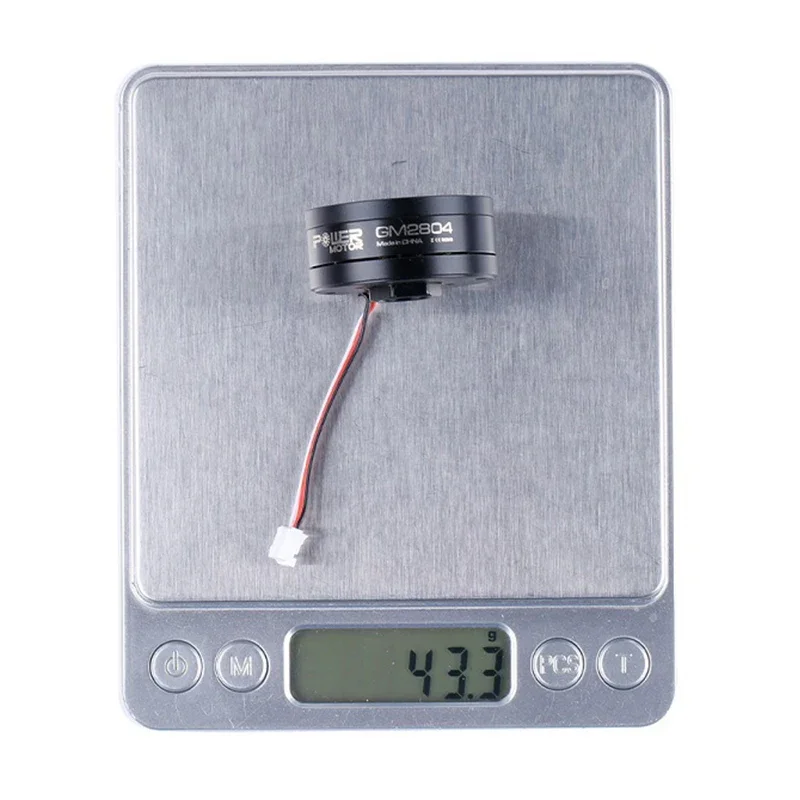

Weight:51g

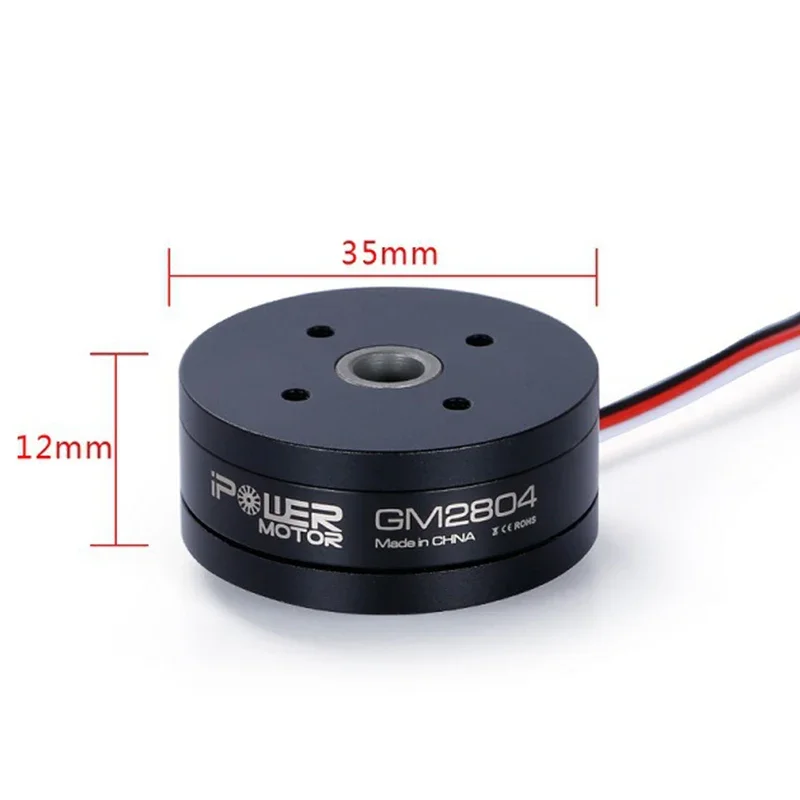

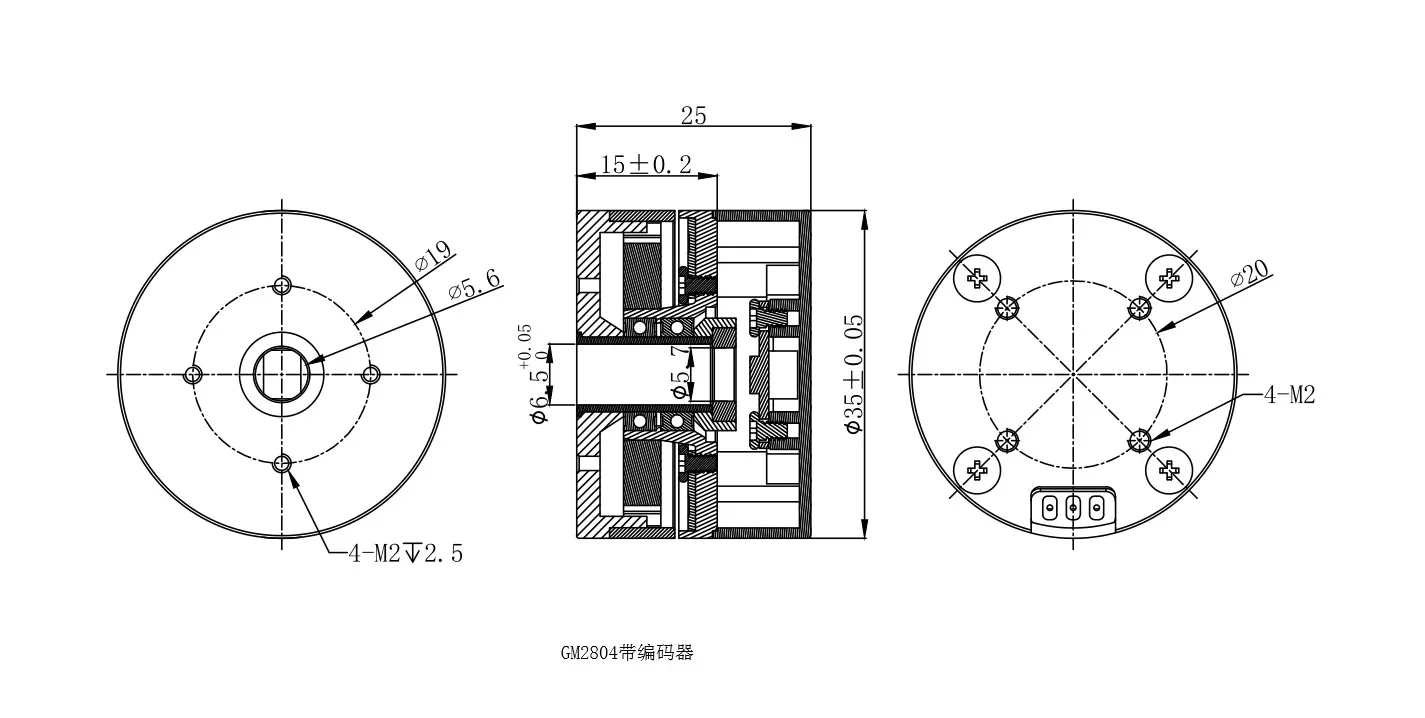

Dimension(mm):35*25
RPM:2149-2375
Torque (g):250-350
Voltage (V):10V
Cunnrent (A):0.07
Configuration:12N14P
Winding Turns:0.19*1-100T
Resistance():5.57
Hollow Shaft Diameter (mm):6.5
