Emax ES09MA 4,8-6,0 В, аналоговый сервопривод перекоса с металлической шестерней, совместимый с Futaba JR для 450, аксессуары для самолетов с хвостовым оперением вертолета
Description

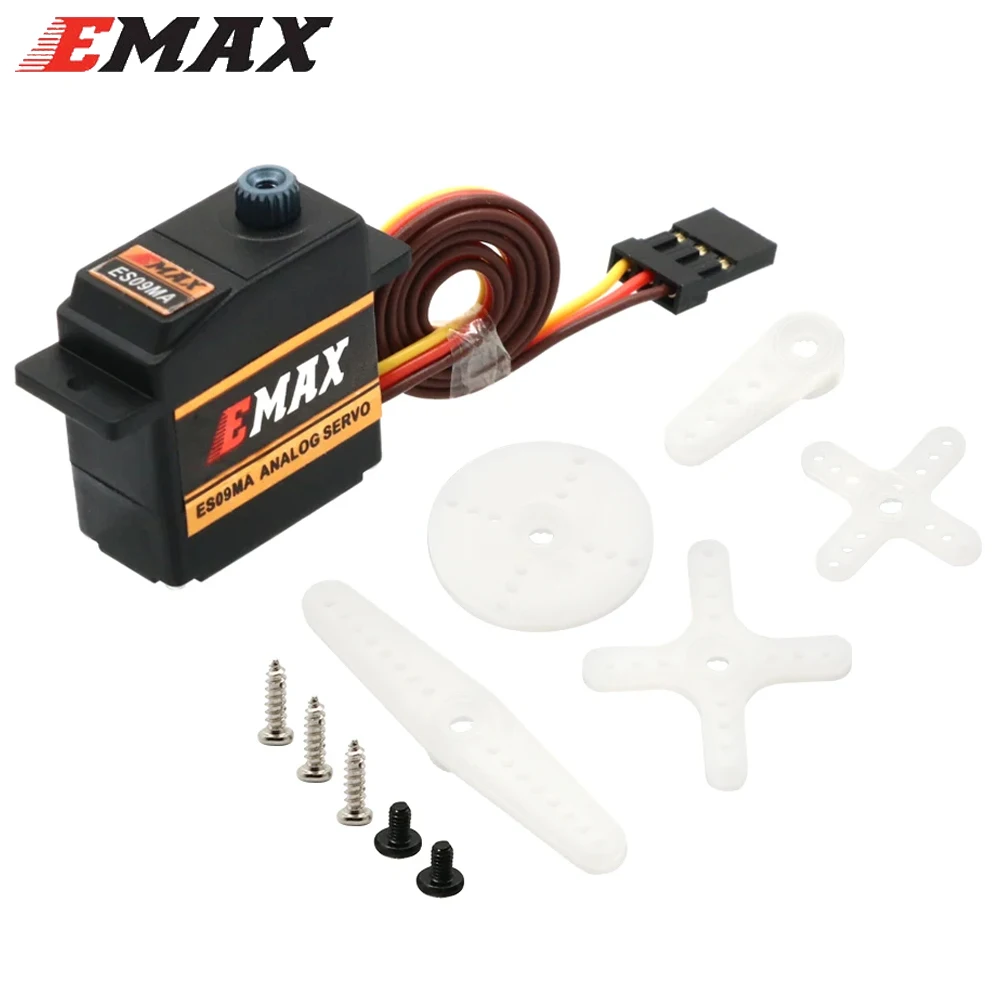

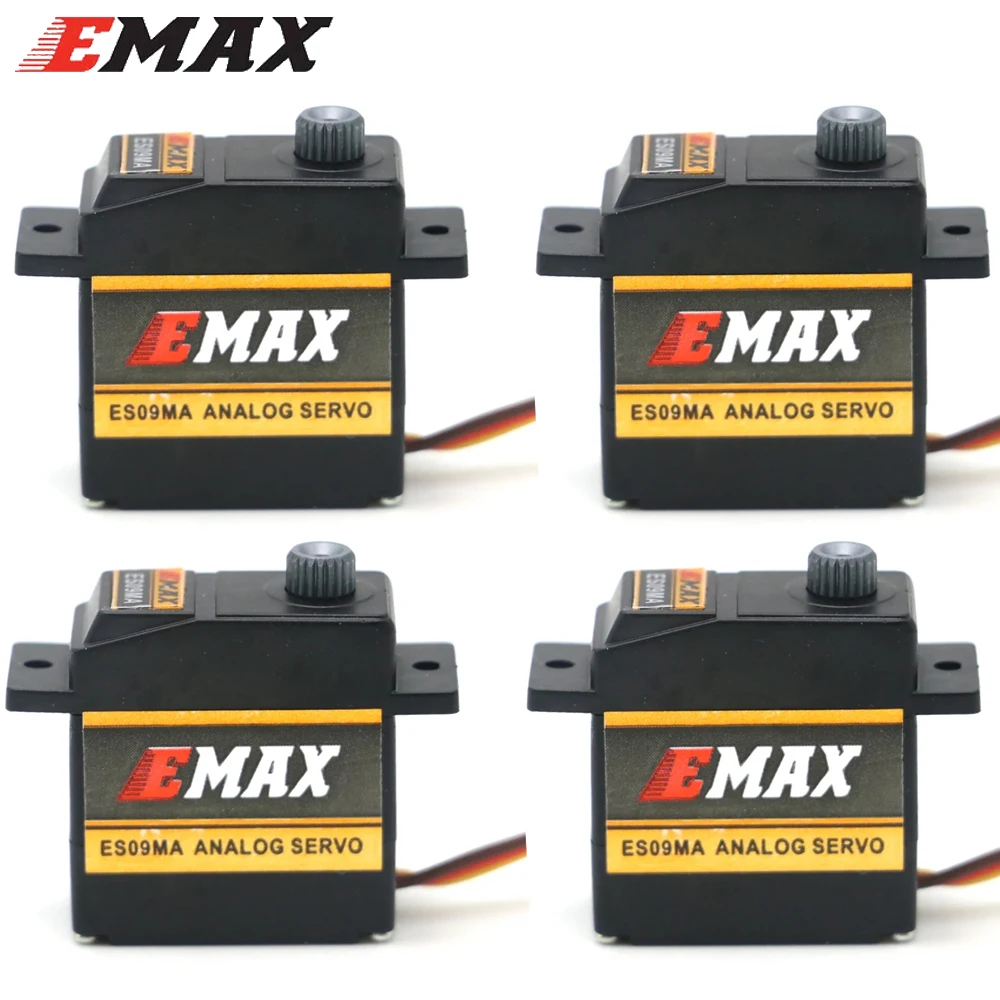

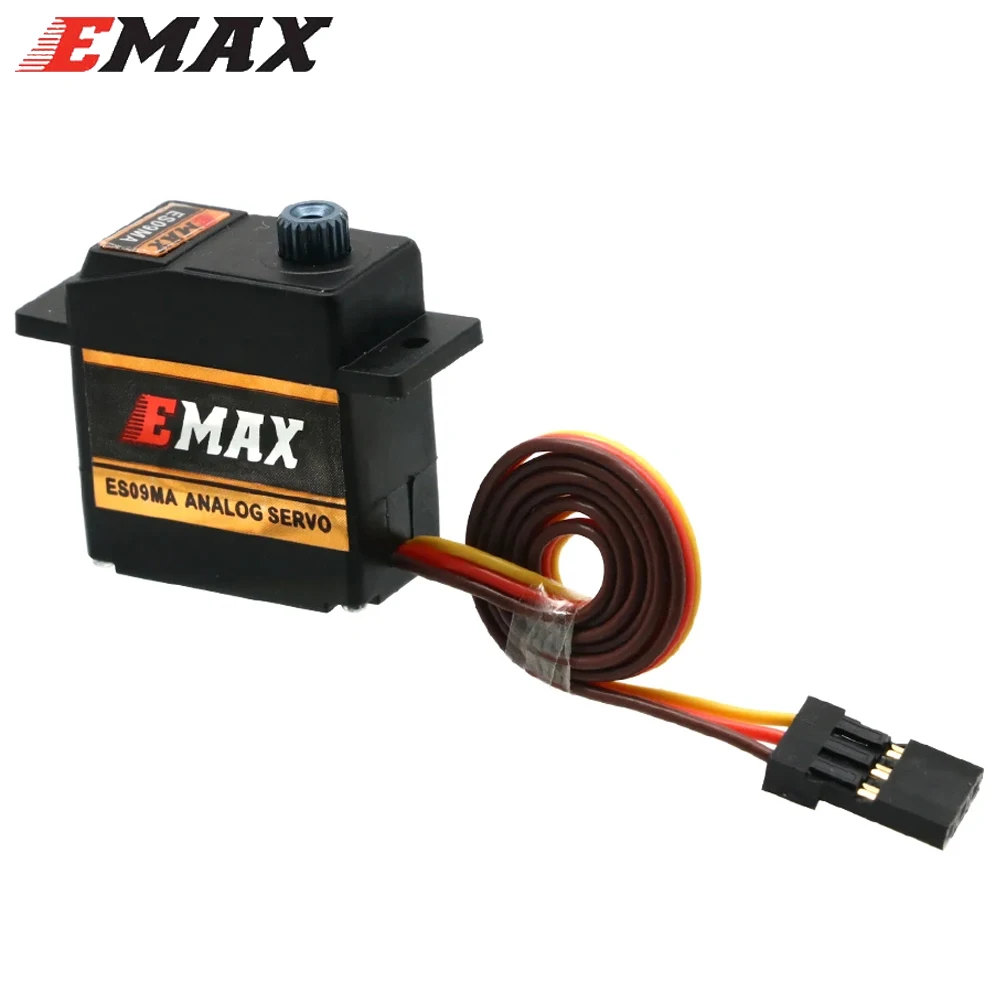

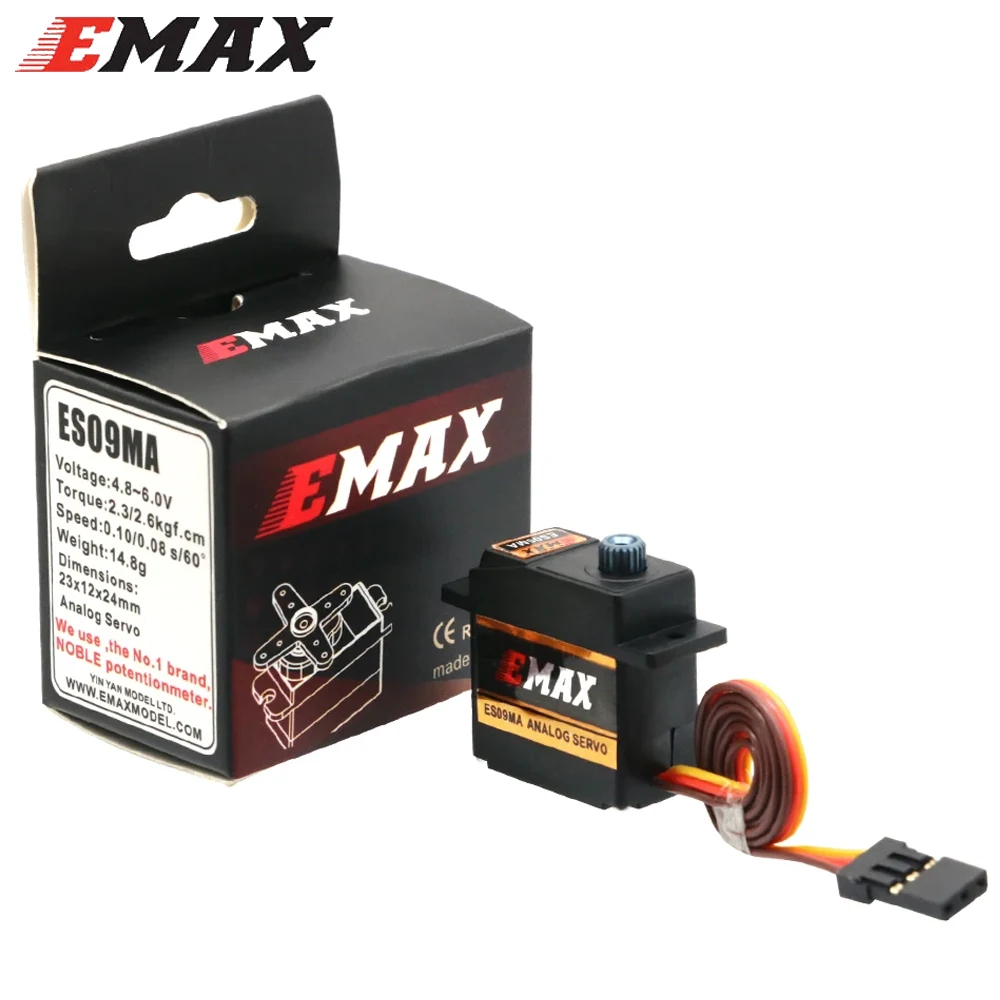

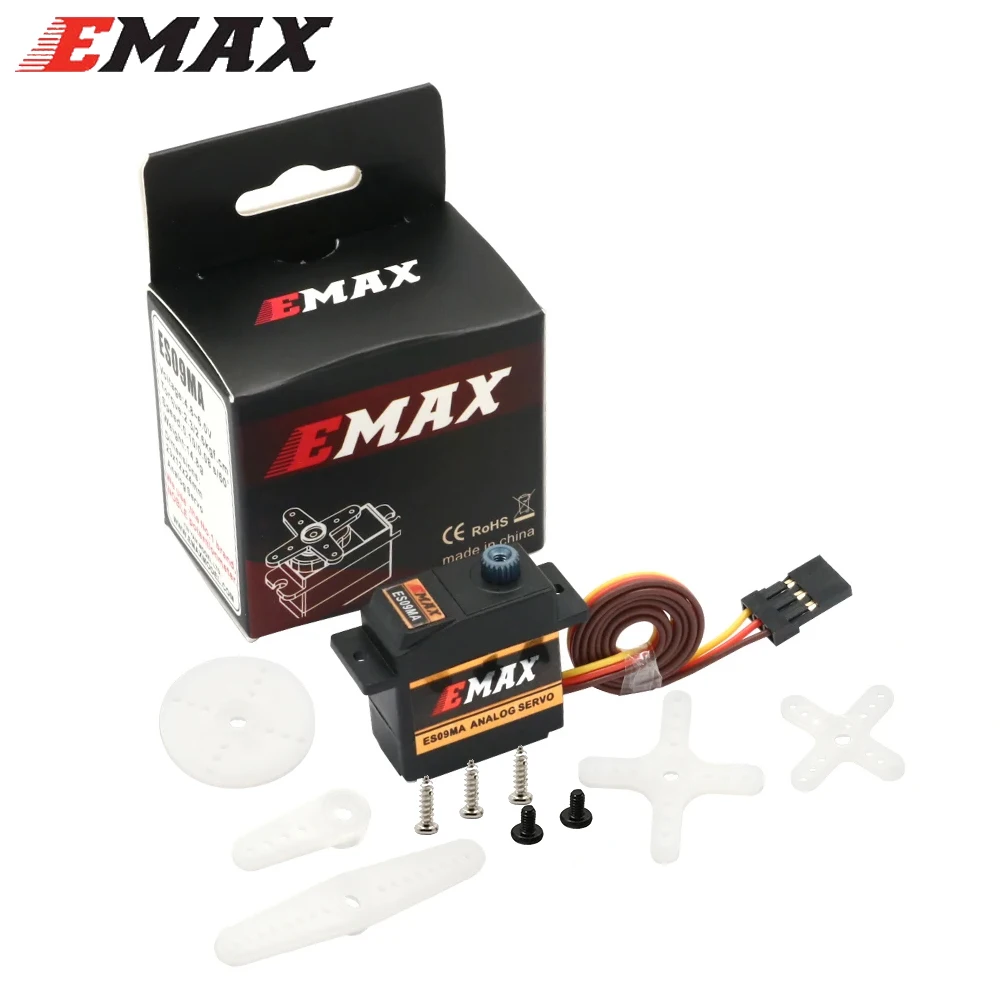

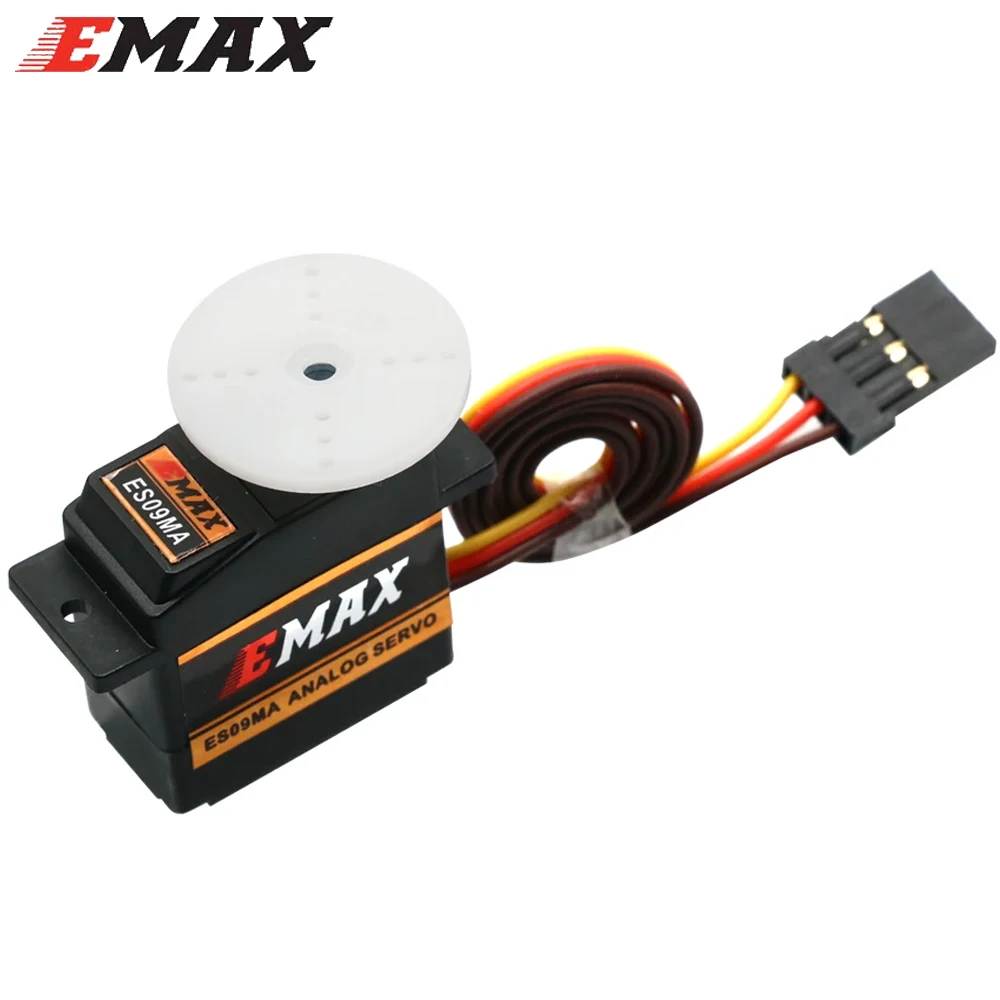

Emax ES09MA 4.8-6.0V Metal Gear Analog Swash Servo
Emax Have Designed A Series Of Specific Swash Servos For 450 Helicopters, And Now You Will Be Able To Have A High Quality Swash Servo For Your 450 Helicopters With A Very Attractive Price!
Character:
- Increase Torque And Speed To A Higher Level Than Stronger Gear Set And Case Made Of Engineering Plastics.
- Dual-bearing, And Large Diameter Shaft Design Minimize The Disatema And Keep The Servo Operating Smoothly For A Long Time.
- Different Structure Strengthens Gear Hardness, Maximizes Transmission Efficiency, And Provides A Higher Torque From Same Drive Current.
- Applies NOBLE Potentiometer Which Assures The Coherence.
Operating Voltage: 4.8-6.0V;
STD Direction: Counter Clockwise/ Pulse Traveling 1500 To 1900usec.
Stall Torque: 4.8V-2.3Kgf.cm/ 6.0V-2.6Kgf.cm;
Operating Speed: 4.8V-0.10Sec/60°@No Load; 6.0V-0.08Sec/60°@No Load;

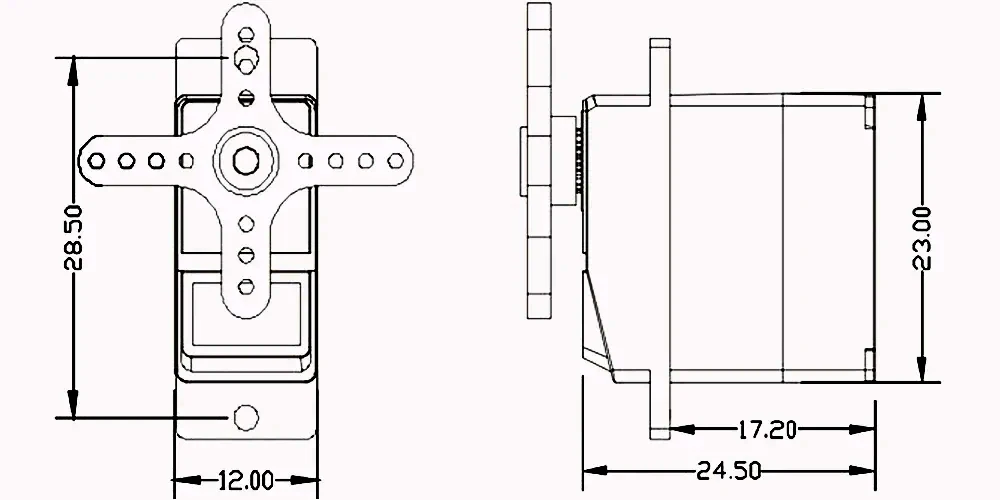

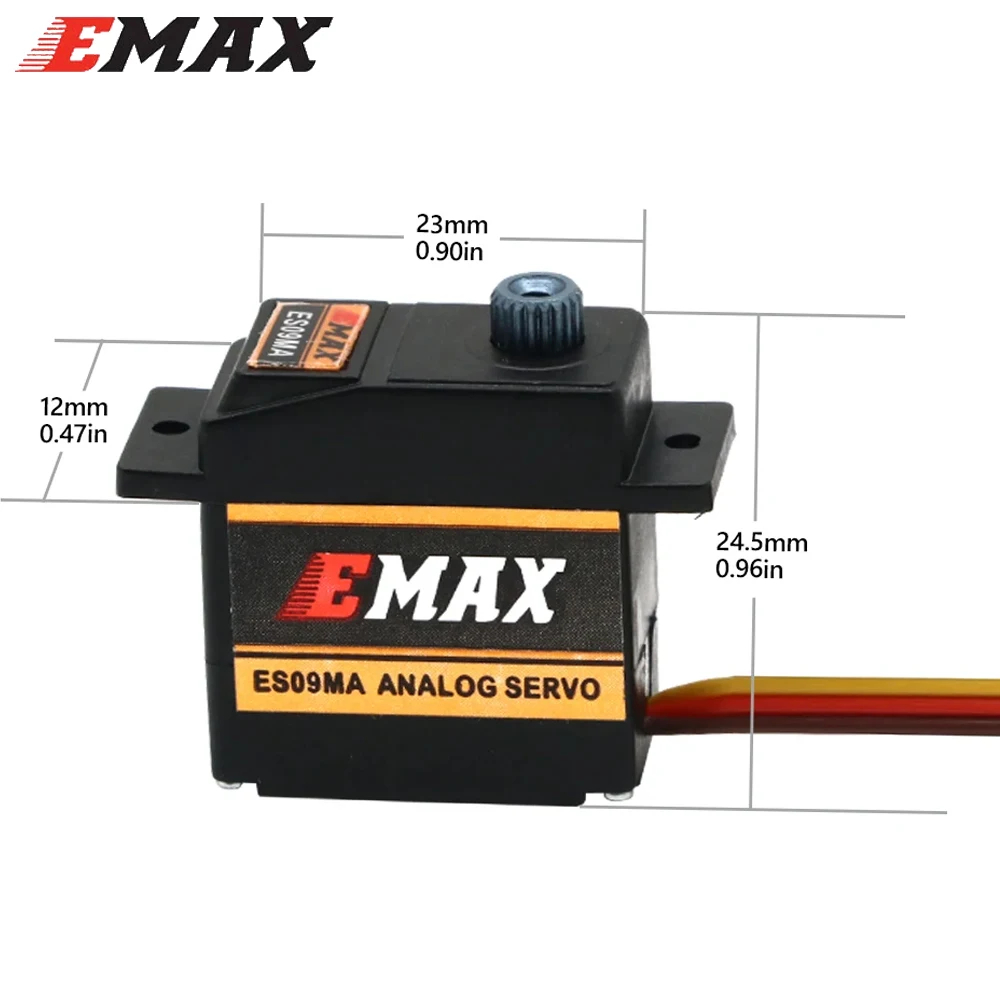

Dimensiones: 23*12*24.5mm;
Weight: 14.8g;
Plug Available: Futaba, JR;
Metal, Analog;
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Emax ES09MA 4.8-6.0V Metal Gear Analog Swash Servo
Emax Have Designed A Series Of Specific Swash Servos For 450 Helicopters, And Now You Will Be Able To Have A High Quality Swash Servo For Your 450 Helicopters With A Very Attractive Price!
Character:
- Increase Torque And Speed To A Higher Level Than Stronger Gear Set And Case Made Of Engineering Plastics.
- Dual-bearing, And Large Diameter Shaft Design Minimize The Disatema And Keep The Servo Operating Smoothly For A Long Time.
- Different Structure Strengthens Gear Hardness, Maximizes Transmission Efficiency, And Provides A Higher Torque From Same Drive Current.
- Applies NOBLE Potentiometer Which Assures The Coherence.
Operating Voltage: 4.8-6.0V;
STD Direction: Counter Clockwise/ Pulse Traveling 1500 To 1900usec.
Stall Torque: 4.8V-2.3Kgf.cm/ 6.0V-2.6Kgf.cm;
Operating Speed: 4.8V-0.10Sec/60°@No Load; 6.0V-0.08Sec/60°@No Load;
Dimensiones: 23*12*24.5mm;
Weight: 14.8g;
Plug Available: Futaba, JR;
Metal, Analog;
