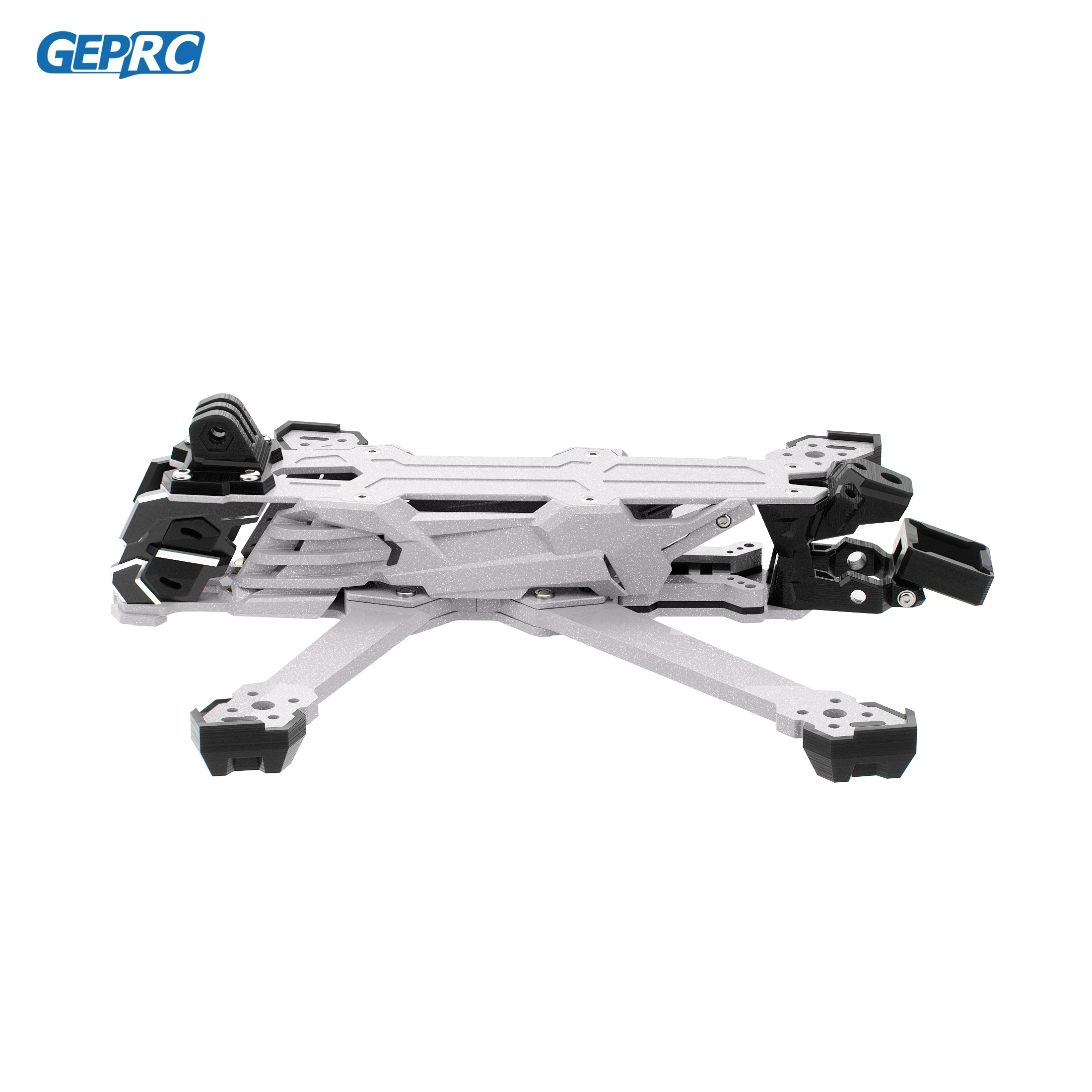

GEPRC GEP-Vapor O4 Pro Голографическая белая рамка 5 6-дюймовый Дрон X5 D5 X6 RC FPV Квадрокоптер Сменные аксессуары для вертолета

Summary

Many pilots keep asking: Can a classic evolve?
The answer from the GEPRC team is yes.

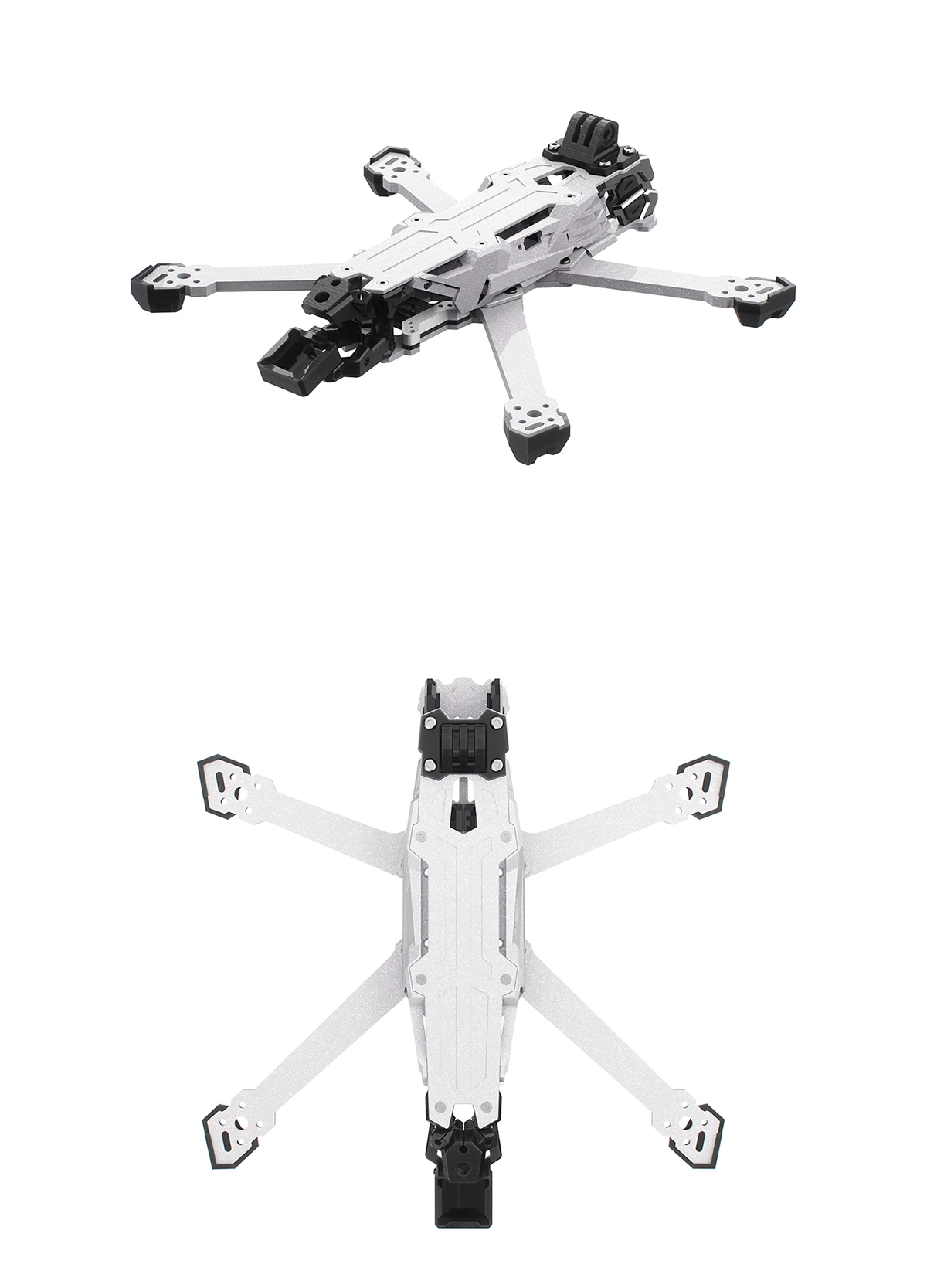

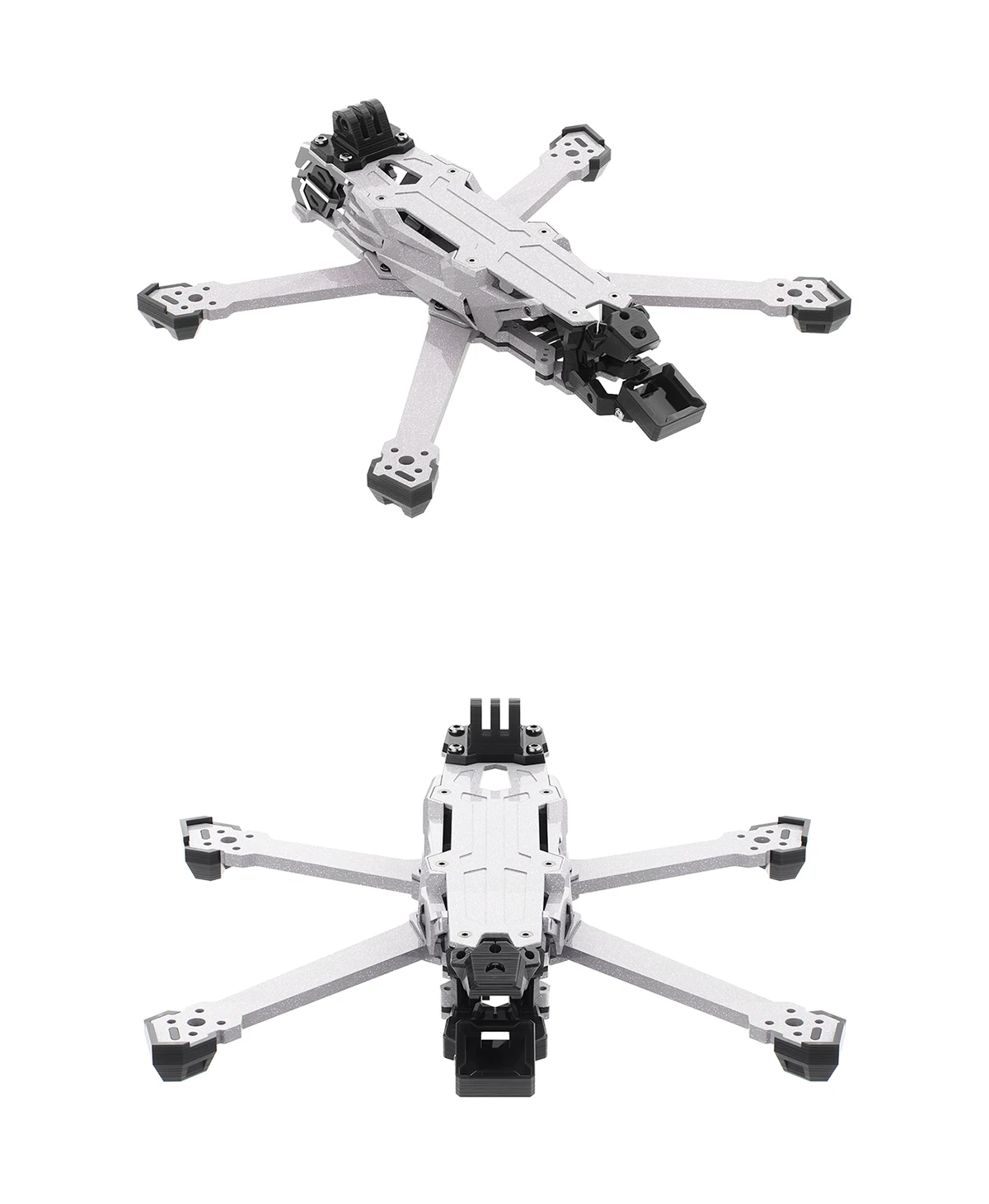

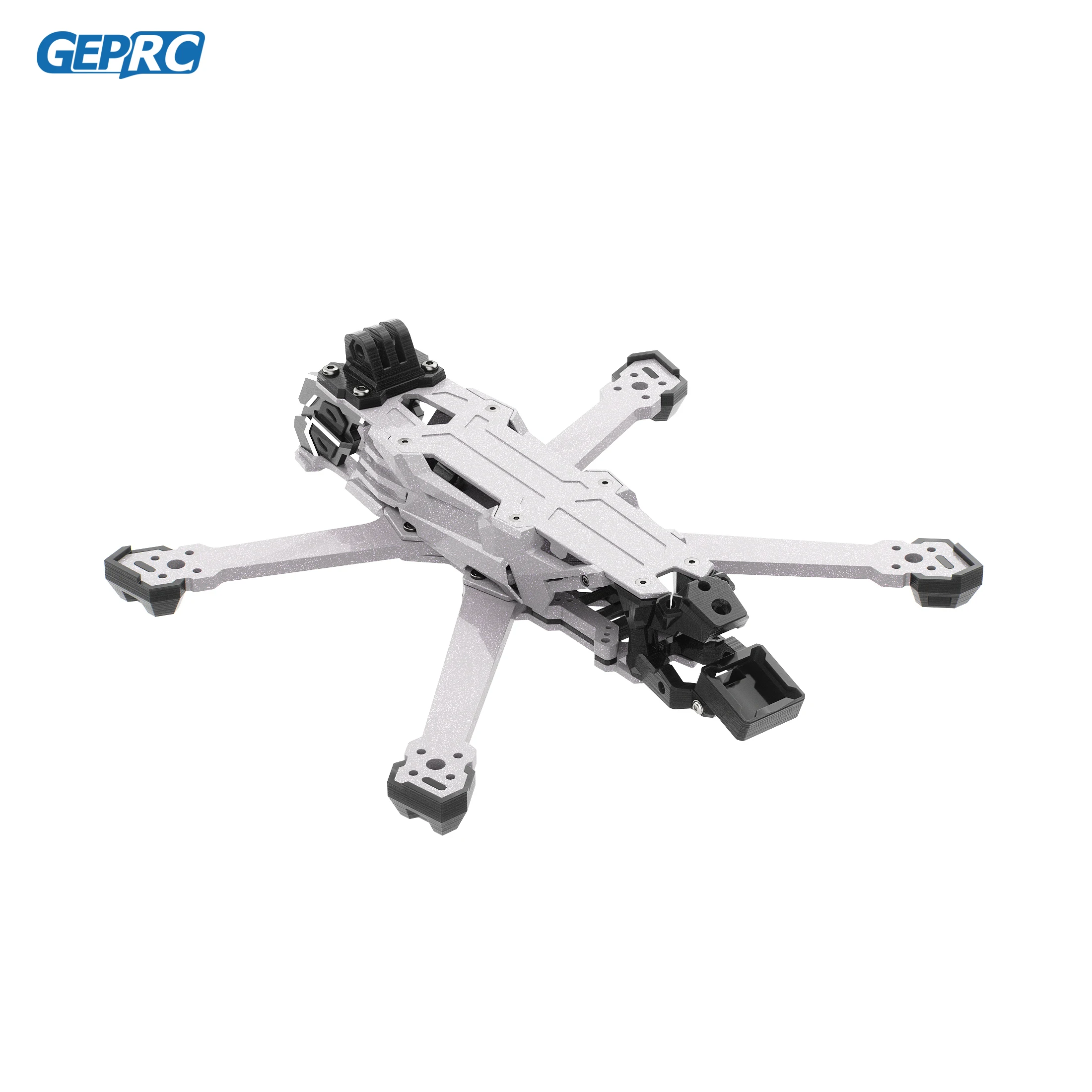

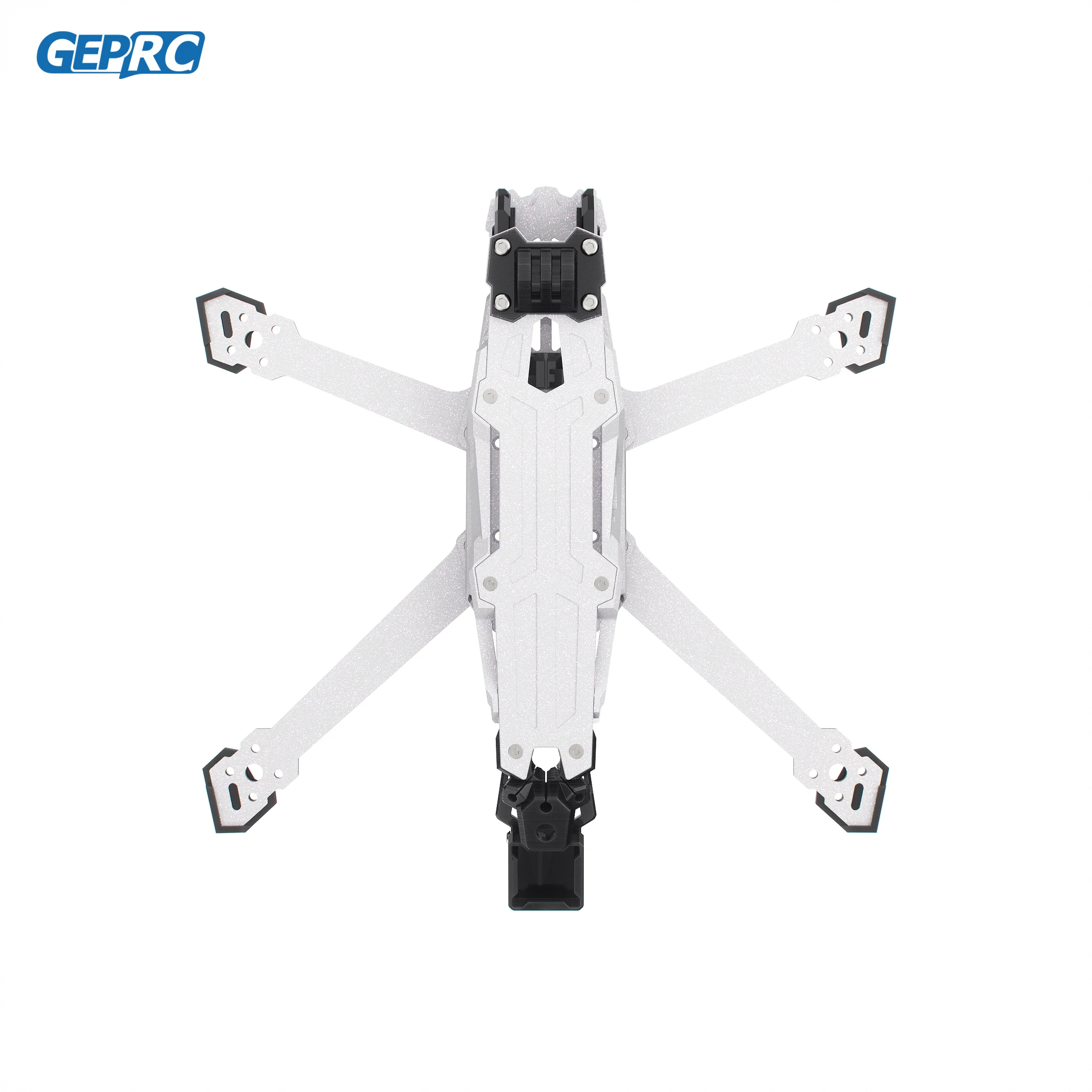

The Vapor O4 Pro Chameleon White Frame retains the proven structure that made the original Vapor series a favorite among FPV pilots.

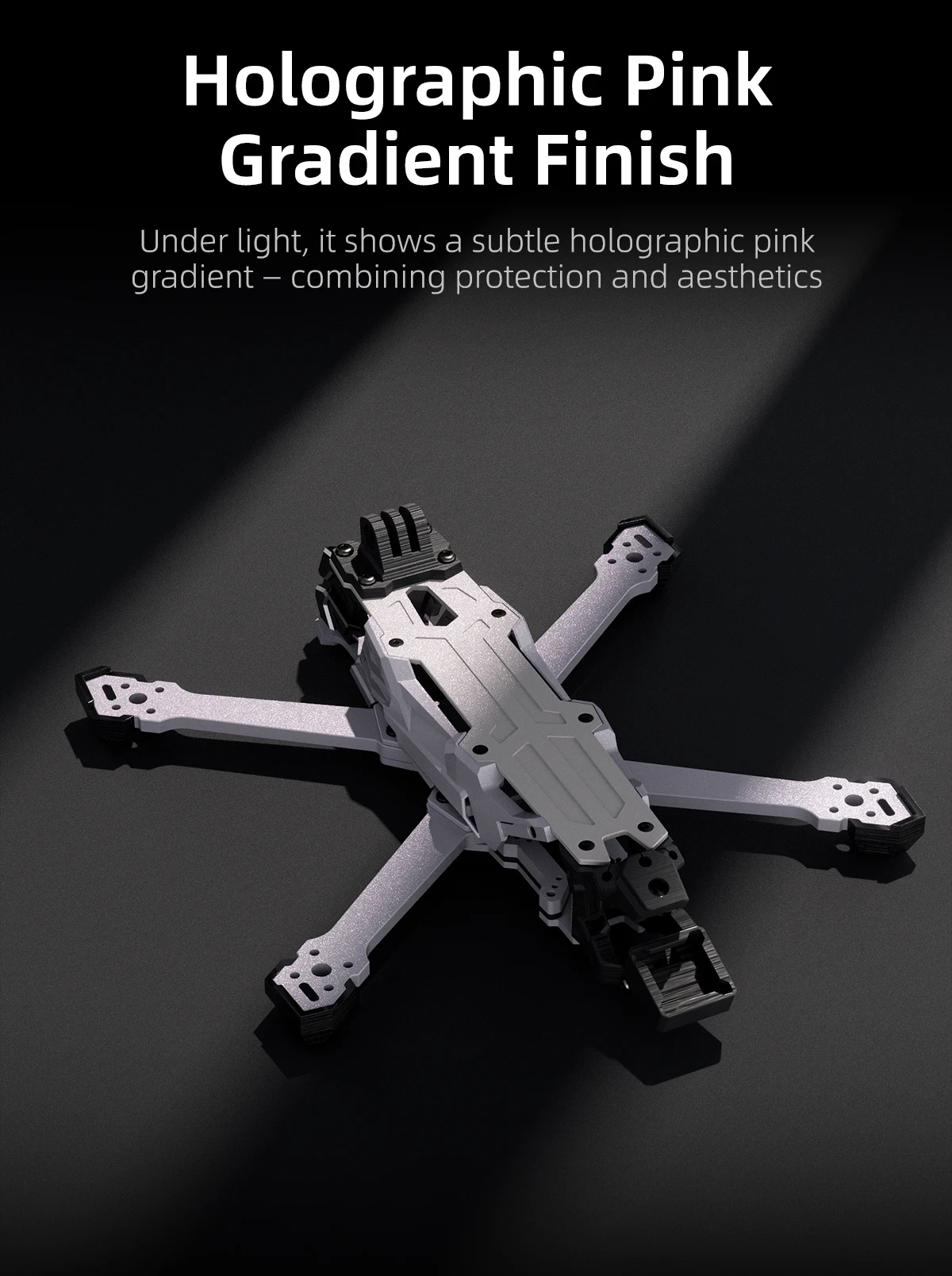

It now features a premium chameleon-effect coating process, delivering a unique color-shifting finish.

A high-hardness clear coat improves corrosion resistance, scratch resistance, and wear resistance.
This not only enhances the visual texture but also provides stronger protection for the frame.

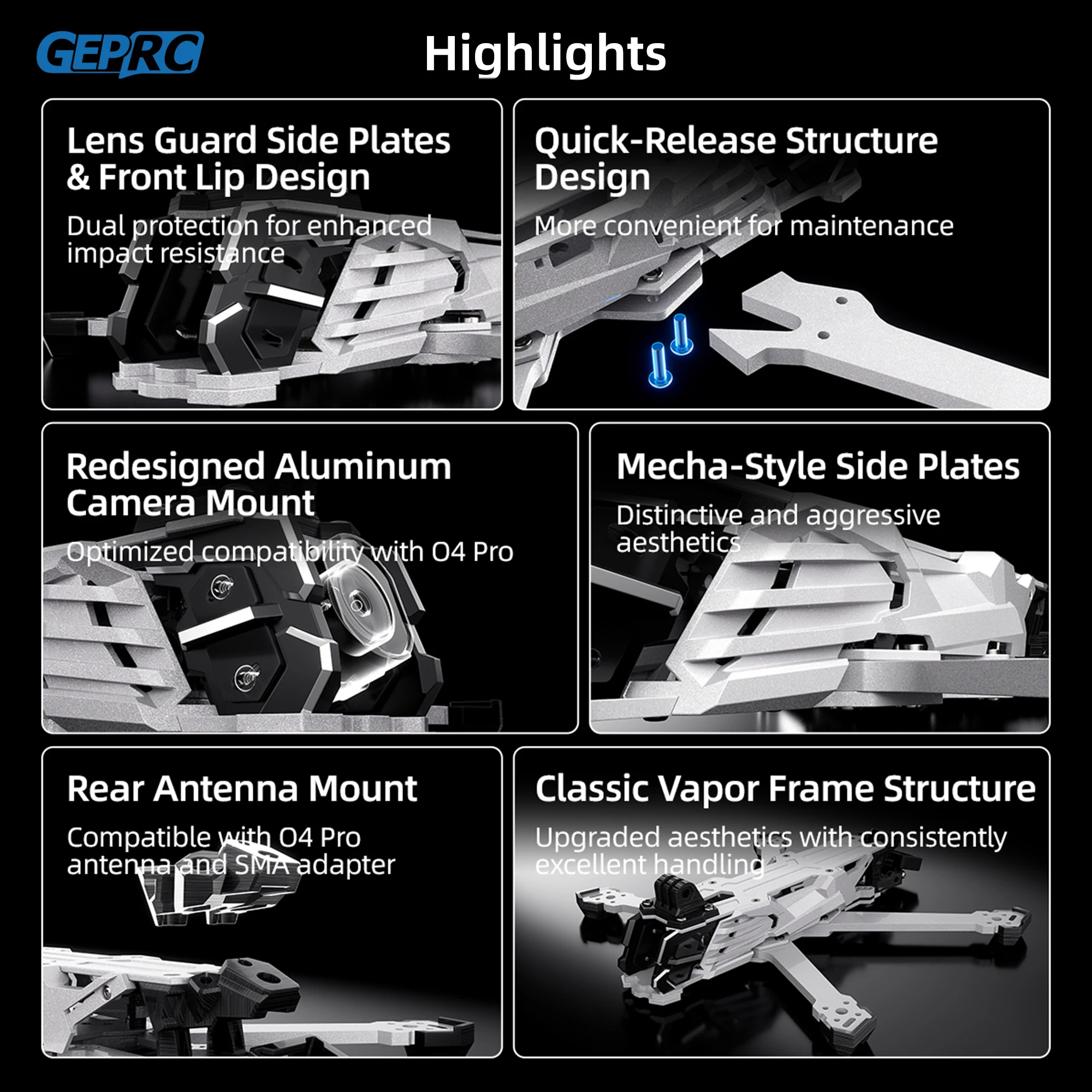

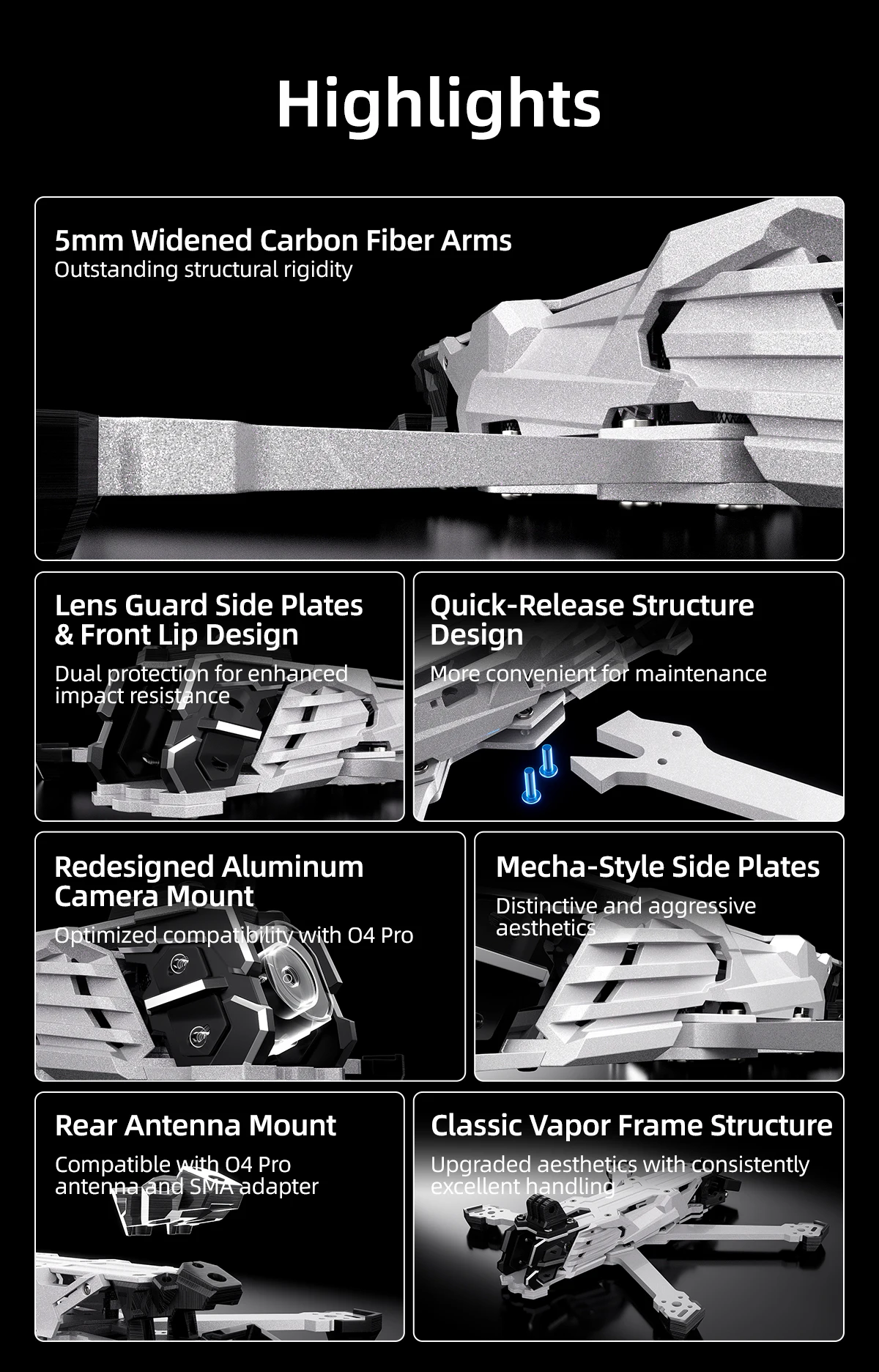

Feature

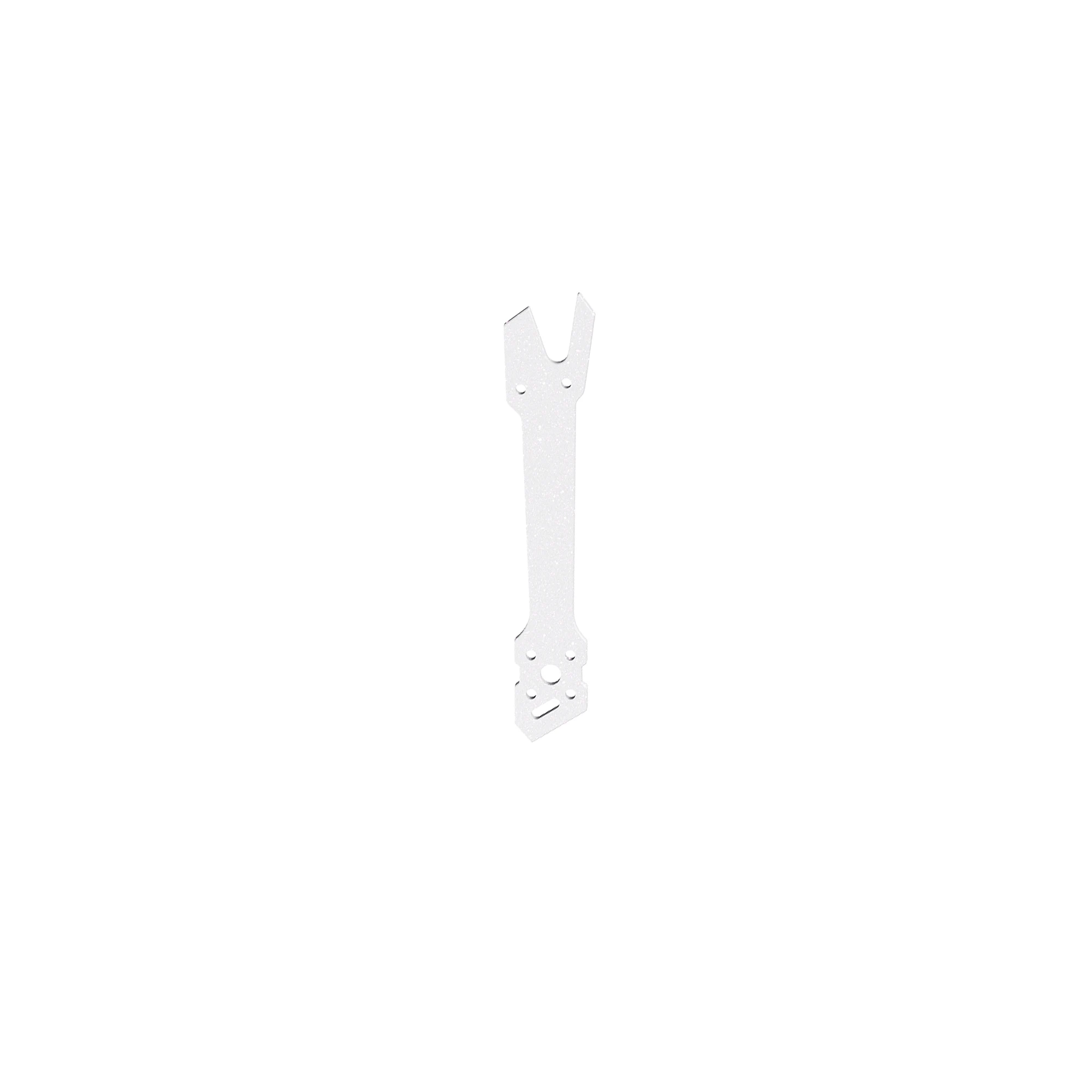

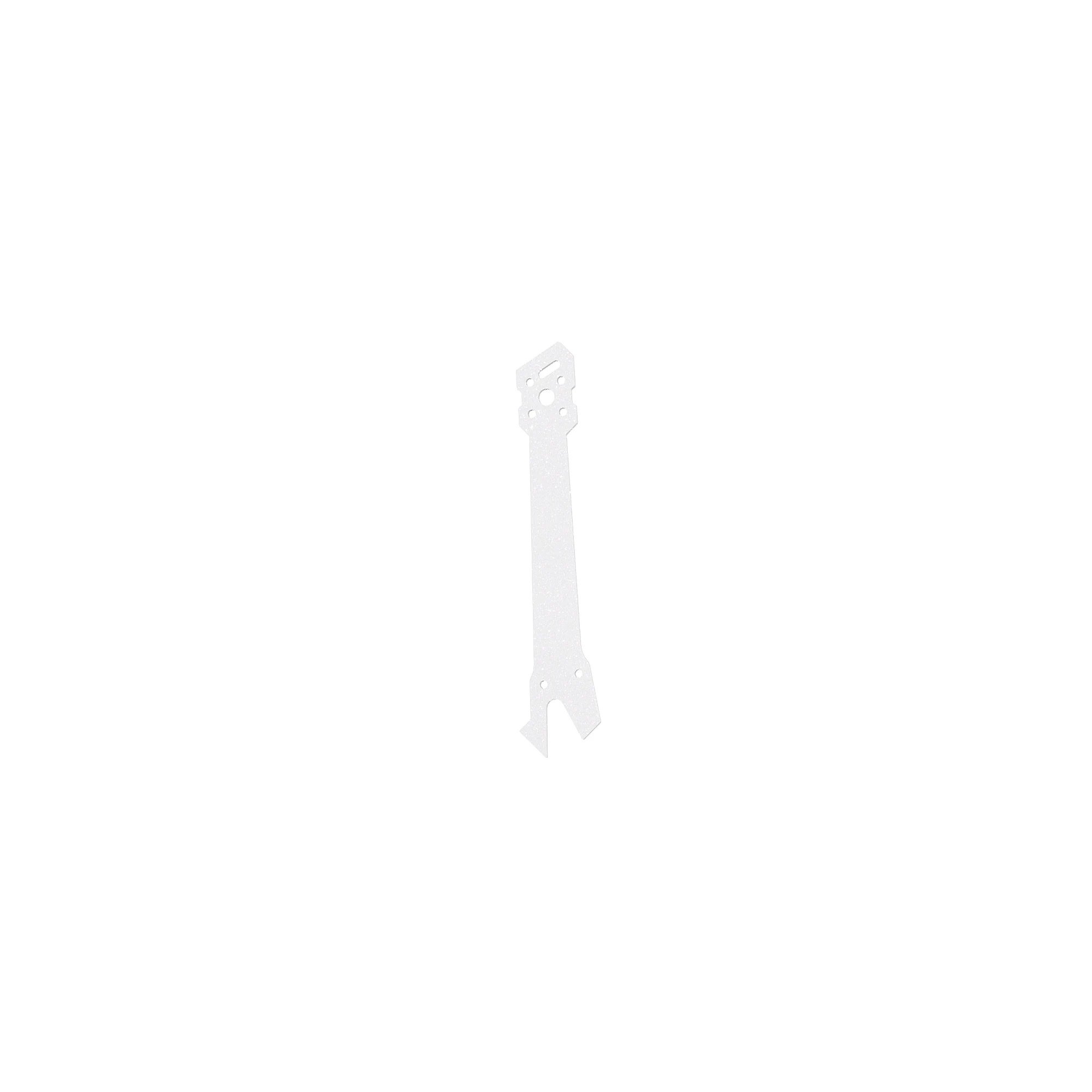

1. 5mm widened carbon fiber arms provide excellent overall rigidity.
2. Camera side plates and front lip design offer dual protection for stronger impact resistance.
3. Quick-release structure makes maintenance and repairs more convenient.

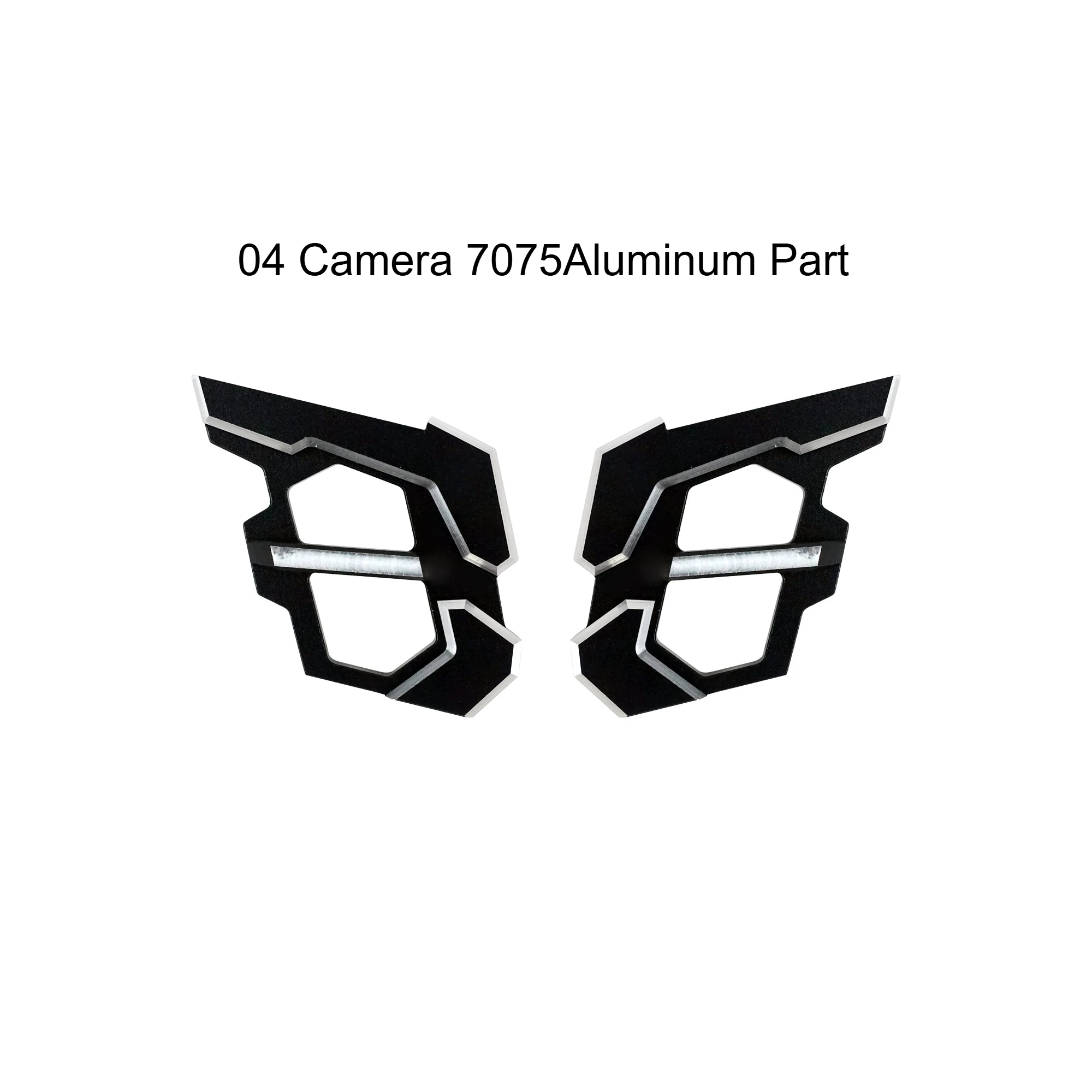

4. Redesigned aluminum camera mount perfectly fits the O4 Air Unit Pro system.

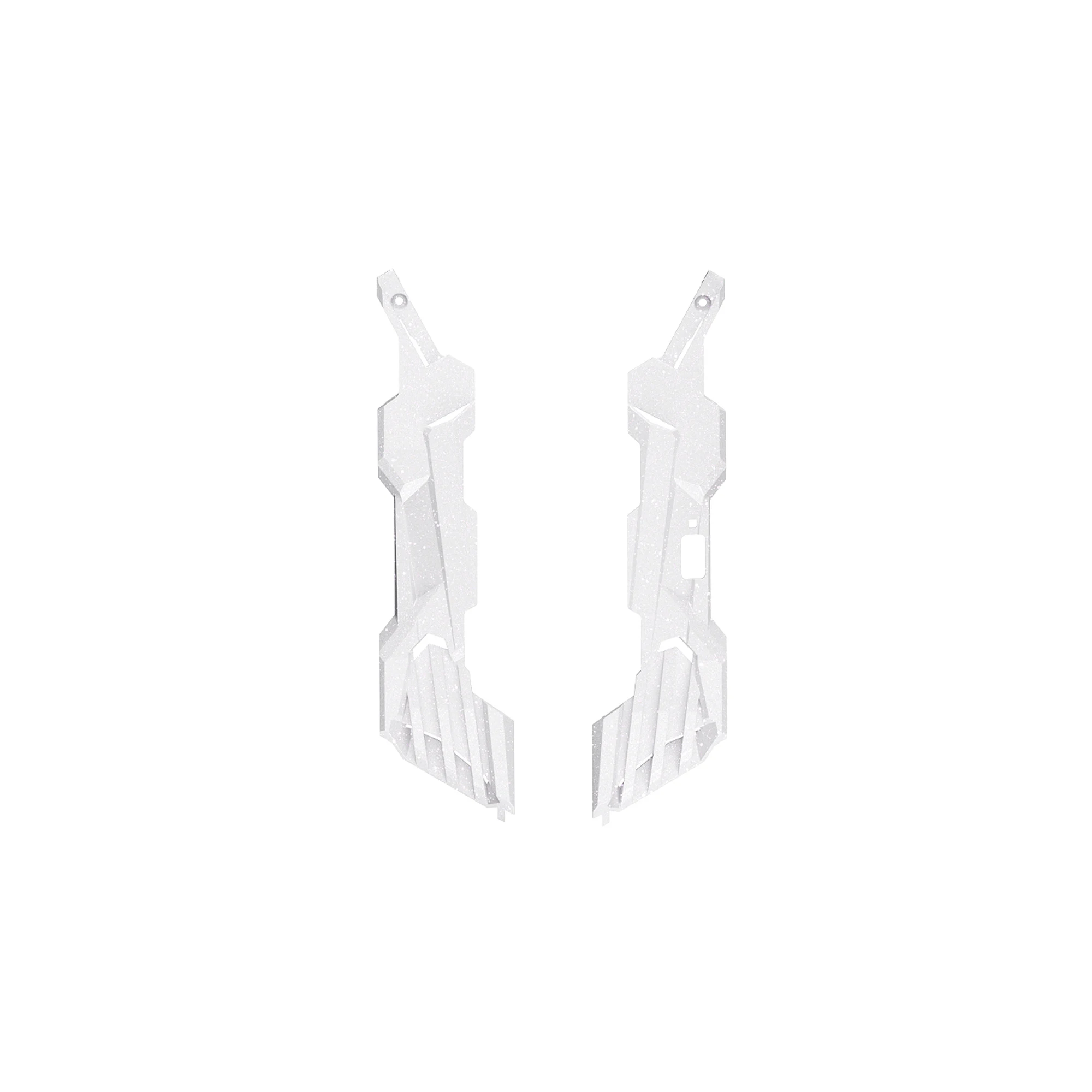

5. New mecha-style side plates feature sharp lines and a distinctive look.
6. Rear VTX antenna mount supports both the original O4 Pro antenna and SMA adapters.
7. Retains the classic Vapor frame geometry—new look, same flying soul.

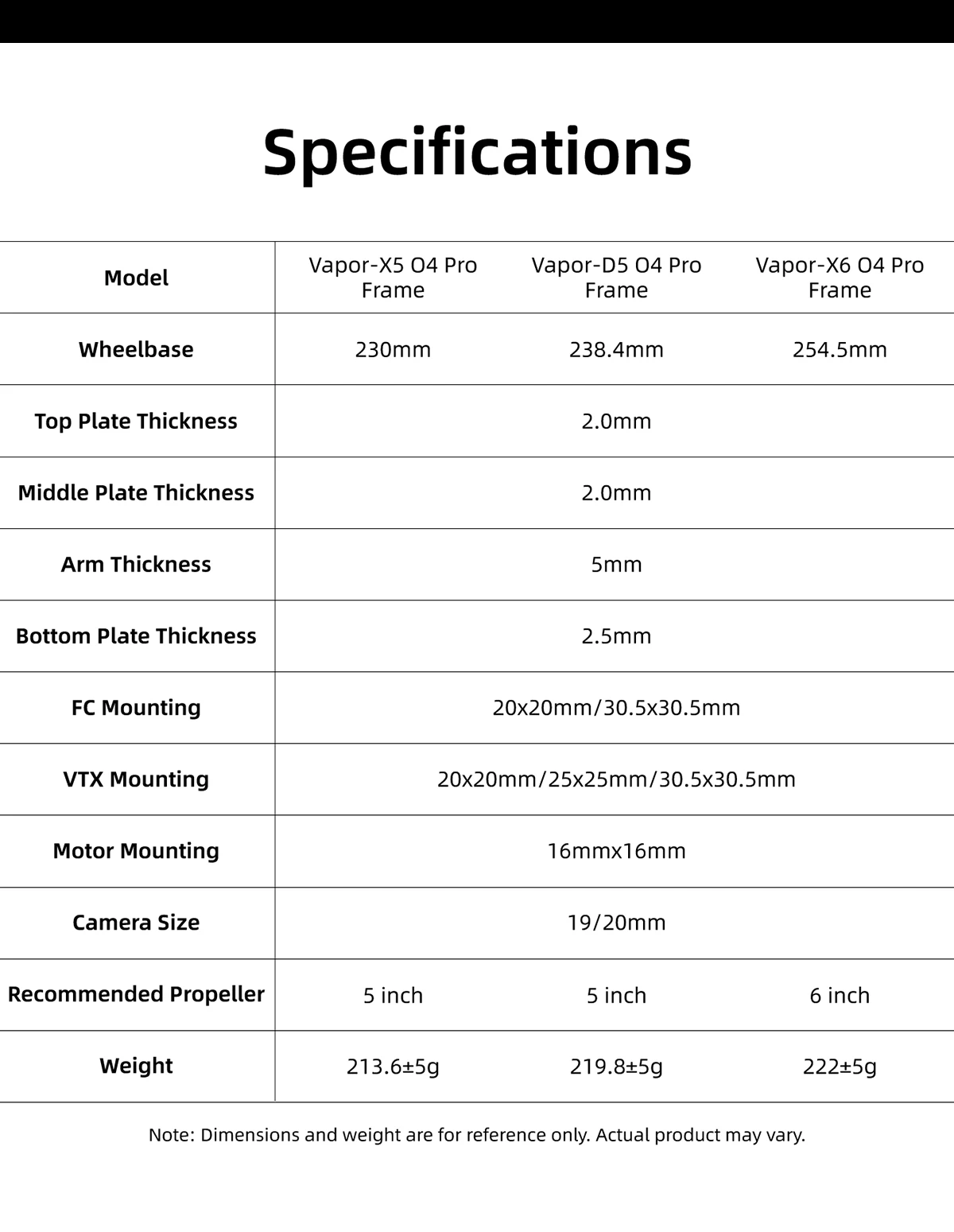

Specification--GEP-Vapor-X5

• Model: GEP-Vapor-X5 O4 Pro Holographic White Frame

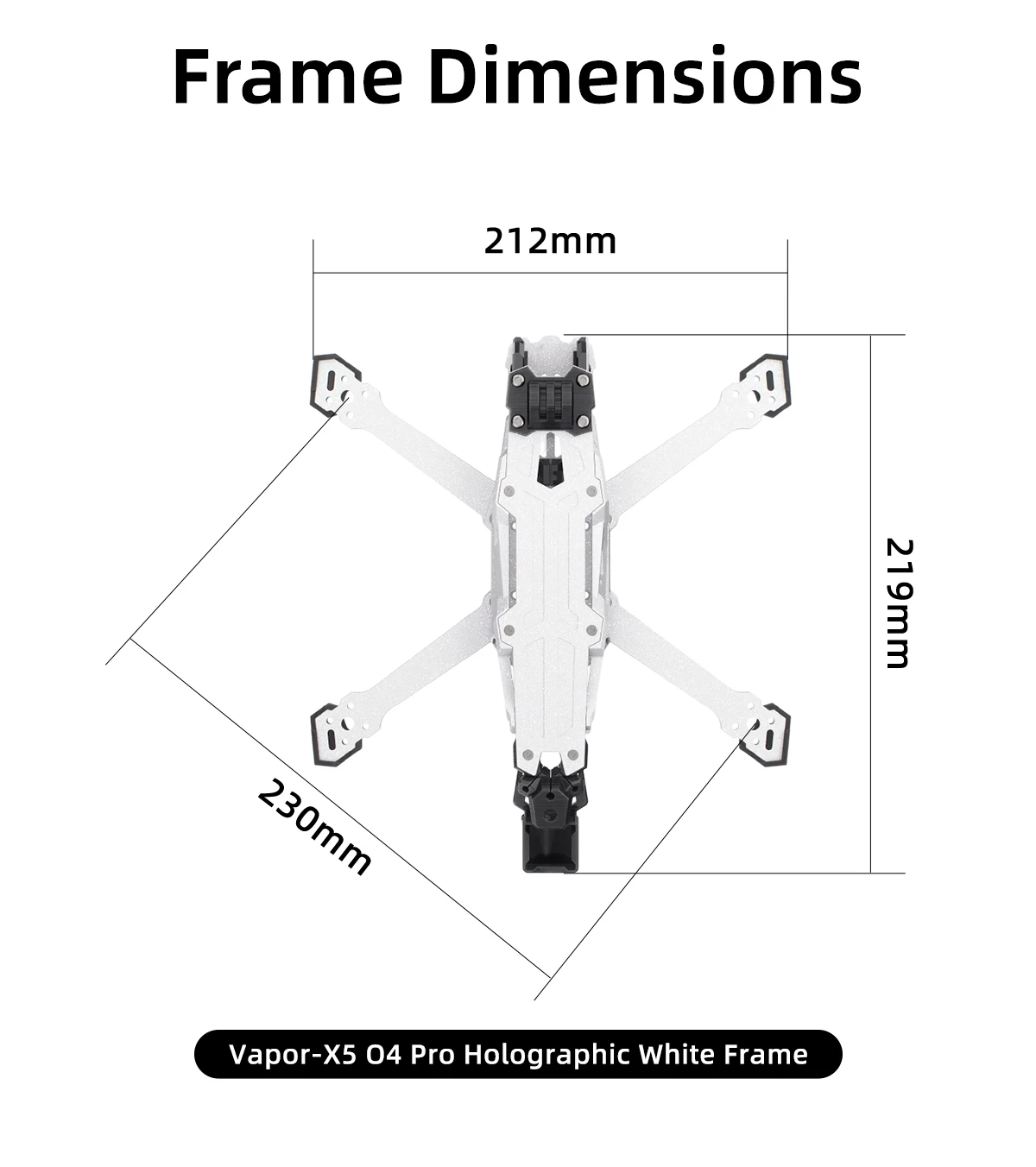

• Wheelbase: 230mm

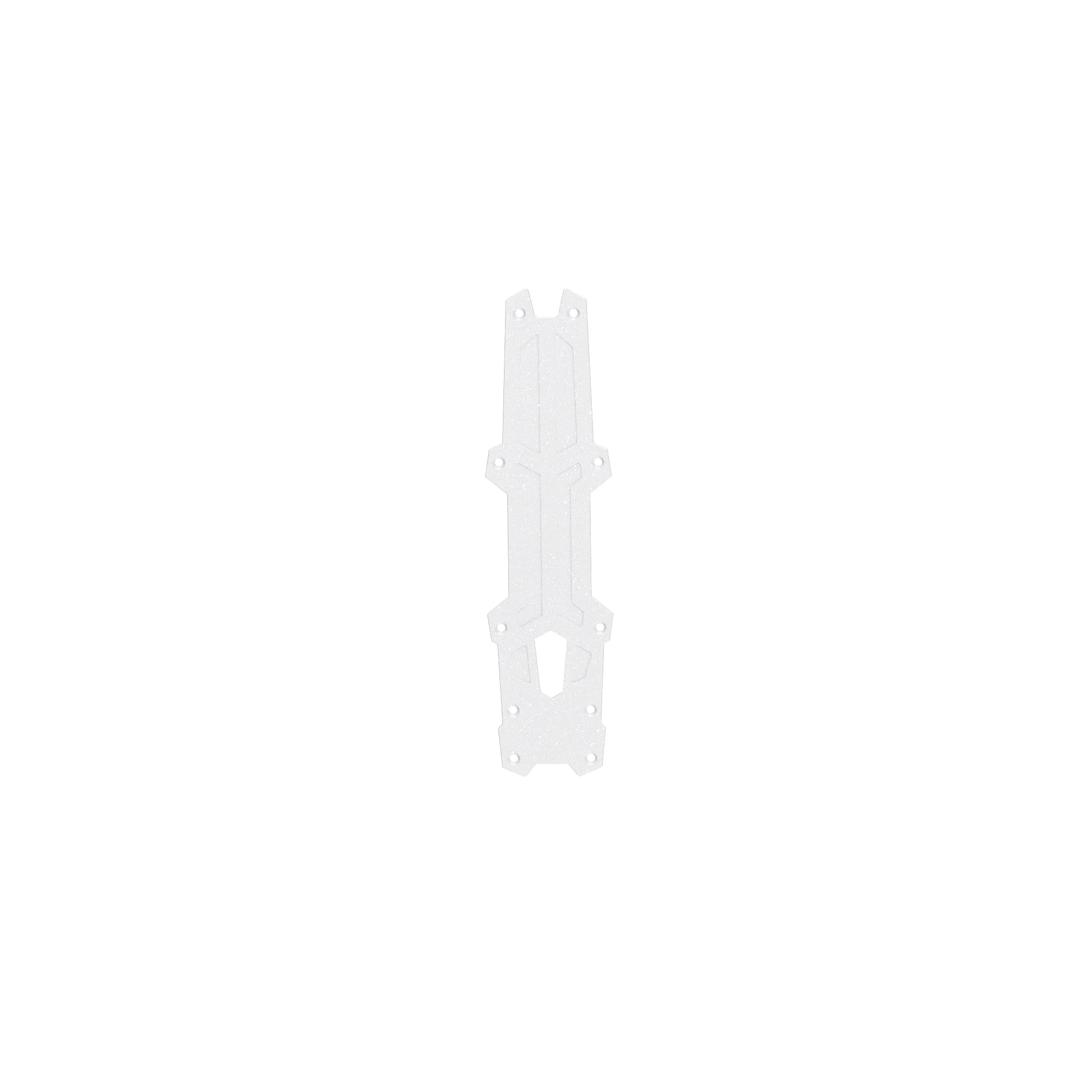

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Arm Thickness: 5.0mm

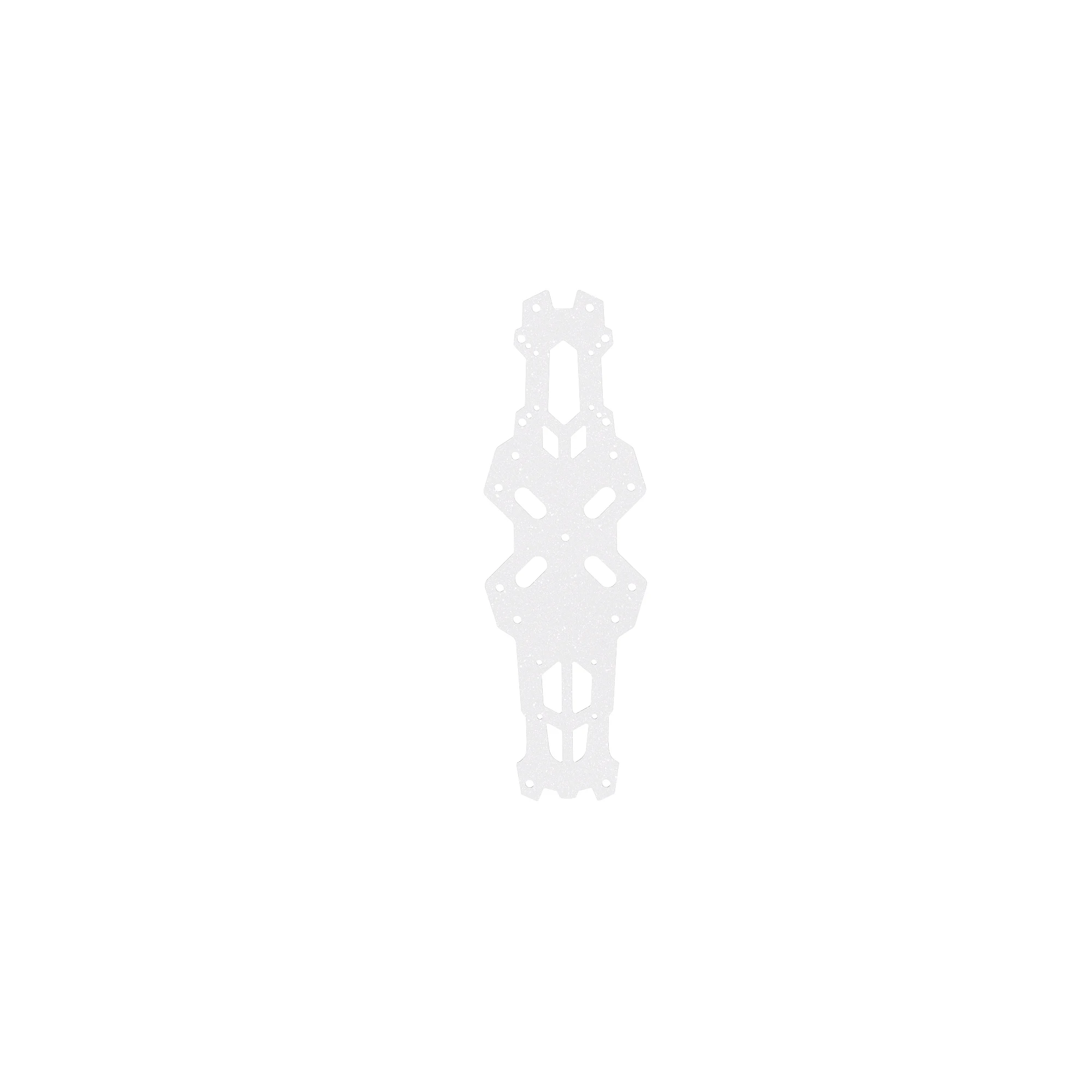

• Bottom Plate Thickness: 2.5mm

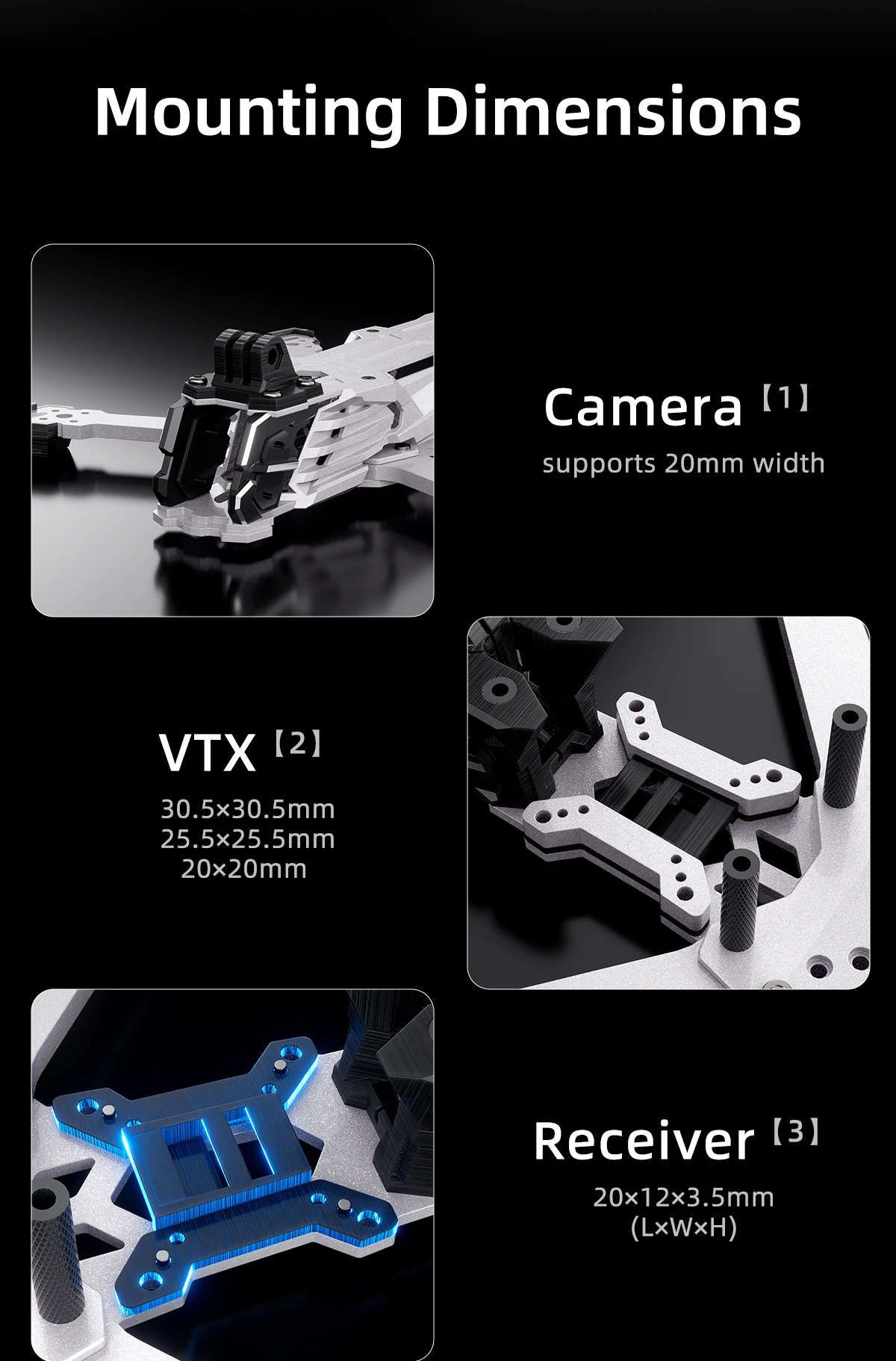

• FC Mounting Hole Size: 20x20mm / 30.5x30.5mm

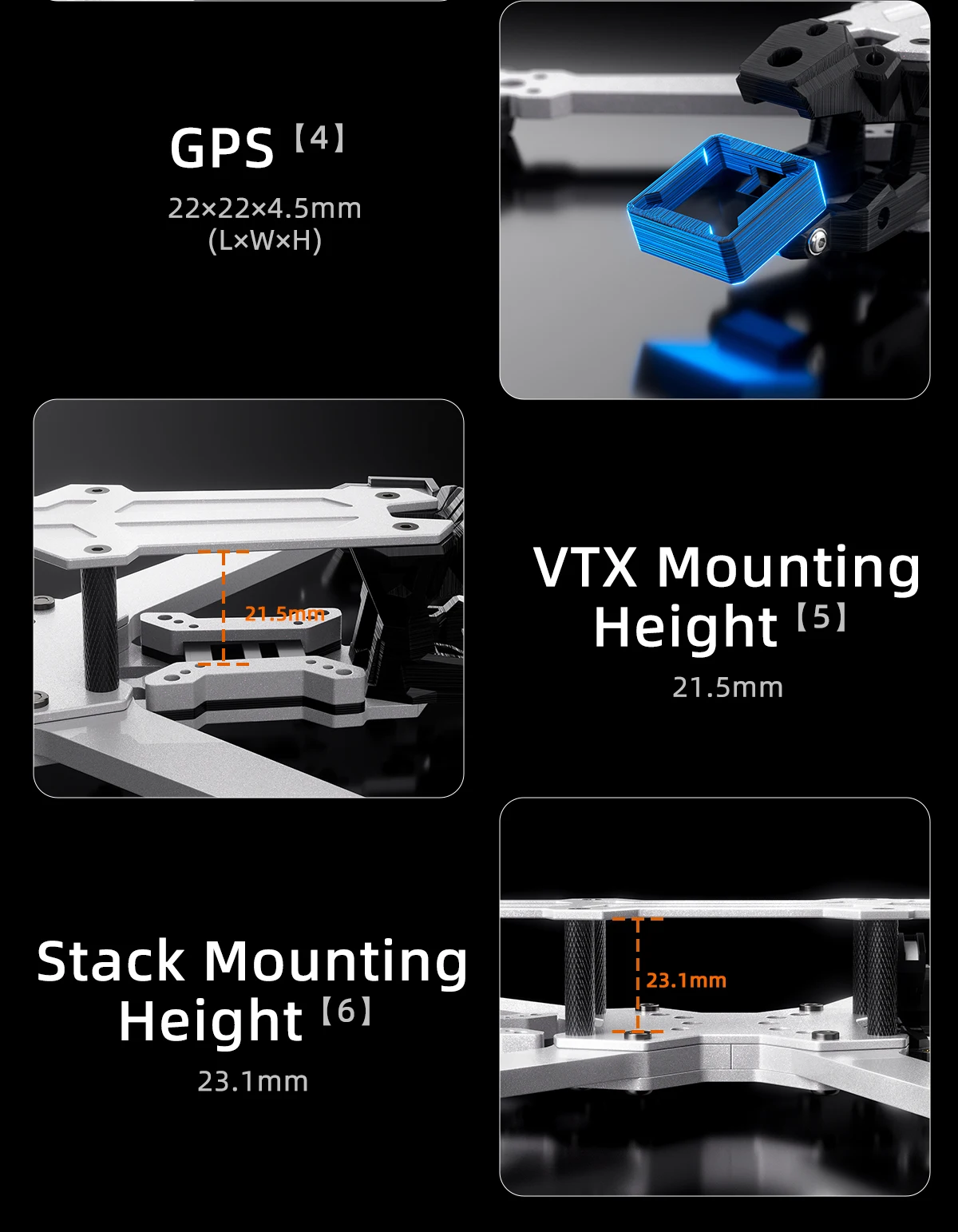

• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5x30.5mm

• Motor Mounting Hole Size: 16x16mm

• Camera Mounting Hole Size: 19mm / 20mm

• Recommended Propeller: 5-inch

• Weight: 213.6±5g

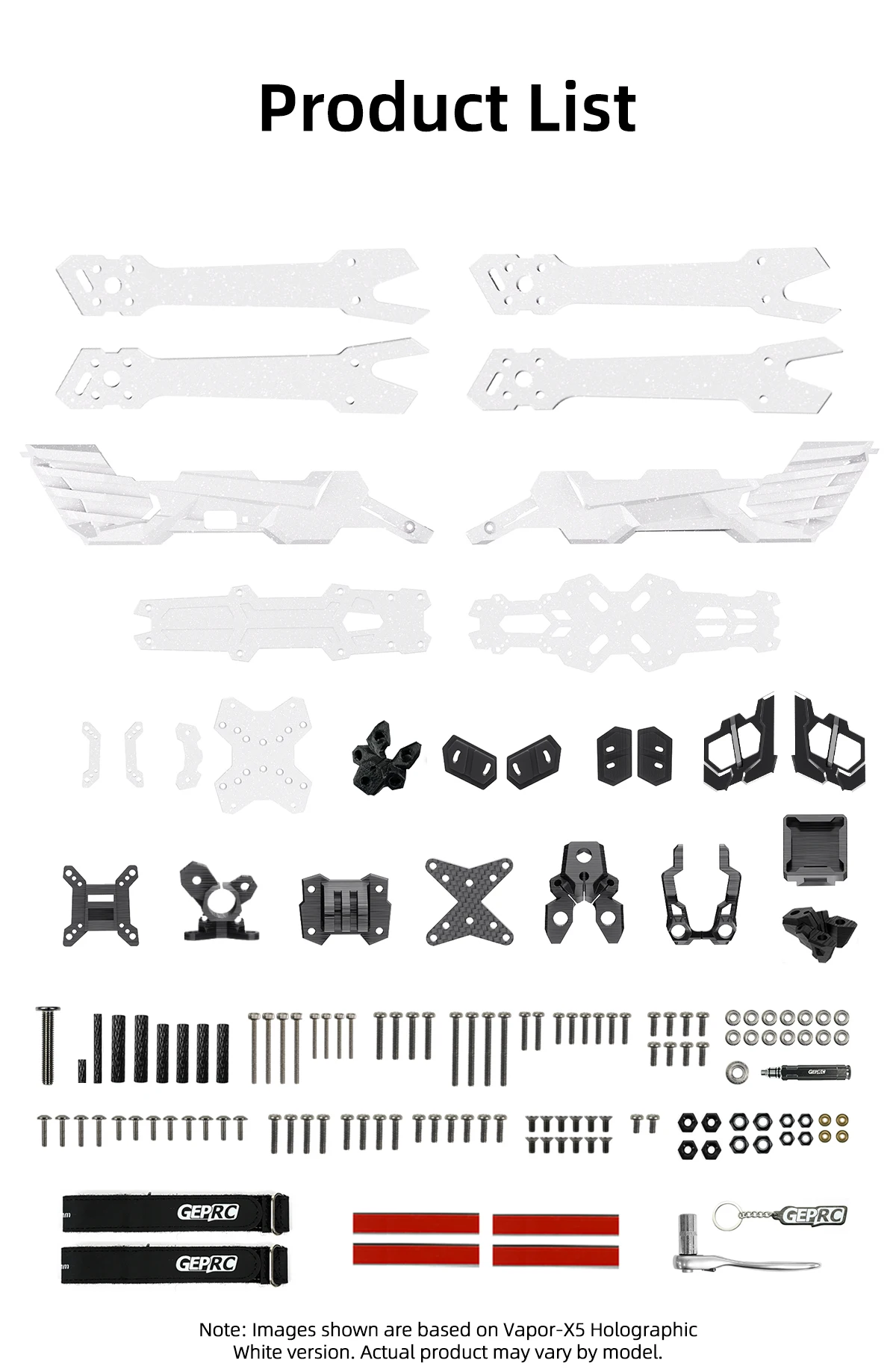

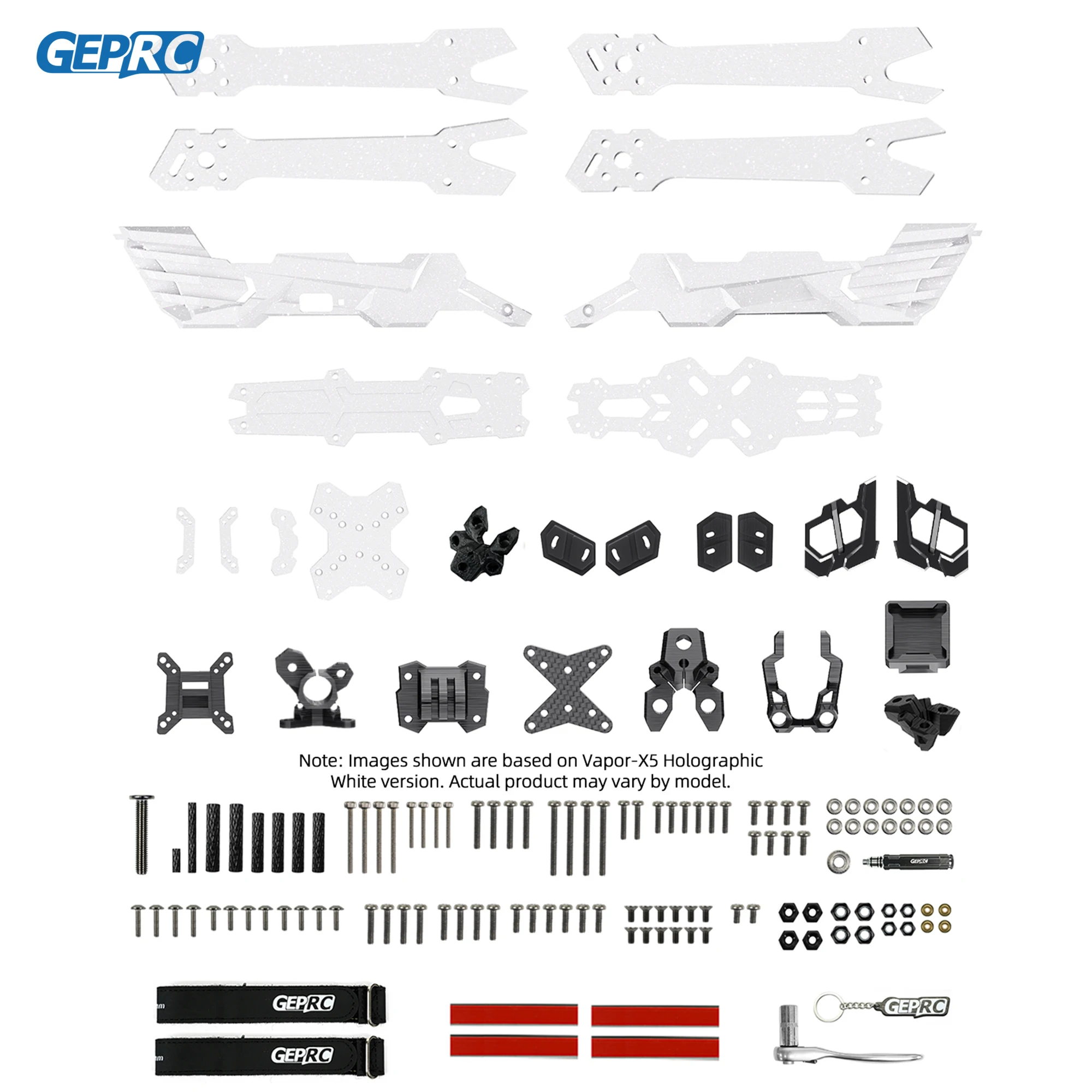

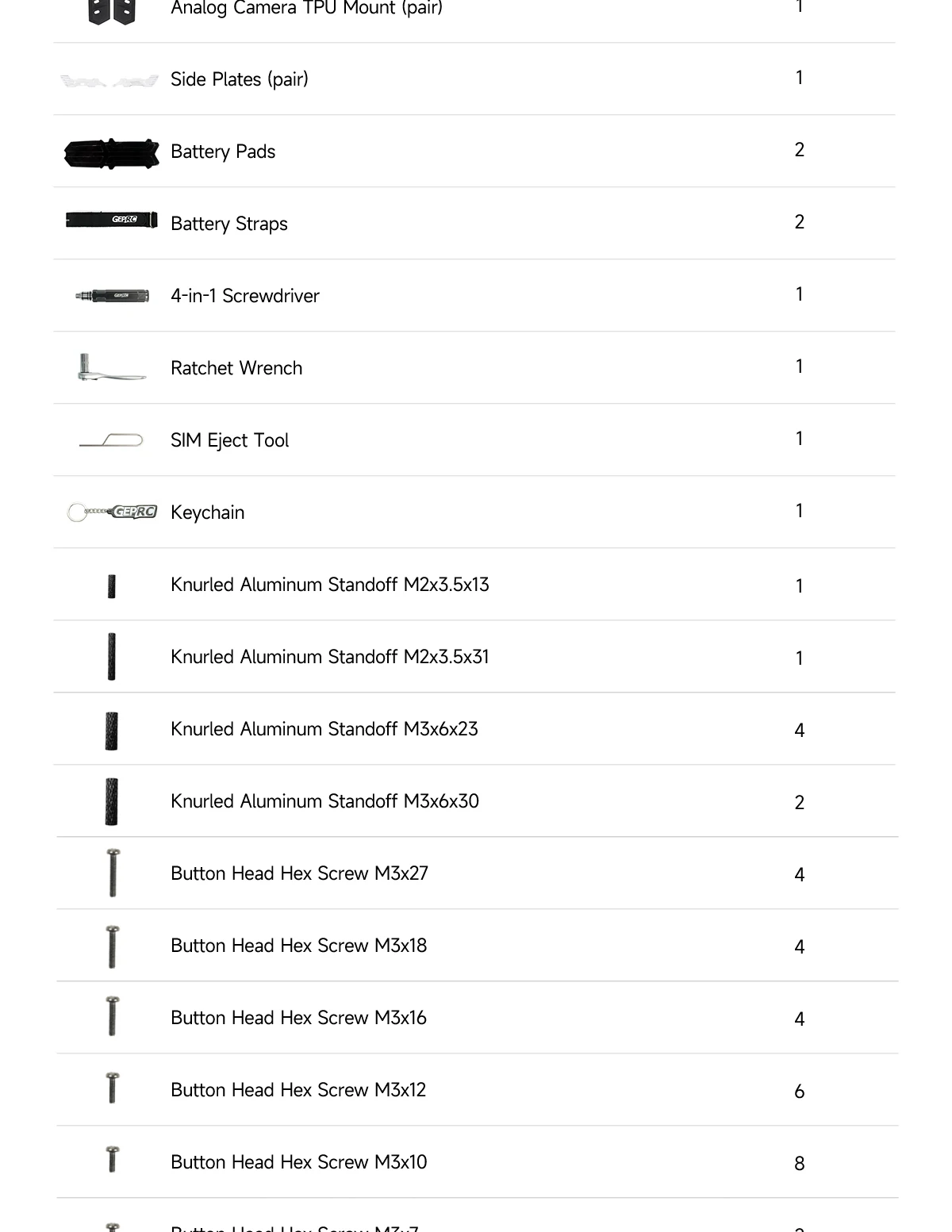

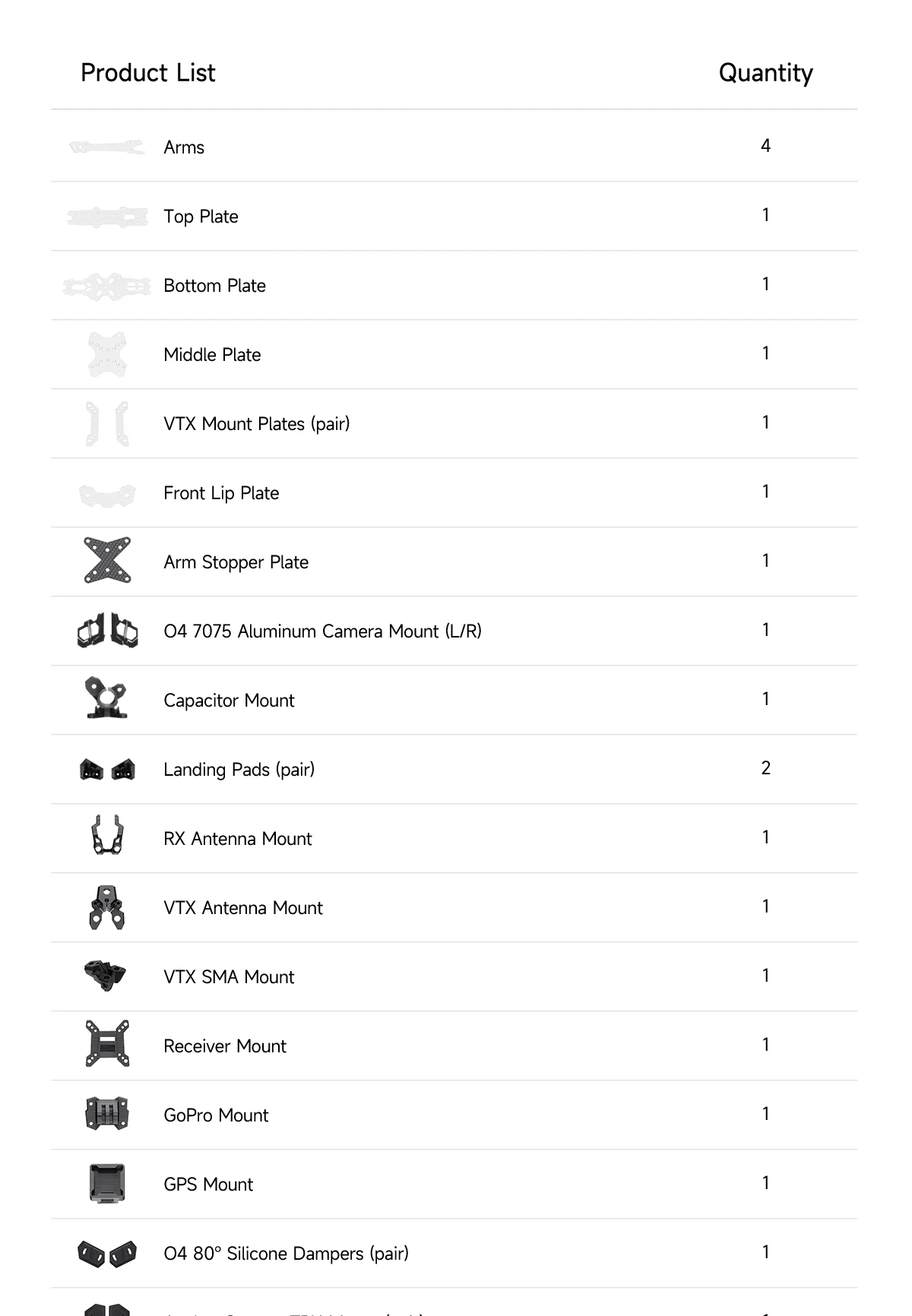

Includes

1 × GEP-Vapor-X5 O4 Pro Holographic White Frame
2 × M20*250mm Battery Straps
2 × Battery Anti-Slip Pads

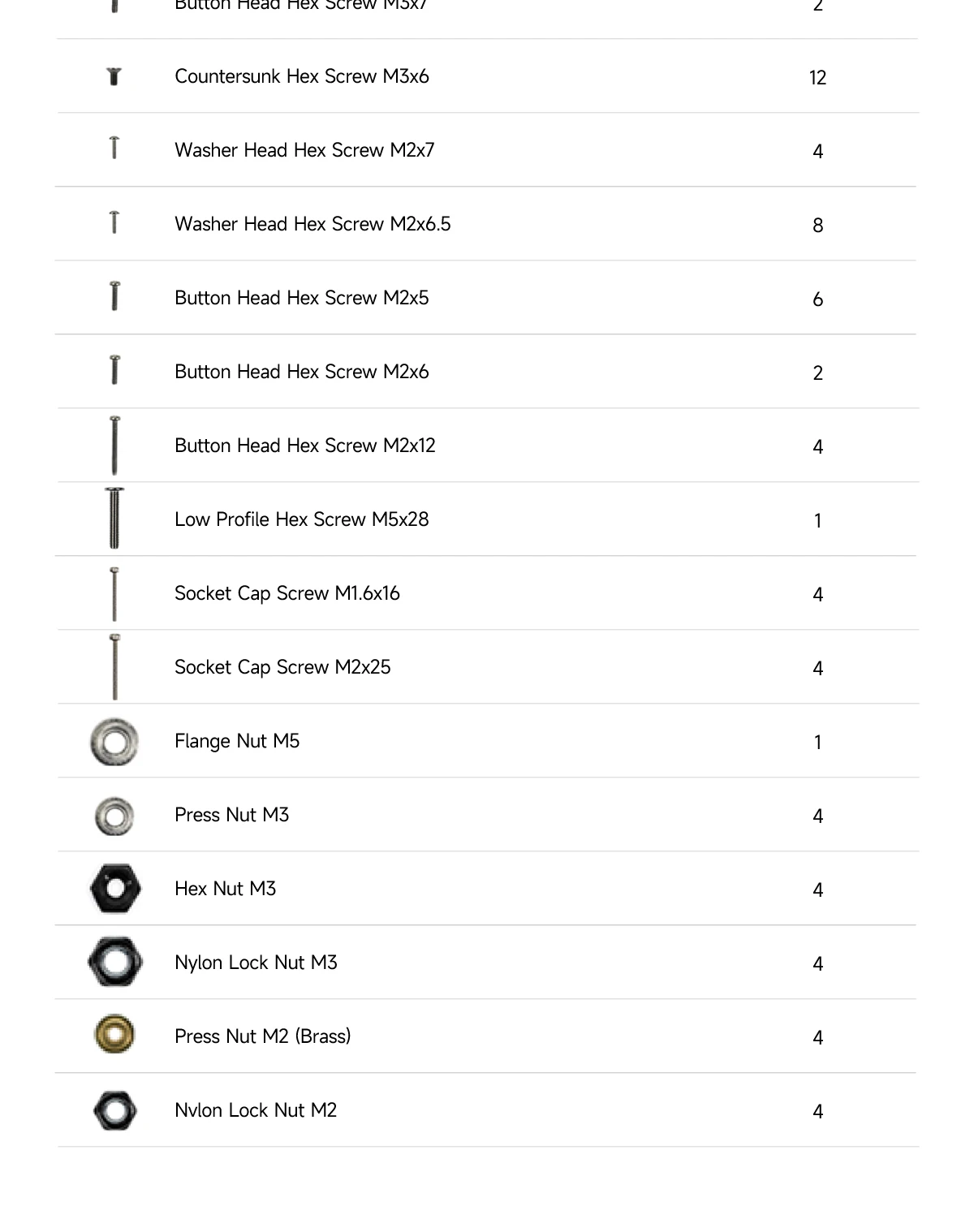

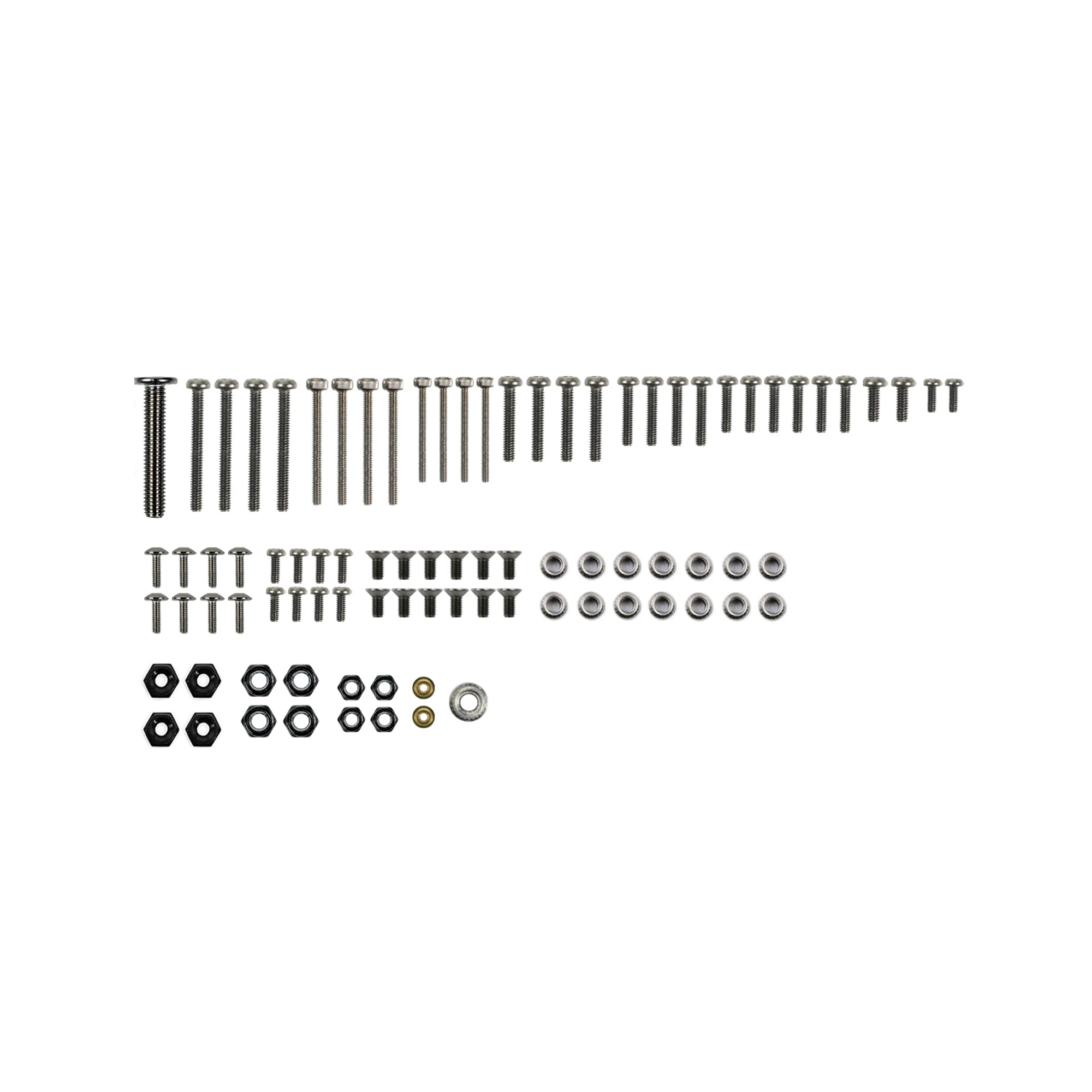

1 × Spare Screw Kit
1 × 3D Printed Parts Kit
1 × Hex 4-in-1 Screwdriver
1 × M8 Ratchet Socket Wrench

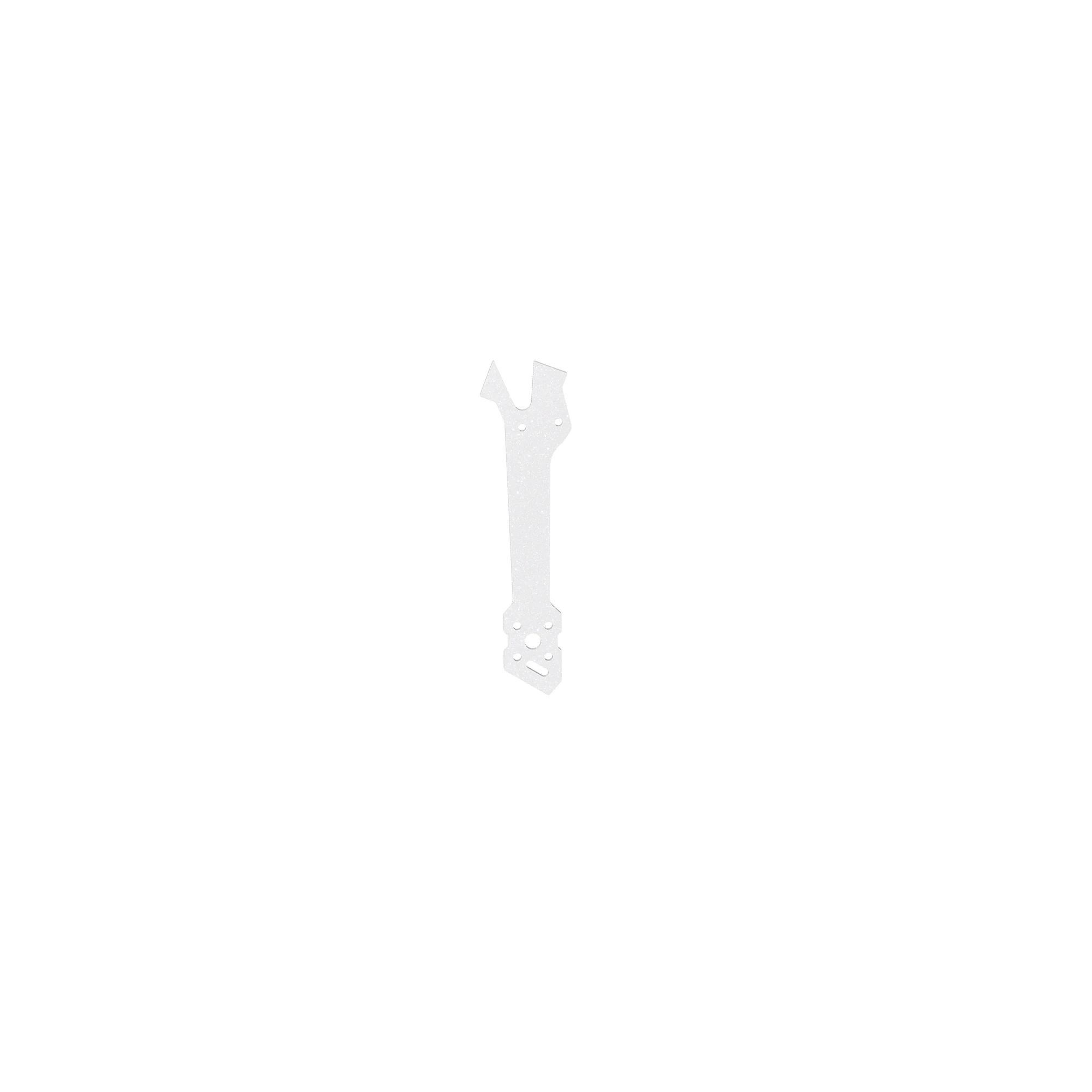

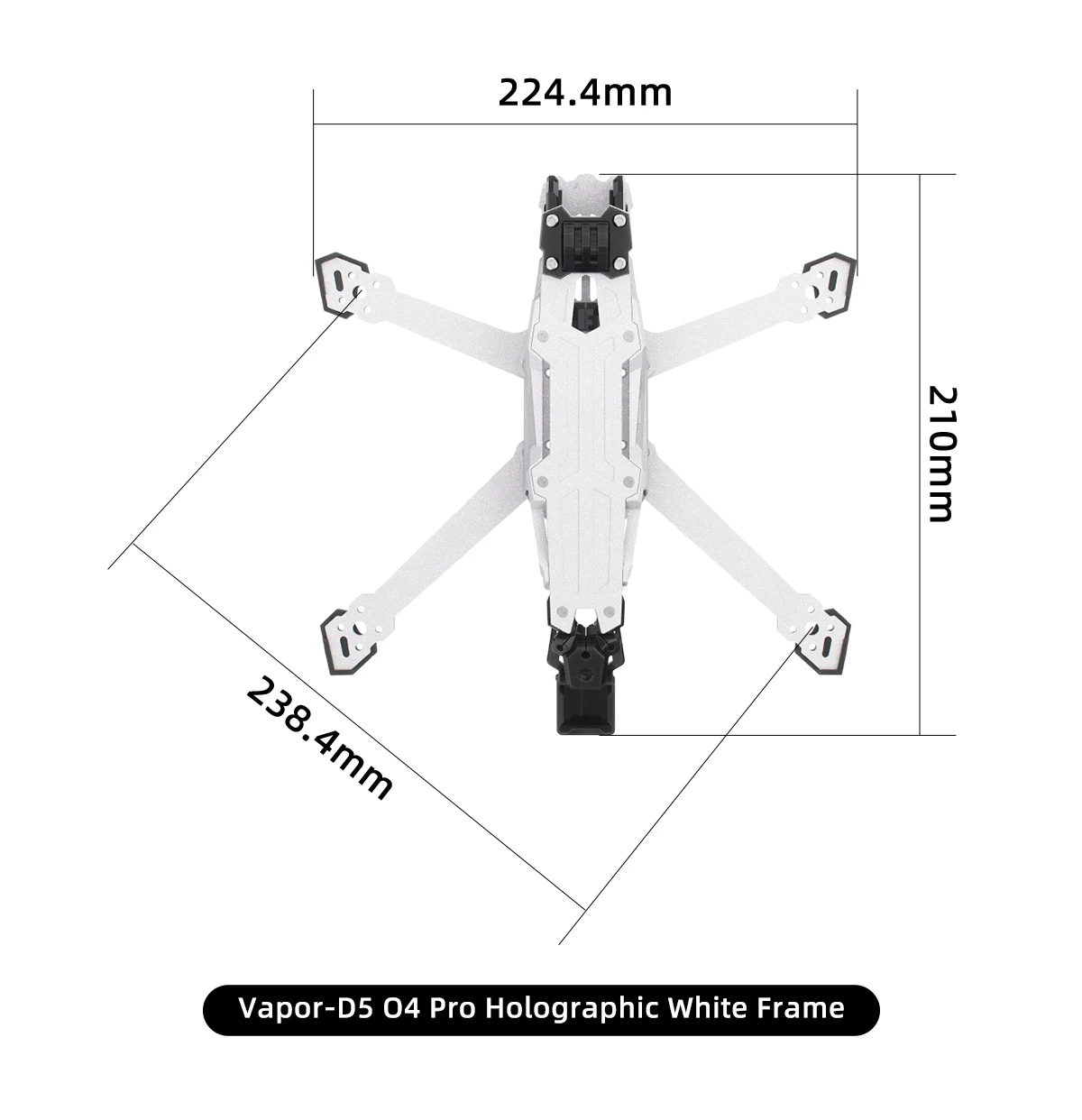

Specification--GEP-Vapor-D5

• Model: GEP-Vapor-D5 O4 Pro Holographic White Frame

• Wheelbase: 238.4mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Arm Thickness: 5.0mm

• Bottom Plate Thickness: 2.5mm

• FC Mounting Hole Size: 20x20mm / 30.5x30.5mm

• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5x30.5mm

• Motor Mounting Hole Size: 16x16mm

• Camera Mounting Hole Size: 19mm / 20mm

• Recommended Propeller: 5-inch

• Weight: 219.8±5g

Includes

1 × GEP-Vapor-D5 O4 Pro Holographic White Frame
2 × M20*250mm Battery Straps
2 × Battery Anti-Slip Pads
1 × Spare Screw Kit
1 × 3D Printed Parts Kit
1 × Hex 4-in-1 Screwdriver
1 × M8 Ratchet Socket Wrench

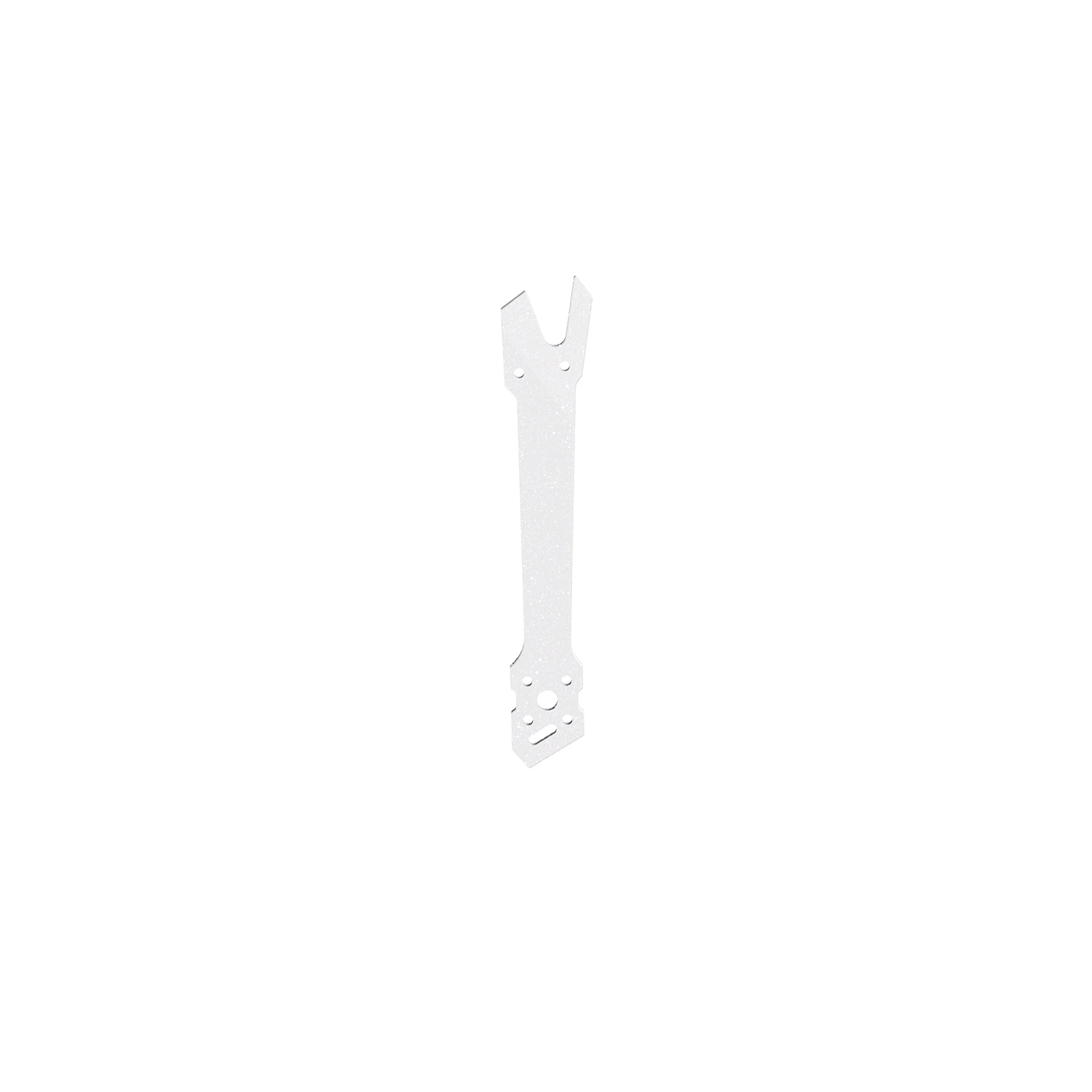

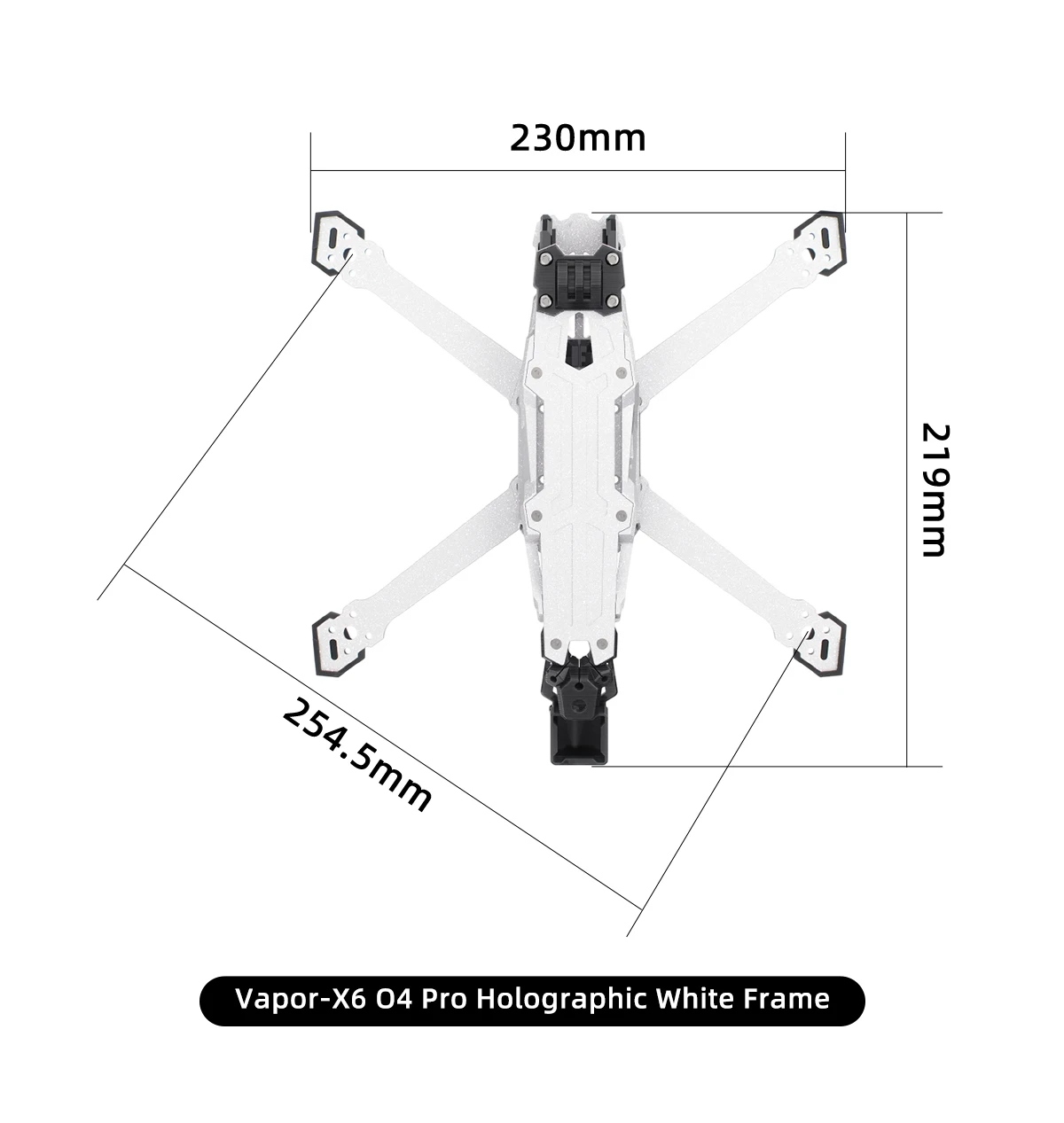

Specification--GEP-Vapor-X6

• Model: GEP-Vapor-X6 O4 Pro Holographic White Frame

• Wheelbase: 254.5mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Arm Thickness: 5.0mm

• Bottom Plate Thickness: 2.5mm

• FC Mounting Hole Size: 20x20mm / 30.5x30.5mm

• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5x30.5mm

• Motor Mounting Hole Size: 16x16mm

• Camera Mounting Hole Size: 19mm / 20mm

• Recommended Propeller: 6-inch

• Weight: 222±5g


Includes

1 × GEP-Vapor-X6 O4 Pro Holographic White Frame
2 × M20*250mm Battery Straps
2 × Battery Anti-Slip Pads
1 × Spare Screw Kit
1 × 3D Printed Parts Kit
1 × Hex 4-in-1 Screwdriver
1 × M8 Ratchet Socket Wrench
