Description
Summary

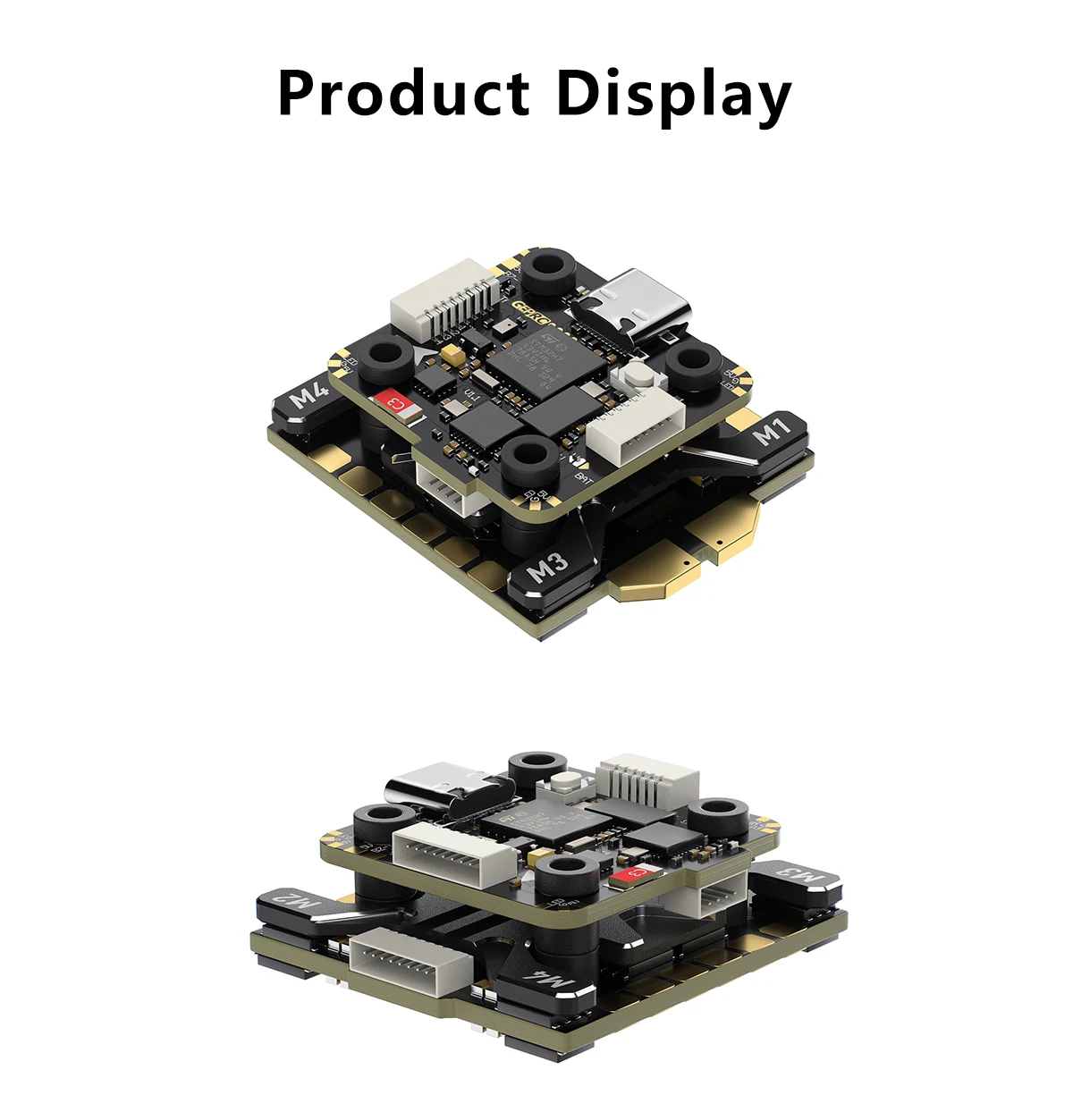

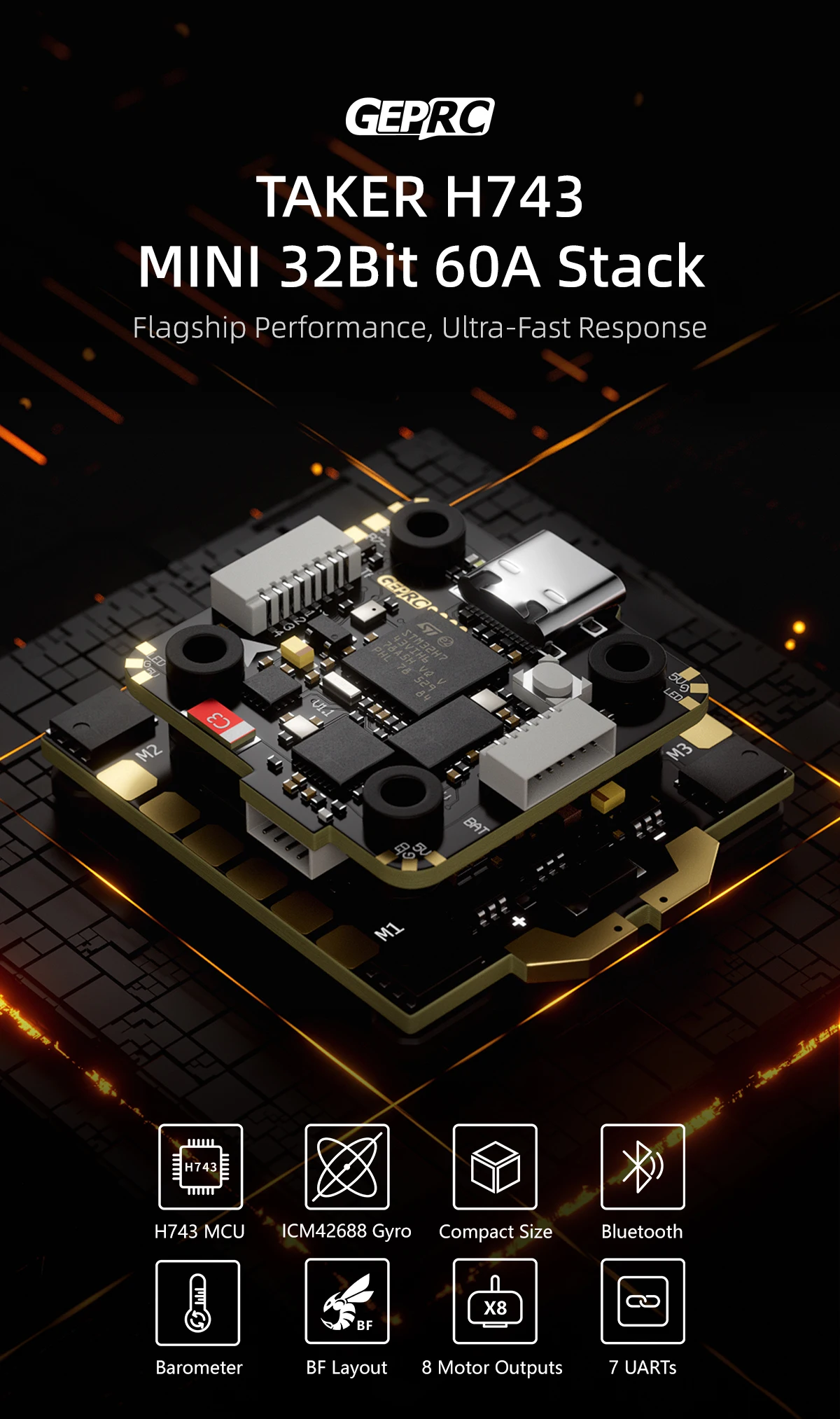

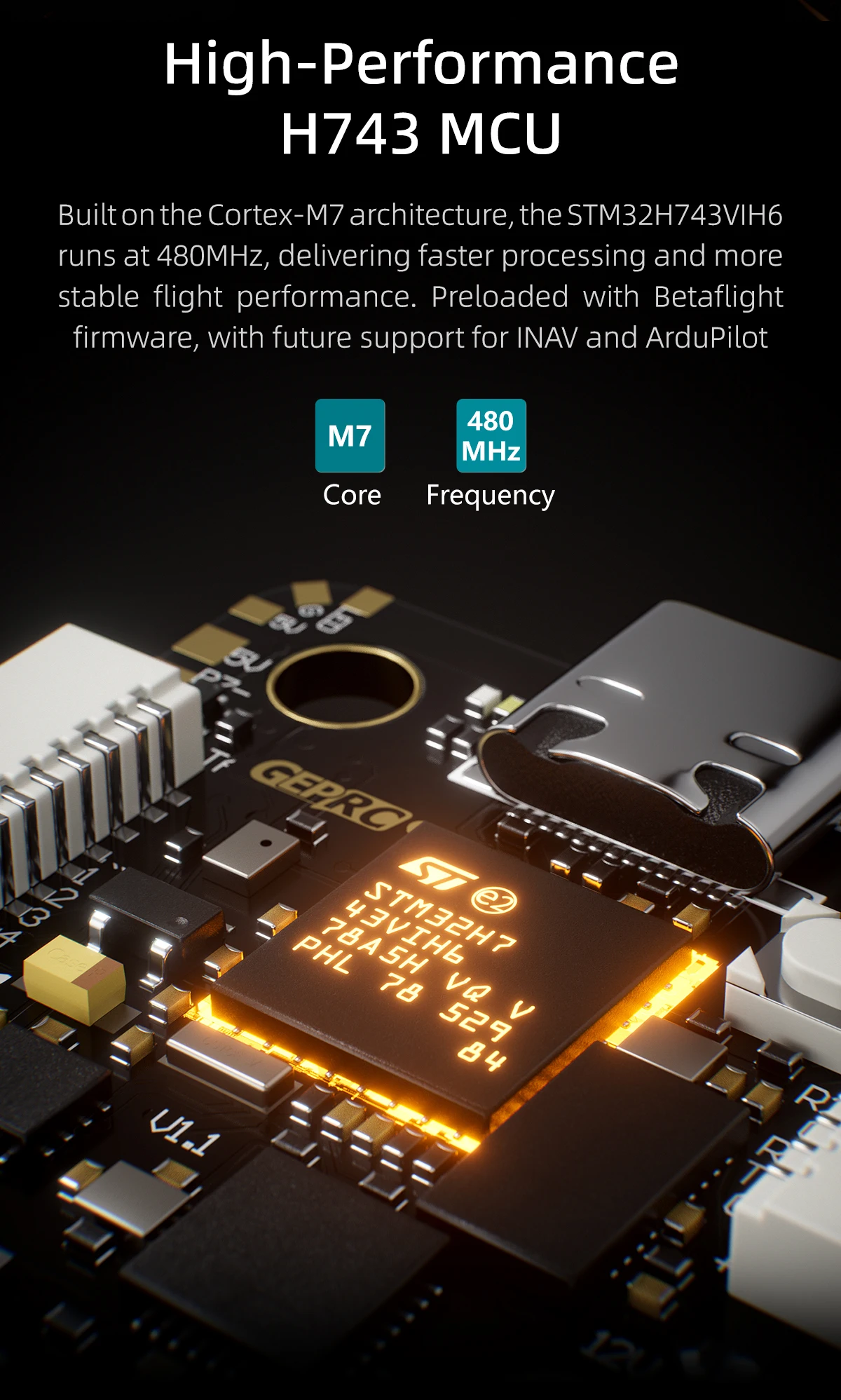

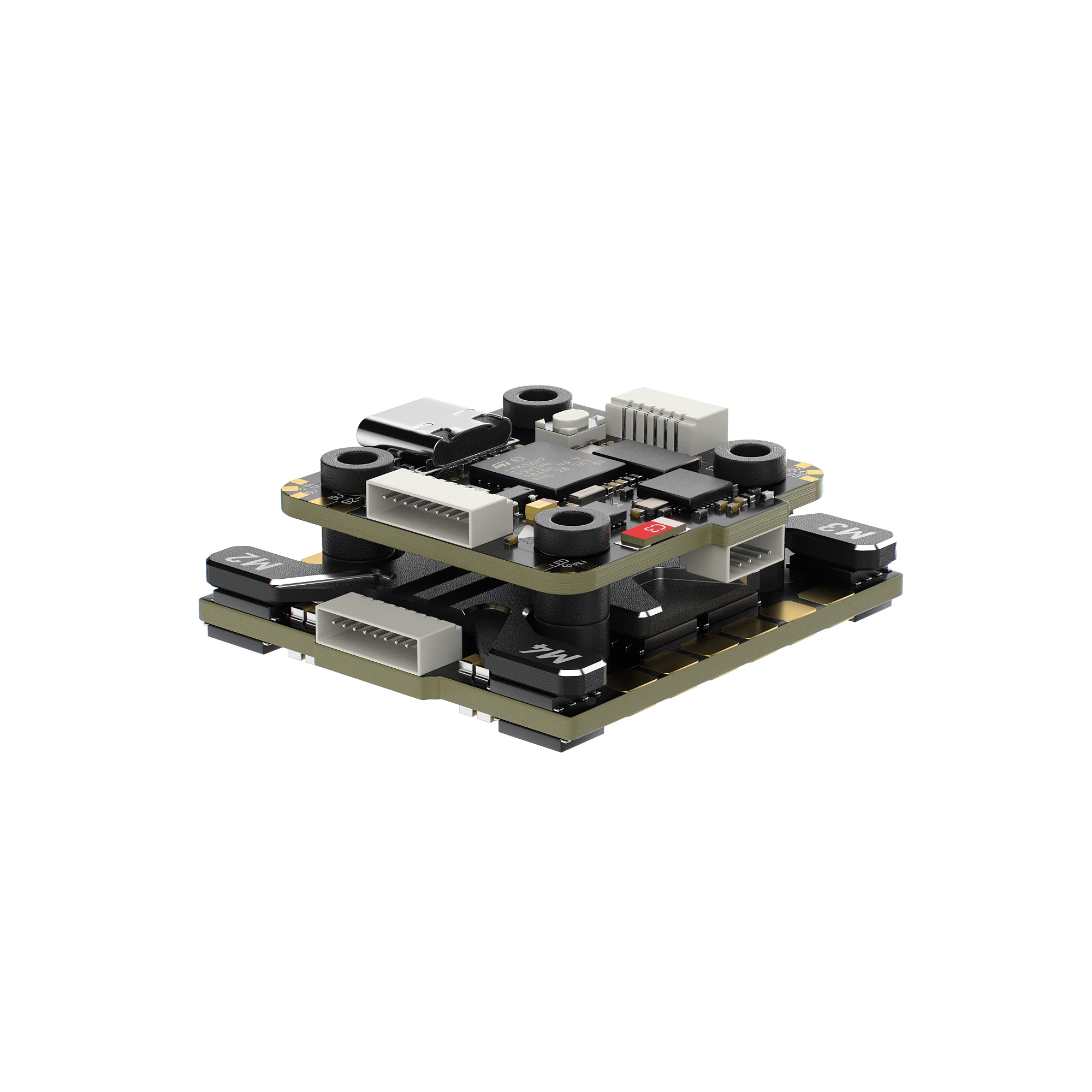

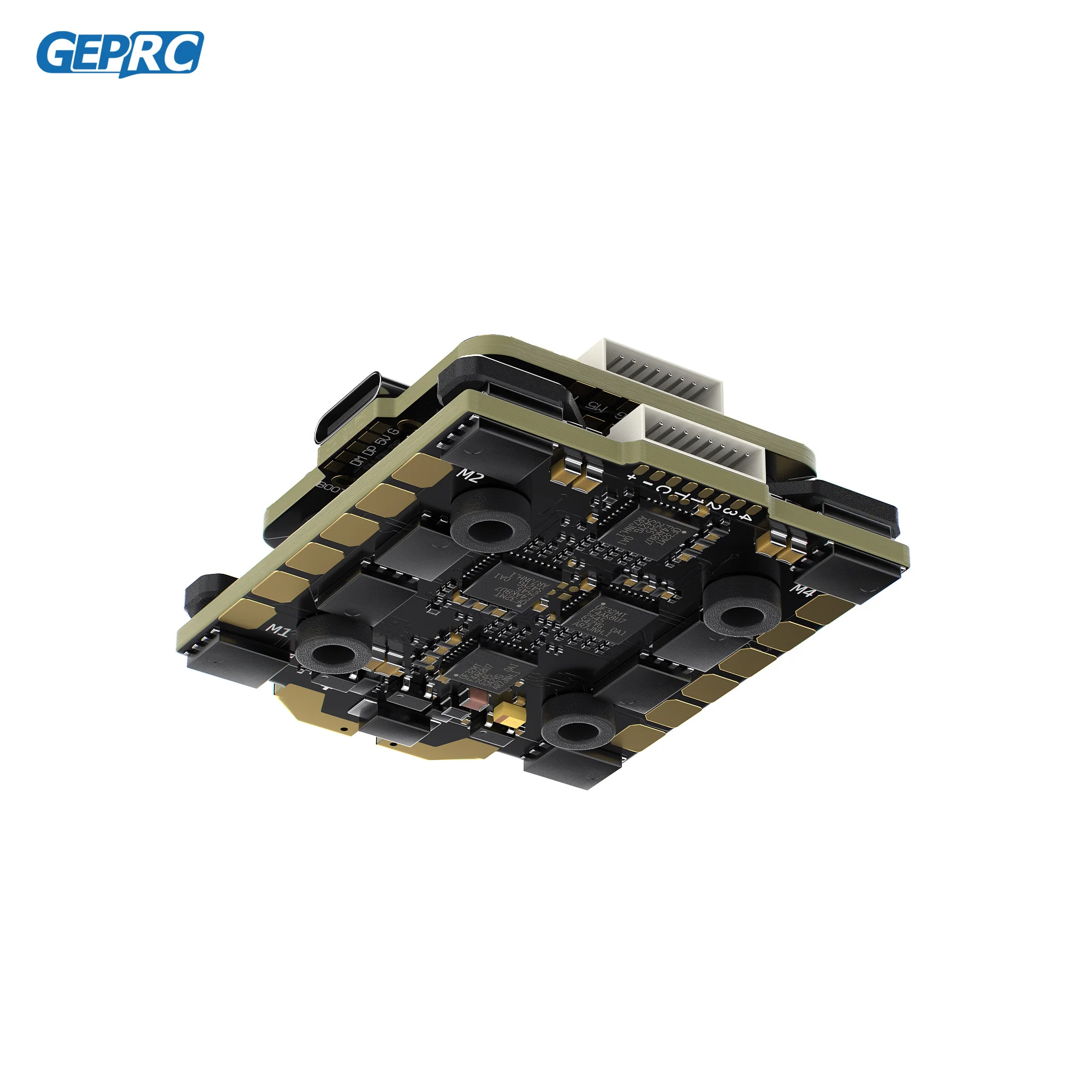

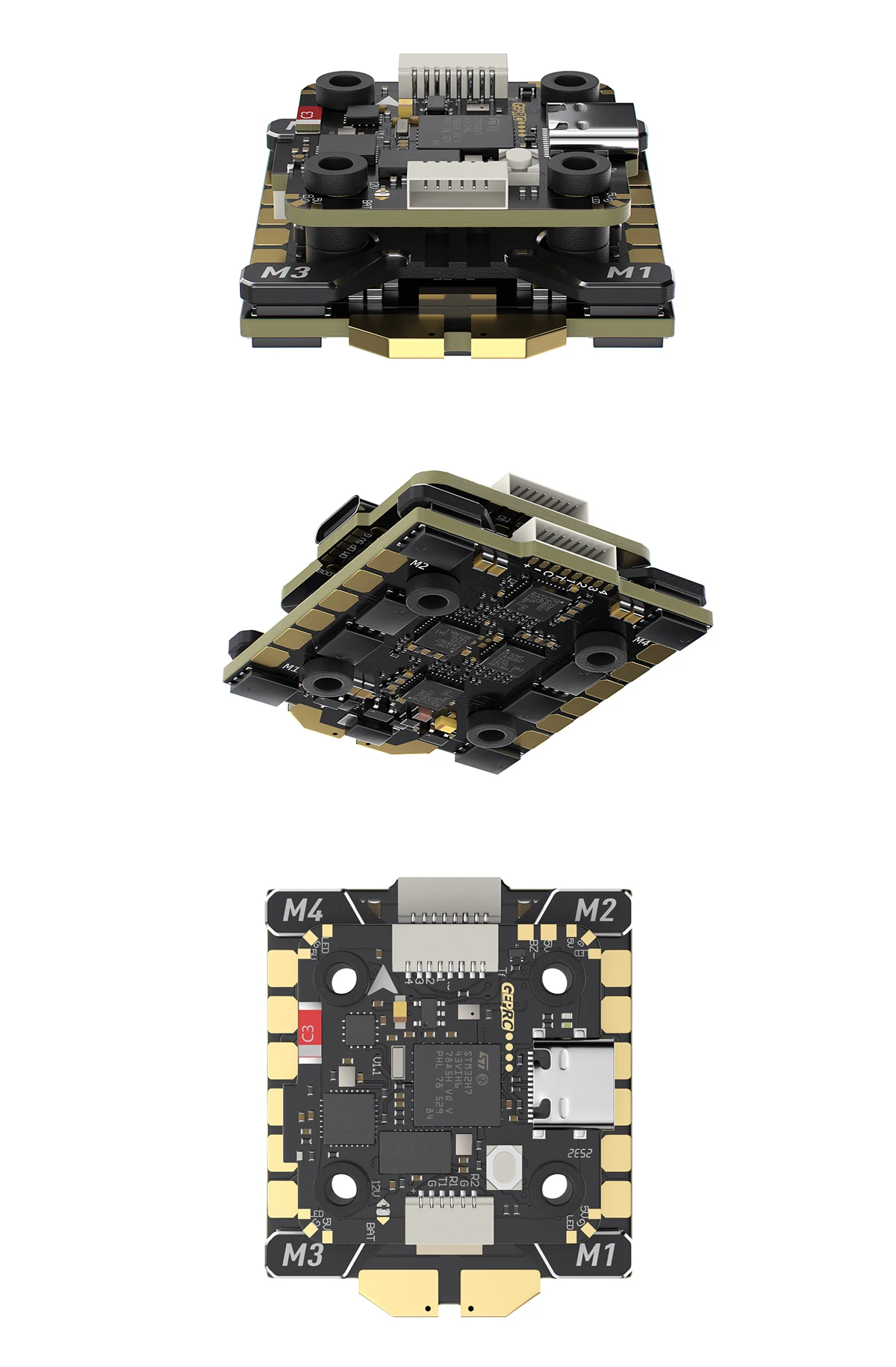

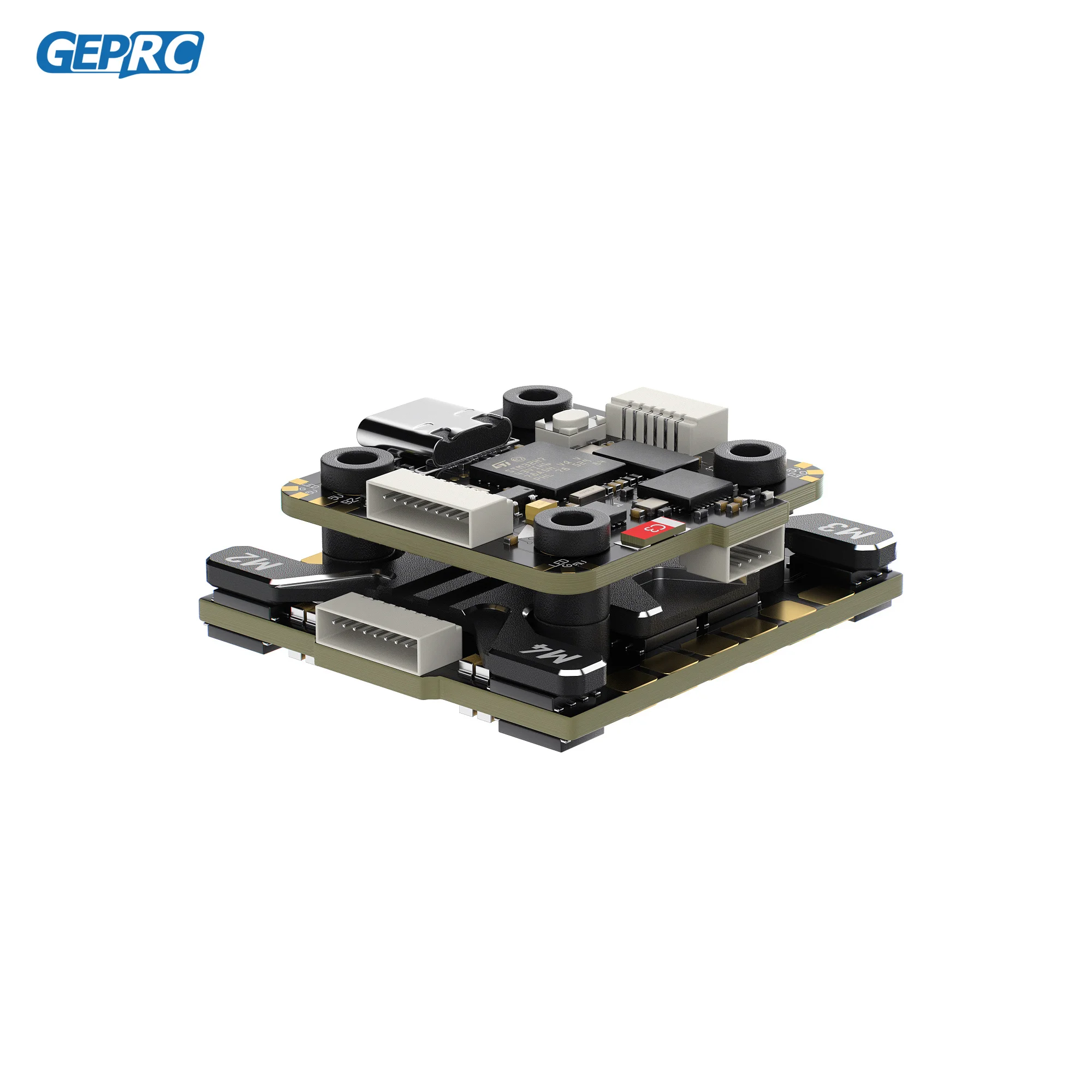

TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.

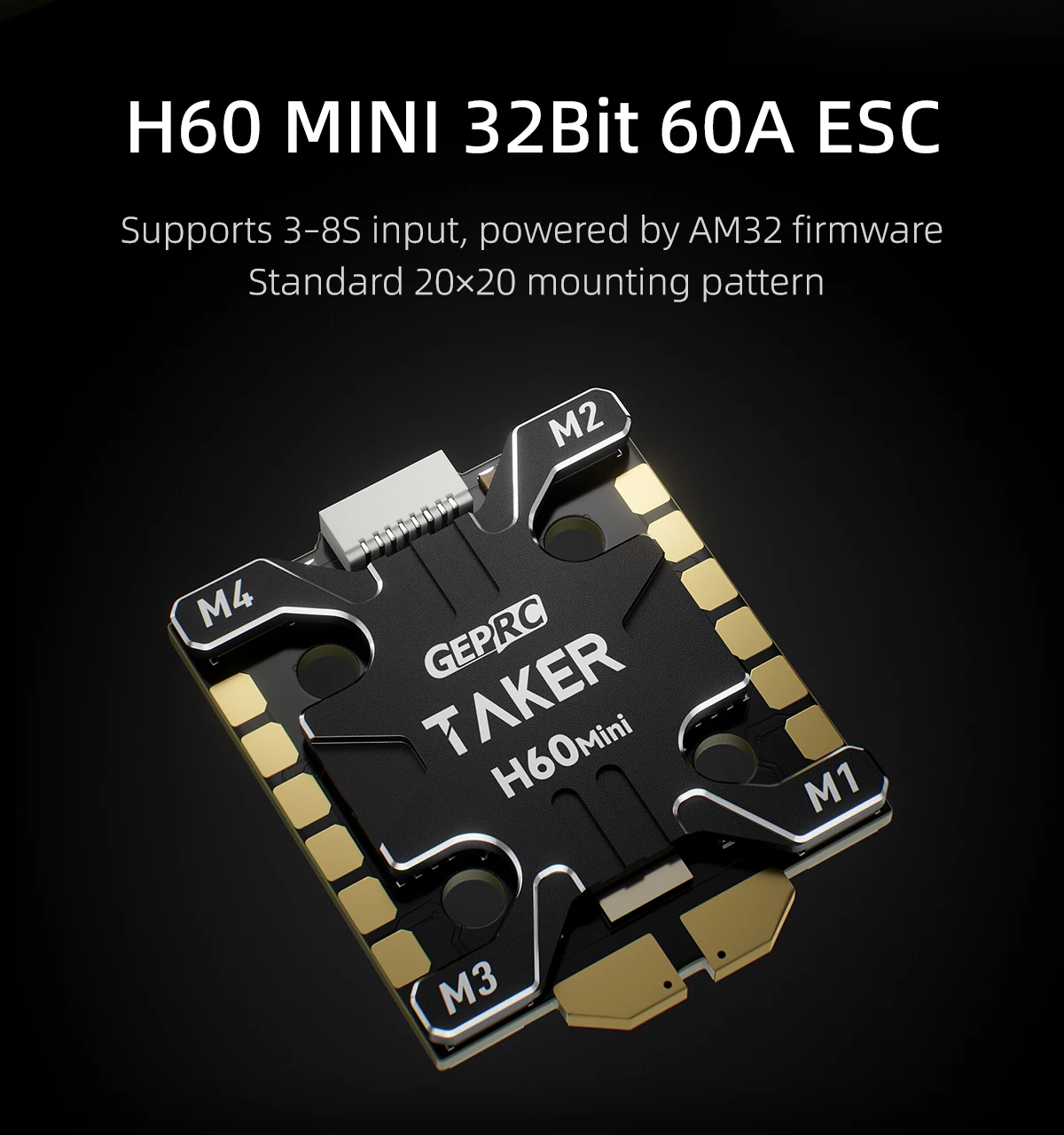

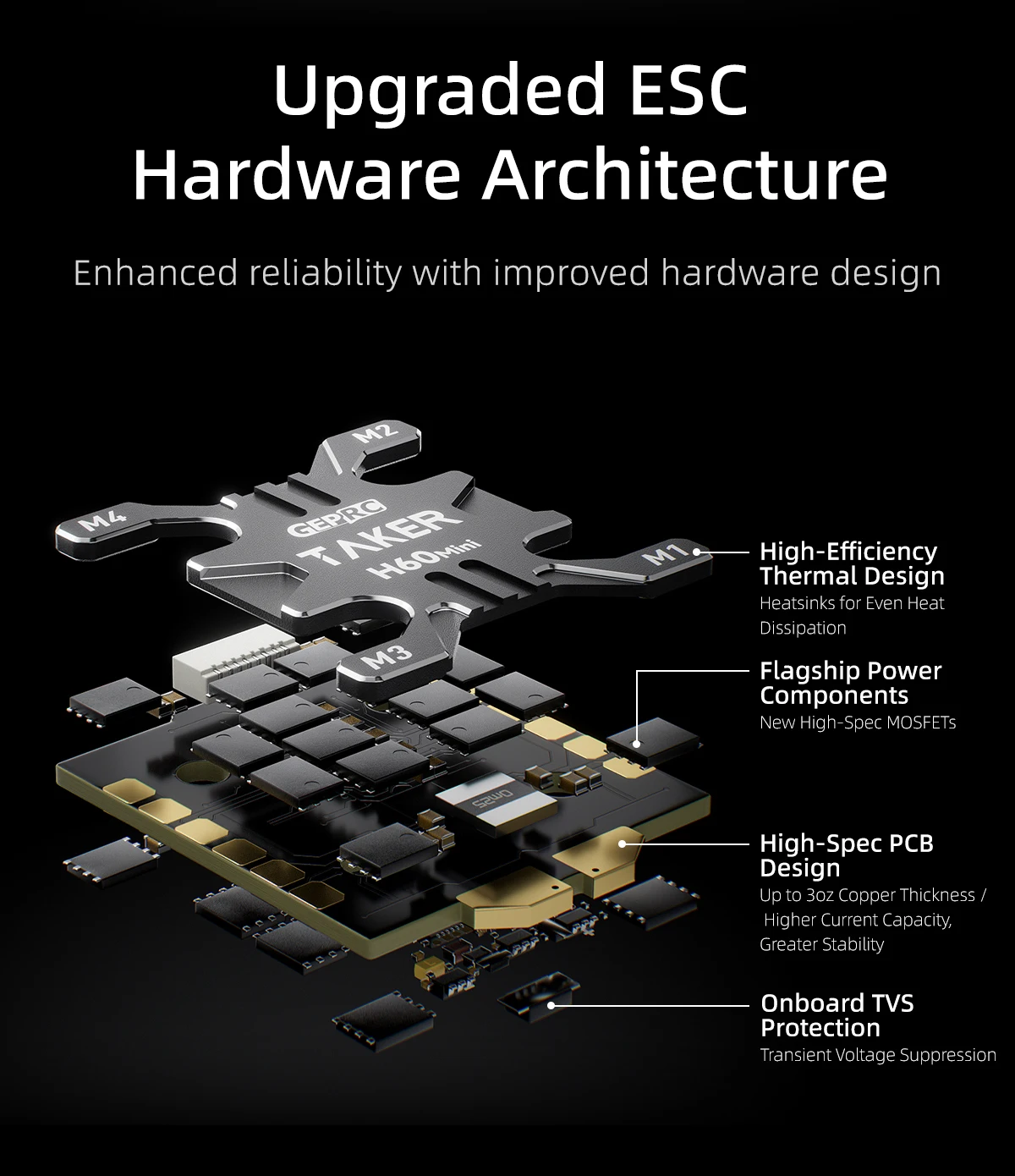

Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.

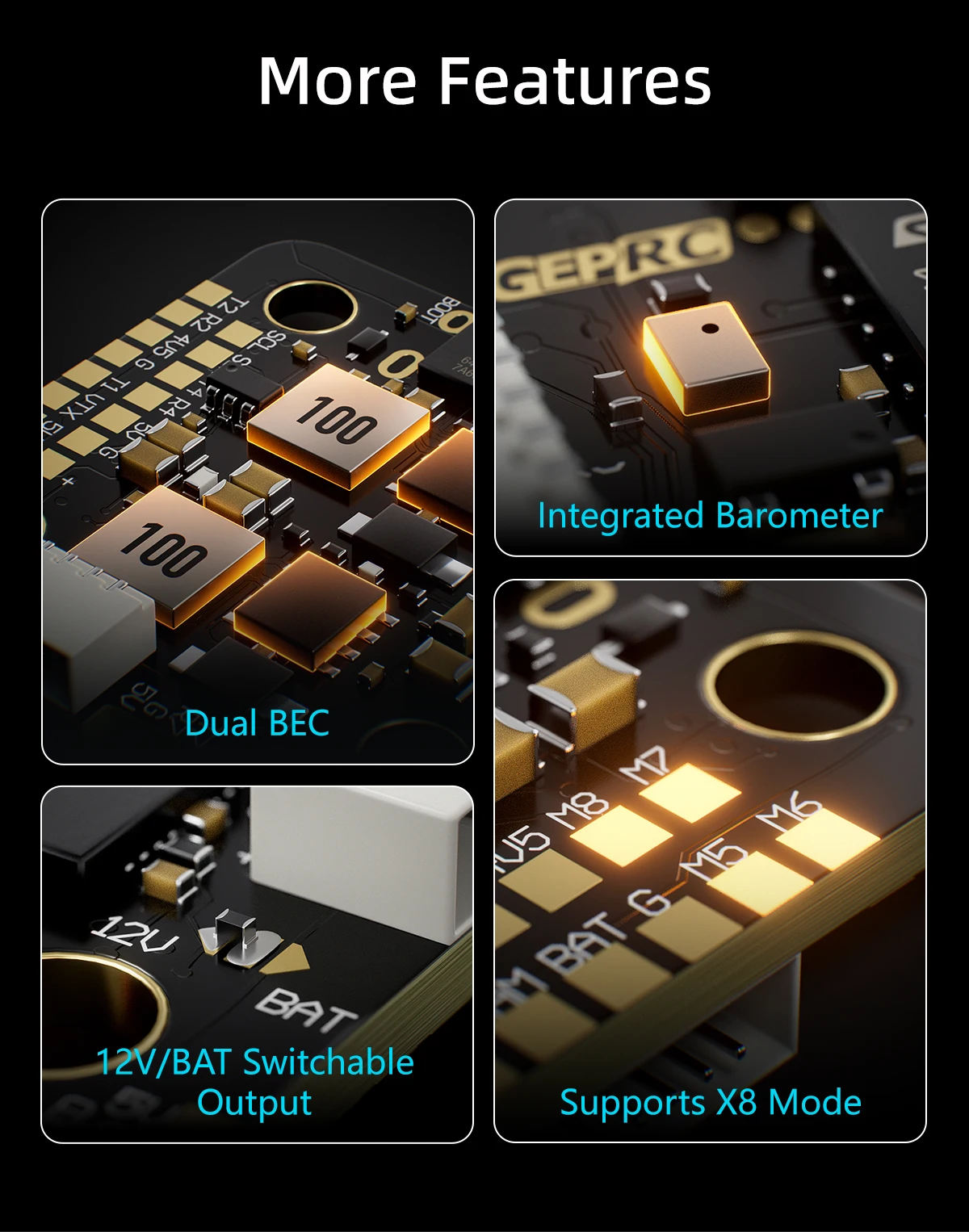

Feature

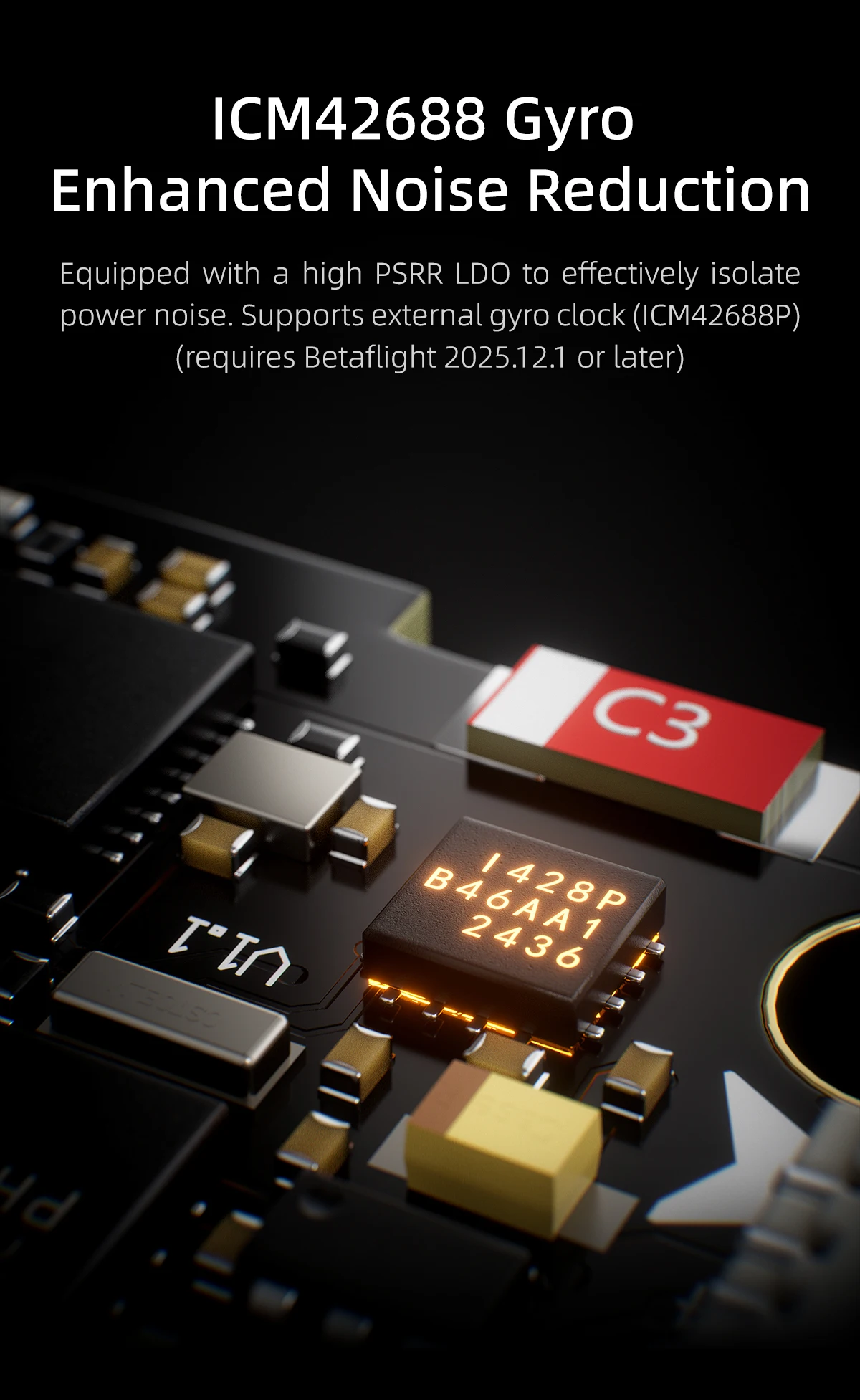

Equipped with ICM42688-P gyroscope
Supports external gyro clock input

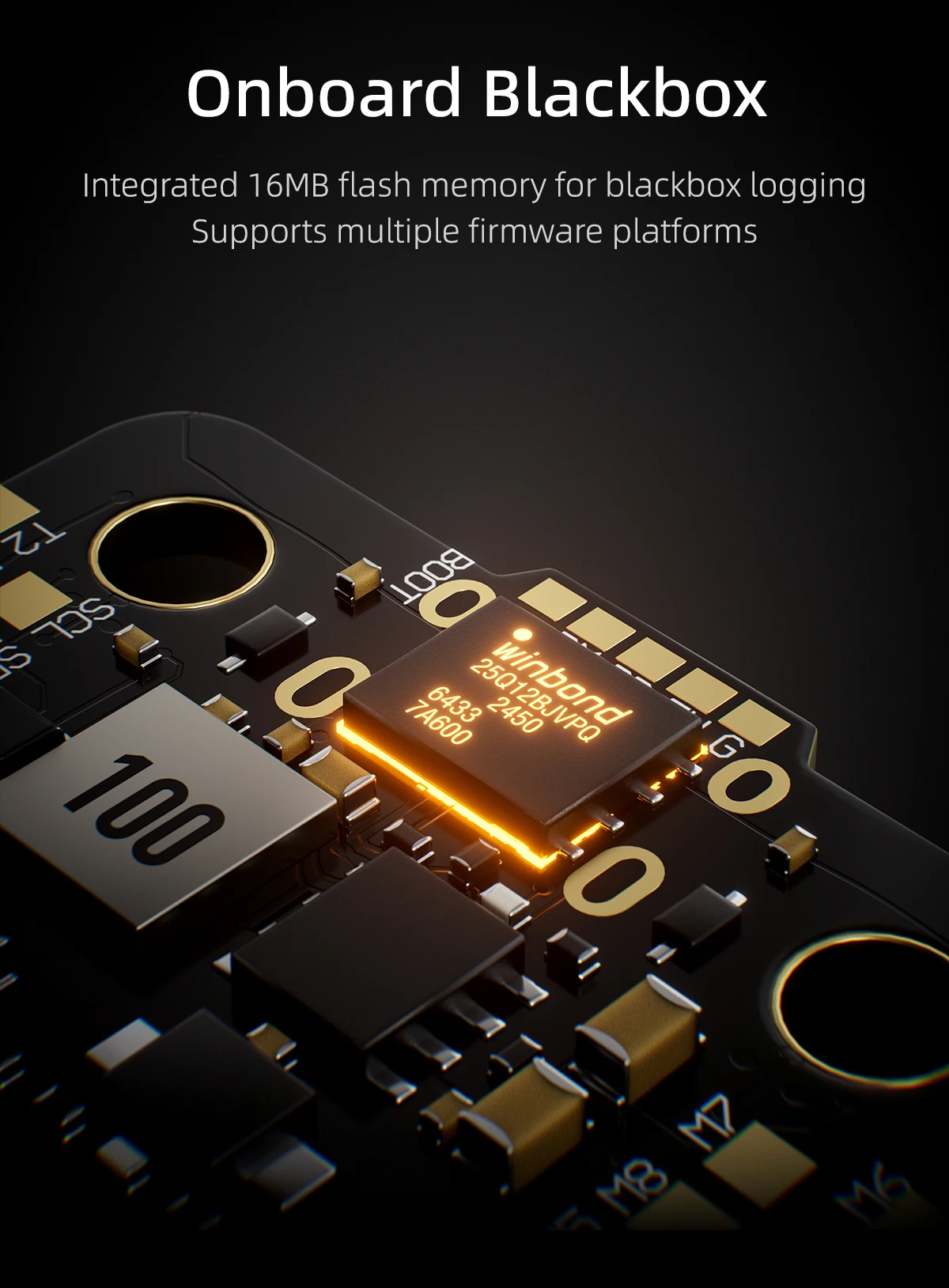

Built-in 16MB Blackbox storage

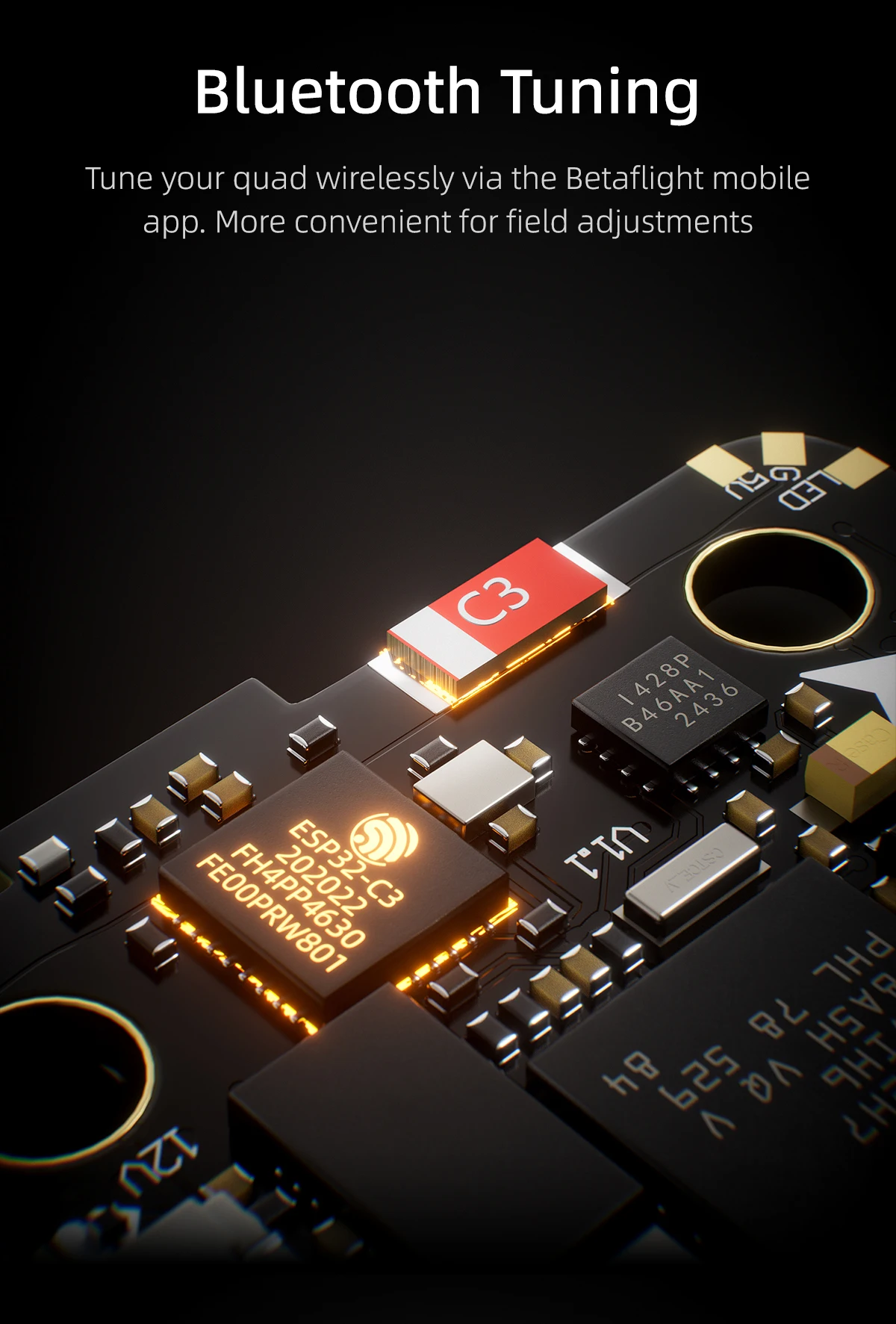

Bluetooth wireless tuning supported
Integrated barometer
8 motor outputs, supports X8 configuration

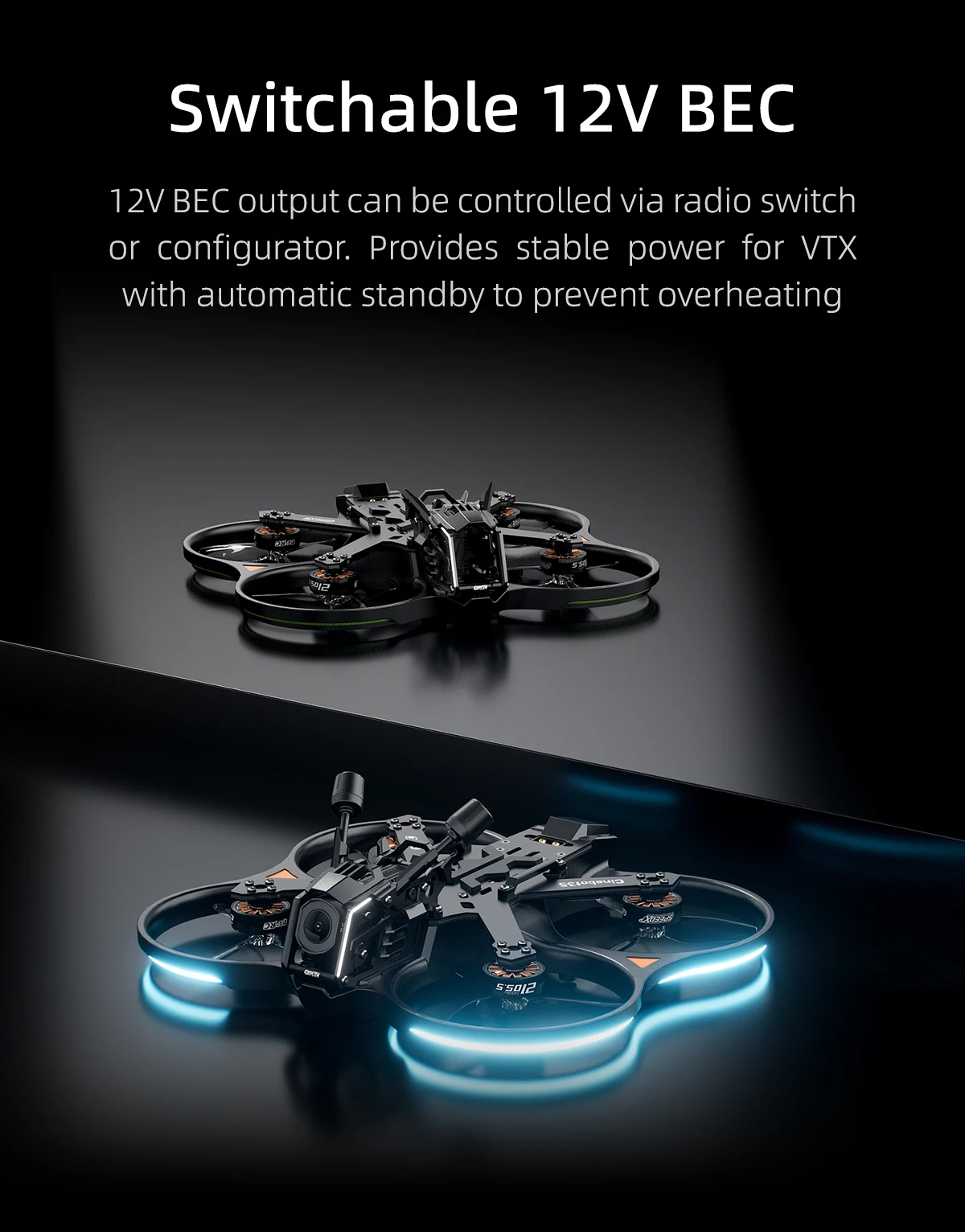

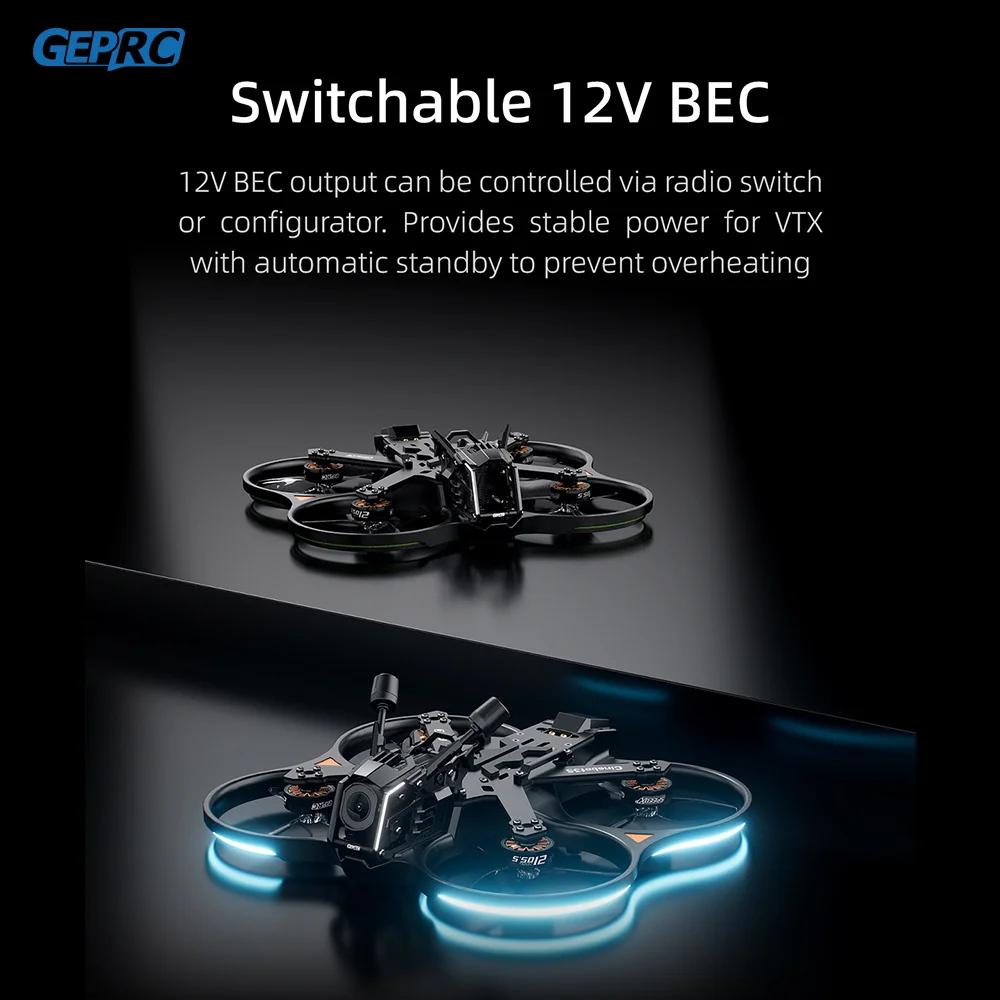

Dual independent BEC: 12V@2.5A + 5V@3A
Onboard TVS spike protection design
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Summary
TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.
Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.
Feature
- Equipped with ICM42688-P gyroscope
- Supports external gyro clock input
- Built-in 16MB Blackbox storage
- Bluetooth wireless tuning supported
- Integrated barometer
- 8 motor outputs, supports X8 configuration
- Dual independent BEC: 12V@2.5A + 5V@3A
- Onboard TVS spike protection design

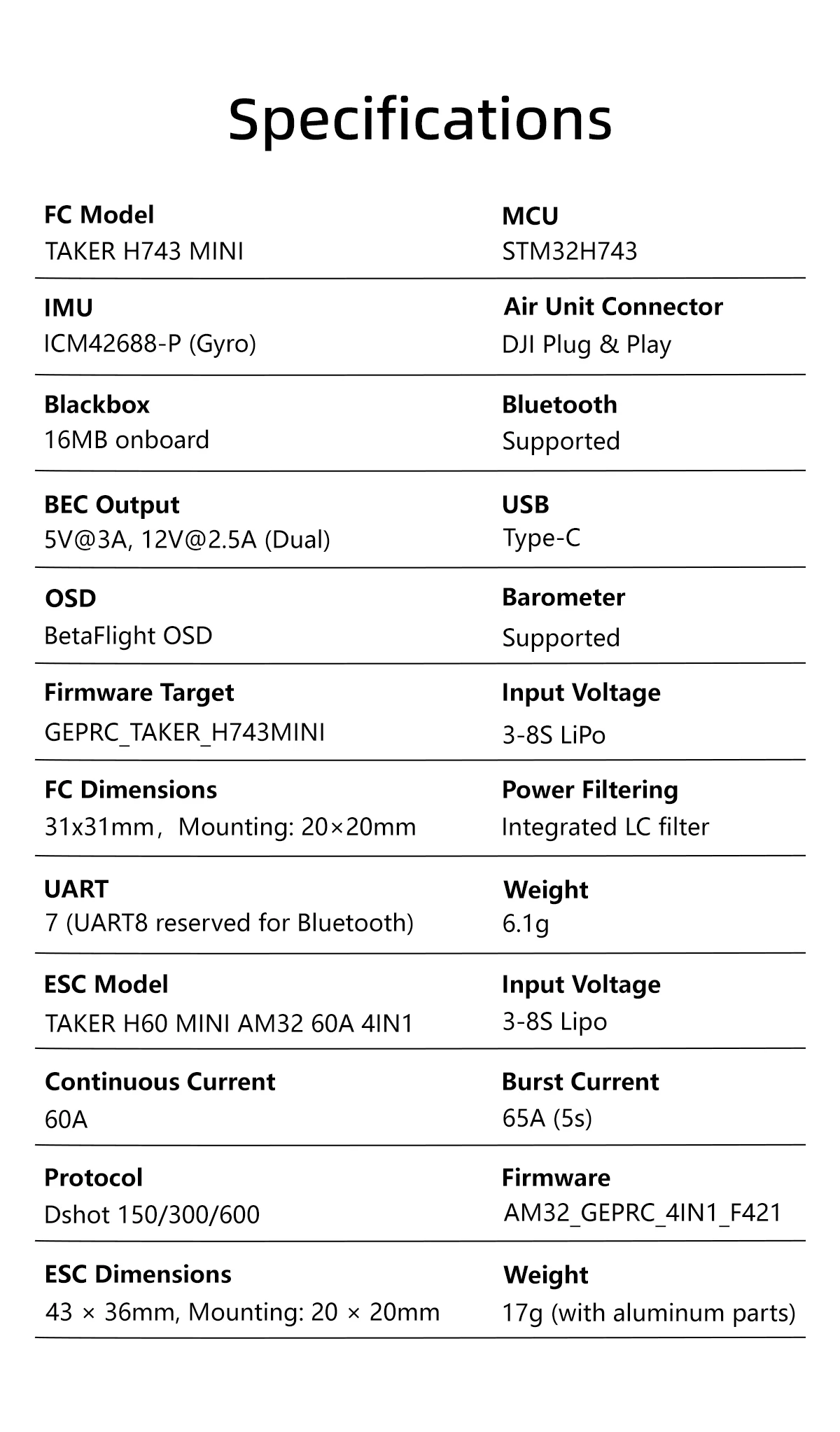

Specifications

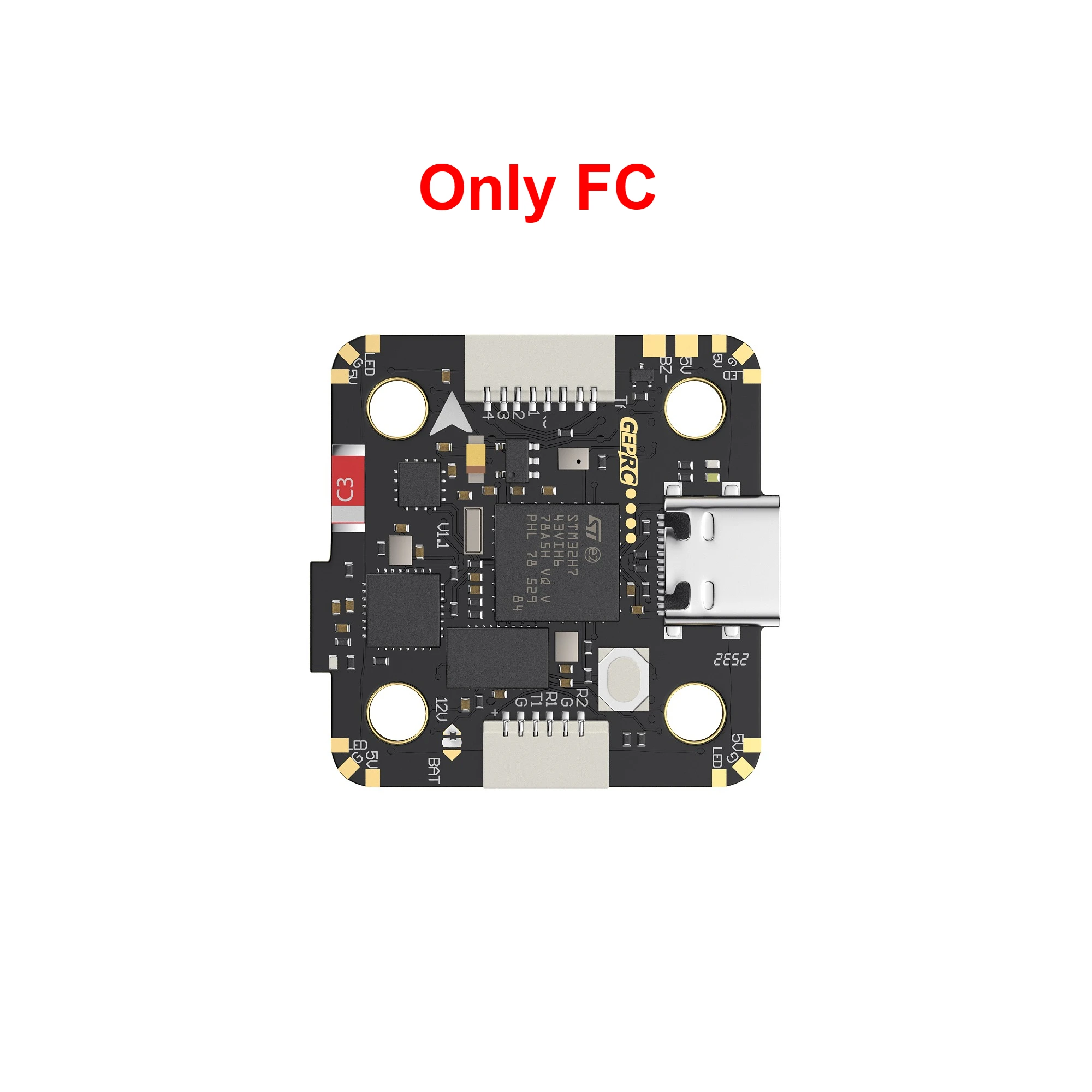

- FC Model: TAKER H743 MINI
- MCU: STM32H743
- IMU: ICM42688-P (Gyro)
- Air Unit Connector: D JI Plug & Play
- Blackbox: 16MB onboard
- Bluetooth: Supported
- BEC Output: 5V@3A, 12V@2.5A (Dual)
- USB: Type-C
- OSD: Betaflight OSD AT7456E
- Barometer: Supported
- Firmware Target: GEPRC TAKER H743 MINI
- Input Voltage: 3–8S LiPo
- FC Dimensions: 31×31mm
- Mounting: 20×20mm
- Power Filtering: Integrated LC filter
- UART: 7 (UART8 reserved for Bluetooth)
- Weight: 6.1g

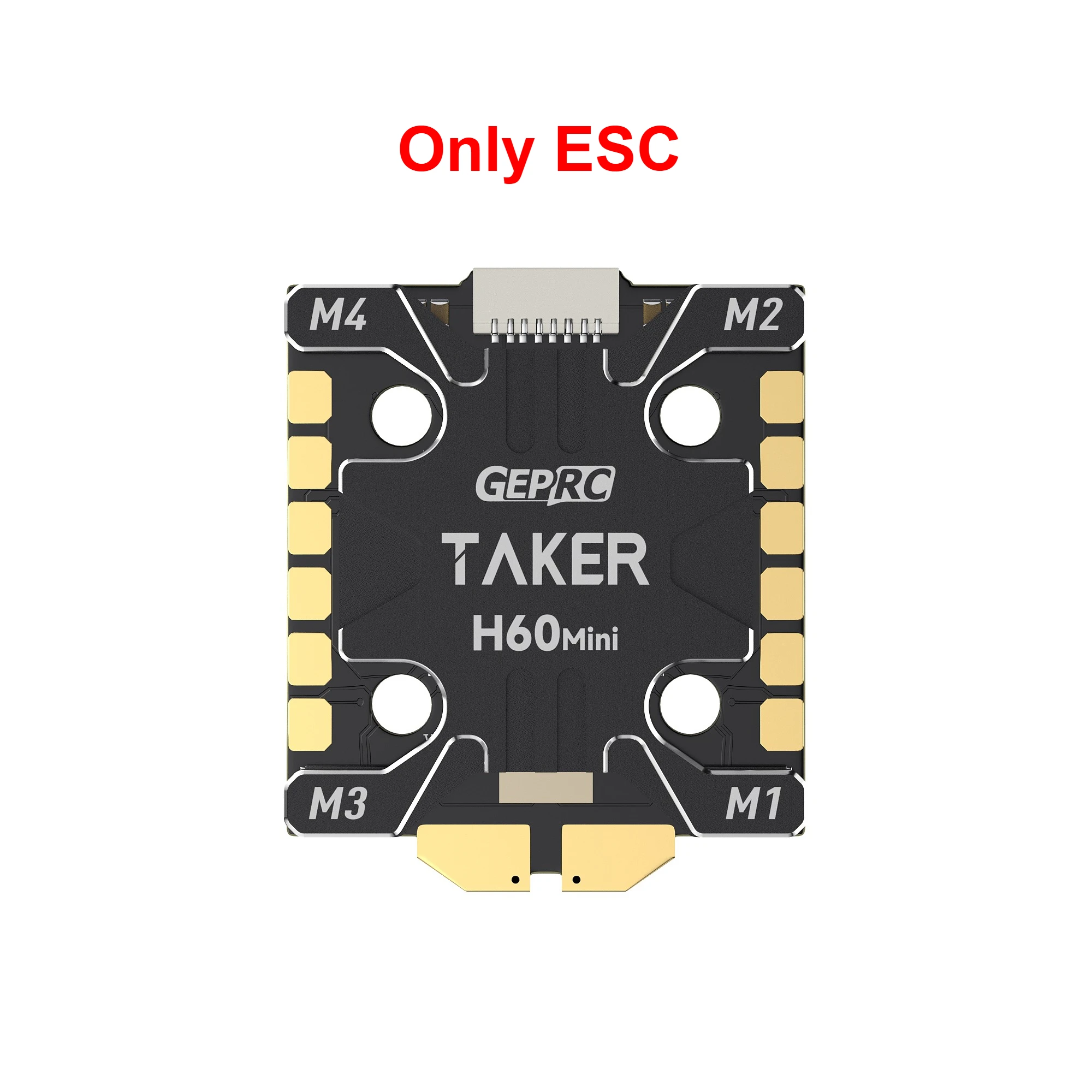

- ESC Model: TAKER H60 MINI AM32 60A 4IN1
- Input Voltage: 3–8S LiPo
- Continuous Current: 60A
- Burst Current: 65A (5s)
- Protocol: DShot150/300/600
- ESC Dimensions: 43×36mm
- Weight: 17g (with aluminum heat sink)
- Mounting: 20×20mm
- Firmware: AM32 GEPRC 4IN1 F421

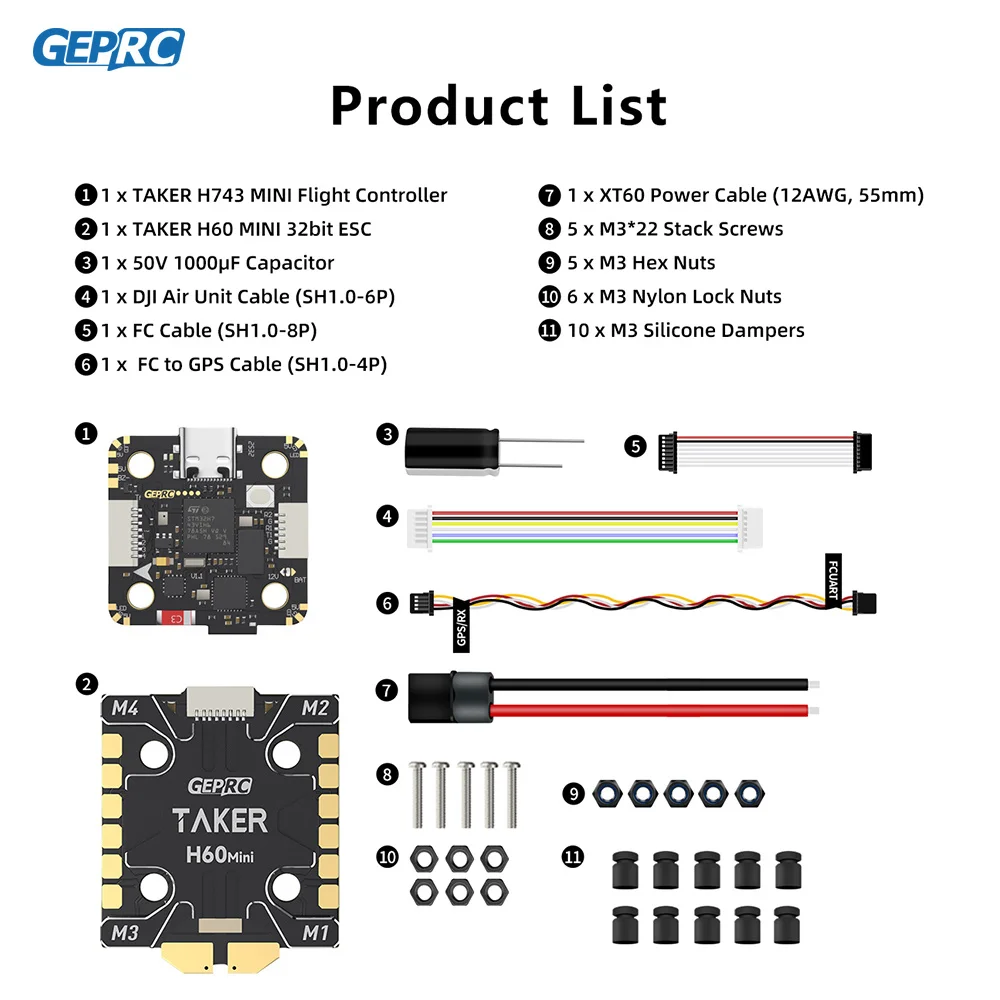

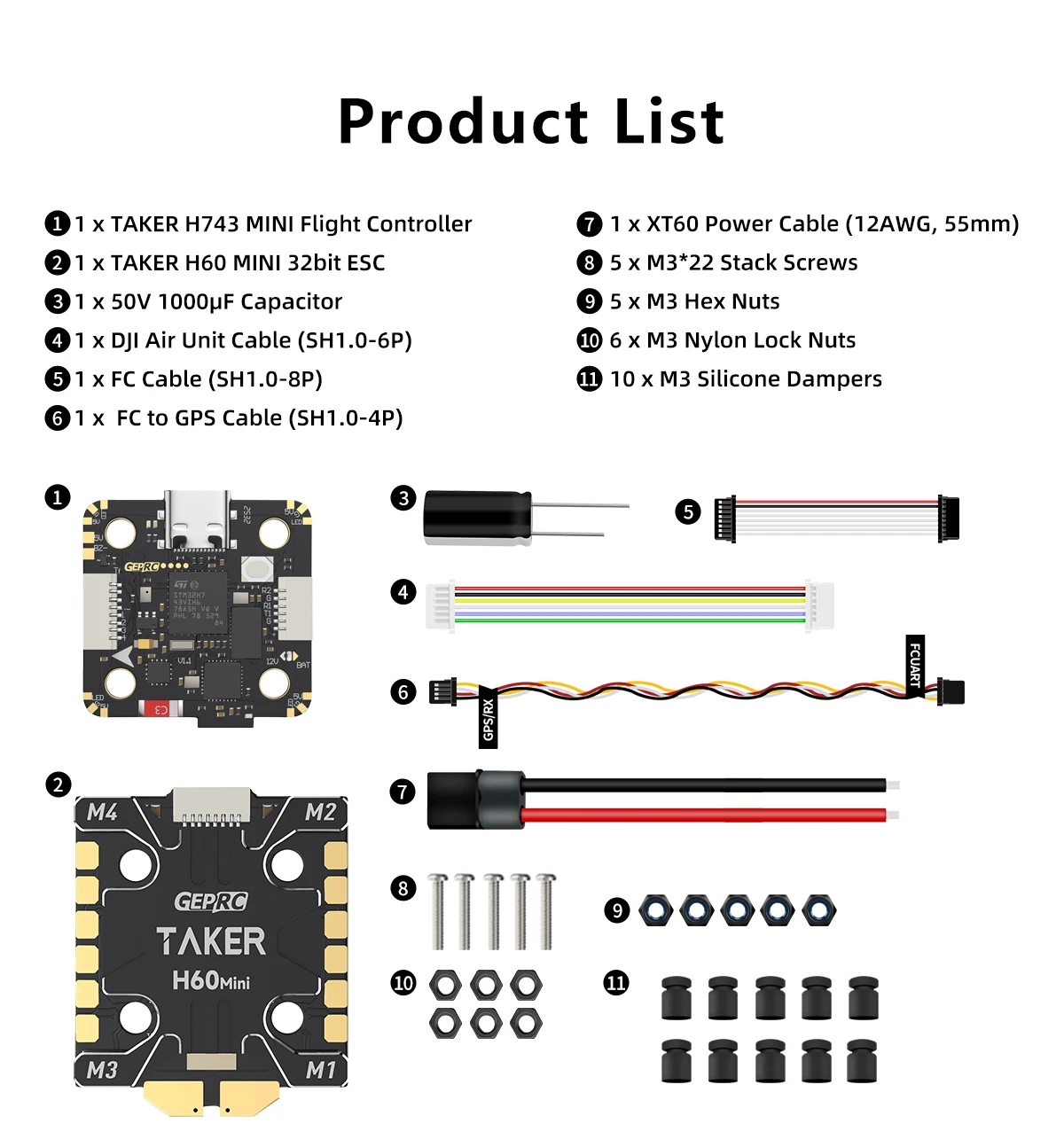

Includes
1× TAKER H743 MINI Flight Controller
1× TAKER H60 MINI 32bit ESC
1× 50V 1000µF Capacitor
1× Air Unit Cable (SH1.0-6P)
1× FC Cable (SH1.0-8P)
1× FC to GPS RX Cable (SH1.0-4P)
1× XT60 Power Cable (12AWG, 55mm)
10× M3 Silicone Dampers
5× M3*22 Stack Screws
6× M3 Nylon Lock Nuts
5× M3 Hex Nuts
