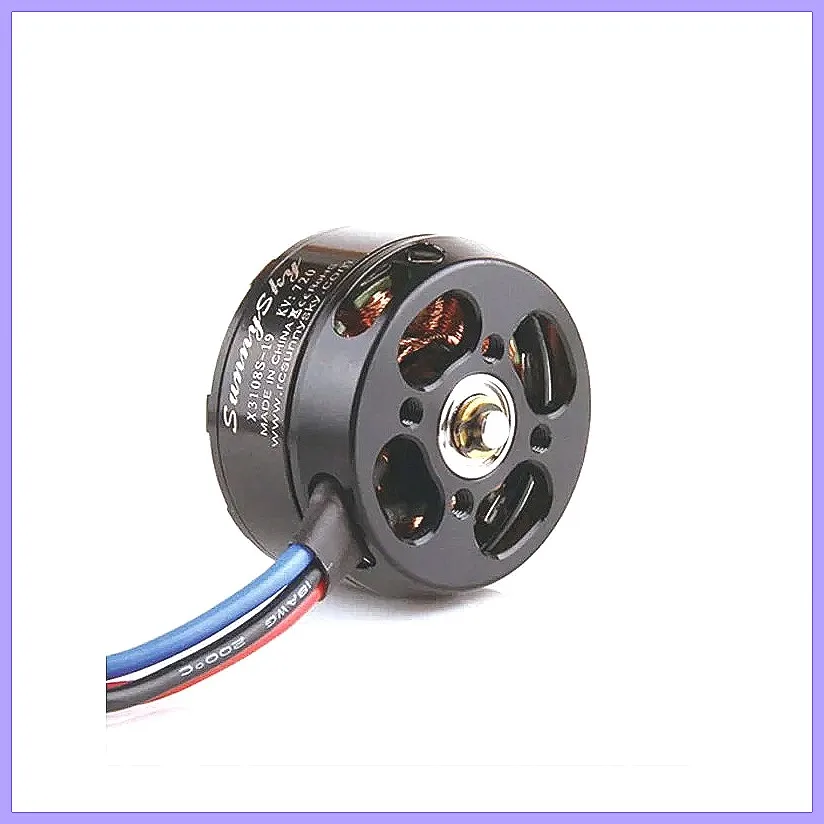

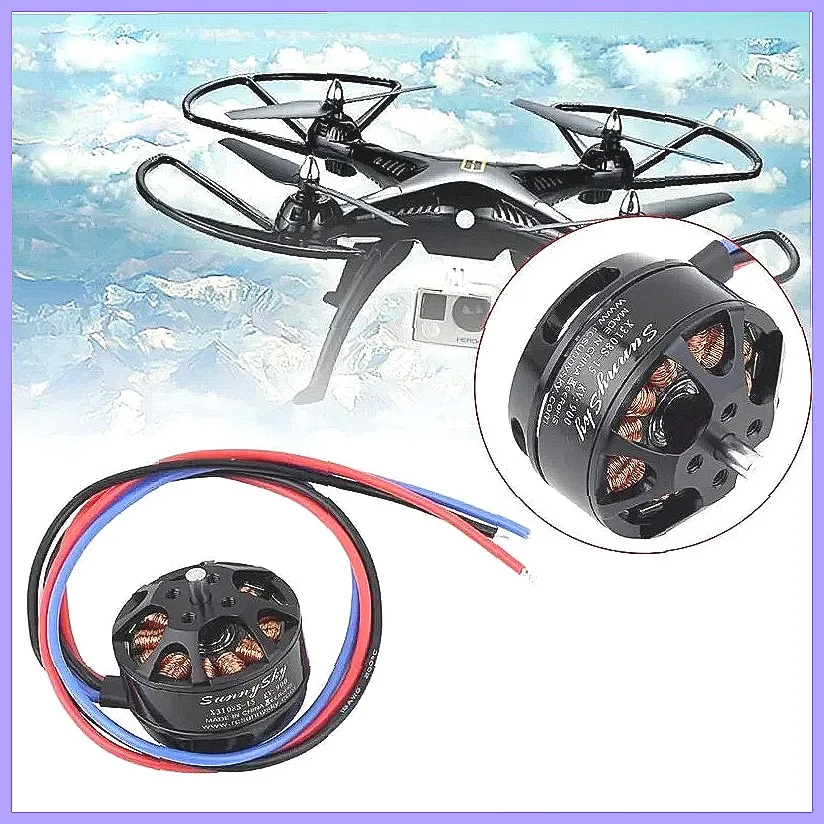

Бесщеточный двигатель Sunnysky X3108S 900KV 720KV, высокоэффективный бегунок мощностью 325 Вт для квадрокоптера-дрона с видом от первого лица
Description

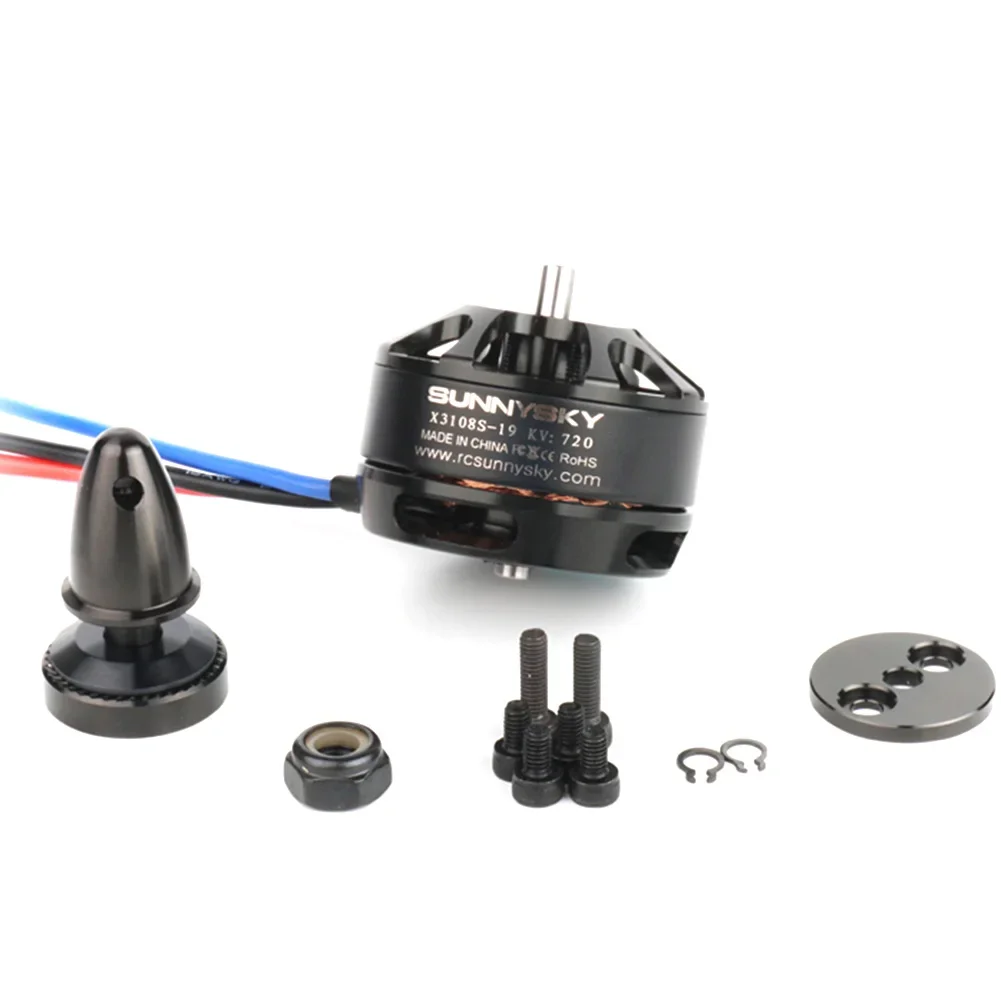

Sunnysky X3108S KV720 Brushless Motor:
KV Value: KV720;
Stator Diameter: 31mm;
Stator Thickness: 8mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current(A/10V): 0.6A;
Motor Resistance: 132mΩ;
Max Continuous Current: 22A/30S;
Max Continuous Power: 325W;
Weight: 81g;

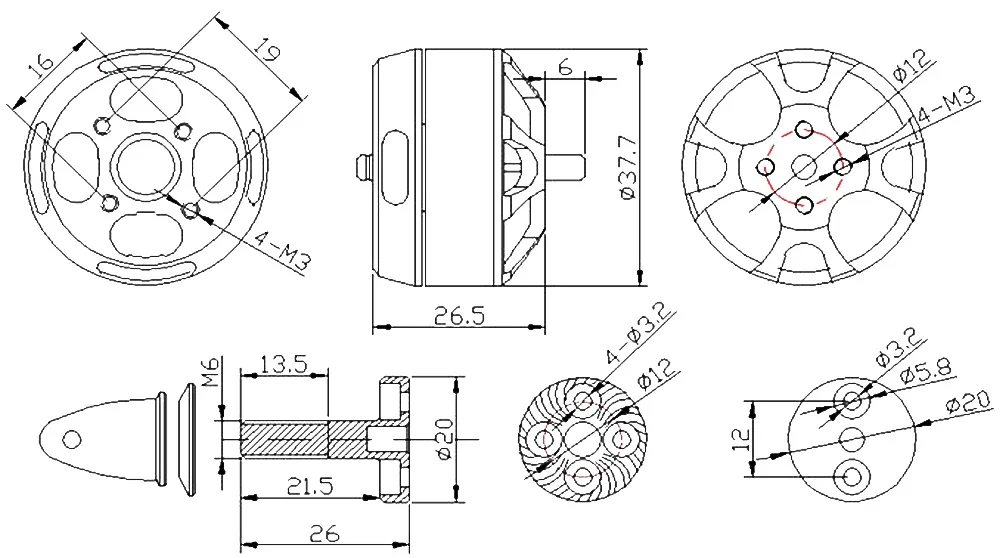

Outside Diameter: 37.8mm;
Shaft Diameter: 4mm;
Overall Shaft Length: 33mm;
Max Lipo Cell: 3-4S;
Recommended Prop(inch): APC10*3.8/APC11*4.7/APC12*3.8;
Sunnysky X3108S KV900 Brushless Motor:
KV Value: KV900;
No-load Current(A/10V): 0.9A;
Motor Resistance: 86mΩ;
Max Continuous Current: 25A/30S;
Max Continuous Power: 370W;
Recommended Prop(inch): APC10*3.8/APC12*3.8;
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
Product Details
Sunnysky X3108S KV720 Brushless Motor:
KV Value: KV720;
Stator Diameter: 31mm;
Stator Thickness: 8mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current(A/10V): 0.6A;
Motor Resistance: 132mΩ;
Max Continuous Current: 22A/30S;
Max Continuous Power: 325W;
Weight: 81g;
Outside Diameter: 37.8mm;
Shaft Diameter: 4mm;
Overall Shaft Length: 33mm;
Max Lipo Cell: 3-4S;
Recommended Prop(inch): APC10*3.8/APC11*4.7/APC12*3.8;
Sunnysky X3108S KV900 Brushless Motor:
KV Value: KV900;
Stator Diameter: 31mm;
Stator Thickness: 8mm;
No. of Stator Arms: 12;
No. of Stator Poles: 14;
No-load Current(A/10V): 0.9A;
Motor Resistance: 86mΩ;
Max Continuous Current: 25A/30S;
Max Continuous Power: 370W;
Weight: 81g;
Outside Diameter: 37.8mm;
Shaft Diameter: 4mm;
Overall Shaft Length: 33mm;
Max Lipo Cell: 3-4S;
Recommended Prop(inch): APC10*3.8/APC12*3.8;
