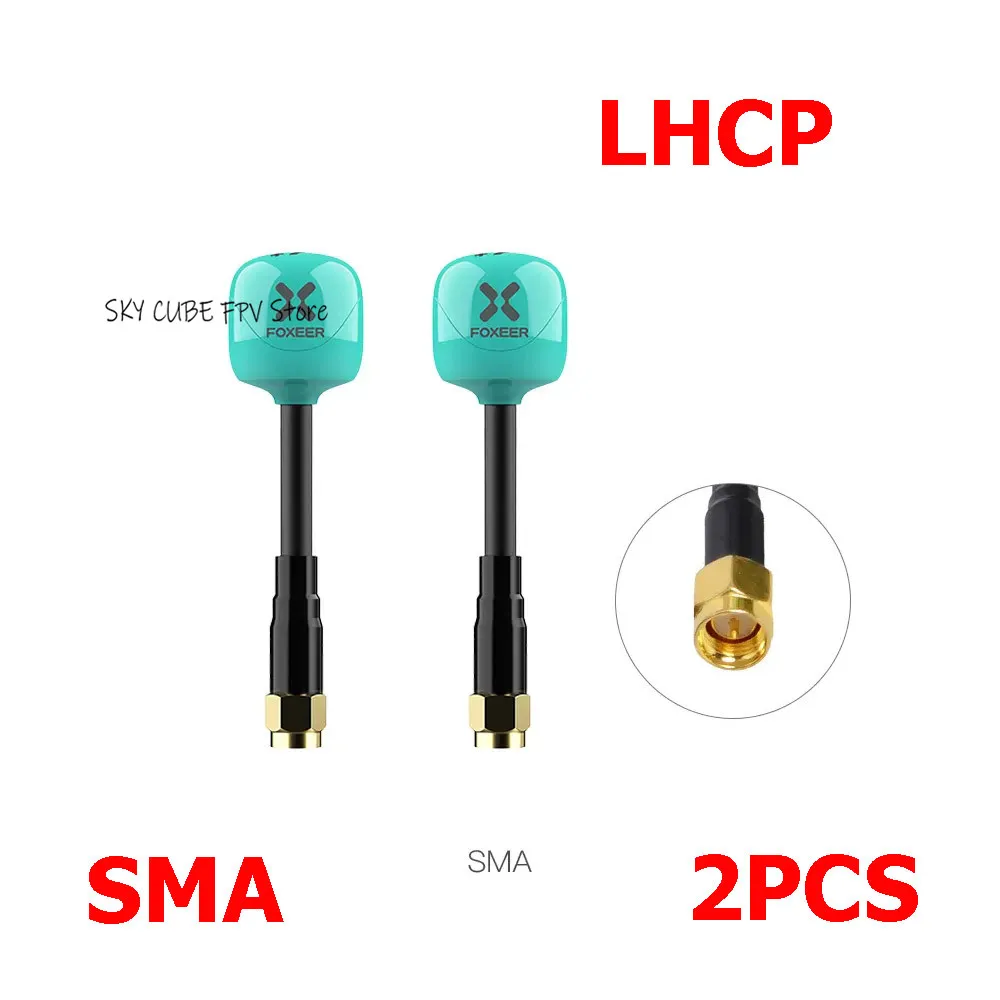

2 шт. Foxeer Lollipop 4 Plus 4+ FPV антенна 5,8G 2,6Dbi всенаправленная антенна RHCP LHCP SMA MMCX UFL IPEX для RC FPV дальнего действия дрона O4
From USD 28.44 - USD 83.61
Est. USD 28.44 - USD 83.61 / unit (1-9 pcs)
$26 @ 10+ pcs$25 @ 100+ pcs
Description
Center Frequency
5.75GHz
Gain
2.6dBi
Axial Ratio
Close to 1
Band Width
5.5G~6GHz
Radiation Efficiency
98%
SWR
1.07 at Center Frequency
Polarization
RHCP
Case Material
PC+ABS
Weight
SMA/RPSMA: 7.8g

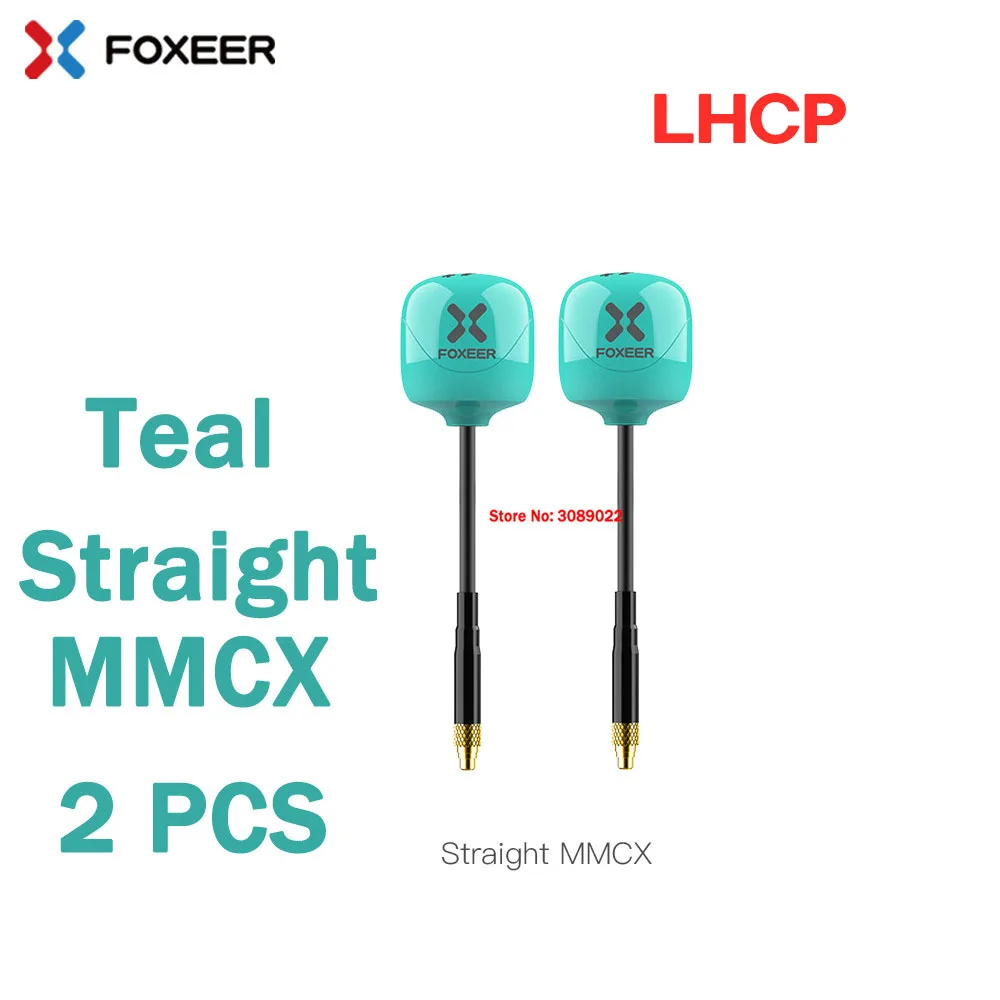

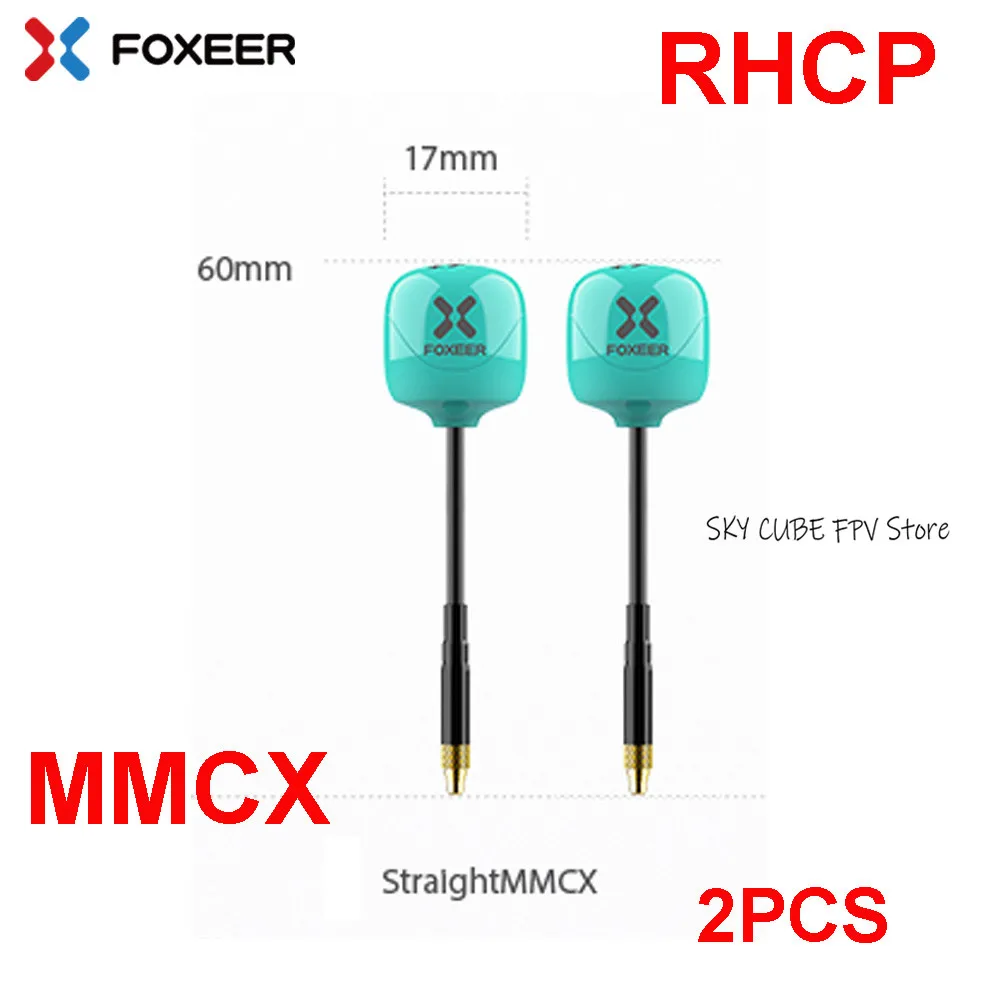

Straight MMCX: 4.4g

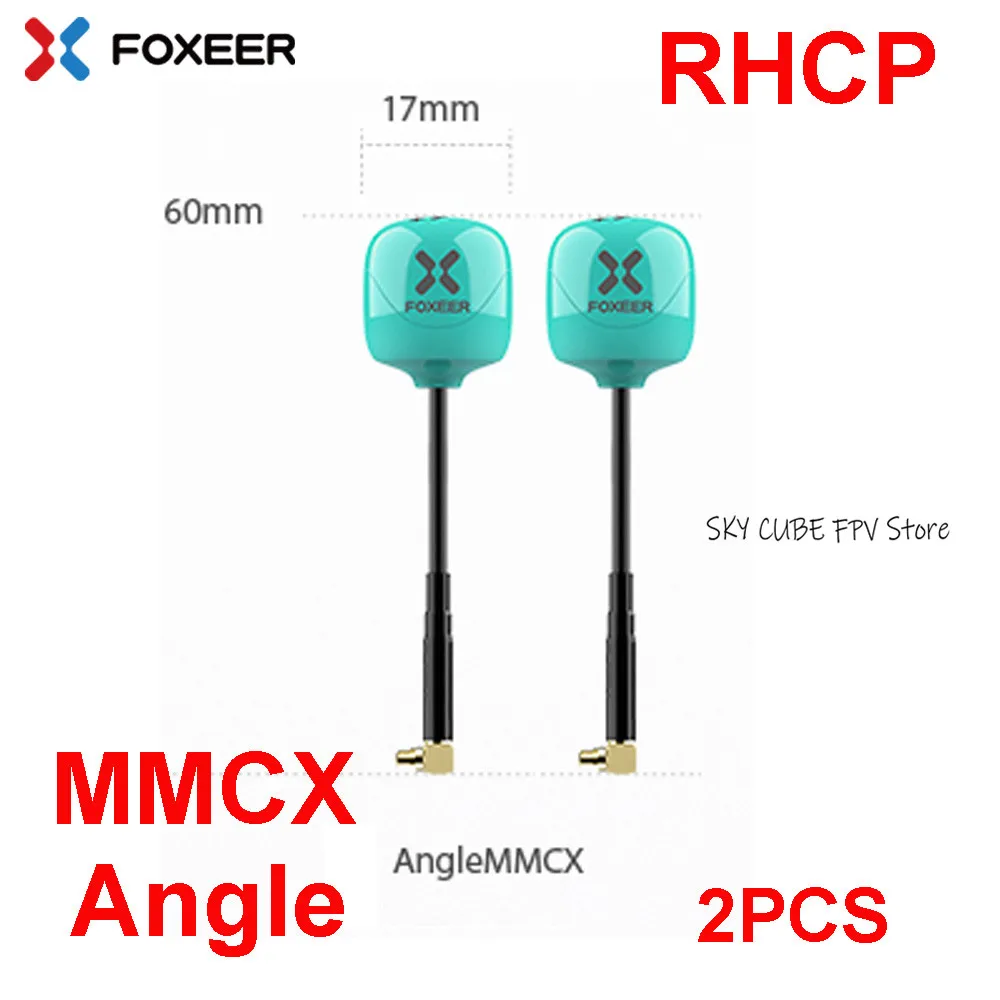

Angle MMCX: 4.7g
SMA-10CM: 9.7g

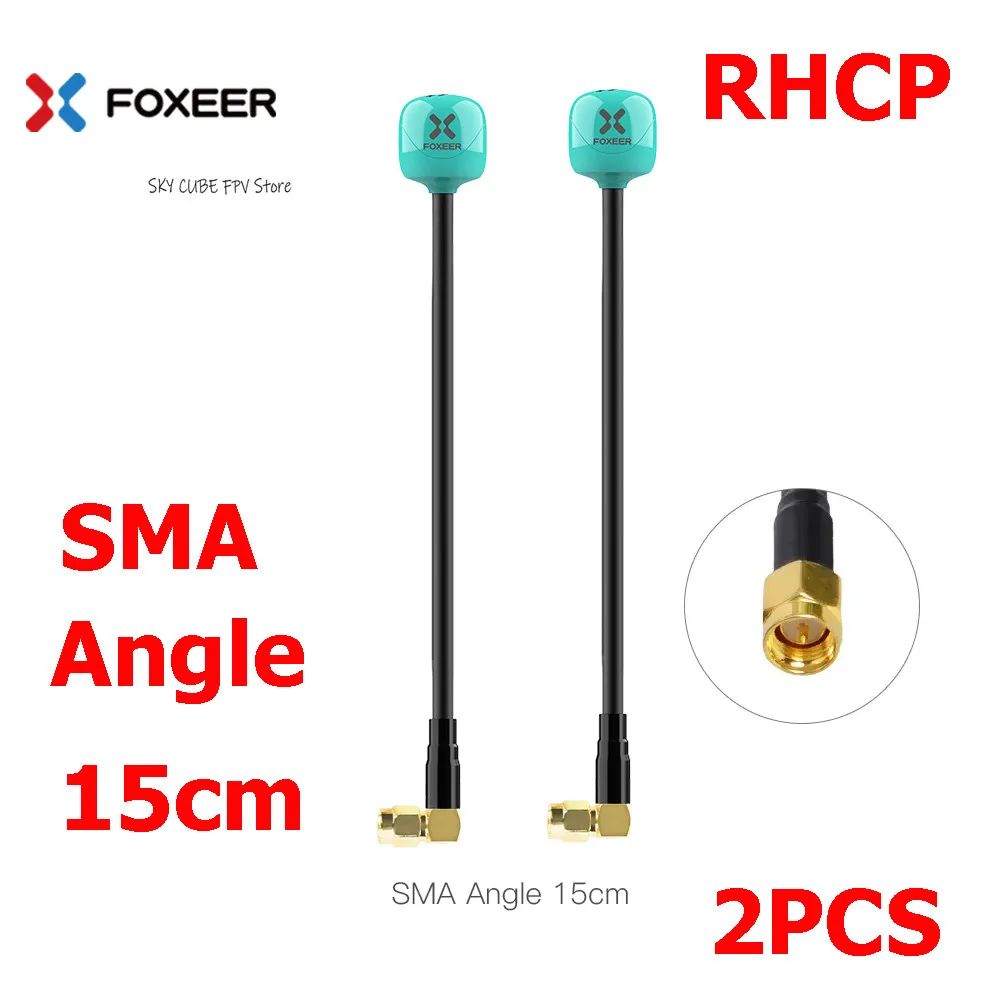

Angle SMA-15CM: 13.9g

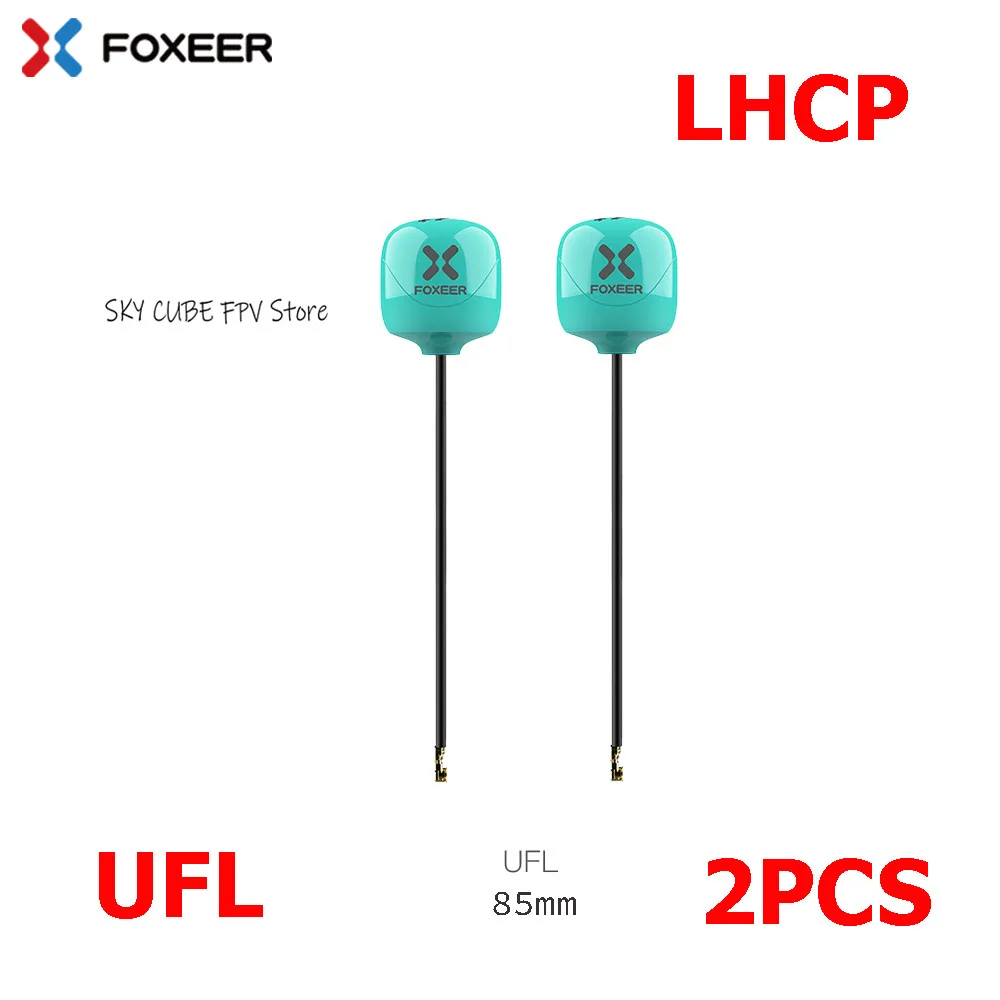

UFL : 2.8g
UFL Tube: 2.9g
UFL Tube Long: 3.8g

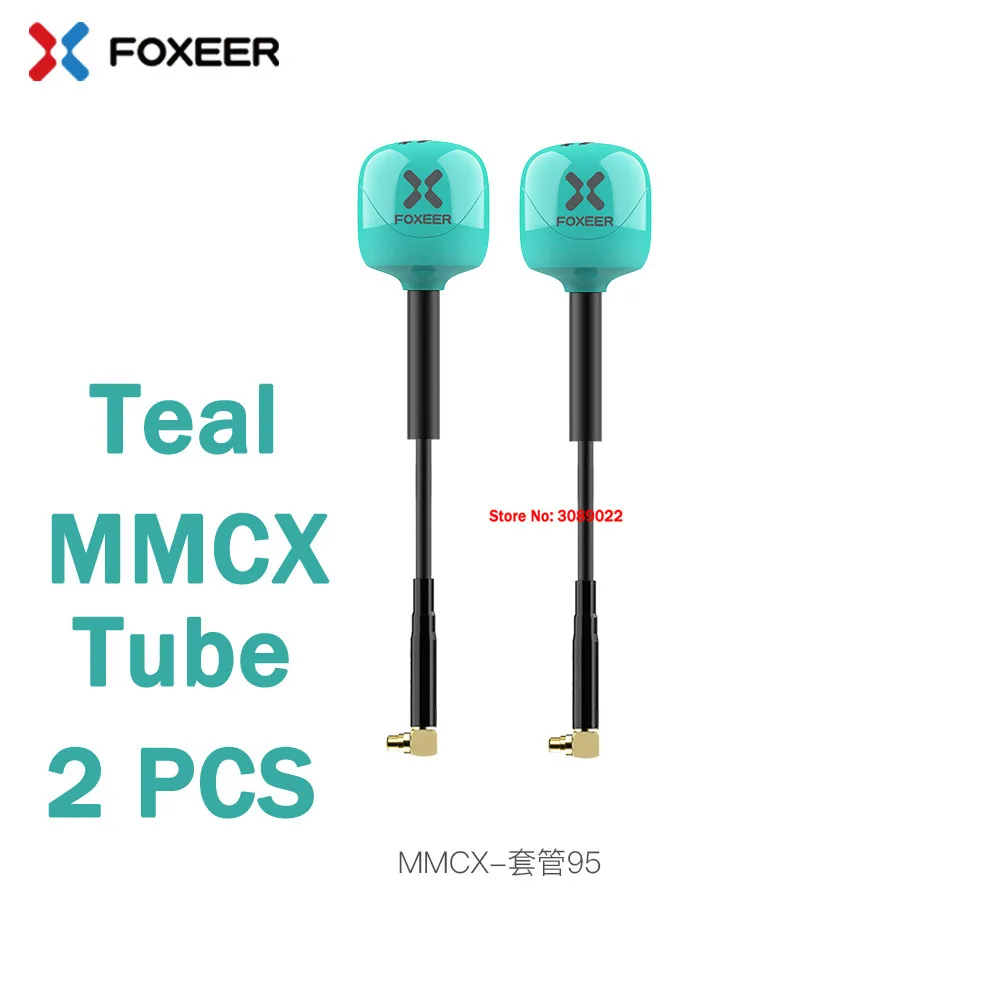

Angle MMCX Tube: 4.8g

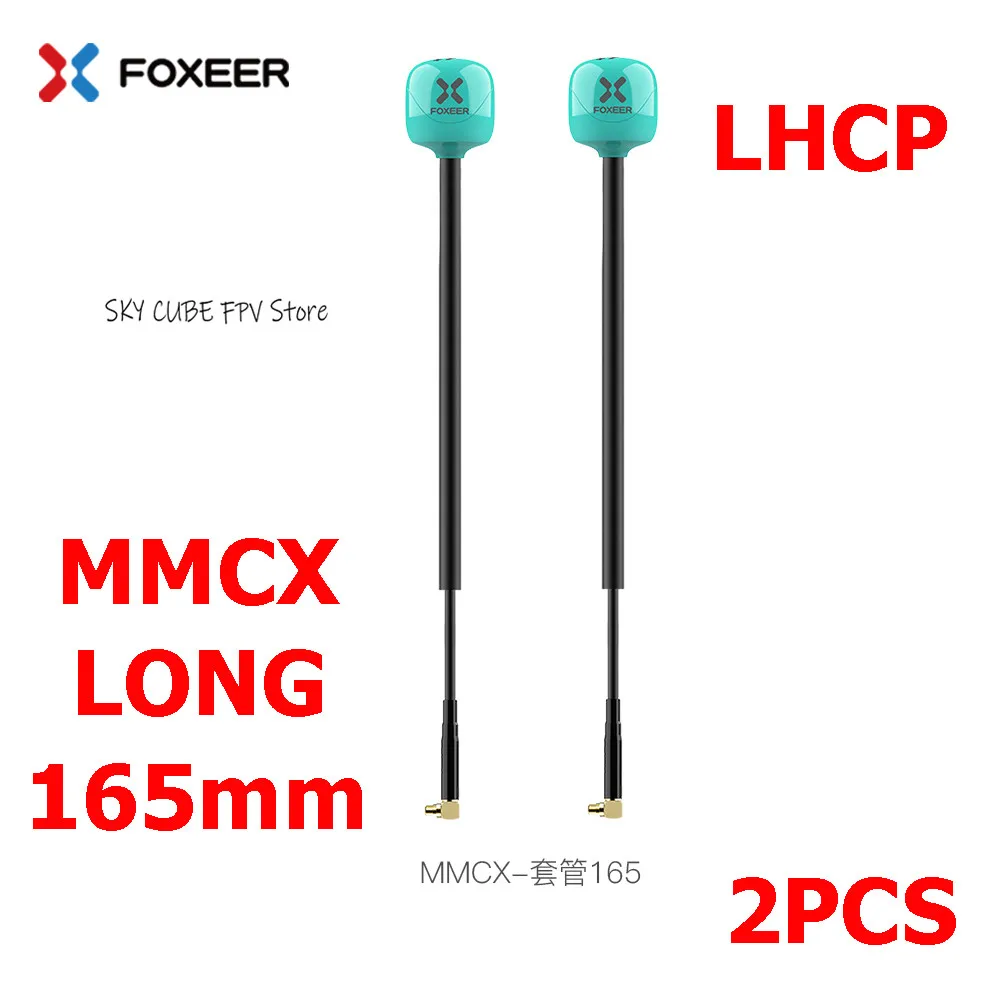

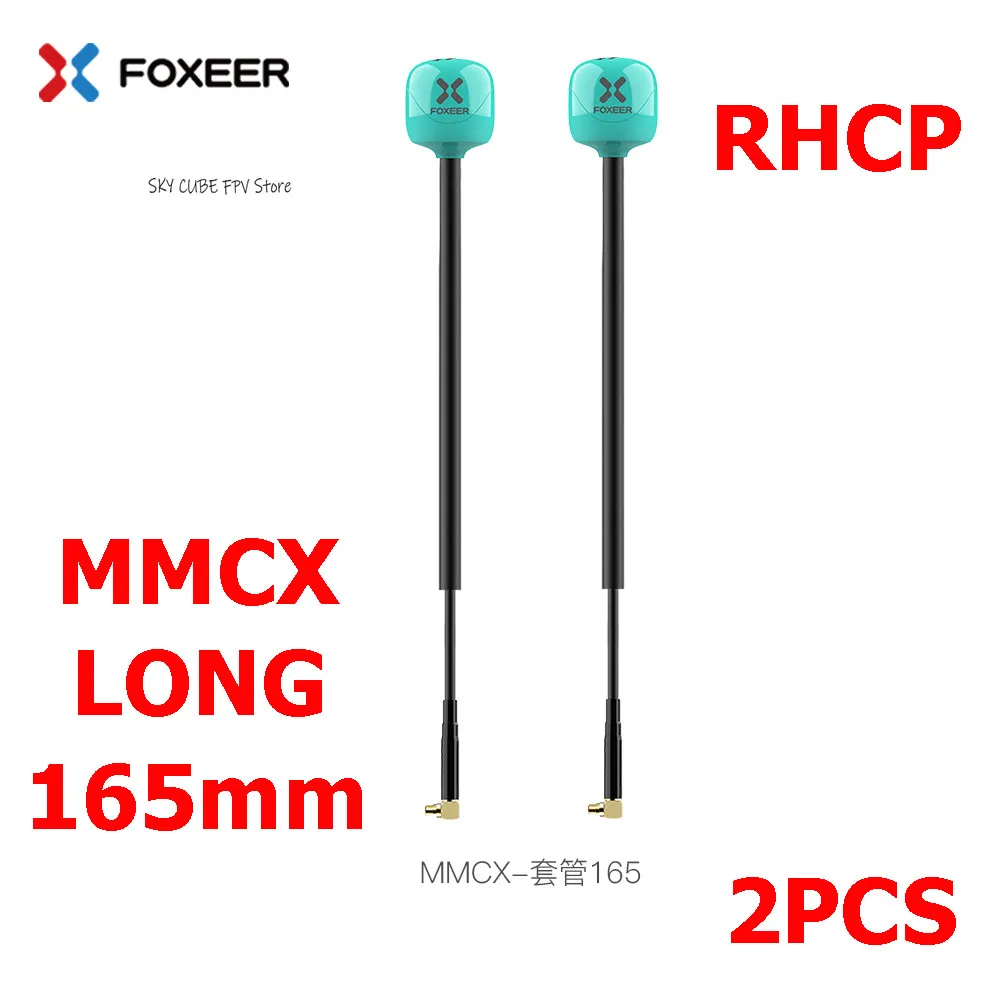

Angle MMCX Tube Long: 6.8g
Connector & Length

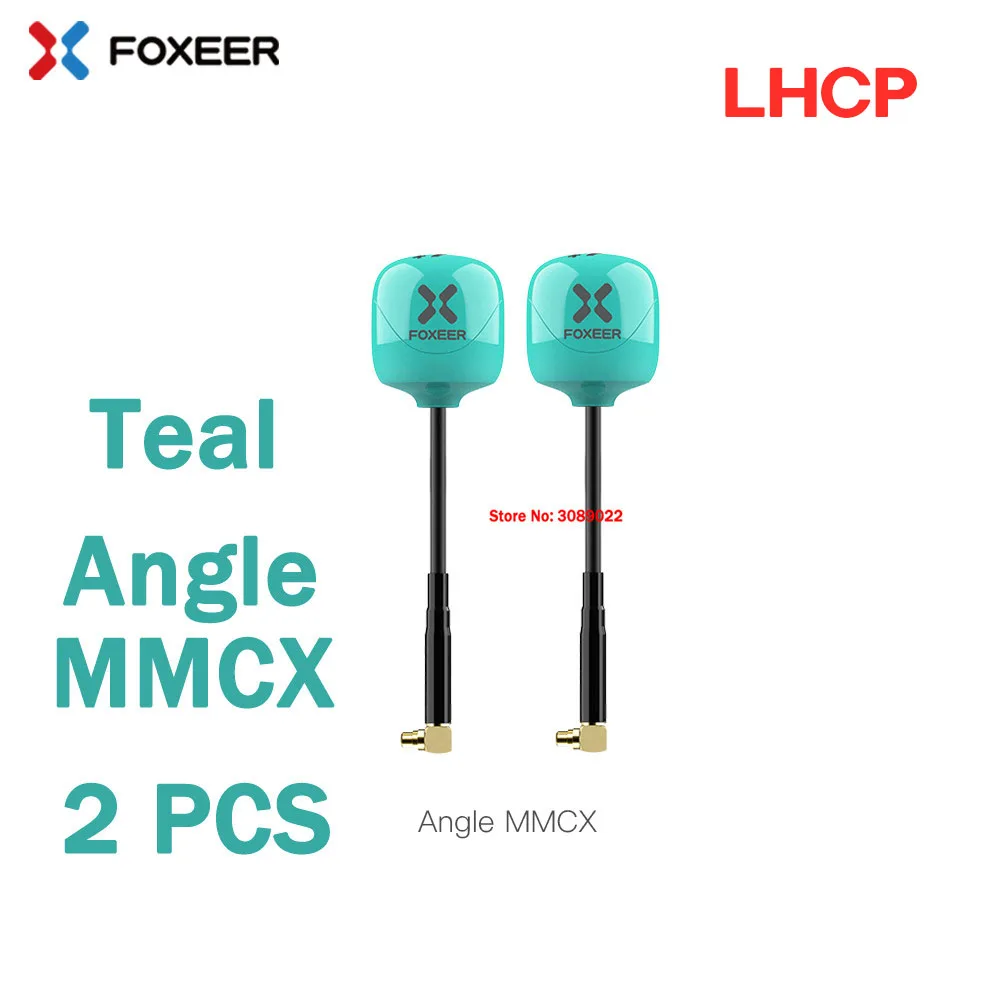

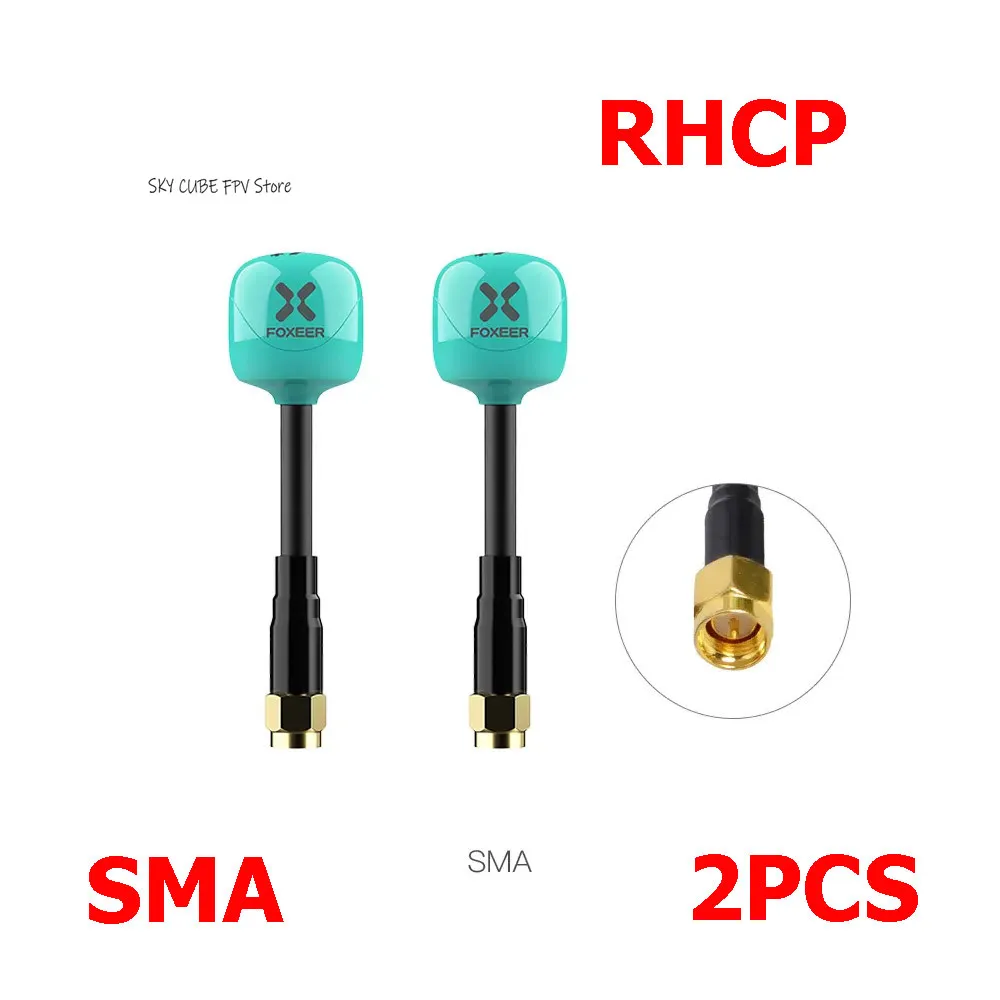

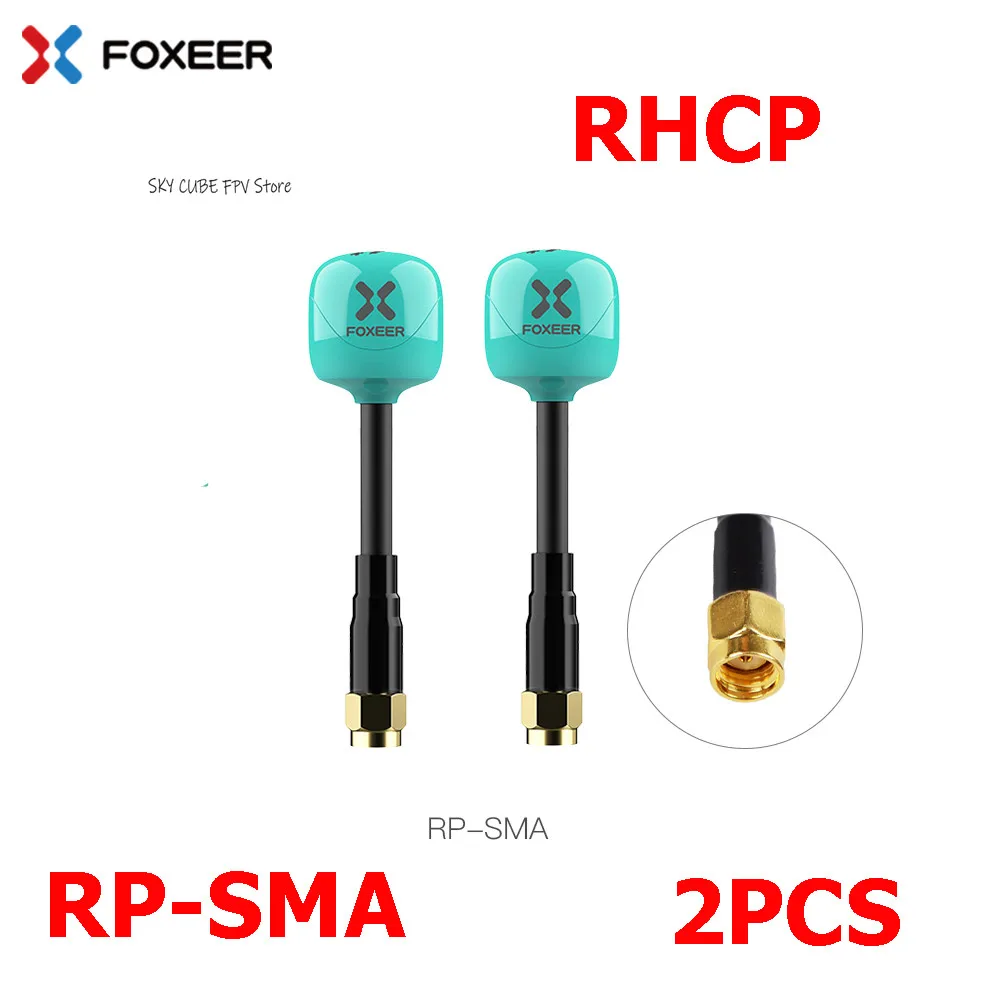

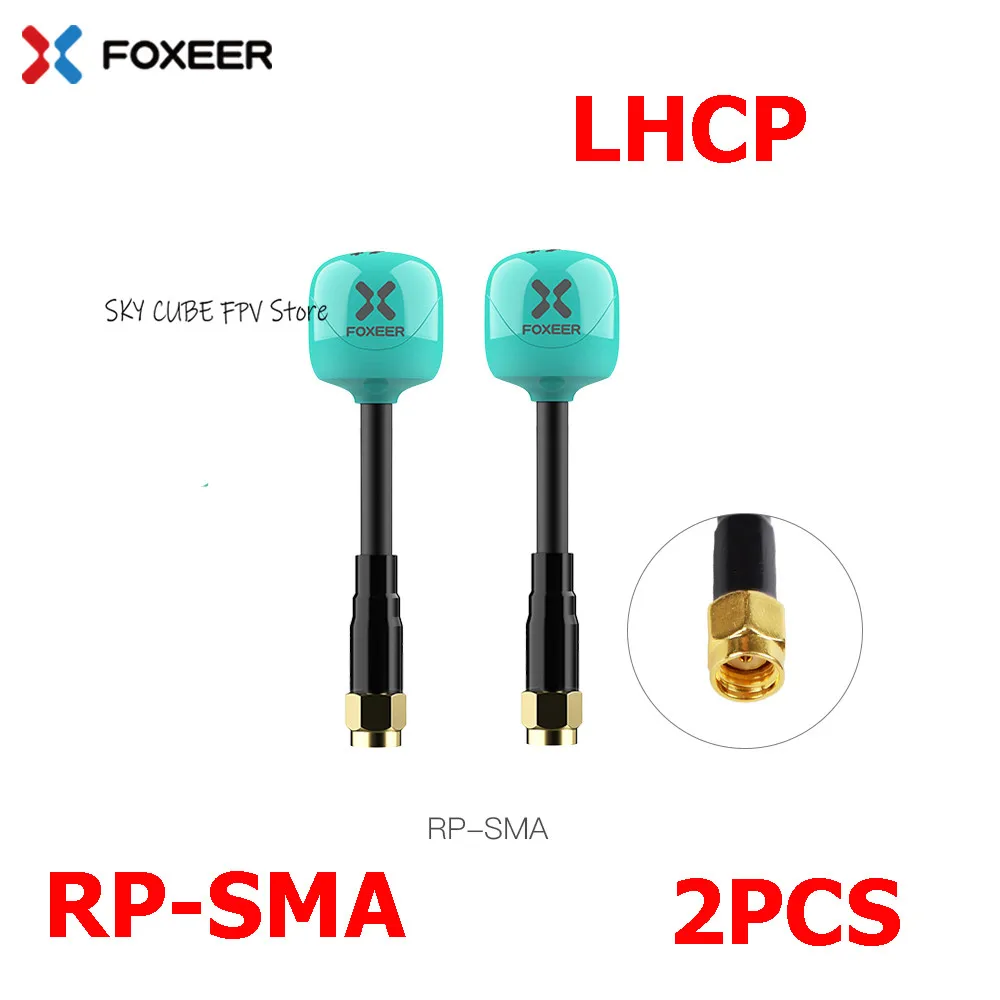

SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm

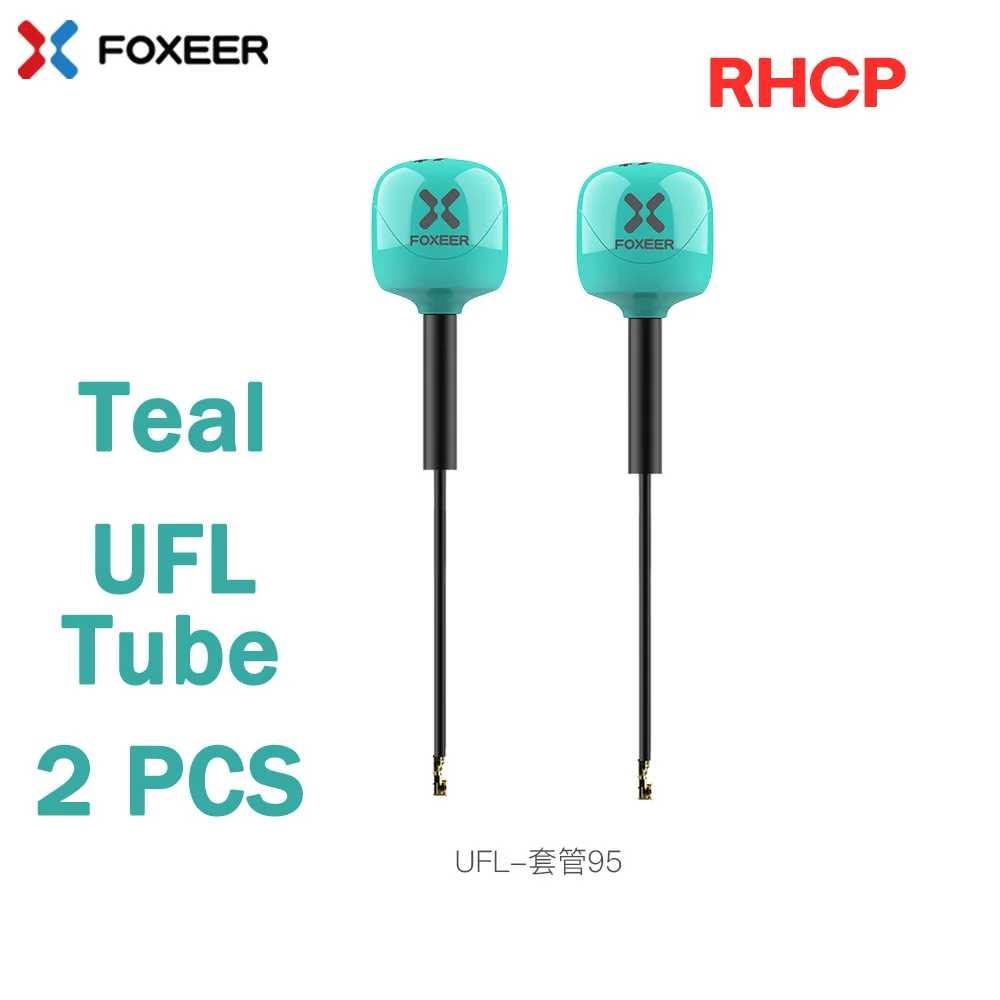

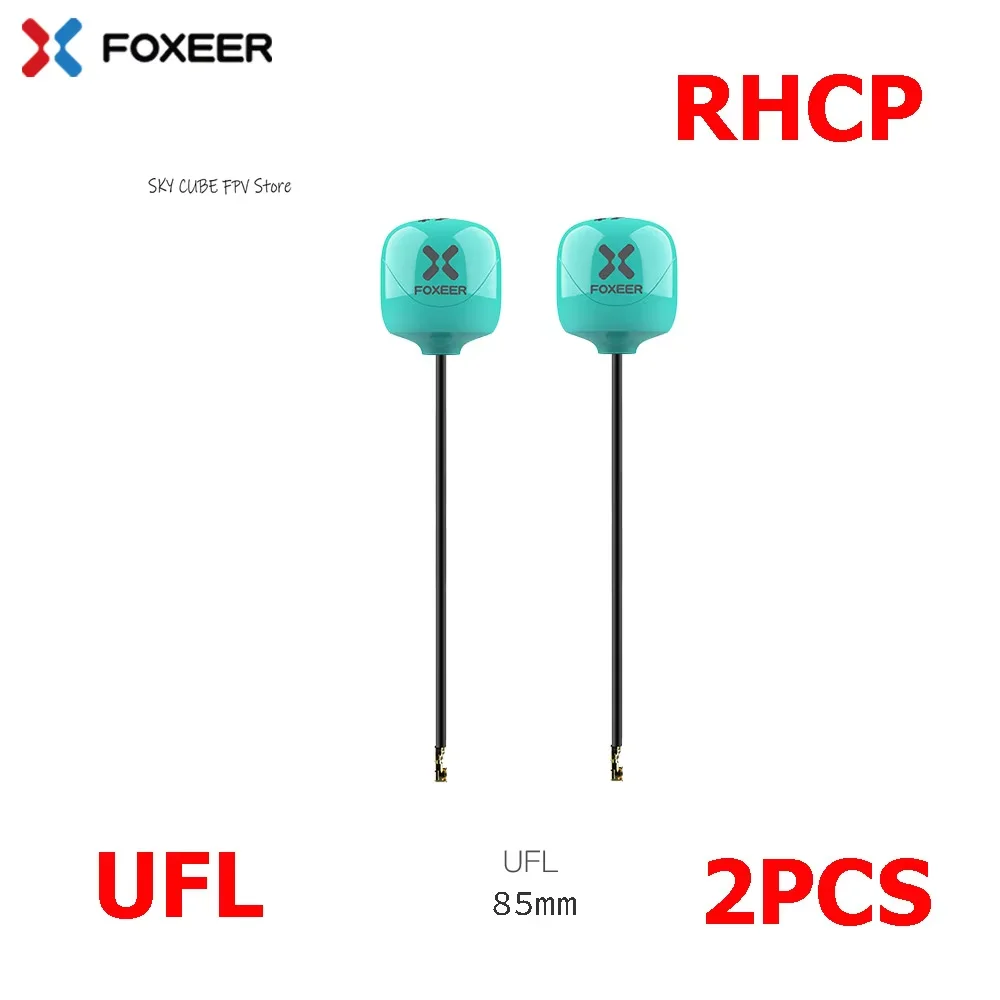

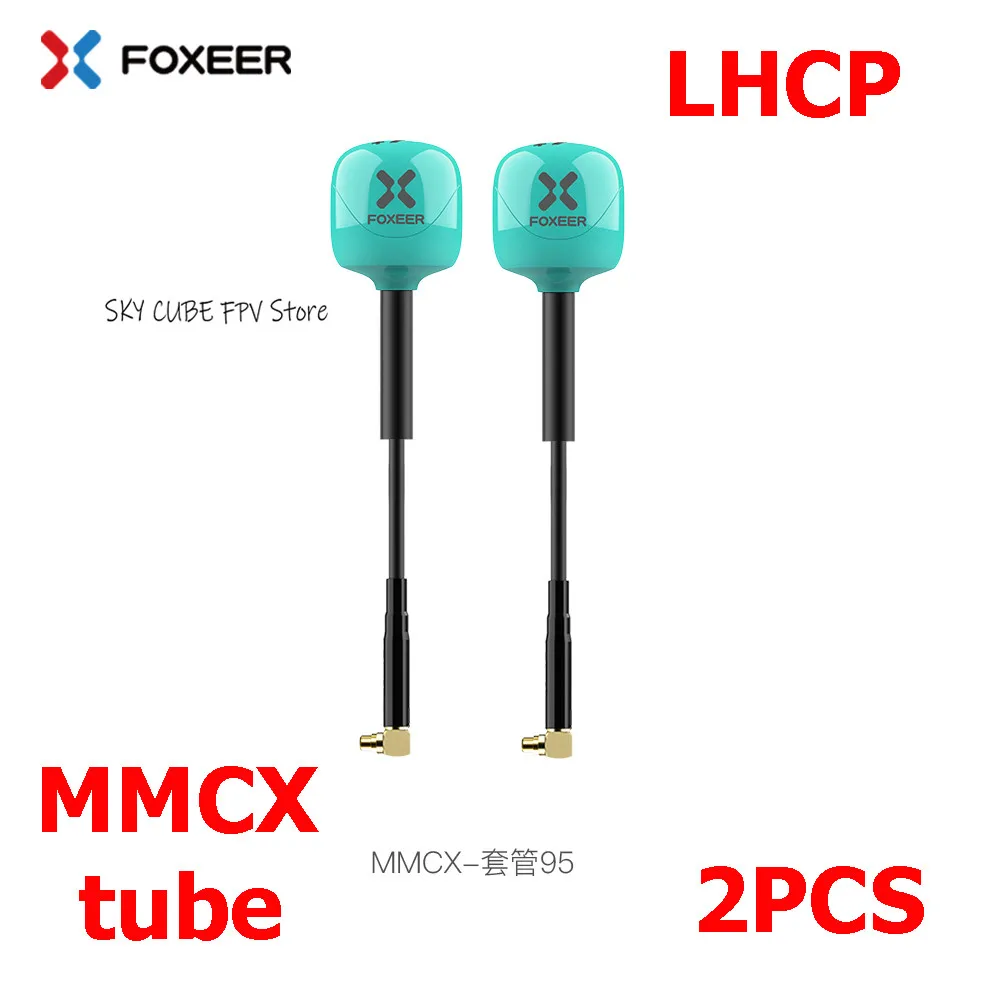

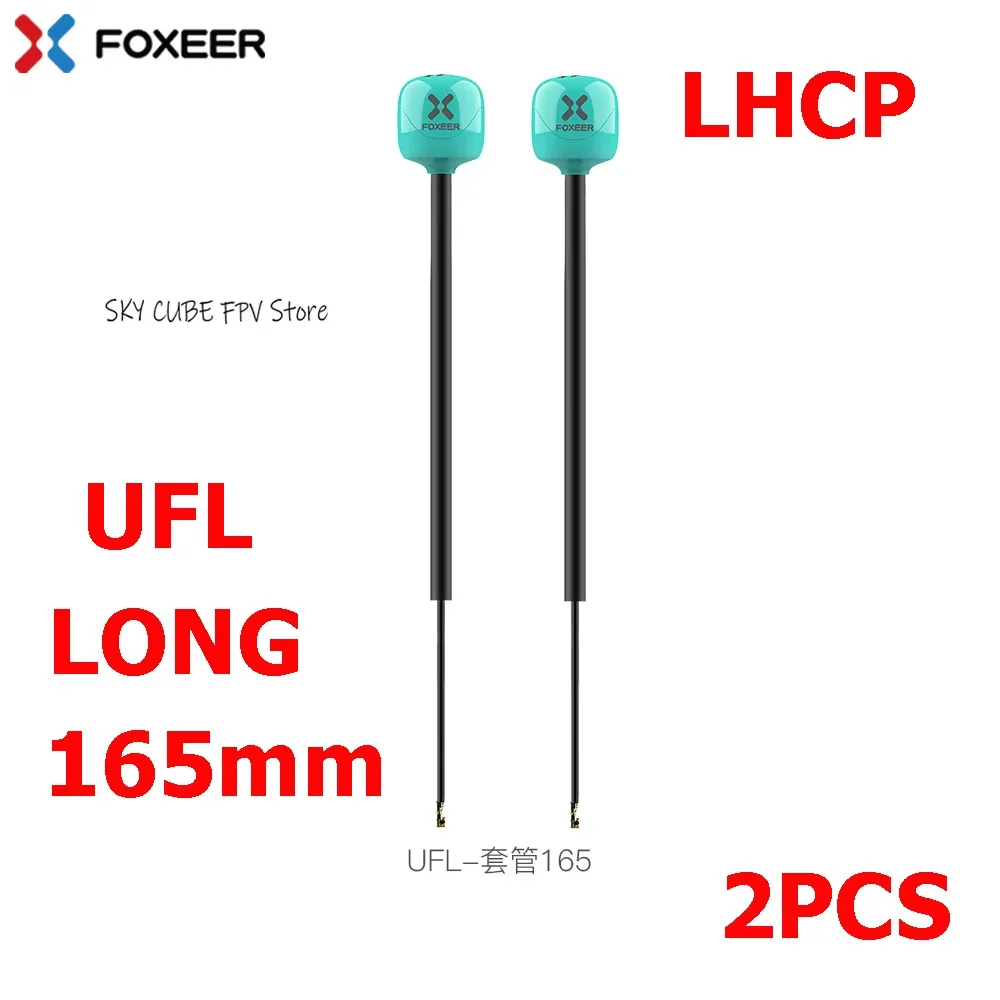

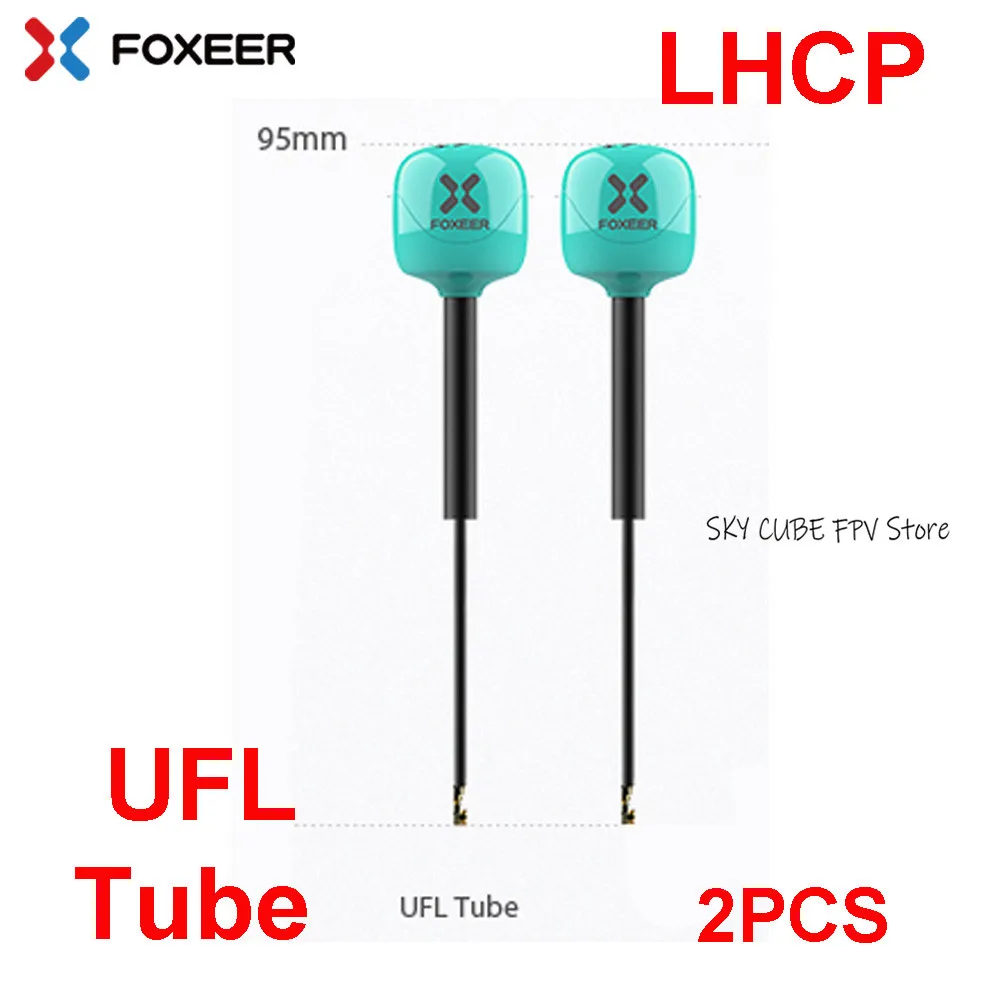

UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm

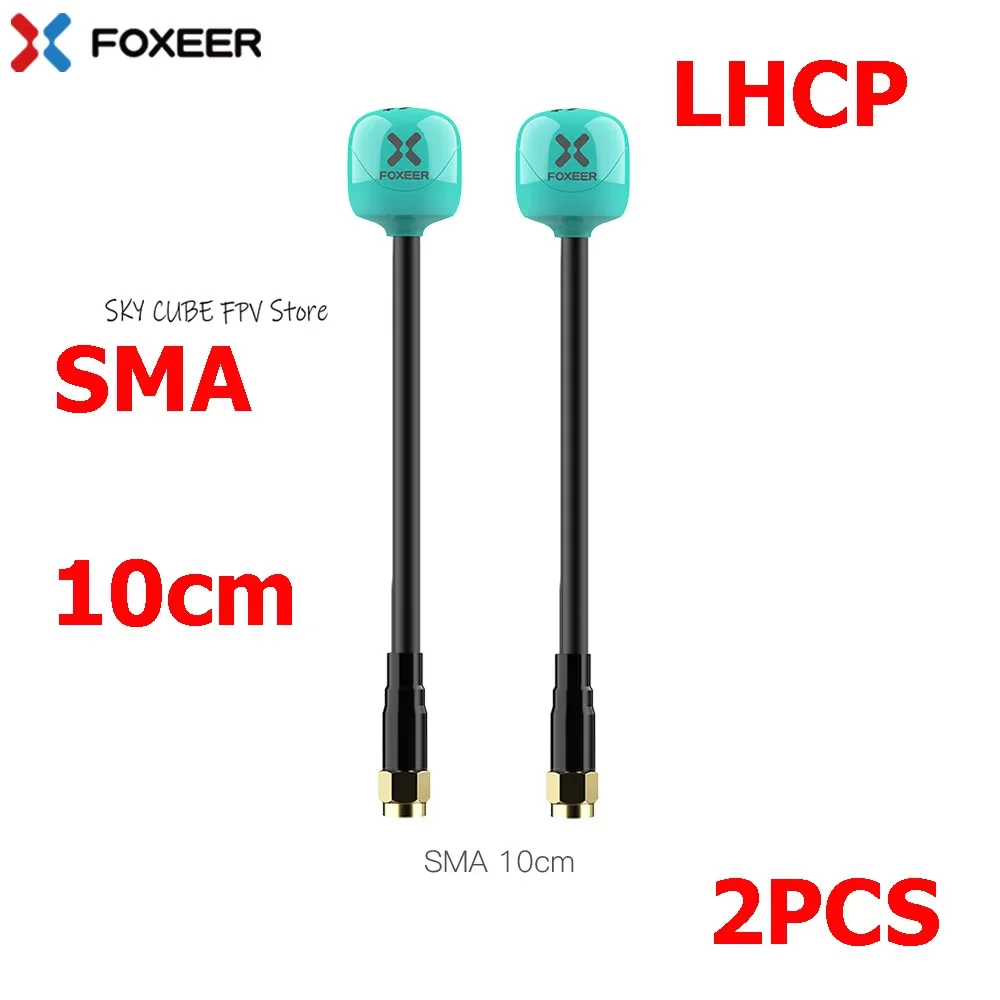

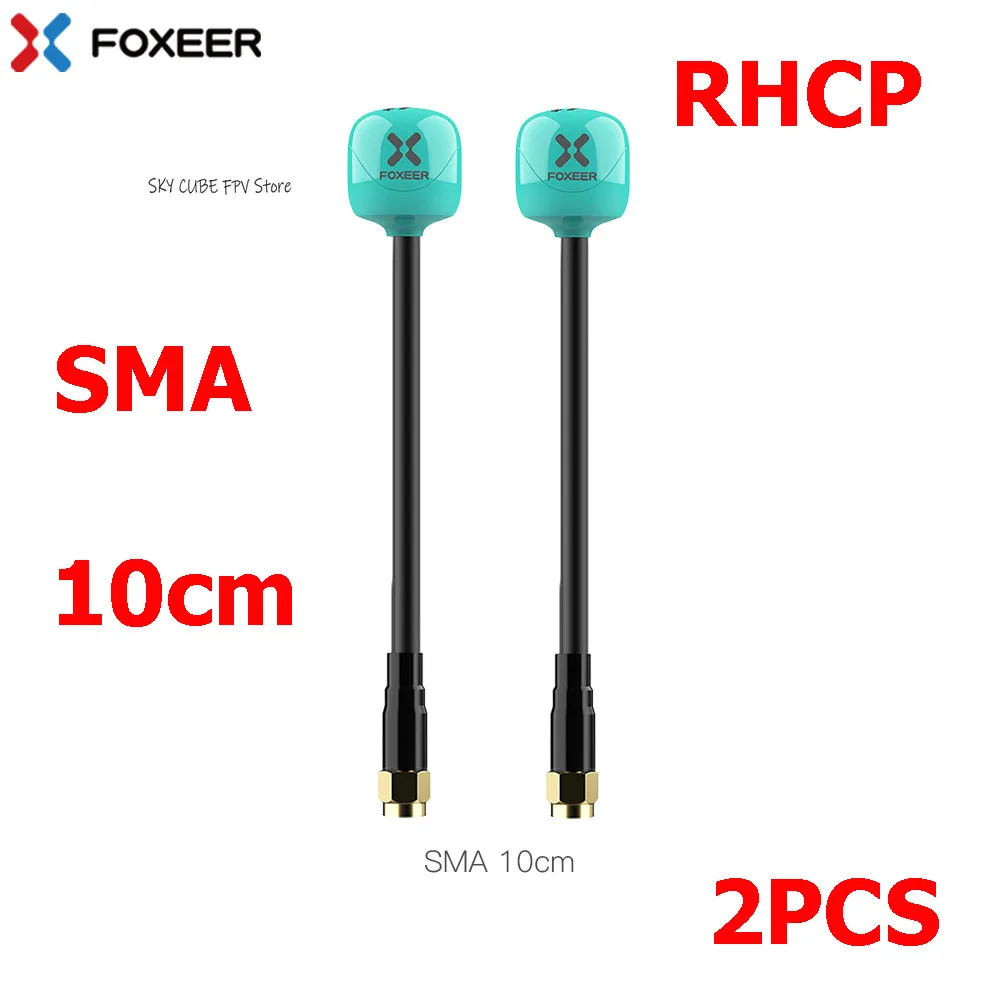

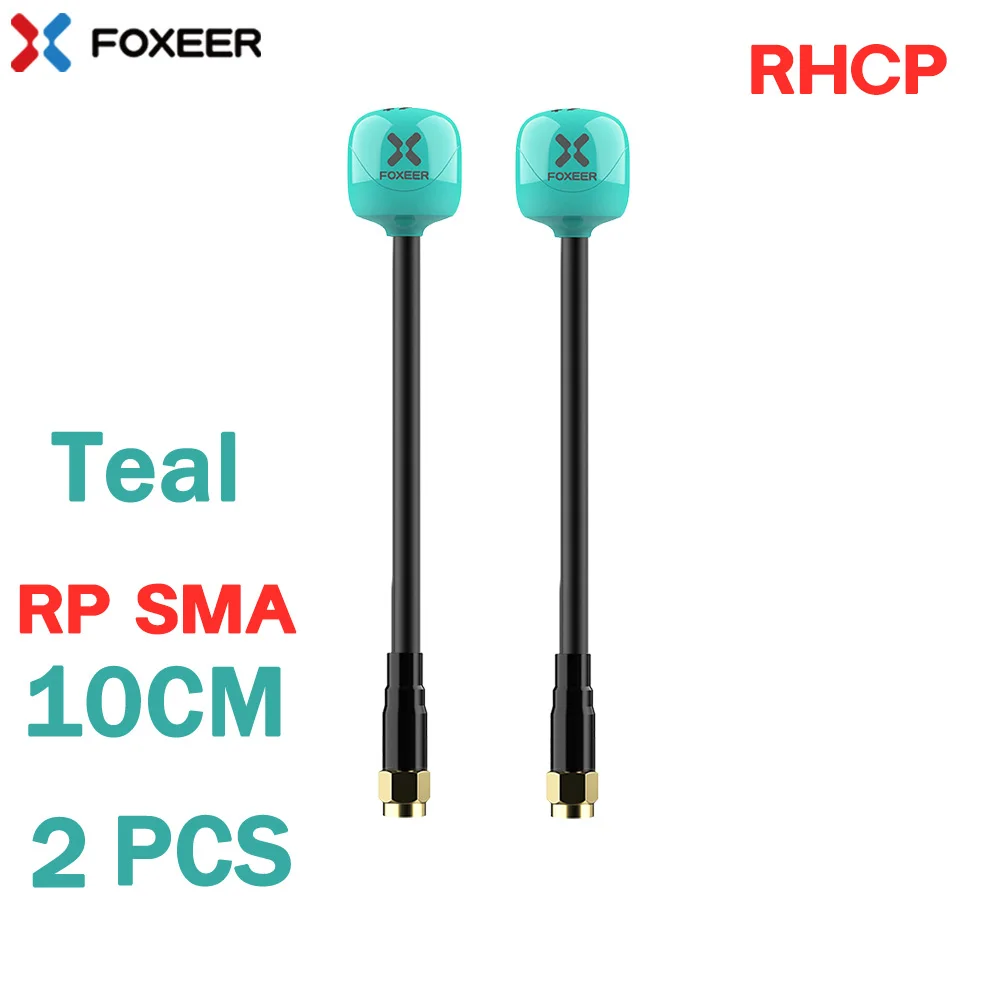

SMA-10CM: Φ11*100mm

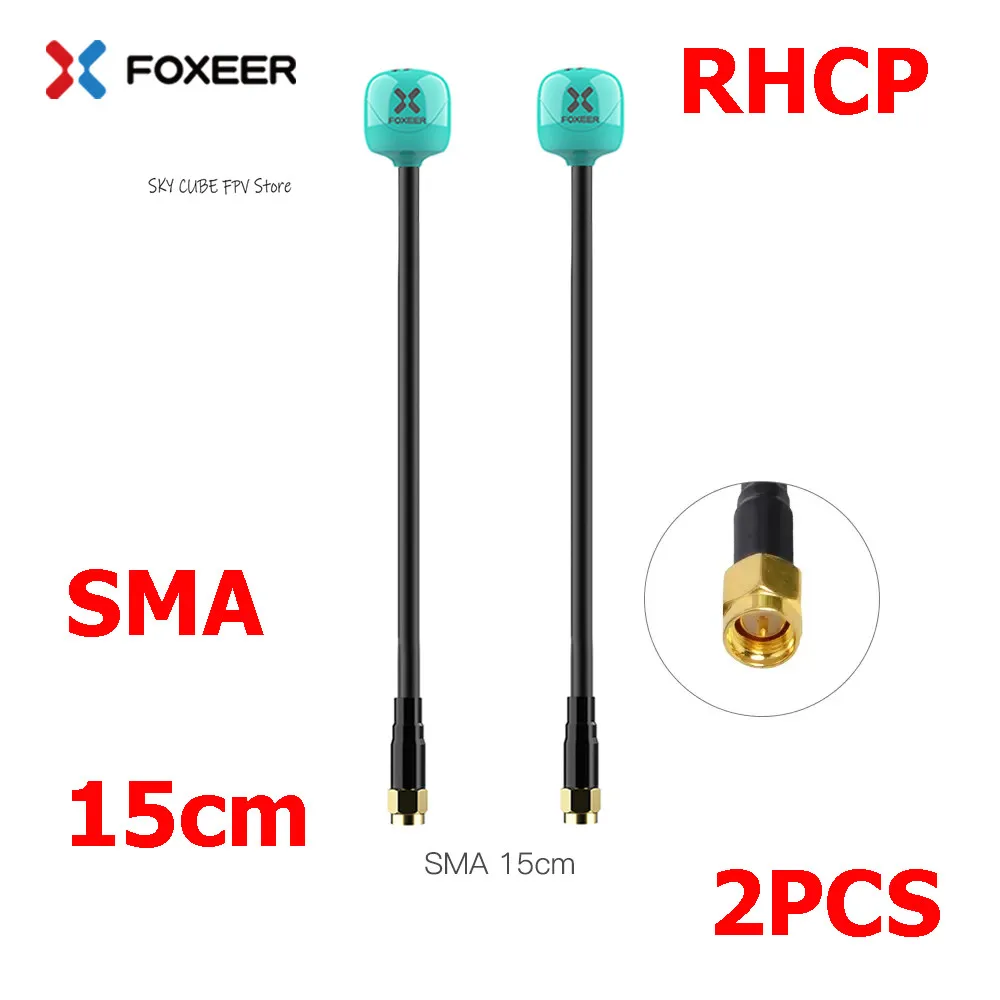

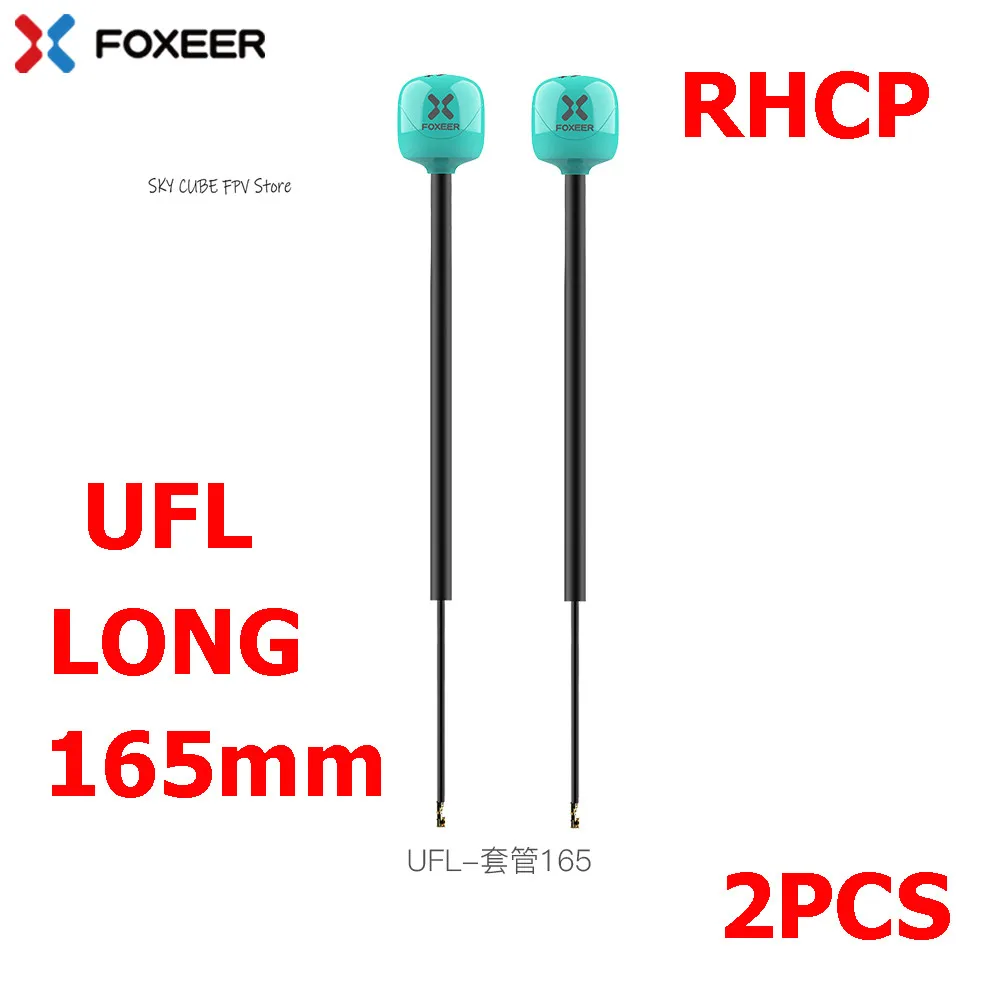

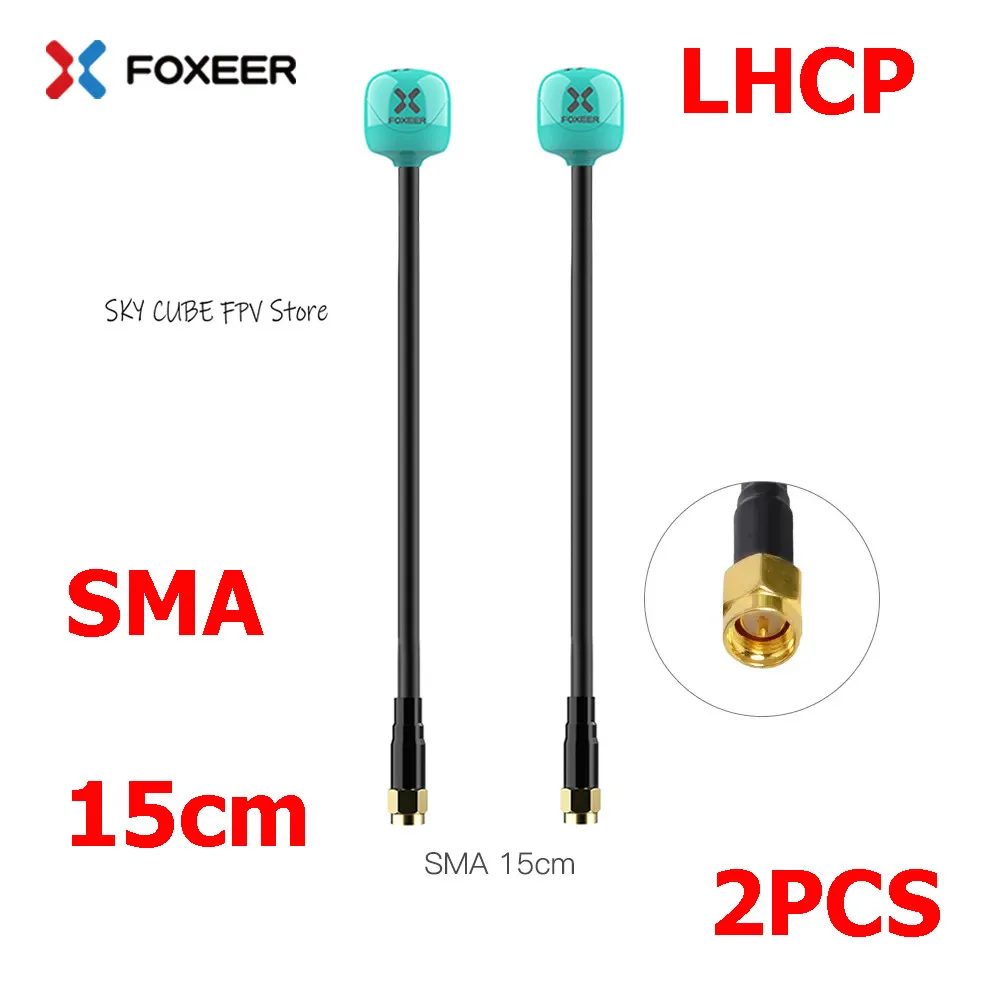

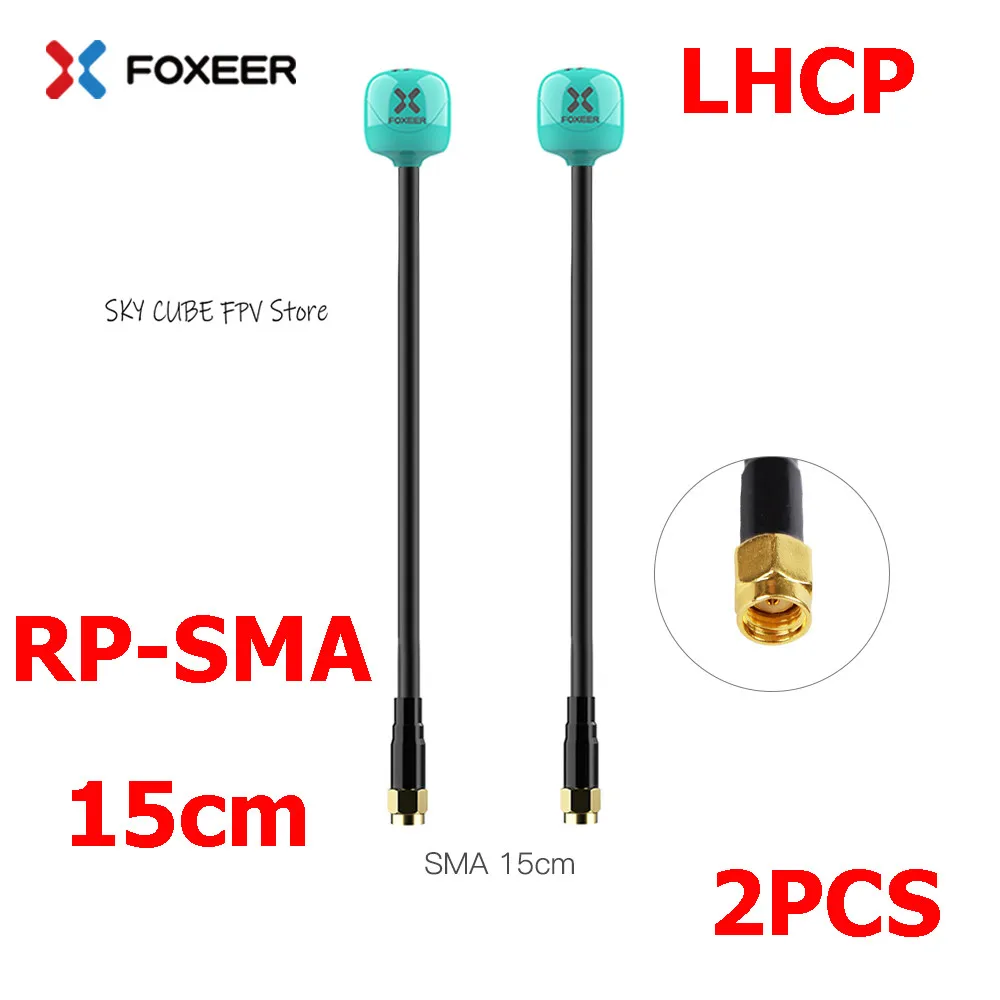

SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm
Quantity
4+ Antennas
Вариант
Выбранная ценаUSD 83.11
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Center Frequency | 5.75GHz |
Gain | 2.6dBi |
Axial Ratio | Close to 1 |
Band Width | 5.5G~6GHz |
Radiation Efficiency | 98% |
SWR | 1.07 at Center Frequency |
Polarization | RHCP |
Case Material | PC+ABS |
Weight | SMA/RPSMA: 7.8g |
Straight MMCX: 4.4g | |
Angle MMCX: 4.7g | |
SMA-10CM: 9.7g | |
Angle SMA-15CM: 13.9g | |
UFL : 2.8g | |
UFL Tube: 2.9g | |
UFL Tube Long: 3.8g | |
Angle MMCX Tube: 4.8g | |
Angle MMCX Tube Long: 6.8g | |
Connector & Length | SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm |
UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm | |
SMA-10CM: Φ11*100mm | |
SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm | |
Quantity | 4+ Antennas |
Package Included:
2 x Foxeer Lolliop 4 PLUS Antenna( RHCP or LHCP )
