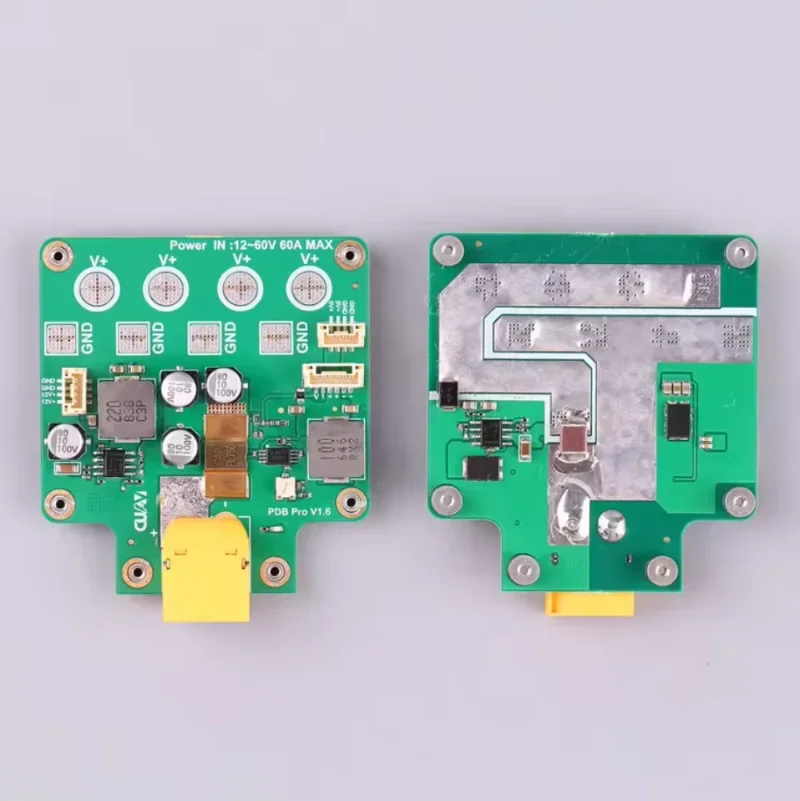

Плата распределения питания высокого напряжения CUAV CPDB Pro для многоосного сильноточного управления полетом дрона PX4
Description

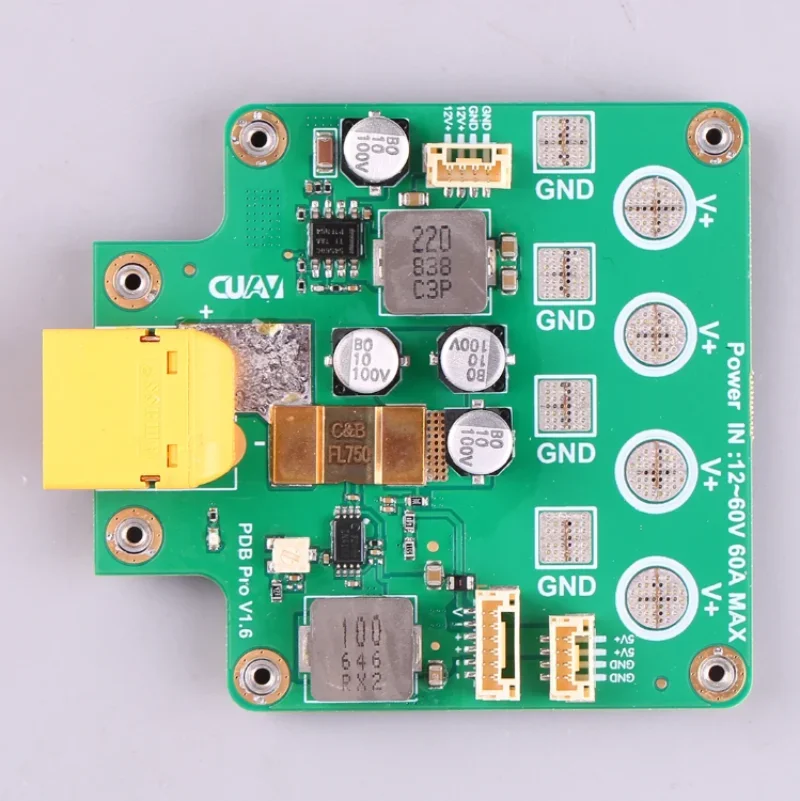

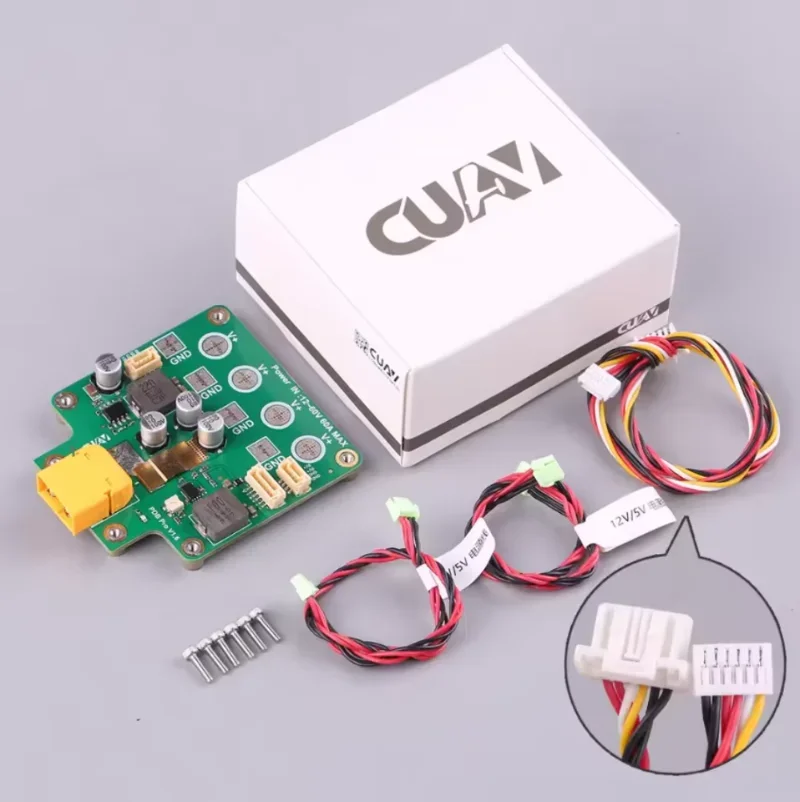

CUAV CPDB pro power module
CUAV CPDB Pro High-Voltage Drone Power Distribution Board 10-60V For Multirotor Drones

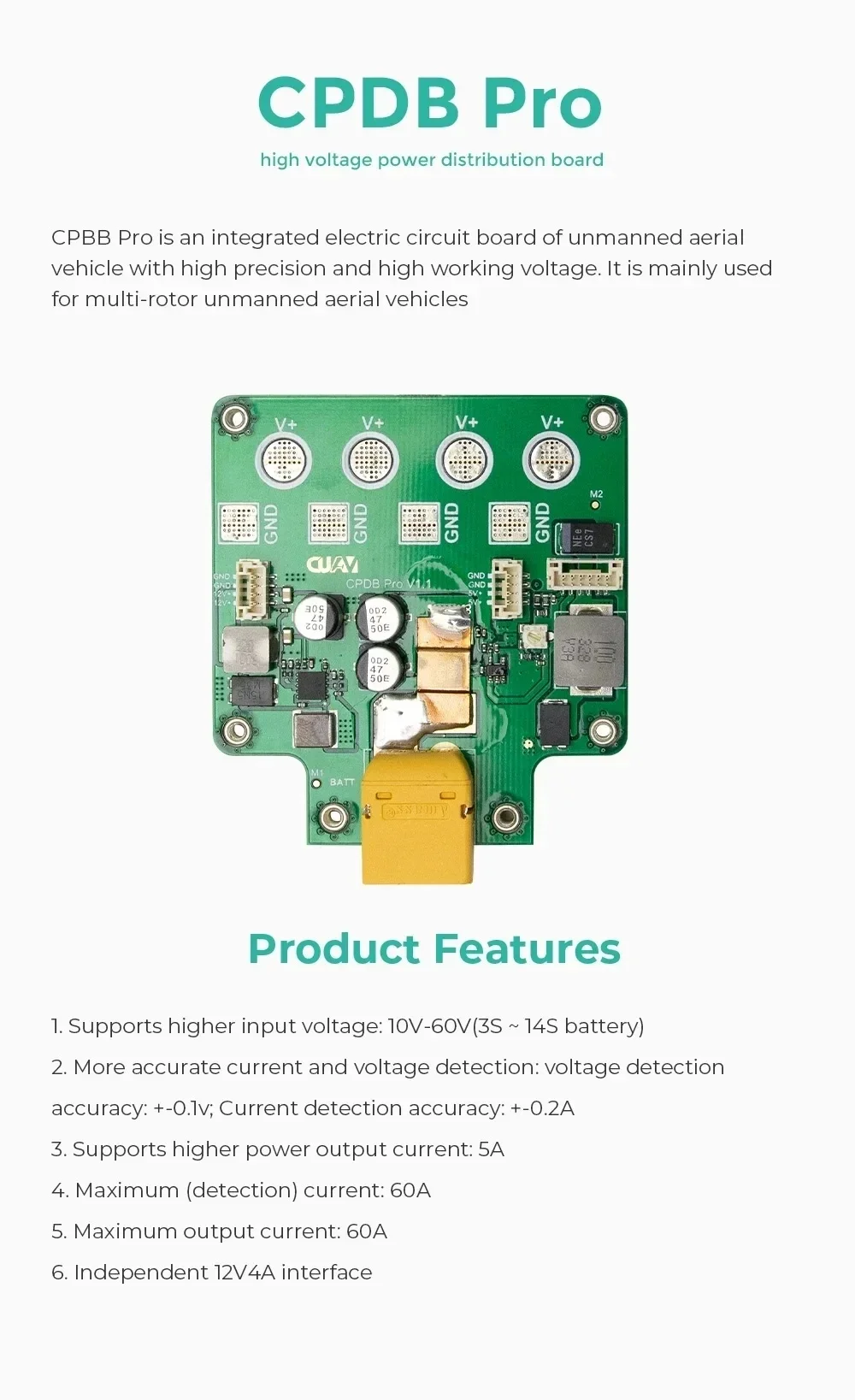

CPDB Introduction:
CPDB is an on-board device with voltage, current
detection and power distribution board functions,
providing the with power, voltage and current signals, as well as a separate two interfaces to output 5V and 12V, this version of the equipment is not only suitable for four-rotor also suitable for six or eight-rotor drones (the same pad can weld two power cords),
CPDB pro features:
1 --Supports higher input voltage: 10V-60V.
2 --More accurate current and voltage detection: voltage detection accuracy: +-0.1v; Current detection accuracy: +-0.2A.
3 --Supports higher power output current: 5A.
4 --Maximum (detection) current: 60A.
5 --Maximum output current: 60A.
6 --Independent 12V4A interface.
- Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)
- More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
- Maximum output current: 60A
- Independent 12V 4A interface
- Power interface load capacity:
* 12v out: 4A
* 5V out: 2A
* FC power: 5A
- Interface Type:

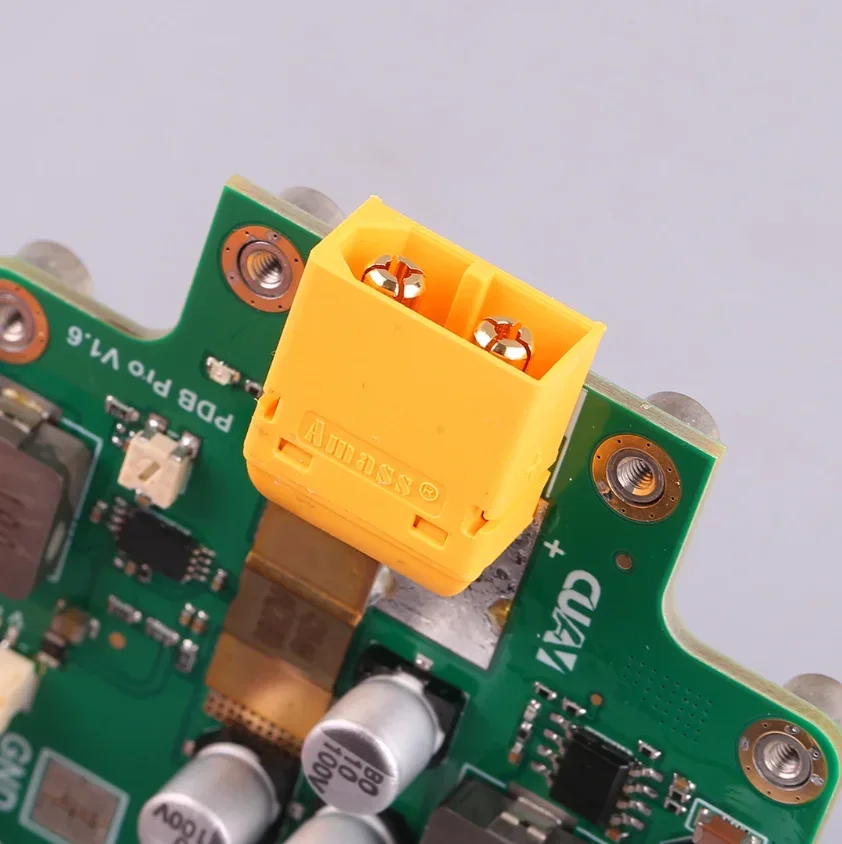

* Battery interface: XT60 (Battery is not included)
* 12V OUT/5V OUT/FCP Power: GH1.2
- Product weight: 35g
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
CUAV CPDB pro power module
CUAV CPDB Pro High-Voltage Drone Power Distribution Board 10-60V For Multirotor Drones
CPDB Introduction:
CPDB is an on-board device with voltage, current
detection and power distribution board functions,
providing the with power, voltage and current signals, as well as a separate two interfaces to output 5V and 12V, this version of the equipment is not only suitable for four-rotor also suitable for six or eight-rotor drones (the same pad can weld two power cords),
CPDB pro features:
1 --Supports higher input voltage: 10V-60V.
2 --More accurate current and voltage detection: voltage detection accuracy: +-0.1v; Current detection accuracy: +-0.2A.
3 --Supports higher power output current: 5A.
4 --Maximum (detection) current: 60A.
5 --Maximum output current: 60A.
6 --Independent 12V4A interface.
- Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)
- More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
- Maximum output current: 60A
- Independent 12V 4A interface

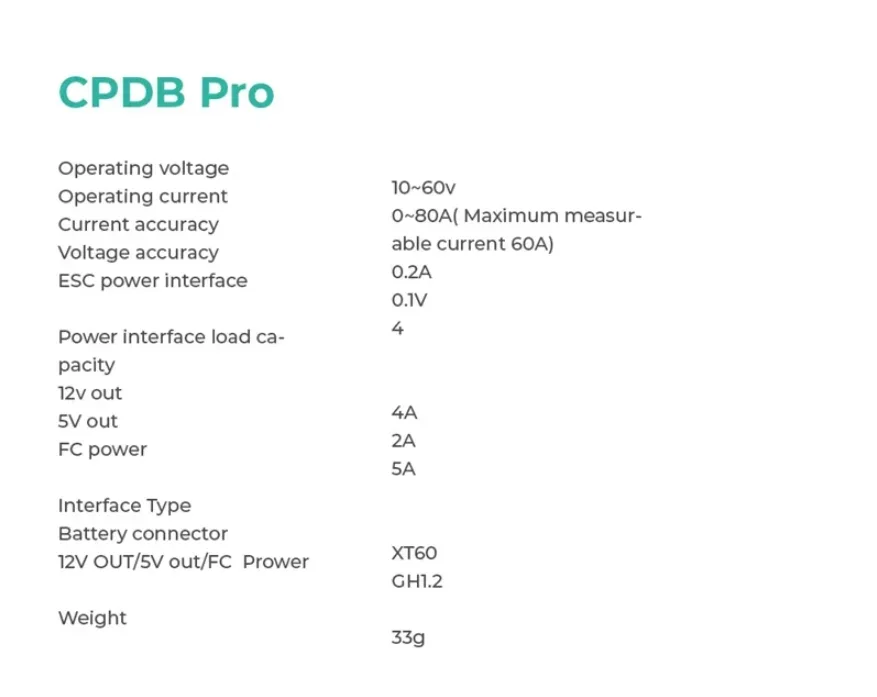

Specifications:
- Working voltage: 10~60v
- Working current: 0~80A (maximum measurable current 60A)
- Current accuracy: 0.2A
- Voltage accuracy: 0.1V
- ESC power interface: 4
- Power interface load capacity:
* 12v out: 4A
* 5V out: 2A
* FC power: 5A

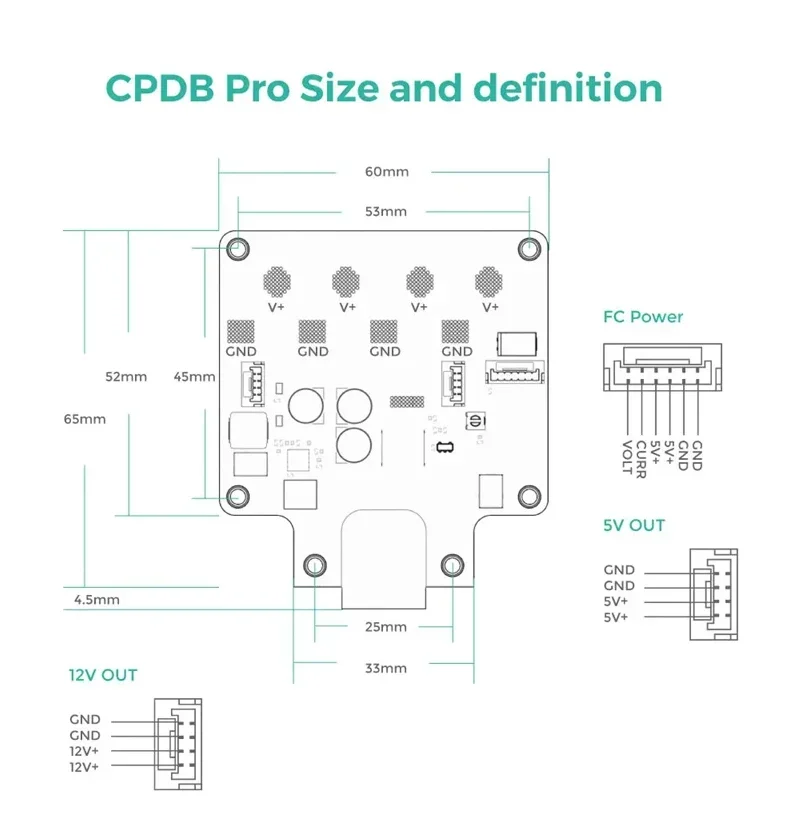

- Interface Type:
* Battery interface: XT60 (Battery is not included)
* 12V OUT/5V OUT/FCP Power: GH1.2
- Product weight: 35g
