Sequre Ant Esc и 1520 moteur 2-3s Комплект питания без перекоса с внешним ротором высокой производительности, адаптированный к автомобилю Escalade Rc

[xlmodel]-[custom]-[8888]

Product Description:

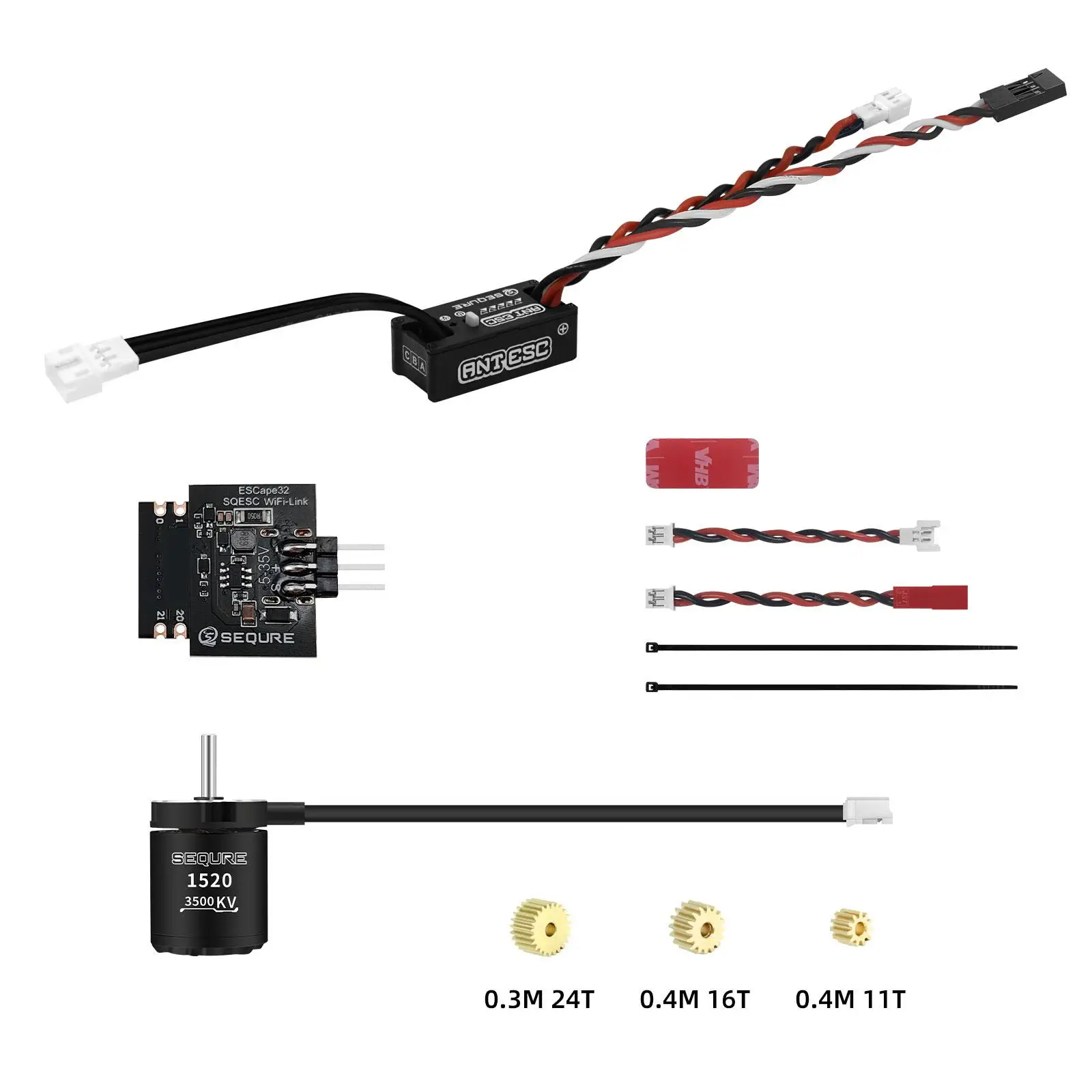

• SEQURE ANT ESC & 1520 is an outer rotor brushless power kit specially designed for 1/24, 1/18, and 1/16 climbing cars. Mini size perfectly fits the small-scale cars, which not disrupt the original car's counterweight and center of gravity balance.

• Sealed glue filling design for PCBand metal aluminum box radiatormake it waterproof and dustproof, offering comprehensiveprotection.

• Features with high-quality bearings, hardened motor shaft, reinforced metal outer rotor, extra-soft silicone wire, high-temperature resistant magnets, and enameled wire, the 1520 motor has high efficiency, low consumption, and higher energy conversion.

• Upgraded electronic switch design, say goodbye to the wear and tear of traditional mechanical switches, easily start and stop with a press, with sensitive response and longer life.

• Intelligent parameter adjustment system, just connect to a mobile phone or computer at will to adjust various parameters such as motor timing, brake force, throttle mode, low voltage protection, over-temperature protection, etc.Freely adjust the performance of the climbing car to create a unique car.

• This ESC is equipped with a built-in 6V 3A BEC for high stable output, and a powerful steering engine for more decisive turning, more power.

• Plug and play, equipped with a variety of battery adapter cables to meet the needs of various car models on the market

Parameters of Product

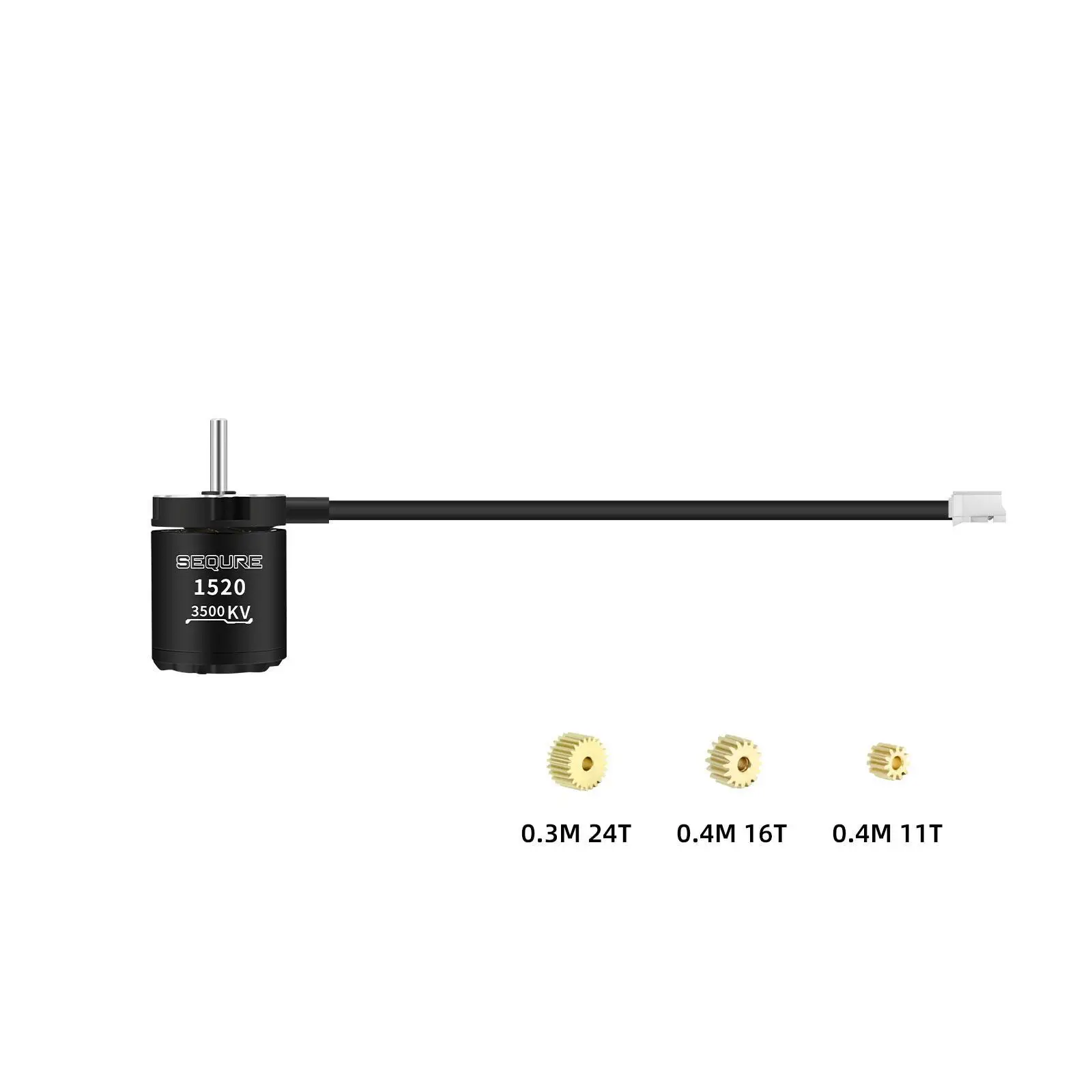

Model

1520 Motor

Working voltage

2-3S Lipo

Number of slots/magnetic poles

9N12P

Output shaftdiameter

2.0mm

Output shaftlength

9mm

KV value

3500KV

Motor wire

20AWG 100mmPH2.0-3P male connector

Mounting hole spacing

M2 screw holes, with spacings of 9mm/10mm/12.5mm

Product size

15.8*20.7mmexcluding wire

Product weight

16.8g(including wire)

Application scenarios

1/16, 1/18, 1/24 models
