IFlight XING-E pro 2207 1800KV 2450KV 2750KV Бесщеточный двигатель 2-6S Совместимый 5-дюймовый пропеллер для RC FPV Racing Drone DC5 XL5
Description
IFlight XING-E 2207 1800/2450/2750KV Unibell Brushless Motor 2-6S lipo Battery compatible 5 inch Propeller for FPV Racing Drone
This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Specifications
| Option | Values |
|---|---|
| Motor KV |
|
| Battery Cell Count |
|
| Size |
|
Product Details
IFlight XING-E 2207 1800/2450/2750KV Unibell Brushless Motor 2-6S lipo Battery compatible 5 inch Propeller for FPV Racing Drone
This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Specifications:
Configuration: 12N14P
Stator Diameter: 24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension: 28.5x19.7mm
Weight: 33.8g (150mm wires)
Idle Current @12.6v (Io): 1.2 A
Cells (LiPo): 2-6S
Max Burst Current <10s: 35.22A
Max Power (W) 60s: 845W
Internal Resistance (Rm): 81.5mΩ
Motor Wire Length: 150mm / 20AWG
Package included:

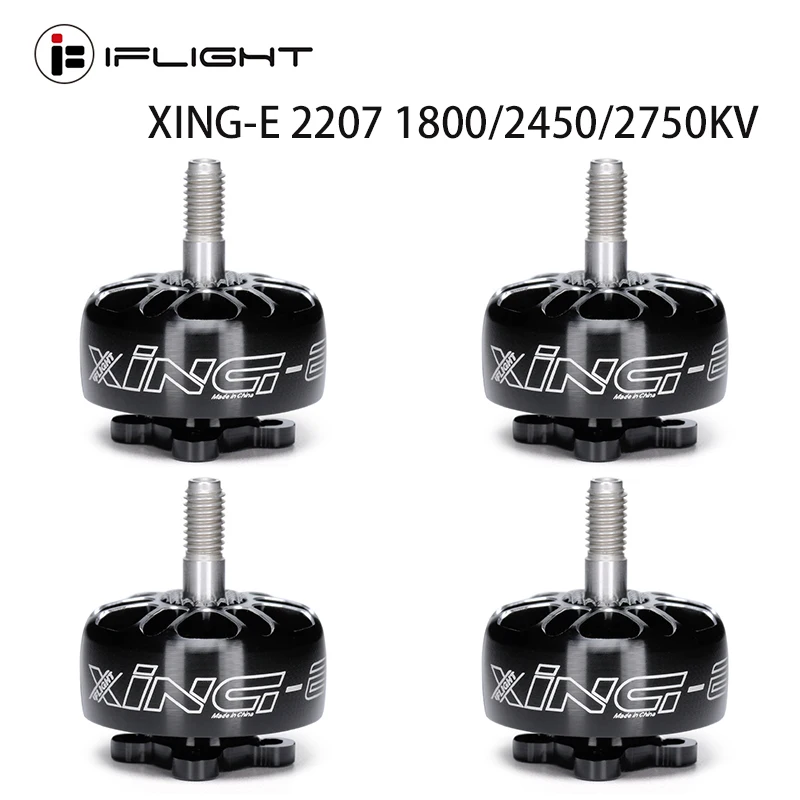

4pcs XING-E 2207 motor
