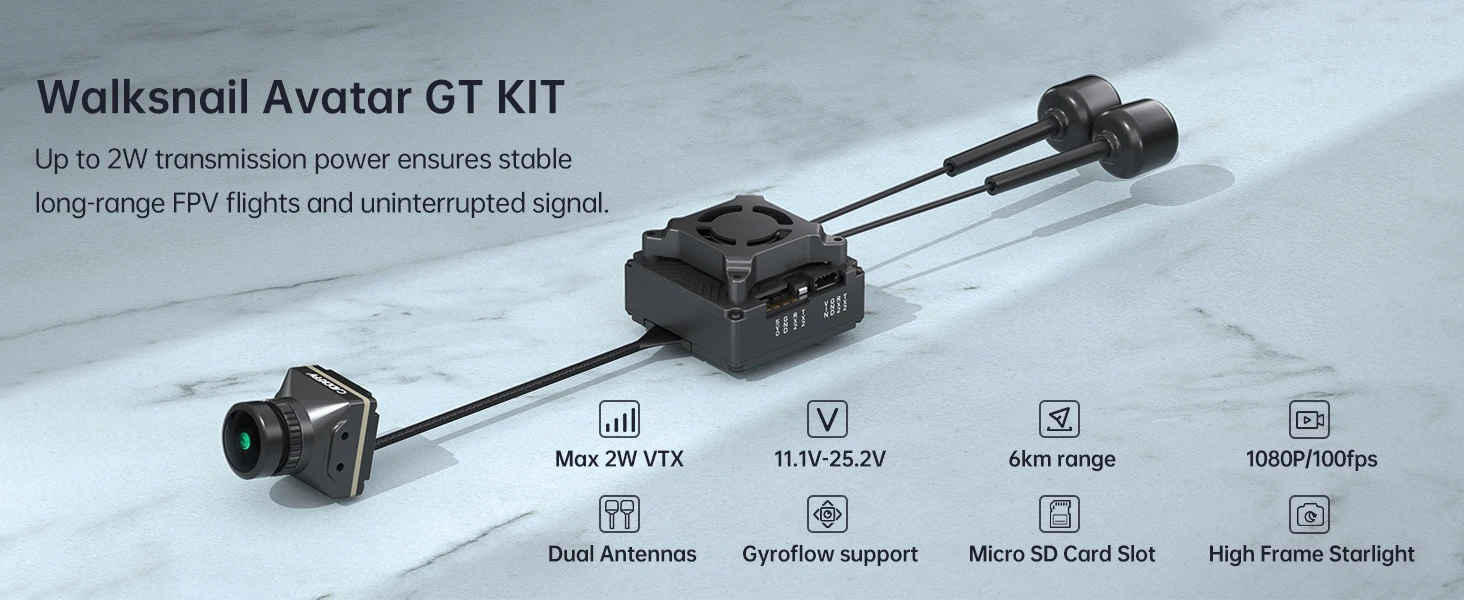

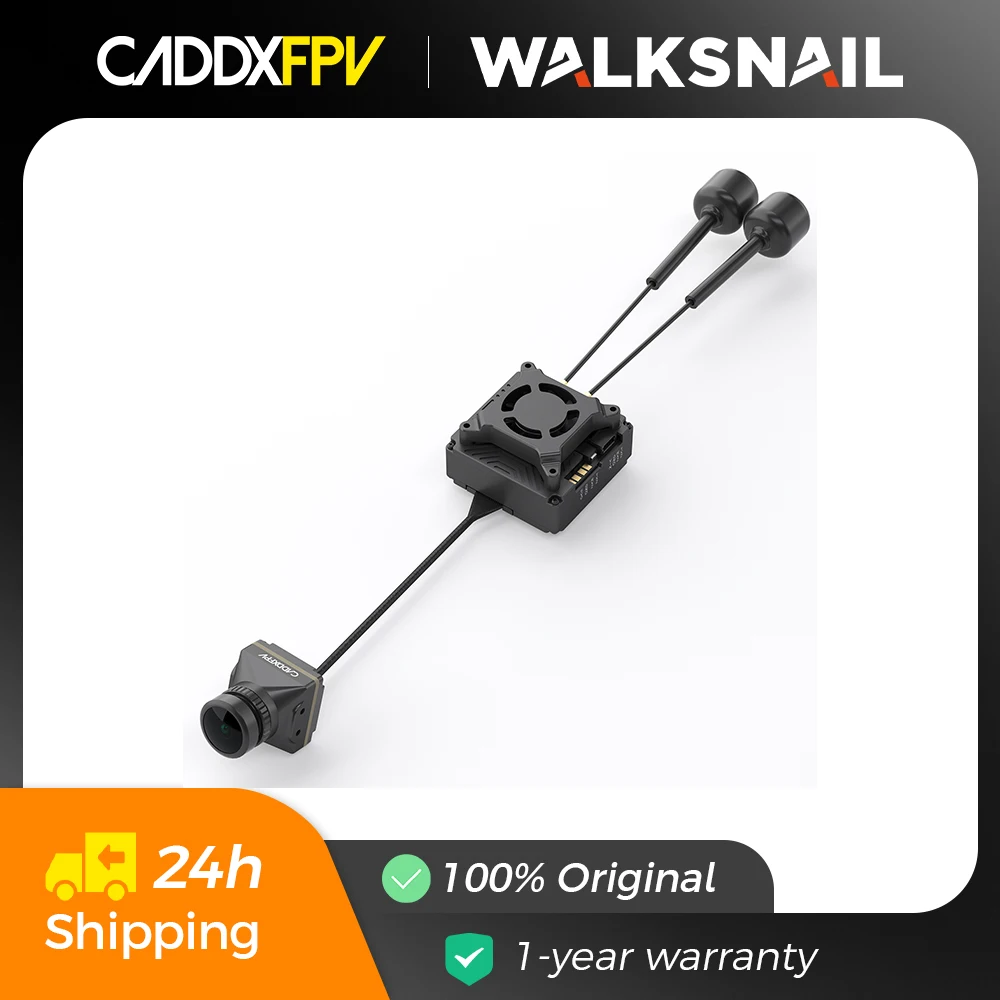

Caddxfpv Walksnail Avatar GT KIT Avatar HD Pro камера 1080P 160 ° FOV гироскопическая камера 1/1,8 дюйма, комплект передачи FPV Cam VTX 5,8G 2 Вт
Description
Please remember that the order value does not include tax and VAT fees. we do not bear any tax and vat. you should pay tax and vat by yourself! if you mind import tax and VAT. Please do not place a order! Thank you.
2W (Max)
Long Range
11.1V-25.2V
1080P 100fps
Dual Antennas
High Frame Starlight
Micro SD Card Slot
Compatible Moonlight Camera（DVR 4K）
Bullet Points:

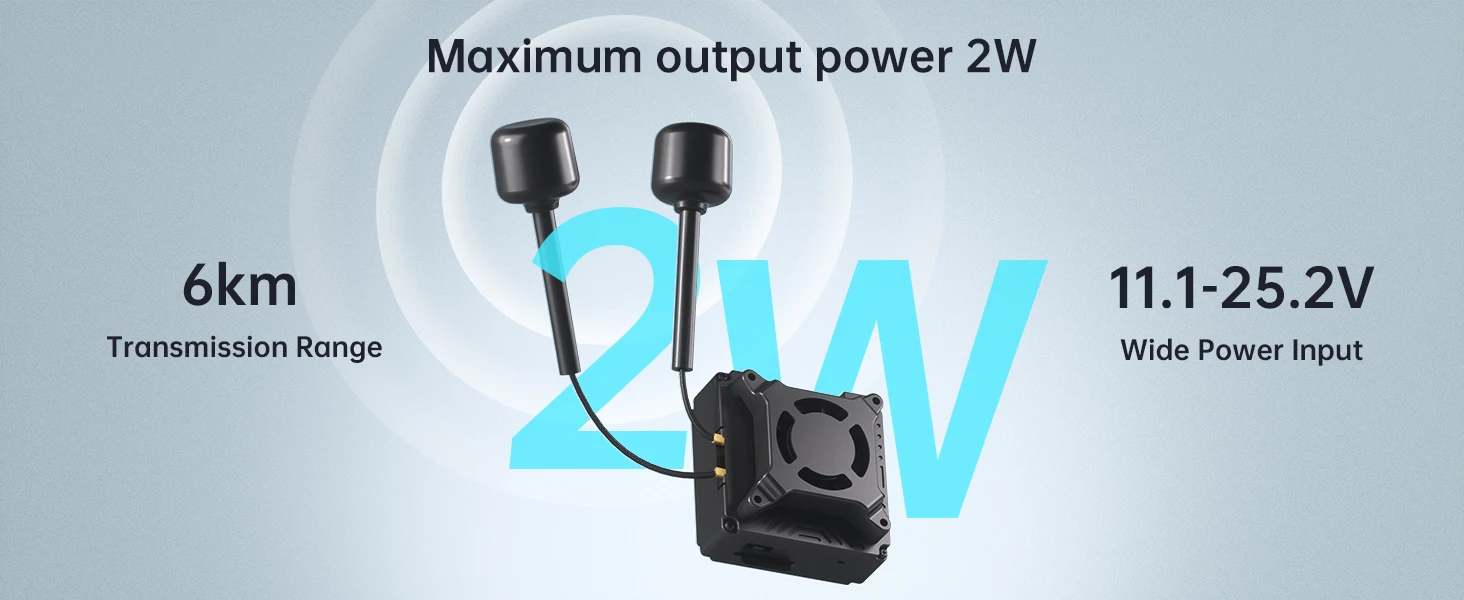

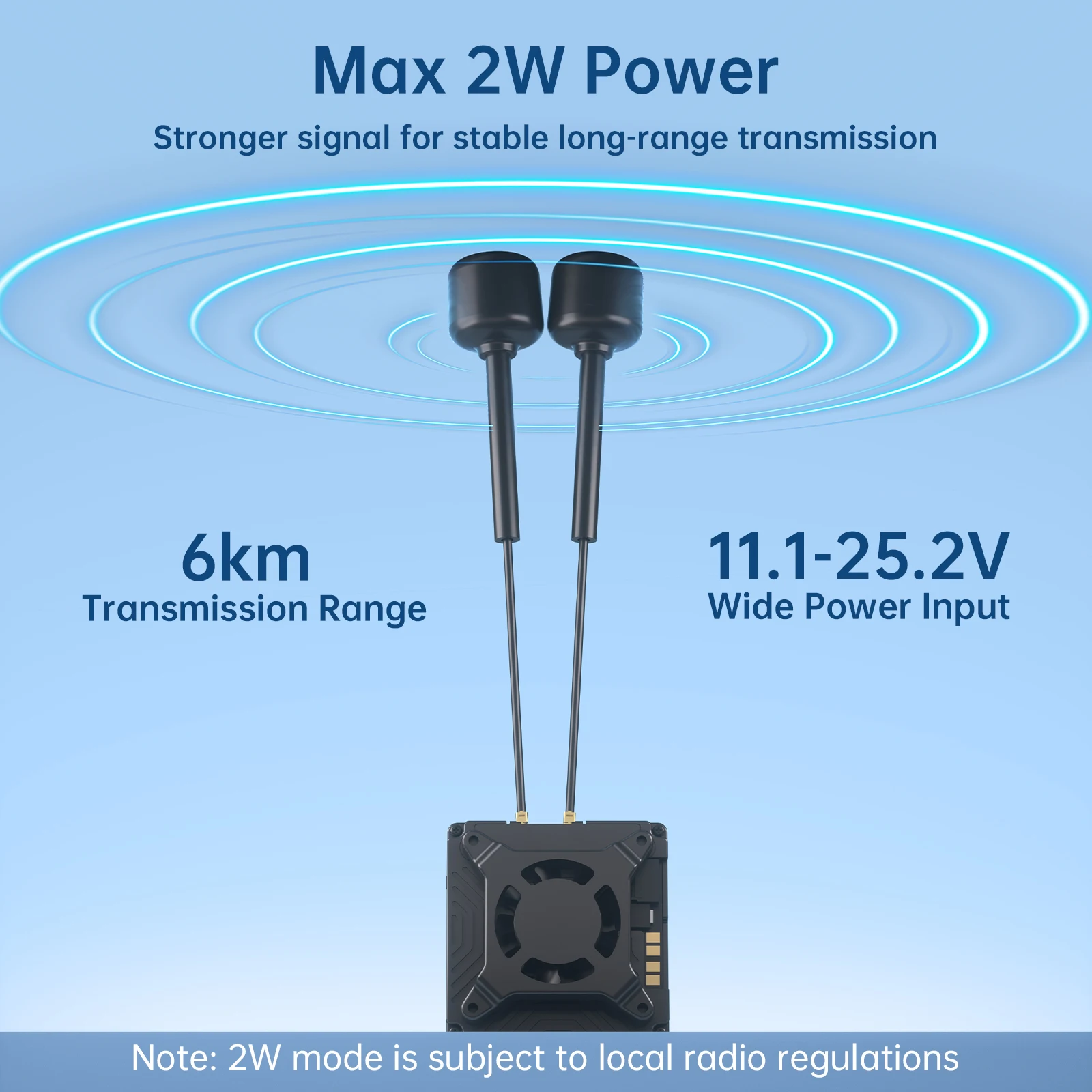

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

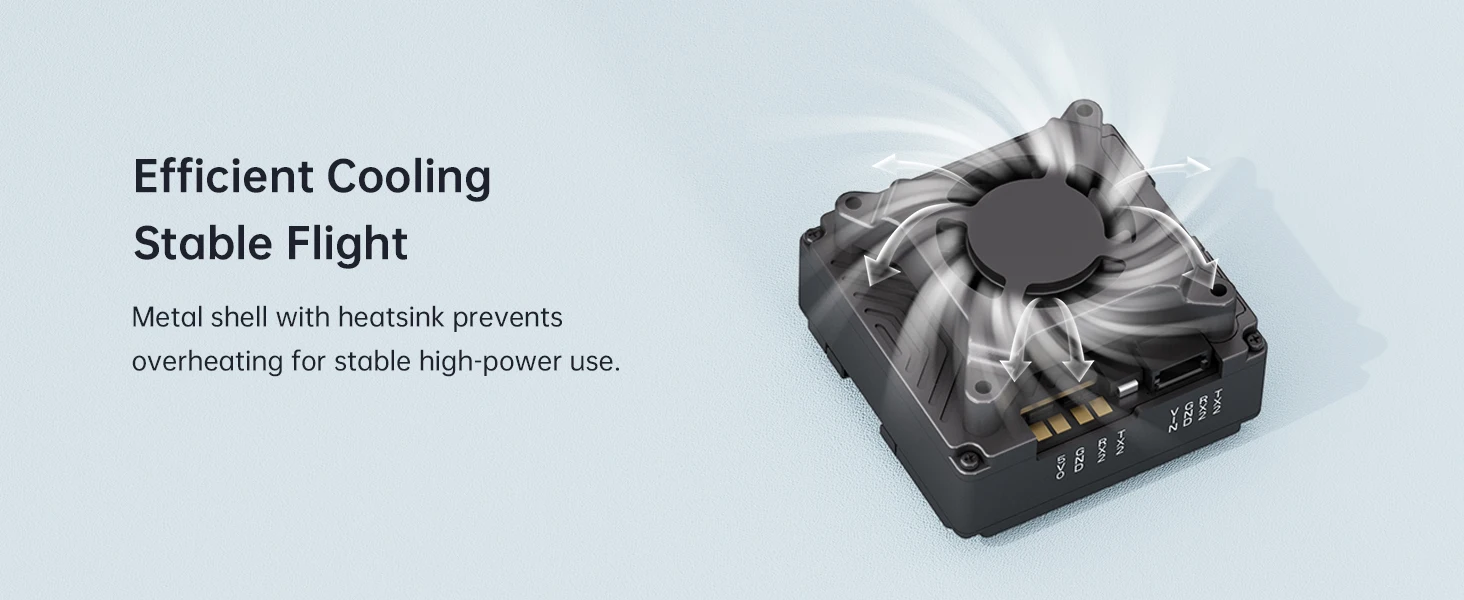

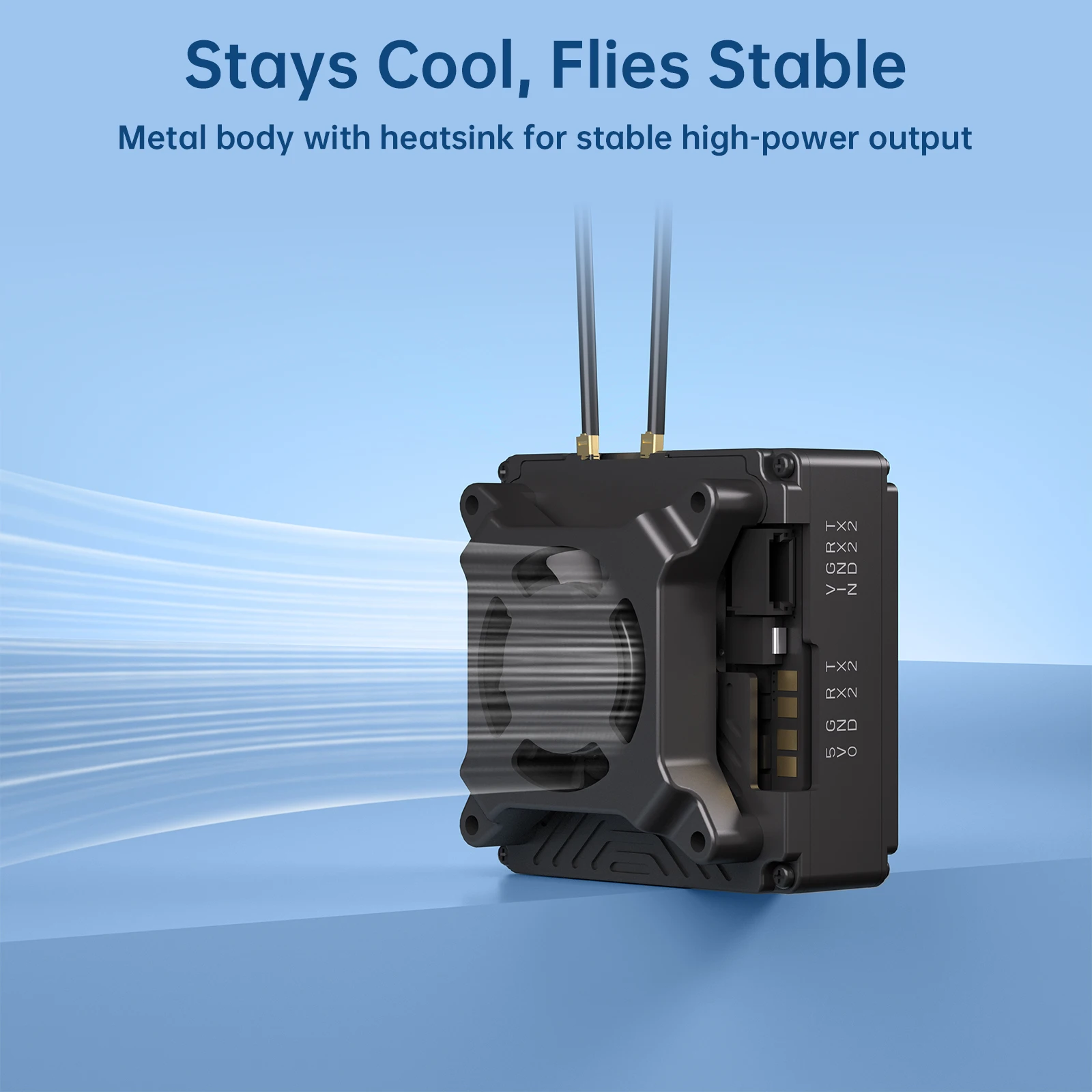

The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.
The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.
The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.
The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.

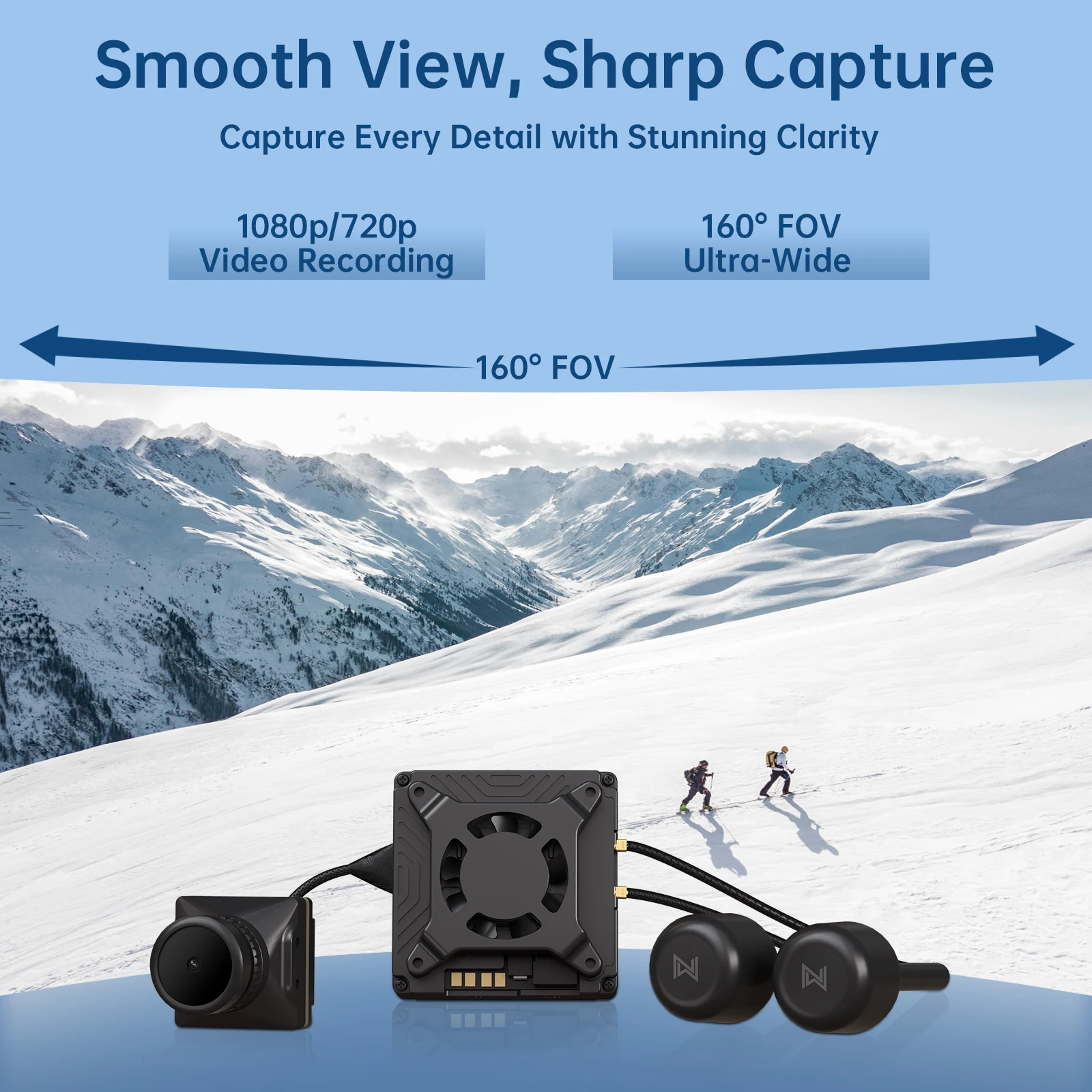

Avatar GT comes with a Pro camera, equipped with a 1/1.8-inch Sony Starvis II sensor, providing excellent night vision capabilities with clarity comparable to daytime.
The camera supports Gyroflow, take you smooth and stable video quality.
It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
Note: Check area for risk of use before use.

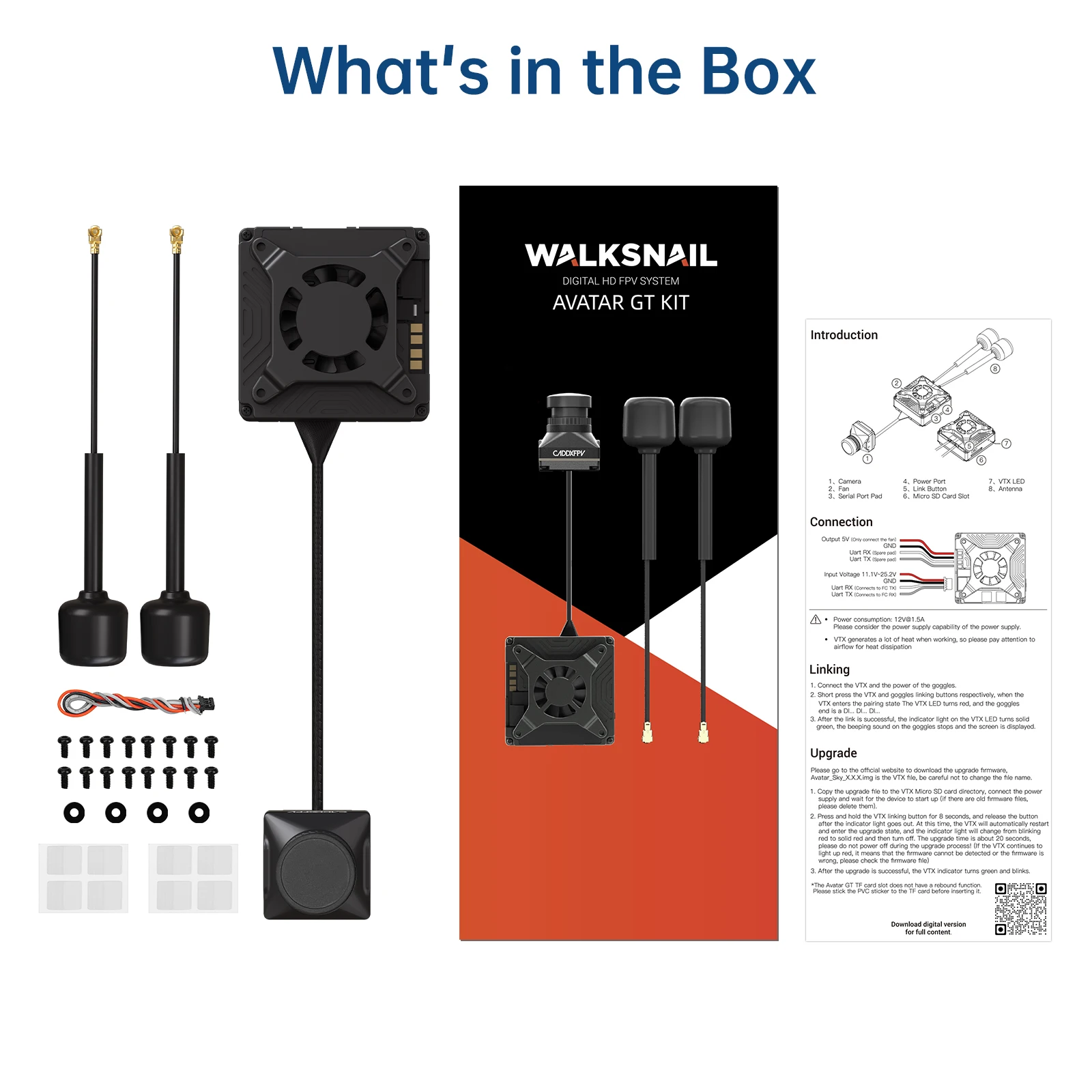

Packing List：
1 x Walksnail Avatar GT KIT
1 x Quick Guide
2 x M2*4mm screws
2 x M2*5mm screws
2 x M2*6mm screws
2 x M2*5*0.5mm spacer
2 x SD card stickers
1 x 4pin power cord
Specifications
| Option | Values |
|---|---|
| Size |
|
Product Details
Please remember that the order value does not include tax and VAT fees. we do not bear any tax and vat. you should pay tax and vat by yourself! if you mind import tax and VAT. Please do not place a order! Thank you.
2W (Max) | Long Range |
11.1V-25.2V | 1080P 100fps |
Dual Antennas | High Frame Starlight |
Micro SD Card Slot | Compatible Moonlight Camera（DVR 4K） |
Bullet Points:
Specification | |
Camera | |
Model | Avatar HD Pro Camera |
Image Sensor | 1/1.8-Inch Sony Starvis Ⅱsensor |
Resolution | 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps; |
Ratio | 16/9; 4/3 |
Lens | 8Mp |
FOV | 160° |
Aperture | F1.6 |
Shutter | Rolling shutter |
Min.Illumination | 0.00001Lux |
Weight | 9.5g |
Dimensions | 19*19*24mm |
Coaxial Cable | 140mm |
Gyroflow | supported |
VTX | |
Model | Avatar GT |
Communication Frequency | 5.725-5.850 GHz |
Transmitter Power (EIRP) | FCC: <30dBm, MAX:33dBm ; CE: <14dBm; |
I/O Interface | Micro SD card slot; JST1.0*4(power cable) |
Supported SD Cards | Micro SD (up to 256 GB) |
Mounting Holes | 25.5*25.5mm; 20*20mm |
Dimensions | 34*34*23mm |
Recording | 1080p/720p |
Weight | 41.6g (Antenna included) |
Operating Temperature | -10-40℃ |
Channels | 8 |
Wide Power Input | 11.1V-25.2V |
Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPilot |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 2(IPEX) |
Note: Check area for risk of use before use.
Packing List：
1 x Walksnail Avatar GT KIT
1 x Quick Guide
2 x M2*4mm screws
2 x M2*5mm screws
2 x M2*6mm screws
2 x M2*5*0.5mm spacer
2 x SD card stickers
1 x 4pin power cord
