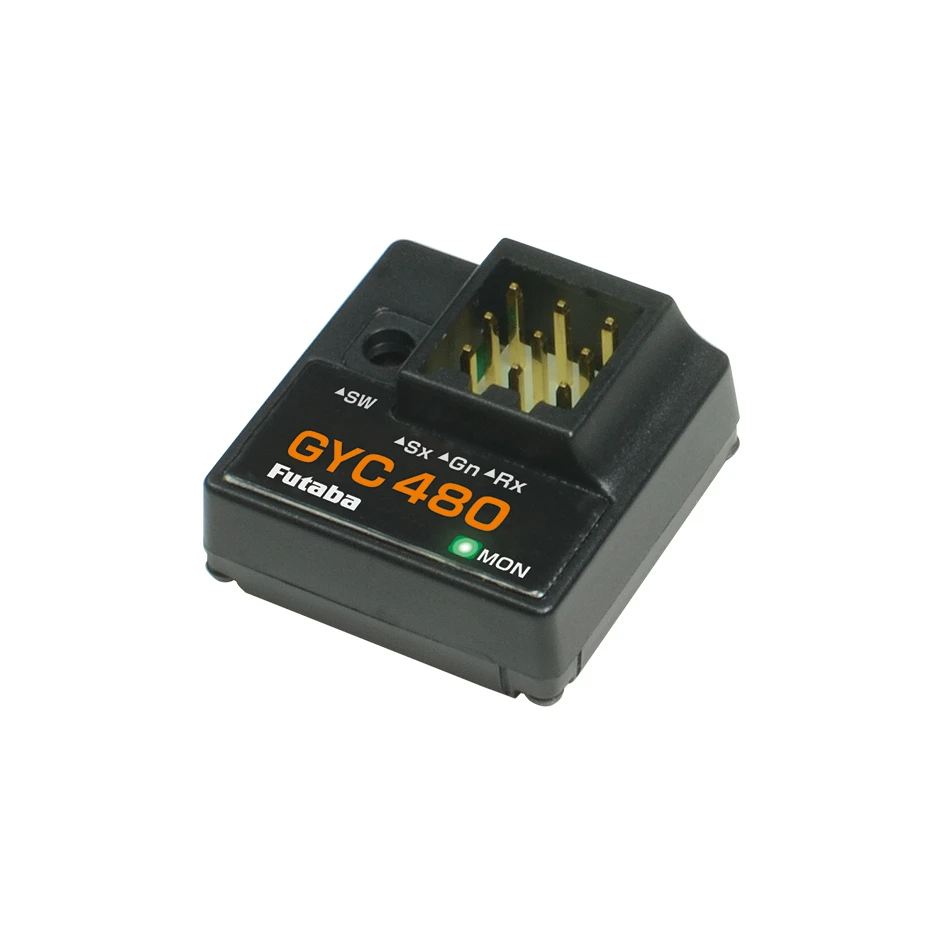

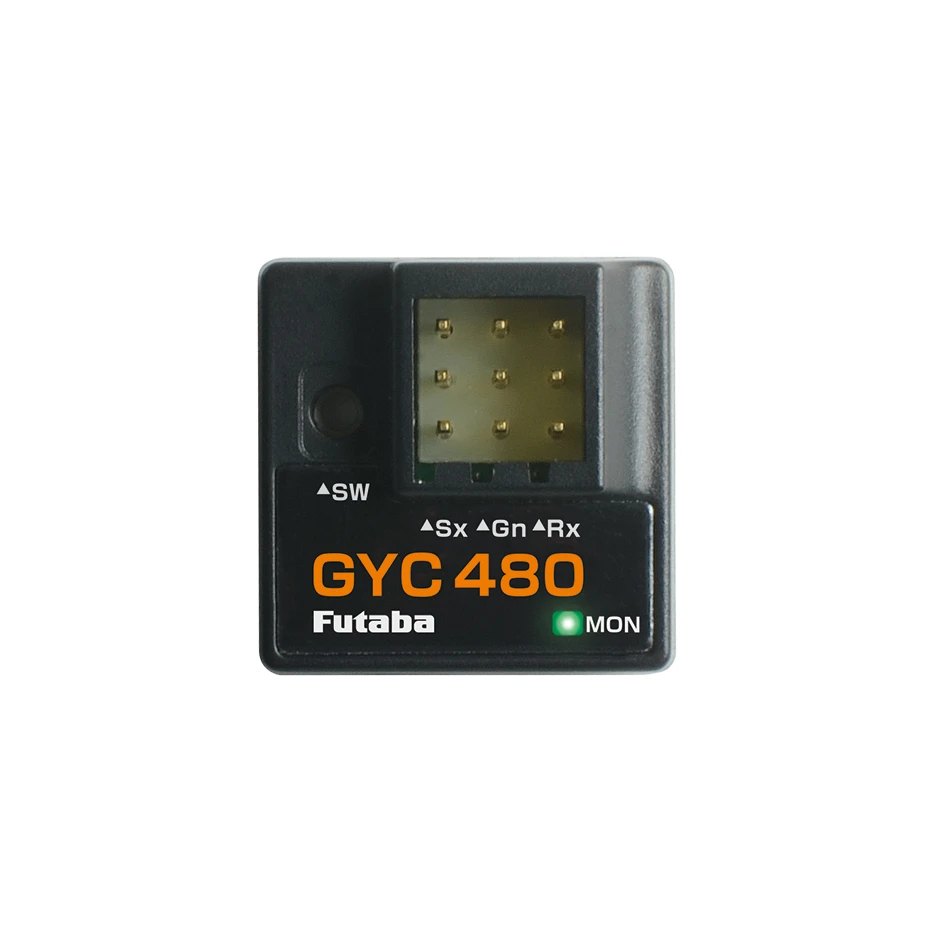

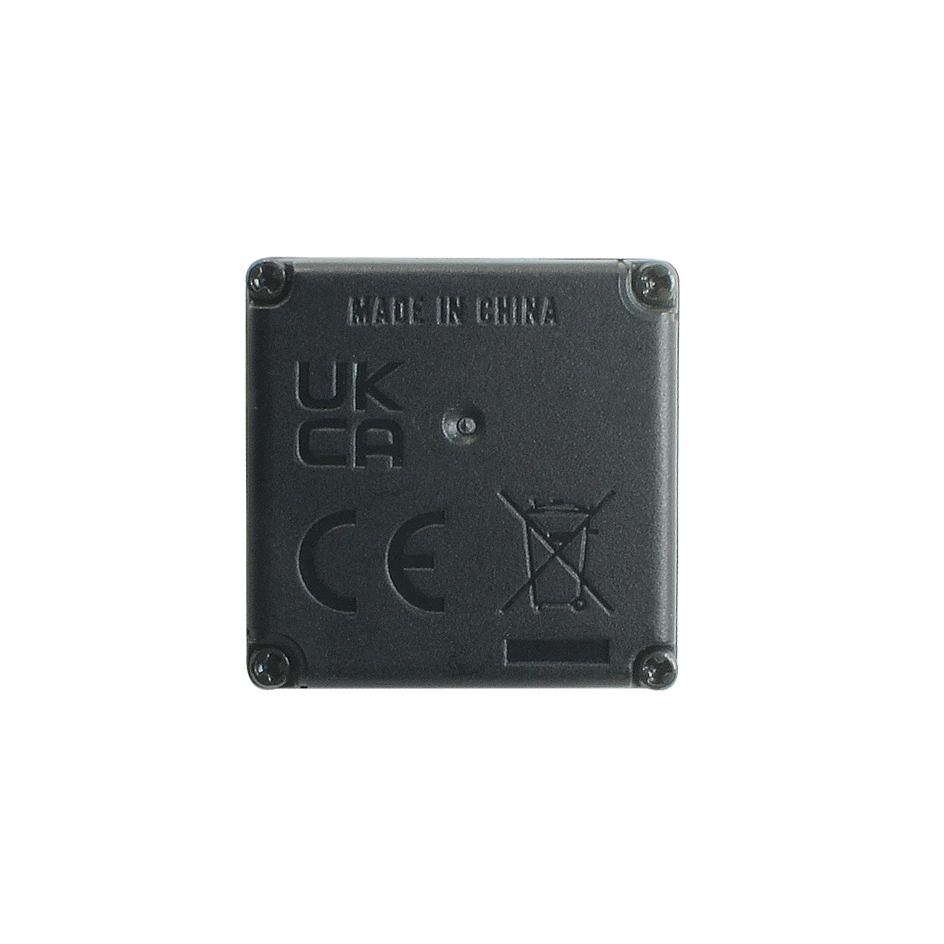

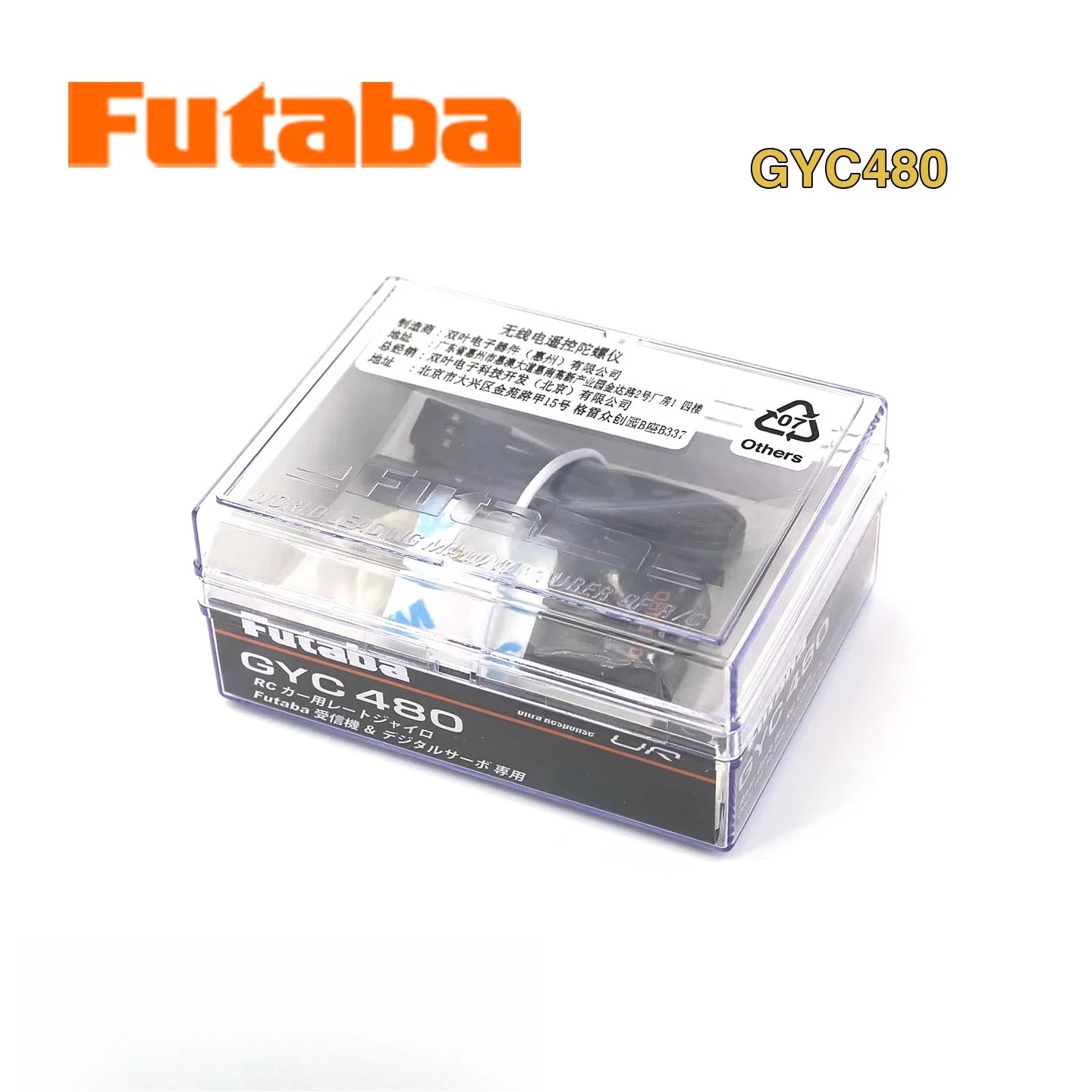

Гироскоп FUTABA GYC480 с беспроводными настройками и режимом UR для радиоуправляемых машинок
Description
(Sensor Integrated Rate Gyro)
●Angular Velocity Detection Method: Vibration Gyro Sensor
●Operating Voltage: DC 4.0 V to 8.4 V
●Current Consumption: 30 mA (Servo Not Connected)
●Operating Temperature: -10°C to +45°C
●Dimensions: 20.7 x 20.7 x 11.0 mm (excluding protrusions)
●Weight: 3.7 g
●Functions: Monitor LED, S.BUS/S.BUS2 Compatible
[Features]
●Compatible with the F-4G High-Speed Response System's UR/SR mode servos.
●Remote Gain Function: Gyro sensitivity can be set from the transmitter. (Requires a transmitter/receiver with 3 or more channels and capable of 3-channel steering angle adjustment.)
●RC Car-Specific Settings: Reduces the impact of road conditions while providing comfortable straight-line and cornering performance through a synergistic effect with UR mode response, helping to improve lap times.
●Ultra-compact and lightweight: Utilizing high-density packaging technology, we have achieved an ultra-compact and lightweight design.
●Compatible with S.BUS systems (also compatible with non-S.BUS systems): Compatible with S.BUS systems when used with an S.BUS receiver.
●Digital servos only: Compatible with Futaba HPS/BLS servos and digital servos. Analog servos cannot be used.
●Normal/AVCS mode
●High-speed response mode
●Turn-in adjustment
●Gyro curve adjustment
●Left/right endpoint adjustment
●EXP rate adjustment
●Stick priority mode adjustment
●Wireless adjustment function
*Wireless settings are only available with the F-4G systems of the T10PX, T6PV, R404SBS, and R404SBS-E.
A software update is required for the T10PX, T6PV, R404SBS, and R404SBS-E to support wireless settings for the GYC480 and GYD560.
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
(Sensor Integrated Rate Gyro)
●Angular Velocity Detection Method: Vibration Gyro Sensor
●Operating Voltage: DC 4.0 V to 8.4 V
●Current Consumption: 30 mA (Servo Not Connected)
●Operating Temperature: -10°C to +45°C
●Dimensions: 20.7 x 20.7 x 11.0 mm (excluding protrusions)
●Weight: 3.7 g
●Functions: Monitor LED, S.BUS/S.BUS2 Compatible
[Features]
●Compatible with the F-4G High-Speed Response System's UR/SR mode servos.
●Remote Gain Function: Gyro sensitivity can be set from the transmitter. (Requires a transmitter/receiver with 3 or more channels and capable of 3-channel steering angle adjustment.)
●RC Car-Specific Settings: Reduces the impact of road conditions while providing comfortable straight-line and cornering performance through a synergistic effect with UR mode response, helping to improve lap times.
●Ultra-compact and lightweight: Utilizing high-density packaging technology, we have achieved an ultra-compact and lightweight design.
●Compatible with S.BUS systems (also compatible with non-S.BUS systems): Compatible with S.BUS systems when used with an S.BUS receiver.
●Digital servos only: Compatible with Futaba HPS/BLS servos and digital servos. Analog servos cannot be used.
●Normal/AVCS mode
●High-speed response mode
●Turn-in adjustment
●Gyro curve adjustment
●Left/right endpoint adjustment
●EXP rate adjustment
●Stick priority mode adjustment
●Wireless adjustment function
*Wireless settings are only available with the F-4G systems of the T10PX, T6PV, R404SBS, and R404SBS-E.
A software update is required for the T10PX, T6PV, R404SBS, and R404SBS-E to support wireless settings for the GYC480 and GYD560.
