Набор тюнеров FUTABA TM-18/включает приемник R9001SB. Требуется FDLS-1/DLPH-1.1.
From US $195.00 - US $195.00
Est. US $195.00 - US $195.00 / unit (1-9 pcs)
$181 @ 10+ pcs$172 @ 100+ pcs
Description
Product Features
Features
Utilizes 920MHz spread spectrum communication technology
Uses a unique transmitter ID to prevent interference from other AdRCSS 920MHz systems
· Features a fault protection function (3-channel only)
Recommended Usage
- Recommended for use with the FDLS-1, DLPH-1, DLPH-2, or receivers supporting dual-receiver link systems (such as the R7308SB and R7208SB), using the AdRCSS 920MHz system as a backup for the 24GHz system.
*Due to differences in communication speeds between systems, slight differences in operation after switching may occur. This is normal.
Compatible Transmitters: T32MZ WC, T32MZ, T18SZ, T16IZ, T16IZS
*The T16SZ and T12K do not have power supplied by the CRFS port and require an additional power supply.
Вариант
Выбранная ценаUSD 590.18
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Product Features
Features
Utilizes 920MHz spread spectrum communication technology
Uses a unique transmitter ID to prevent interference from other AdRCSS 920MHz systems
· Features a fault protection function (3-channel only)
Recommended Usage
· Recommended for use with the FDLS-1, DLPH-1, DLPH-2, or receivers supporting dual-receiver link systems (such as the R7308SB and R7208SB), using the AdRCSS 920MHz system as a backup for the 24GHz system.
*Due to differences in communication speeds between systems, slight differences in operation after switching may occur. This is normal.
Compatible Transmitters: T32MZ WC, T32MZ, T18SZ, T16IZ, T16IZS
*The T16SZ and T12K do not have power supplied by the CRFS port and require an additional power supply.
Specifications

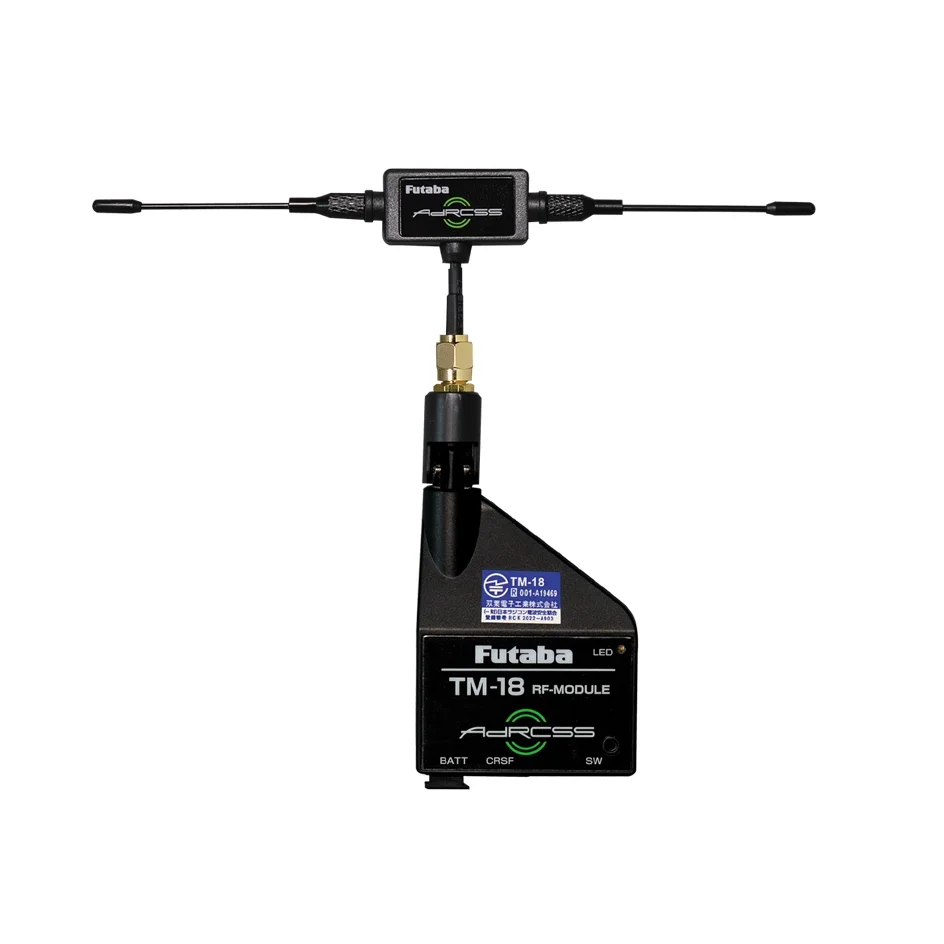

TM-18 RF Module
·Supports AdRCSS 920MHz systems/up to 16 channels (depending on transmitter settings)
Communication method: One-way communication (telemetry function not supported)
Compatible with all Futaba 2.4GHz systems (including FASSTest 18/12ch, FASST MULTI/7h, S-FHSS, and T-FHSS)
·Maximum operating current: 36mA
·Supports low power mode

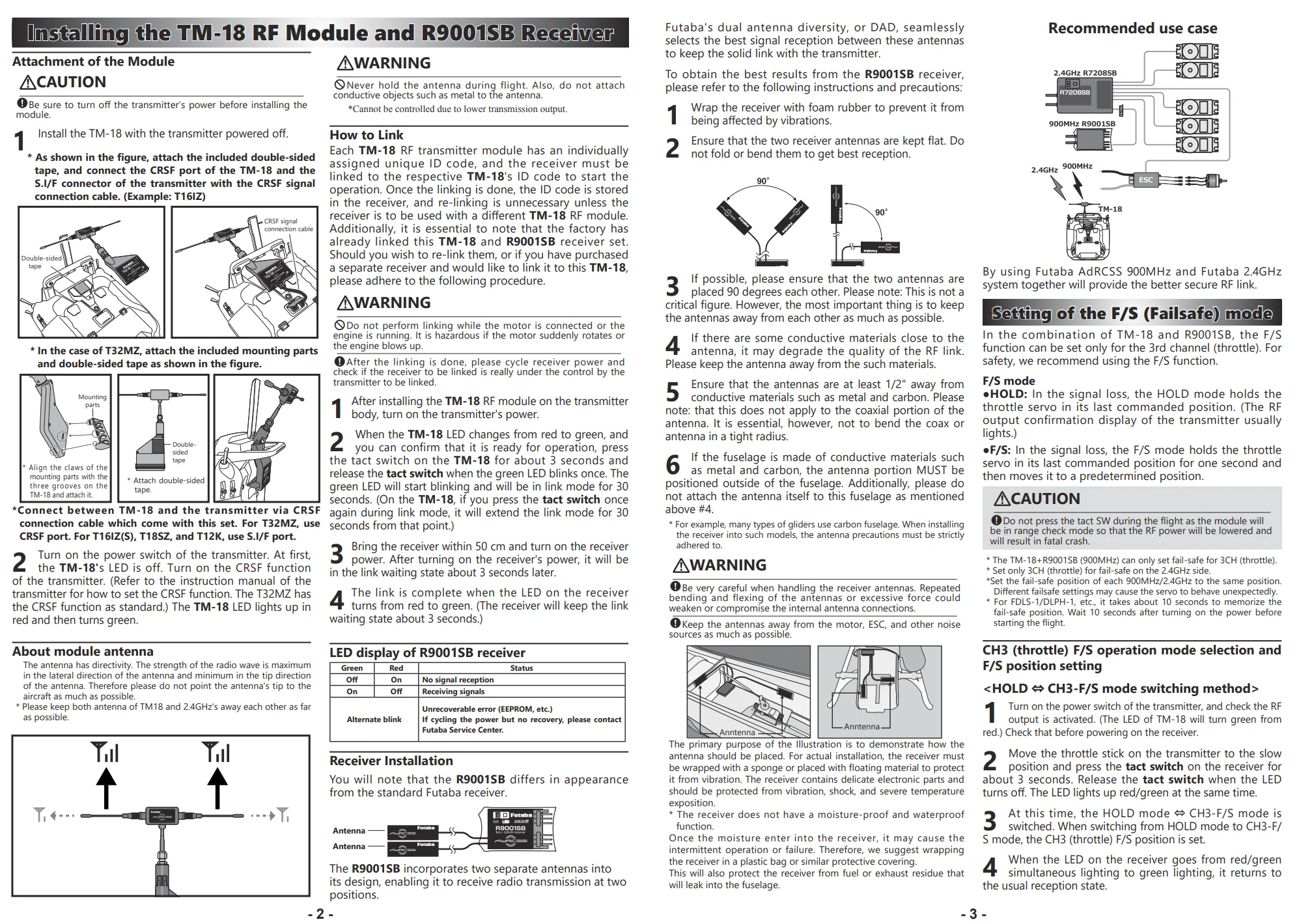

Transmitter Setup
T32MZ WC/T32MZ: Directly connect to the CRSF port for use.
T18SZ, T161Z, T16SZ, and T12K: CRSF mode must be enabled; S.BUS servo settings are not available in this mode.

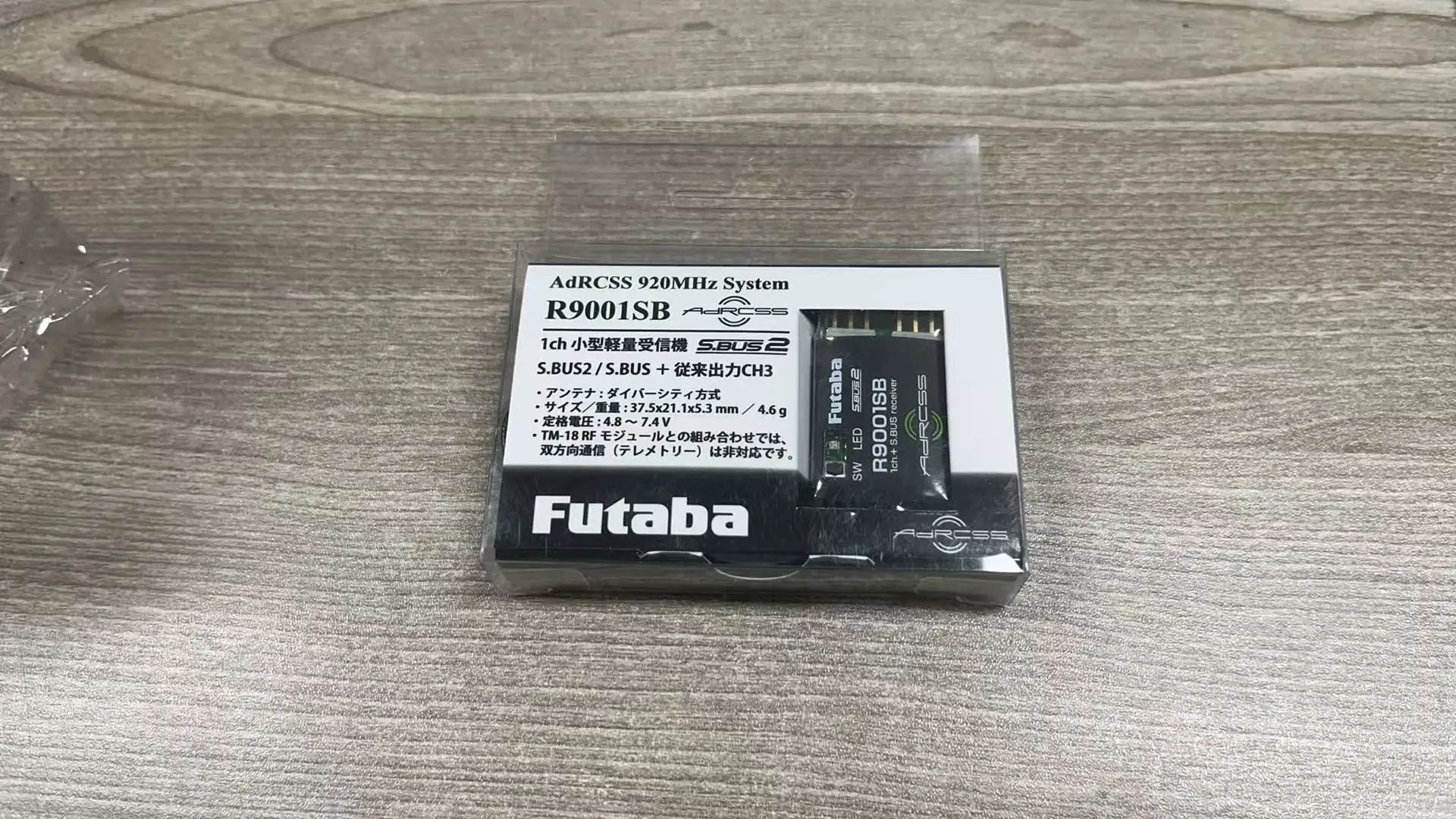

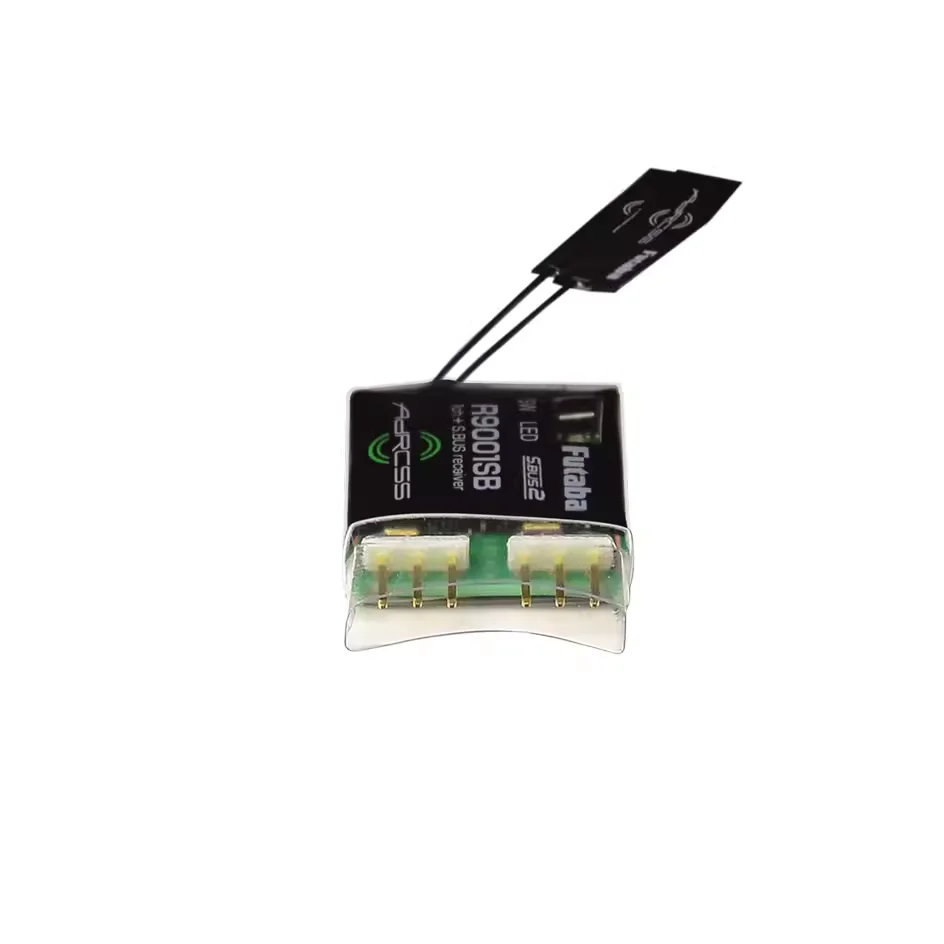

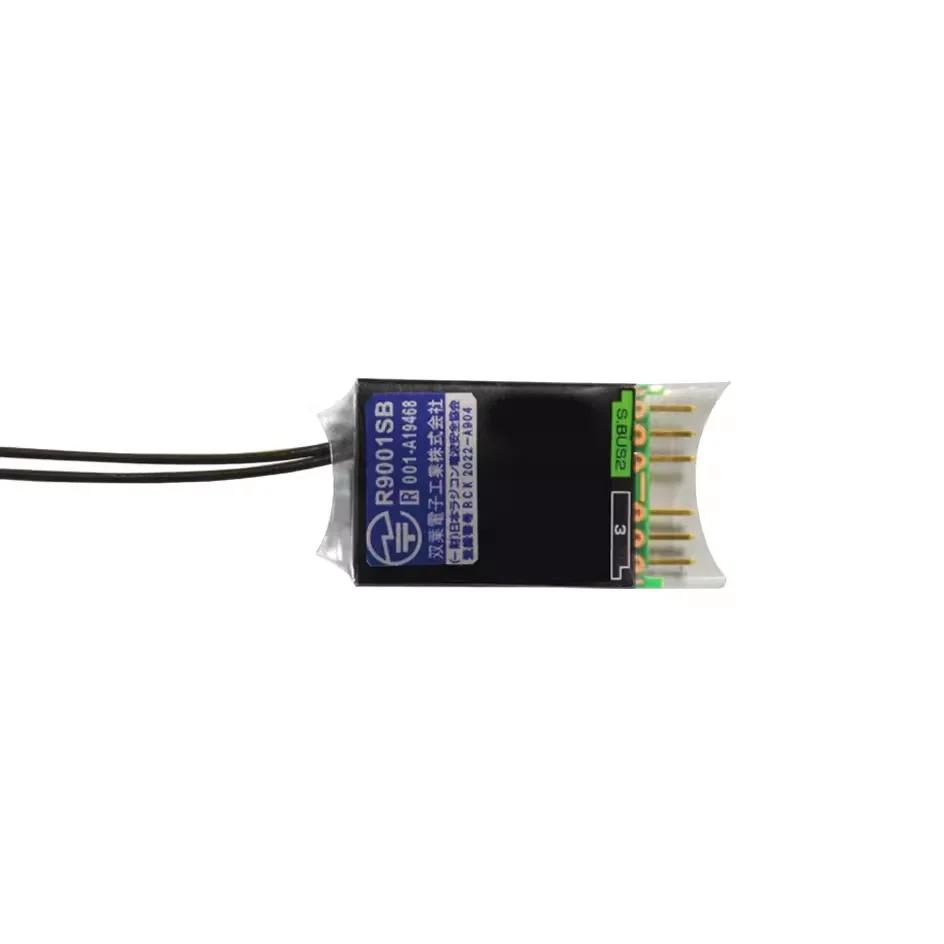

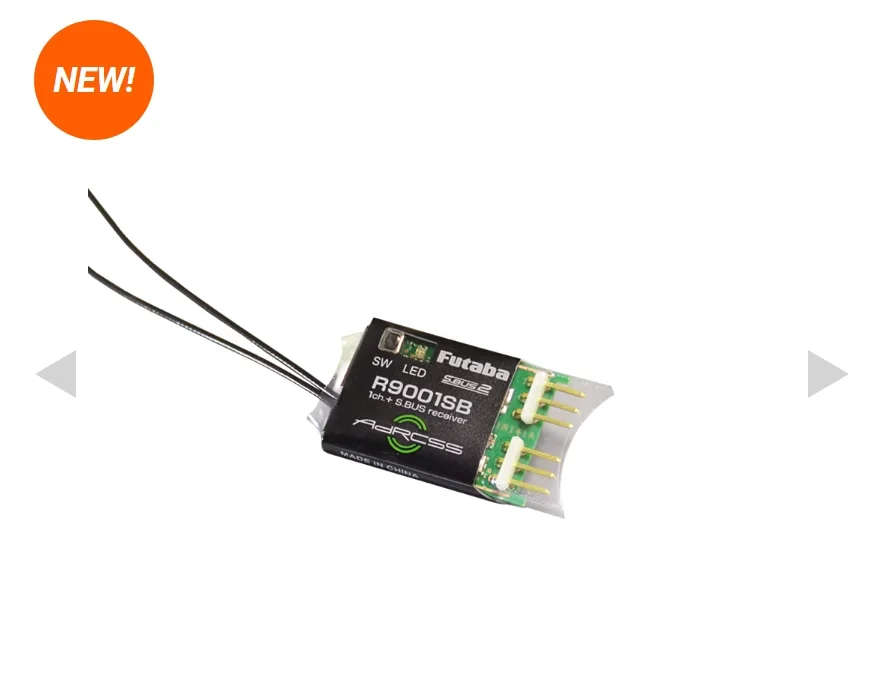

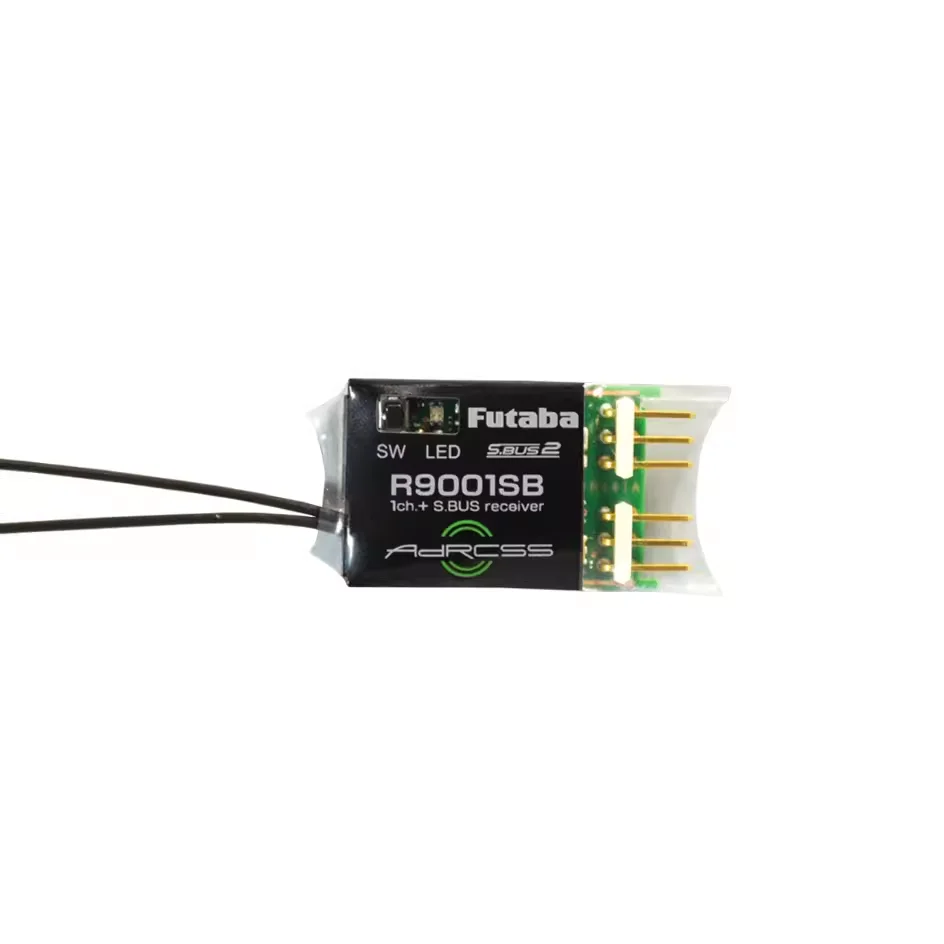

Product Features
Specifications
AdRCSS 920MHz System: Supports S.BUS2 input/output, S.BUS output + traditional system 3-channel output
Diversity Antenna Design
Power Requirements: 4.8V~7.4V (Does not accept dry cell batteries)
Failsafe (F/S): 3-channel only
Dimensions: 37.5mm x 21.1mm x 5.3mm
Weight: 4.6g
#### Precautions
· When using a BEC power supply, ensure its capacity meets the power requirements of the servos and other devices being used. Do not use dry cell batteries.
The maximum number of S.BUS/S.BUS2 output channels varies by transmitter model (unused channels will remain in neutral output).
When the Failsafe (F/S) function is triggered, the pre-set F/S channel switches to a safe position, while the remaining channels enter a hold state.
#### Compatibility Notes ※ This device does not support 2.4GHz systems and requires the TM-18 RF module.
