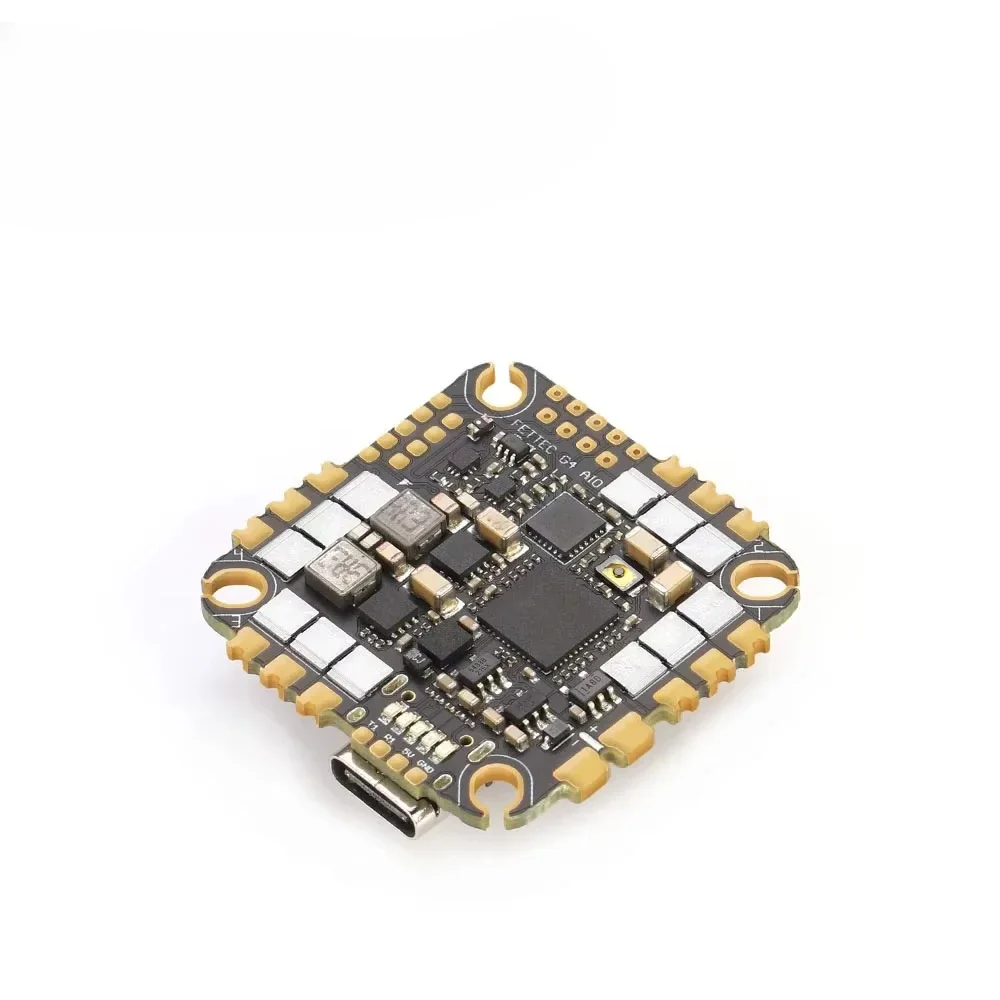

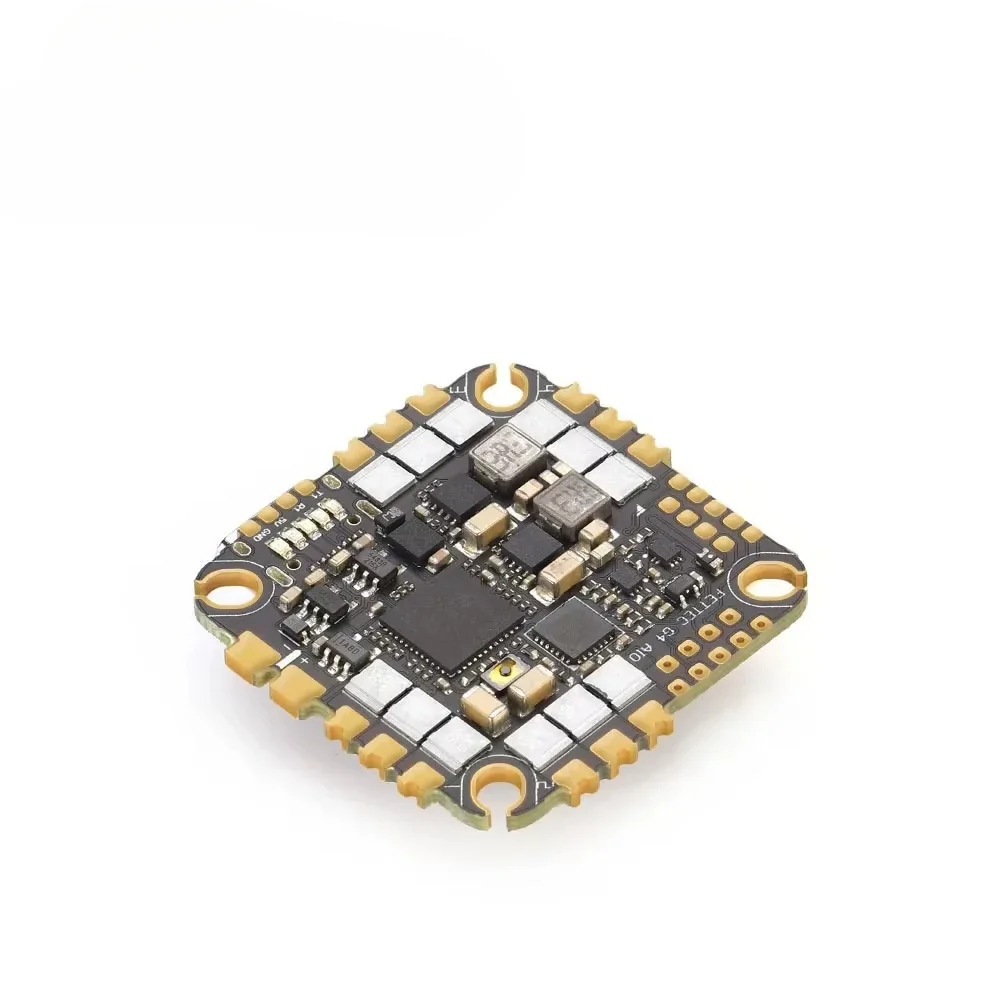

Контроллер полета Diatone MAMBA MK5 G4 AIO Alpha 40A 6S Dshot2400 «все в одном» с ESC 40A IIM-42652 гироскопом

My friend, welcome to our store, if you need other models of this product, please contact me, I will send you the product link to buy! Sometimes, shipping costs are inaccurate. Due to the complicated calculation of international logistics freight, we can not set each country one by one, thank you very much for your understanding! Please contact us for details. Add me on WHATSAPP(+8618273796506), my email is 907411895@qq.com

If you have any questions, please contact customer service WHATSAPP: +86 19073154013

FC Specifications

TargetAlpha

MCU: 170MHz STM32G473

GYRO: IIM-42652

OSD: Yes

Uarts: 4 Set

Motor Signal:4 Set

ESC Soft: Dshot300/600/1200/2400

Power Led: Yes

LED Controller: Yes

AIR UNIT Port: Yes

Buzz: Yes

Input: 4~6S Lipo (14.8~25.2V)

BEC Protection: Yes

Receiver Protection: Yes

TVS Protection: Yes

BEC: 10V 2A& 5V 2A

Mounting size: 25.5×25.5mm/M2

Overall dimensions: 35×34.5×6.5mm

ESC Specifications

Continue current: 40A×4

Burst current: 45A (10S)

TargetBLHeli_32 MAMBA F40_128K

SOFT: Dshot300/600/1200/2400

PWM:24~128K

Supply :

High Frequency 470uF/35V ×1

AIR UNIT sh1.0 ×1

16AWG 60mm ×2

AMASS Original XT60
