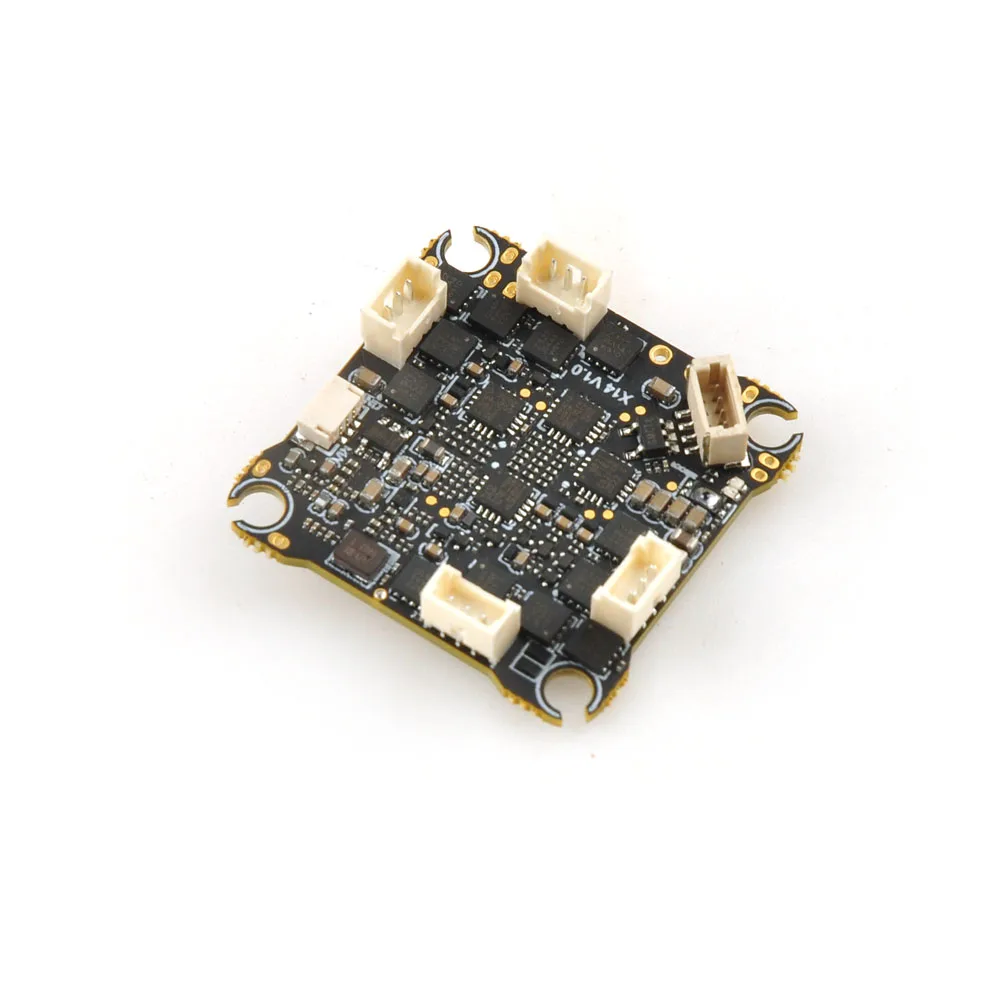

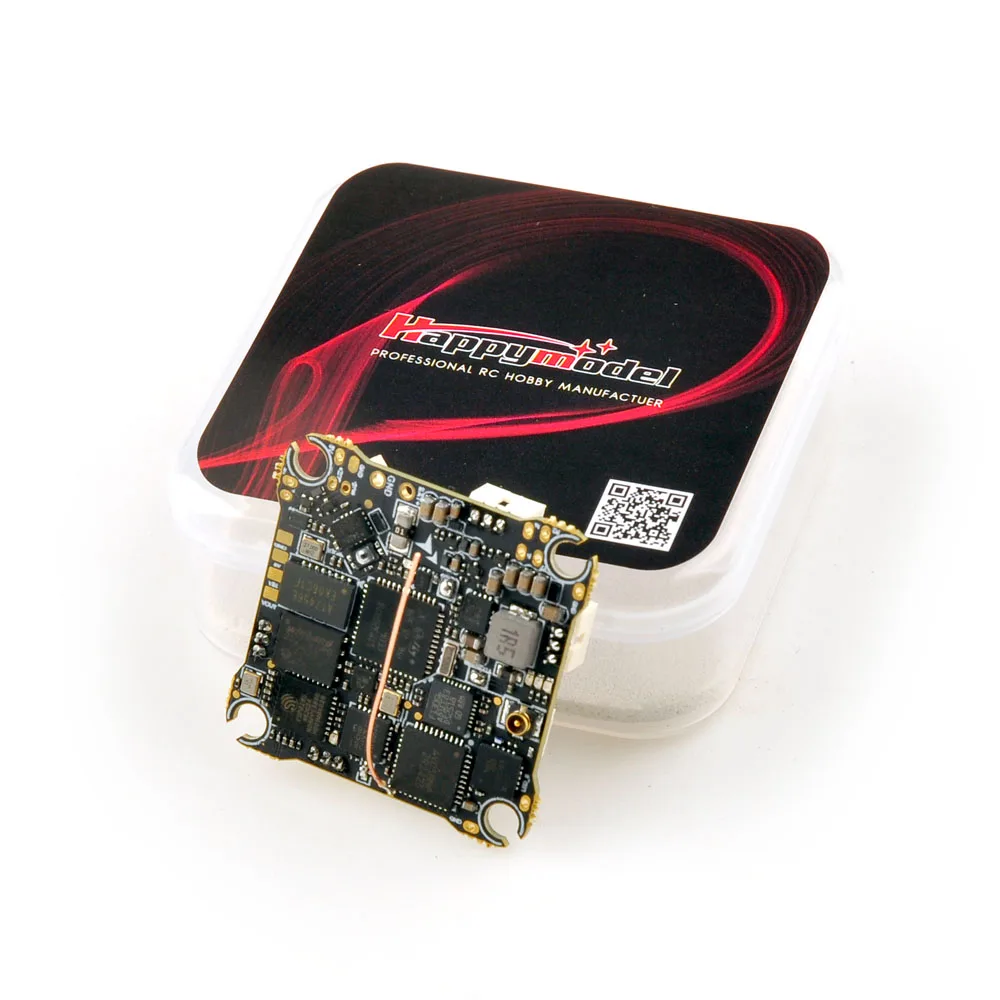

X14 ELRS flight controller is the updated version for X12ELRS PRO, this flight controller is based on STM32G473 MCU, provide more UARTs, built-in 12A 4-IN-1 ESC and Serial ELRS receiver, also comes with OPENVTX max power up to 400mw. It’s a good option for 75mm/85mm 2S whoops building.
FC
MCU: STM32G473CEU6
Gyro: ICM42688P
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V, Max. 2A
UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
BetaFlight OSD: AT7456ELAH
Camera plug: 0.8mm 3pin
ESC: 12A continuous
OPENVTX: 5.8GHz 48 channels, Max. 400mW
FC firmware target: CRAZYBEEG473
USB port: SH1.0-4Pin

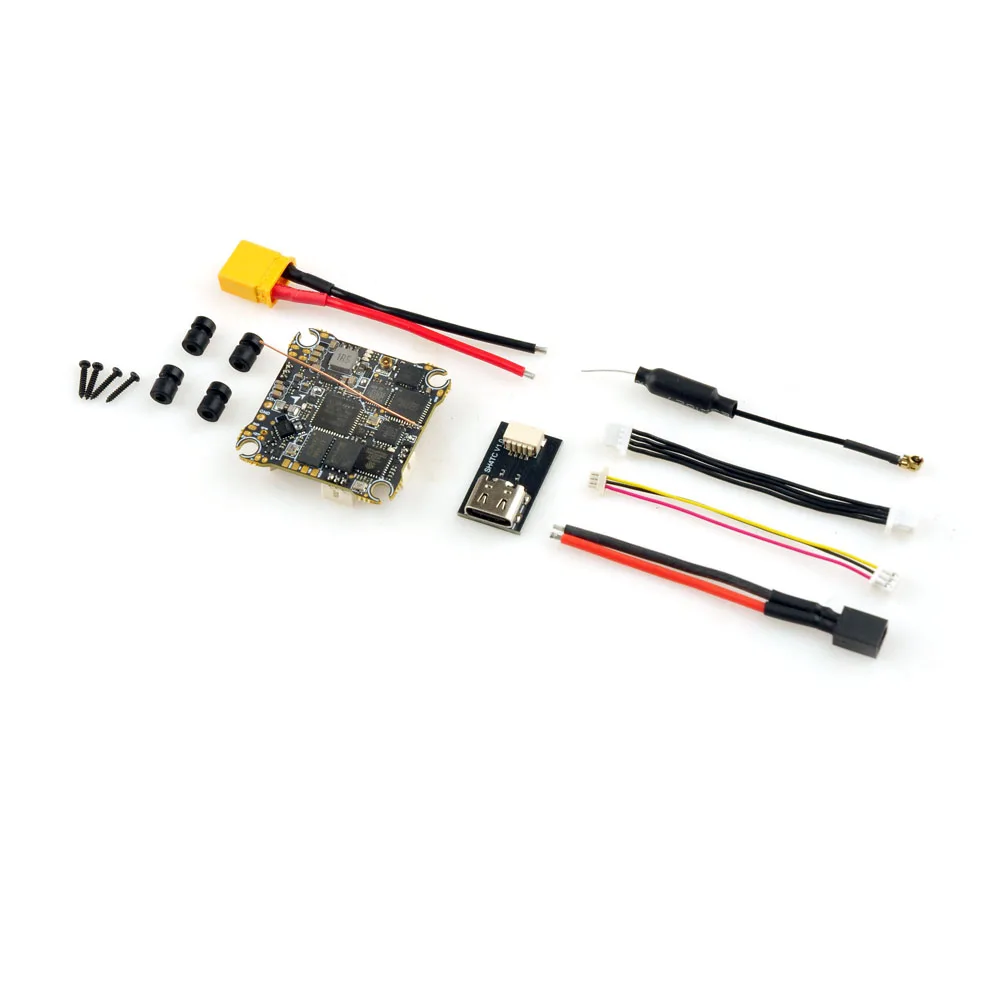

Battery connector: XT30 or A30
Mounting hole size: 5mm x 25.5mm

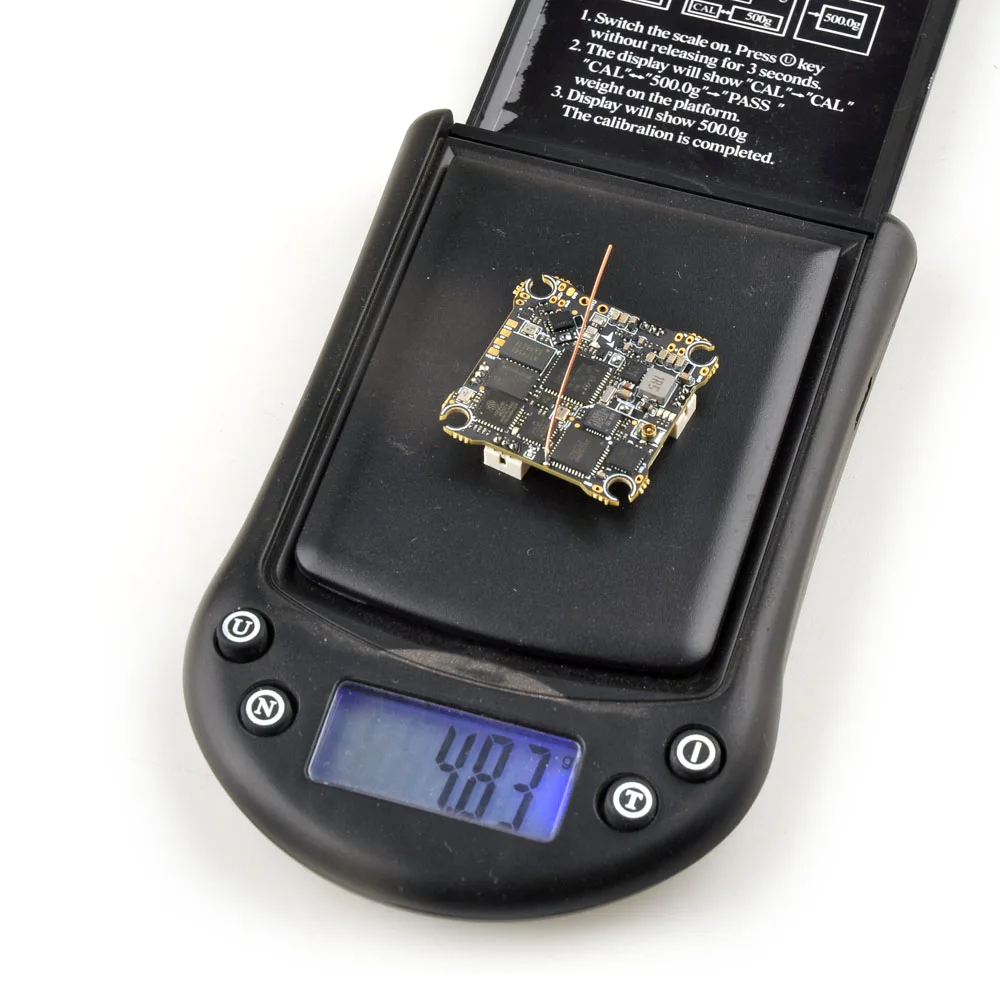

Weight: 83g without power pigtail and VTX antenna
ESC
Power input: 1-2S Lipo input
Current: 12A continuous, 15A peak
ESC firmware: V0.19 48KHz Bluejay
Firmware target: Z_H_30_48KHz
Digital signal protocol: DShot300, DShot600

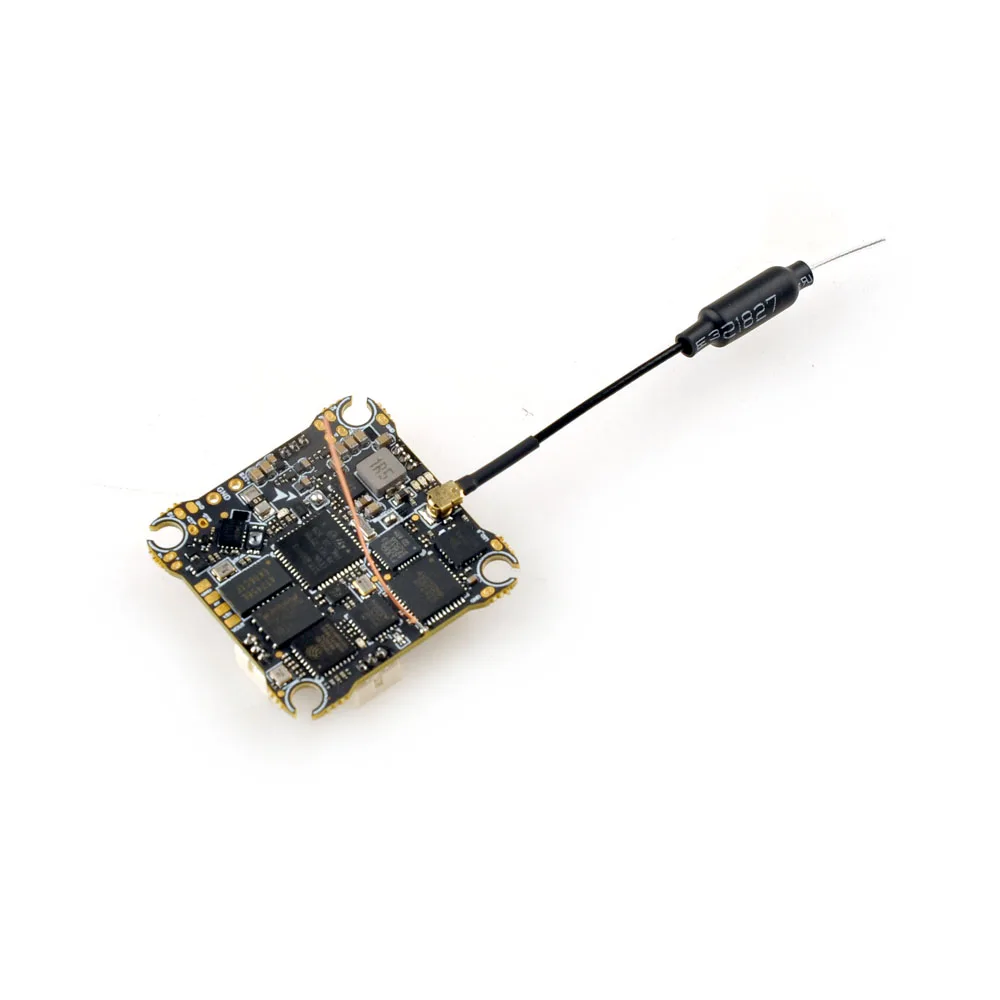

VTX
OPENVTX Firmware
Support firmware upgrade by openvtx configurator

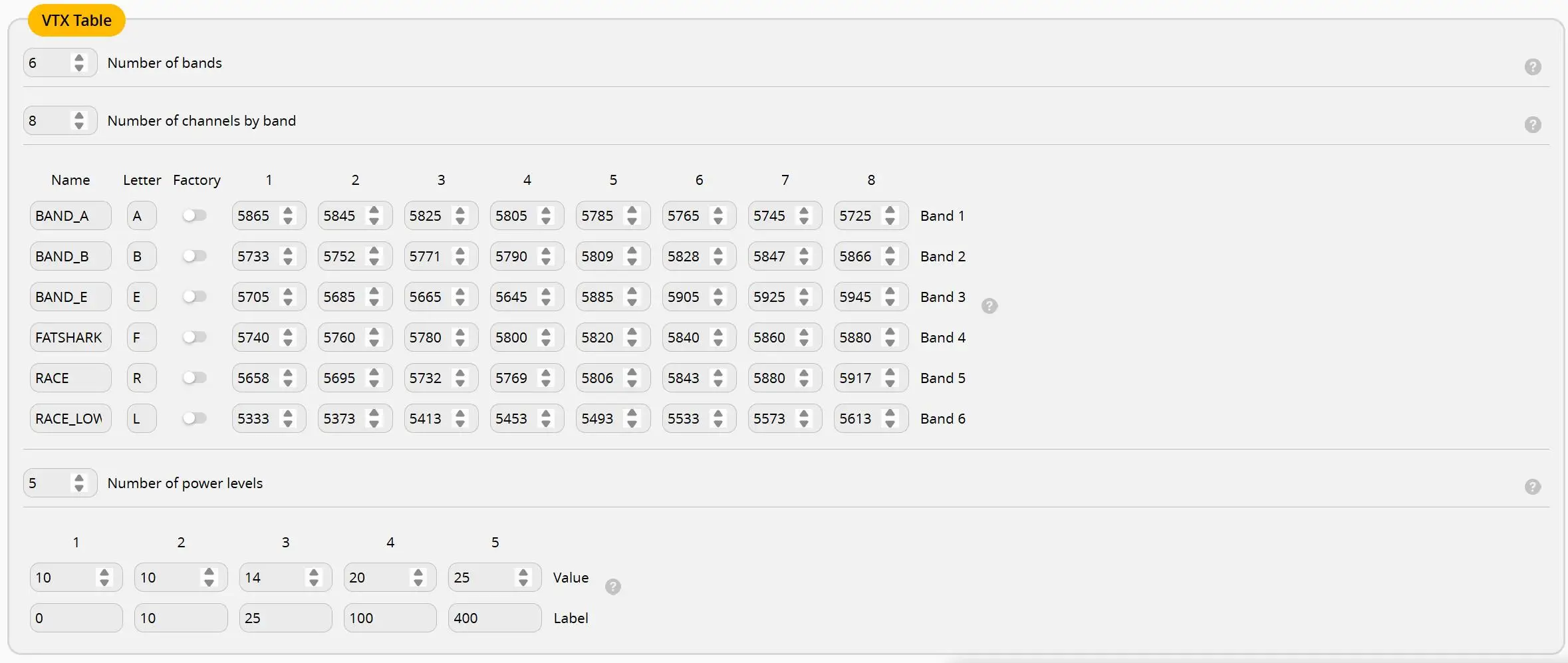

Output power: PIT/10/25/100/400
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.1
Modulation type: FM
Operating temperature: -10℃~+80℃
Antenna port: IPEX1/U.FL

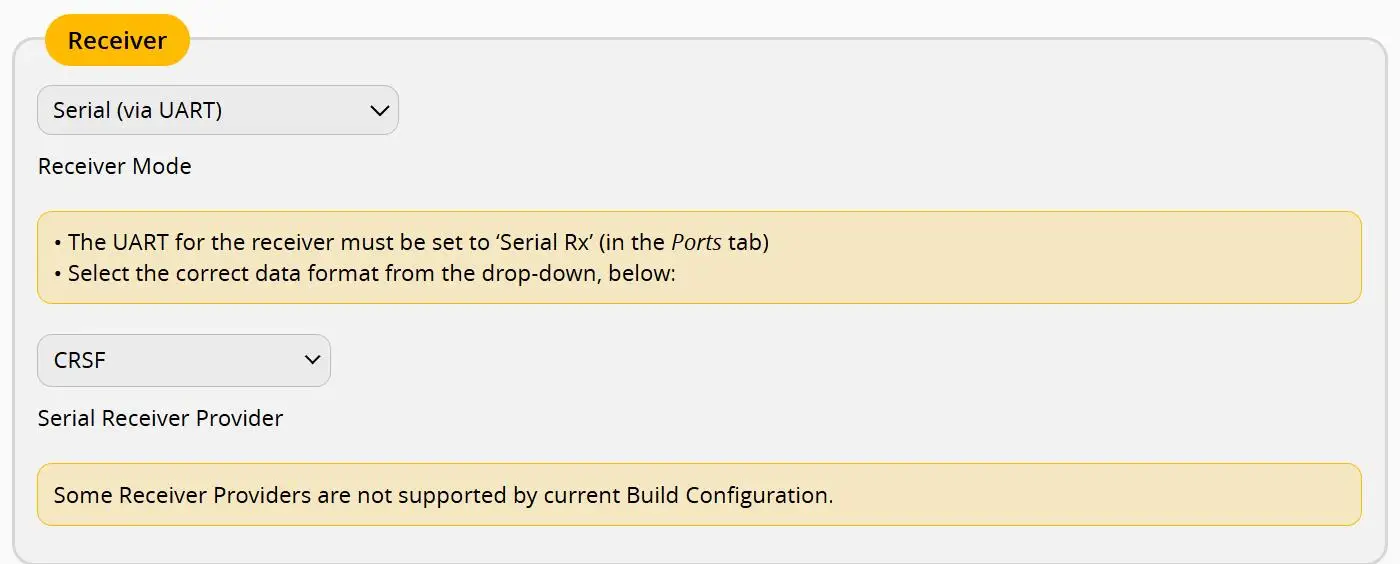

RECEIVER
Serial ExpressLRS 2.4GHz
Antenna: Enameled copper wire 31mm length
Firmware target: HappyModel EP1/EP2 2.4GHz RX
Telemetry output Power: <12dBm
Compatible with ExpressLRS V3.x.x TX Module
ExpressLRS firmware version 3.0.1
Support flash firmware by WIFI
Bind method is the same like all ExpressLRS 2.4GHz receivers

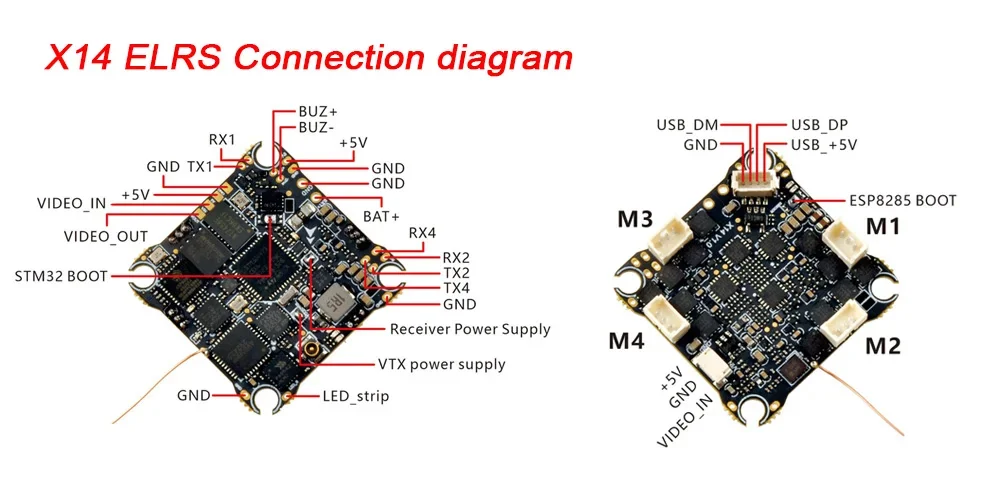

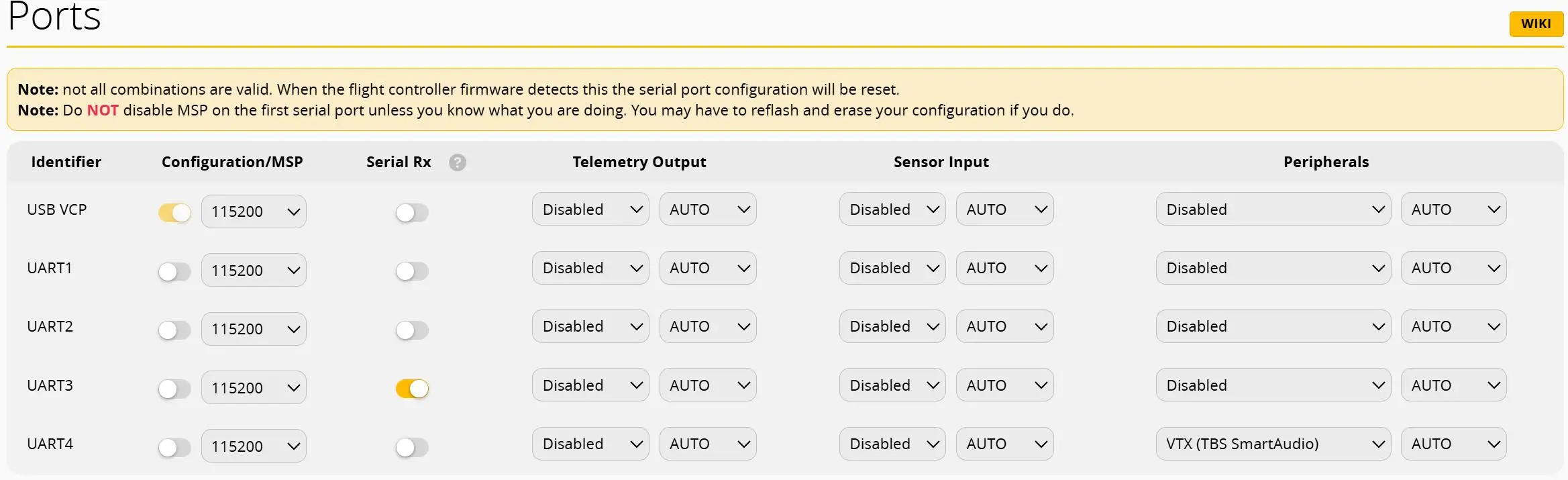

Noted: Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator to do configuration setting.
Default dump file for Mobula8 with X14 ELRS AIO flight controller :
Dump file for Mobula8 UART ELRS V3
