D3536EVO Flashhobby 2814 910KV 1000KV 1250KV 1450KV Бесщеточный двигатель с дистанционным управлением для БПЛА, самолетов, мультикоптеров, радиоуправляемых самолетов, вертолетов
522 orders (reference)
Description
FLASHHOBBY D3536EVO(2814) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

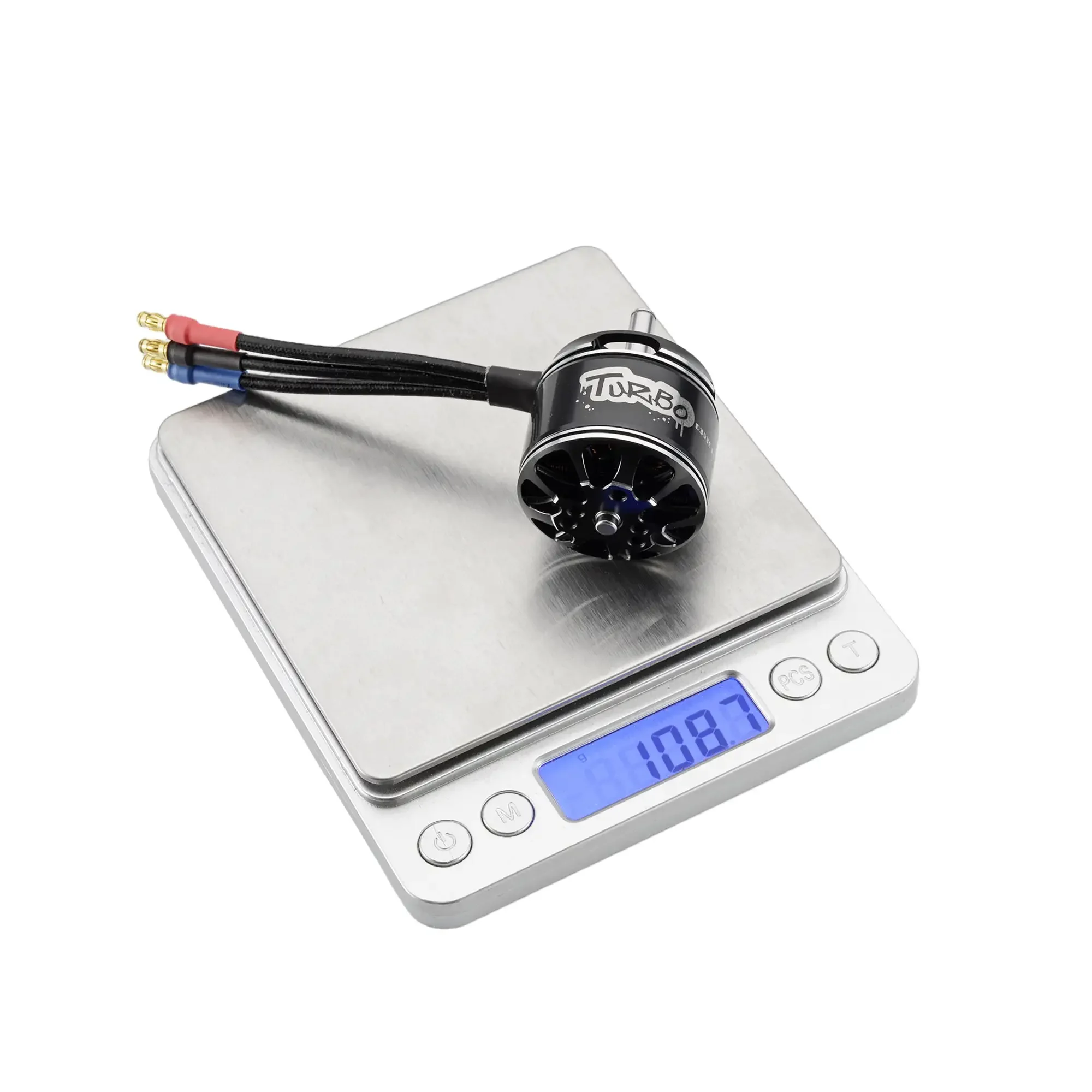

Weight: 105.8g(Including wires)

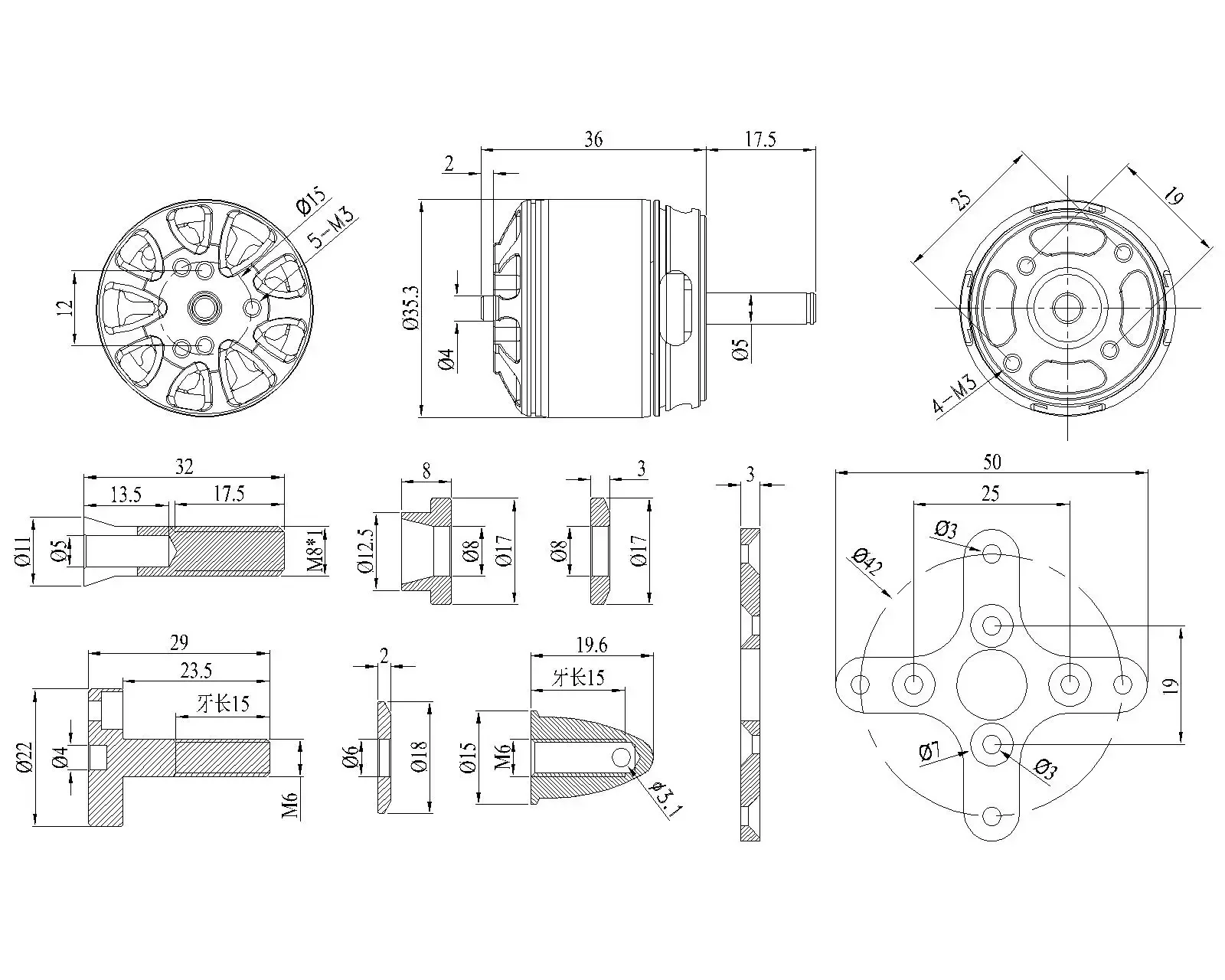

Motor Size: 35.3 x36mm
Shaft Size: 5.0*55.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 910KV, 1000KV,1250KV,1450KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor

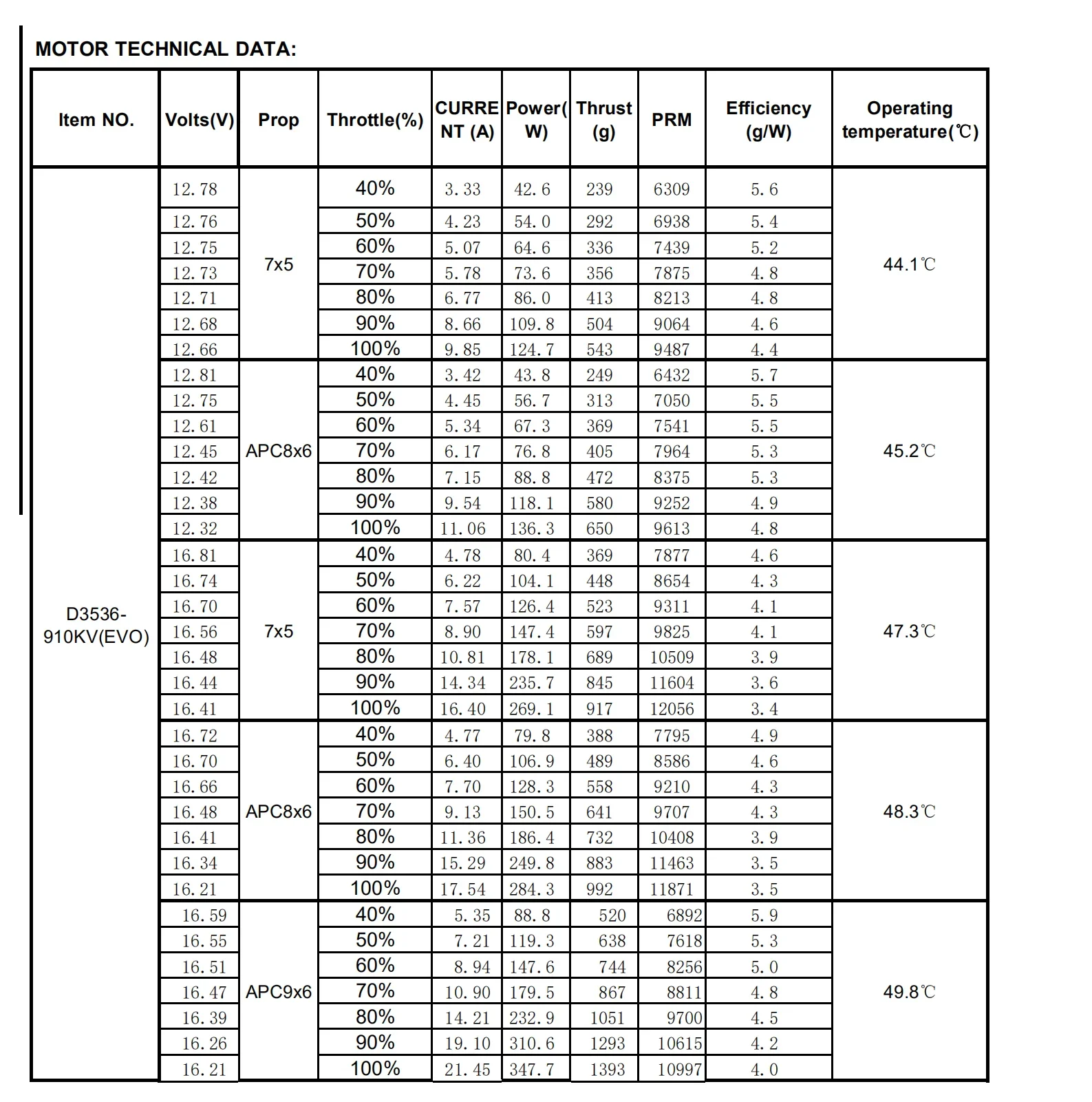

KV: 910KV
Max watts: 347.7W
Max Current: 21.45A
No Load current: 1.2A/10V
Resistance: 66.7mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

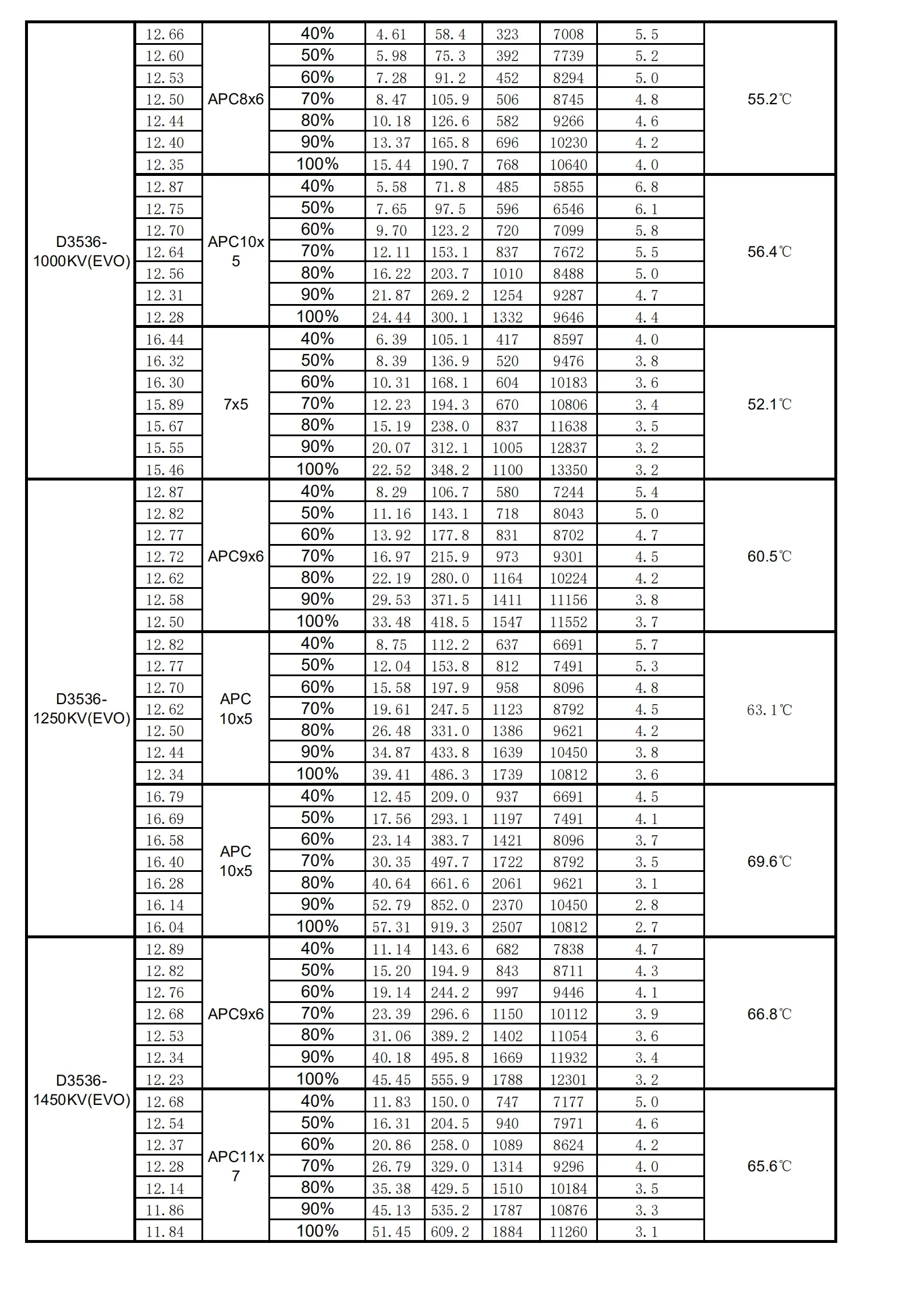

KV: 1000KV
Max watts: 300.1W
Max Current: 24.44A
No Load current: 1.58A/10V
Resistance: 46.5mΩ
Suggested Prop: 10 inch prop
KV: 1250KV
Max watts: 919.3W
Max Current: 57.31A
No Load current: 2.15A/10V
Resistance: 30.2mΩ
KV: 1450KV
Max watts: 609.2W
Max Current: 51.45A
No Load current: 2.77A/10V
Resistance: 26.8mΩ
Suggested Prop: 11 inch prop
Specifications
| Option | Values |
|---|---|
| Motor KV |
|
Product Details
FLASHHOBBY D3536EVO(2814) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
Weight: 105.8g(Including wires)
Motor Size: 35.3 x36mm
Shaft Size: 5.0*55.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 910KV, 1000KV,1250KV,1450KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 910KV
Max watts: 347.7W
Max Current: 21.45A
No Load current: 1.2A/10V
Resistance: 66.7mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 1000KV
Max watts: 300.1W
Max Current: 24.44A
No Load current: 1.58A/10V
Resistance: 46.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1250KV
Max watts: 919.3W
Max Current: 57.31A
No Load current: 2.15A/10V
Resistance: 30.2mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1450KV
Max watts: 609.2W
Max Current: 51.45A
No Load current: 2.77A/10V
Resistance: 26.8mΩ
Battery: 3-4S Lipo
Suggested Prop: 11 inch prop
