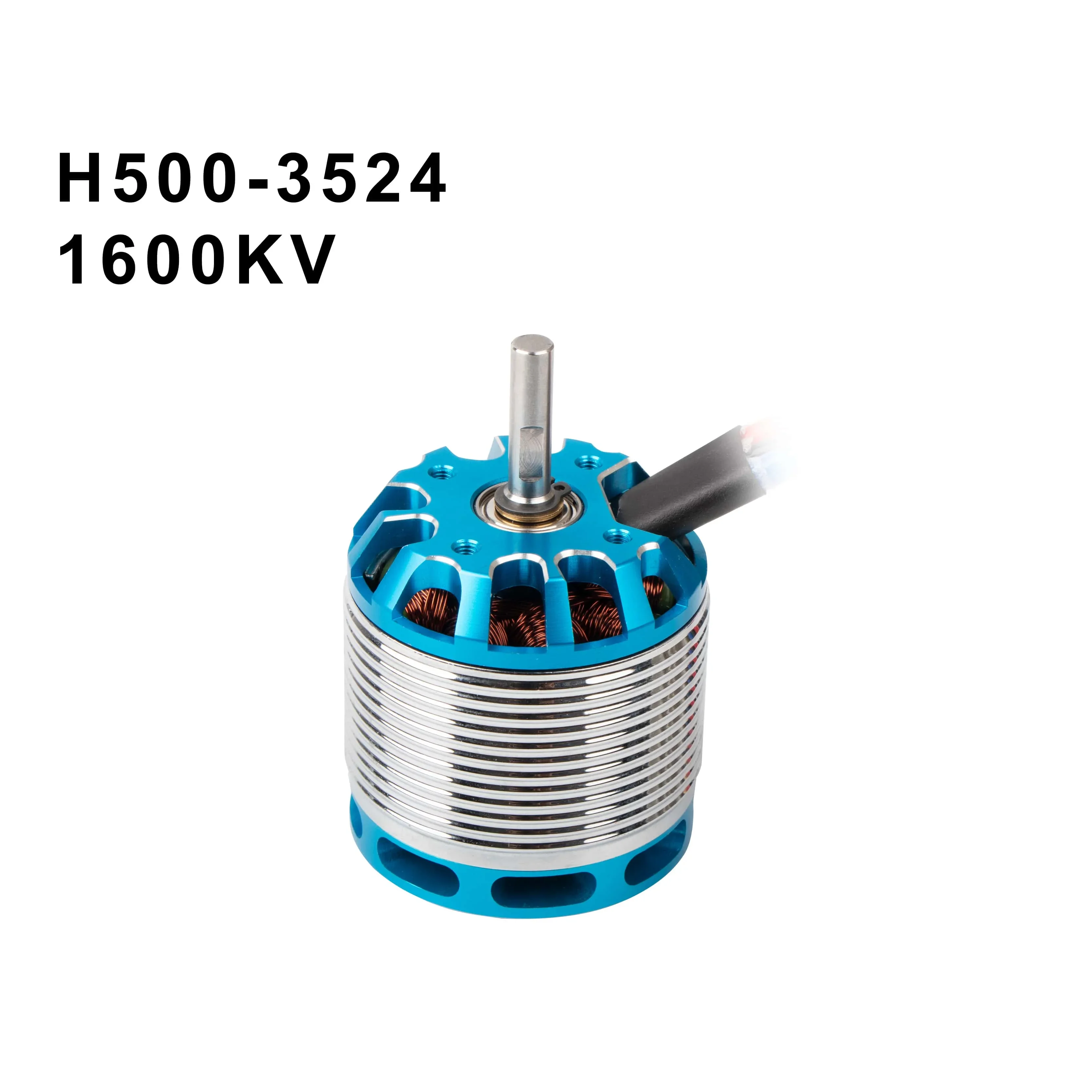

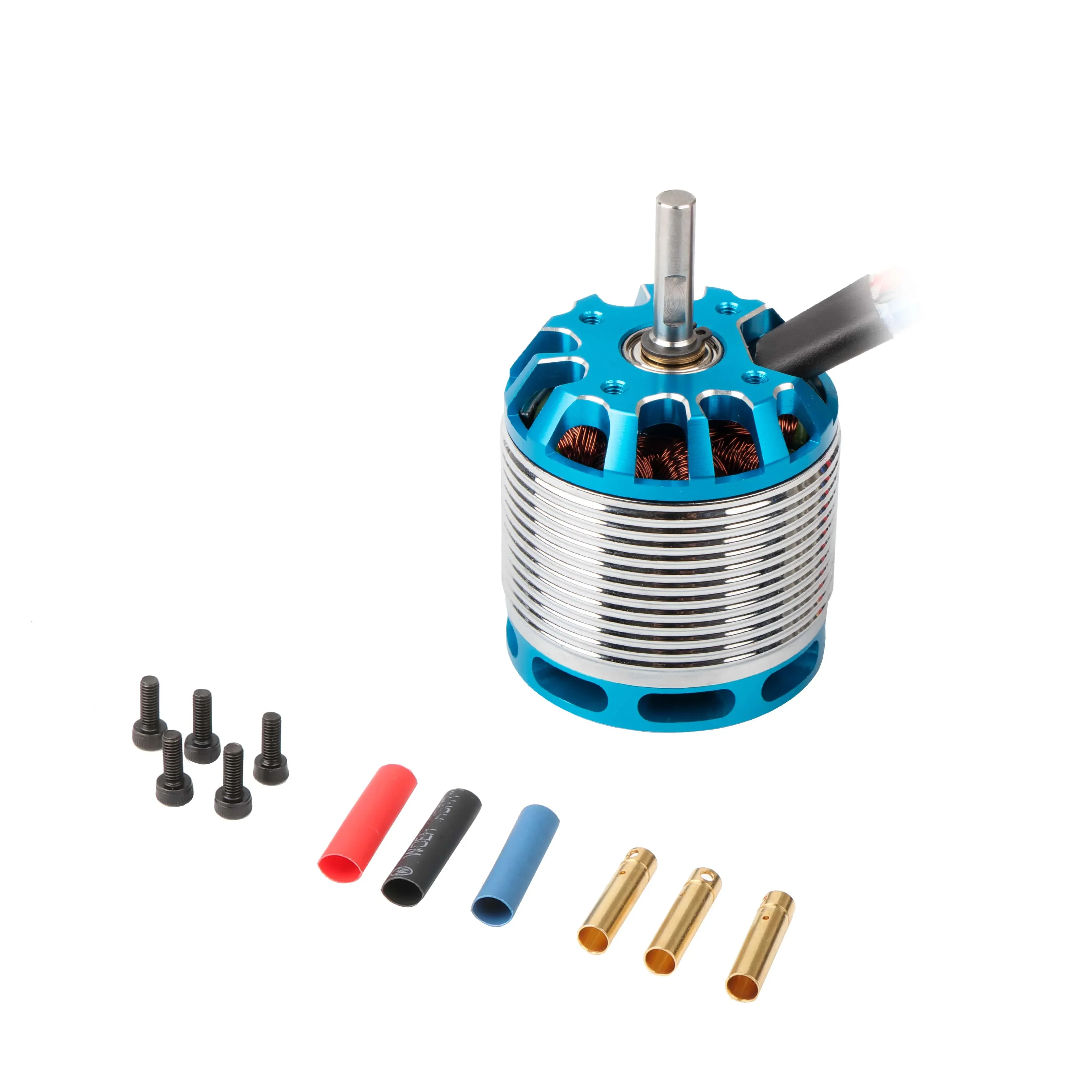

FLASHHOBBY H500 3524 1600KV Бесщеточный двигатель 500 PRO/X/L Мощный бесщеточный двигатель RC Аксессуары для вертолетов
From US $59.06
Est. US $59.06 / unit (1-9 pcs)
$55 @ 10+ pcs$52 @ 100+ pcs
56 orders (reference)
Description
Weight:253.3g(including the cables)

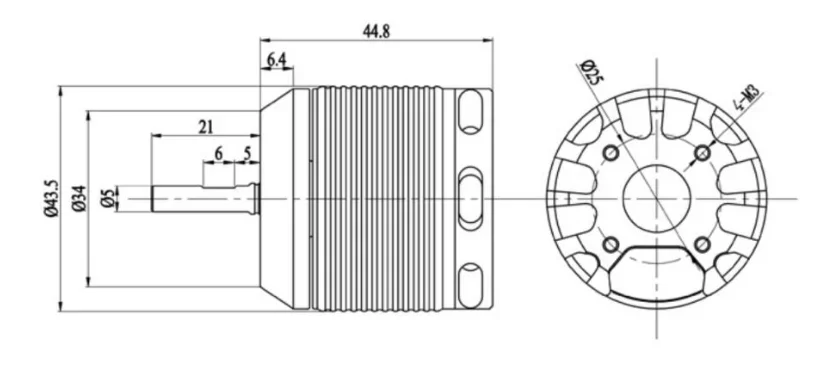

Motor Size:43.5x44.5mm
Stator Diameter:35mm
Stator Height:24mm
Shaft Diameter: 5.0mm
Motor Mount: 25x25mm(M3*4)
Configuration:9N/6P
KV: 1600KV
Max Current: 80A
Max Power: 1700W
Idle Current: 3.2A
Resistance: 0.0183Ω
Shaft: 5.0mm

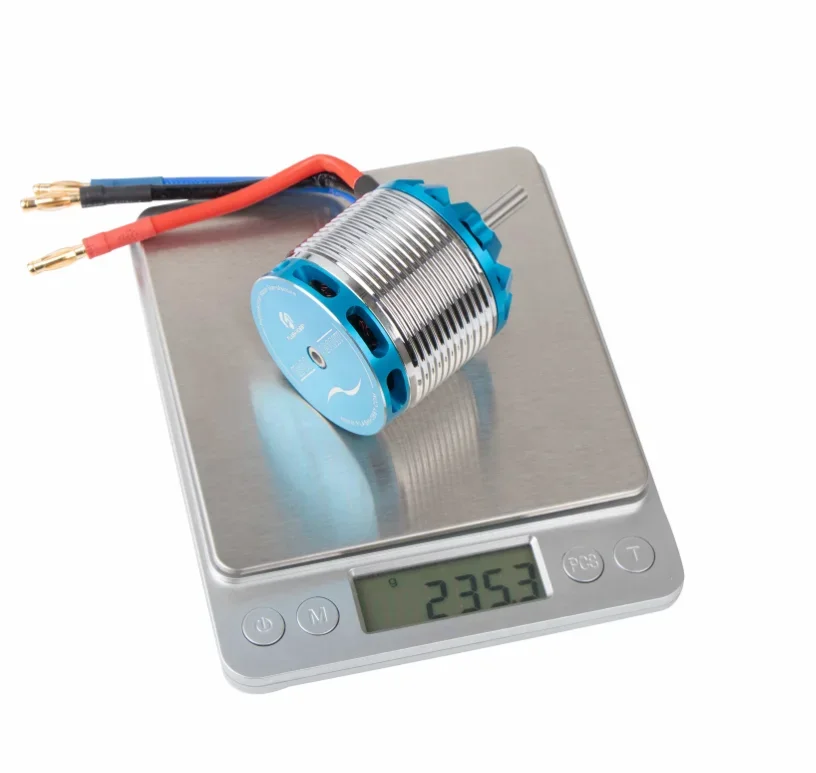

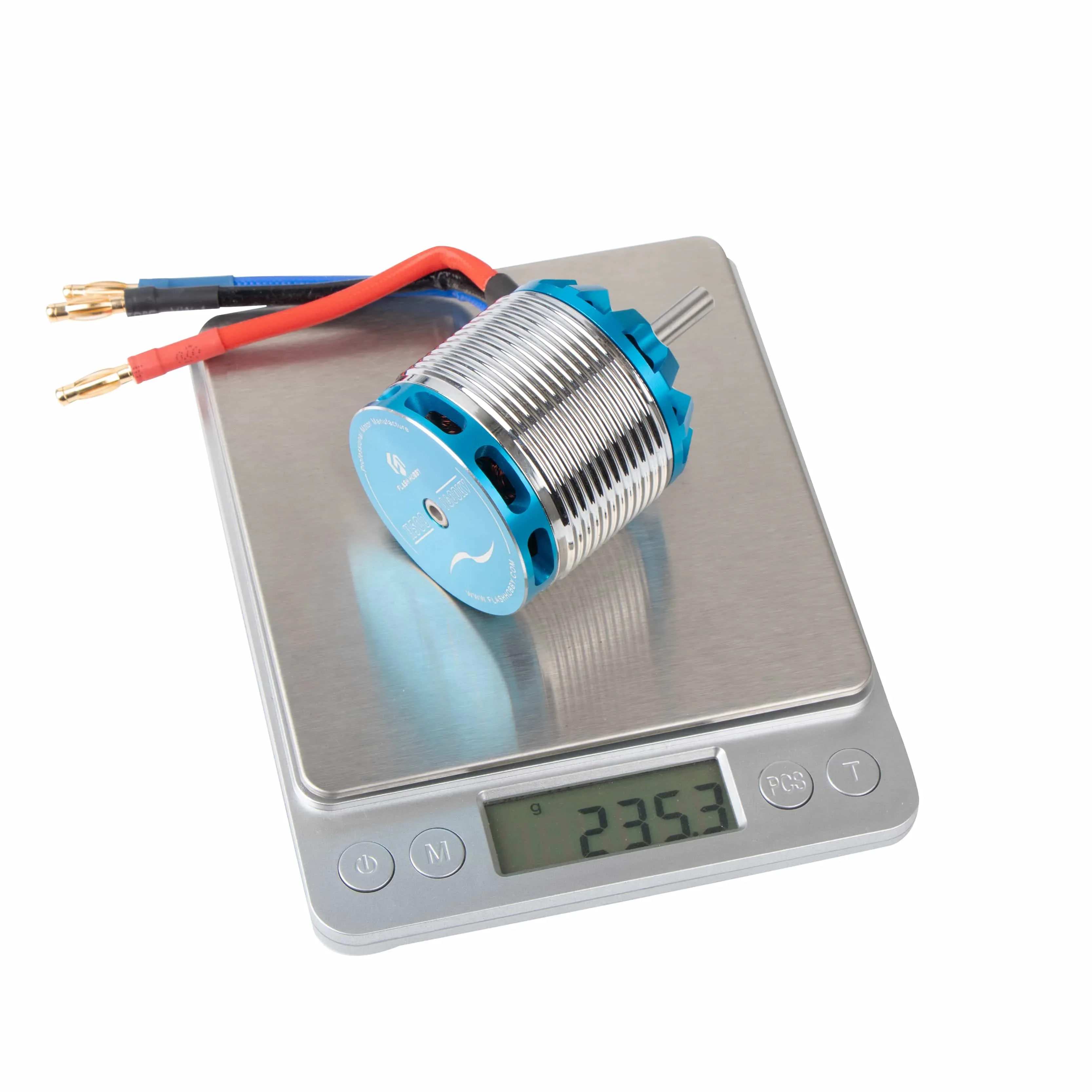

Weight: 235.3g
Suggested ESC: 80A
Lipo: 3-6S
Connector:4.0mm male connector
Вариант
Выбранная ценаUSD 59.19
Specifications
| Option | Values |
|---|---|
| Motor KV |
|
Product Details

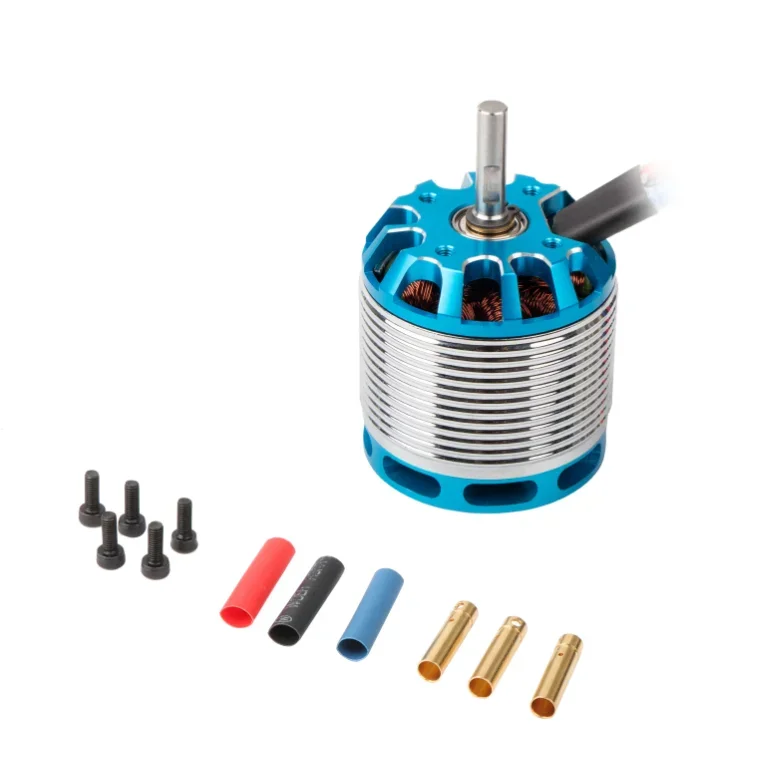

FLASHHOBBY H500 3524 1600KV Brushless Motor 500 PRO/X/L High-Power Brushless Motor RC Helicopter Accessories
Weight:253.3g(including the cables)
Motor Size:43.5x44.5mm
Stator Diameter:35mm
Stator Height:24mm
Shaft Diameter: 5.0mm
Motor Mount: 25x25mm(M3*4)
Configuration:9N/6P
KV: 1600KV
Max Current: 80A
Max Power: 1700W
Idle Current: 3.2A
Resistance: 0.0183Ω
Shaft: 5.0mm
Weight: 235.3g
Suggested ESC: 80A
Lipo: 3-6S
Connector:4.0mm male connector
