FOXEER Stack V2 F405 Управление полетом 55A Электронное управление 30,5 мм 4-8 с Подходит для дистанционного управления FPV Гоночные дроны для фристайла
From US $170.18
Est. US $170.18 / unit (1-9 pcs)
$158 @ 10+ pcs$150 @ 100+ pcs
1 orders (reference)
Description

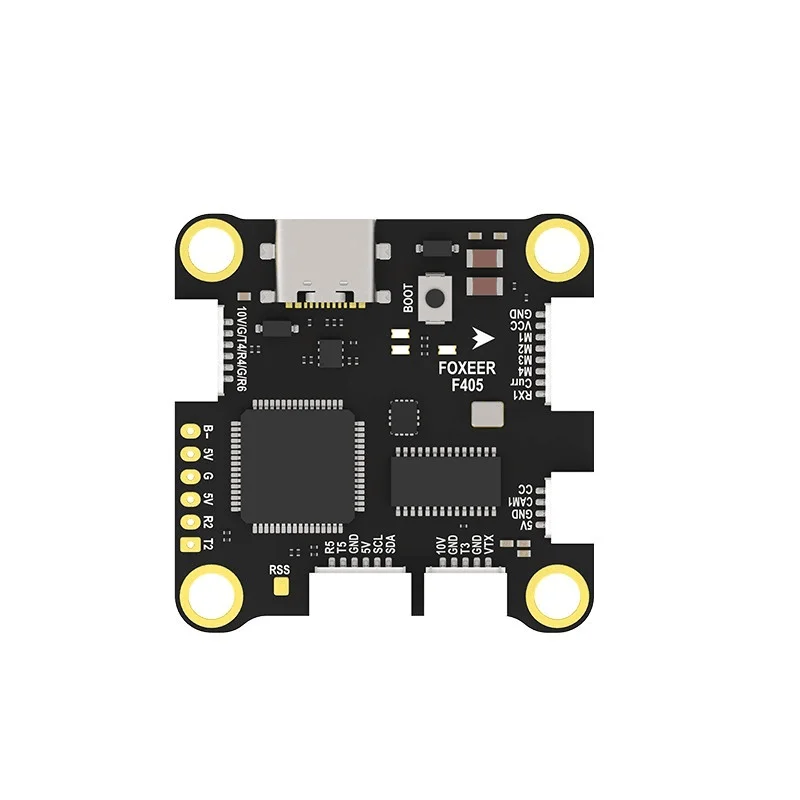

Drone Model:Foxeer F405 V2 Flight Controller
CPU:STM32F405RGT6
Gyro:ICM42688-P
Borameter:DPS310
Power Supply:4~8S Lipo
BEC Output:DC5V/3A; 10V/3A
OSD:BF OSD
Black Box:64M Flash Memory
UART:6 Set
Connector:DJI; GPS/Compass; 2 Camera Switch; VTX ESC
Telemetry:RX1 X8
Supported ADC:X3
PWM:1CH
Buzzer:YES
Smart Audio:YES LED 1 Set 2812 LED USB Type-C Fireware FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
Size: 37X37mm
Mounting Hole: 30*30mm,Φ4mm
Weight(g):8.4g
Working Temperature:-20℃ ~ +55℃
Working Humidity:20~95%
Storage Temperature:-20℃ ~ +70℃

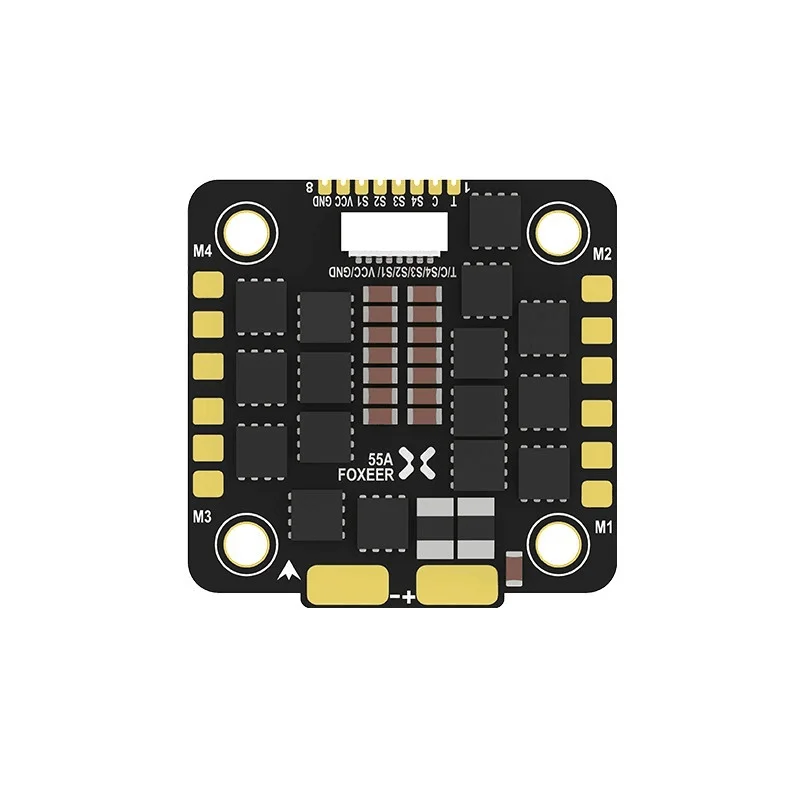

Model:Foxeer Reaper 55A ESC Firmware FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
Continuous /Burst Current:55A*4 / 80A*4
Input Voltage:DC 9V~36V (3-8S Lipo)
BEC No Telemetry:Supported
ESC Programming:BLHeli32
Current Scaling:70
Input Signal:DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Mounting Hole :30.5X30.5mm,Φ4mm/M3
Dimension:42.5x42x5.5mm
Weight:14.6g
Product Description
Stack Package:
1 x FC;
1 x ESC;
8 x M3*8mm silicone grommets,
1 x capacity;
5 x M3 nylon nut;
1 x 120mm camera cable;
1 x 90mm DJI cable;
1 x 120mm GPS/Compass cable;
1 x FC-ESC cable;
1 x 90mm VTx cable;
1 x XT60 cable
Вариант
Диапазон ценUS $170.18
Specifications
| Option | Values |
|---|---|
| Battery Cell Count |
|
| Type |
|
Product Details
Drone Model:Foxeer F405 V2 Flight Controller
CPU:STM32F405RGT6
Gyro:ICM42688-P
Borameter:DPS310
Power Supply:4~8S Lipo
BEC Output:DC5V/3A; 10V/3A
OSD:BF OSD
Black Box:64M Flash Memory
UART:6 Set
Connector:DJI; GPS/Compass; 2 Camera Switch; VTX ESC
Telemetry:RX1 X8
Supported ADC:X3
PWM:1CH
Buzzer:YES
Smart Audio:YES LED 1 Set 2812 LED USB Type-C Fireware FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
Size: 37X37mm
Mounting Hole: 30*30mm,Φ4mm
Weight(g):8.4g
Working Temperature:-20℃ ~ +55℃
Working Humidity:20~95%
Storage Temperature:-20℃ ~ +70℃
Model:Foxeer Reaper 55A ESC Firmware FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
Continuous /Burst Current:55A*4 / 80A*4
Input Voltage:DC 9V~36V (3-8S Lipo)
BEC No Telemetry:Supported
ESC Programming:BLHeli32
Current Scaling:70
Input Signal:DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Working Temperature:-20℃ ~ +55℃
Working Humidity:20~95%
Storage Temperature:-20℃ ~ +70℃
Mounting Hole :30.5X30.5mm,Φ4mm/M3
Dimension:42.5x42x5.5mm
Weight:14.6g
CPU:STM32F405RGT6
Gyro:ICM42688-P
Borameter:DPS310
Power Supply:4~8S Lipo
BEC Output:DC5V/3A; 10V/3A
OSD:BF OSD
Black Box:64M Flash Memory
UART:6 Set
Connector:DJI; GPS/Compass; 2 Camera Switch; VTX ESC
Telemetry:RX1 X8
Supported ADC:X3
PWM:1CH
Buzzer:YES
Smart Audio:YES LED 1 Set 2812 LED USB Type-C Fireware FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
Size: 37X37mm
Mounting Hole: 30*30mm,Φ4mm
Weight(g):8.4g
Working Temperature:-20℃ ~ +55℃
Working Humidity:20~95%
Storage Temperature:-20℃ ~ +70℃
Model:Foxeer Reaper 55A ESC Firmware FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
Continuous /Burst Current:55A*4 / 80A*4
Input Voltage:DC 9V~36V (3-8S Lipo)
BEC No Telemetry:Supported
ESC Programming:BLHeli32
Current Scaling:70
Input Signal:DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
Working Temperature:-20℃ ~ +55℃
Working Humidity:20~95%
Storage Temperature:-20℃ ~ +70℃
Mounting Hole :30.5X30.5mm,Φ4mm/M3
Dimension:42.5x42x5.5mm
Weight:14.6g
Product Description
Stack Package: 1 x FC; 1 x ESC; 8 x M3*8mm silicone grommets, 1 x capacity; 5 x M3 nylon nut; 1 x 120mm camera cable; 1 x 90mm DJI cable; 1 x 120mm GPS/Compass cable; 1 x FC-ESC cable; 1 x 90mm VTx cable; 1 x XT60 cable | ||
