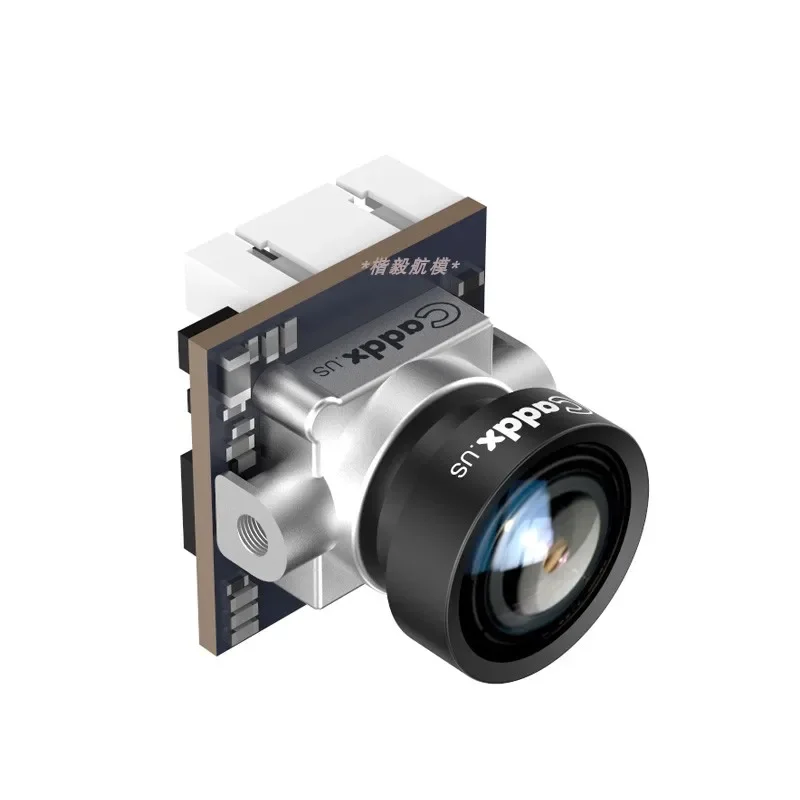

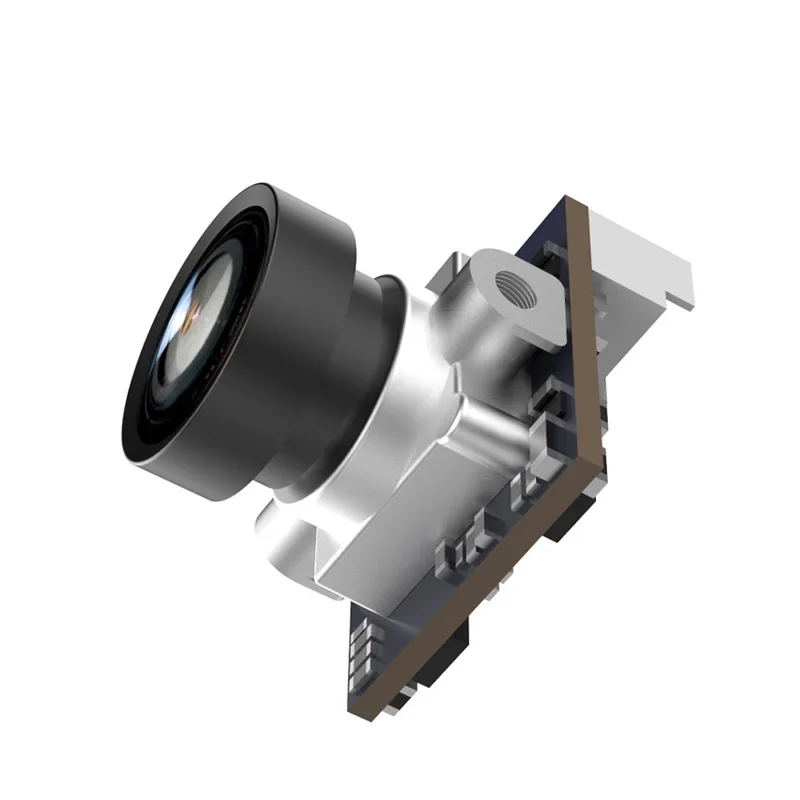

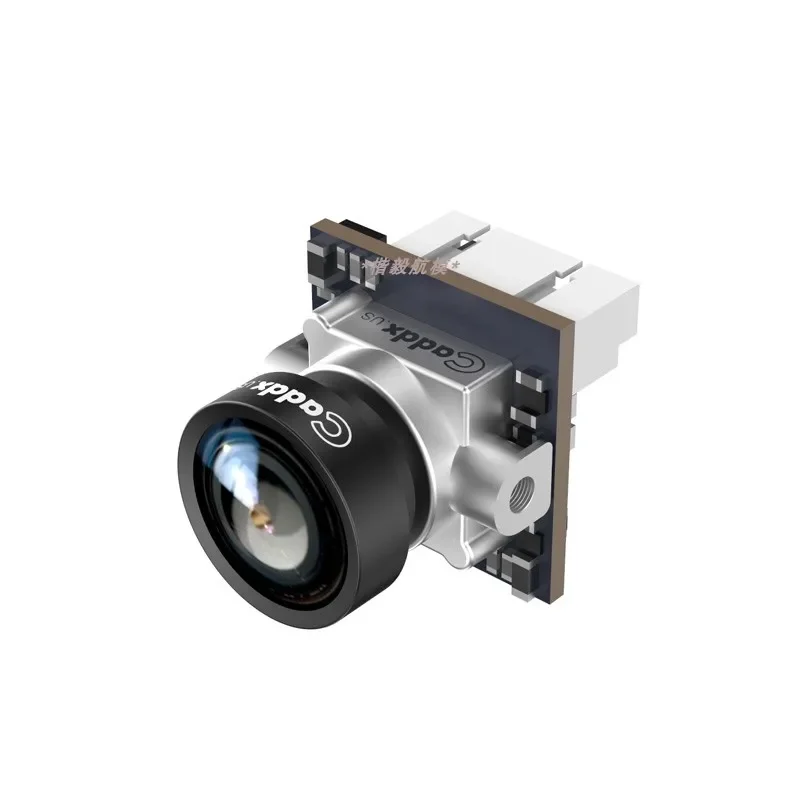

Caddx Ant FPV камера 1200TVL Global WDR OSD Объектив 1,8 мм 2 г Сверхлегкая FPV камера для FPV фристайла Tinywhoop Cinewhoop дронов
From USD 25.98
Est. USD 25.98 / unit (1-9 pcs)
$23 @ 10+ pcs$22 @ 100+ pcs
511 orders (reference)
Description
Specification: Model: Caddx Ant Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL MENU: Support IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Work Humidity: 20%~80% Weight: 2g (N.W.)
Specification:
Model: Caddx Ant
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
MENU: Support
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 2g (N.W.)
Вариант
Выбранная ценаUSD 13.51
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Specification:
Model: Caddx Ant
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
MENU: Support
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 2g (N.W.)
