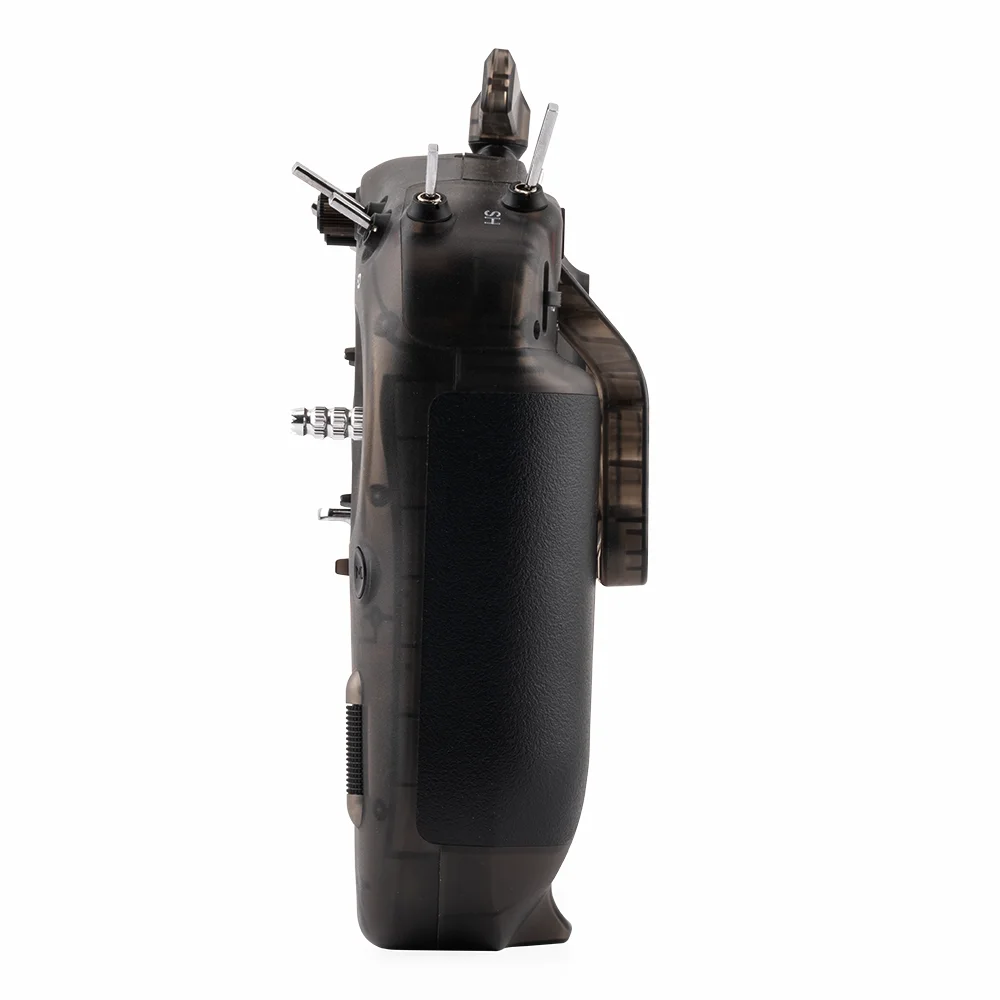

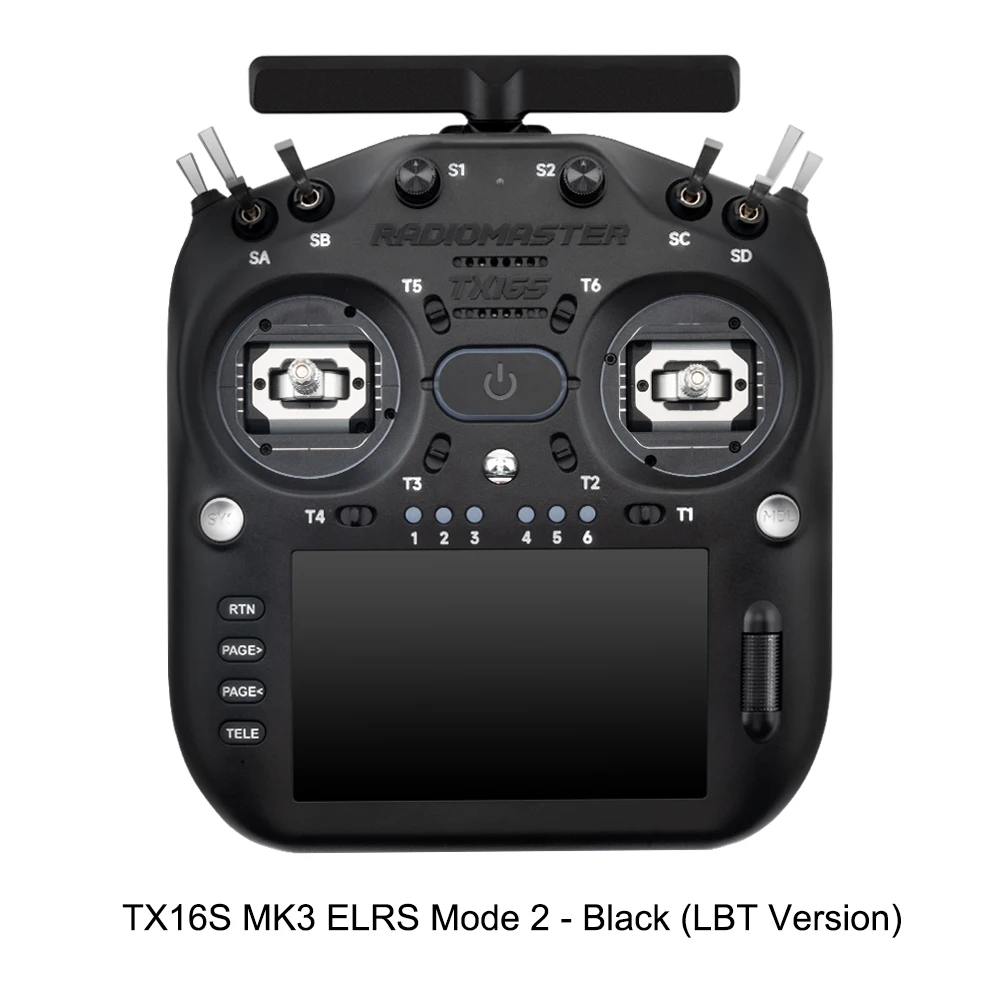

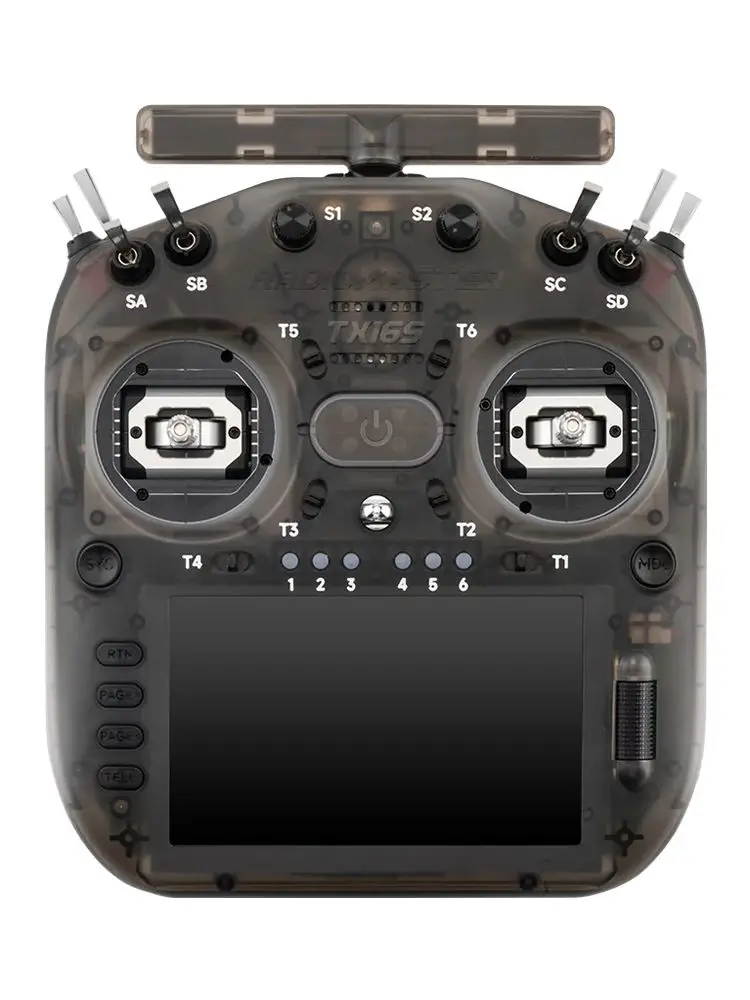

Radiomaster TX16S MK3, 2,4 ГГц, 900 МГц, V6, подвес для зала, 5-дюймовый сенсорный экран IPS, Gemini, двухдиапазонный радиоконтроллер ExpressLRS
9192 orders (reference)
Description
Features
High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.
Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.
Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.
Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 512MB of onboard flash memory and external MicroSD card support.
Removable shoulder switch panels: Customize your setup with modular switch panels.
Specifications
| Option | Values |
|---|---|
| Size |
|
Product Details
Features
High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.
Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.
Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.
Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.
Dual Foldable Antennas: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment: Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 512MB of onboard flash memory and external MicroSD card support.
Removable shoulder switch panels: Customize your setup with modular switch panels.

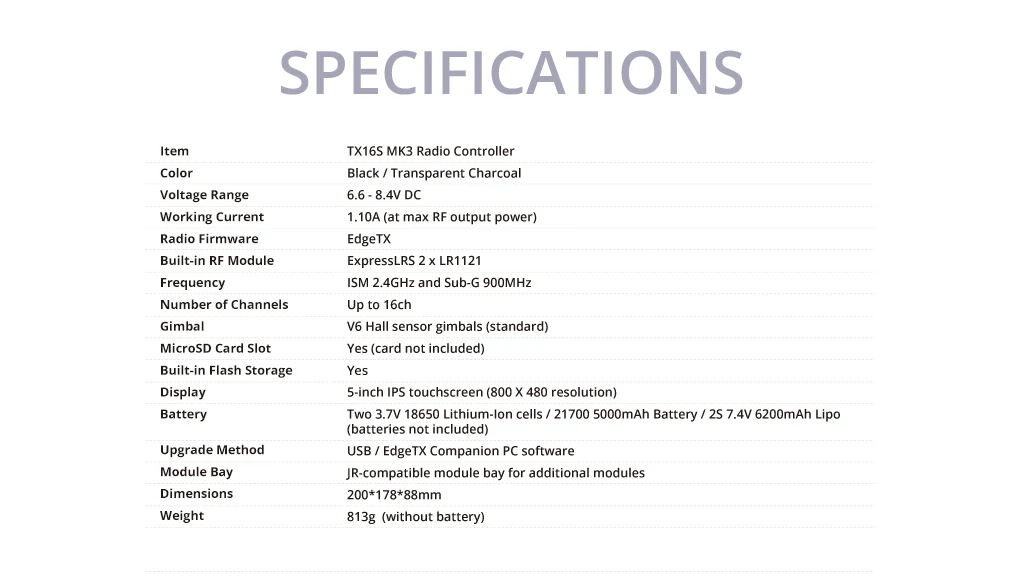

Specification
Item: TX16S MK3 Radio Controller
Color: Black / Transparent Charcoal
Voltage Range: 6.6 - 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)
MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 512MB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery)
Package Includes
1 * TX16S MK3 Radio Controller
1 * TX16S MK3 Signature Carry Case
1 * 18650 Battery Tray
2 * Replacement Shoulder Panels
1 * Type-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * Low Tension Gimbals Springs
2 * Gimbal Stick Set Screws
1 * Nylon Neck Strap (Lanyard)
1 * RadioMaster Sticker Set
1 * TX16S MK3 Manual
1 * Inventory Card
