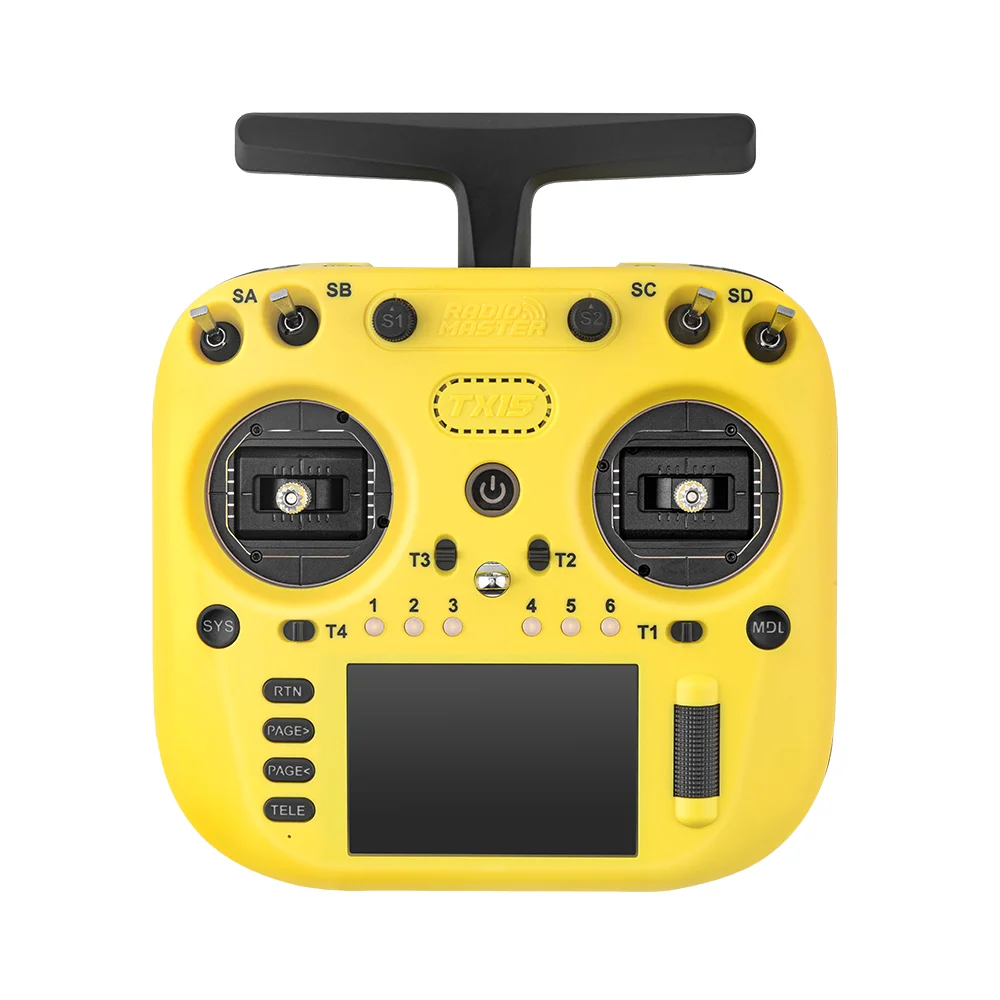

Radiomaster TX15 Радиоконтроллер 16-канальный 3,5-дюймовый сенсорный экран IPS V5.0 Подвесы для зала Радиоконтроллер ExpressLRS НОВОЕ ПРИБЫТИЕ - image 1 of 6
1 / 6

Radiomaster TX15 Радиоконтроллер 16-канальный 3,5-дюймовый сенсорный экран IPS V5.0 Подвесы для зала Радиоконтроллер ExpressLRS НОВОЕ ПРИБЫТИЕ

RadioMaster

From USD 290.24
Est. USD 290.24 / unit (1-9 pcs)
$270 @ 10+ pcs$255 @ 100+ pcs

Description

Features

Item: TX15 Radio Controller

Size: 178*168*81mm

Weight: 605g (without battery)

Frequency: 2.400GHz OR Sub-G 900MHz

Internal RF: ELRS 2.4GHz / Sub-G 900MHz

Supported Protocols: Express-LRS

Cooling Fan: Yes

Transmitter Module: Built-in ELRS

Built-in Flash Size: 4GB

Built-in Microphone: Yes (Future expansion)

Built-in Gyro: Yes (ICM-42607-C)

MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)

Antenna Gain: 2dB (transmit power adjustable)

Current: 875mA at max power output

Voltage Range: 6.6 - 8.4V DC

Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)

Module Firmware: ExpressLRS

Channels: Max 16 channels (Receiver dependent)

Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

Connectivity: USB-C

Gimbals: V5.0 Hall sensor gimbals (standard)

Gimbal Sticks: M4

Upgrade Method: USB-C (UF2)

Module Bay: JR-compatible module bay for additional modules

Share this product
Вариант
Выбранная ценаUSD 229.09

Specifications

OptionValues
Size
  • 3.5"

Product Details

Features Item: TX15 Radio Controller Size: 178*168*81mm Weight: 605g (without battery) Frequency: 2.400GHz OR Sub-G 900MHz Internal RF: ELRS 2.4GHz / Sub-G 900MHz Supported Protocols: Express-LRS Cooling Fan: Yes Transmitter Module: Built-in ELRS Built-in Flash Size: 4GB Built-in Microphone: Yes (Future expansion) Built-in Gyro: Yes (ICM-42607-C) MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash) Antenna Gain: 2dB (transmit power adjustable) Current: 875mA at max power output Voltage Range: 6.6 - 8.4V DC Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later) Module Firmware: ExpressLRS Channels: Max 16 channels (Receiver dependent) Display: 3.5-inch IPS touchscreen (480 x 320 resolution) Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) Connectivity: USB-C Gimbals: V5.0 Hall sensor gimbals (standard) Gimbal Sticks: M4 Upgrade Method: USB-C (UF2) Module Bay: JR-compatible module bay for additional modules Specifications Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever. Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail. Precision Gimbals: V5.0 Hall sensor gimbals Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control. Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time. Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days. Foldable Antenna: Compact and easy to store without compromising signal strength. Built-in Microphone: For future feature expansion. Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio. Memory: Integrated 4GB of onboard flash memory and external MicroSD card support. Interchangeable Shoulder Switches: Customize your controls to match your flying style. Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink Package Includes 1 * TX15 Radio Controller 1 * Signature Carry Case 1 * Short 2-position Latching Shoulder Toggle Switch Assembly 1 * Short 2-position Momentary Shoulder Toggle Switch Assembly 1 * 18650 Battery Tray 1 * USB-C Cable 1 * Screen Protector 1 * 1.5mm Hex Wrench 4 * High Tension Gimbals Springs 2 * Gimbal Stick Set Screw 1 * Stickers Set 1 * User Manual 1 * Inventory Card
