GEPRC TAKER F405 BLS 50A Stack 42688-P Гироскоп 16 МБ Черный ящик Анализ данных Запись полетных данных Plug and Play Гоночный дрон с FPV

Summary

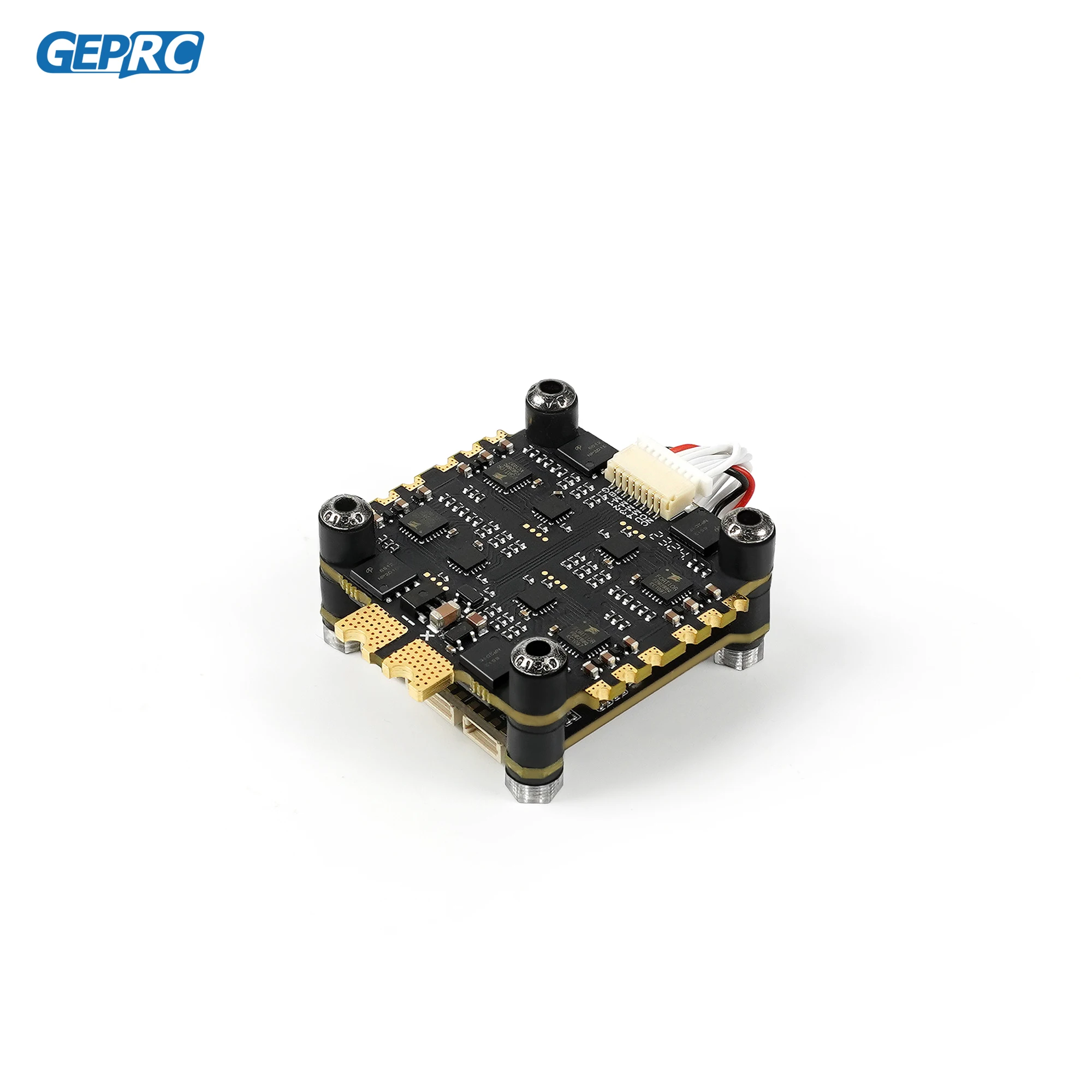

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for D JI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.

The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the D JI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.

Features

1. Use mainstream STM32F405 chip

2. Equipped with the latest 42688-P gyroscope

3. 16M black box storage

4. Integrated LC filter

5. Upgrade type-C USB interface

6. Directly plugged into the D JI Air Unit

7. With GEP-BLS50A-4IN1 ESC, the flying feel is silky

8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

9. 9V 2.5A + 5V 3A dual independent BEC

Specifications

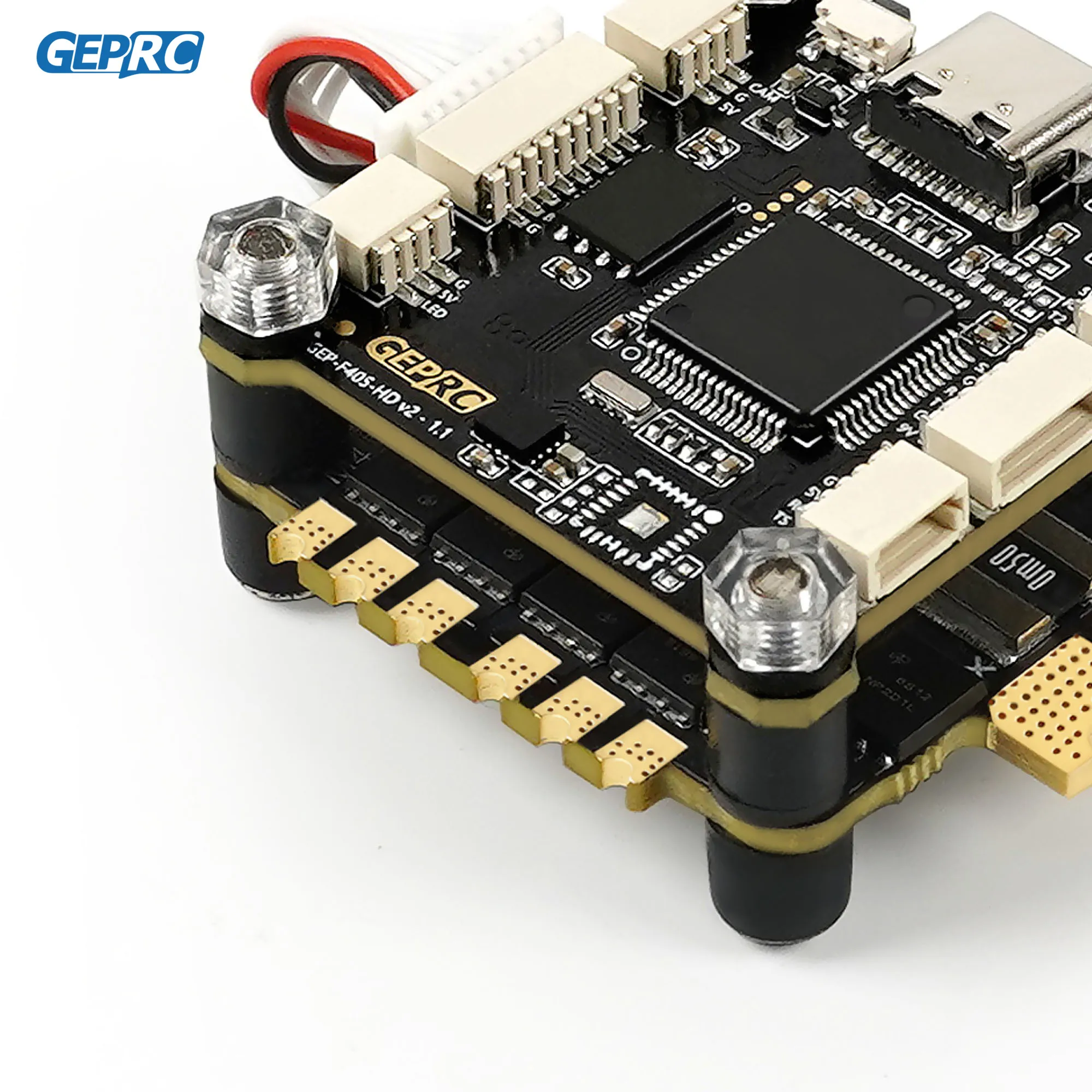

GEP-F405-HD v2 Flight Controller

• MCU: STM32F405

• IMU: ICM42688-P(SPI)

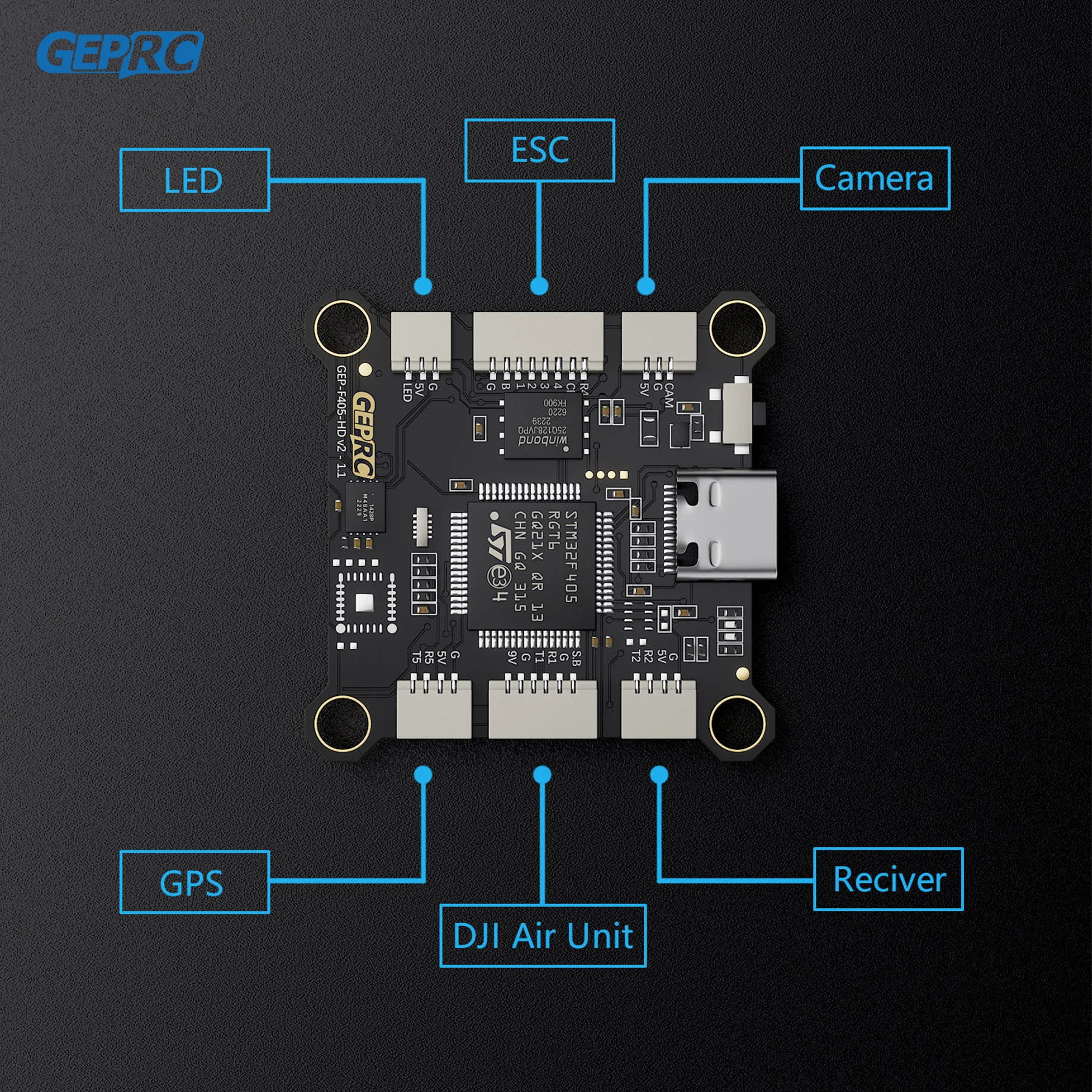

• Air Unit Connection: Direct plugging into D JI Air Unit

• Black Box: 16M onboard

• USB Connector: Type-C

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC: 5V,9V dual BEC

• Firmware Target: GEPRCF405

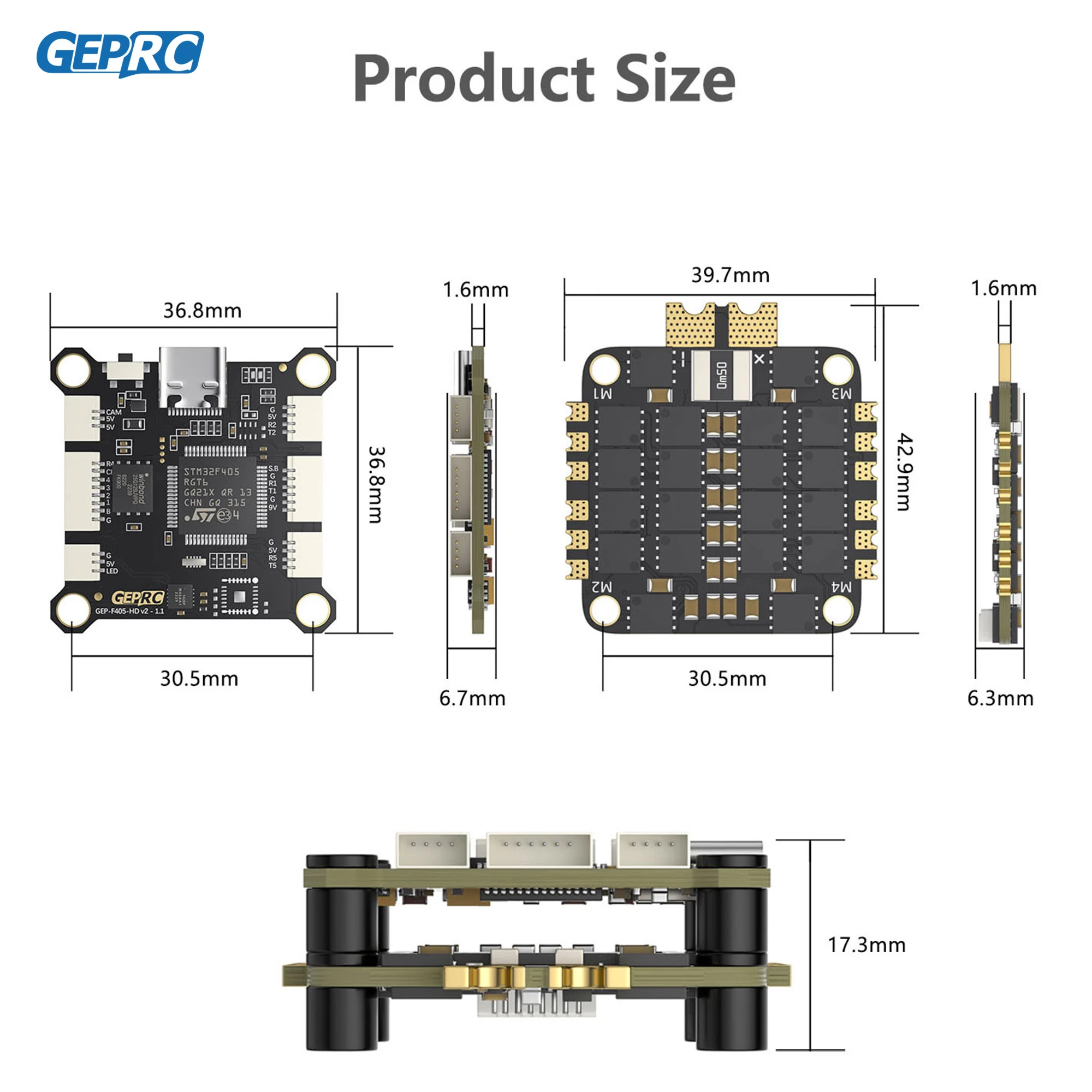

• Size: 36.8×36.8mm, hole 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

• Input Voltage: 3-6S LiPo

• UART: 6

• Power Filter: Integrated LC filter

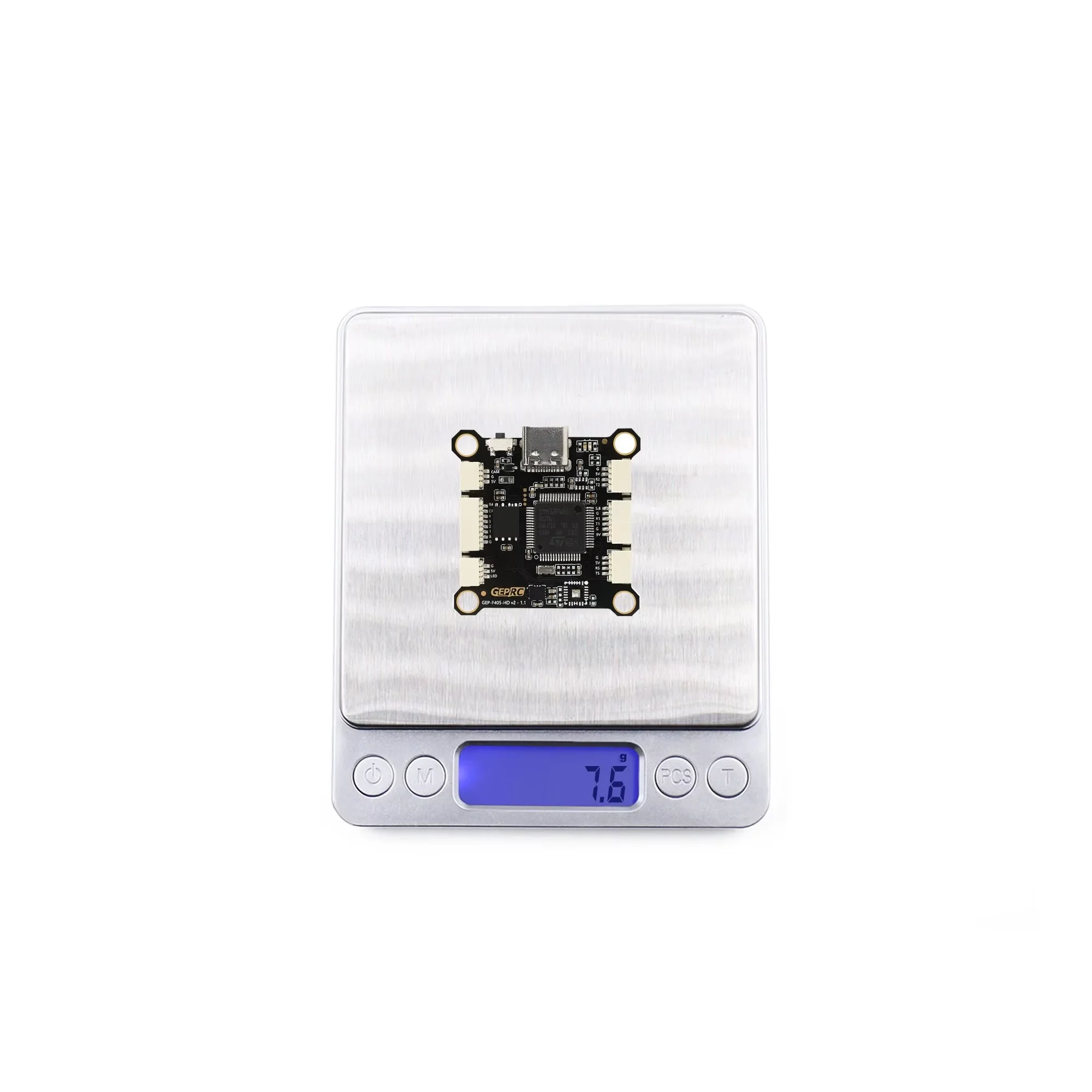

• Weight: 7.7g

GEP-BLS50A-4IN1 ESC

• Input Voltage: 3-6S Lipo

• Galvanometer: Support

• Continuous Current: 50A

• Burst Current: 55A(5s)

• Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600

• Size: 42.9×39.7mm, hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.

• Weight:13.7g

• Target: G_H_30

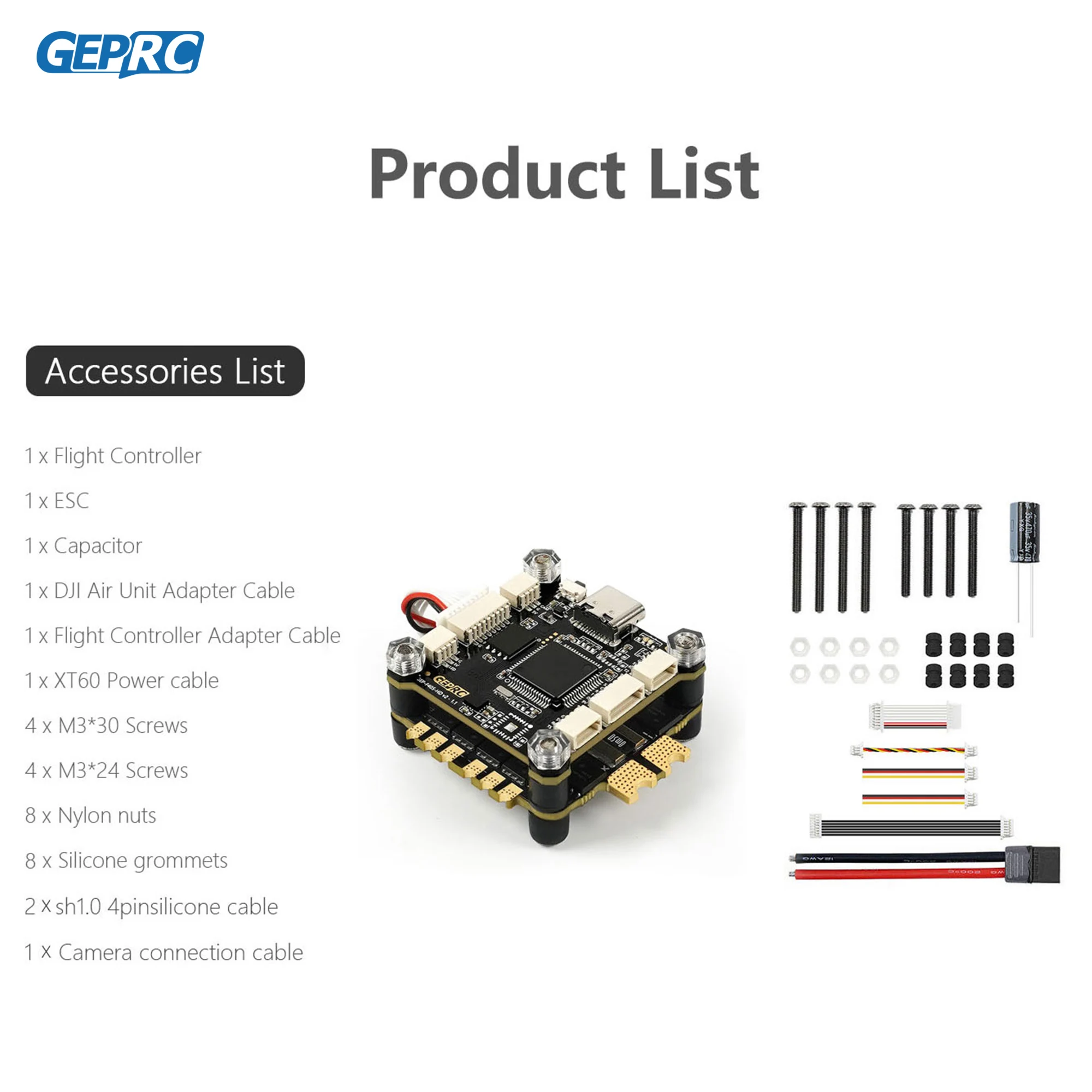

Includes

1 x Flight Controller
1 x ESC
1 x Capacitor
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable

-------------------------------------------------------------------------------------------------------
