20X20 мм SpeedyBee TX800 5,8G 48-канальный PitMode 25 МВт 200 МВт 400 МВт 800 МВт Регулируемый видеопередатчик Tramp FPV VTX для гоночного дрона

Description:

Brand: Speedybee

Item Name: TX800 VTX

Frequency Channel: 5.8GHz 48CH

Output Power: PIT/25mW/200mW/400mW/800mW

Working Current: 5V@250~750mA

Voltage out: 5V@max 250mA

Voltage in: 3.7-5.5V

Video input impedance: 75 Ohm

Antenna Connector: MMCX

Weight: 5.6g (without antenna)

PCB Size:28mm*28mm@20*20 M2

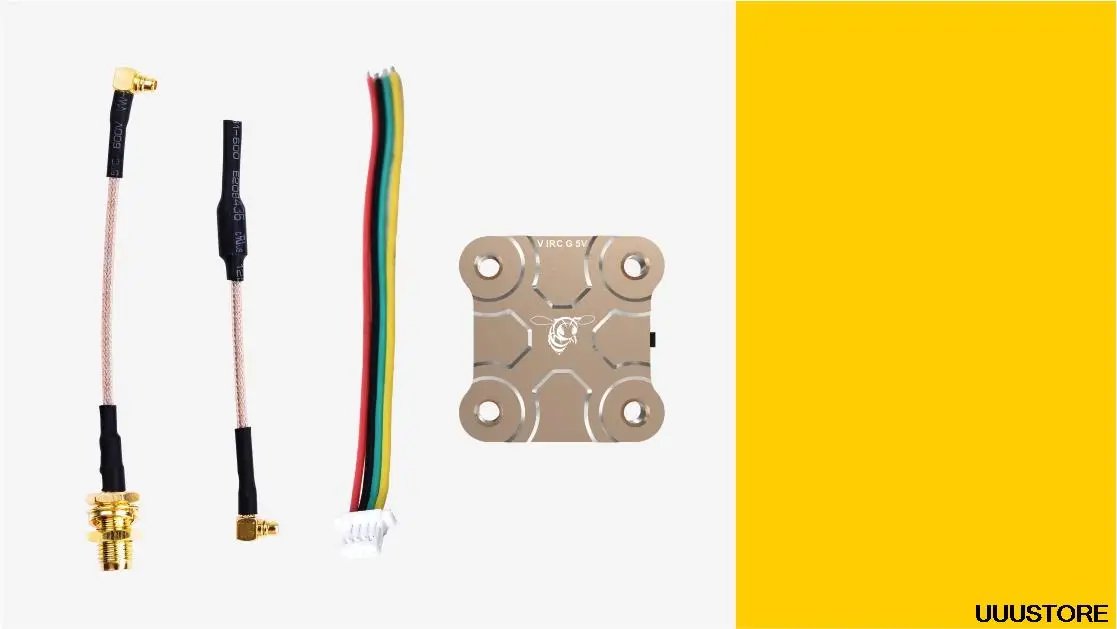

Package Included:

1x TX800

1x MMCX antenna

1x MMCX to SMA Cable

1x 1.0MM 4pin Cable

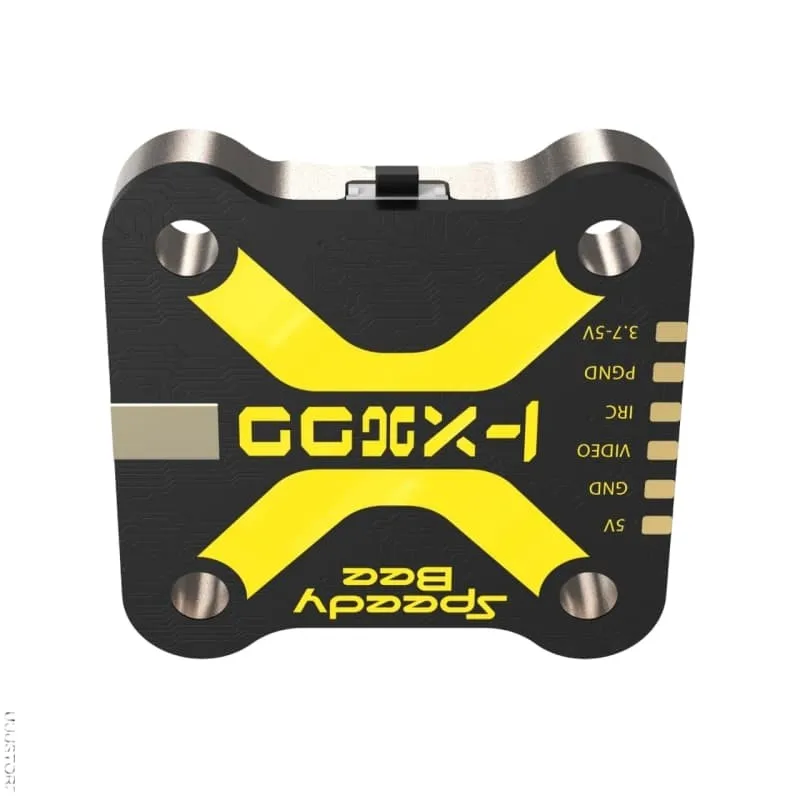

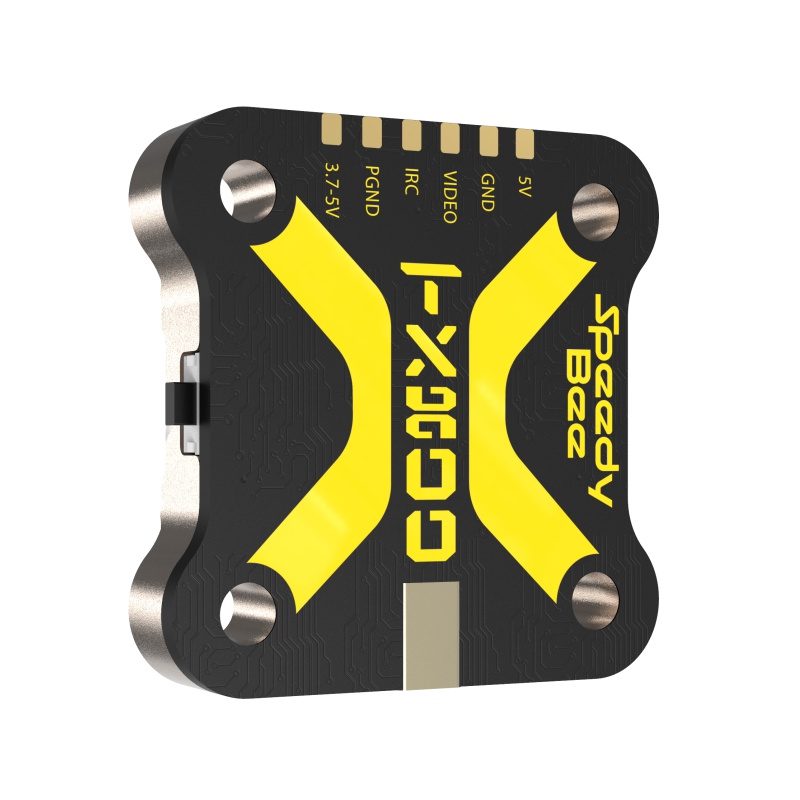

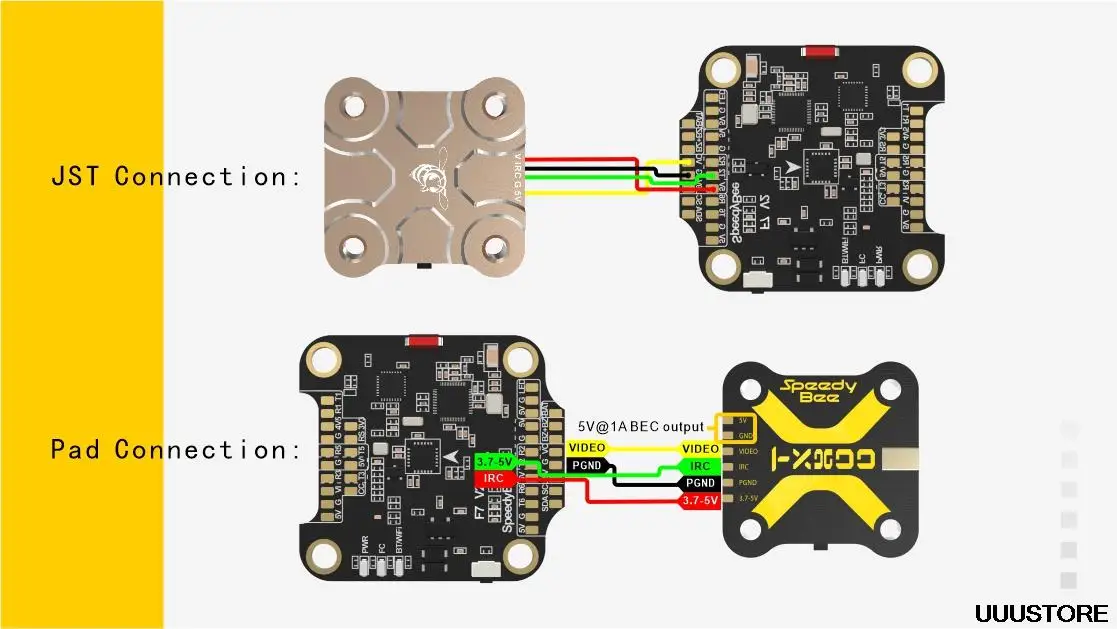

JST socket and ----
pad connection supported

Tramp  Protocol Support

TX800 supports IRC TRAMP protocol,also supports to modify the image transmitter
parameters through the remote control,Including frequency, working power and so on.
If your flight controller supports Bluetooth or WiFi,You can also modify the
parameters of image transmitter through SpeedyBee App.

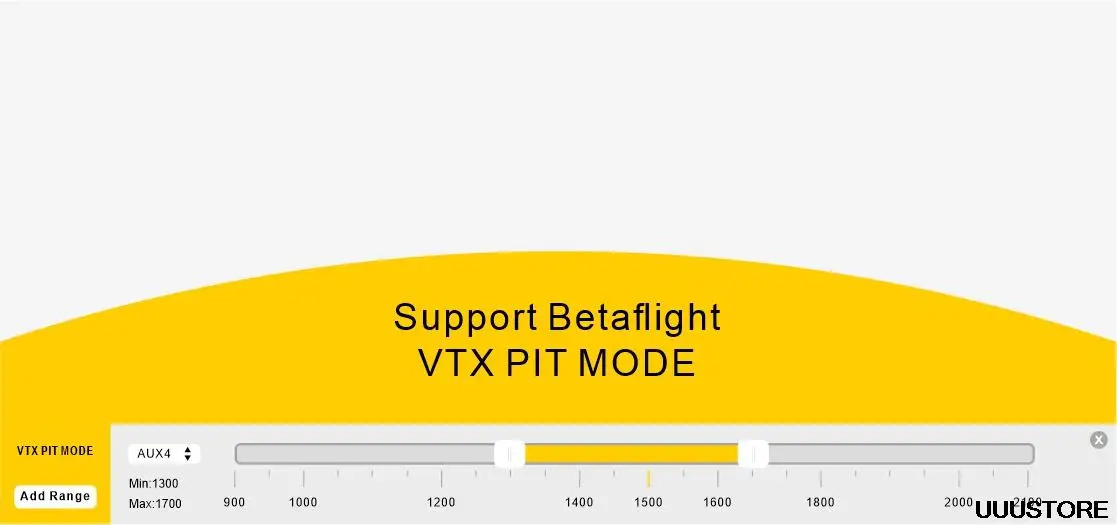

PitMode Support

When you are flying in the same field with other players, PitMode can make you
more calm to power up the aircraft for parameter adjustment without disturbing other players

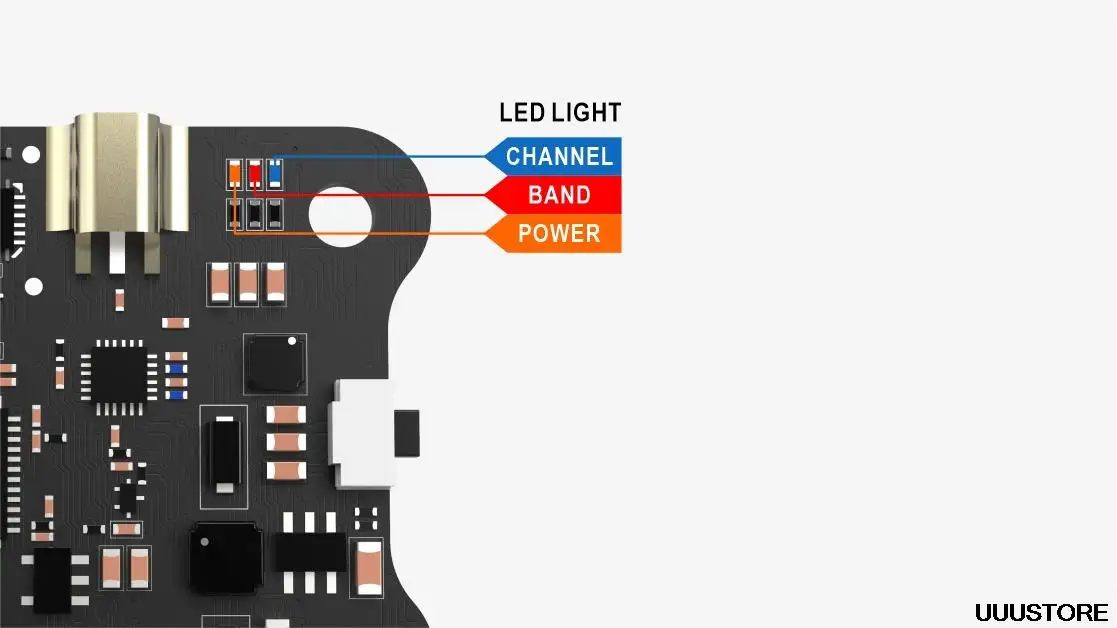

LED Status

1 Blue  Channel LED

Steady on:  The current frequency point is Channel 1
Off:  The current frequency point is one of Channel 2 ~ 8.

1 Red  Band LED

Steady on:  The current frequency band is Band 1
Off:  The current frequency band is one of Band 2 ~ 6.

1 Orange  Power LED

Orange light off:   25mW
Orange flashes once every 2 seconds:   200mW
Orange flashing once every second:   400mW
Steady Orange light on:   800mW
Orange light flashes fast 2 times per second :   PIT Mode

Package

1 X TX800
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 4pin Cable
