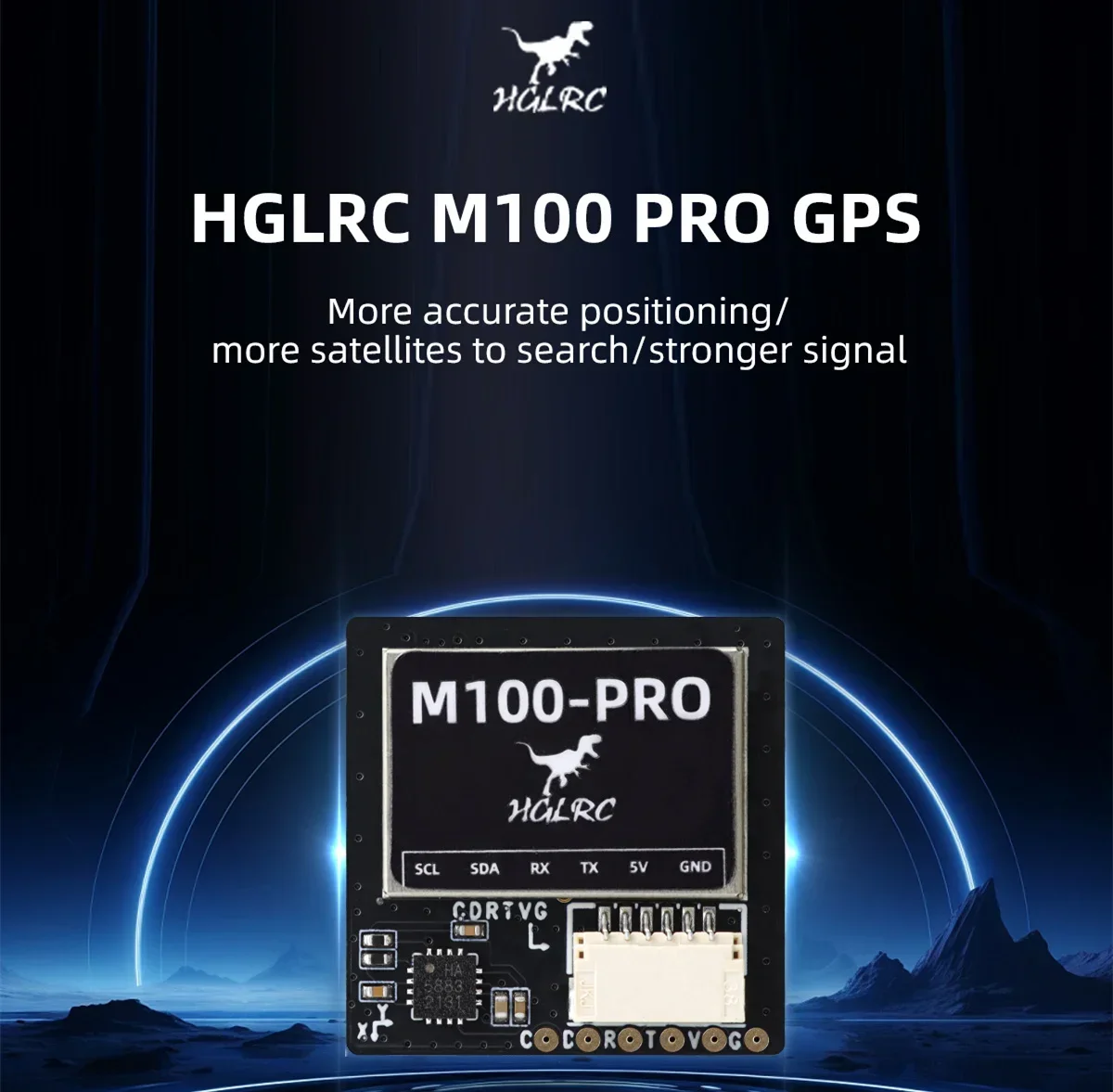

HGLRC M100 PRO GPS
From US $35.98
Est. US $35.98 / unit (1-9 pcs)
$33 @ 10+ pcs$31 @ 100+ pcs
525 orders (reference)
Description
Features:
Adopting the new 10th generation chip, the number of satellite searches is 50+
QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s

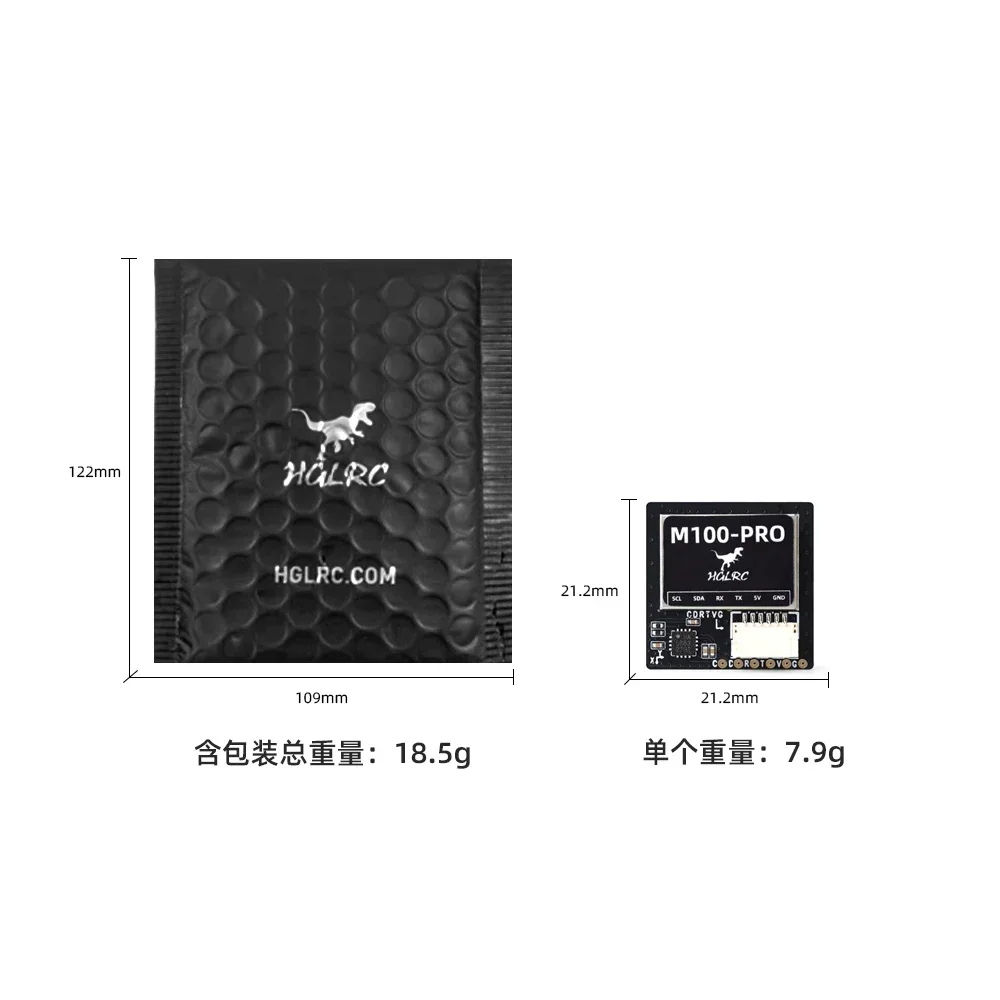

Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃
Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
Вариант
Диапазон ценUS $35.98
Specifications
| Option | Values |
|---|---|
| Type |
|
Product Details
Features:
- Adopting the new 10th generation chip, the number of satellite searches is 50+
- QMC5883L compass, more accurate pointing
- The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
- Five-mode positioning, strong and stable signal to protect you.
Product parameters:
- Chip: B101 (10th generation chip)
- Receiving channel: 120
- Baud rate: 115200 Protocol: UBX
- Antenna: ceramic antenna Output frequency: 10Hz
- Frequency: GPS L1, GLONASS G1, BDS B1,
- GALILEO E1, QZSS L1, SBAS L1, IRNSS
- Power input: 3.6-5.5V
- Weight: 7.9g Acceleration 4G
- Speed: 500m/s
- Size: 21.2×21.2×8.2mm
- Operating temperature: -40℃~+85℃
- Storage temperature: -40℃~+105℃
Product List
- HGLRC M100 PRO GPS x 1
- Heat shrink tube (φ18mm x 25mm) x 1
- HGLRC sticker x 1
- HGLRC manual x 1
- SH1.0-6pin cable x 1
