1pcs new Kingmax CLS1008M steel-toothed 450-480 helicopter swash plate 30E fixed-wing digital high-voltage servo - image 1 of 5
1 / 5

1pcs new Kingmax CLS1008M steel-toothed 450-480 helicopter swash plate 30E fixed-wing digital high-voltage servo

EMAX

From US $20.67
Est. US $20.67 / unit (1-9 pcs)
$19 @ 10+ pcs$18 @ 100+ pcs

Description

1pcs new Kingmax CLS1008M steel-toothed 450-480 helicopter swash plate 30E fixed-wing digital high-voltage servo ============================================================ Kingmax CLS1008M 21g 10kg.cm DC 4.8V~8.4V Digital Metal Gears Mini Servo For 450-480 Class Helicopter Swashplate 30E Fixed-wing FEATURE: -- Programmable high performance matal gears mini digital servo -- Full CNC aluminium hulls and structure -- High-precision steel gears -- High quality coreless motor -- Dual ball bearings SPECIFICATIONS: Operating Speed(5.0V):0.11sec/60degrees Operating Speed(6.0V):0.10sec/60degrees Operating Speed(7.4V):0.08sec/60degrees Operating Speed(8.4V):0.07sec/60degrees Stall torque(7.4V):10.0kg.cm(138.90oz/in) Maximum working torque(7.4V):5.0kg.cm(69.45oz/in) Rated working torque(5.0V):3.0kg.cm(41.67oz/in) Rated working torque(6.0V):3.5kg.cm(48.61oz/in) Rated working torque(7.4V):3.8kg.cm(52.78oz/in) Rated working torque(8.4V):4.7kg.cm(65.28oz/in) Dimensions:23*12*25.6mm/0.89X0.46X0.99in Weight:21g(0.74oz) Connector Wire Length:JR320mm(12.48in) TECHNICAL SPECIFICATIONS • Weight:21g(0.74oz) AVAILABLE OPTIONS CLS1008M PRODUCT INFORMATION Brand: EMAX Category: FPV Drone Wholesale Price: US $20.67 ————————————————————————————————————————

Share this product
Select options
Variant

Product Details

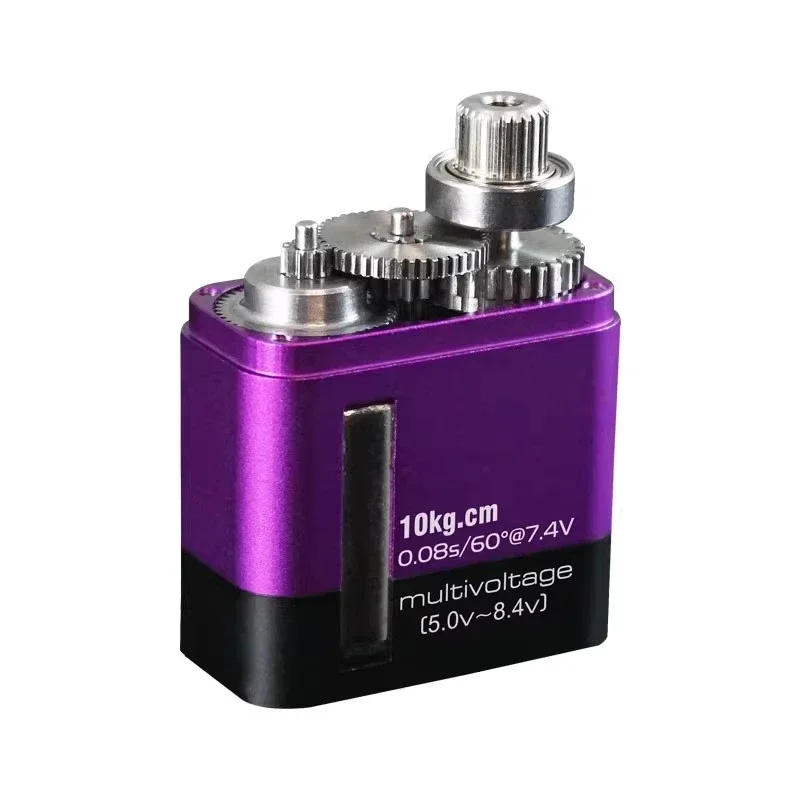

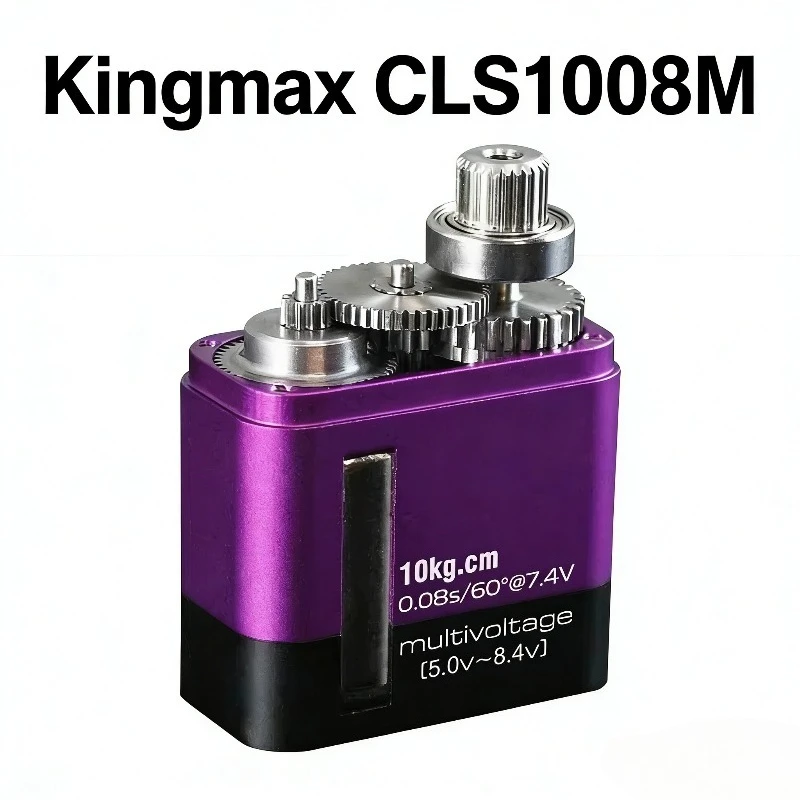

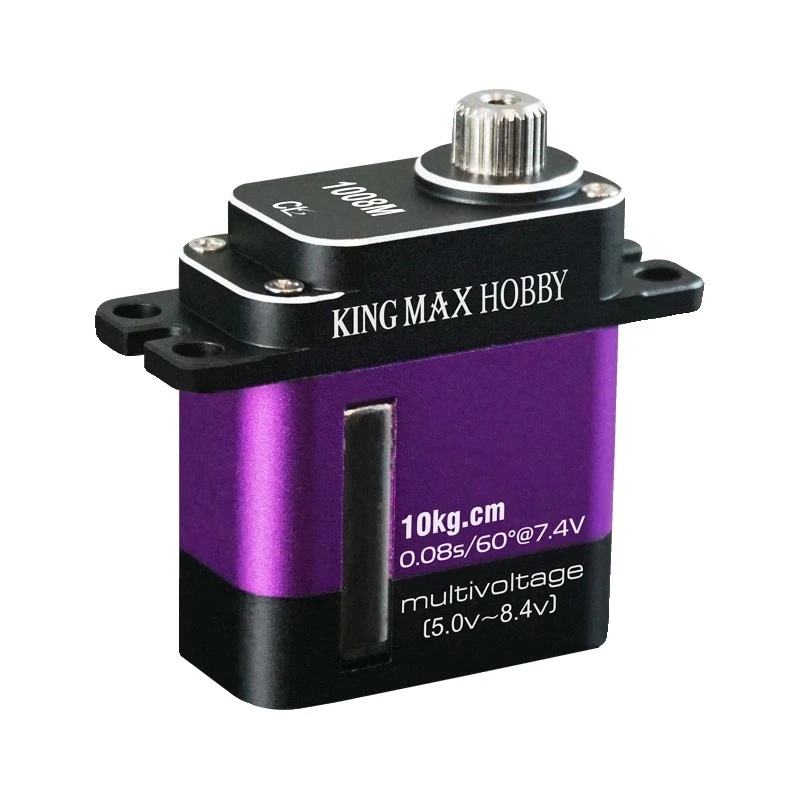

 Kingmax CLS1008M 21g 10kg.cm DC 4.8V~8.4V Digital Metal Gears Mini Servo For 450-480 Class Helicopter Swashplate 30E Fixed-wing


FEATURE:

-- Programmable high performance matal gears mini digital servo

-- Full CNC aluminium hulls and structure

-- High-precision steel gears

-- High quality coreless motor

-- Dual ball bearings

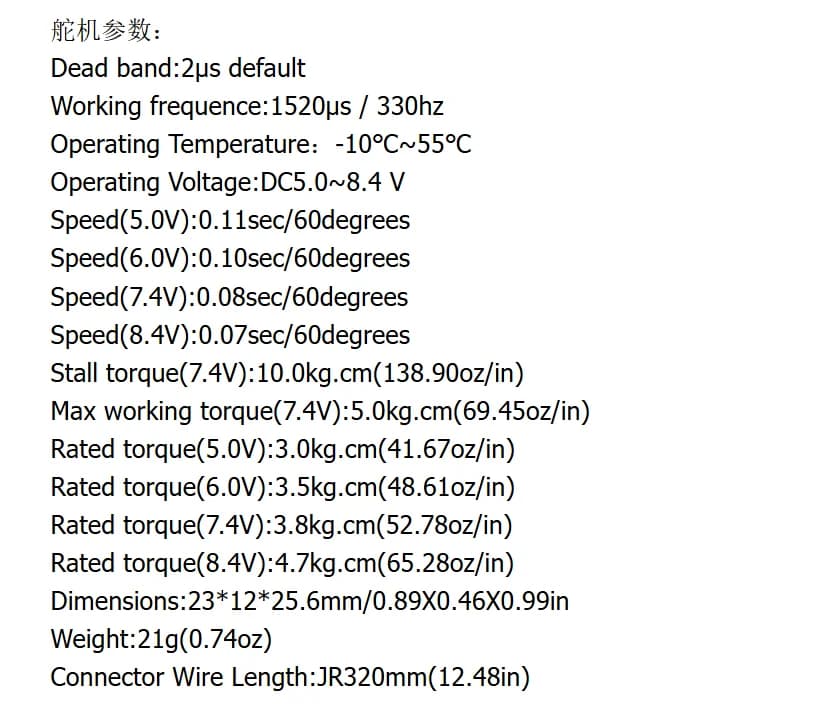

SPECIFICATIONS:

Operating Speed(5.0V):0.11sec/60degrees

Operating Speed(6.0V):0.10sec/60degrees

Operating Speed(7.4V):0.08sec/60degrees

Operating Speed(8.4V):0.07sec/60degrees

Stall torque(7.4V):10.0kg.cm(138.90oz/in)

Maximum working torque(7.4V):5.0kg.cm(69.45oz/in)

Rated working torque(5.0V):3.0kg.cm(41.67oz/in)

Rated working torque(6.0V):3.5kg.cm(48.61oz/in)

Rated working torque(7.4V):3.8kg.cm(52.78oz/in)

Rated working torque(8.4V):4.7kg.cm(65.28oz/in)

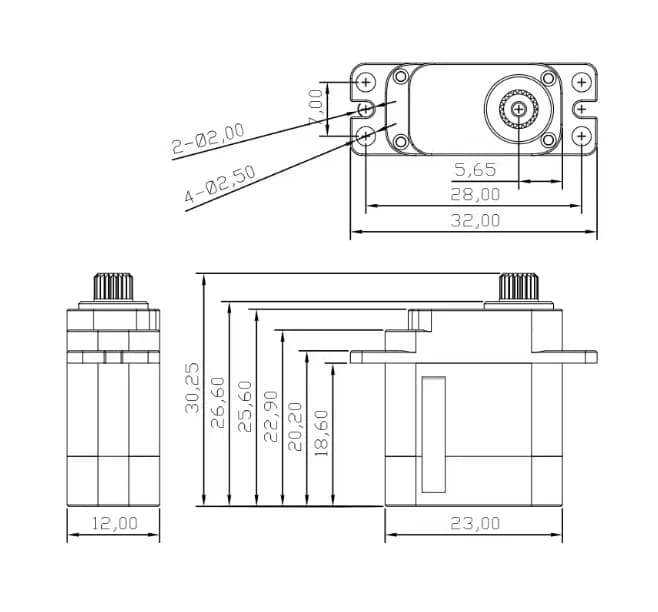

Dimensions:23*12*25.6mm/0.89X0.46X0.99in

Weight:21g(0.74oz)

Connector Wire Length:JR320mm(12.48in)
