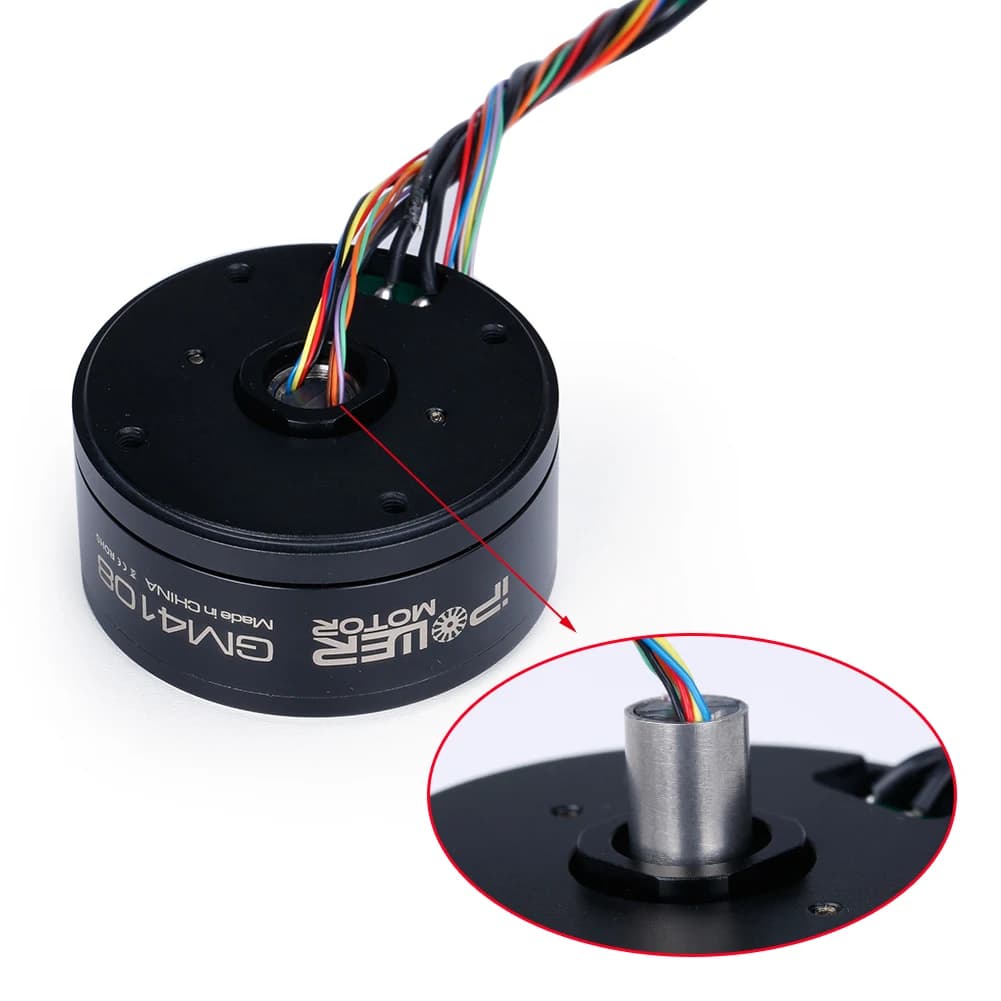

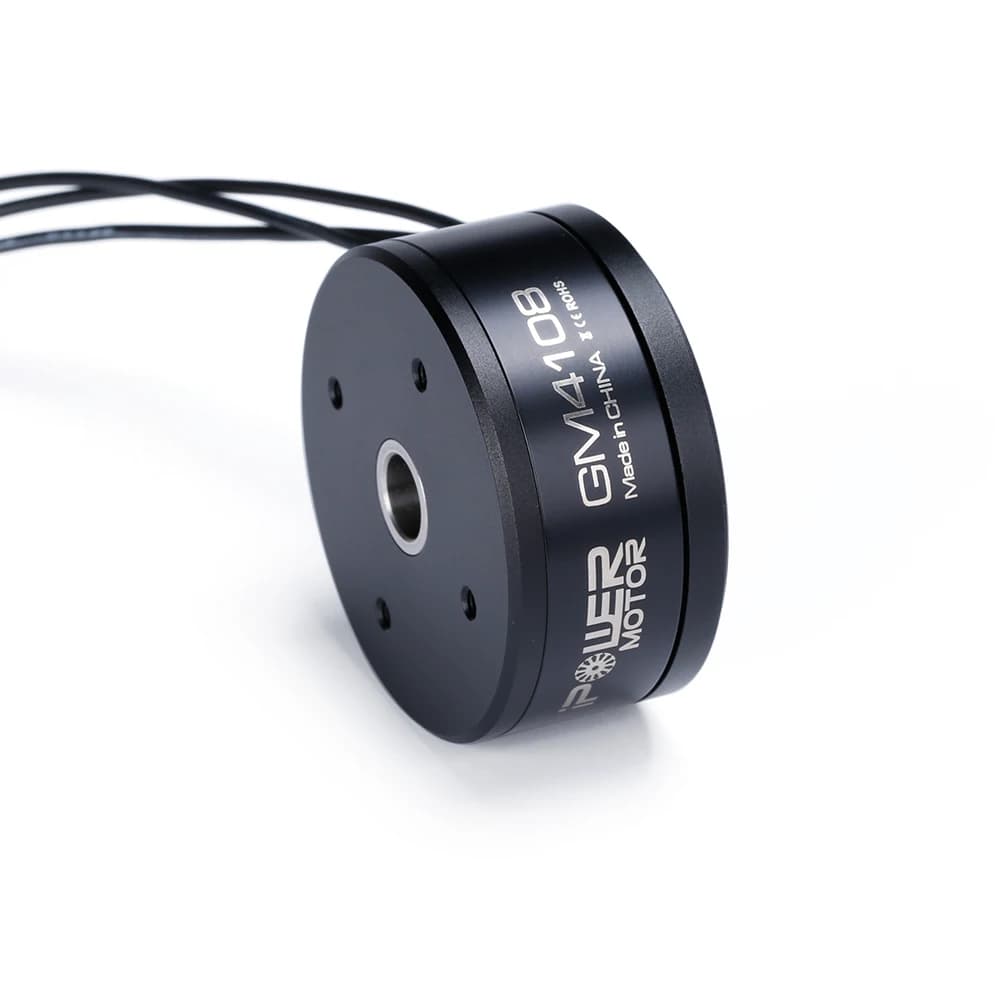

iFlight iPower GM4108H-120T Gimbal Brushless Motor with 8mm Hollow Shaft Lidar

Description

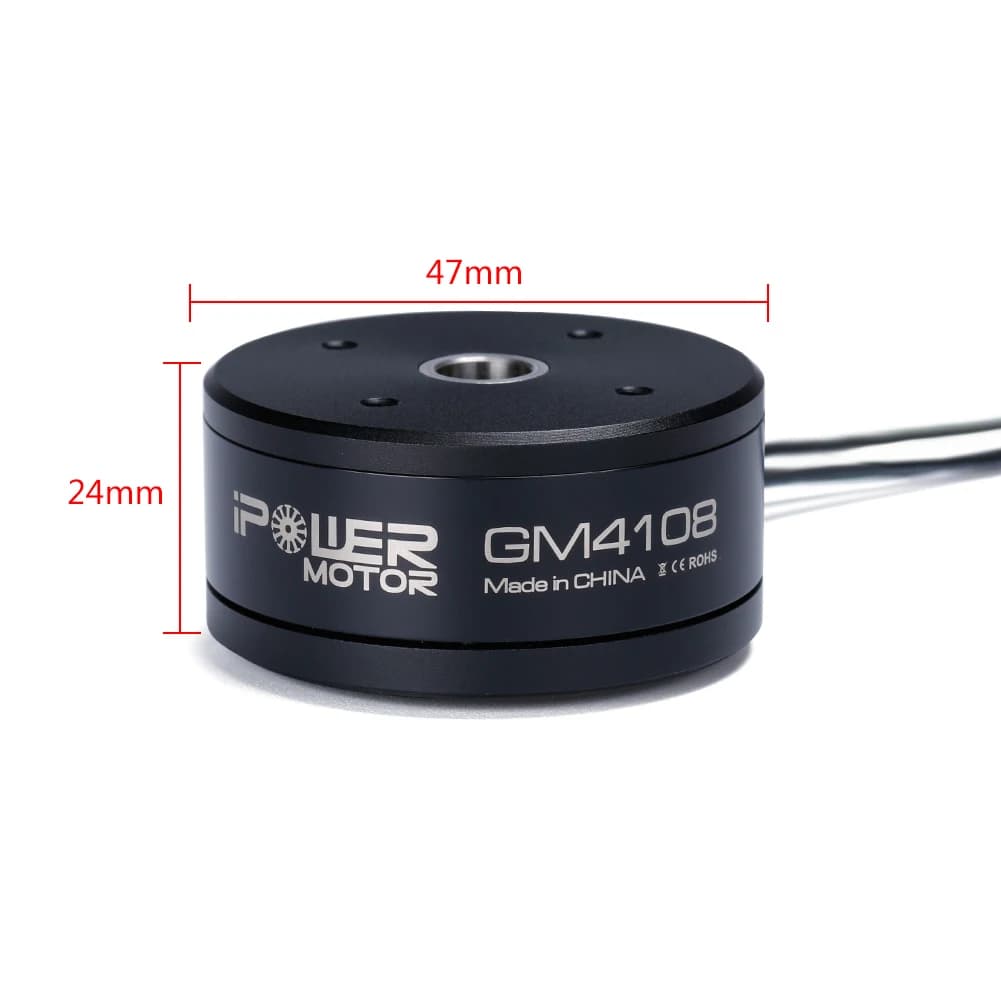

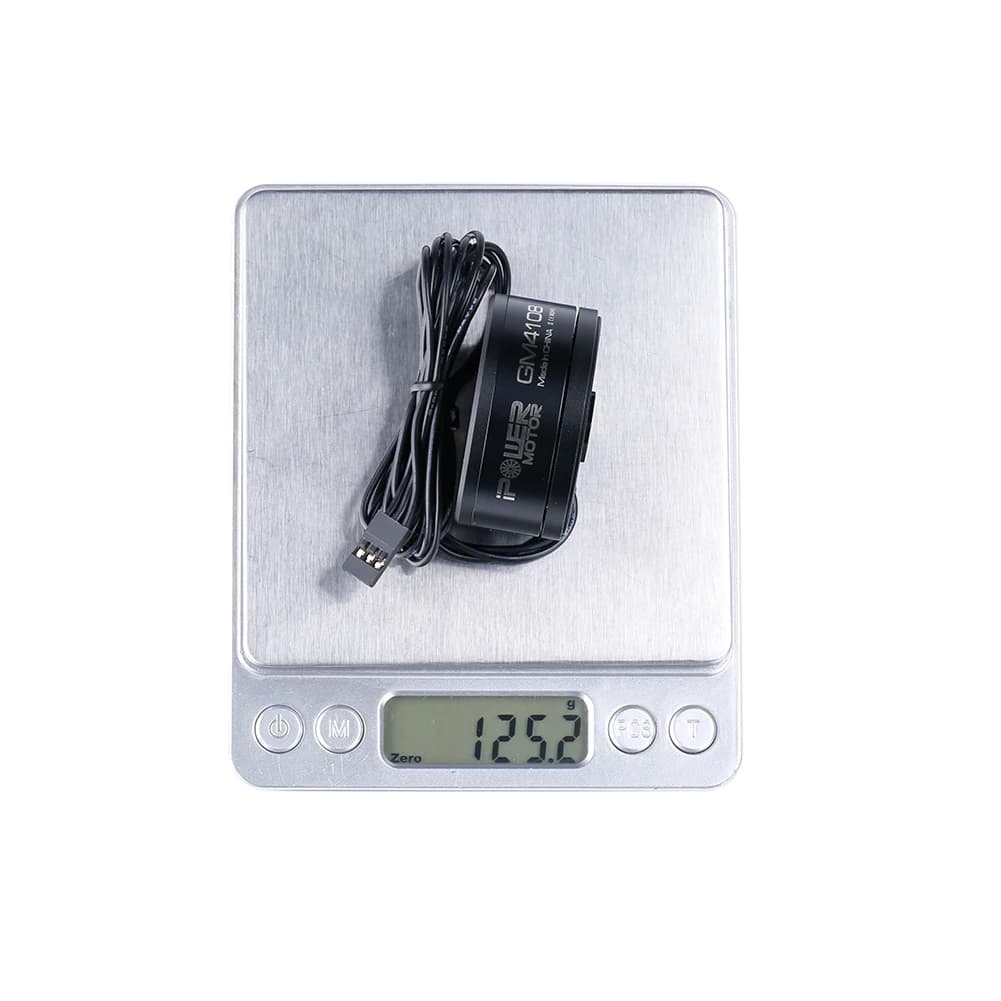

iFlight iPower GM4108H-120T Gimbal Brushless Motor with 8mm Hollow Shaft Lidar ============================================================ Specification: Model: GM4108H Motor Out Diameter: 47±0.05mm Motor Height: 22.7.3±0.2mm Hollow Shaft(OD): 10-0.008/-0.012mm Hollow Shaft(ID): 8+0.05/0mm Wire Length: 265±3mm Cable AWG: #24 Motor Weight: 124±0.5g Wire plug: 2.5mm dupont connector No-load current: 20V No-load volts: 0.07±0.1A No-load Rpm: 513~567 RPM Load current: 20V Load volts: 1.5A Load torque(g): 1200-1800 Motor internal resistance: 11.1Ω±5%Resistance varies with temperature High voltage test: DC500V 1mA@2sec Rotor housing runout: ≤0.1mm Steering (axle extension): Clockwise High-low temperature test High temperatureKeep at 60 for 100 hours, and the motor can wor knormally after 24 hours at room temperature Low temperatureKeep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature Maximum power: ≤25W Working current: 3-5S Working temperature: -20~60;10~90%RH Package included: 1 x iPower GM4108H-120T Gimbal Motor 1 x Aluminium slipringoptional TECHNICAL SPECIFICATIONS • Model: GM4108H AVAILABLE OPTIONS without slipring with slipring PRODUCT INFORMATION Brand: iFlight Category: Brushless Motor Wholesale Price: US $33.77 - $54.57 ————————————————————————————————————————
