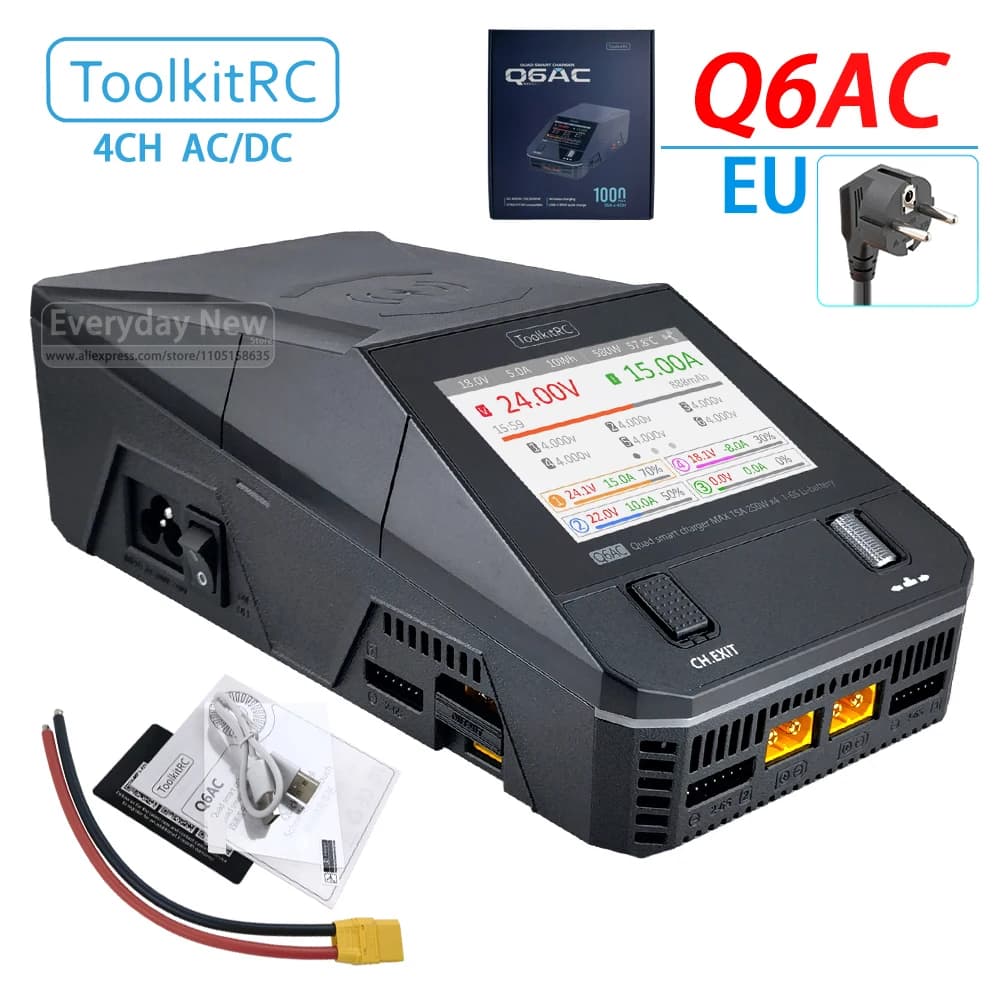

ToolkitRC Q6AC Charger AC 400W / DC 1000W 4CH output Built-in 65W USB Output 15W Wireless Charger for LiPo NiMH PB battery

Other functions

1. Firmware upgrade

After connecting the Q6AC to the computer with the

USB data cable in the box, the computer will recognize a

USB drive named Toolkit. Download the upgrade file

app.upga on the official website. To update copy and

past the new file and overwrite the files in the USB to

upgrade the firmware.

2. Automatically continue charging

When a battery is fully charged, after unplugging the

battery, connect to the next battery, the device will

automatically continue to charge, you can start and stop

this function in the settings menu.

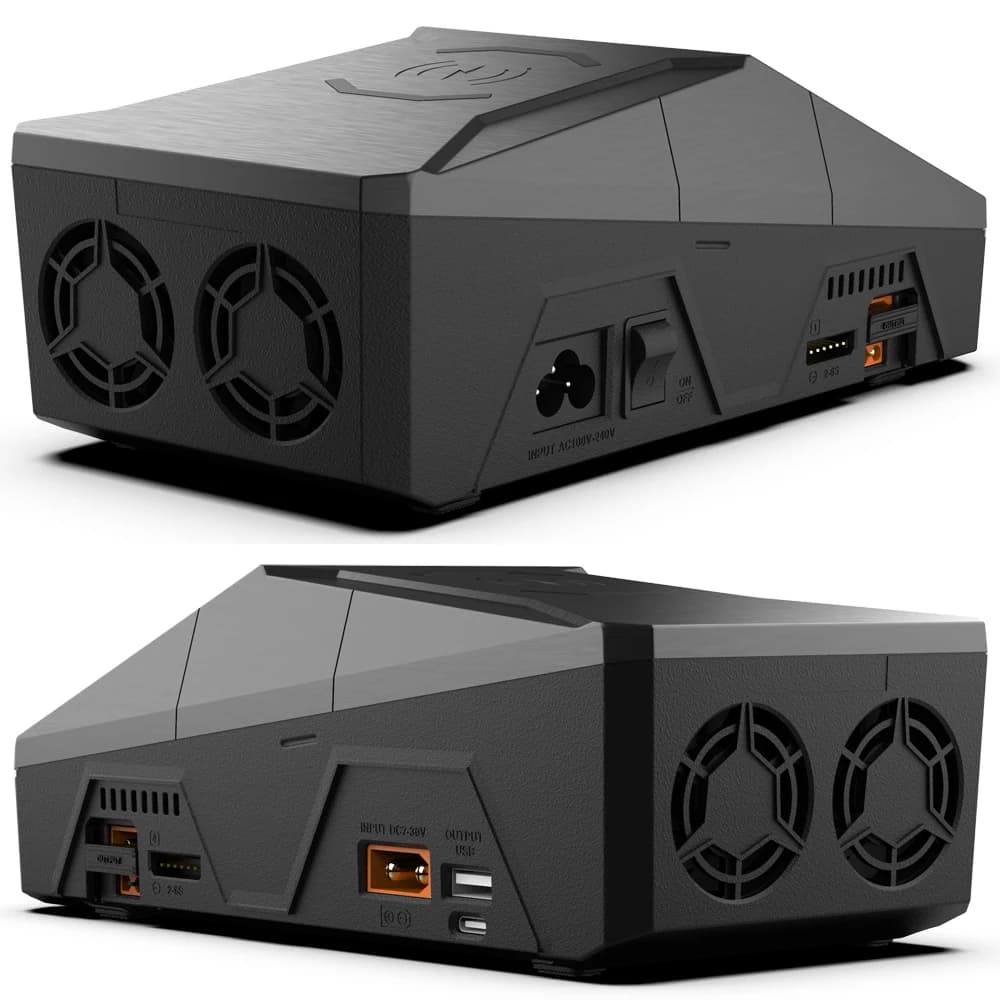

3. Fan stepless speed regulation

When the internal temperature of the device exceeds

43°C or AC power supply, the power is greater than

100W, and the fan will increase the fan speed linearly

according to the internal temperature increase or power

increase. Make it less noisy when operating at low

temperatures or low power.

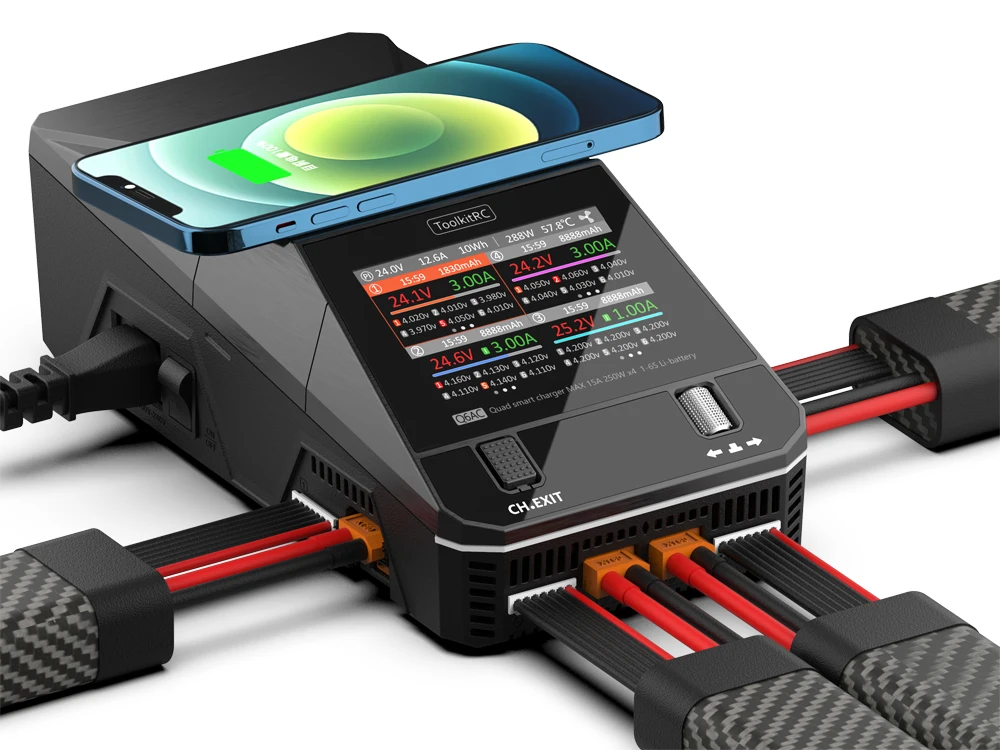

4, Wireless charging

Q6AC has built-in 15W wireless charging, only need to

place the device that supports wireless charging at the

top of the product wireless charging position, and will

automatically start charging.

5, USB fast charging

Q6AC built-in USB fast charging protocol, up to C port

up to 65W charging power, A port can support up to

30W. Supported protocols are PD, QC, AFC, FCP, SCP , PE,

SFCP, VOC. @ToolkitRC 2023 25

6. Manually calibrate the voltage

In the shutdown state, press and hold the [Scroll

Wheel] without releasing, connect the power supply, and

the system will enter the manual voltage calibration

function. Use a voltmeter to measure the actual voltage

of each battery, move the cursor to the corresponding

voltage value, modify the voltage value to be consistent

with the voltmeter value, and achieve calibration. After

the calibration is completed, move the cursor to save,

short press once, the buzzer will beep for a long time,

and the save is successful. Just exit or shut down.

7, Fully charged

When the lithium battery is fully charged, it will

prompt "Fast charging has ended". If the battery is not

removed, the constant voltage trickle charge will be

performed automatically to keep the battery full.

Q6AC four channel independent output, automatic power distribution, total output power up to 1000W, AC/DC dual mode input, built-in 400W AC power supply, XT90 DC input, power up to 1000W, Magesafe magnetic suction wireless charging, slider design, compatible with XT60/XT30 optional,

Input voltage: AC 100-240V, maximum 100W 5.0A

DC 7.0-30.0v @ Max 50A

Battery type: Lipo LiHV LiFe Lion LTO @ 1-6S

NiMh @ 1-16S Pb @ 1-10S

Balance current: 800mA @ 4.2V

Charging power: 250W @ MAX 15A * 4

Discharge power: 250W @ MAX 15A recycling mode

12w @ 3A normal mode

USBA: 30w or upgrade firmware

USBC: Maximum 65W@20.0V

PD QC PPS AFC FCP SCP PE SFCP

Product size: 220mm * 113mm * 82mm

Product weight: 1120g

Packaging size: 260 * 220 * 120 mm

Packaging weight: 1600g

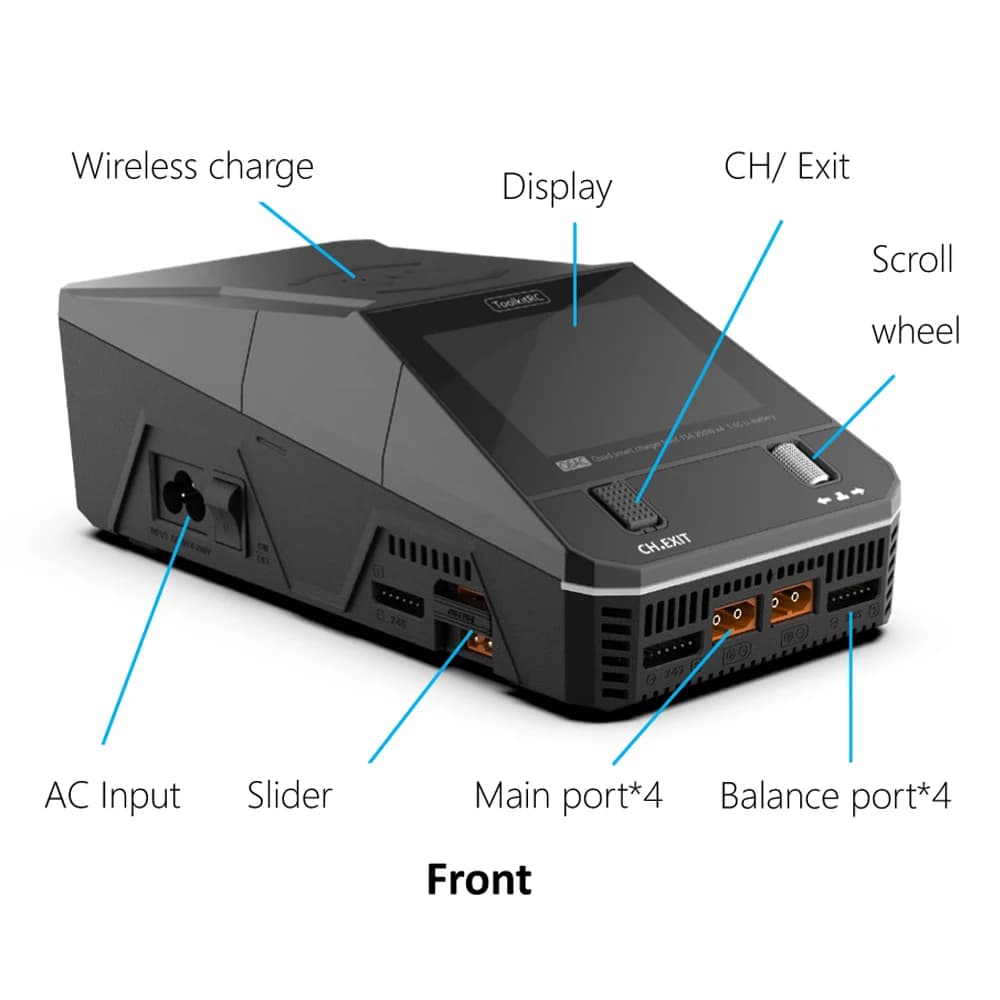

Product Overview

Q6AC is a four channel balanced charger product with IPS highlighted display screen and more convenient operation of roller encoder.

1. Charging accuracy<0.005V.

2. Balance current 800mA

3. Built in 15W wireless charging.

4. Built in 65W C/30W A fast charging.

5. Lithium battery cut-off voltage can be set (TVC function)

6. Automatic allocation of input power

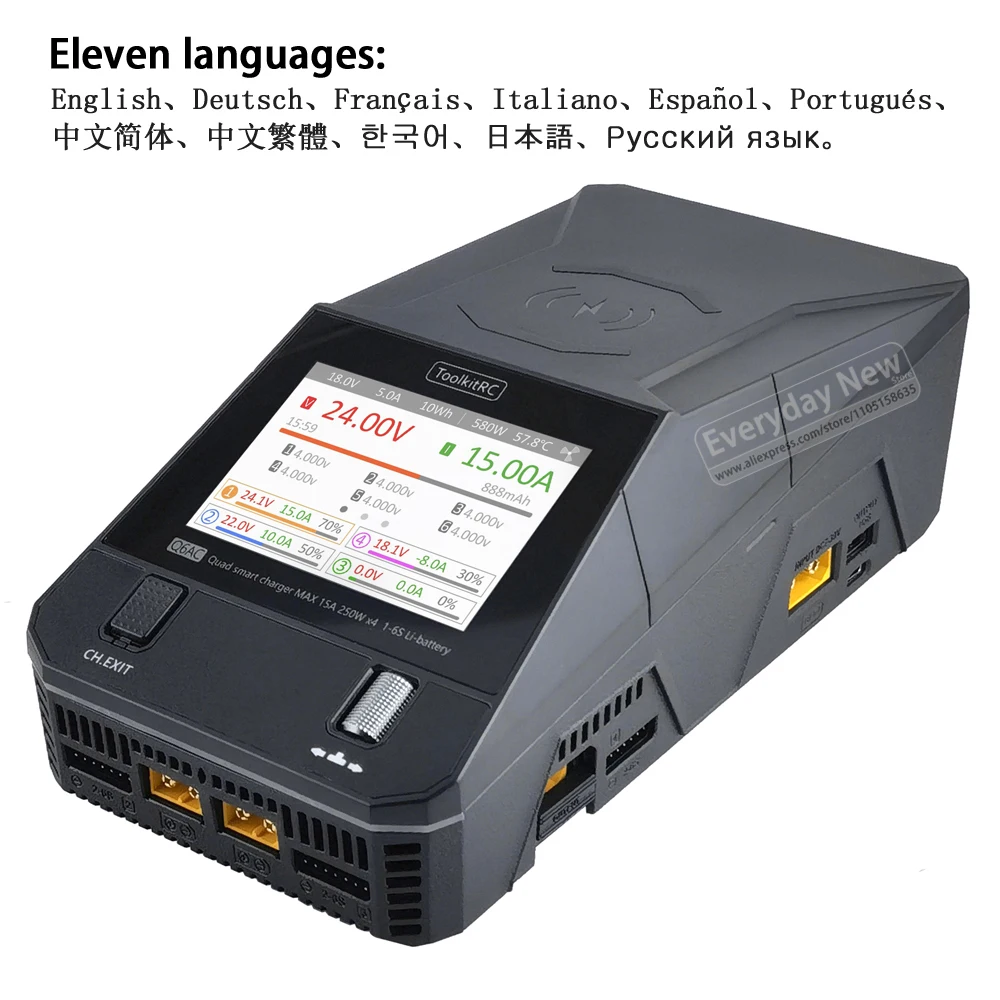

7. Multi language system, can switch to the desired language at will

8. Simulate the device as a disk, copy the upgrade file to achieve product firmware upgrade

9. Can record 32 commonly used batteries.

10. It can record 3 sets of commonly used power supplies, making it convenient for quick translation selection.
