SUNNYSKY X2212 980KV KV1400/1250/2450  Brushless Motor (Short shaft )Quad-Hexa copter  Wholesale Promotion - image 1 of 6
1 / 6

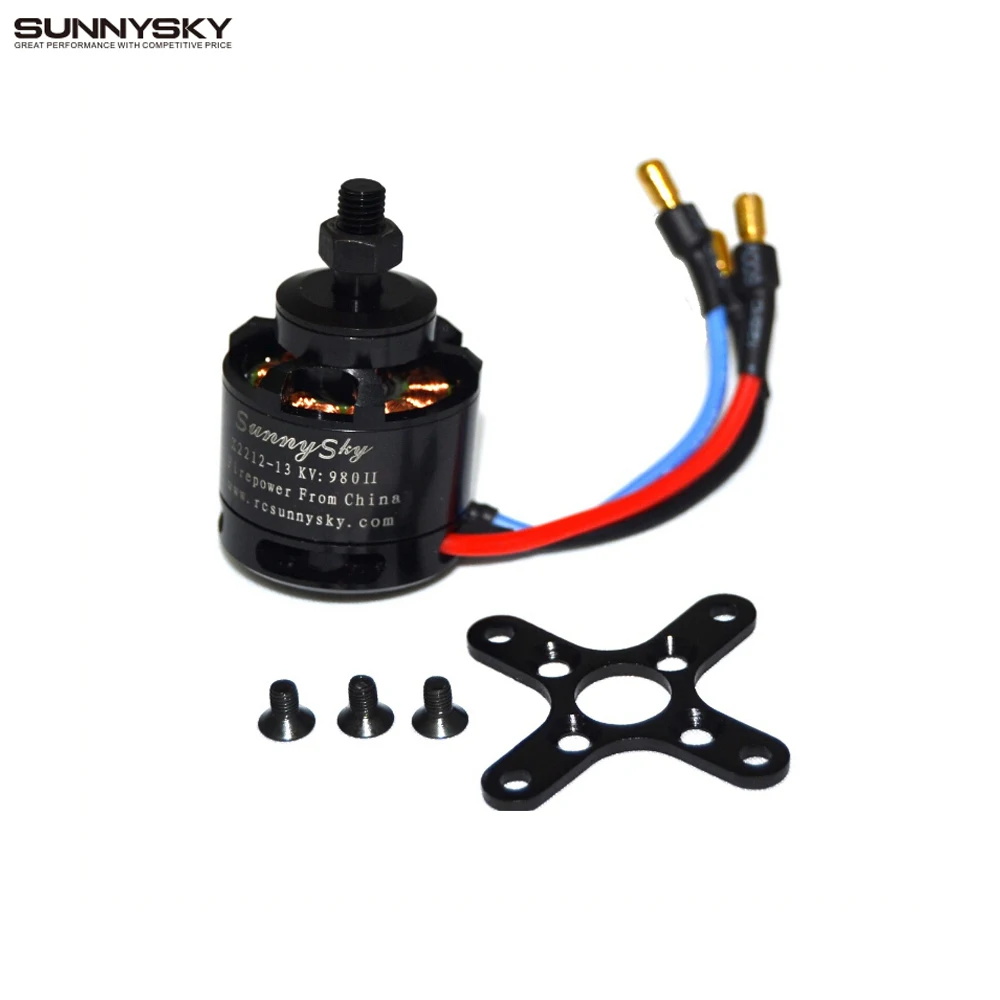

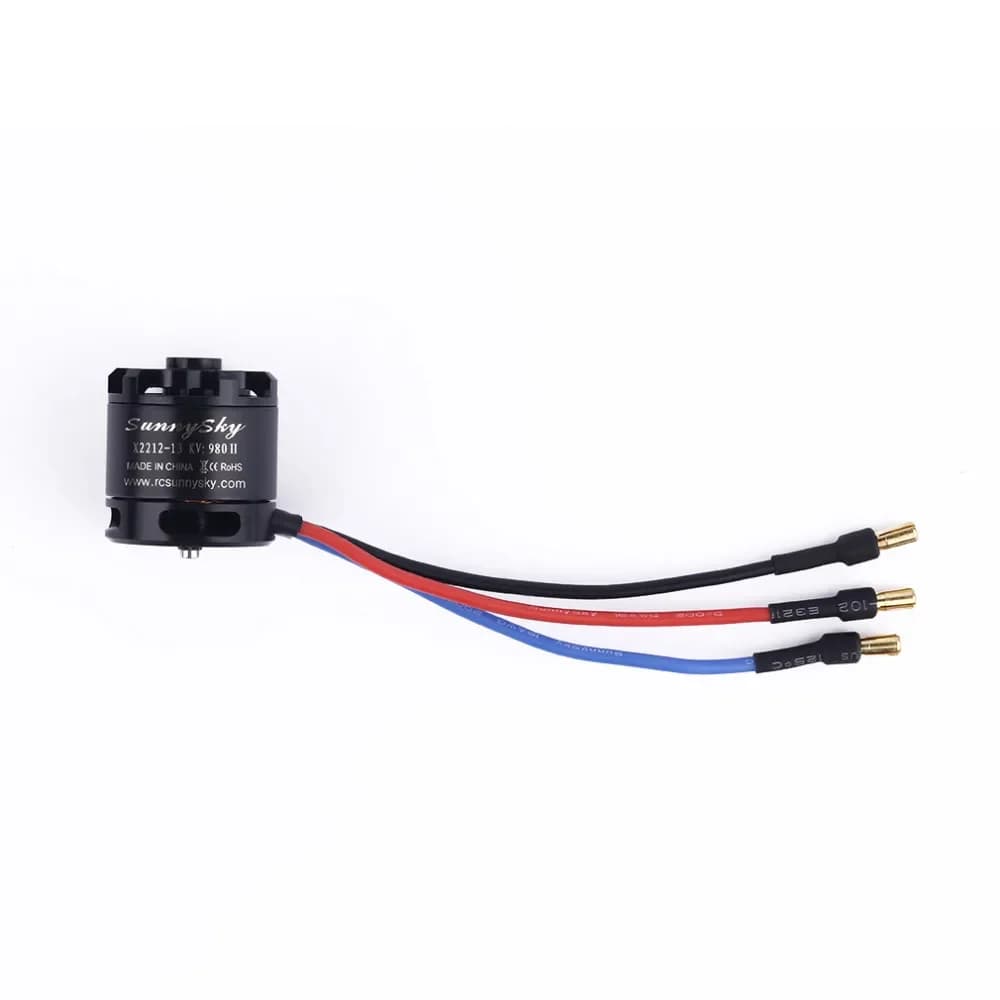

SUNNYSKY X2212 980KV KV1400/1250/2450 Brushless Motor (Short shaft )Quad-Hexa copter Wholesale Promotion

SunnySky

From US $24.60
Est. US $24.60 / unit (1-9 pcs)
$22 @ 10+ pcs$21 @ 100+ pcs

18 orders (reference)

Description

SUNNYSKY X2212 980KV KV1400/1250/2450 Brushless Motor (Short shaft )Quad-Hexa copter Wholesale Promotion ============================================================ 980KV Motor: Number of cells 2~3 LiPoly No Load Current Max. Amps 27.5x30mm Weight Shaft diameter Suggested configuration (See chart in images below) More... Features: * Long life Japanese NMB bearings * Kawasaki stator steel * High temperature magnets - stable up to 180C * Oxygen free copper windings * Silicone wire leads 1400KV motor: - Model: X2212-1400KV - KV (rpm/v): 1400 - Non-load current: 10V/0.9 Features: - Model: X2212-1400KV - KV (rpm/v): 1400 - Non-load current: 10V/0.9A - Weight: 56g - Length: 30mm - Diameter: 27.5mm - Shaft Diameter(mm): 3 1250KV motor: Model:x2212 Weight:56g(include plug) KV:1250 No-load current:11.1v/0.9A 2350KV: Model:x2212 Weight:56g(include plug) KV:2350 TECHNICAL SPECIFICATIONS • Model:x2212 • Weight:56g(include plug) • KV:1250 • KV:2350 AVAILABLE OPTIONS KV2450 KV1250 KV980 KV1400 KV2100 PRODUCT INFORMATION Brand: SunnySky Category: Brushless Motor Wholesale Price: US $24.60 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
Size27.5*30mm
Model NumberH346
DIY SuppliesElectrical
OriginMainland China

Product Details



980KV Motor:



RPM/V

980KV

Number of cells

2~3 LiPoly

No Load Current

.3A

Max. Amps

18A

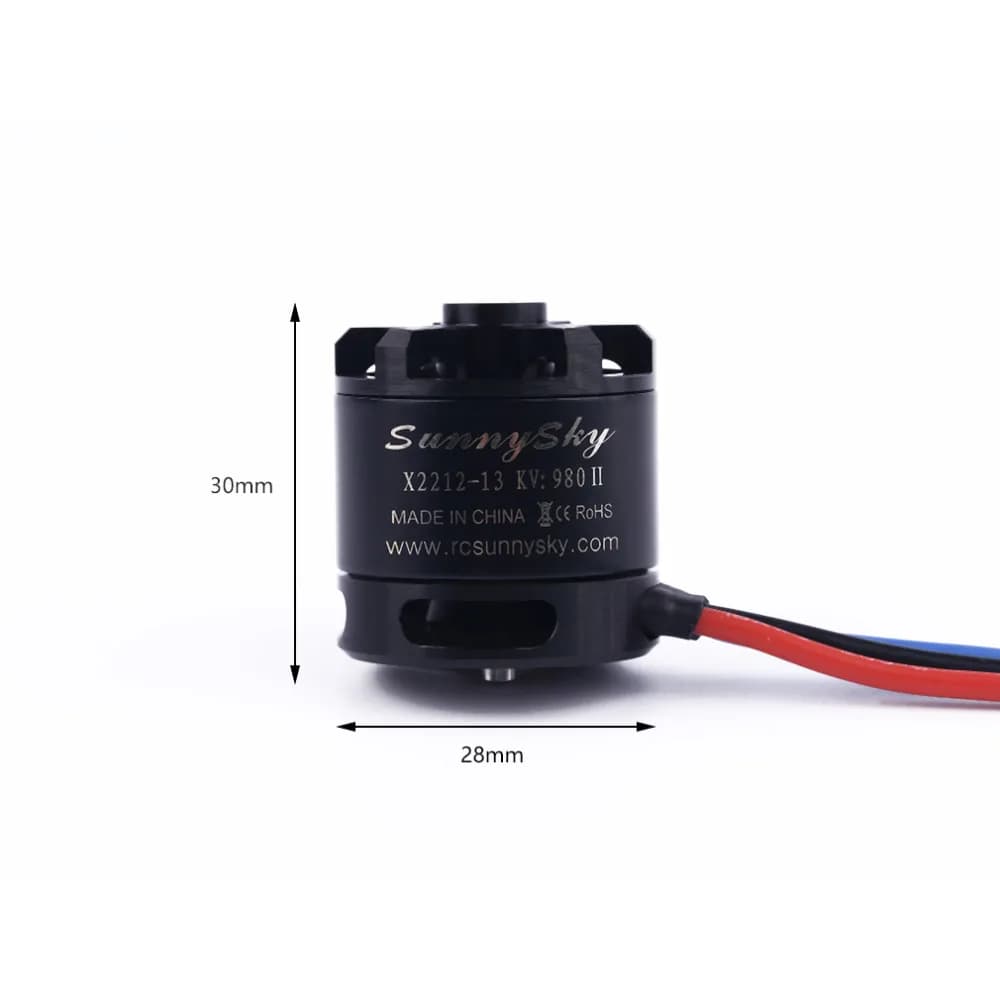

Size

27.5x30mm

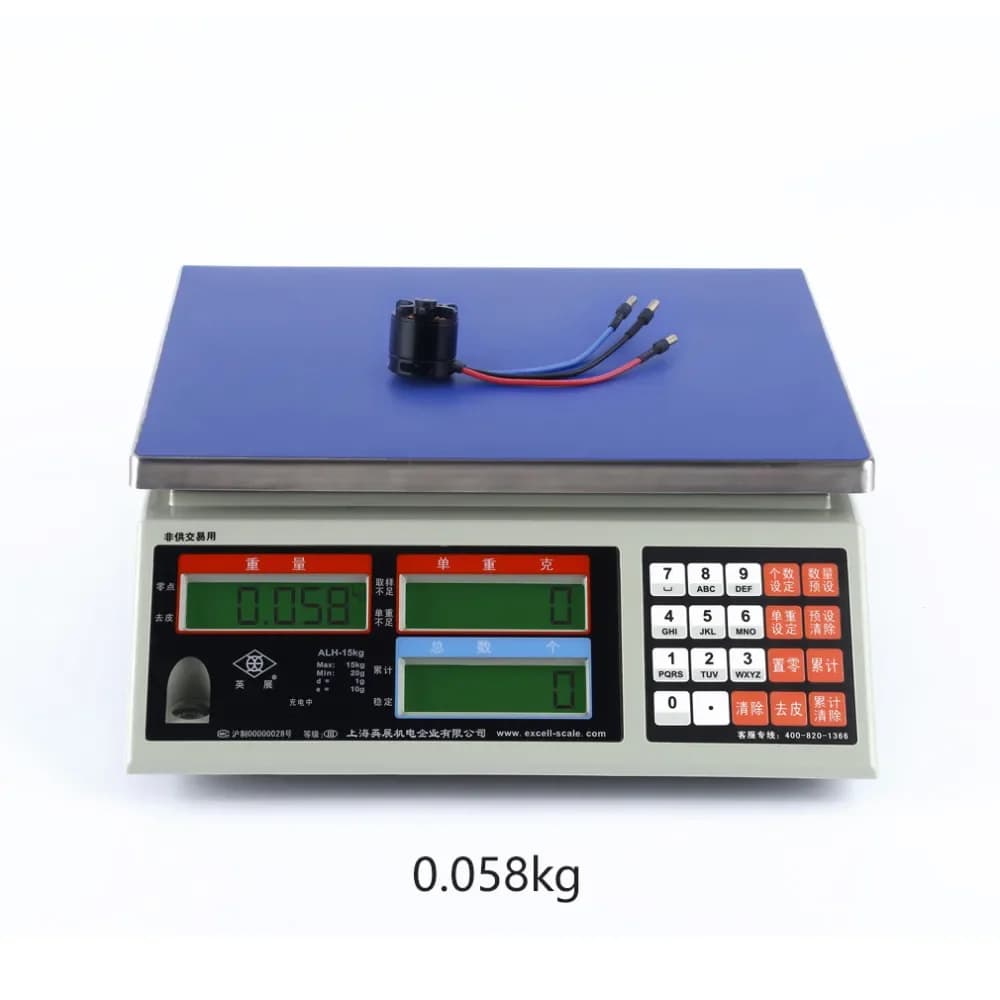

Weight

56g

Shaft diameter

3mm

Suggested configuration

(See chart in images below)

More...

Features:
* Long life Japanese NMB bearings
* Kawasaki stator steel
* High temperature magnets - stable up to 180C
* Oxygen free copper windings
* Silicone wire leads

1400KV motor:

- Model: X2212-1400KV

  • - KV (rpm/v): 1400

  • - Non-load current: 10V/0.9

Features:

  • - Model: X2212-1400KV

  • - KV (rpm/v): 1400

  • - Non-load current: 10V/0.9A

  • - Weight: 56g

  • - Length: 30mm

  • - Diameter: 27.5mm

  • - Shaft Diameter(mm): 3

1250KV motor:

Model:x2212

Weight:56g(include plug)

KV:1250

No-load current:11.1v/0.9A



2350KV:

Model:x2212

Weight:56g(include plug)

KV:2350
