SUNNYSKY X2820 Series External Rotor Brushless Motor 800KV 920KV 1100KV 3~5S Lipo 5mm Shaft RC Fixed-wing Aircraft
6 orders (reference)
Description
SUNNYSKY X2820 Series External Rotor Brushless Motor 800KV 920KV 1100KV 3~5S Lipo 5mm Shaft RC Fixed-wing Aircraft ============================================================ Item Name:SUNNYSKY X2820 Series Brushless Motor Product Parameters: Material: Copper+Metal Color: Black KV value: 800KV, 920KV, 1100KV Number of slots: 12N14P Axis Diameter: 5mm Specification of Silicone Wire for Motor: 16AWG 100mm Motor weight (including wire): 138g Working rated voltage (Lipo): 3-5S Interphase internal resistance: 41 mΩ No-load current: 0.9A/10V Maximum continuous power: 700W Maximum continuous current: 46A/30S Recommended use of electric regulation: 60A Recommended propeller specifications: PC11x5.5, APC12x6, APC12x8, APC13x6.5, APC13x8 Interphase internal resistance: 28 mΩ No-load current: 1.1A/10V Maximum continuous power: 750W Maximum continuous current: 52A/30S Recommended use of electric regulation: 60A Recommended propeller specifications: APC11x5.5, APC11x7, APC11x8, APC12x6, APC12x8, APC13x6.5 1100KV Interphase internal resistance: 19 mΩ No-load current: 1.3A/10V Maximum continuous power: 880W Maximum continuous current: 60A/15S Recommended use of electric regulation: 60A Recommended propeller specifications: APC11x5.5, APC11x7, APC11x8, APC12x6, APC9060, APC105 The motor factory has welded 3.5 banana heads, ready to use. Package Included: SUNNYSKY X2820 Series Brushless Motor x1 Bag of Accessories x1 TECHNICAL SPECIFICATIONS • Material: Copper+Metal AVAILABLE OPTIONS 1PCS X2820 800KV 1PCS X2820 920KV 1PCS X2820 1100KV PRODUCT INFORMATION Brand: SunnySky Category: LiPo Battery Wholesale Price: US $39.07 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | Y |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Model Number | X2820 |
| For Vehicle Type | Airplanes |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Item Name:SUNNYSKY X2820 Series Brushless Motor
Product Parameters:
Material: Copper+Metal
Color: Black
KV value: 800KV, 920KV, 1100KV
Number of slots: 12N14P
Axis Diameter: 5mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 138g
Working rated voltage (Lipo): 3-5S
800KV
Interphase internal resistance: 41 mΩ
No-load current: 0.9A/10V
Maximum continuous power: 700W
Maximum continuous current: 46A/30S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
PC11x5.5, APC12x6, APC12x8, APC13x6.5, APC13x8
920KV
Interphase internal resistance: 28 mΩ
No-load current: 1.1A/10V
Maximum continuous power: 750W
Maximum continuous current: 52A/30S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
APC11x5.5, APC11x7, APC11x8, APC12x6, APC12x8, APC13x6.5
1100KV
Interphase internal resistance: 19 mΩ
No-load current: 1.3A/10V
Maximum continuous power: 880W
Maximum continuous current: 60A/15S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
APC11x5.5, APC11x7, APC11x8, APC12x6, APC9060, APC105
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

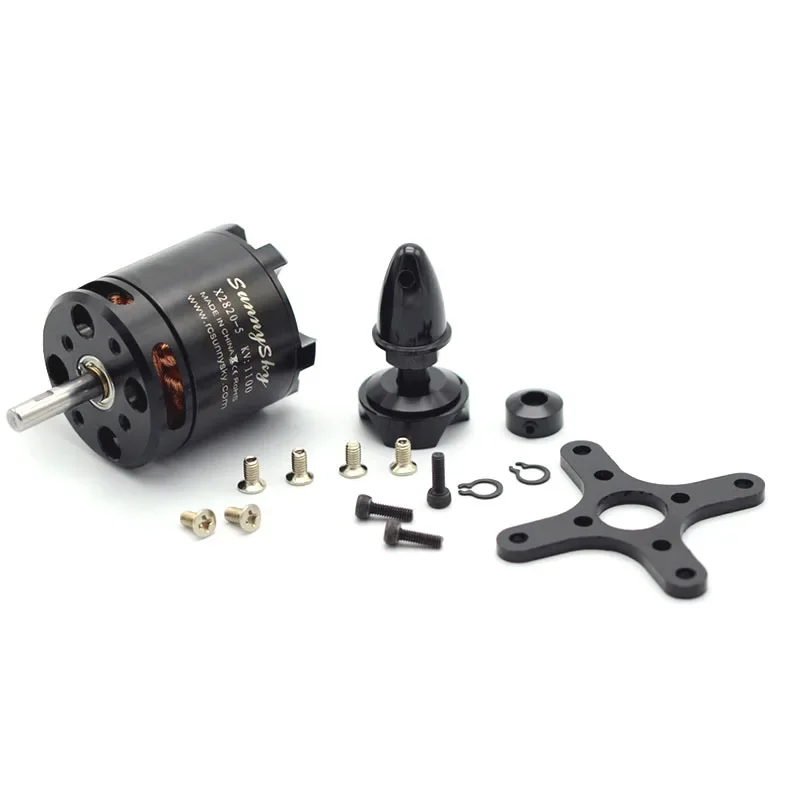

Package Included:
SUNNYSKY X2820 Series Brushless Motor x1
Bag of Accessories x1
