SKYZONE S1 Pro FPV Air Unit Digital Video Transmission with Alps Basalt Dune camera for FPV plane Remote Controller parts
2 orders (reference)
Description
SKYZONE S1 Pro FPV Air Unit Digital Video Transmission with Alps Basalt Dune camera for FPV plane Remote Controller parts ============================================================ SKYZONE S1 PRO Air Unit, a high-performance video transmission system engineered for FPV toys enthusiasts, designed to deliver stable, low-latency HD video feed for immersive flight experiences. This complete air unit kit includes all essential parts for seamless integration: High-Definition FPV Camera : Available in multiple variants (Alps 14mm, Basalt 20mm, Dune 20mm low-light) to suit different drone sizes and flight scenarios, with the Dune model optimized for exceptional low-light and night flight performance. 5.8G Dual-Antenna Transmitter (VTX) : Features dual-antenna design for enhanced signal stability, reduced interference, and extended transmission range, paired with two 5.8G lollipop/mushroom antennas for reliable signal output. Main Air Unit Module : Equipped with a power port, Type-C port for configuration, link button for pairing, and VTX LED status indicator for real-time operation monitoring. Accessories : USB tuning board + 6-pin 150mm connection cable for easy parameter adjustment and setup. Technical Specifications Input Voltage : 8V-30V wide voltage input, compatible with most FPV drone power systems Power Consumption: ≥ 7.5W (e.g., 8V/0.91A) Overheat Protection: Automatic shutdown at approximately 110°C to prevent device damage Interface Support: UART (for flight controller connection), SBUS, USB Type-C for configuration Core Features ✅ Dual-Antenna Design: Ensures robust signal transmission, minimizing dropouts even in complex flight environments ✅ Versatile Camera Options: Choose from compact 14mm cameras for 2-3 inch small drones, or 20mm models with balanced/low-light performance for various use cases ✅ Easy Configuration: USB tuning board and Type-C port for simple parameter adjustment and firmware updates ✅ Built-in Protection: Overheat shutdown protection safeguards the VTX during long-duration flights ✅ Wide Compatibility: Compatible with standard FPV flight controllers, suitable for racing drones, freestyle drones, and cinematic FPV setups Important Notes The VTX generates significant heat during operation. Ensure proper airflow for heat dissipation to avoid overheating and performance issues. Confirm local radio frequency regulations before use, and operate within legal power and frequency limits. The standard camera offers balanced overall performance, while the Dune low-light camera is recommended for night flight applications. Perfect for FPV pilots looking for a reliable, high-performance digital video transmission solution for small to medium-sized toys. AVAILABLE OPTIONS Alps Air Unit Basalt Air Unit Dune Air Unit SD10P VRX and Basalt China Mainland PRODUCT INFORMATION Brand: Skyzone Category: Drone Accessory Wholesale Price: US $124.50 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | SKYZONE S1 PRO Digital FPV Air Unit |
| For Vehicle Type | Airplanes |
| Remote Control Peripherals/Devices | RECEIVERS |
| RC Parts & Accs | Transmitters |
| Material | EVA |
| Brand Name | Skyzone |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
| Compatible Model | For Digital Goggles series |
Product Details

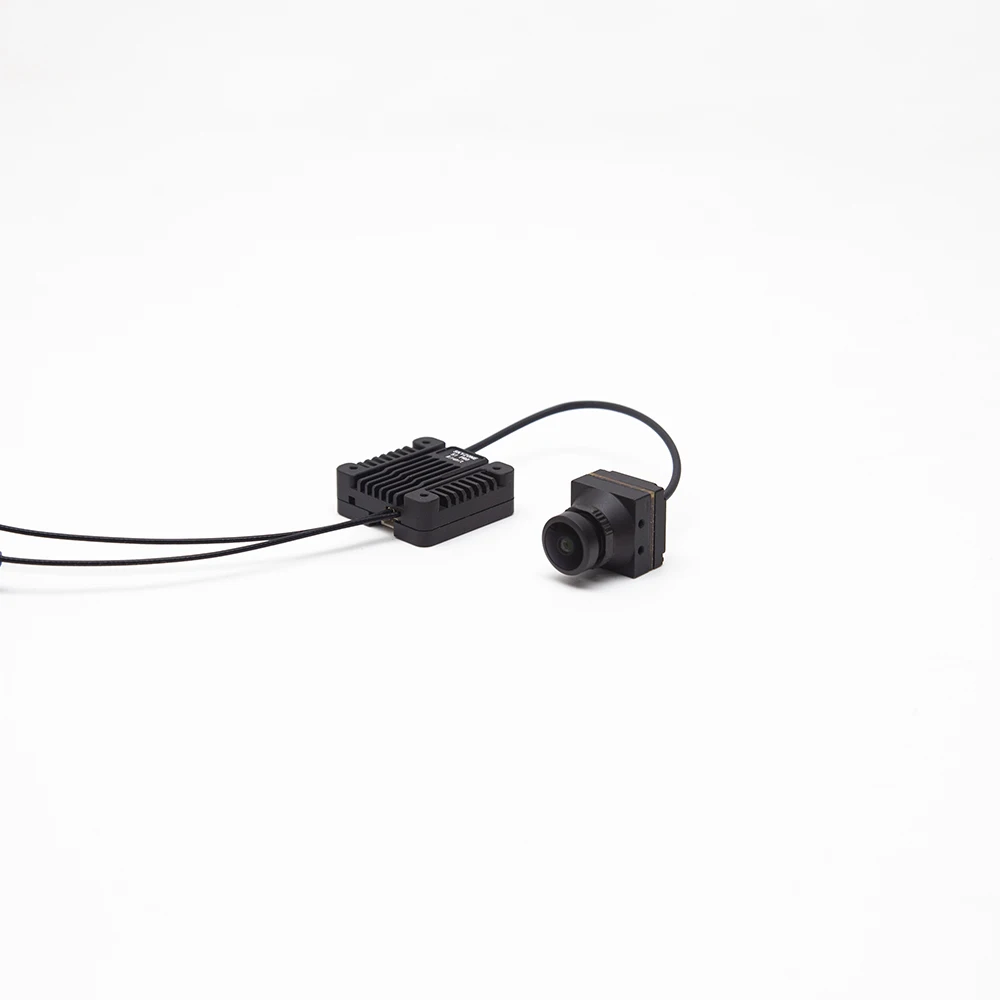

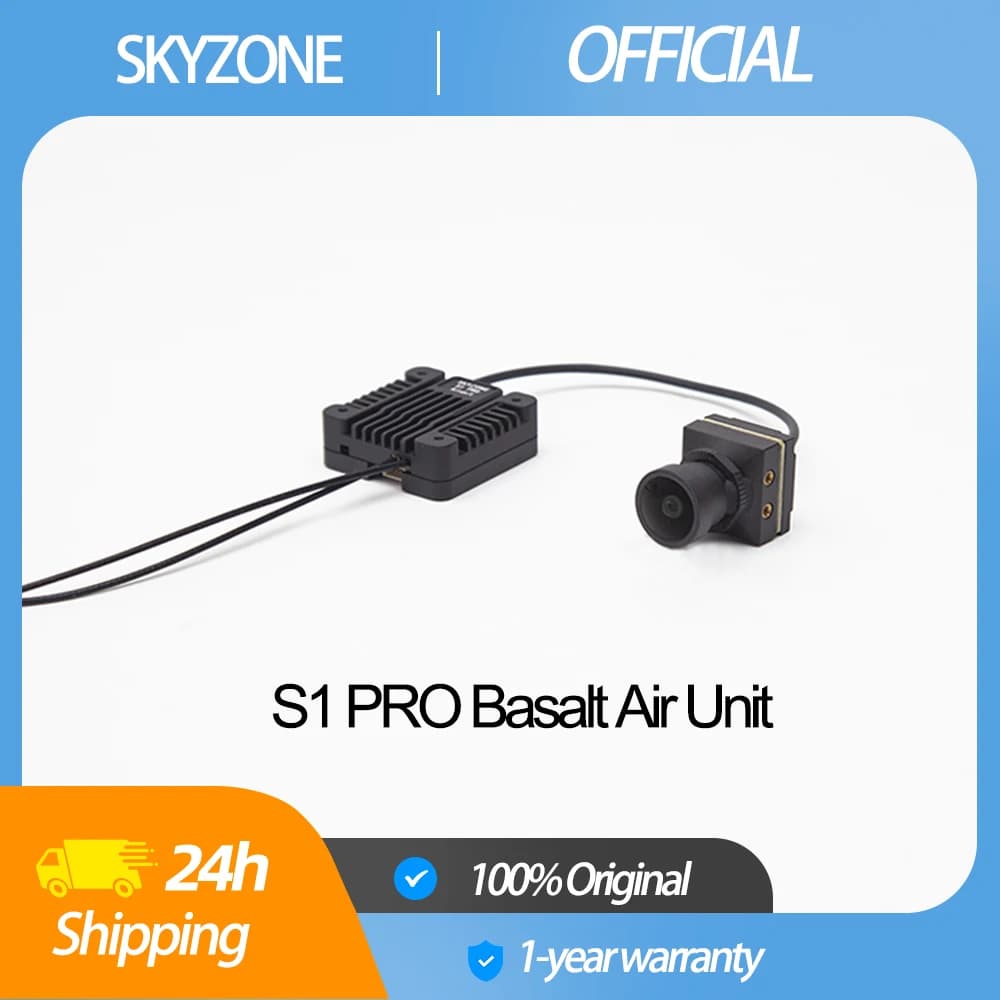

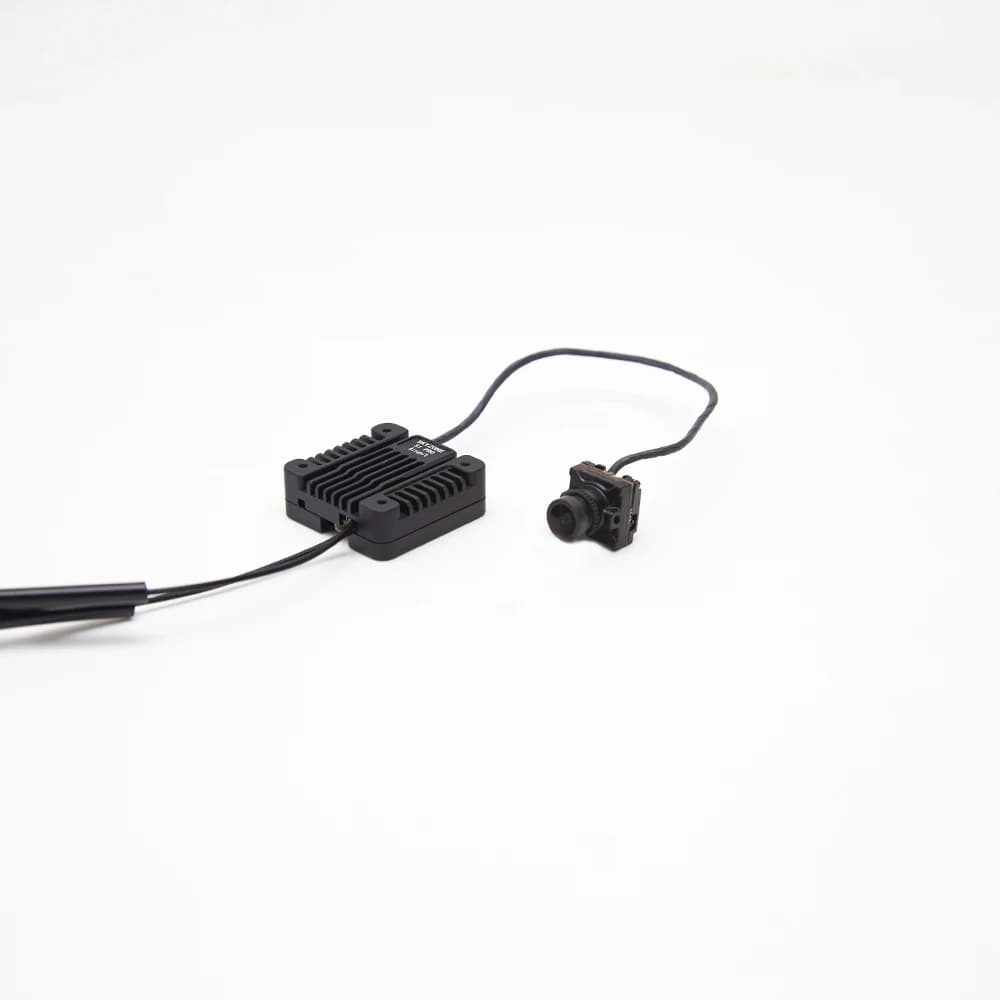

SKYZONE S1 PRO Air Unit, a high-performance video transmission system engineered for FPV toys enthusiasts, designed to deliver stable, low-latency HD video feed for immersive flight experiences.
This complete air unit kit includes all essential parts for seamless integration:
High-Definition FPV Camera: Available in multiple variants (Alps 14mm, Basalt 20mm, Dune 20mm low-light) to suit different drone sizes and flight scenarios, with the Dune model optimized for exceptional low-light and night flight performance.
5.8G Dual-Antenna Transmitter (VTX): Features dual-antenna design for enhanced signal stability, reduced interference, and extended transmission range, paired with two 5.8G lollipop/mushroom antennas for reliable signal output.

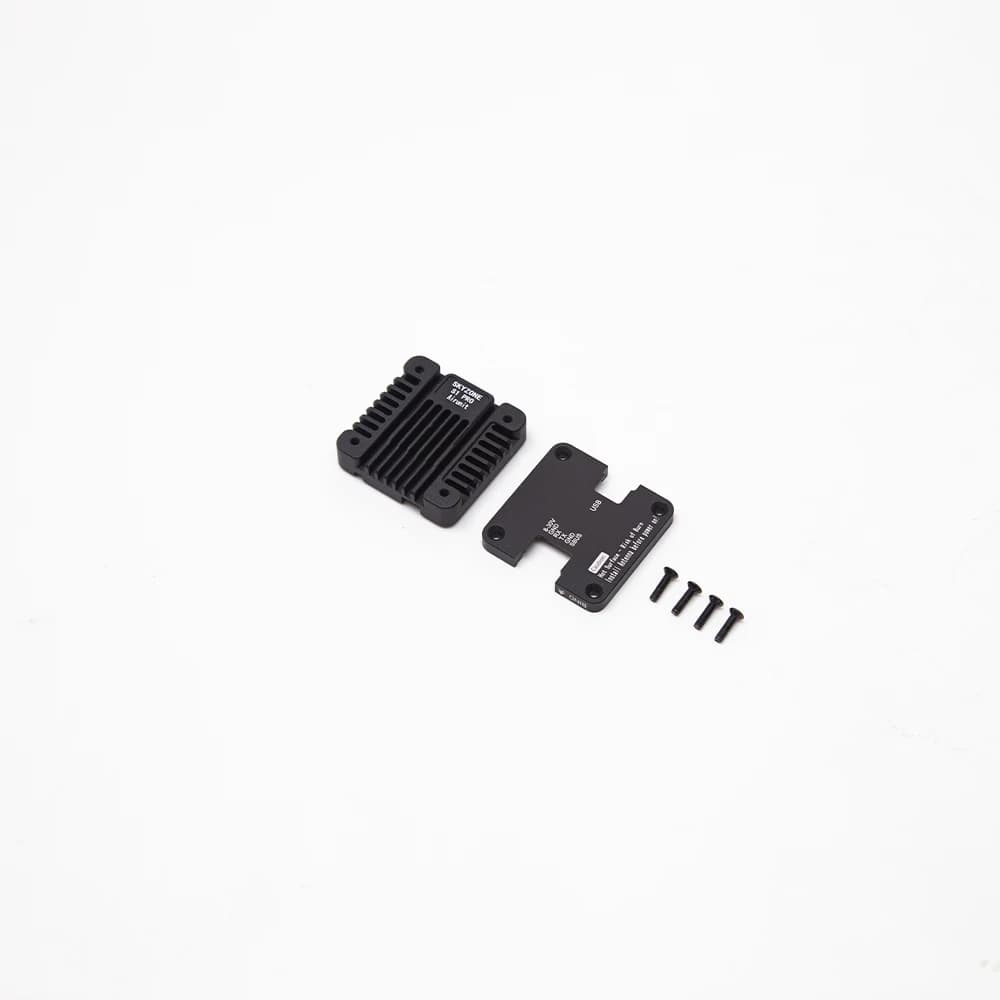

Main Air Unit Module: Equipped with a power port, Type-C port for configuration, link button for pairing, and VTX LED status indicator for real-time operation monitoring.
Accessories: USB tuning board + 6-pin 150mm connection cable for easy parameter adjustment and setup.
Technical Specifications
Input Voltage: 8V-30V wide voltage input, compatible with most FPV drone power systems
Power Consumption: ≥ 7.5W (e.g., 8V/0.91A)
Overheat Protection: Automatic shutdown at approximately 110°C to prevent device damage
Interface Support: UART (for flight controller connection), SBUS, USB Type-C for configuration
Core Features
✅ Dual-Antenna Design: Ensures robust signal transmission, minimizing dropouts even in complex flight environments
✅ Versatile Camera Options: Choose from compact 14mm cameras for 2-3 inch small drones, or 20mm models with balanced/low-light performance for various use cases
✅ Easy Configuration: USB tuning board and Type-C port for simple parameter adjustment and firmware updates
✅ Built-in Protection: Overheat shutdown protection safeguards the VTX during long-duration flights
✅ Wide Compatibility: Compatible with standard FPV flight controllers, suitable for racing drones, freestyle drones, and cinematic FPV setups
Important Notes
The VTX generates significant heat during operation. Ensure proper airflow for heat dissipation to avoid overheating and performance issues.
Confirm local radio frequency regulations before use, and operate within legal power and frequency limits.
The standard camera offers balanced overall performance, while the Dune low-light camera is recommended for night flight applications.
Perfect for FPV pilots looking for a reliable, high-performance digital video transmission solution for small to medium-sized toys.
