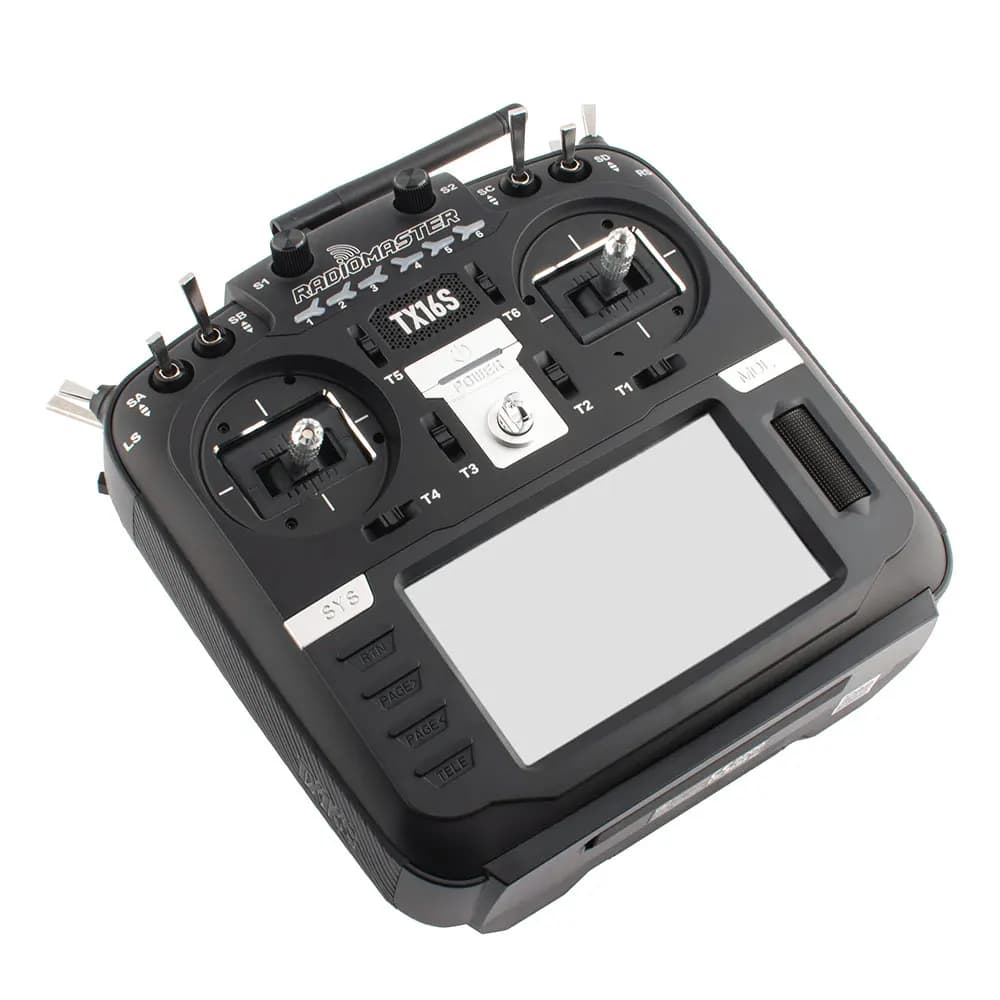

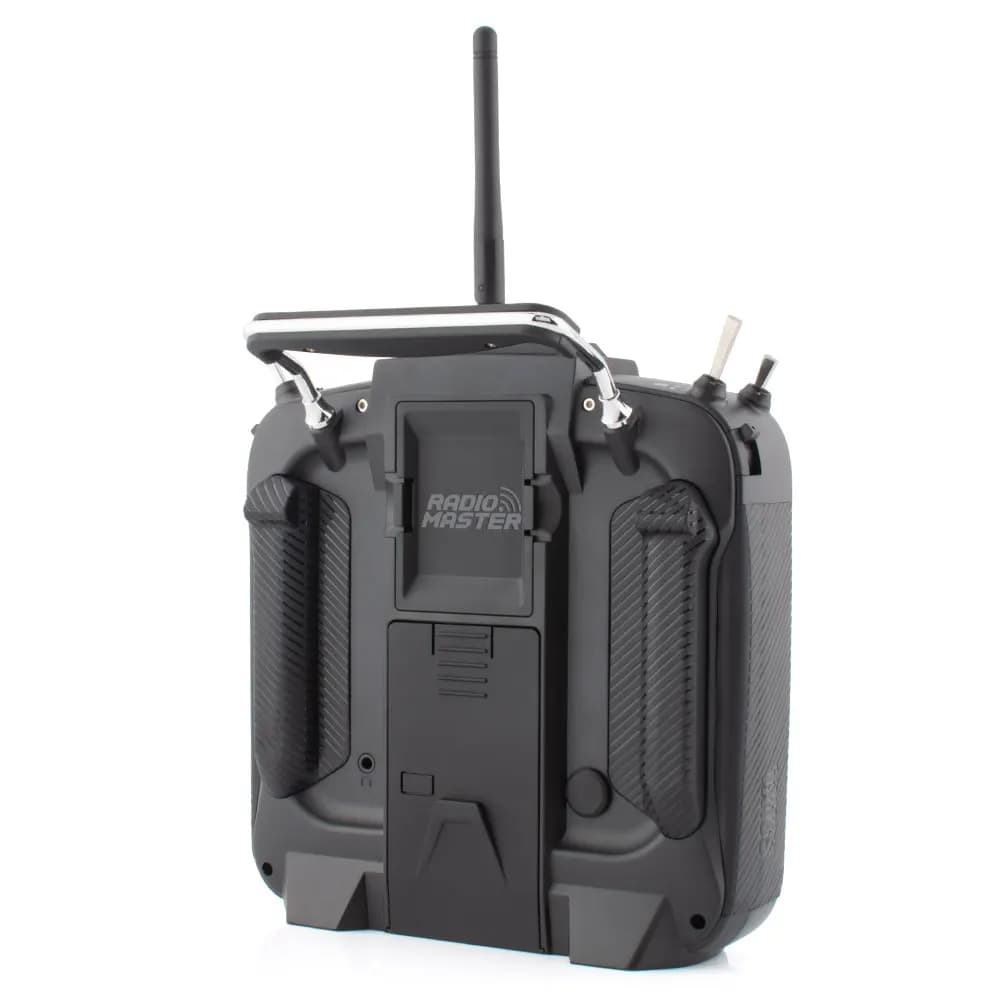

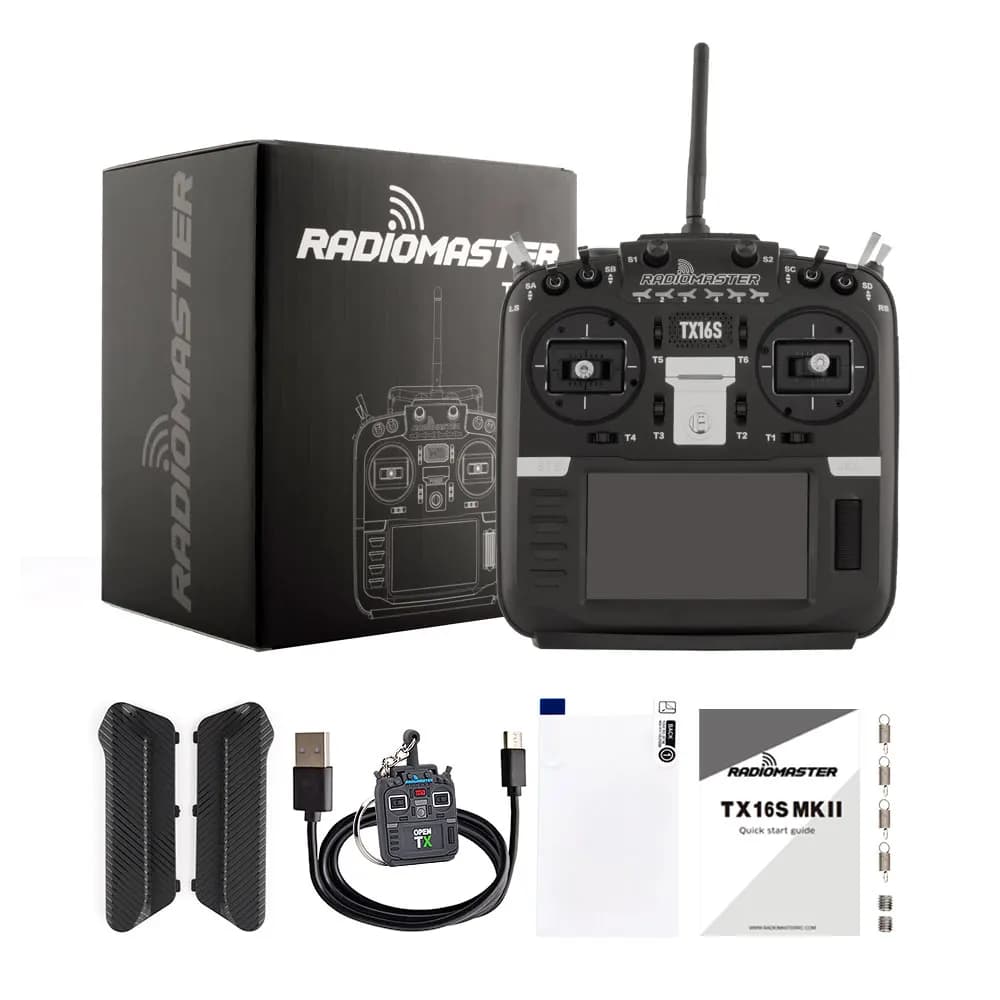

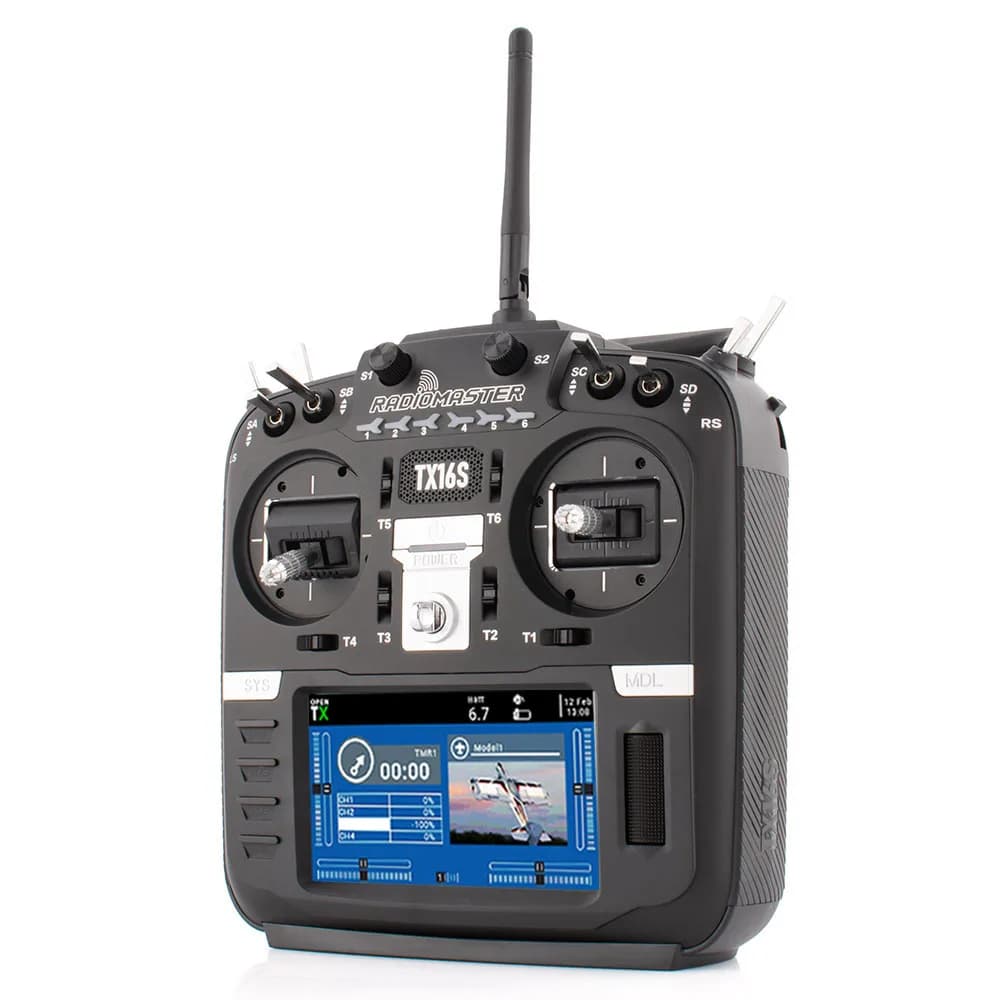

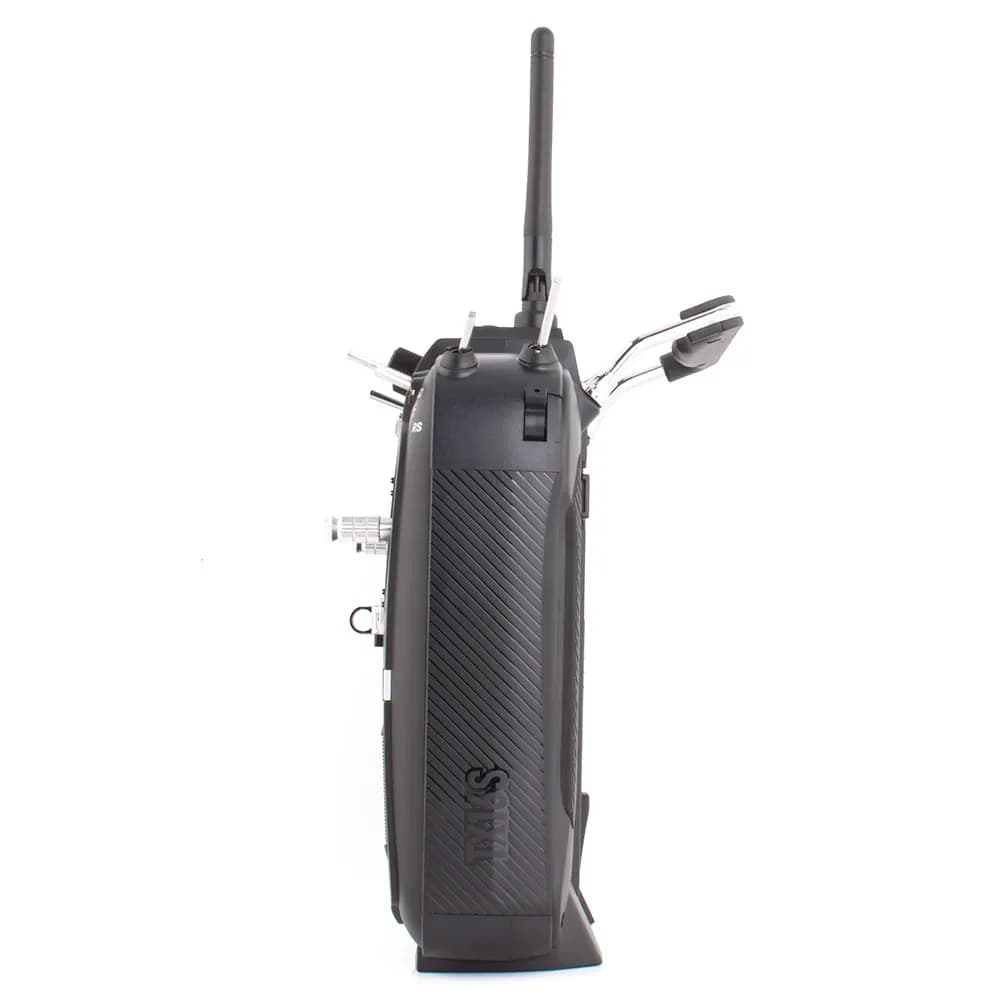

RadioMaster TX16S MKII V4.0 16CH 2.4G Hall Gimbals ELRS 4in1 Transmitter Remote Control Support EDGETX OPENTX
355 orders (reference)
Description
RadioMaster TX16S MKII V4.0 16CH 2.4G Hall Gimbals ELRS 4in1 Transmitter Remote Control Support EDGETX OPENTX ============================================================ Notes: ★ 4in1 (standard) Version supports all MPM protocols ★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant) ★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX ★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output) Size:287x129x184mm Weight:750g(without battery) Transmission frequency: 2.400GHz-2.480GHzTransmitter Module: Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401) Option 2: lnternal ELRS(SX1280) Working voltage:6.6-8.4v firmware:EdgeTX Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS) Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour touch display with a resolutionof 480* 272 Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia Option2:AG01 CNC Hall sensor Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / SD card offline upgrade IMPROVEMENTS -lmproved internal circuity and optimized power supply. -New charge circuitry with integrated reverse-polarity protection. -Optimized Charge IC, better balancing and uSB-C charge urrent,management. -Rear mounted audio jack provides headphone output -V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01) -Optional high/low rear grips included for improved ergonomics. --lmproved S1/S2 knobs with clear centre-detents. -lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery cover for improved battery access. -Retooled body shell with improved fit and finish. -Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods -lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions. MAX units feature carbon look face plates and CNC finishing components and buttons. TECHNICAL SPECIFICATIONS • Size:287x129x184mm • Weight:750g(without battery) • firmware:EdgeTX AVAILABLE OPTIONS 4IN1 Mode 2 FCC ELRS Mode 2 FCC 4IN1 Mode 2 LBT ELRS Mode 2 LBT 4IN1 M2 With 18650 ELRS M2 With 18650 4IN1 M2 With 5000mah ELRS M2 With 5000mah 4IN1 M2 With 6200mah ELRS M2 With 6200mah 4IN1 M2 LBT 18650 ELRS M2 LBT 18650 4IN1 M2 LBT 5000mah 4IN1 M2 LBT 6200mah ELRS M2 LBT 5000mah PRODUCT INFORMATION Brand: RadioMaster Category: Radio Transmitter Wholesale Price: US $230.59 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | Yes |
| Technical parameters | KV1100 |
| Model Number | RadioMaster TX16S MKII V4.0 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Radio Systems |
| Material | Plastic |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Notes:
★ 4in1 (standard) Version supports all MPM protocols
★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW
(Max power is hardware dependnant)
★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Size:287x129x184mm
Weight:750g(without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter
Module:
Option 1: Internal
4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)
Working voltage:6.6-8.4v
firmware:EdgeTX
Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)
Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour
touch display with a resolutionof 480* 272
Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia
Option2:AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized Charge IC, better balancing and uSB-C charge urrent,management.
-Rear mounted audio jack provides headphone output
-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)
-Optional high/low rear grips included for improved ergonomics.
--lmproved S1/S2 knobs with clear centre-detents.
-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery
cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods
-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
