RadioMaster RP1 V2 ExpressLRS 2.4ghz Nano Receiver
253 orders (reference)
Description
RadioMaster RP1 V2 ExpressLRS 2.4ghz Nano Receiver ================================================== The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience. The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing. The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone. Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere! Features Improved PCB design is better for heat dissipation. Upgraded rigid antenna with greater durability and performance. LED on the top side of PCB. Solder pads are improved and easier to solder to. Built-in a TCXO (temperature compensated crystal oscillator) Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS Specification Item: RP1 Nano ExpressLRS 2.4ghz Receiver Type: ISM MCU: EPS8285 RF Chip: SEMTECH SX1281 Telemetry RF power: 10mW Antenna: 65mm 2.4ghz T Antenna Frequency Range: 2.404 - 2.479 Ghz Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 2.2g (Including antenna) Dimension: 13mm*11mm*3mm Firmware Version: ExpressLRS v2.4 pre-installed FW Target: RadioMaster RP1/2 2400 RX Bus interface: CRSF TCXO (temperature compensated crystal oscillator) The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Package Includes 1 * RP1 ExpressLRS 2.4ghz Nano Receiver 1 * 65mm UFL 2.4Ghz T Antenna 1 * User Manual 1 * CRSF wire TECHNICAL SPECIFICATIONS • MCU: EPS8285 • Weight: 2.2g (Including antenna) • Dimension: 13mm*11mm*3mm • Antenna: 65mm 2.4ghz T Antenna AVAILABLE OPTIONS China Mainland 1pcs 2pcs 5pcs 10pcs PRODUCT INFORMATION Brand: RadioMaster Category: Radio Receiver Wholesale Price: US $31.58 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Package | Yes |
| Weight | 2.2g (Including antenna) |
| Model Number | RP1 V2 |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
Product Details
The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.
The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Features
Improved PCB design is better for heat dissipation.
Upgraded rigid antenna with greater durability and performance.
LED on the top side of PCB.
Solder pads are improved and easier to solder to.
Built-in a TCXO (temperature compensated crystal oscillator)
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
Item: RP1 Nano ExpressLRS 2.4ghz Receiver
Type: ISM

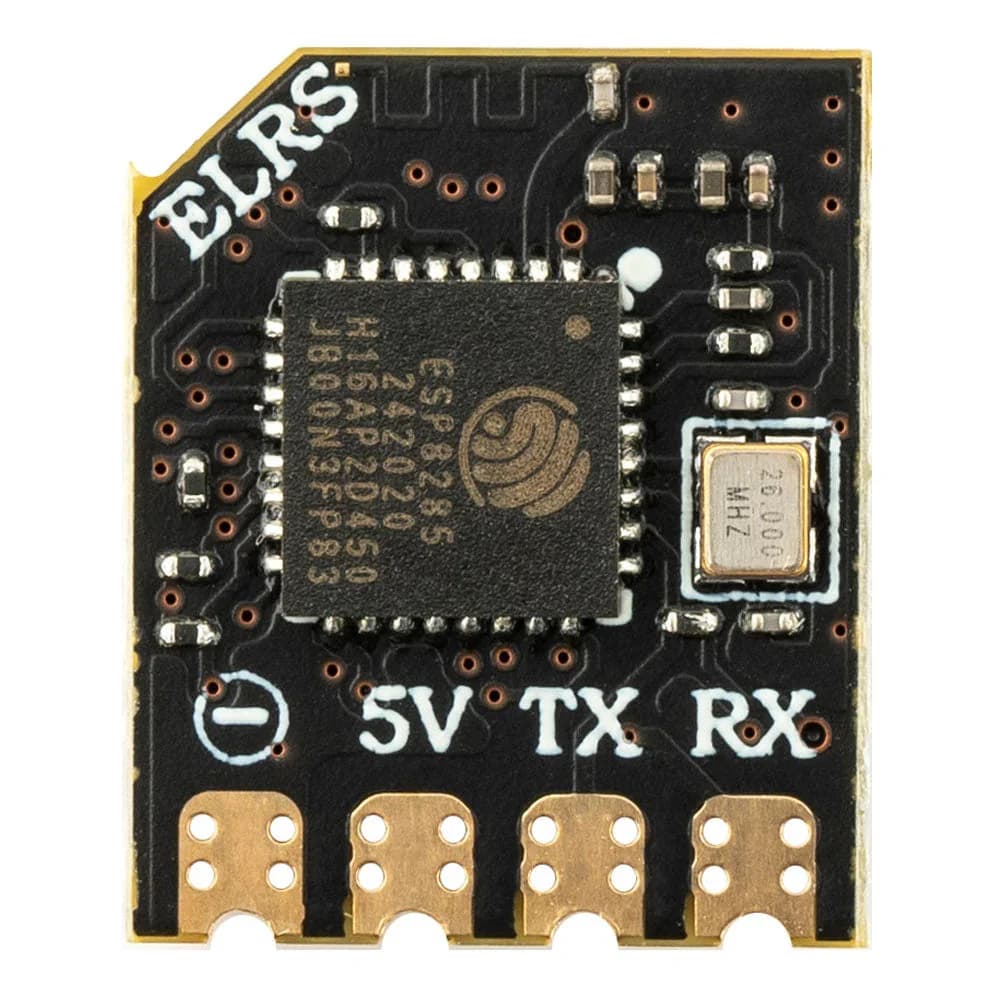

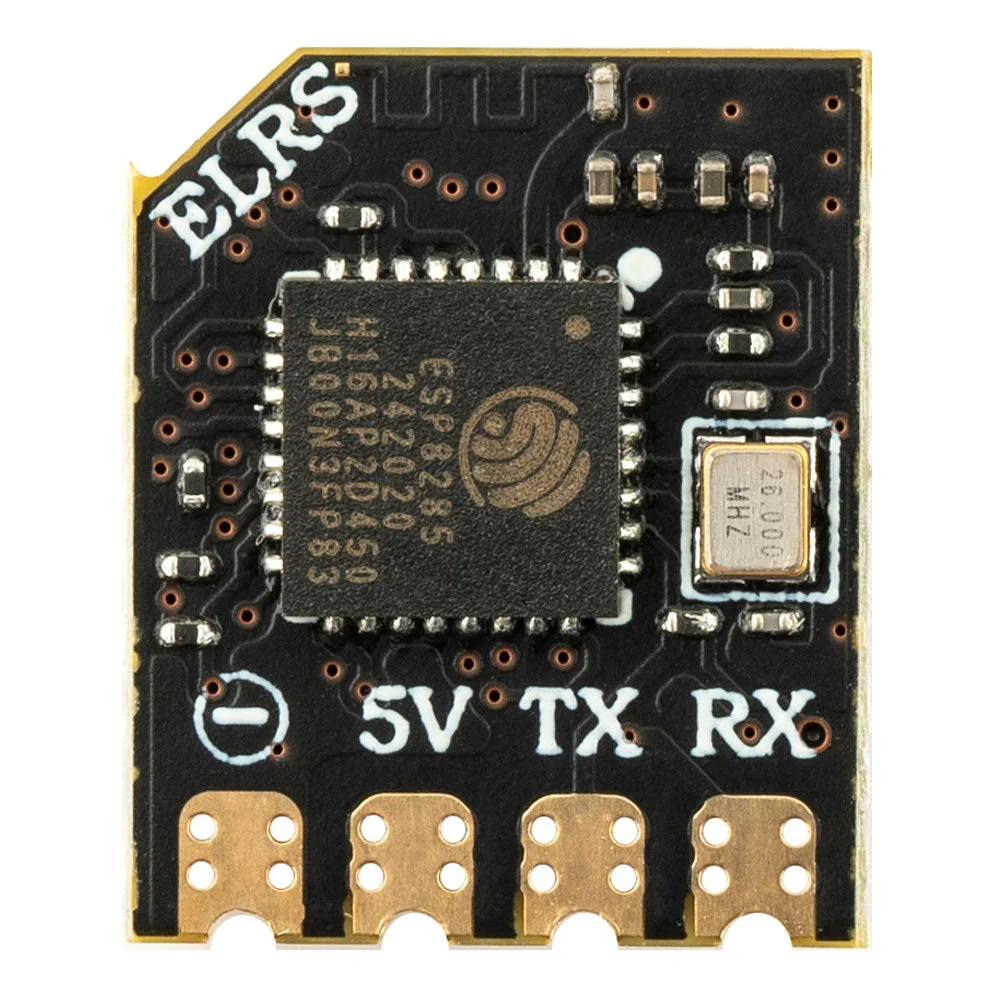

MCU: EPS8285
RF Chip: SEMTECH SX1281
Telemetry RF power: 10mW

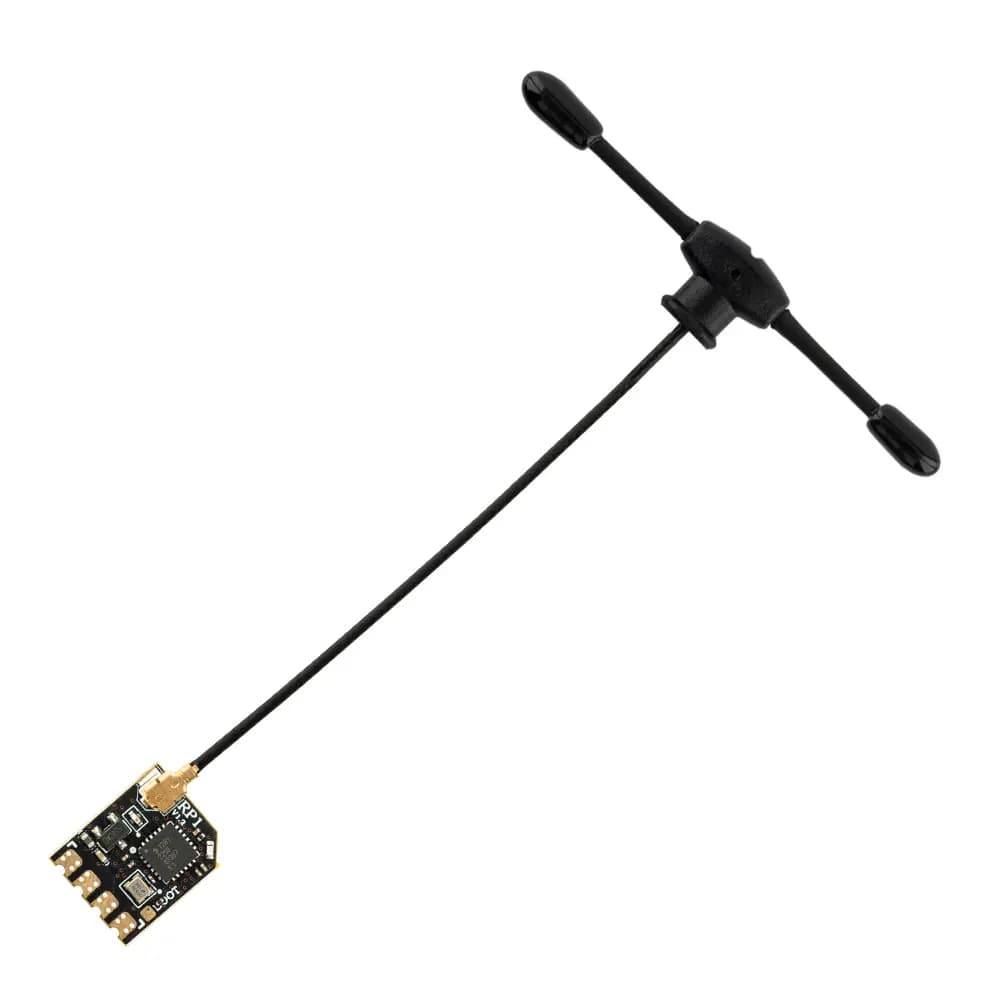

Antenna: 65mm 2.4ghz T Antenna
Frequency Range: 2.404 - 2.479 Ghz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v

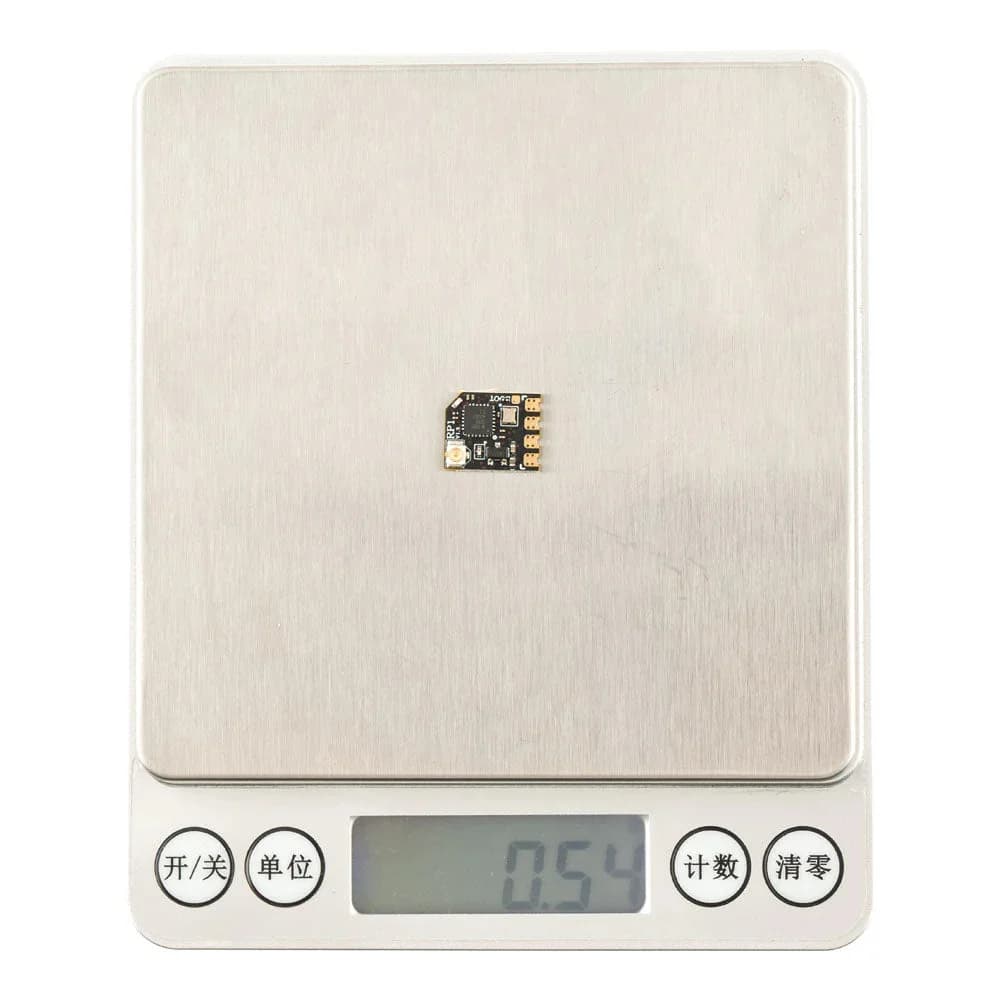

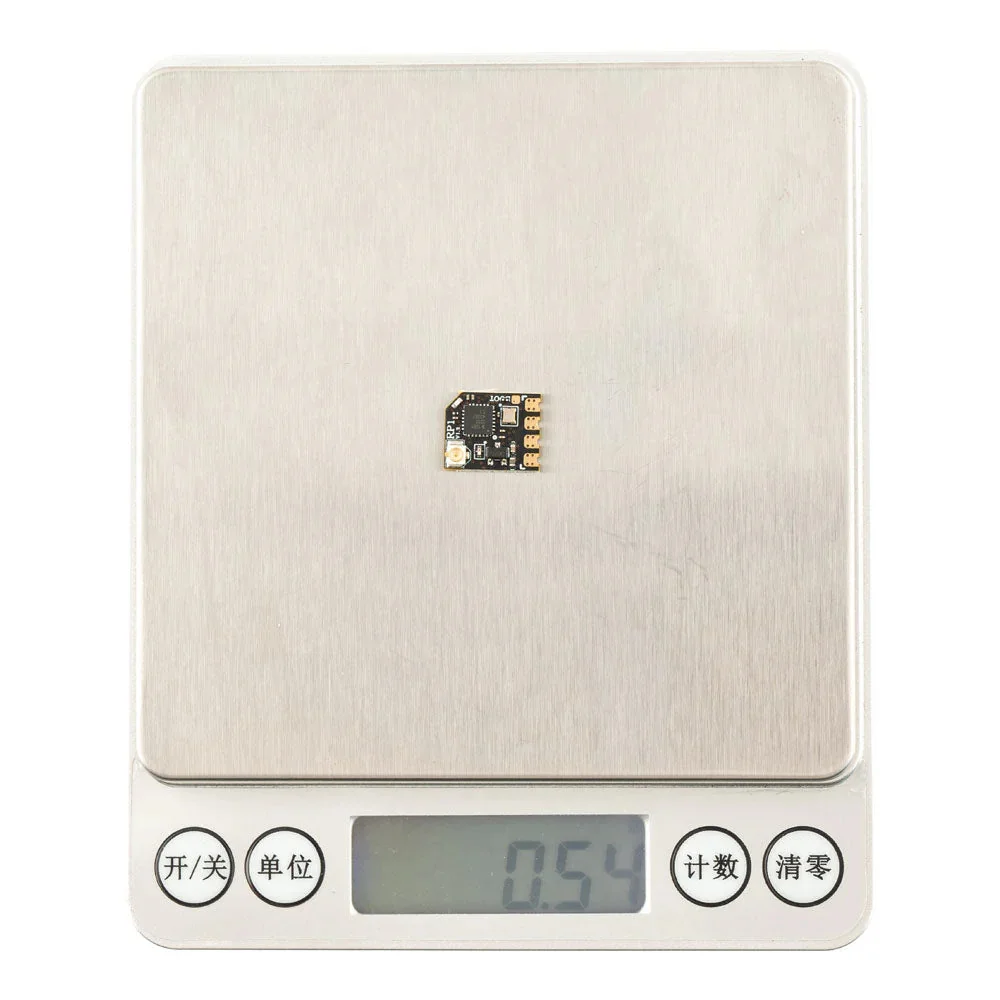

Weight: 2.2g (Including antenna)
Dimension: 13mm*11mm*3mm
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF
TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation.
Size

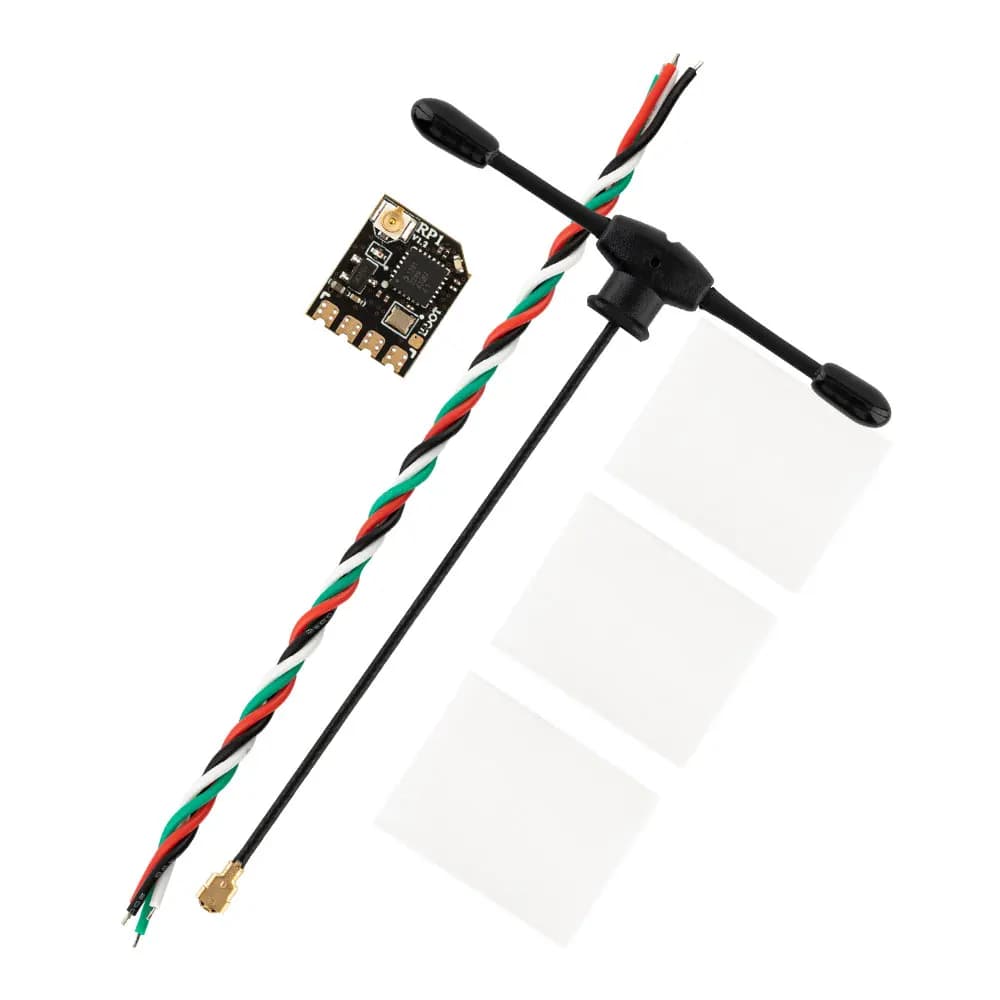

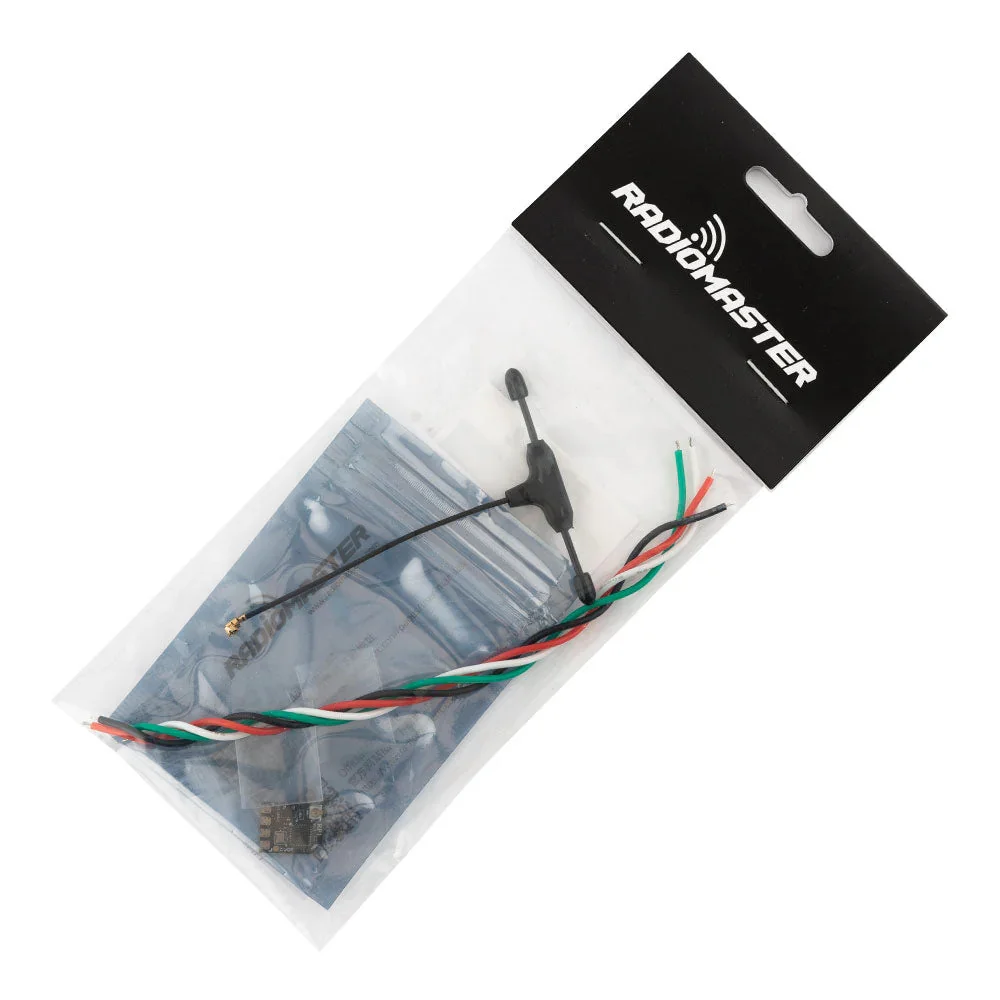

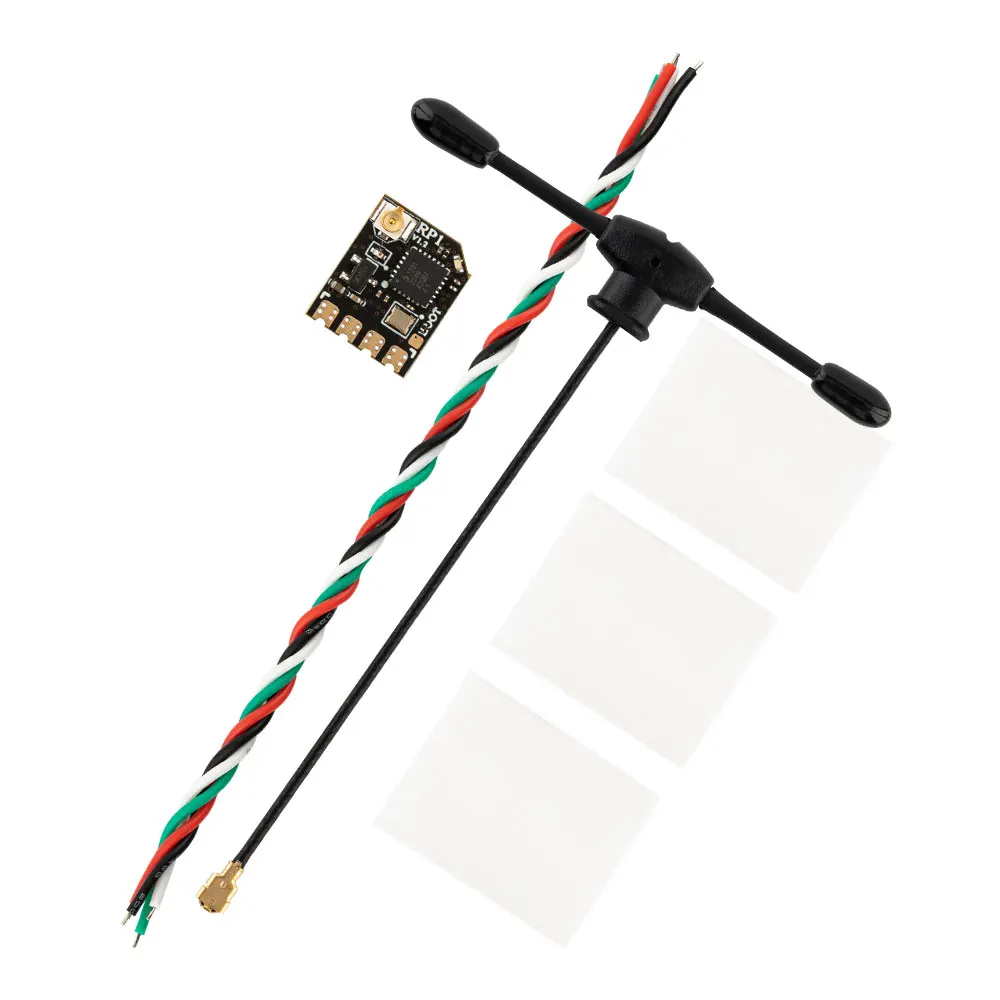

Package Includes
1 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * 65mm UFL 2.4Ghz T Antenna
1 * User Manual
1 * CRSF wire
