New Radiomaster ER8GV 8CH PWM CRSF ExpressLRS Dual Antenna Receiver 2.4Ghz 100mw Support Voltage Telemetry
19 orders (reference)
Description
New Radiomaster ER8GV 8CH PWM CRSF ExpressLRS Dual Antenna Receiver 2.4Ghz 100mw Support Voltage Telemetry ============================================================ The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby. The ER8G & ER8GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery. The ER8G Receiver has the same functionality as the ER8GV only without a built in Vario for competitions that prohibit the use of Vario or simply for users who do not need a vario on their receiver. Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 8 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage ER8GV receiver is built-in high-precision air pressure sensor (Vario) Supports Wi-Fi updates and WEBUI configuration Reserve 4pin CRSF input port High quality 2.54 mm connector Standard 20 cm High Sensitivity Antenna For fixed-wing aircraft and gliders Specification (ER8GV) Item: ER8GV 2.4GHz ELRS PWM Receiver Power supply: DC 3.5 - 8.4V Antenna type: 20cm high sensitivity antenna Wireless protocol: ExpressLRS 3.2 pre-installed Output channel: 8CH PWM Telemetry power: maximum 100mw (LUA Adjustable) Built-in high-precision air pressure sensor (Vario) External Battery voltage detection range: DC 4.0 - 35V Weight: 10.5 grams Dimensions: 60*13.5*13mm Firmware: Device Category: Radiomaster 2.4Ghz Device: ER8G/ER8GV 2400 PWM RX Package Includes 1 * E8GV 2.4GHz ELRS PWM Receiver 2 * Heat-shrink tube 1 * Voltage telemetry wire (Type-A) 1 * CRSF wire 1 * ELRS- RX- SBUS wire 1 * User Card TECHNICAL SPECIFICATIONS • Weight: 10.5 grams • Firmware: AVAILABLE OPTIONS Black Gray PRODUCT INFORMATION Brand: RadioMaster Category: Radio Receiver Wholesale Price: US $27.91 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Technical parameters | KV1100 |
| Model Number | Radiomaster ER8GV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | RECEIVERS |
| Material | Plastic |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| name | hanma |
Product Details
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
The ER8G & ER8GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.
The ER8G Receiver has the same functionality as the ER8GV only without a built in Vario for competitions that prohibit the use of Vario or simply for users who do not need a vario on their receiver.
Features
Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range
Support 8 PWM Channels
Optimized ground up PCB design
Automatically voltage telemetry of external battery voltage or built-in receiver voltage
ER8GV receiver is built-in high-precision air pressure sensor (Vario)
Supports Wi-Fi updates and WEBUI configuration
Reserve 4pin CRSF input port
High quality 2.54 mm connector
Standard 20 cm High Sensitivity Antenna
For fixed-wing aircraft and gliders
Specification (ER8GV)
Item: ER8GV 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V

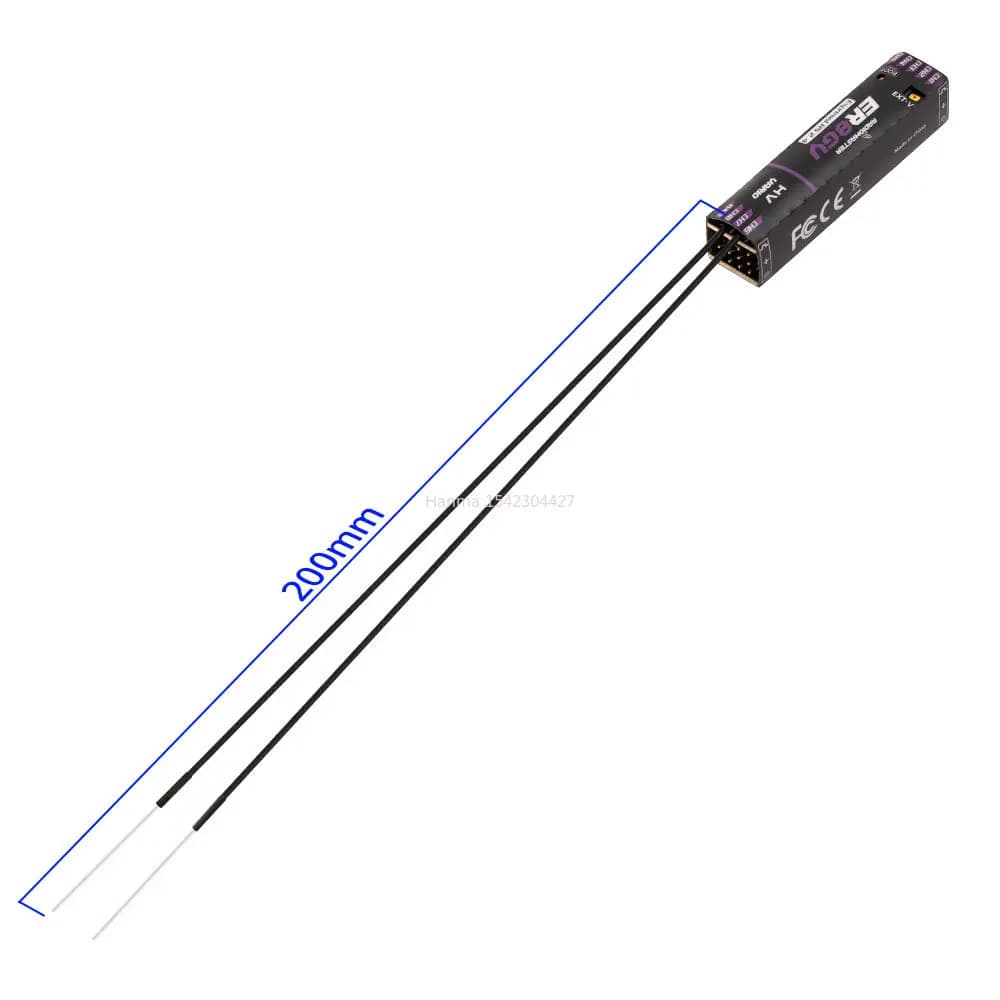

Antenna type: 20cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.2 pre-installed
Output channel: 8CH PWM
Telemetry power: maximum 100mw (LUA Adjustable)
Built-in high-precision air pressure sensor (Vario)
External Battery voltage detection range: DC 4.0 - 35V

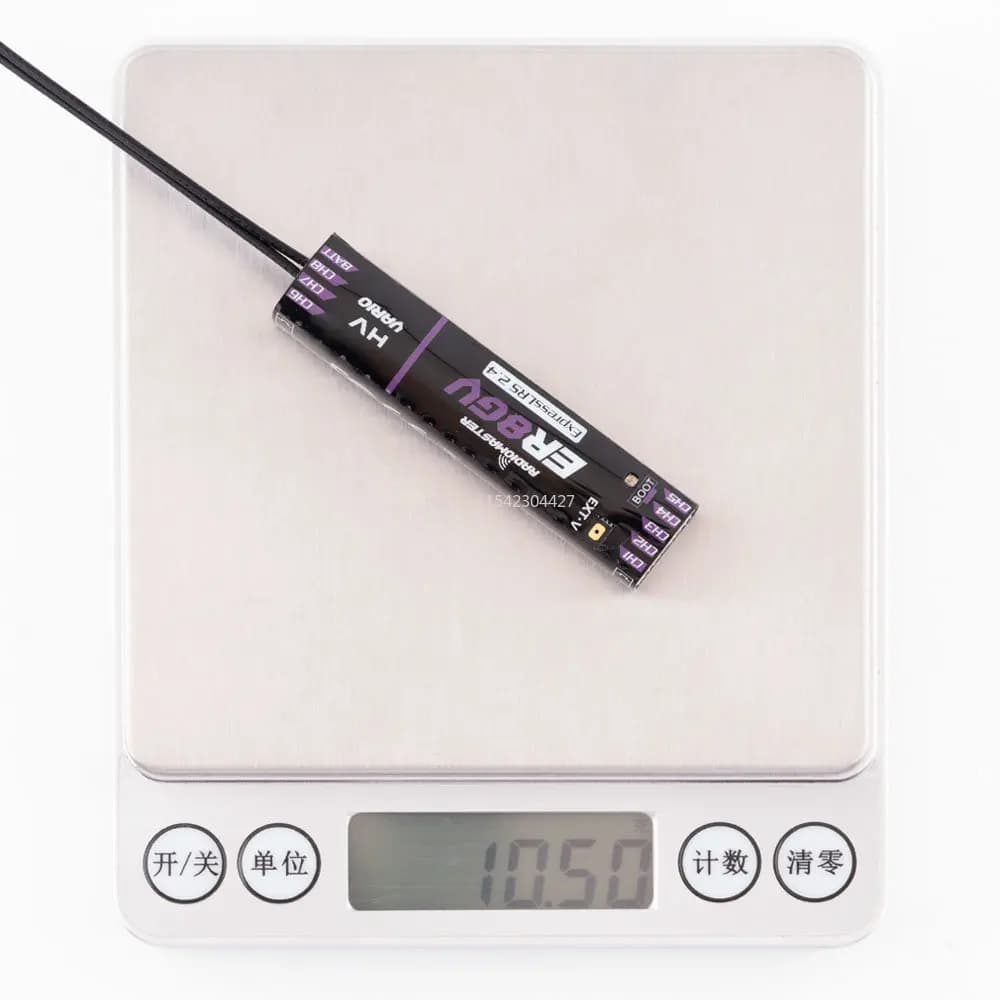

Weight: 10.5 grams

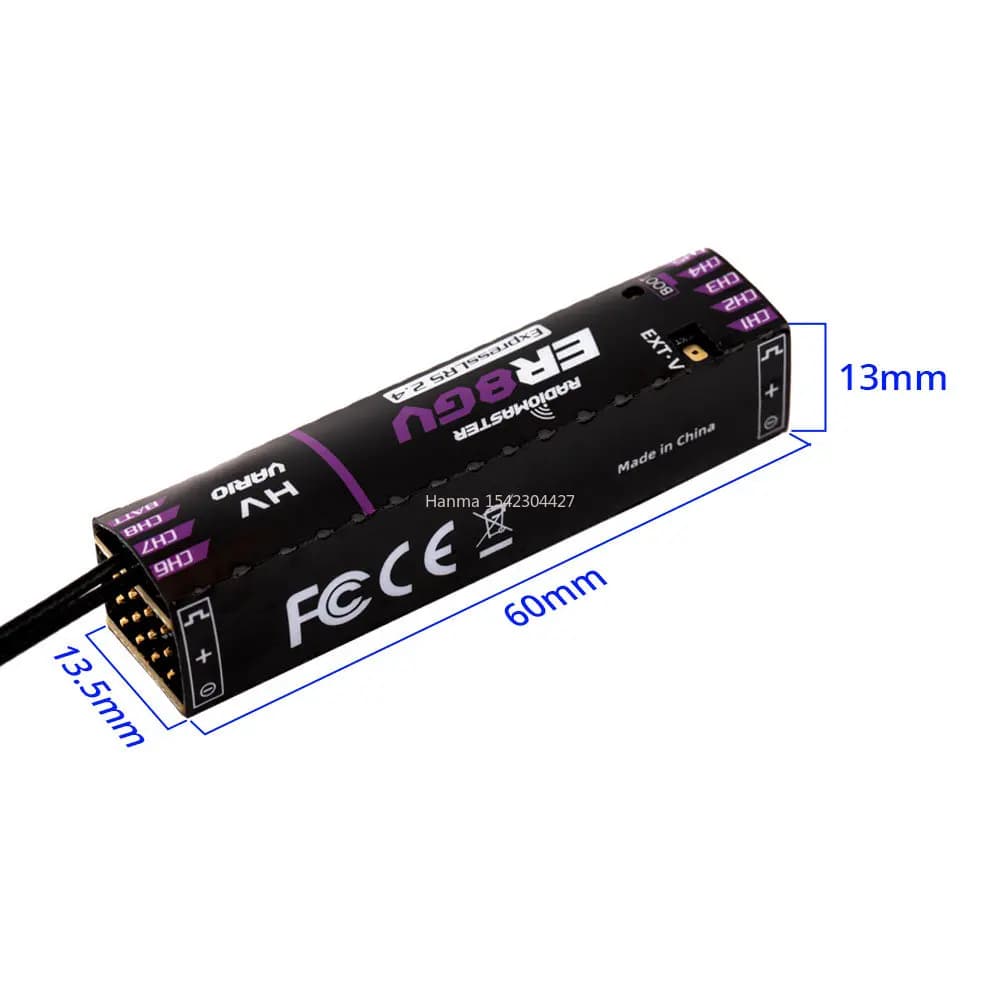

Dimensions: 60*13.5*13mm
Firmware:
Device Category: Radiomaster 2.4Ghz
Device: ER8G/ER8GV 2400 PWM RX

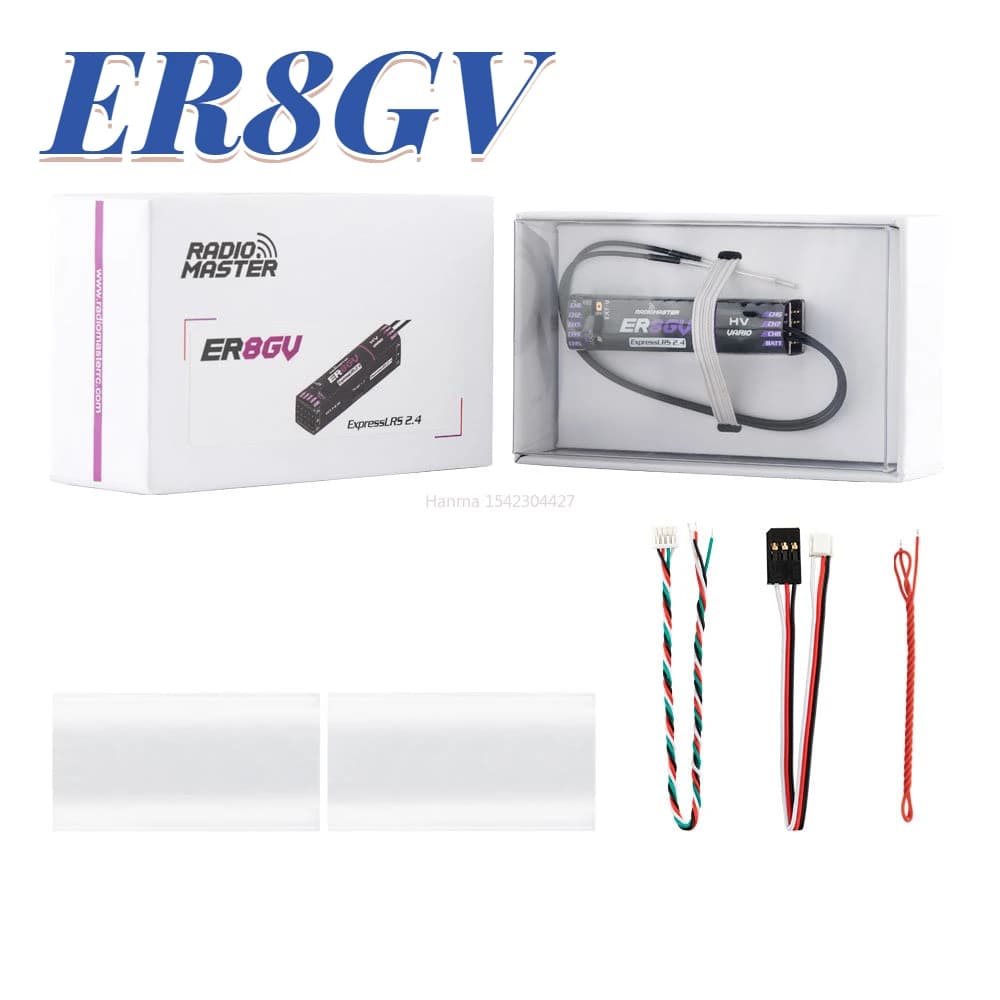

Package Includes
1 * E8GV 2.4GHz ELRS PWM Receiver
2 * Heat-shrink tube
1 * Voltage telemetry wire (Type-A)
1 * CRSF wire
1 * ELRS- RX- SBUS wire
1 * User Card
