Radiomaster TX15 16ch 3.5inch IPS Touchscreen V5.0 Hall Gimbals Radio Controller ExpressLRS Built-in Gyro Microphone

 Note: The gray color is out of stock and will be available by the end of May. It is in pre-order status. Others color in stock.

Introduction

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 512MB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

The TX15 features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Experience clear visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, visible in sunlight. The TX15 Standard features V5.0 hall sensor gimbals in six vibrant colors. It's advanced cooling, a USB-C port for charging, SIM connectivity, firmware updates, and high-speed memory access ensure reliable performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Want a premium upgrade? Check out the TX15 MAX.

Step into the future. TX15: The Future Is Here, One Step Ahead.

Features

Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.

Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

Precision Gimbals: V5.0 Hall sensor gimbals

Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.

Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.

Powerful Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keeps your radio cool even on the hottest days.

Foldable Antenna: Compact and easy to store without compromising signal strength.

Built in Microphone: For future feature expansion.

Built in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

Memory: Integrated 512MB of onboard flash memory and external MicroSD card support.

Interchangeable Shoulder Switches: Customize your controls to match your flying style.

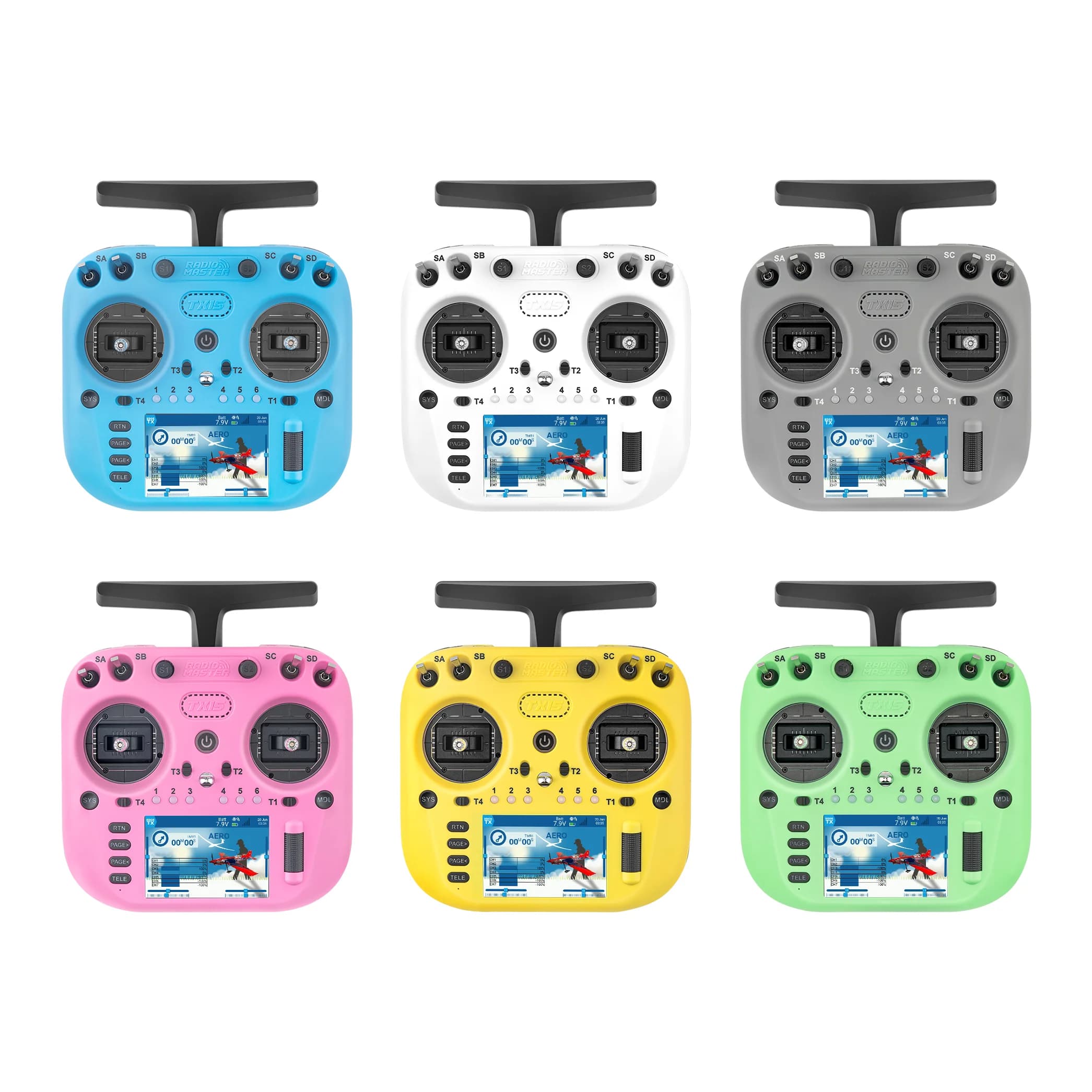

Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow/ Hot Pink

Specifications

Item: TX15 Radio Controller

Size: 178*168*81mm

Weight: 605g (without battery)

Frequency: 2.400GHz OR Sub-G 900MHz

Internal RF: ELRS 2.4GHz / Sub-G 900MHz

Supported Protocols: Express-LRS

Cooling Fan: Yes

Transmitter Module: Built-in ELRS

Built-in Flash Size: 512MB

Built-in Microphone: Yes (Future expansion)

Built-in Gyro: Yes (ICM-42607-C)

MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)

Antenna Gain: 2dB (transmit power adjustable)

Current: 875mA at max power output

Voltage Range: 6.6 - 8.4V DC

Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)

Module Firmware: ExpressLRS

Channels: Max 16 channels (Receiver dependent)

Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

Connectivity: USB-C

Gimbals: V5.0 Hall sensor gimbals (standard)

Gimbal Sticks: M4

Upgrade Method: USB-C (UF2)

Module Bay: JR-compatible module bay for additional modules

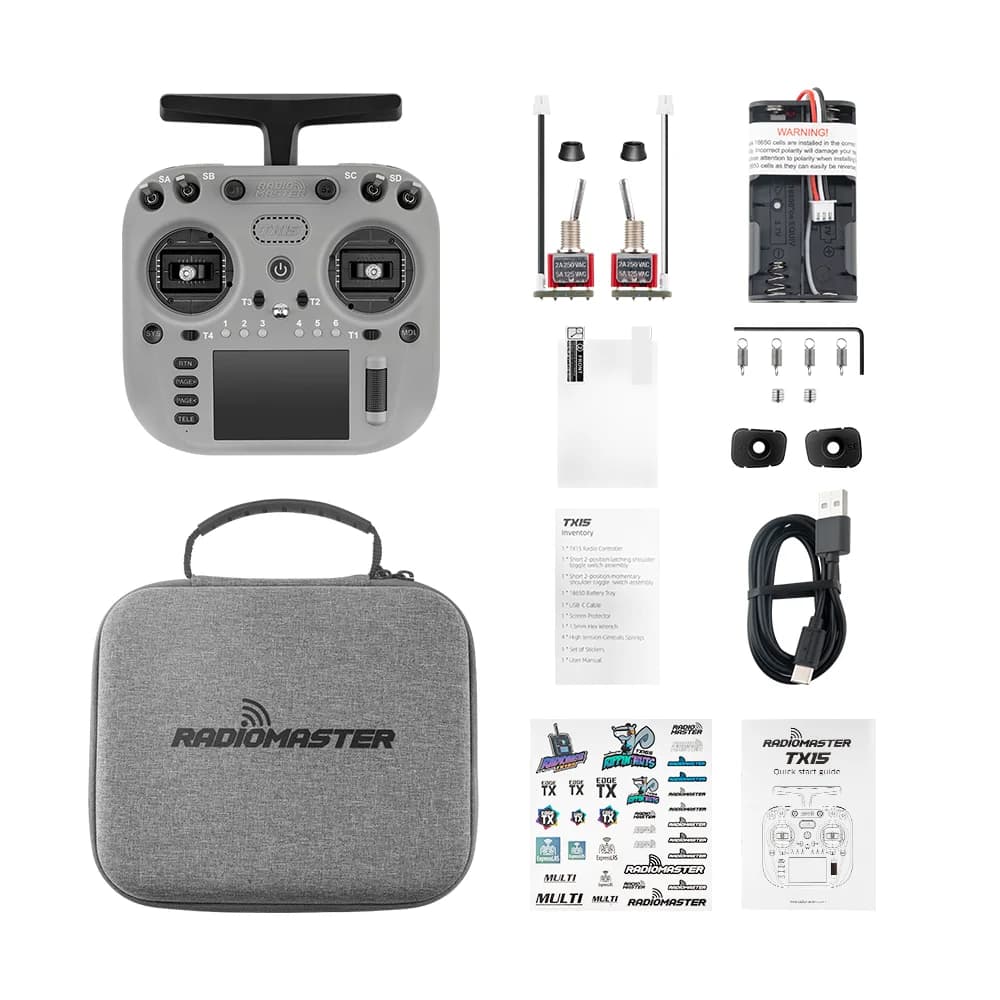

Package Includes

1 * TX15 Radio Controller

1 * Signature Carry Case

1 * Short 2-position Latching Shoulder Toggle Switch Assembly

1 * Short 2-position Momentary Shoulder Toggle Switch Assembly

1 * 18650 Battery Tray

1 * USB-C Cable

1 * Screen Protector

1 * 1.5mm Hex Wrench

4 * High Tension Gimbals Springs

2 * Gimbal Stick Set Screw

1 * Stickers Set

1 * User Manual

1 * Inventory Card
