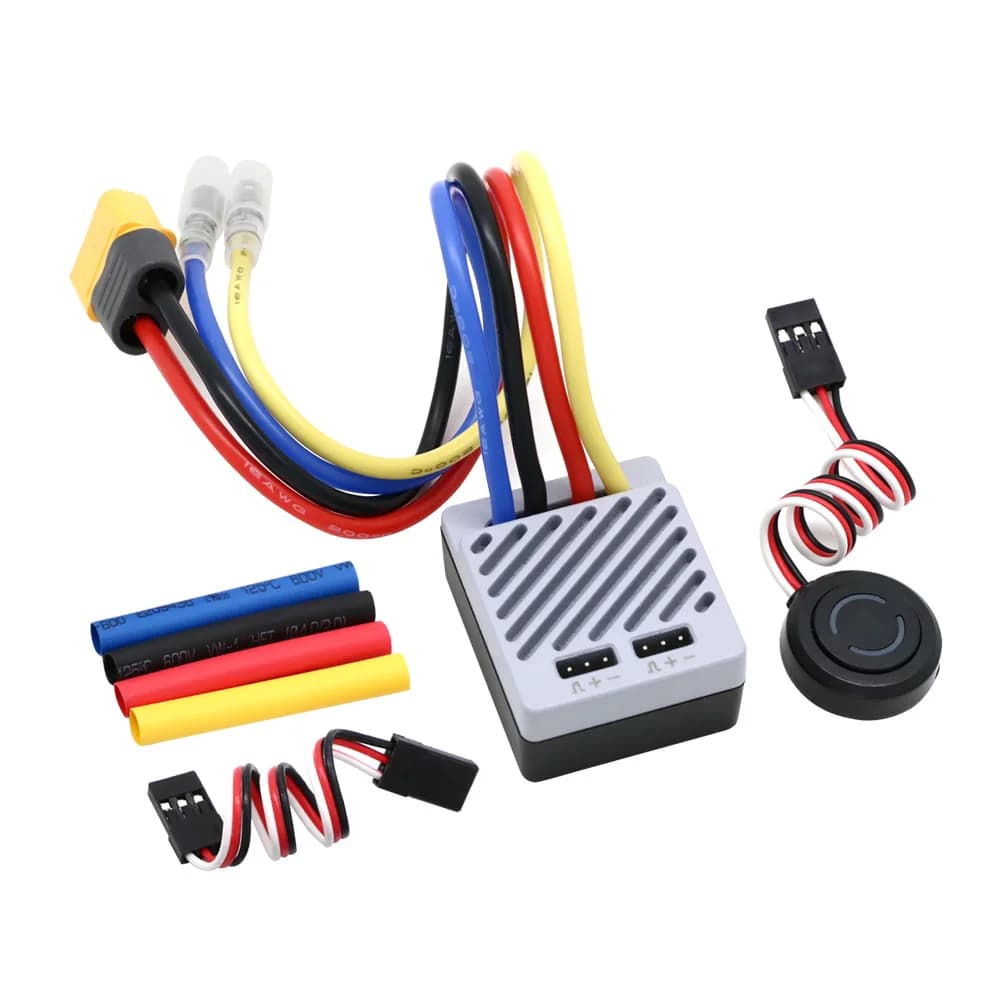

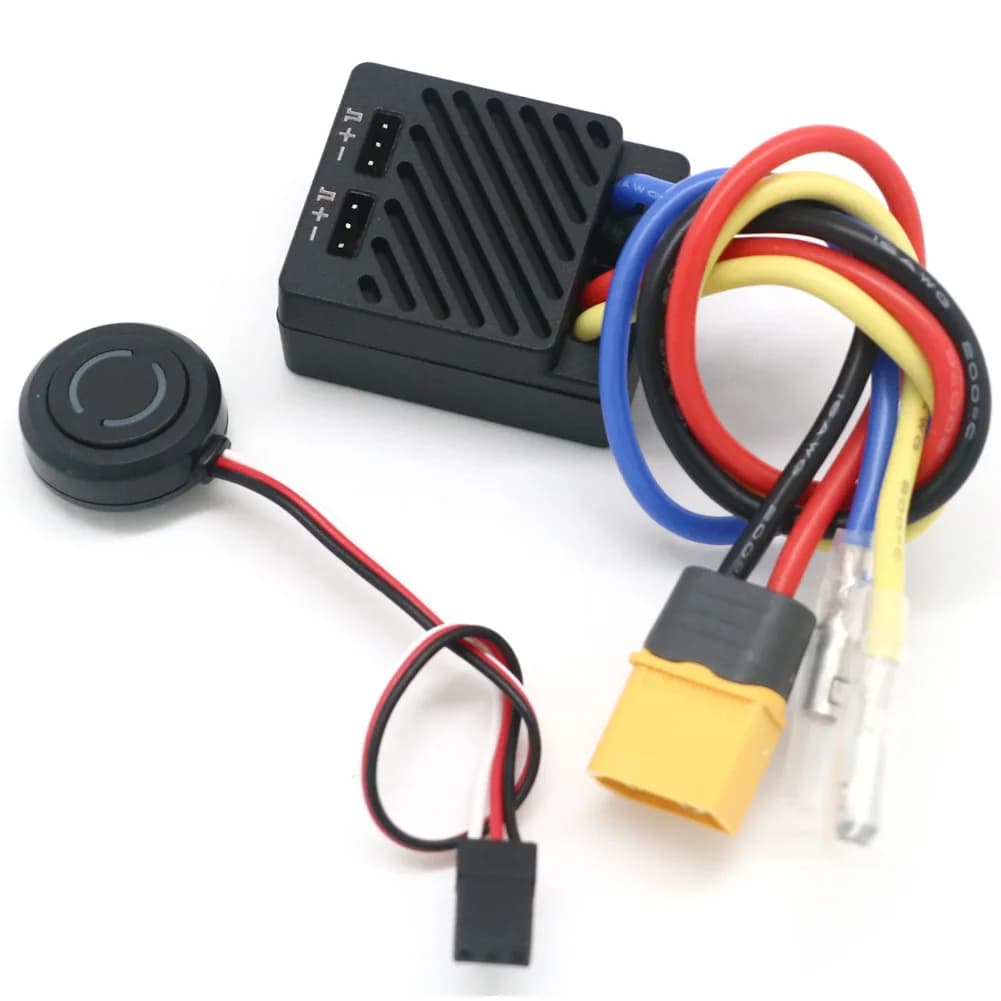

ISDT ESC70 ESC90 WP 1080 70A 90A Waterproof ESC 2~3S Adjustable BEC Phone Control 540/550 Brushed Motor For 1/8 1/10 Car
3 orders (reference)
Description
ISDT ESC70 ESC90 WP 1080 70A 90A Waterproof ESC 2~3S Adjustable BEC Phone Control 540/550 Brushed Motor For 1/8 1/10 Car ============================================================ Please update the ISD GO APP and download the new firmware version 1.0.0.9 Cont. / Peak Current： ESC 70： 70/120A | ESC 90： 90/180A Motor type： 540/550/775 Brushed motor Battery Type： 2~3S LiPo or 6~8Cell NiMH Applications： 1/8 or 1/10 Various models Wire/ Connectors： 16AWG-200mm(Without Plug) Weight： about 49g/switch about 4.5g Dimension： 38.6×31.6×17.15mm ISDT ESC70 WP 1080 70A Brushed (2-3S) Motor ESC Electronic Speed Controller Waterproof XT60-Plug RC Car 1:10 1:8 ISDT ESC70 WP Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion) Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP. Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos. Adjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions. Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain. Multiple protection functions: battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection Stepless adjustment of throttle and brake curve Customizable start tone OTA upgrades firmware and updates functions in time Ramp anti-skid locking function designed for climbing car Specifications： Item Brand:ISDT Model:ESC70 Cont./Peak Current:70/120A Motor Type:540/550/775 Brushed Motor Application:1/8 1/10 Support batteries:Lipo(2-3S)/NiMH(6-8S) BEC Output:5V-7.5V Switch (Stepping 0.1V) Wire/Connectors:16AWG 200mm / No Explanation for LED Status Power On:Short press once-white LED flashes Standby:Green LED on Error:Red LED flashes Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes Bluetooth Connected: Blue LED ON Power Off: Long press once TECHNICAL SPECIFICATIONS • Model:ESC70 • Weight： • Dimension： • Motor type： • Motor Type:540/550/775 Brushed Motor AVAILABLE OPTIONS EC90A With XT60 Plug EC90A No Plug EC70A No Plug EC70A With XT60 Plug PRODUCT INFORMATION Brand: ISDT Category: Flight Controller / ESC Stack Wholesale Price: US $47.70 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Size | ISDT ESC70 |
| Model Number | ISDT59 |
| DIY Supplies | Electrical |
| Origin | Mainland China |
Product Details
| Cont. / Peak Current： |
ESC 70： 70/120A | ESC 90： 90/180A |
| Motor type： |
540/550/775 Brushed motor |
| Battery Type： |
2~3S LiPo or 6~8Cell NiMH |
| Applications： |

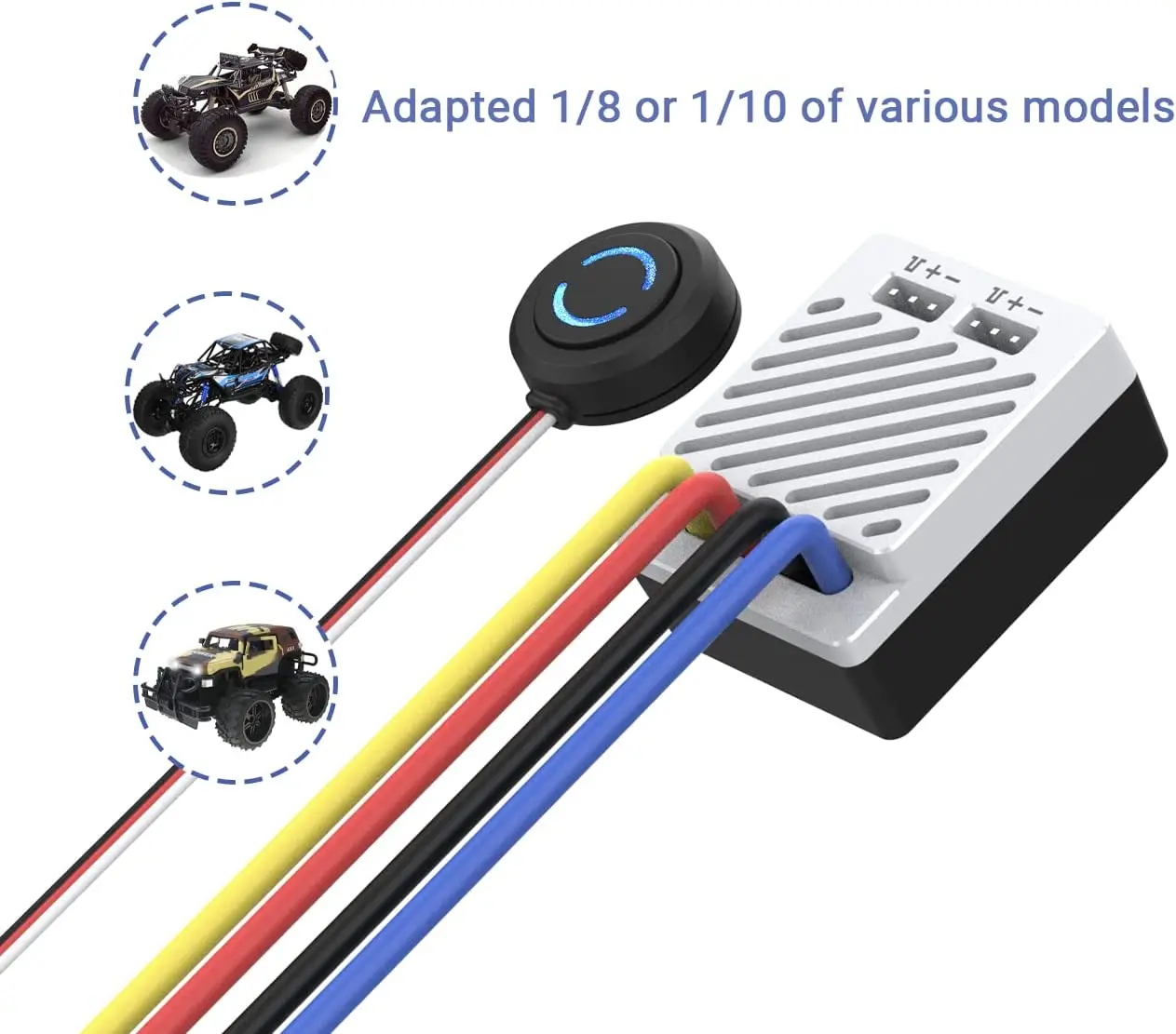

1/8 or 1/10 Various models |
| Wire/ Connectors： |
16AWG-200mm(Without Plug) |
| Weight： |
about 49g/switch about 4.5g |
| Dimension： |
38.6×31.6×17.15mm |
ISDT ESC70 WP 1080 70A Brushed (2-3S) Motor ESC Electronic Speed Controller Waterproof XT60-Plug RC Car 1:10 1:8 ISDT ESC70 WP
-
Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion)
-

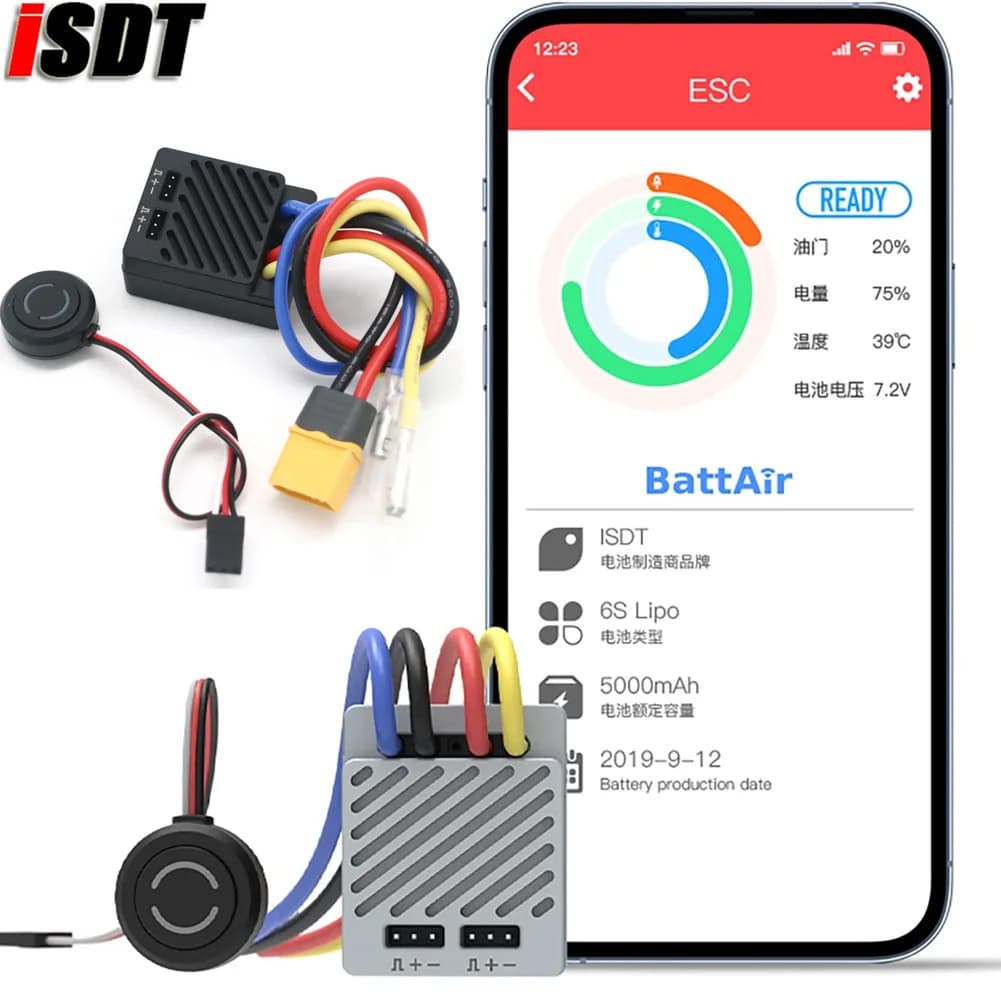

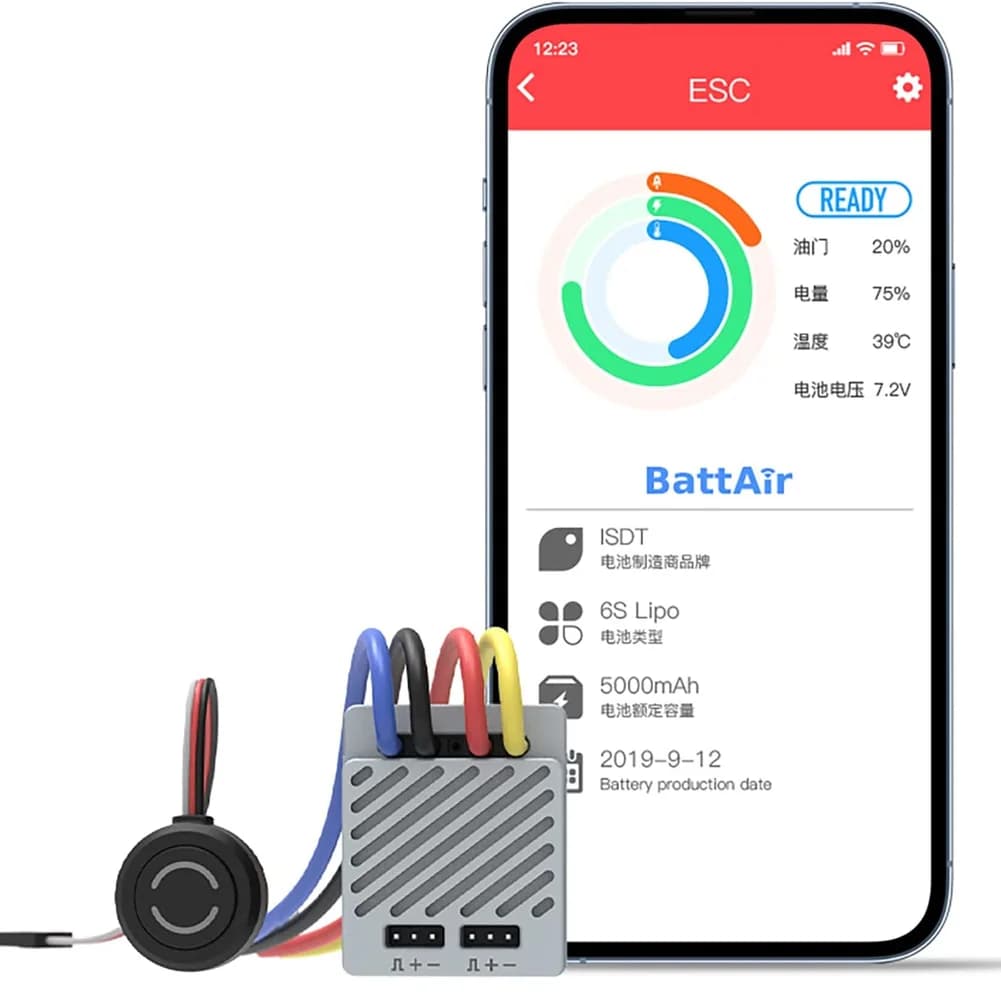

Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP.
-
Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos.
-
Adjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions.
-
Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain.
-
Multiple protection functions: battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection
-
Stepless adjustment of throttle and brake curve
-
Customizable start tone
-
OTA upgrades firmware and updates functions in time
-
Ramp anti-skid locking function designed for climbing car
Specifications：
Item Brand:ISDT
Model:ESC70
Cont./Peak Current:70/120A
Motor Type:540/550/775 Brushed Motor
Application:1/8 1/10
Support batteries:Lipo(2-3S)/NiMH(6-8S)
BEC Output:5V-7.5V Switch (Stepping 0.1V)
Wire/Connectors:16AWG 200mm / No
Explanation for LED Status
Power On:Short press once-white LED flashes
Standby:Green LED on
Error:Red LED flashes
Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes
Bluetooth Connected: Blue LED ON
Power Off: Long press once
