HolyBro Tekko32 F4 45A Single ESC (AM32)

Holybro

From US $28.78
Est. US $28.78 / unit (1-9 pcs)
$26 @ 10+ pcs$25 @ 100+ pcs

16 orders (reference)

Description

HolyBro Tekko32 F4 45A Single ESC (AM32) ======================================== Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products. Features: F4 MCU with AM32 firmware Dshot1200 up to 32kHz PWM up to 48k Small size & low weight Auto Timing Feature On-Board RGB LED Build in Current sensor Smooth Response 2-6s LIPO input Ext. cap recommended for 6s (330uf 35v for 6s usage.) 45A designed Size: 17.3*34.3*4.5mm Weight: 5.8g Package: Tekko32 F4 45A ESC *1 Electrolytic capacito: 330uF 35v *1 24AWG 100mm Black wire *1 24AWG 100mm White wire *1 24AWG 100mm Blue wire *1 16AWG 100mm Red wire *1 16AWG 100mm Black wire *1 TECHNICAL SPECIFICATIONS • Size: 17.3*34.3*4.5mm • Weight: 5.8g AVAILABLE OPTIONS 1PC AM32 4PCS AM32 PRODUCT INFORMATION Brand: Holybro Category: Flight Controller / ESC Stack Wholesale Price: US $28.78 ————————————————————————————————————————

Share this product
Select options
Variant

Specifications

AttributeValue
High-concerned chemicalNone
OriginMainland China

Product Details

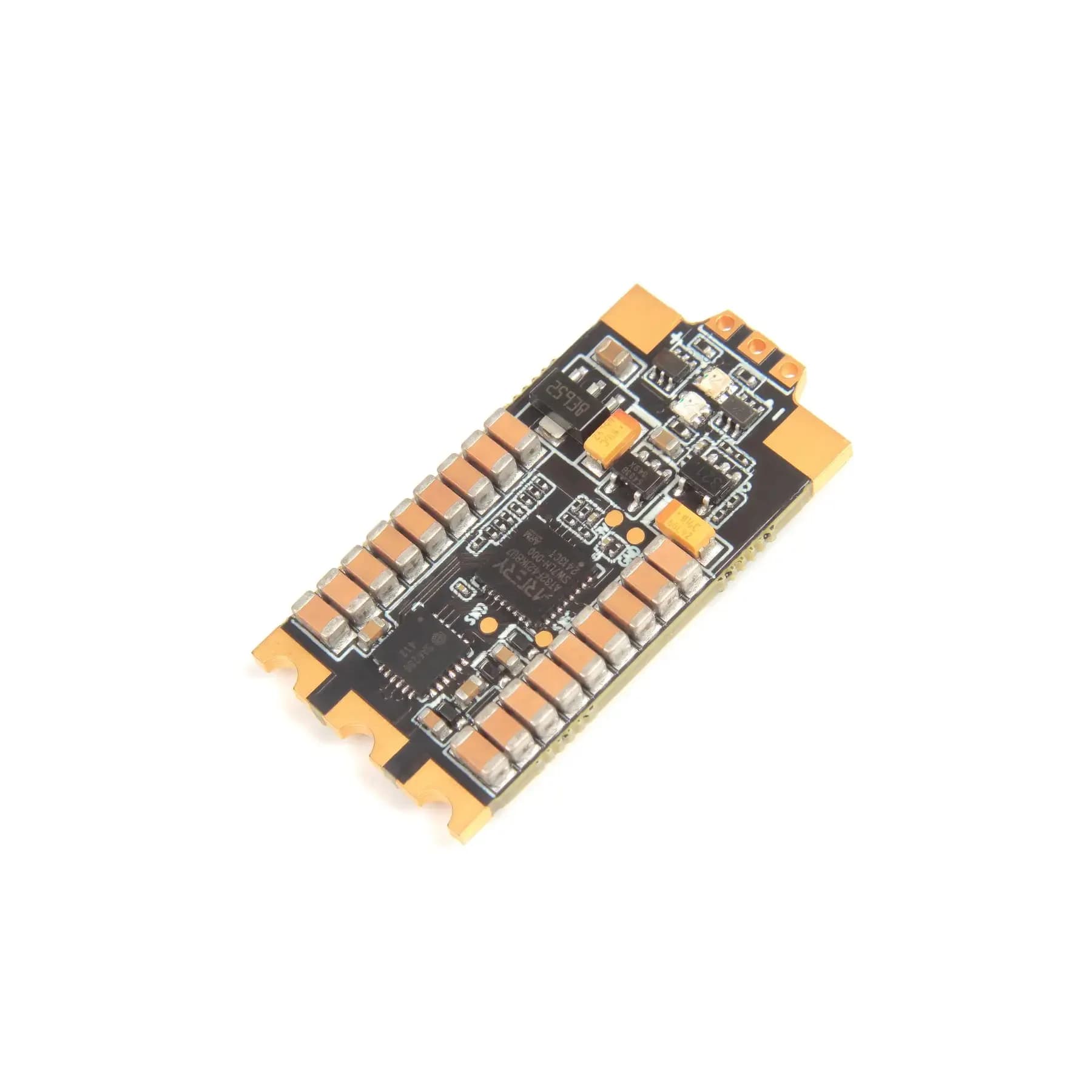

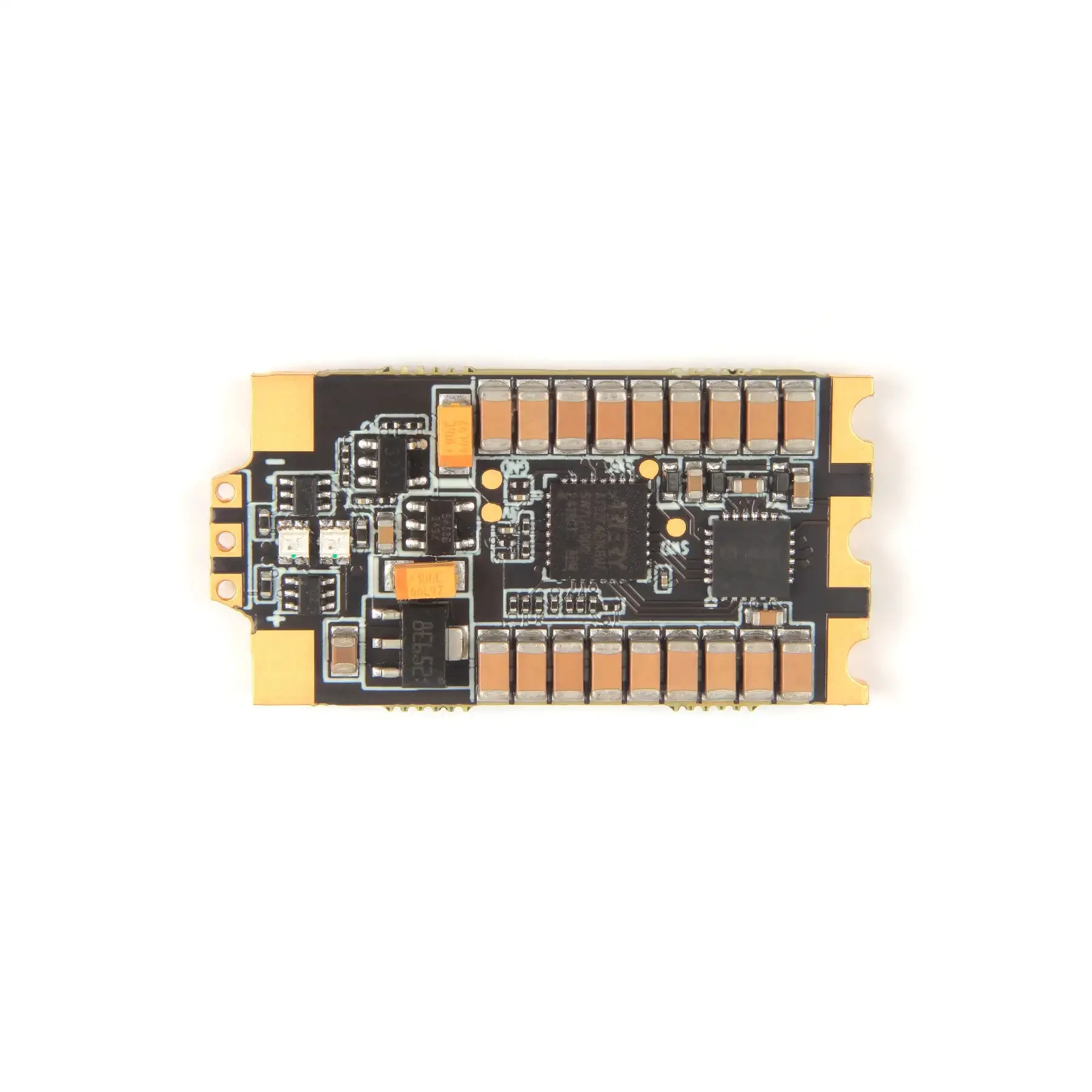

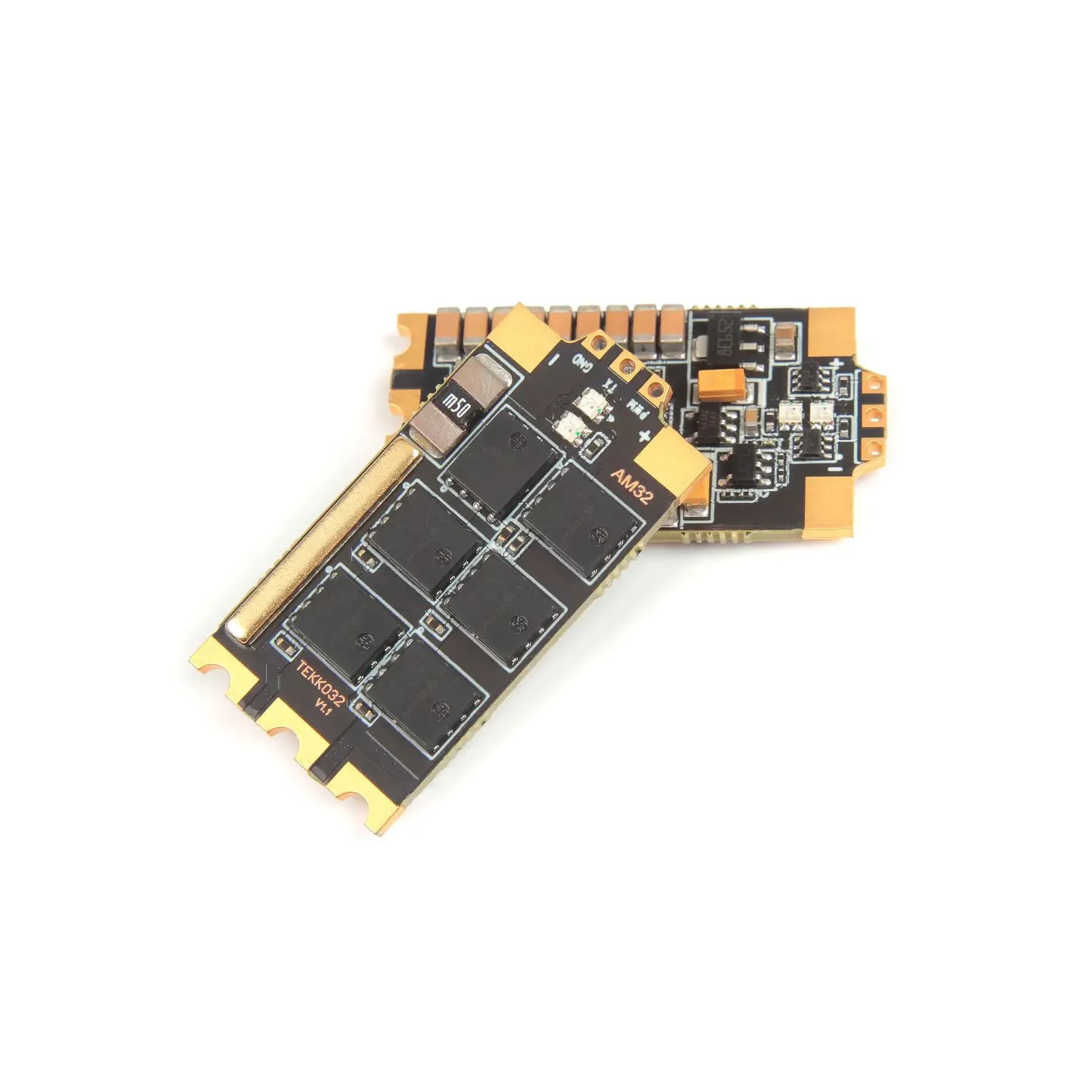

Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products.

Features:

  • F4 MCU with AM32 firmware Dshot1200 up to 32kHz

  • PWM up to 48k

  • Small size & low weight

  • Auto Timing Feature

  • On-Board RGB LED

  • Build in Current sensor

  • Smooth Response

Spec:

  • 2-6s LIPO input

  • Ext. cap recommended for 6s (330uf 35v for 6s usage.)

  • 45A designed

  • Size: 17.3*34.3*4.5mm

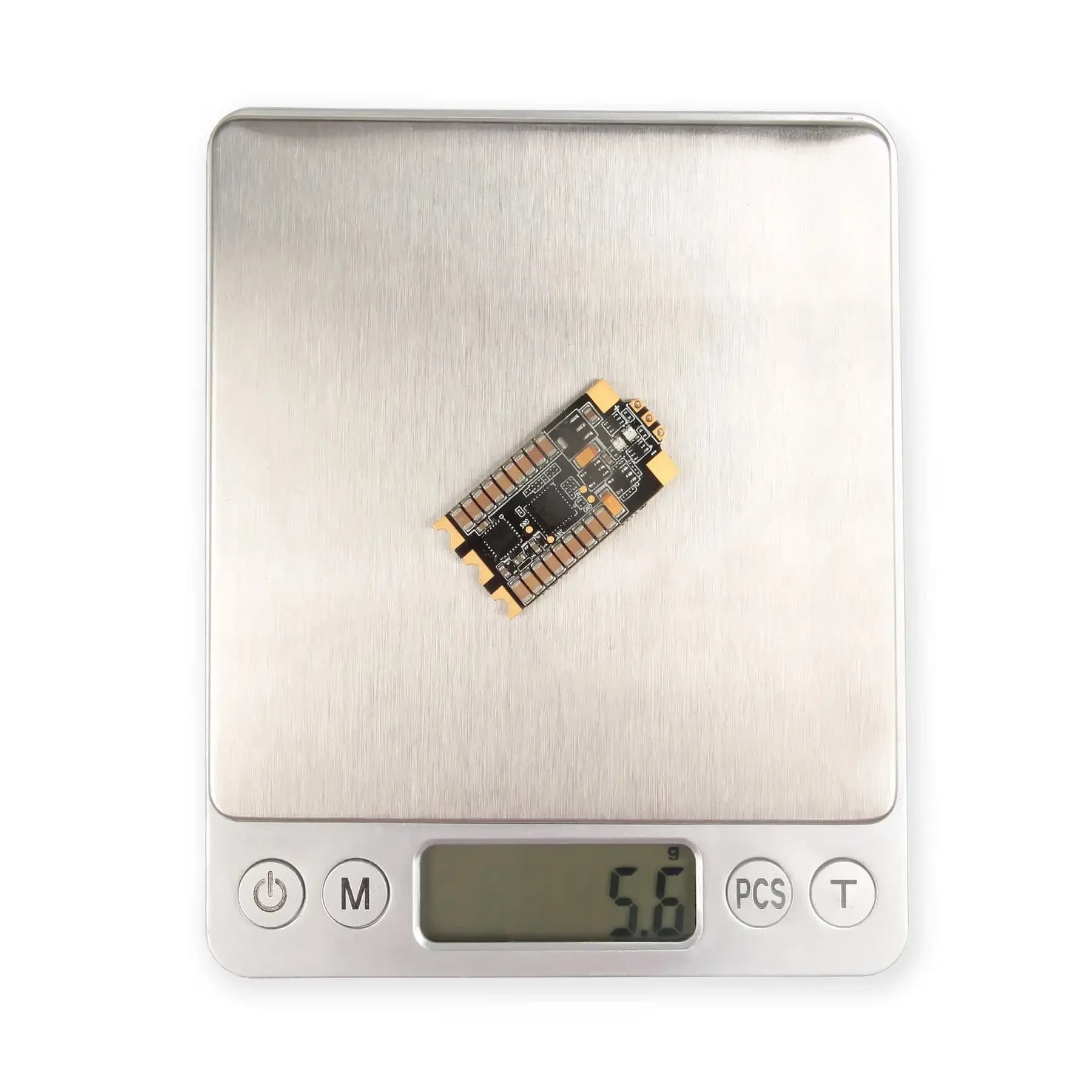

  • Weight: 5.8g

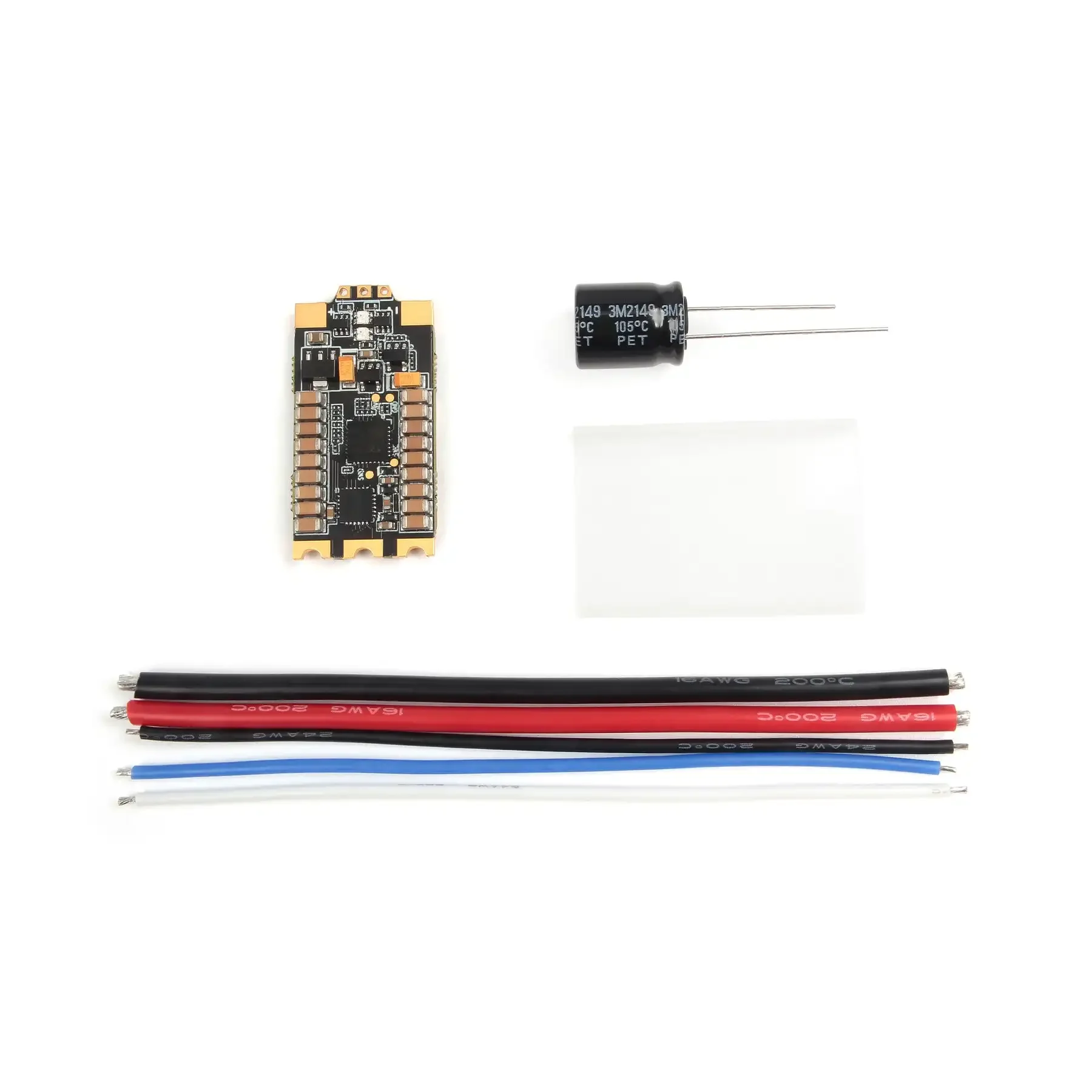

Package:

Tekko32 F4 45A ESC *1
Electrolytic capacito: 330uF 35v *1
24AWG 100mm Black wire *1
24AWG 100mm White wire *1
24AWG 100mm Blue wire *1
16AWG 100mm Red wire *1
16AWG 100mm Black wire *1
