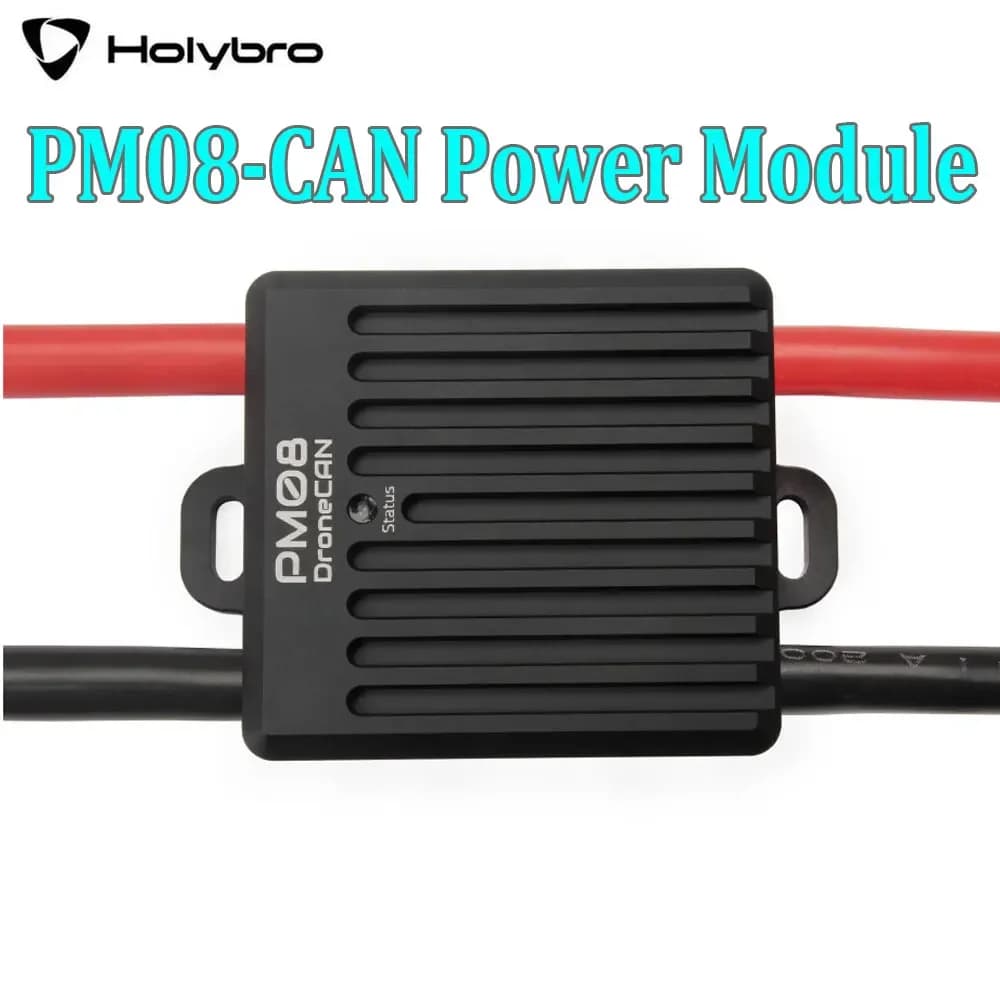

Holybro DroneCAN PM08-CAN Power Module 14S 200A Supports 2-14S & 200A Cont For RC Model/Airplane/Quadcopter
6 orders (reference)
Description
Holybro DroneCAN PM08-CAN Power Module 14S 200A Supports 2-14S & 200A Cont For RC Model/Airplane/Quadcopter ============================================================ Feature Supports 2-14S & 200A Cont, 400A Burst DroneCAN Communication Protocol Small & Compact Design Two 5V Output with Independent BEC IC and Circuitry Separated Sensor and BEC Board to Minimize Electrical Noise Interference Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified) High Accuracy Temperature Sensor for Temperature Monitor High-Efficiency Aluminum Heat Dissipation Shell Specifications Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM Voltage input: 7~60.9V (2S~14S) Continuous current:200A Burst current 400A @ 25℃ 1 sec 1000A @ 25℃ < 1 sec Max current sensing: 376A Voltage accuracy: ±0.1V Current accuracy: ±5% Temperature accuracy:±1℃ Power port output: 5.3V/3A each port Protocol: DroneCAN Operating temperature :-25℃~105℃ Firmware upgrade: Support Calibration: Support Interface Type Power & CAN Port: Molex CLIK-Mate 2mm 6Pin Battery IN/OUT Options: XT90 Connectors Tinned Wires XT90 & Ring Terminals Status LED Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection Flashing slowly (one-second intervals): CAN is successfully connected Mechanical Spec Size: 45mm×41mm×26mm (Not Include Cable) Weight: 185g (Include Cable) Reference Links PX4 & Autopilot Setup Instruction PM08CAN 3D CAD File Download Power Module Dimension TECHNICAL SPECIFICATIONS • Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM • Size: 45mm×41mm×26mm (Not Include Cable) • Weight: 185g (Include Cable) • Protocol: DroneCAN AVAILABLE OPTIONS XT90 Connectors Tinned Wires XT90 Ring Terminal PRODUCT INFORMATION Brand: Holybro Category: FPV Drone Wholesale Price: US $153.38 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Origin | Mainland China |
Product Details
Feature
Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Output with Independent BEC IC and Circuitry

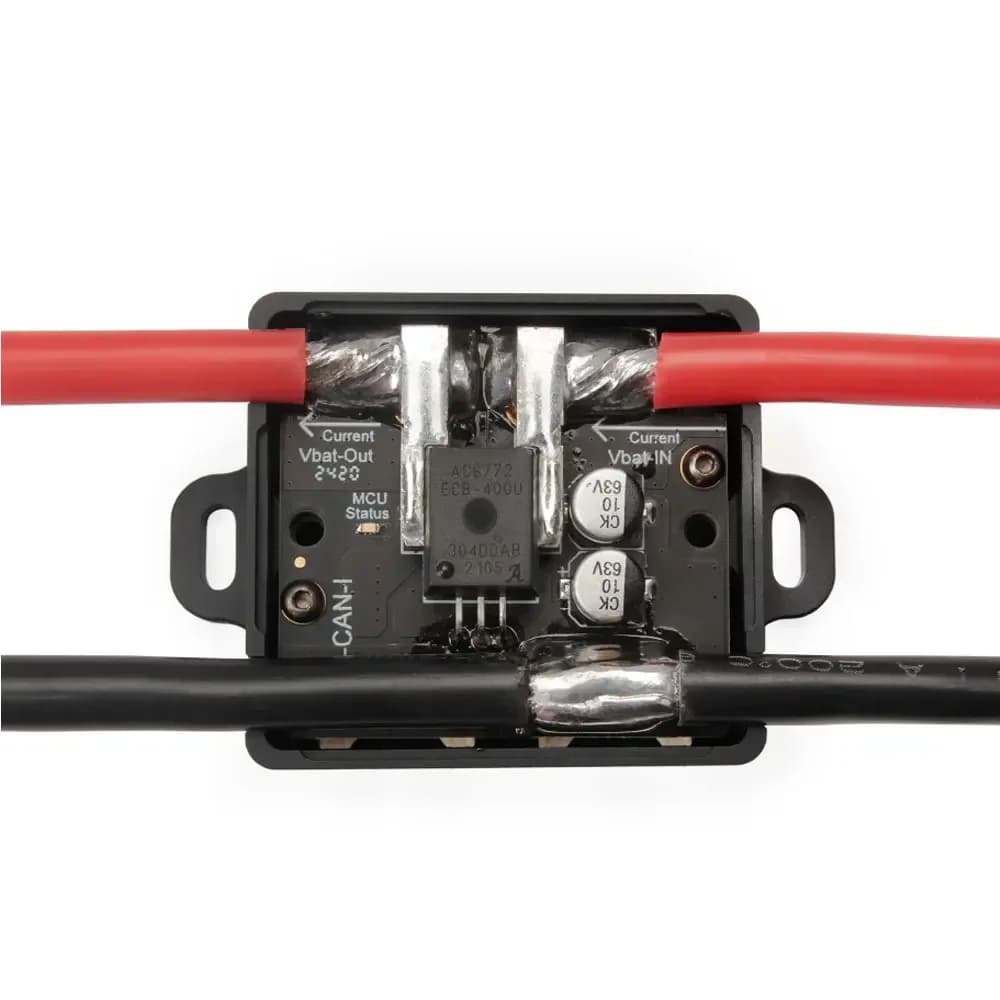

Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor
High-Efficiency Aluminum Heat Dissipation Shell
Specifications
Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
- Burst current
400A @ 25℃ 1 sec
1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature :-25℃~105℃
Firmware upgrade: Support
Calibration: Support
Interface Type

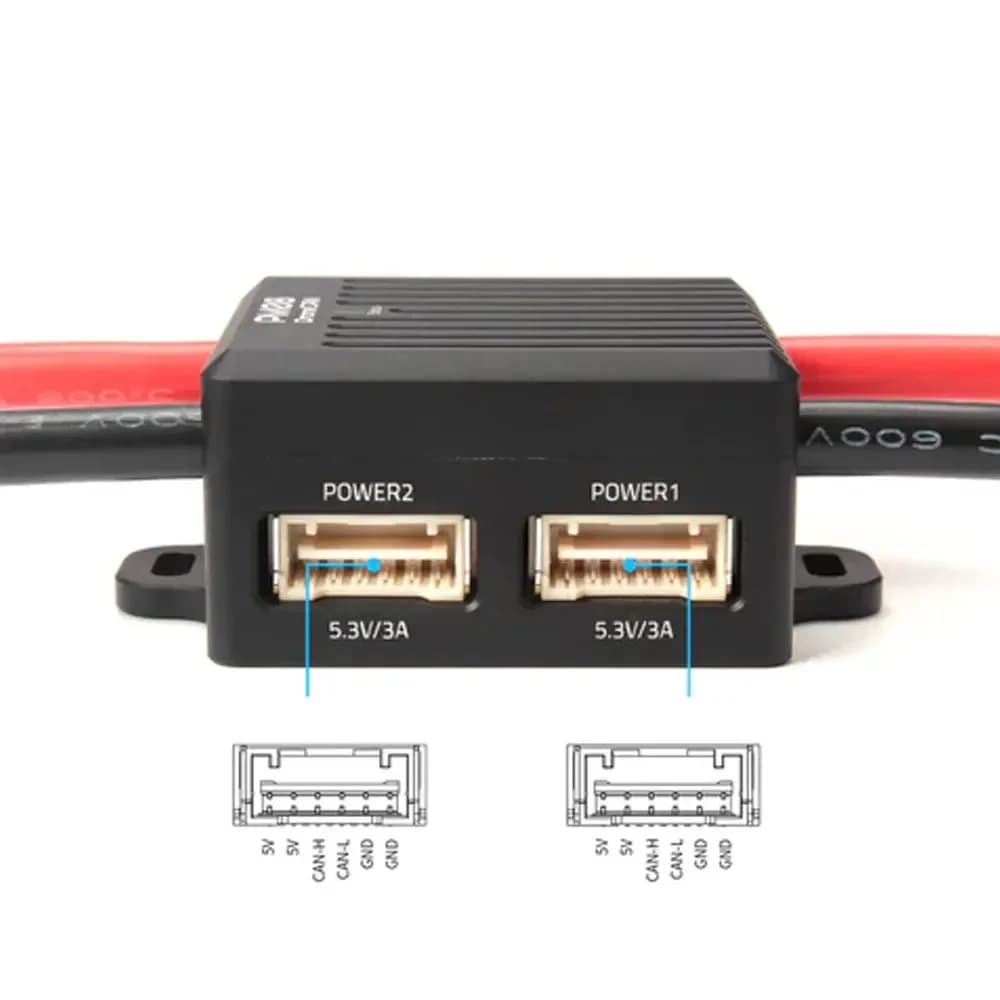

Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
- Battery IN/OUT Options:

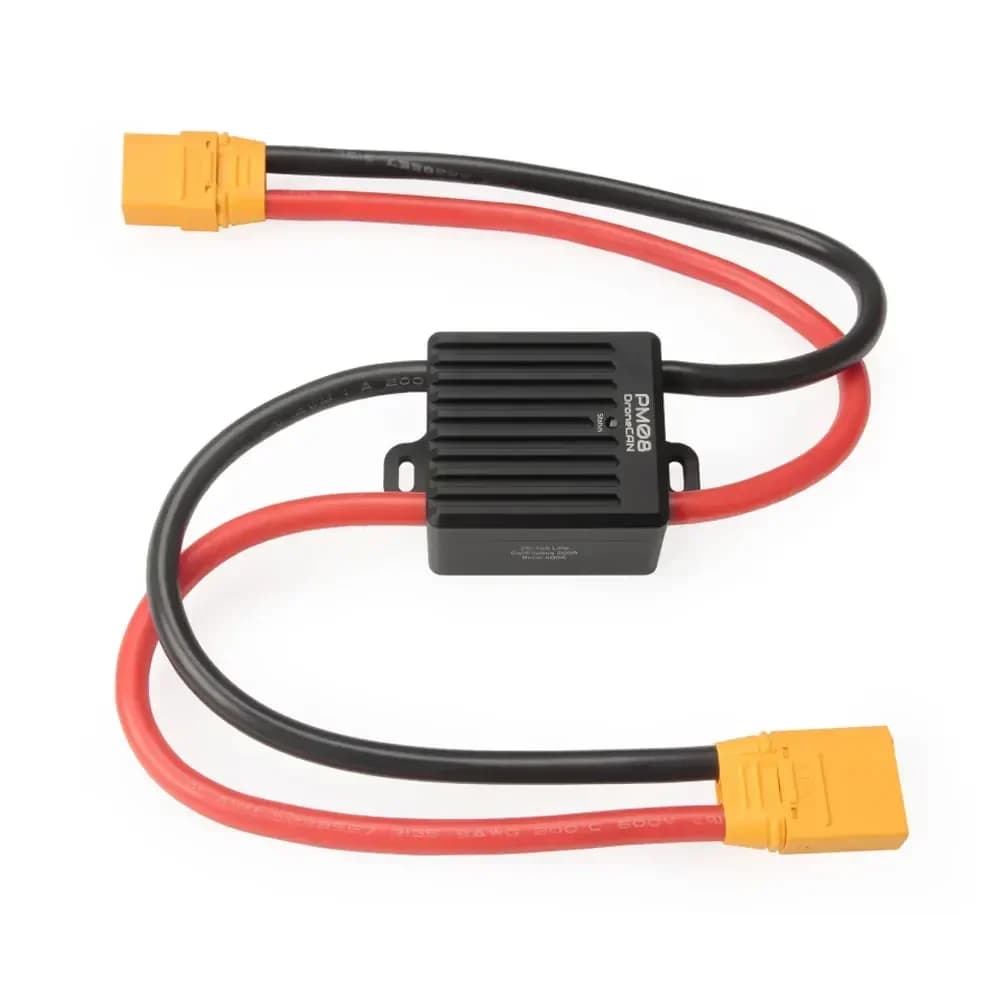

XT90 Connectors

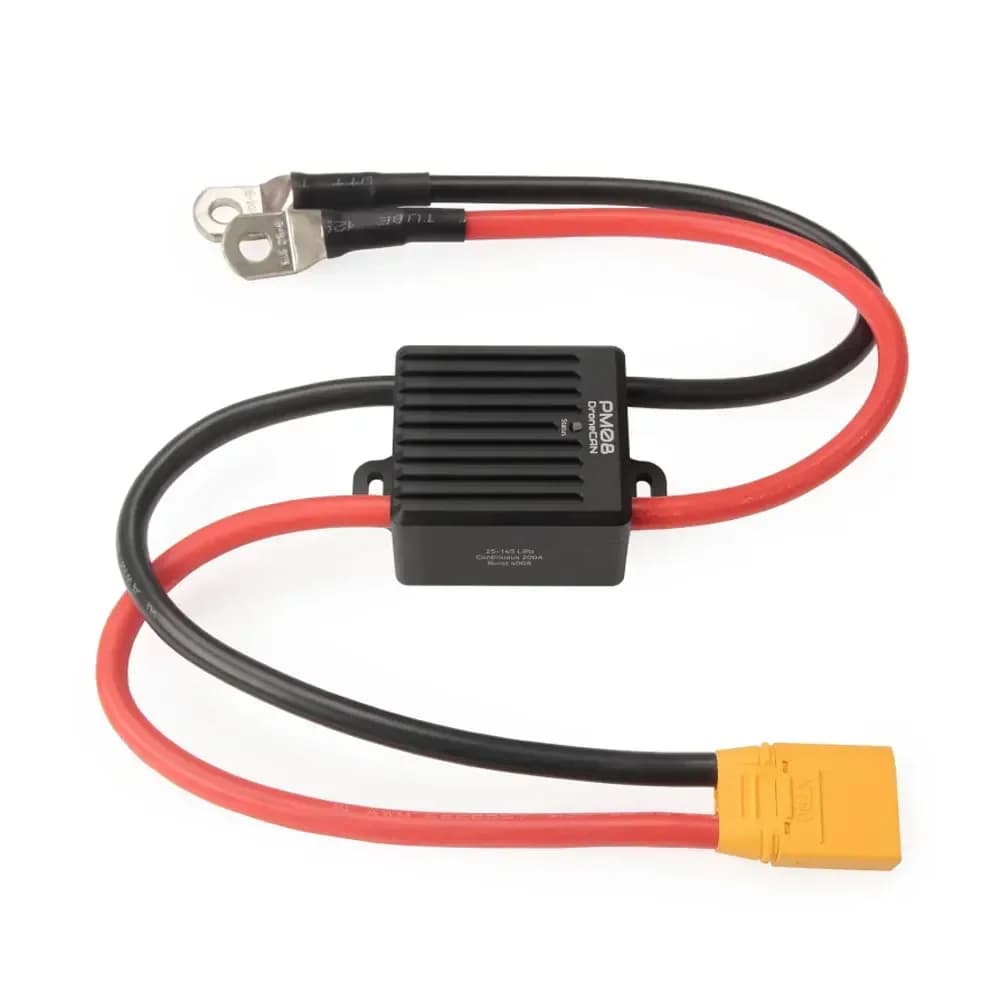

Tinned Wires
XT90 & Ring Terminals
Status LED
Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Mechanical Spec
Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
Reference Links
PM08CAN 3D CAD File Download
