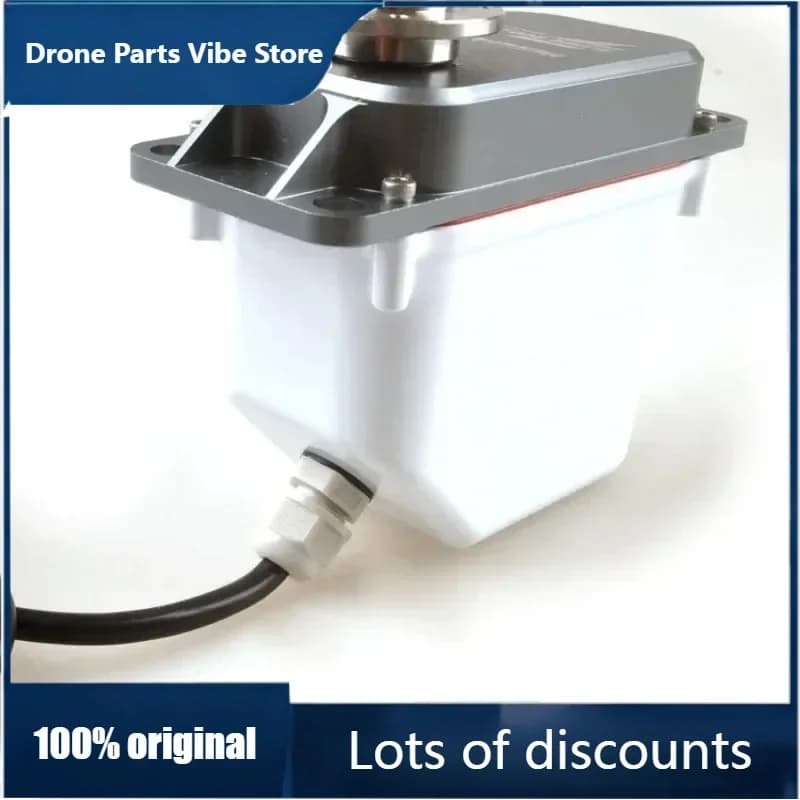

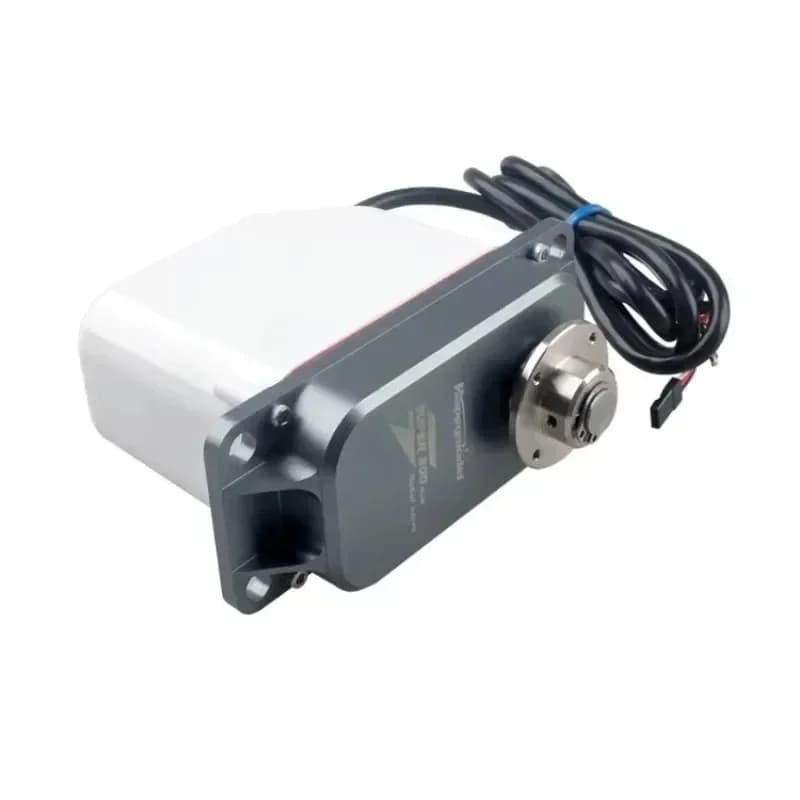

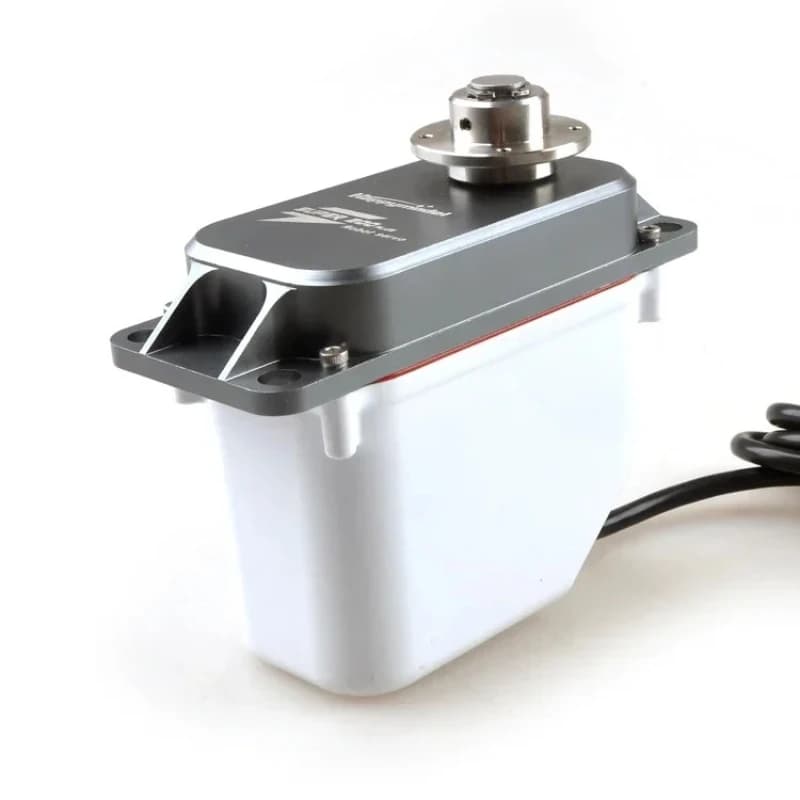

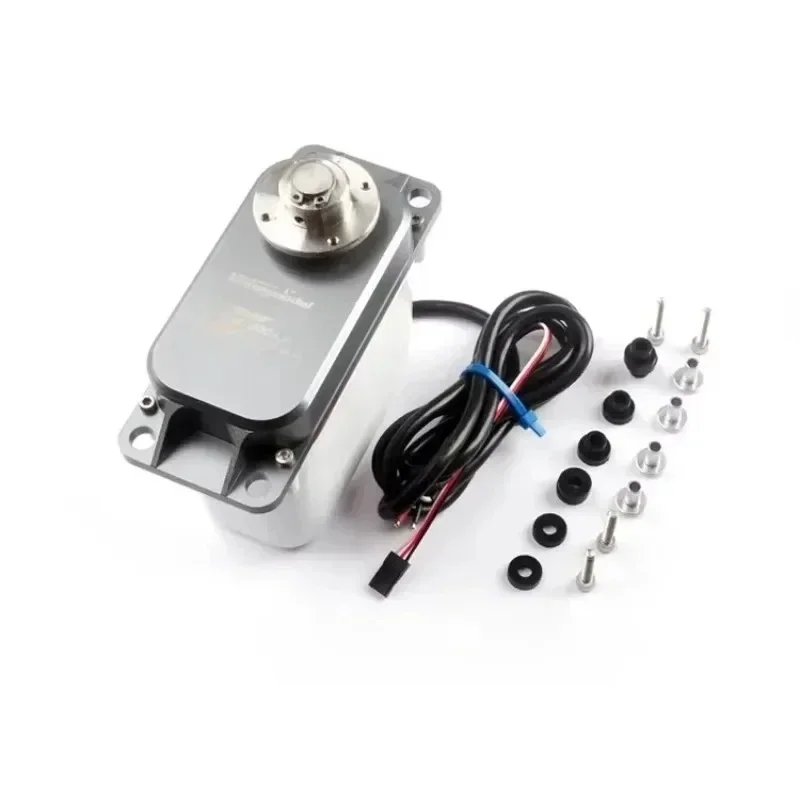

Fy1pcs new HappyModel Super200 Plus 200KG Super400 Plus 400KG Industrial Robot Servo
1 orders (reference)
Description
Fy1pcs new HappyModel Super200 Plus 200KG Super400 Plus 400KG Industrial Robot Servo ============================================================ Features: 1. The servo is small in size and light in weight, and its internal structure has been improved. 2.The control and drive circuit hardware of the steering gear adopts the current mainstream components, which has faster calculation speed and smaller volume. It adopts a non-contact Hall sensor, which has higher resolution, wear-resistant, with longer service life and more reliable. 3.We added heat sinks to the servo motor drive tube. The heat sinks are connected to the aluminum housing of the steering gear, which has better heat dissipation effect and increases the reliability when the steering gear is locked. 4. Metal powder metallurgy teeth are used for the first-level teeth, steel-plastic composite teeth are used for the second-level gears, so that the noise is lower, and powder metallurgy gears are used for the third-level gears, which has good self-lubricity.The steel rolling gears used in the fourth and fifth gears are surface carburized and quenched, which improves the durability and impact resistance of the gears. The overall transmission structure is more reasonable. 5. Adopt high temperature resistant enameled wire, imported brushes and commutator to improve the motor's overload resistance. After many tests, the efficiency and speed of the motor have been optimized to make it react faster. Super200 Plus Input voltage: 24V (battery power is recommended) Speed (no load): 24V, about 0.46s/60* Maximum torque: 200kg.cm Holding torque: 70kg.cm No-load current: <0.15A Locked-rotor current: 24v: <11A Input signal: PWM: 800us~ 2200us, 50~ 400Hz Operating angle range: adjustable: minimum about 60* maximum about 300° Net weight: 748g Super400 Plus Input voltage: 12V-24V (recommended to use battery power supply. If high voltage is required, it can be customized) Speed (no load): 12V, about 0.74S/60* 24 hours; about 0.37S/60* Maximum torque: 400KG.CM Rated torque: 140KG.CM No-load current: <0.1A Locked-rotor current: at 12V: <7A at 24V: <14A Input signal: PMW: 800us. .2200US, S0-400HZ Operating angle range: adjustable: minimum approx. +-30", maximum approx. +-150* Net weight: 750G AVAILABLE OPTIONS Super400 Plus Super200 Plus PRODUCT INFORMATION Brand: HappyModel Category: FPV Drone Wholesale Price: US $114.04 ————————————————————————————————————————
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Bulk buying | Contact me foraquote |
| Can't find what you need | Contact customer service |
| Service | Bill Of Materials Quotation |
Product Details
1. The servo is small in size and light in weight, and its internal structure has been improved.
2.The control and drive circuit hardware of the steering gear adopts the current mainstream components, which has faster calculation speed and smaller volume. It adopts a non-contact Hall sensor, which has higher resolution, wear-resistant, with longer service life and more reliable.
3.We added heat sinks to the servo motor drive tube. The heat sinks are connected to the aluminum housing of the steering gear, which has better heat dissipation effect and increases the reliability when the steering gear is locked.
4. Metal powder metallurgy teeth are used for the first-level teeth, steel-plastic composite teeth are used for the second-level gears, so that the noise is lower, and powder metallurgy gears are used for the third-level gears, which has good self-lubricity.The steel rolling gears used in the fourth and fifth gears are surface carburized and quenched, which improves the durability and impact resistance of the gears. The overall transmission structure is more reasonable.
5. Adopt high temperature resistant enameled wire, imported brushes and commutator to improve the motor's overload resistance. After many tests, the efficiency and speed of the motor have been optimized to make it react faster.
Super200 Plus
Input voltage: 24V (battery power is recommended)
Speed (no load): 24V, about 0.46s/60*
Maximum torque: 200kg.cm
Holding torque: 70kg.cm
No-load current: <0.15A
Locked-rotor current: 24v: <11A
Input signal: PWM: 800us~ 2200us, 50~ 400Hz
Operating angle range: adjustable: minimum about 60* maximum about 300°
Net weight: 748g
Super400 Plus
Input voltage: 12V-24V (recommended to use battery power supply. If high voltage is required, it can be customized)
Speed (no load): 12V, about 0.74S/60* 24 hours; about 0.37S/60*
Maximum torque: 400KG.CM
Rated torque: 140KG.CM
No-load current: <0.1A
Locked-rotor current: at 12V: <7A at 24V: <14A
Input signal: PMW: 800us. .2200US, S0-400HZ
Operating angle range: adjustable: minimum approx. +-30", maximum approx. +-150*
Net weight: 750G
